2027 Diamond C LPT LPT307-16X82 - #DCT18852

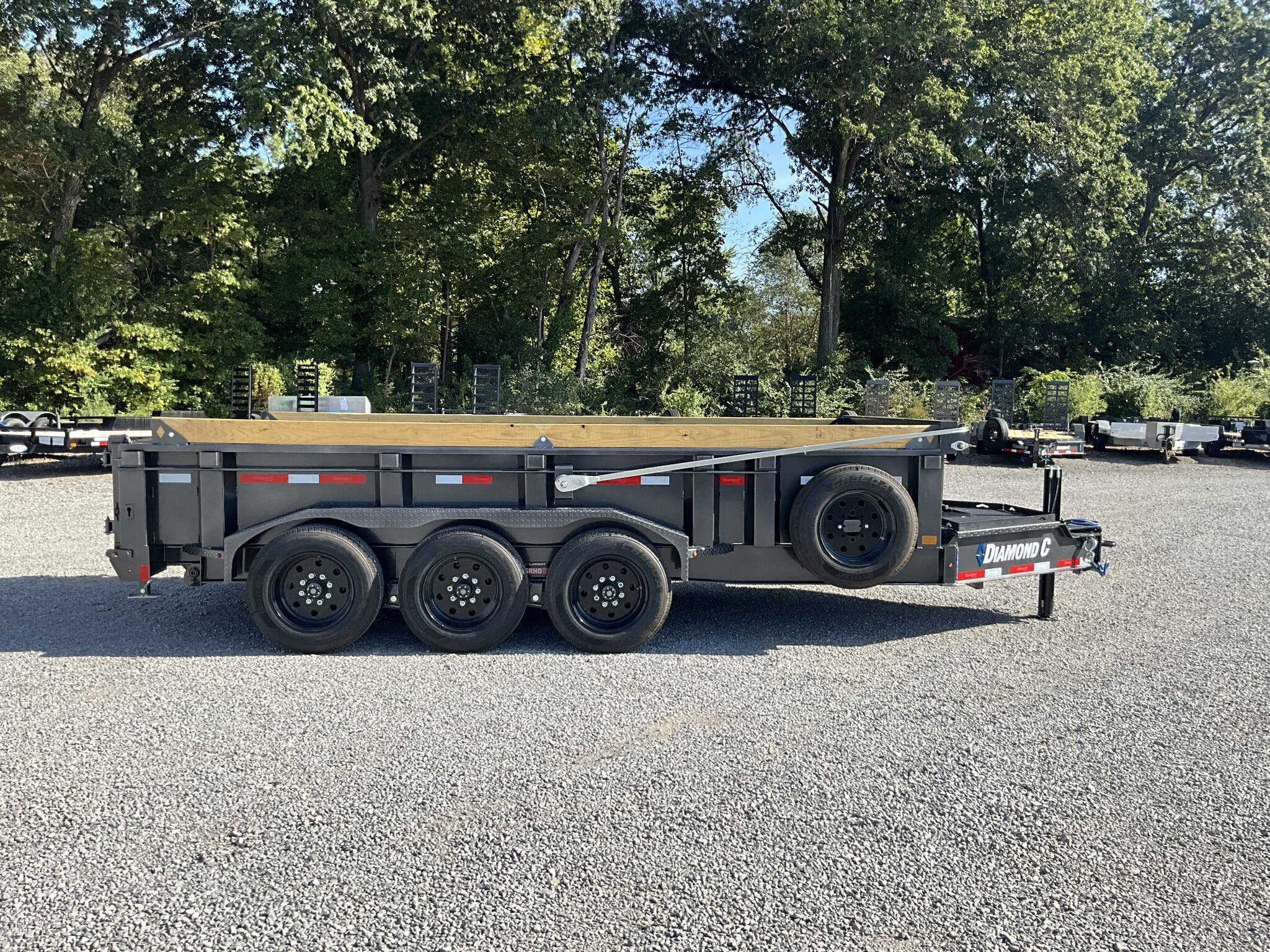

2027 DIAMOND C LPT307 PACESETTER 21K 82" × 16' LOW PROFILE TELESCOPIC DUMP TRAILER, CARBON METALLIC GRAY, 7-GAUGE FLOOR & SIDES, ELECTRIC TARP, ABS BRAKES — FOR SALE IN MOUNT VERNON, IL 62864

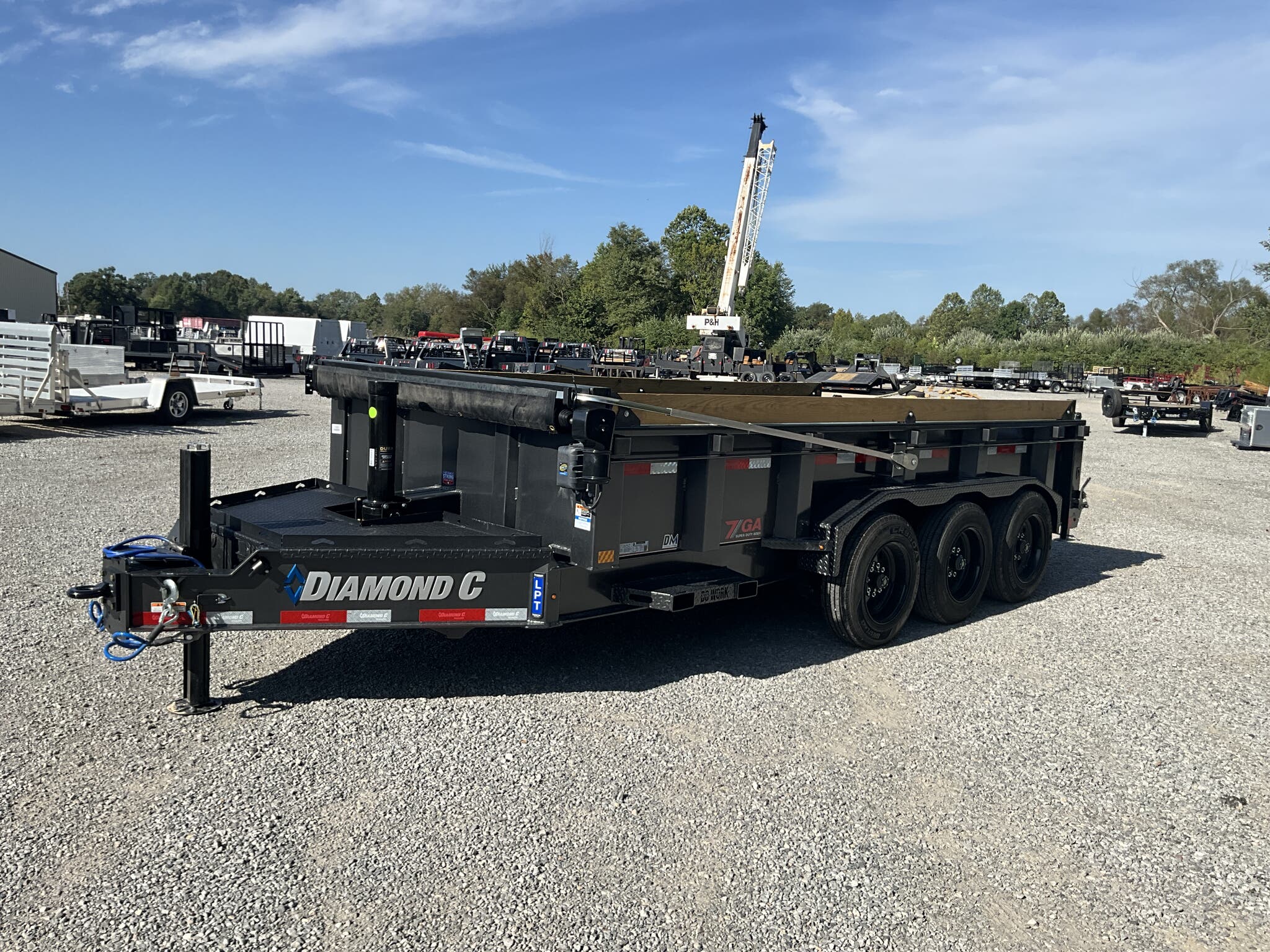

Feature: Pacesetter Edition LPT307 low-profile telescopic dump trailer with engineered I-beam frame

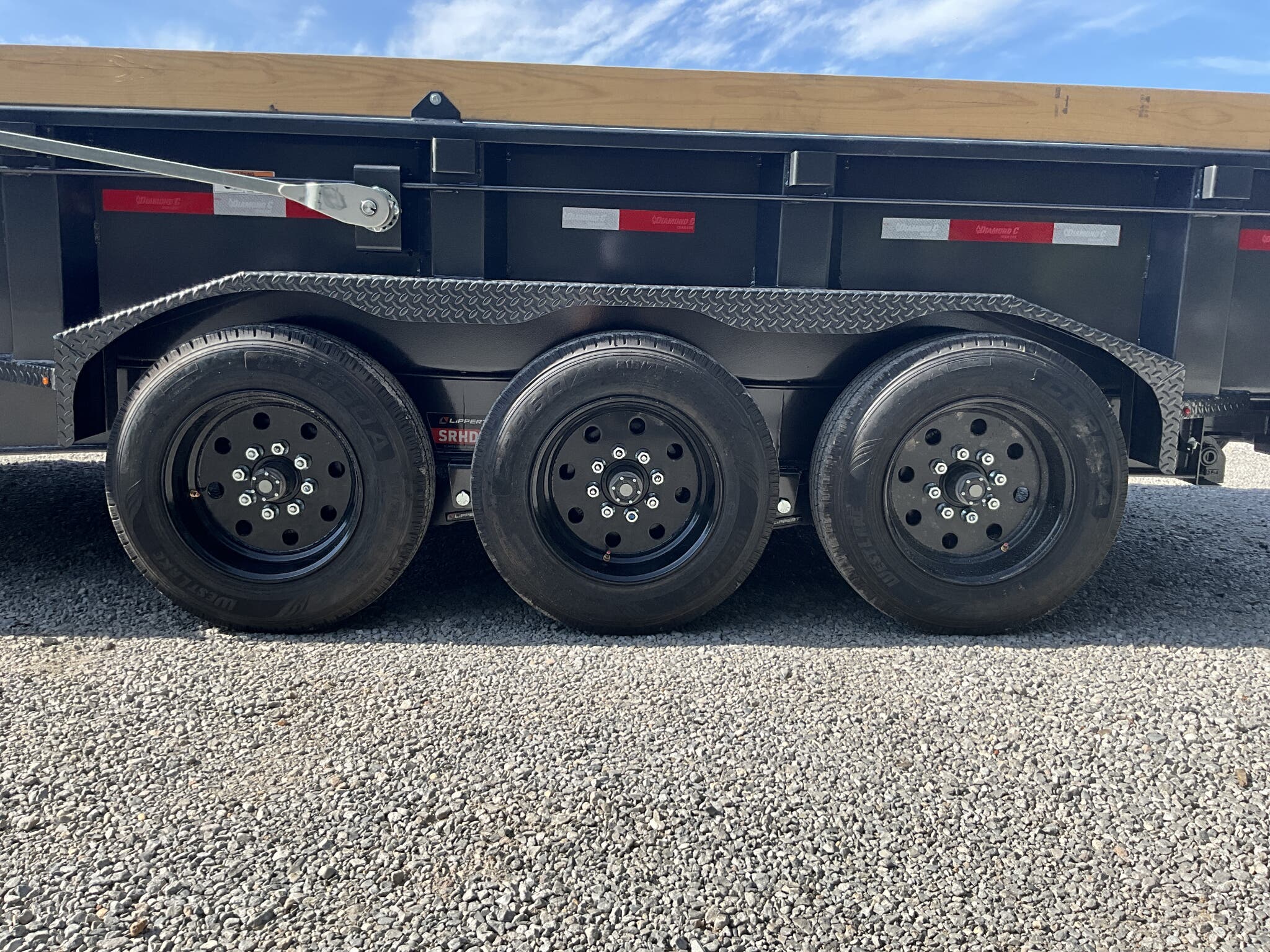

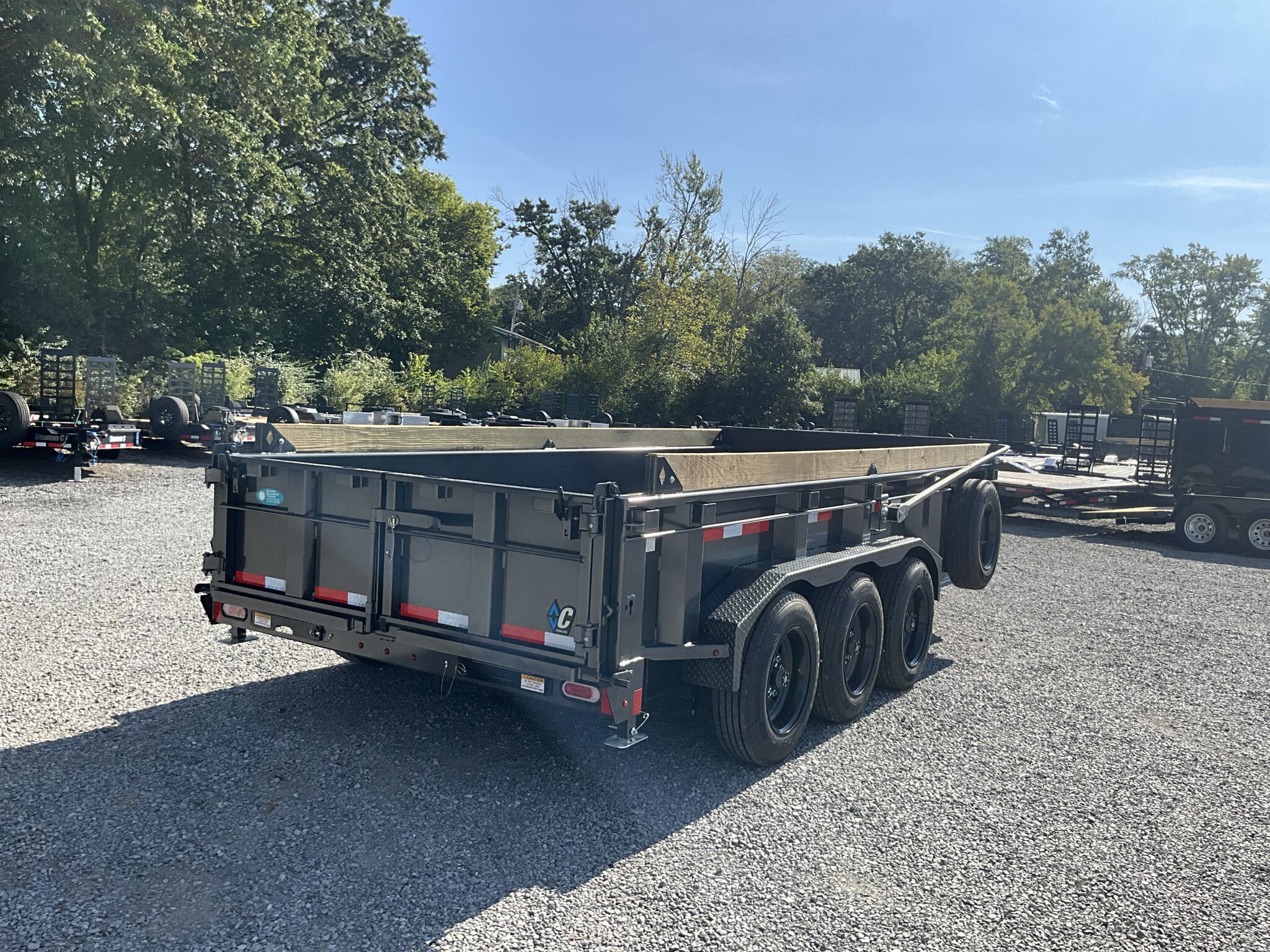

Feature: Triple 7K drop axles with electric drum brakes and ABS anti-lock braking system

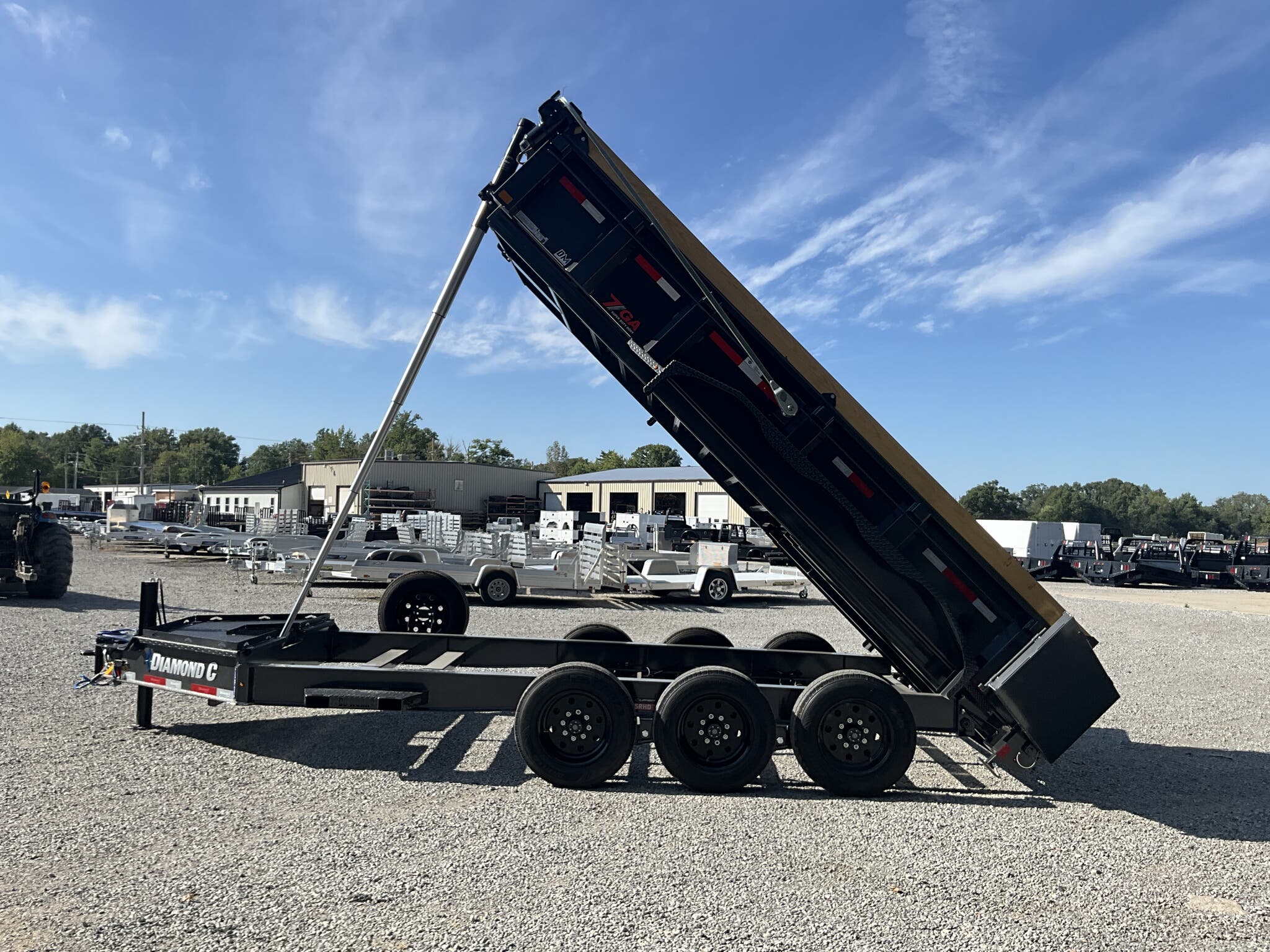

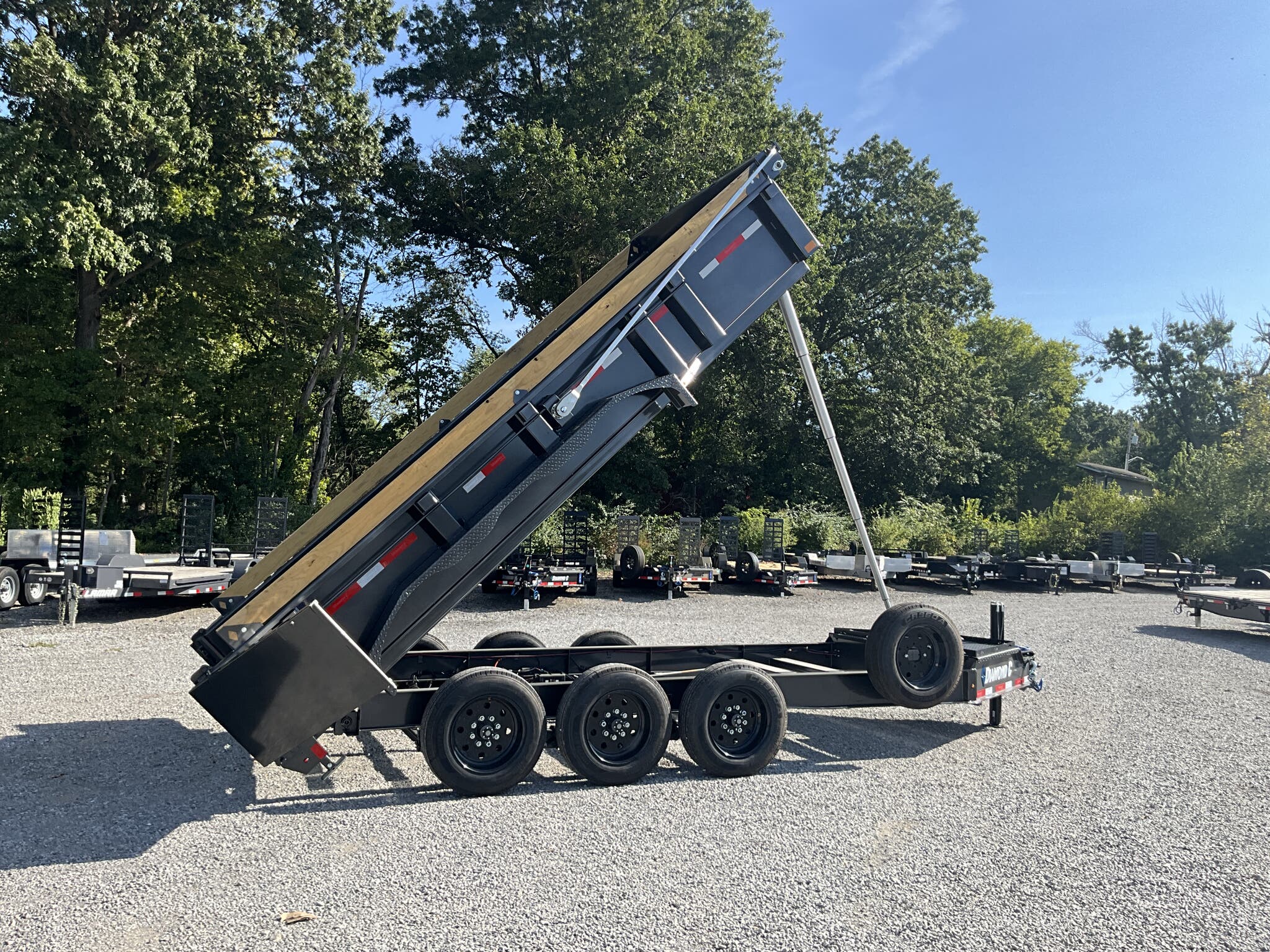

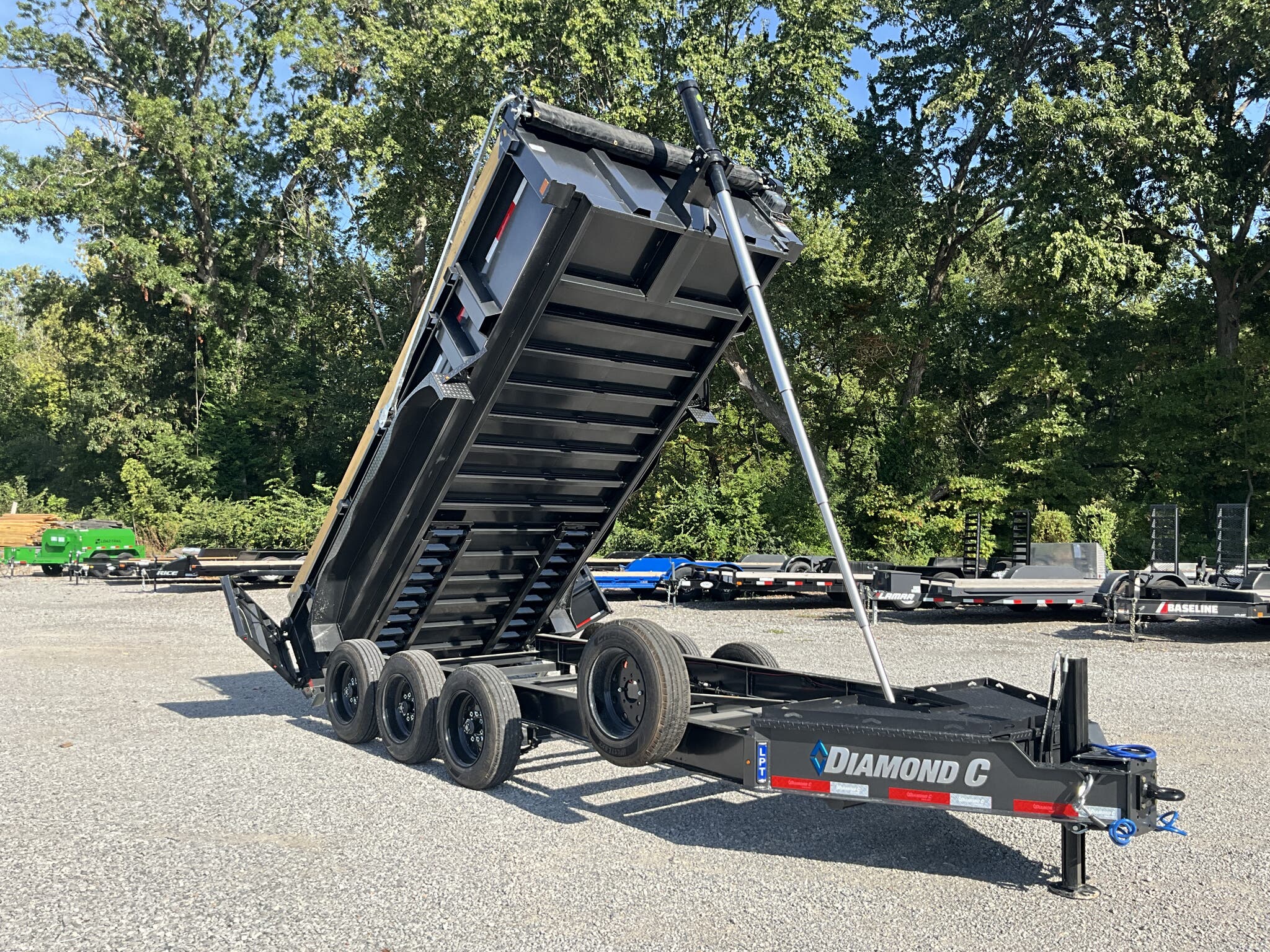

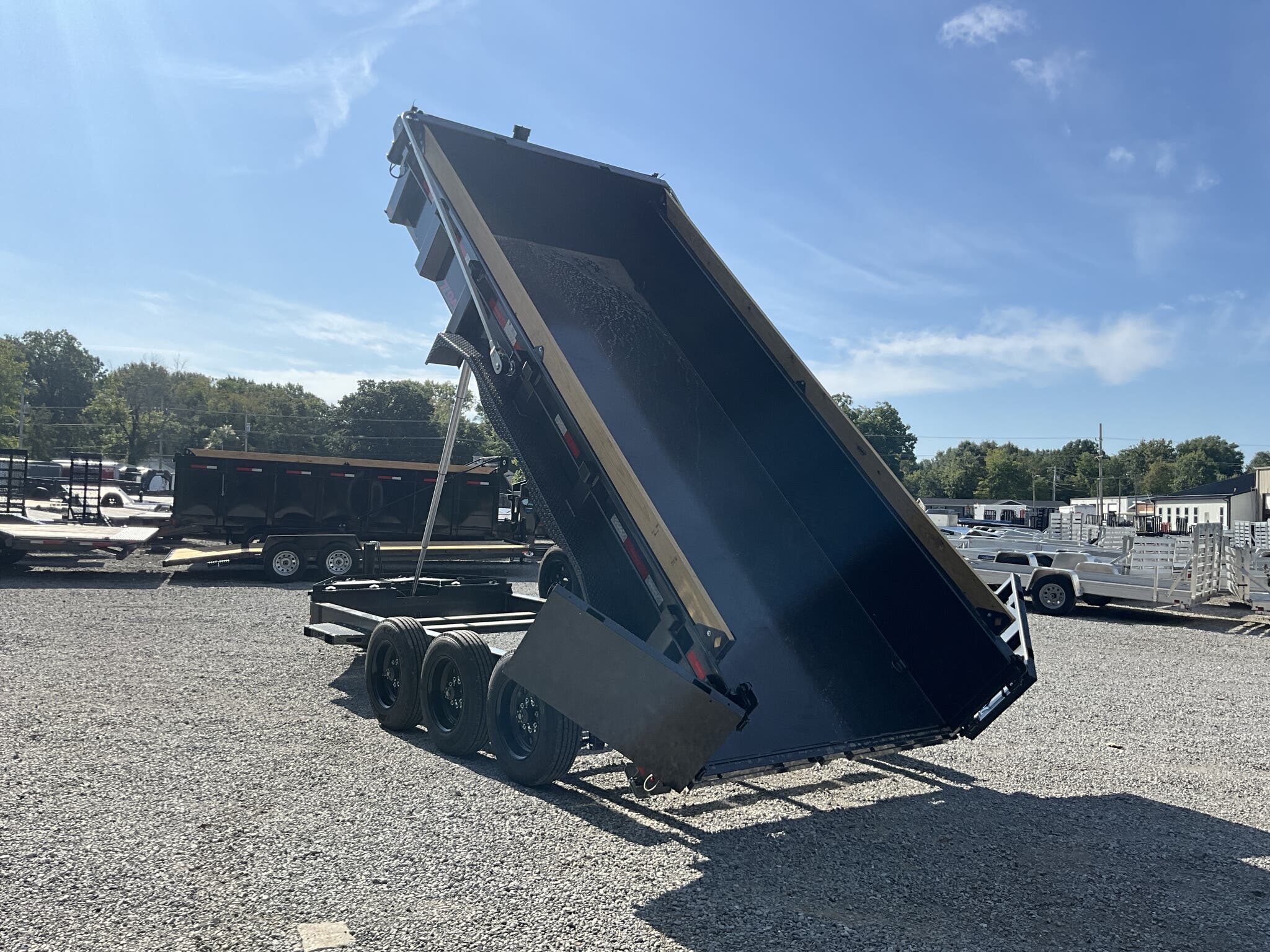

Feature: 5-stage power-up/gravity-down hydraulic dump system with Bluetooth wireless controller
Feature: Single 20K hydraulic jack operated through the 4-button wireless controller

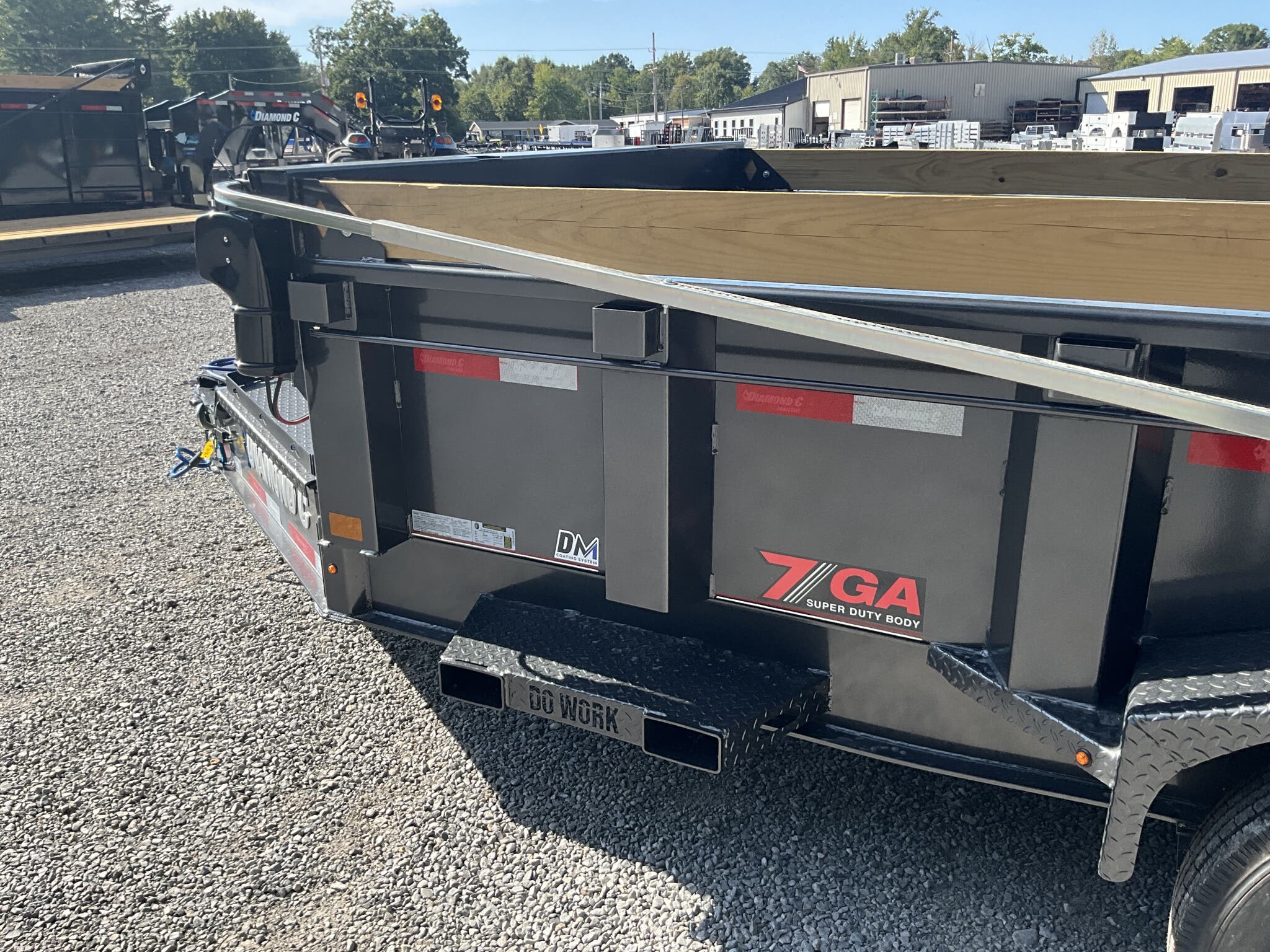

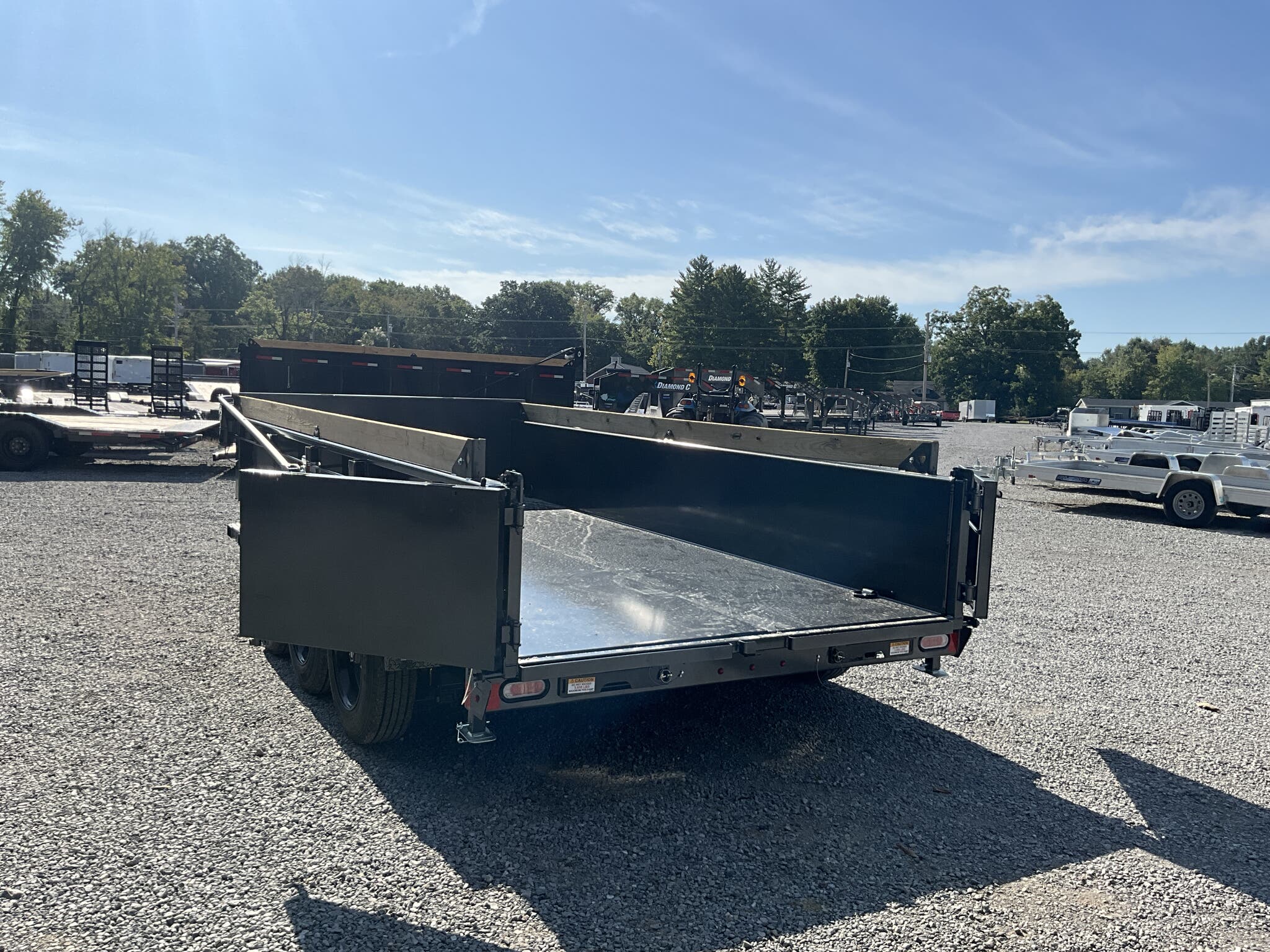

Feature: Heavy-duty 7-gauge (3/16") steel floor and 24" tall 7-gauge steel sides
Feature: Board brackets with boards and raised front for increased hauling versatility

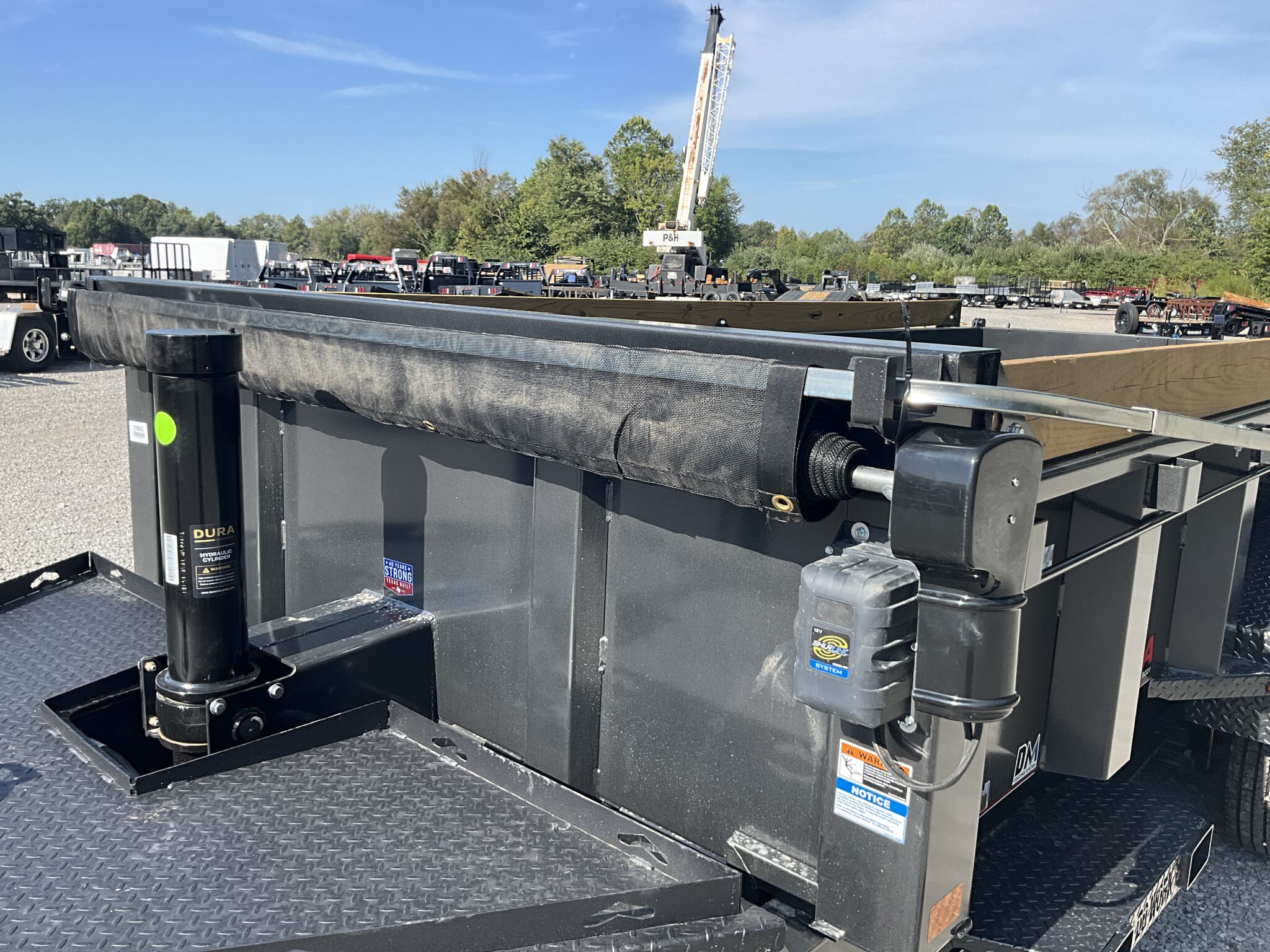

Feature: 20' heavy-duty black mesh electric long-arm tarp system
Feature: 78" rear slide-in 3" I-beam ramps with rear drop-leg stabilizer jacks for equipment loading
Feature: 3/16" diamond plate super heavy-duty fenders
Feature: Driver-side fork holder step for convenient equipment and attachment storage

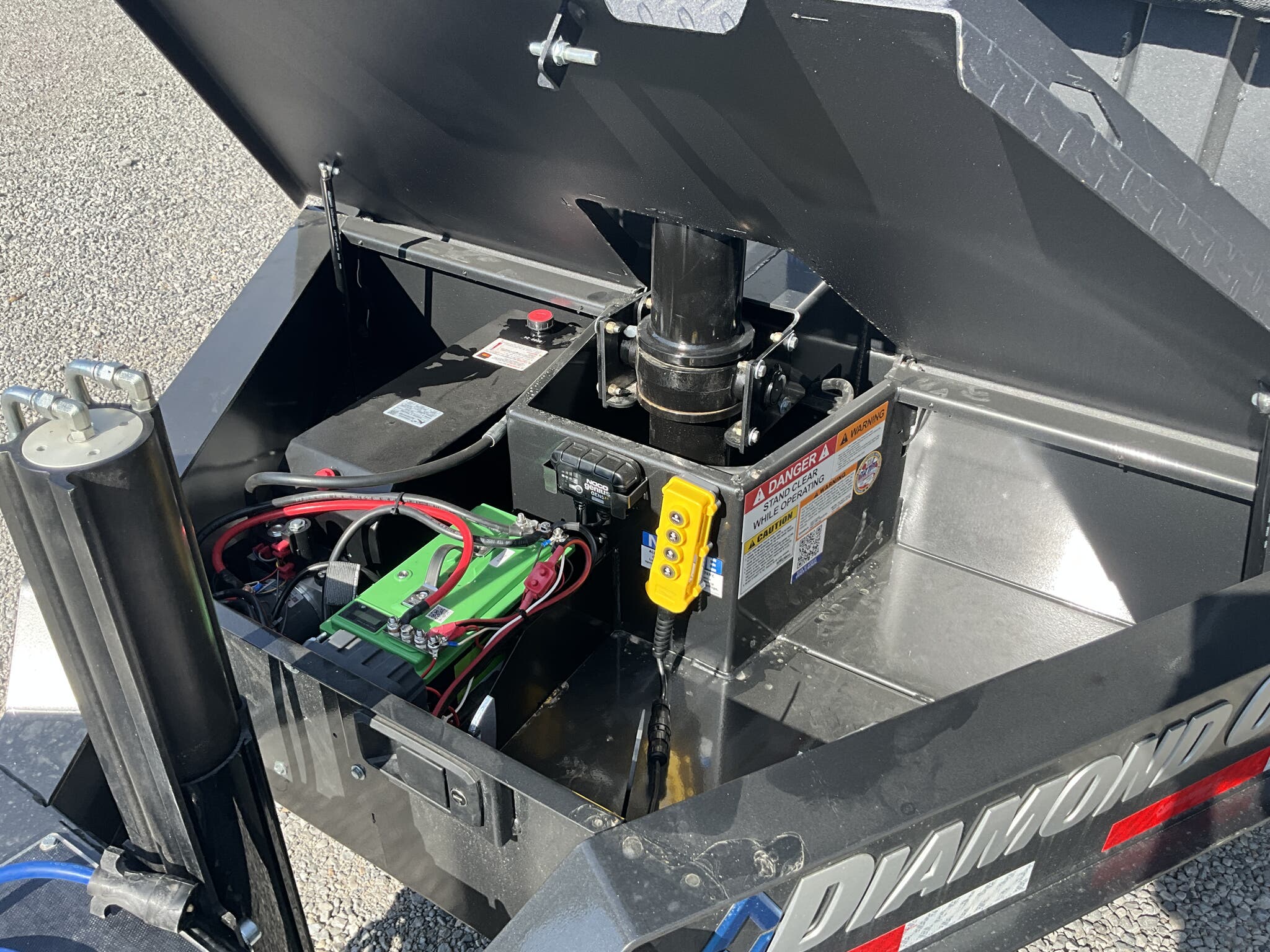

Feature: Lithium battery upgrade with SolarPulse 7-watt charging system
Feature: ST215/75R17.5 single 18-ply tires with matching spare

Specs — Model: LPT307 Low Profile Telescopic Dump Trailer — Pacesetter Edition
Specs — Size: 82" × 16'
Specs — GVWR: 21,000 lb
Specs — Axles/Brakes: (3) 7,000 lb drop axles with electric drum brakes and ABS
Specs — Suspension: 6-leaf slipper roller spring suspension

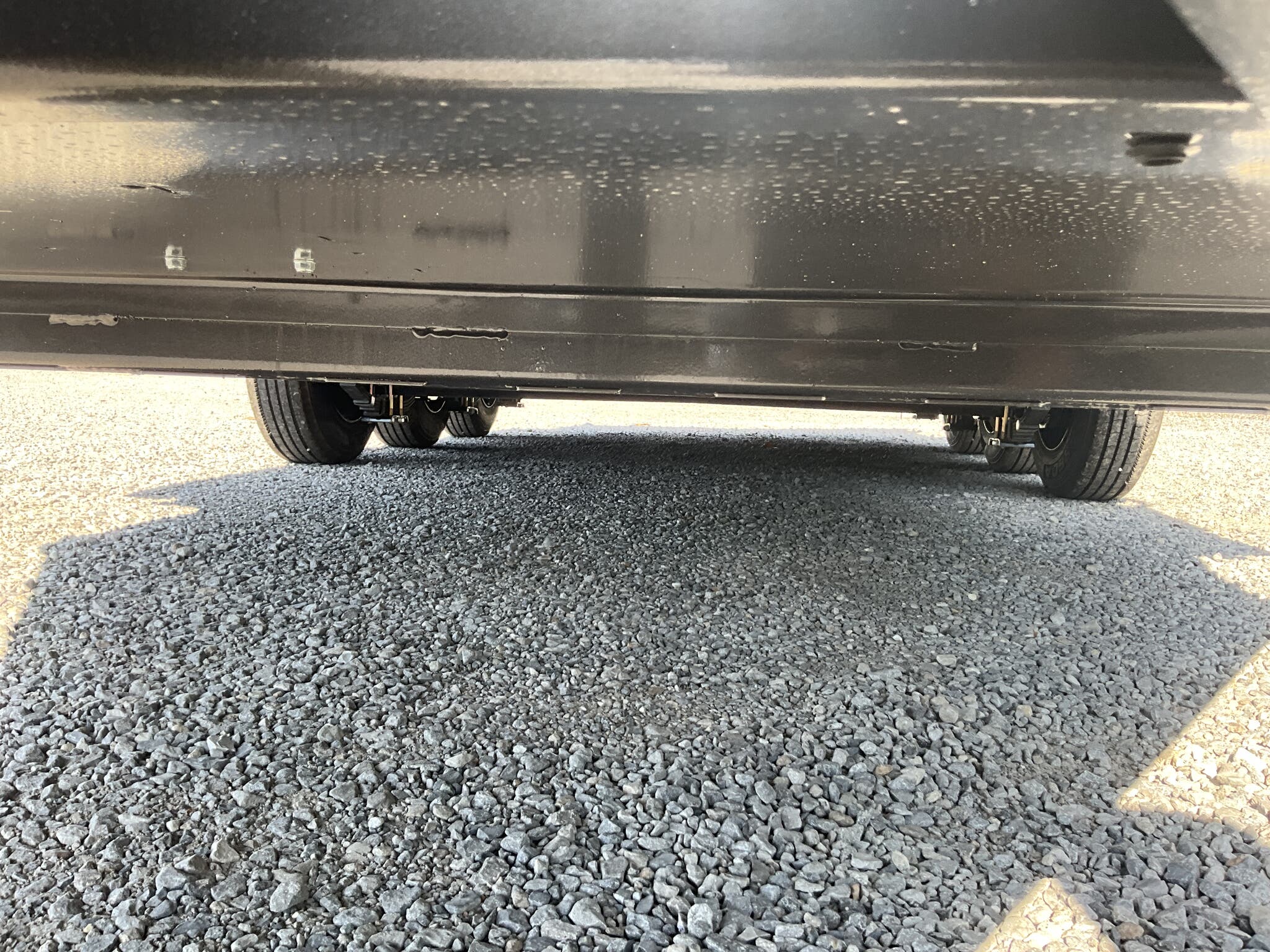

Specs — Frame: Engineered I-beam frame with crossmembers on 12" centers

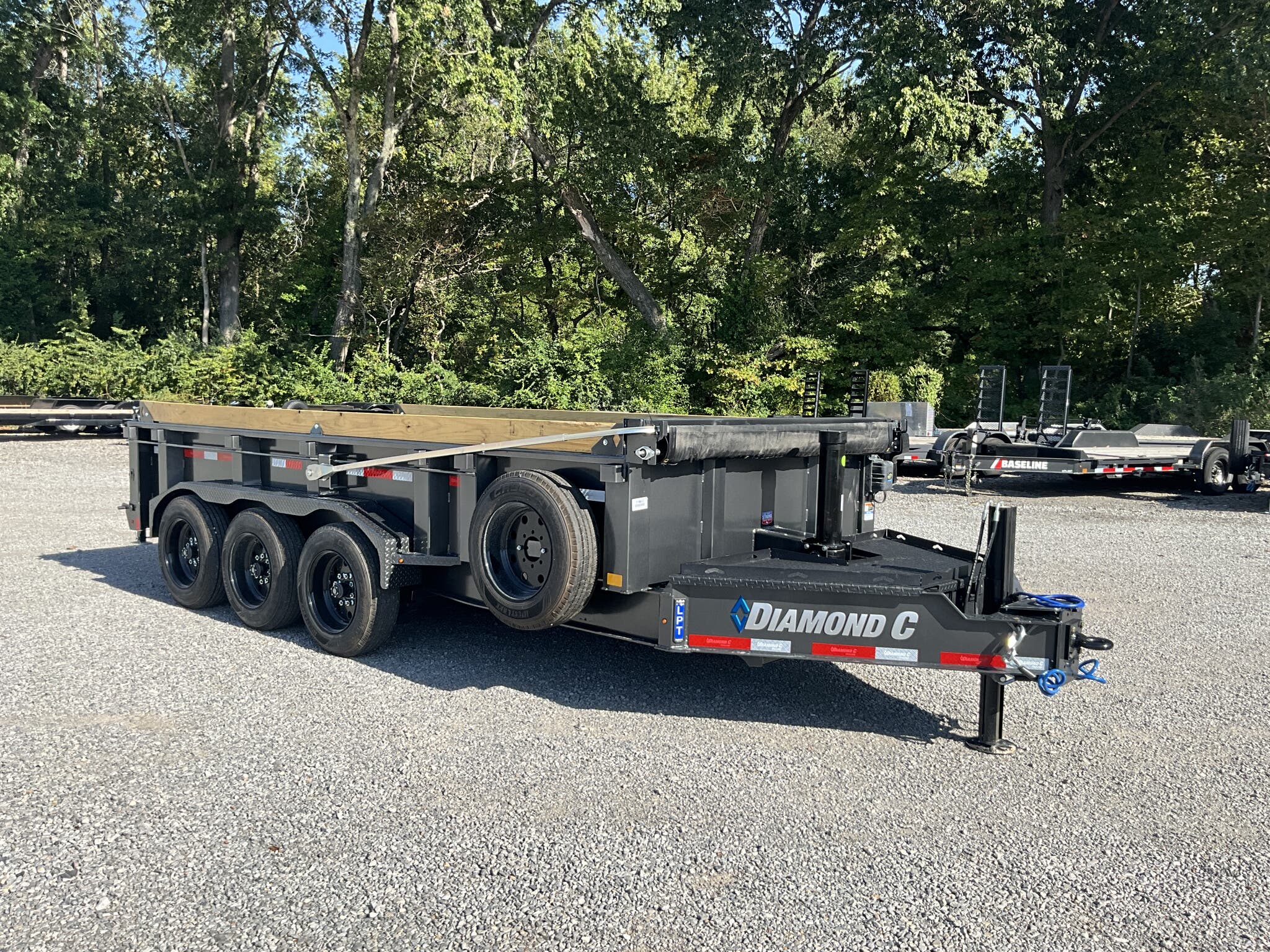

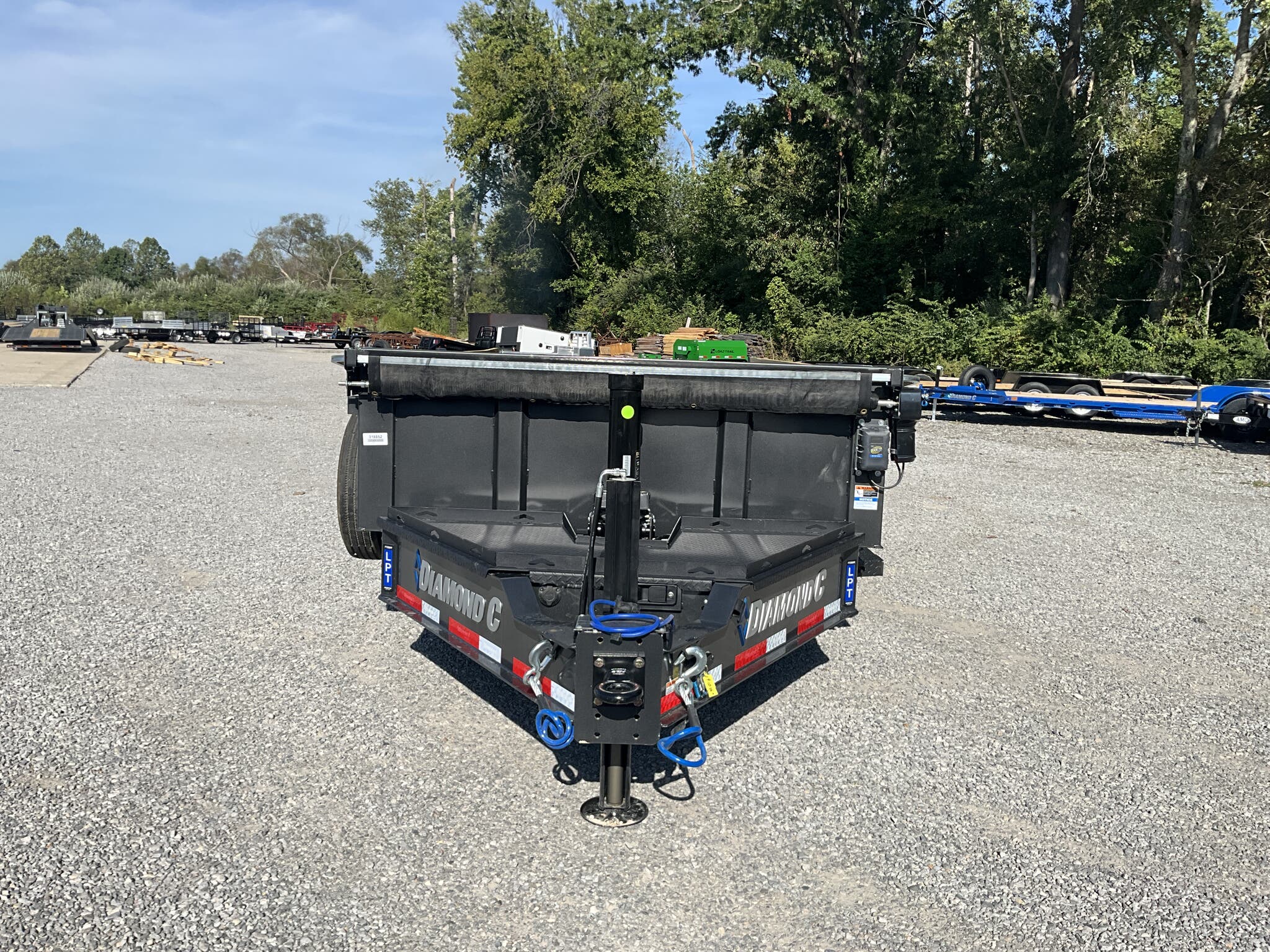

Specs — Tongue: Engineered tongue with heavy-duty V-tongue lid

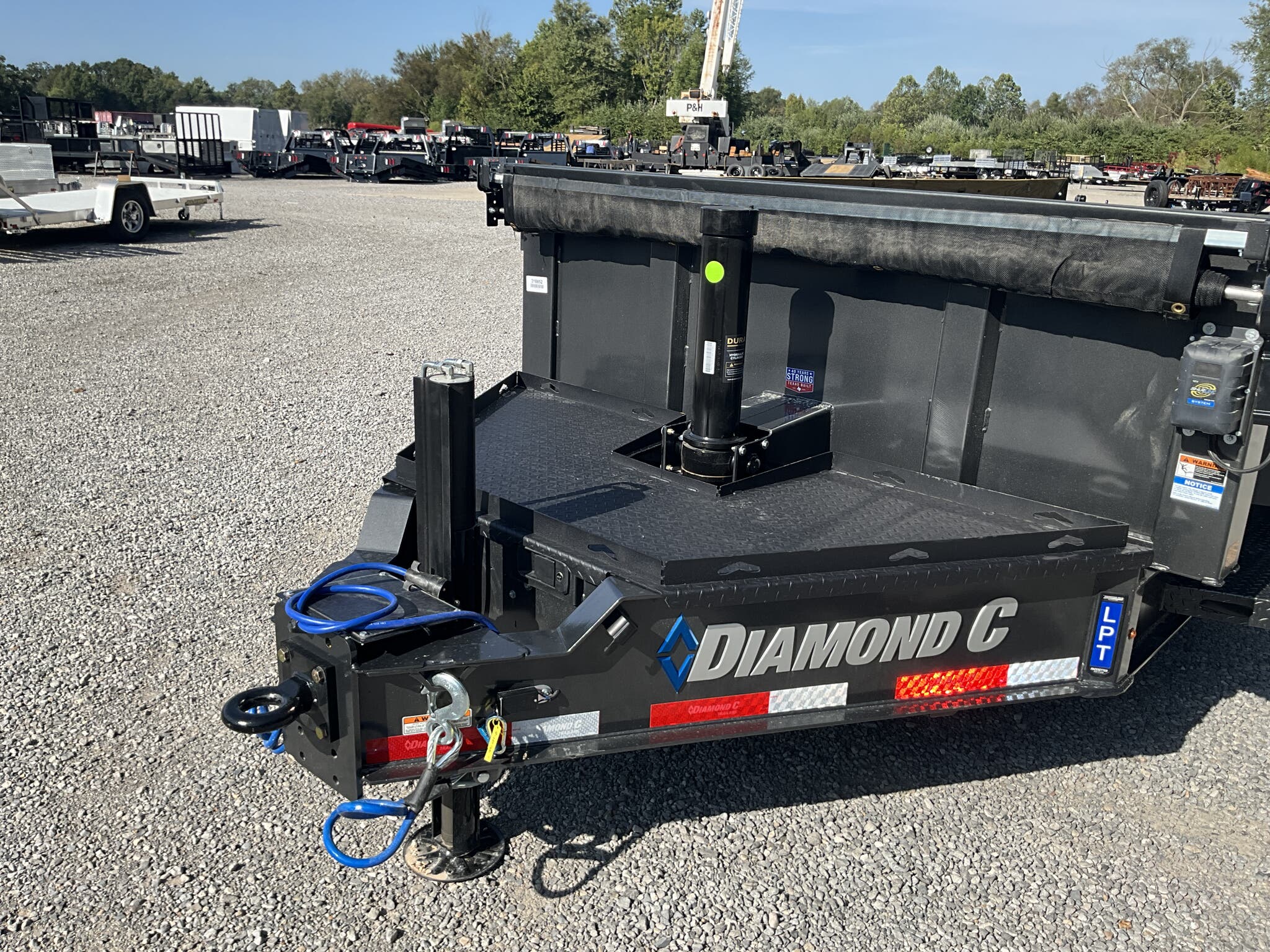

Specs — Coupler: Adjustable flat-mount 35K pintle ring with 2-1/2" eye
Specs — Jack: Single 20K hydraulic jack

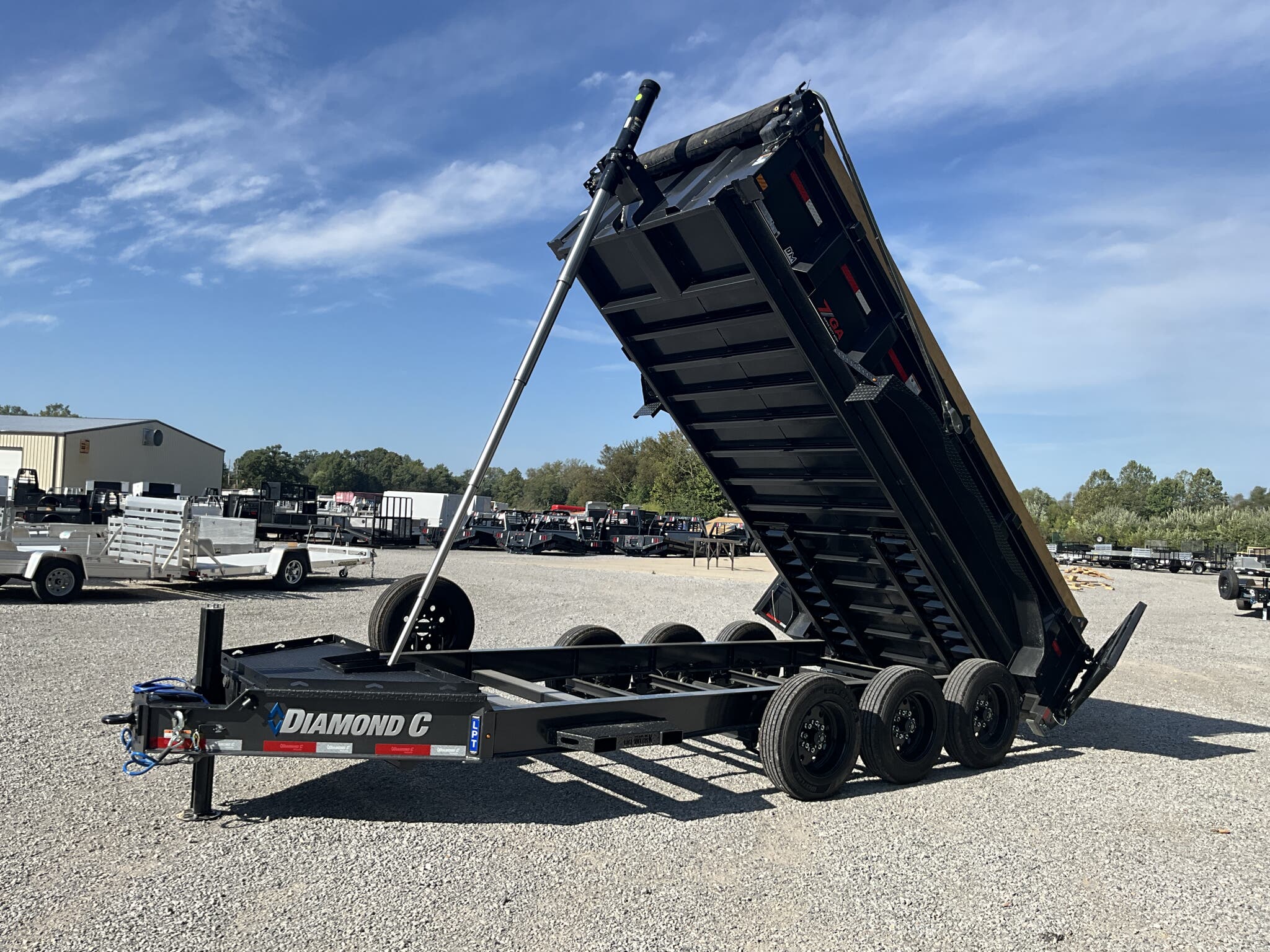

Specs — Hydraulic System: 5-stage power-up, gravity-down telescopic hydraulic system
Specs — Hydraulic Control: 4-button Bluetooth wireless controller for dump system and hydraulic jack
Specs — Floor: 7-gauge (3/16") steel
Specs — Sides: 24" tall 7-gauge (3/16") steel
Specs — Side Extensions: Board brackets with boards and raised front

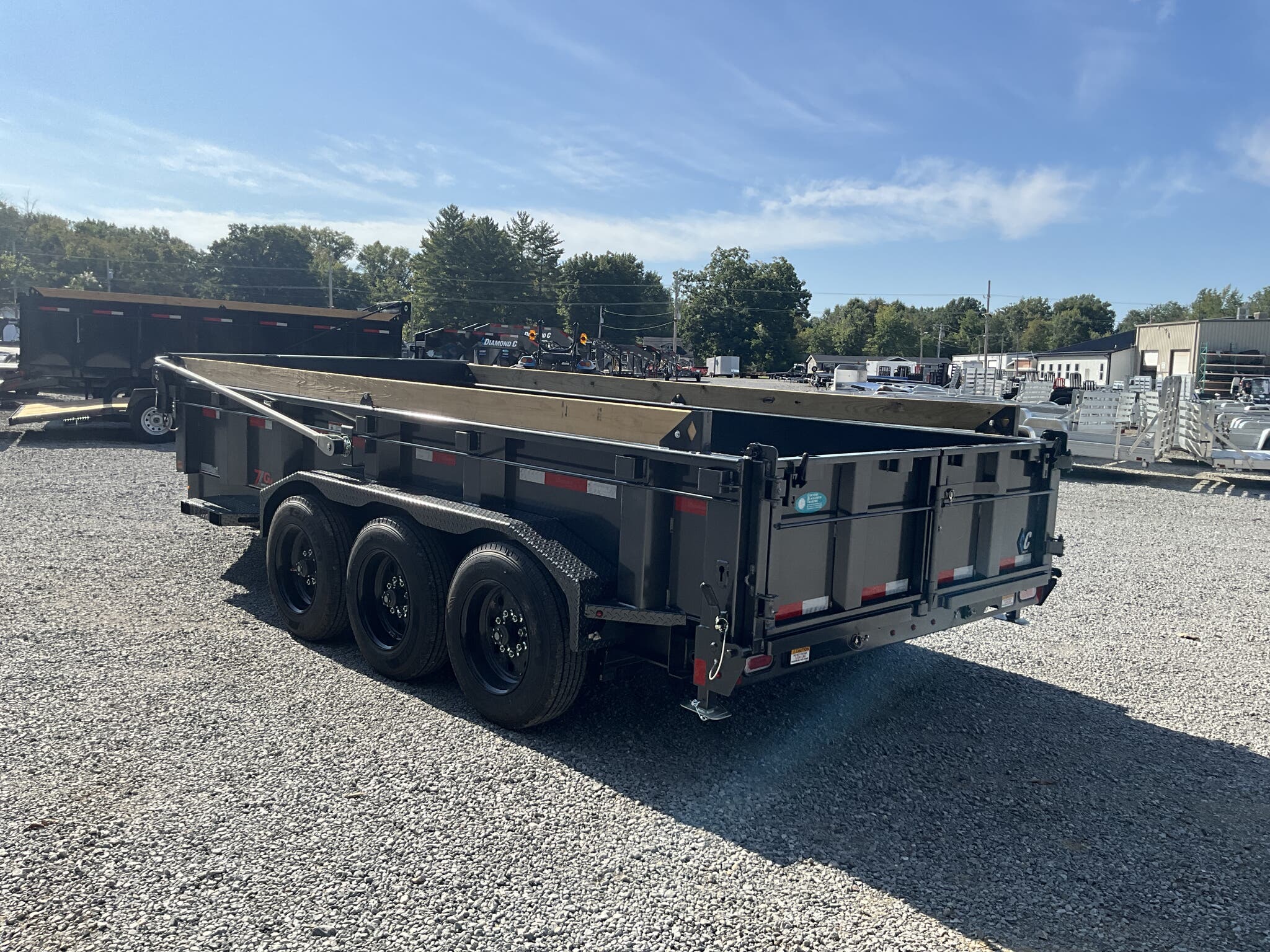

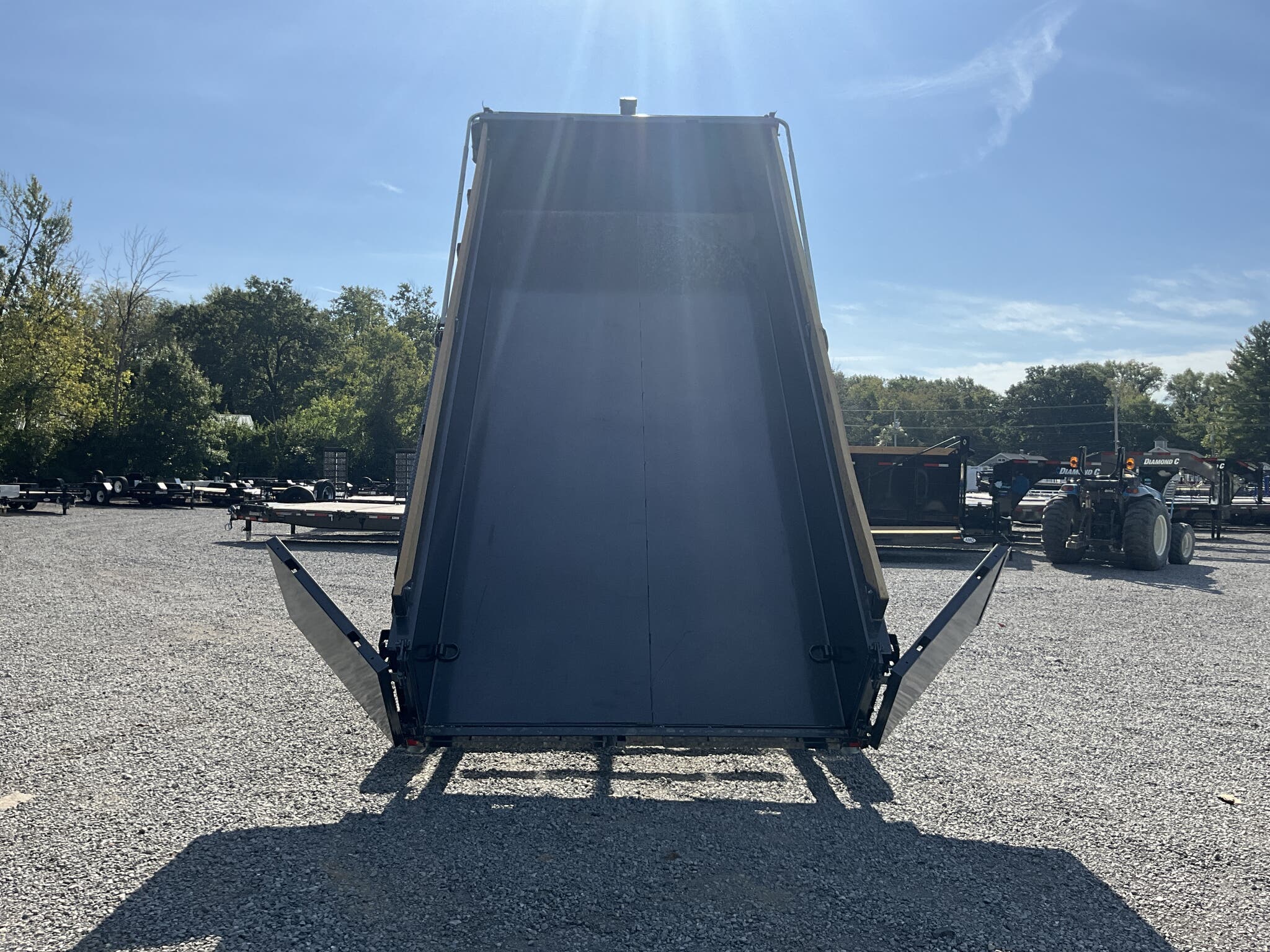

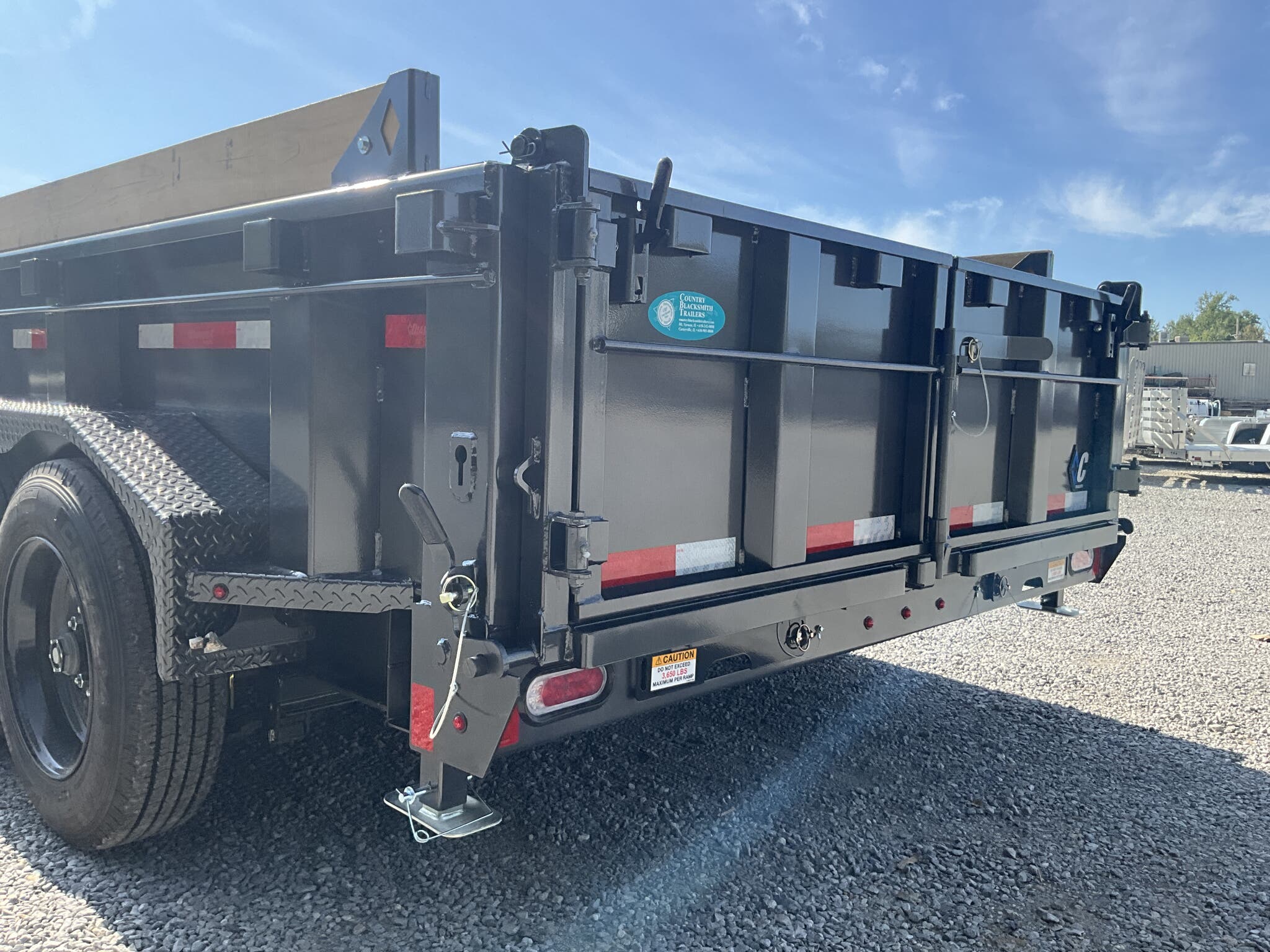

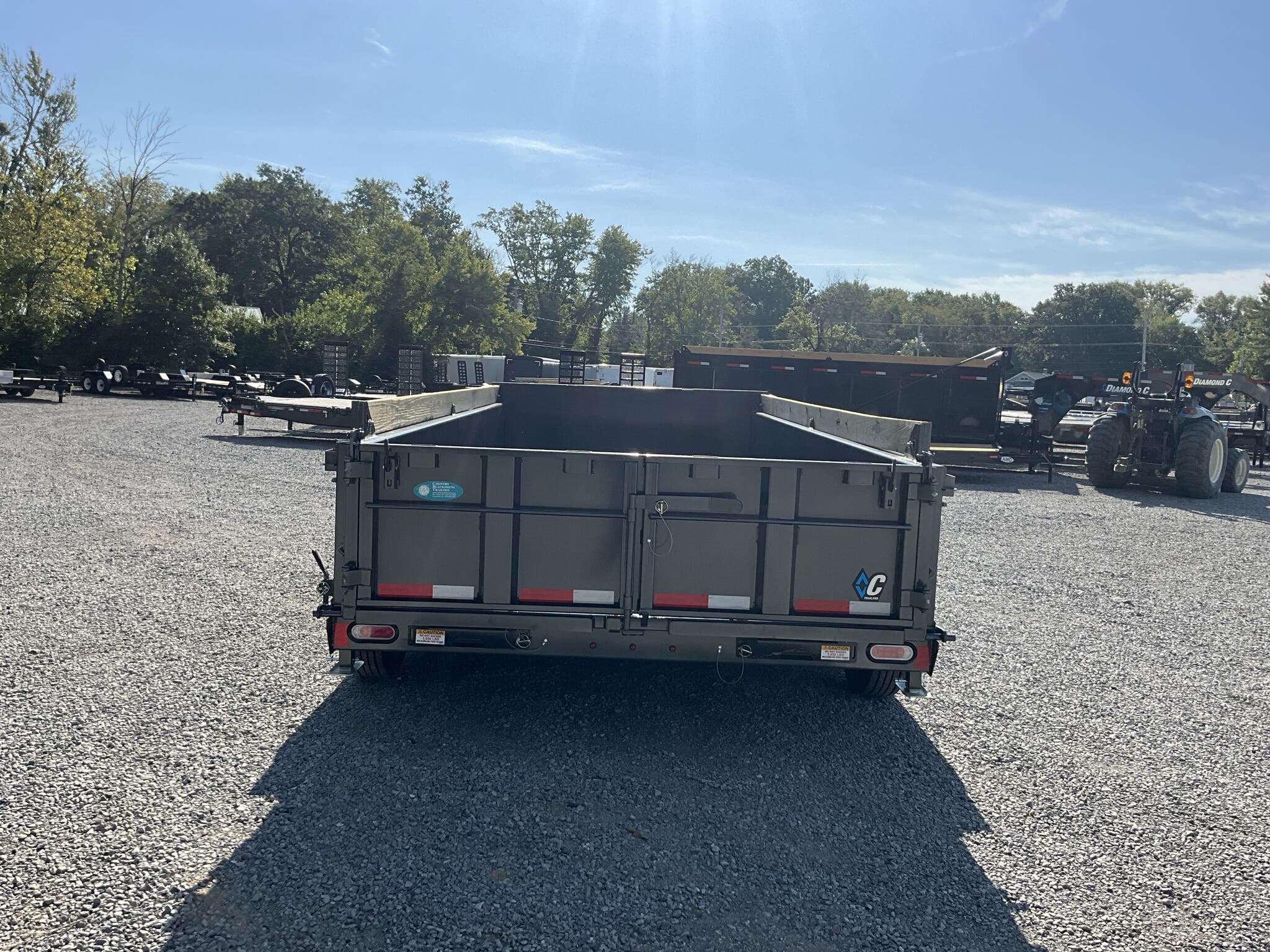

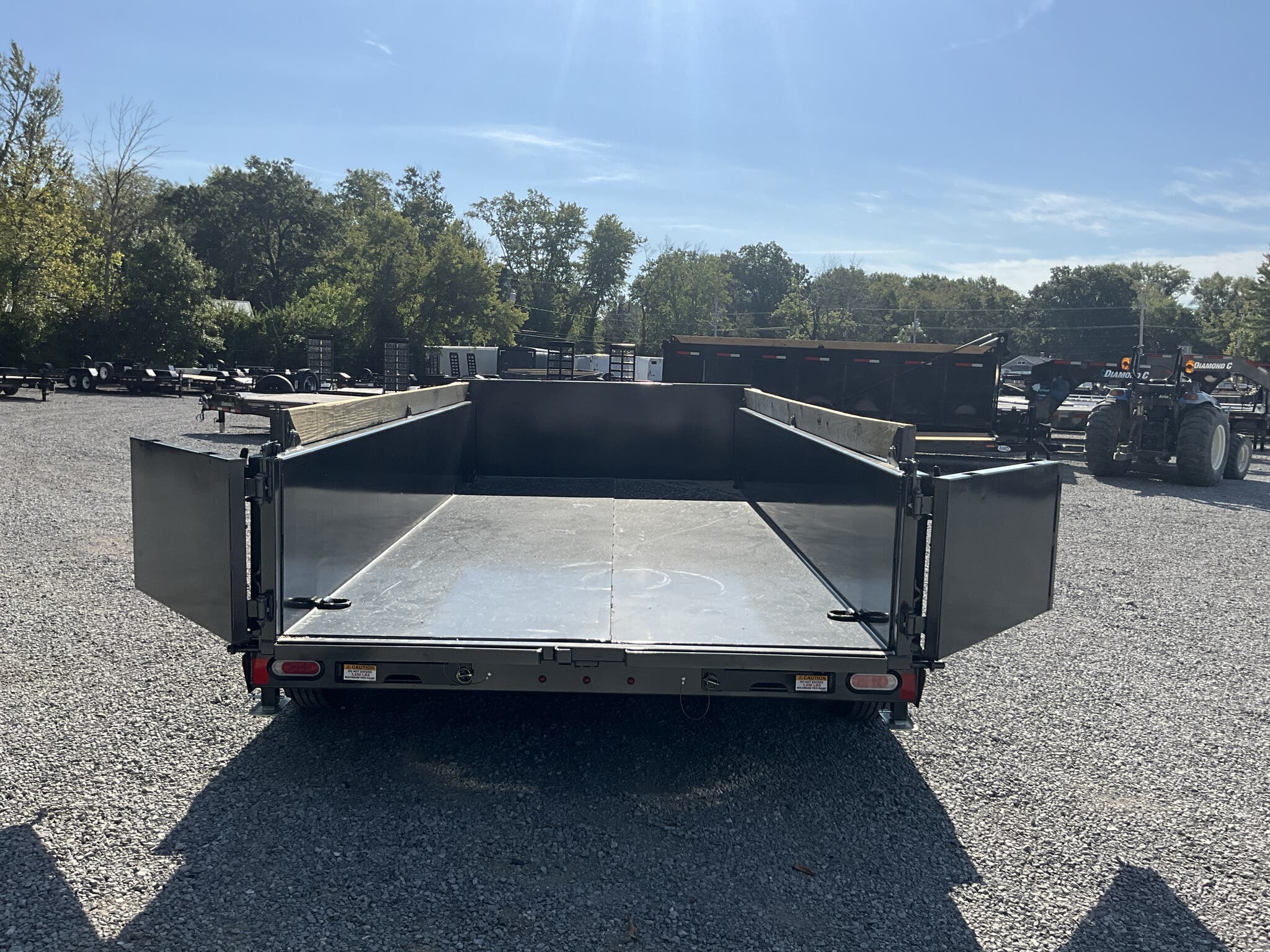

Specs — Gate: 3-way dump gate
Specs — Ramps: 78" rear slide-in ramps constructed from 3" I-beam
Specs — Stabilizers: Pair of rear drop-leg stabilizer jacks
Specs — Fenders: 3/16" diamond plate super heavy-duty fenders
Specs — Fork Holder: Driver-side fork holder step
Specs — Battery: Lithium battery upgrade
Specs — Charging System: SolarPulse 7-watt solar charging system
Specs — Tie Downs: (4) standard 5/8" D-rings
Specs — Tarp: 20' heavy-duty black mesh electric long-arm tarp system
Specs — Tires/Wheels: ST215/75R17.5 single 18-ply tires on black steel wheels
Specs — Spare: Matching ST215/75R17.5 18-ply spare
Specs — Spare Mount: Passenger/curb side
Specs — Lighting: All LED
Specs — Finish: Carbon Metallic Gray
Specs — VIN: 46UDD1639V1318852
Specs — Web ID: 371077

Weights & Capacities
GVWR: 21,000 lb
Empty Weight: 6,490 lb
Payload on Axles: 21,000 - 6,490 = 14,510 lb
Target Tongue Load (10% of GVWR): 2,100 lb
Total Effective Payload: 16,610 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
