2027 Diamond C DOD DOD207-14X96 - #DCT17860

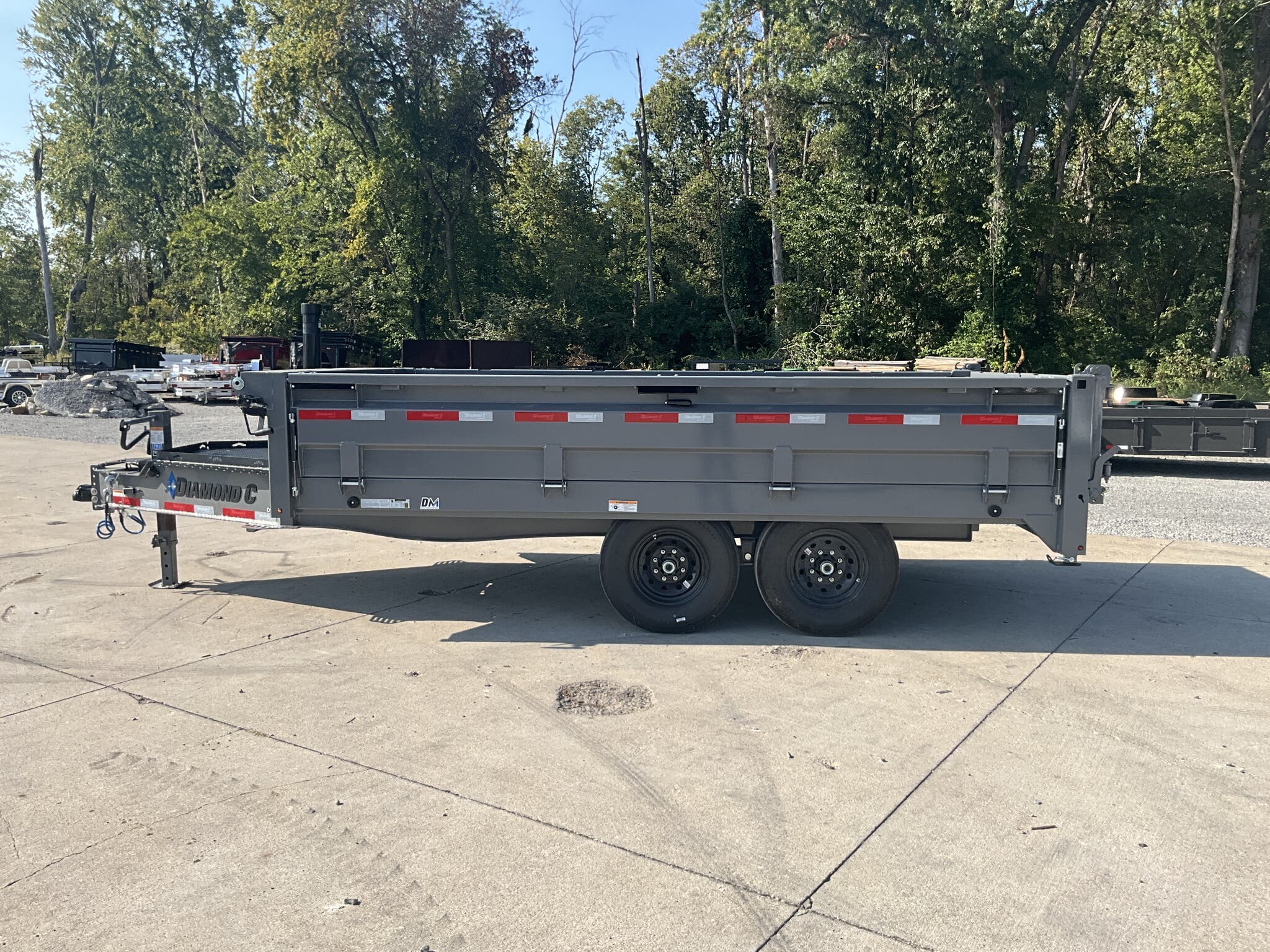

2027 DIAMOND C DOD207 14K 96" × 14' DECK-OVER DUMP TRAILER, CEMENT GRAY, 22" FOLD-DOWN SIDES, 20' HD TARP — FOR SALE IN MOUNT VERNON, IL 62864

Feature: Engineered Beam frame construction for heavy-duty dump and equipment hauling

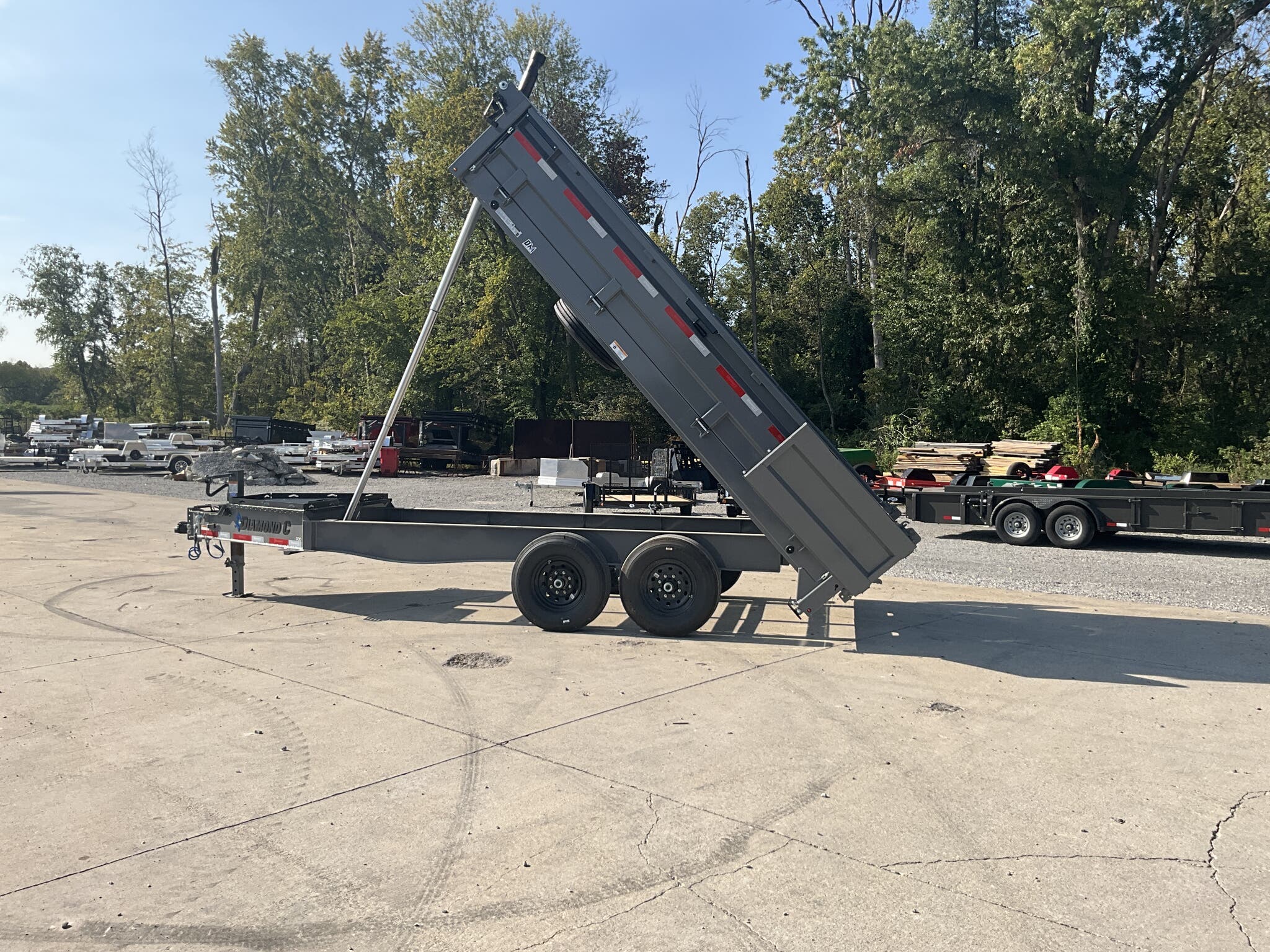

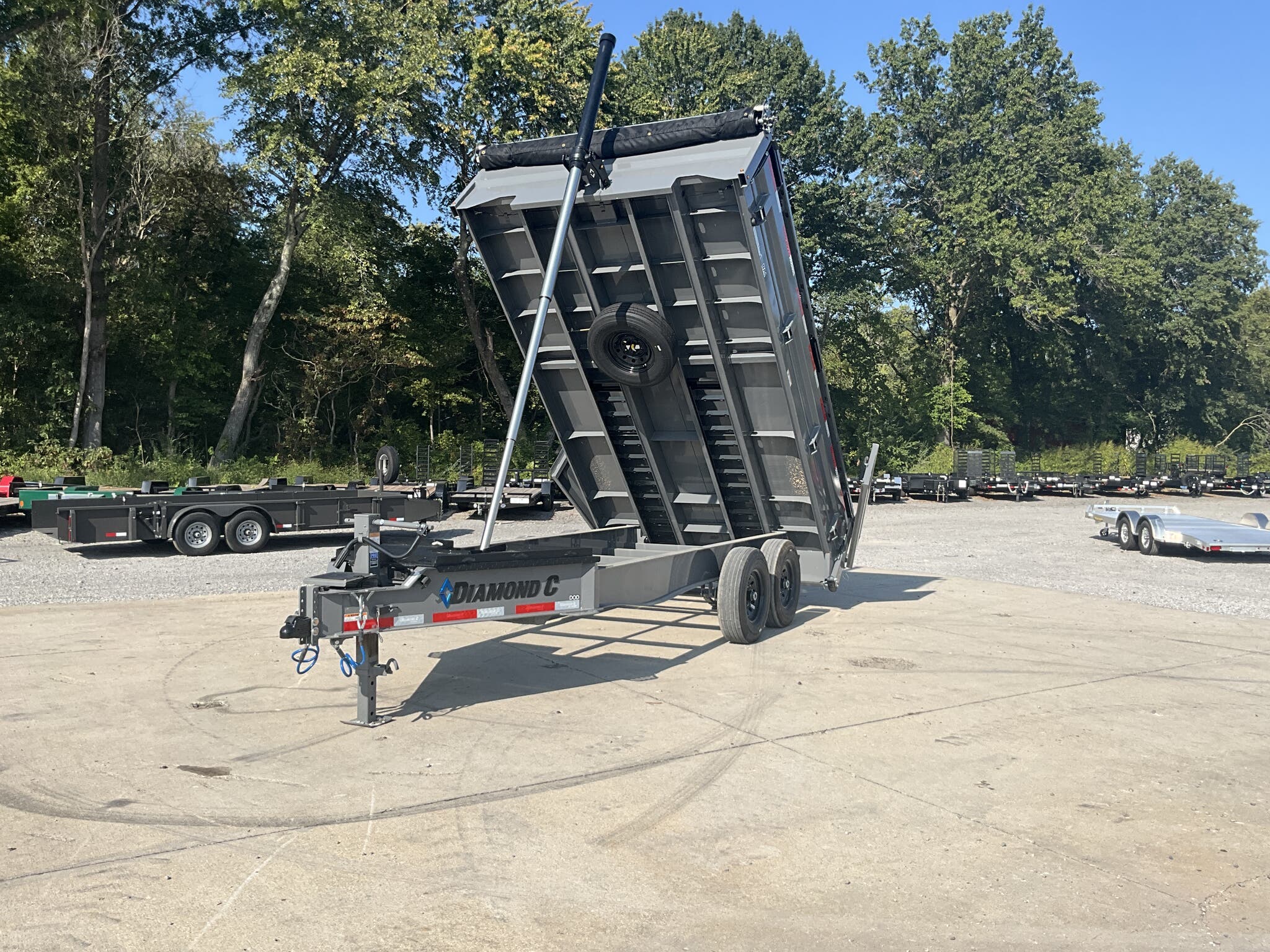

Feature: 5-stage power-up/gravity-down hydraulic dump system with Bluetooth wireless controller

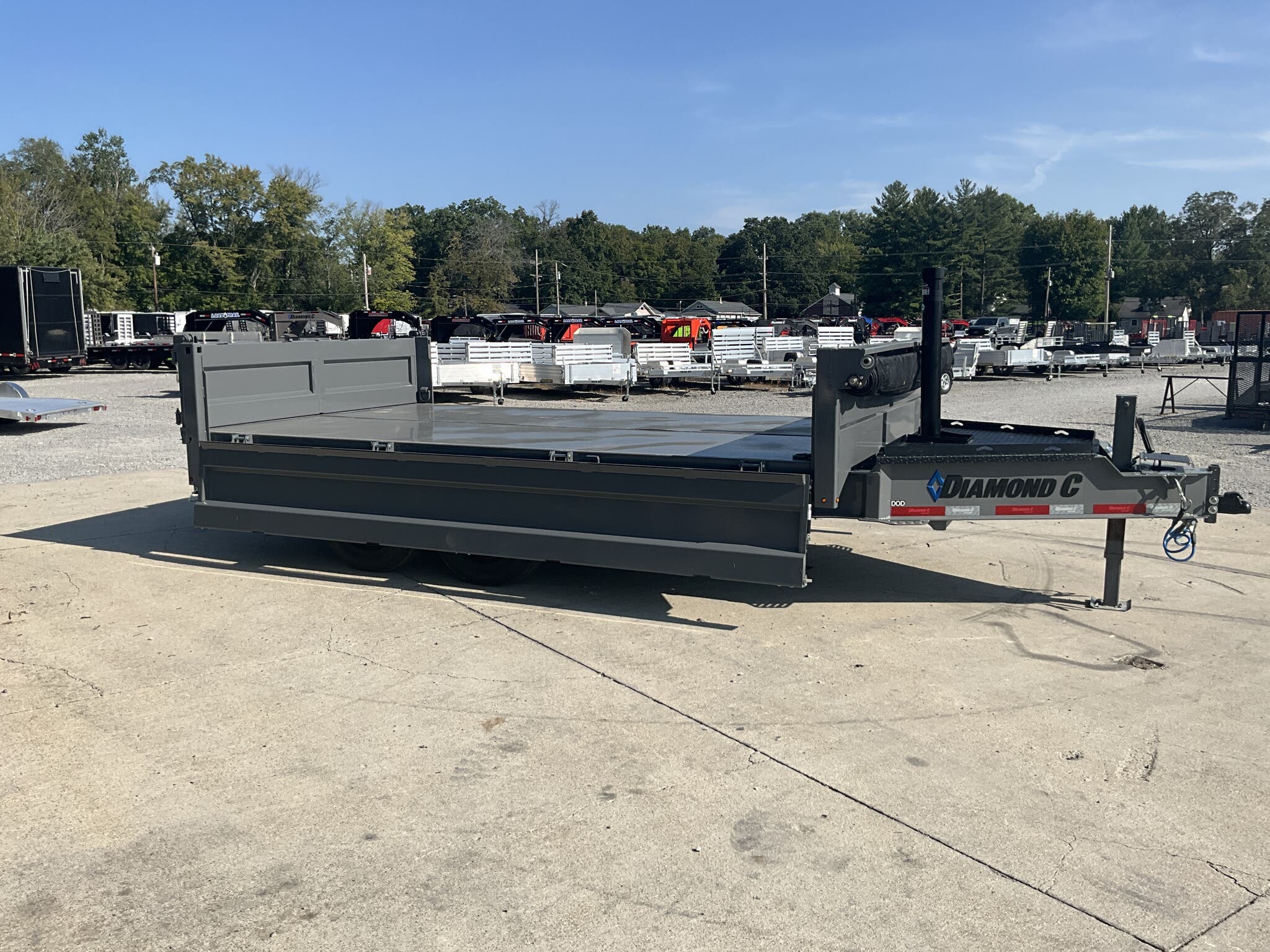

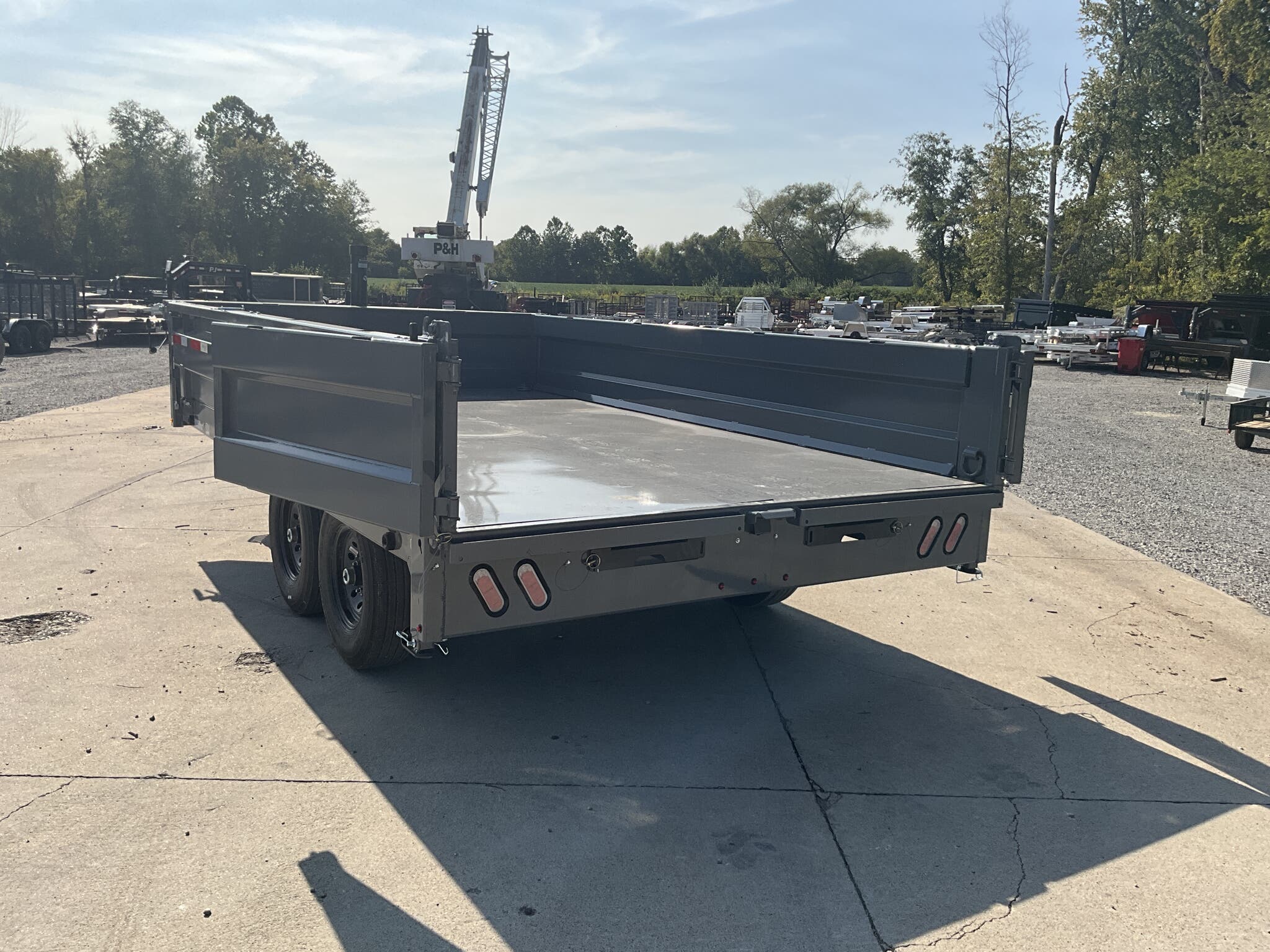

Feature: 22" tall 10-gauge fold-down sides provide easier side loading and versatile hauling
Feature: 10-gauge steel floor for durability under demanding material loads
Feature: 3-way dump gate for spreading, dumping, or conventional rear access
Feature: 97" rear slide-in ramps constructed from 3" I-beam for loading equipment
Feature: Installed 20' heavy-duty black mesh tarp system for load containment
Feature: Lithium battery upgrade with SolarPulse 7-watt charging system
Feature: Pair of rear drop-leg stabilizer jacks for stability when loading equipment
Feature: Retractable under-frame spare tire mount with cable winch
Feature: (4) standard 5/8" D-rings for equipment securement

Specs — Model: DOD207 Deck-Over Dump Trailer
Specs — Size: 96" × 14'
Specs — GVWR: 14,000 lb
Specs — Axles/Brakes: (2) 7,000 lb straight axles with electric drum brakes
Specs — Suspension: 6-leaf slipper roller spring suspension
Specs — Frame: Engineered Beam

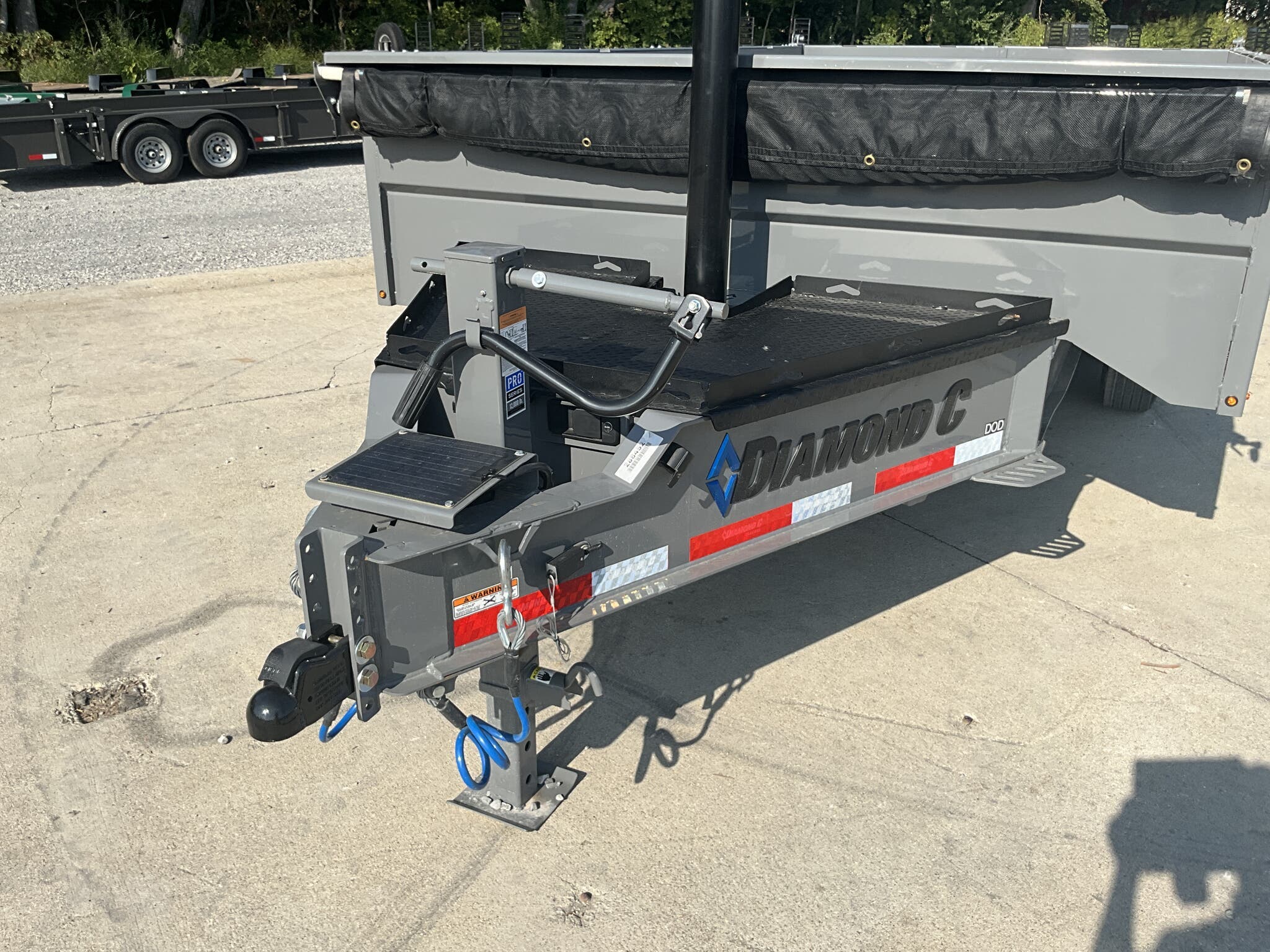

Specs — Tongue: Engineered tongue with heavy-duty V-tongue lid
Specs — Coupler: 21K Demco EZ-Latch adjustable 2-5/16" coupler
Specs — Jack: 15K Simol 2-speed drop-leg jack
Specs — Hydraulic System: 5-stage power-up, gravity-down hydraulic system
Specs — Hydraulic Control: Bluetooth wireless controller

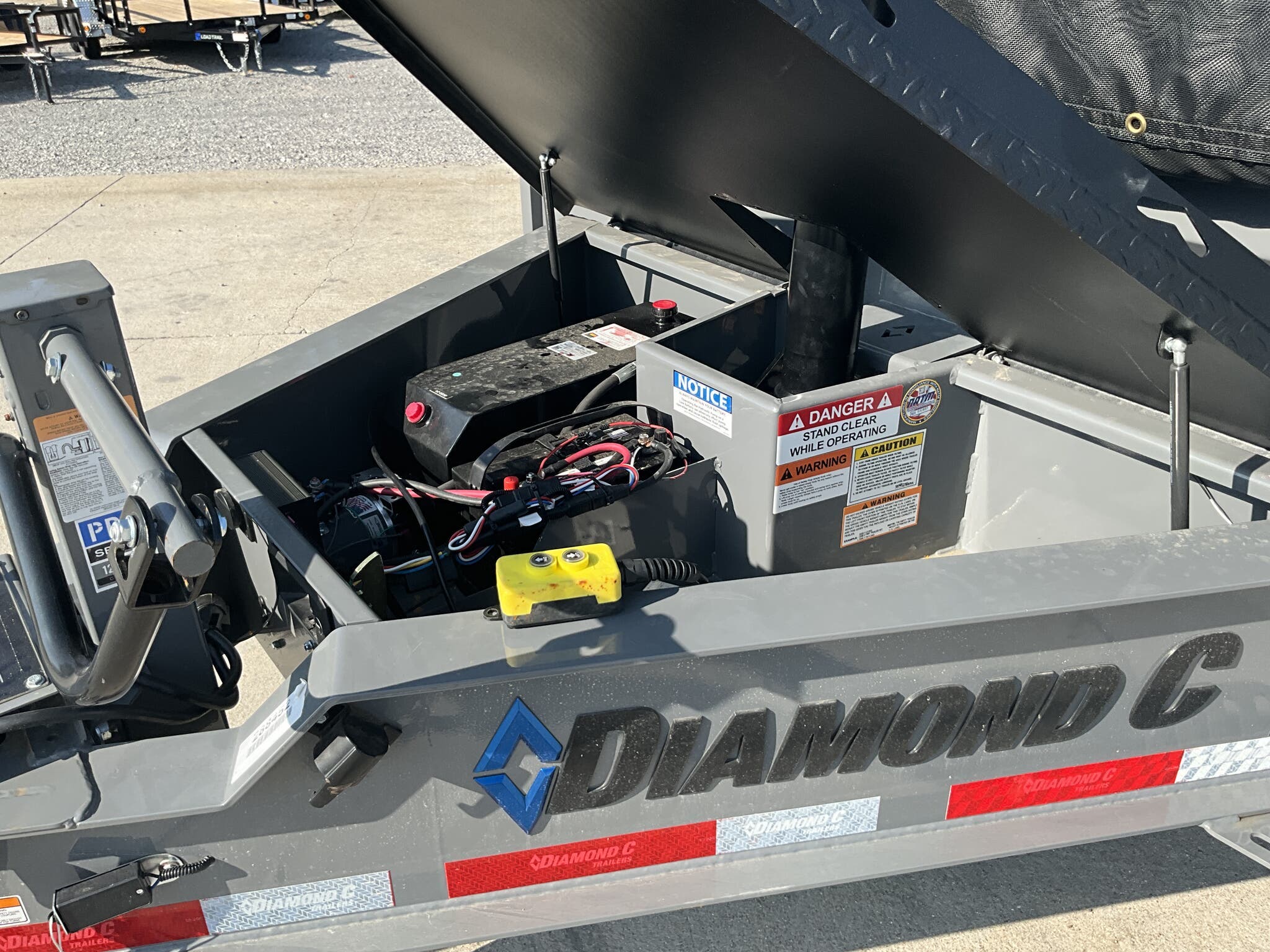

Specs — Battery: Lithium battery upgrade
Specs — Charging System: SolarPulse 7-watt solar charging system
Specs — Floor: 10-gauge steel
Specs — Sides: 22" tall, 10-gauge fold-down sides
Specs — Gate: 3-way dump gate
Specs — Ramps: 97" rear slide-in ramps constructed from 3" I-beam
Specs — Stabilizers: Pair of rear drop-leg stabilizer jacks
Specs — Tie Downs: (4) 5/8" D-rings
Specs — Tarp: Installed 20' heavy-duty black mesh tarp

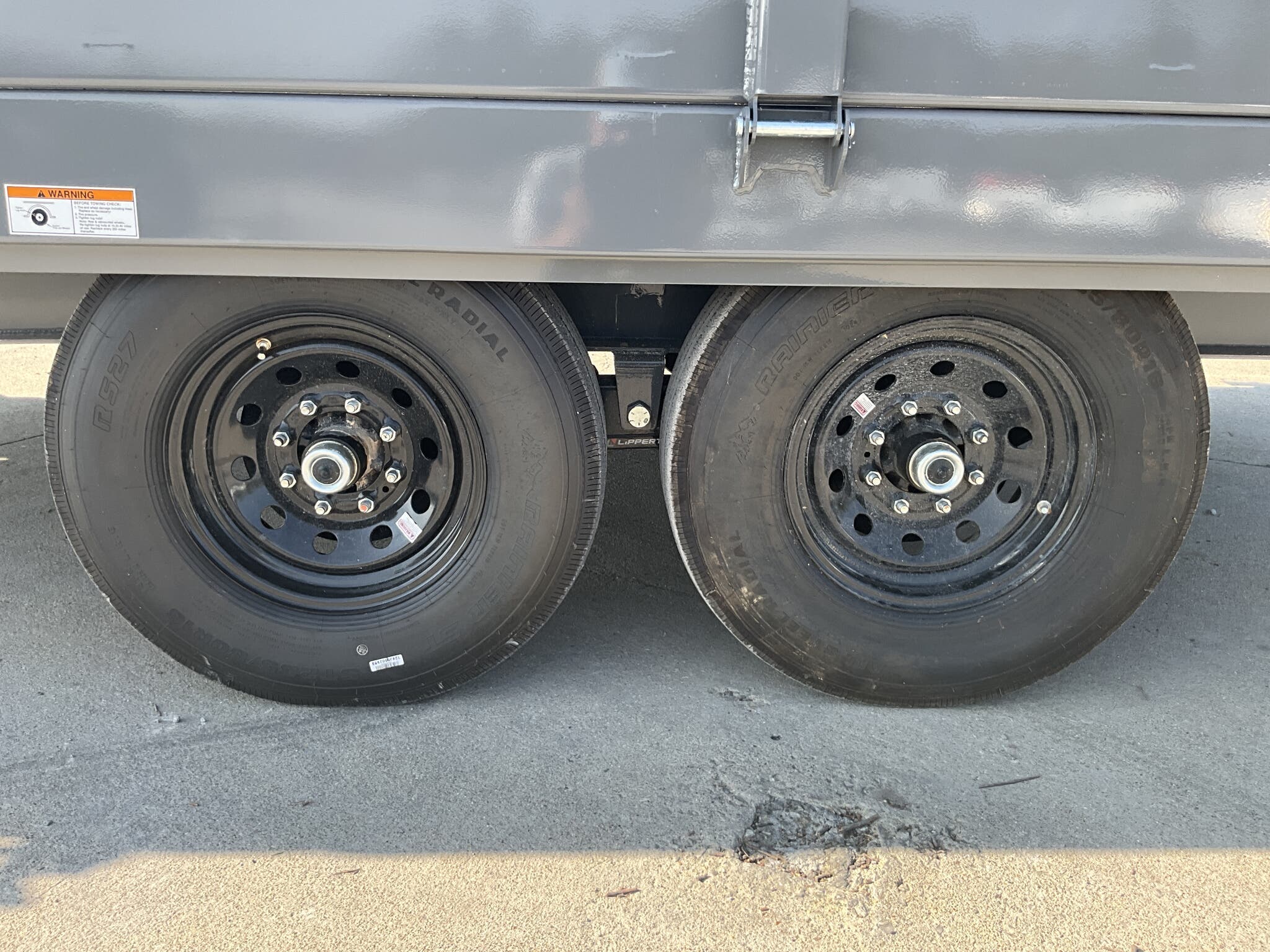

Specs — Tires/Wheels: ST235/80R16 radial 14-ply tires on 8-lug black wheels
Specs — Spare: Matching ST235/80R16 14-ply spare
Specs — Spare Mount: Retractable under-frame cable winch
Specs — Lighting: All LED
Specs — Finish: Cement Gray
Specs — VIN: 46UDD1420V1317860
Specs — Web ID: 370204

Weights & Capacities
GVWR: 14,000 lb
Empty Weight: 6,710 lb
Payload on Axles: 14,000 - 6,710 = 7,290 lb
Target Tongue Load (10% of GVWR): 1,400 lb
Total Effective Payload: 8,690 lb
