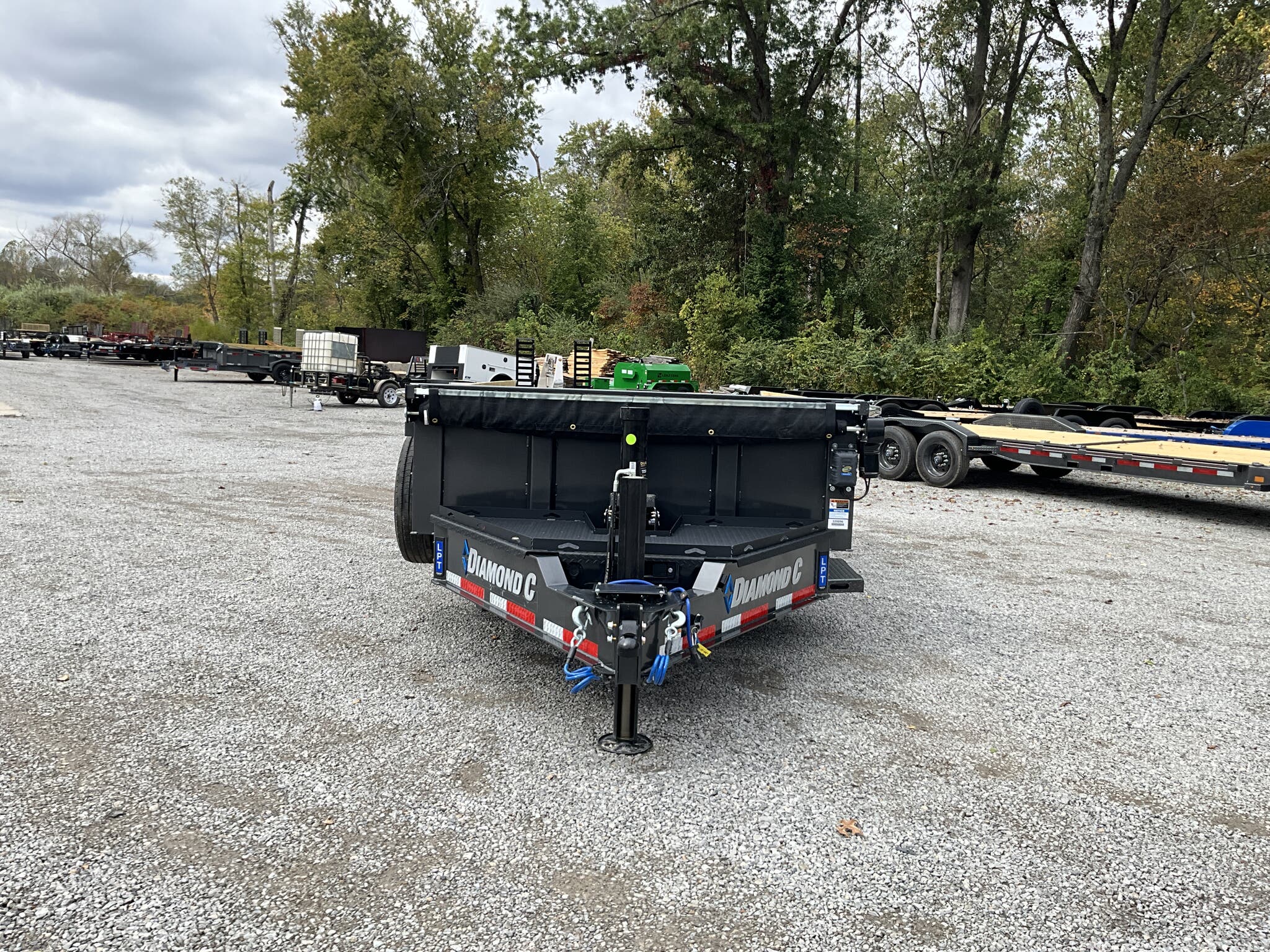

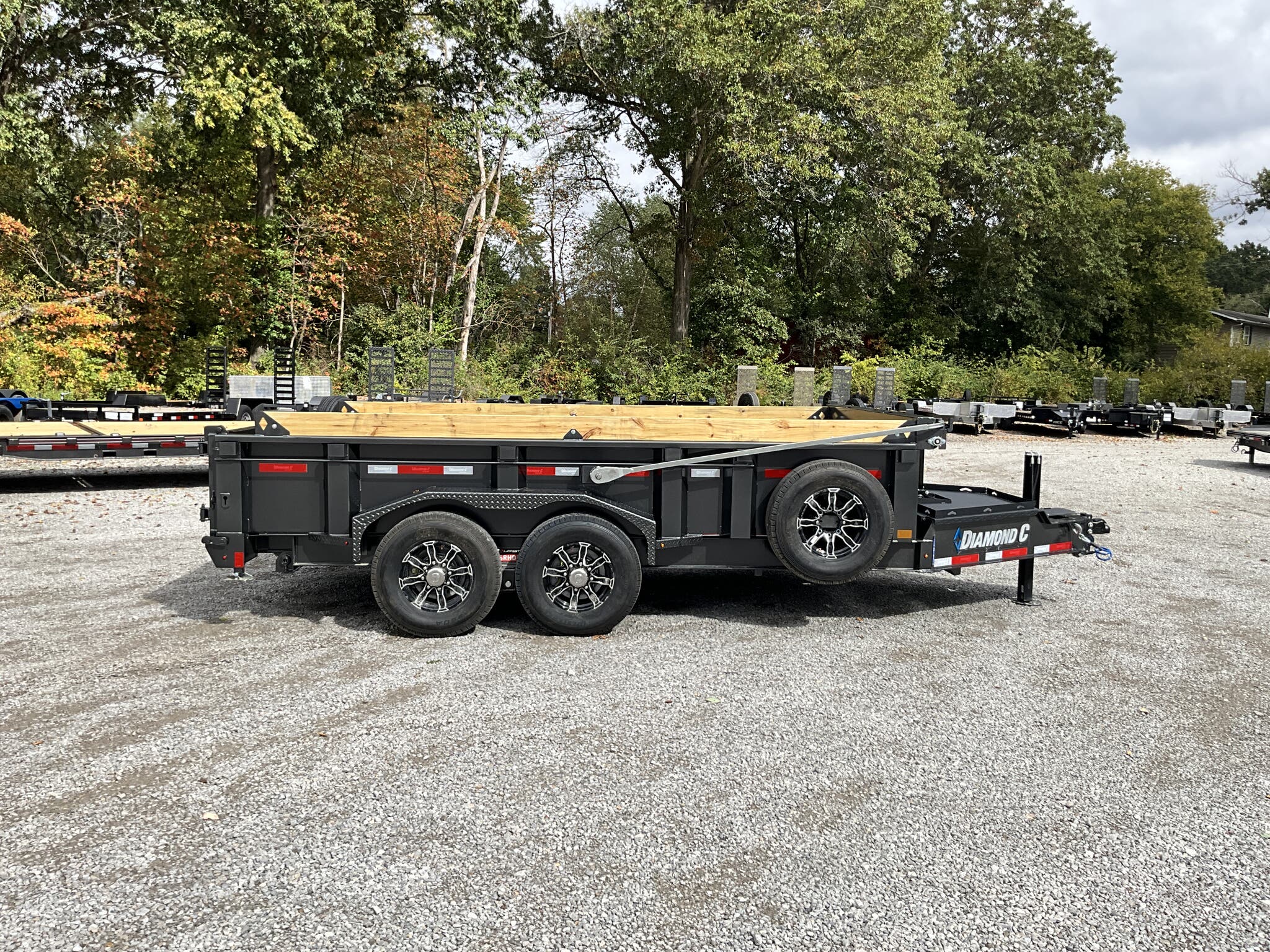

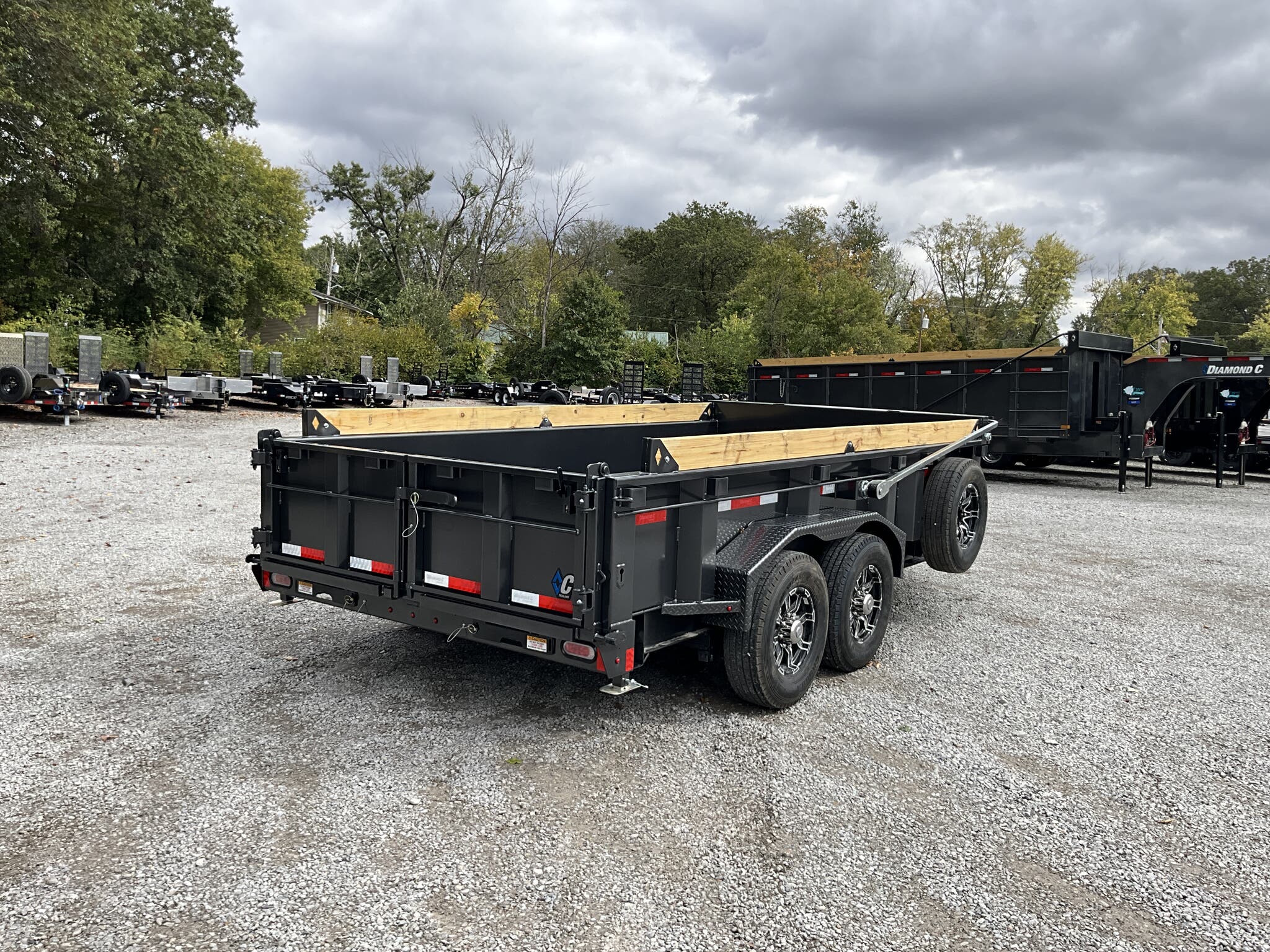

2027 Diamond C LPT LPT207-14X82-PACESETTER - #DCT20096

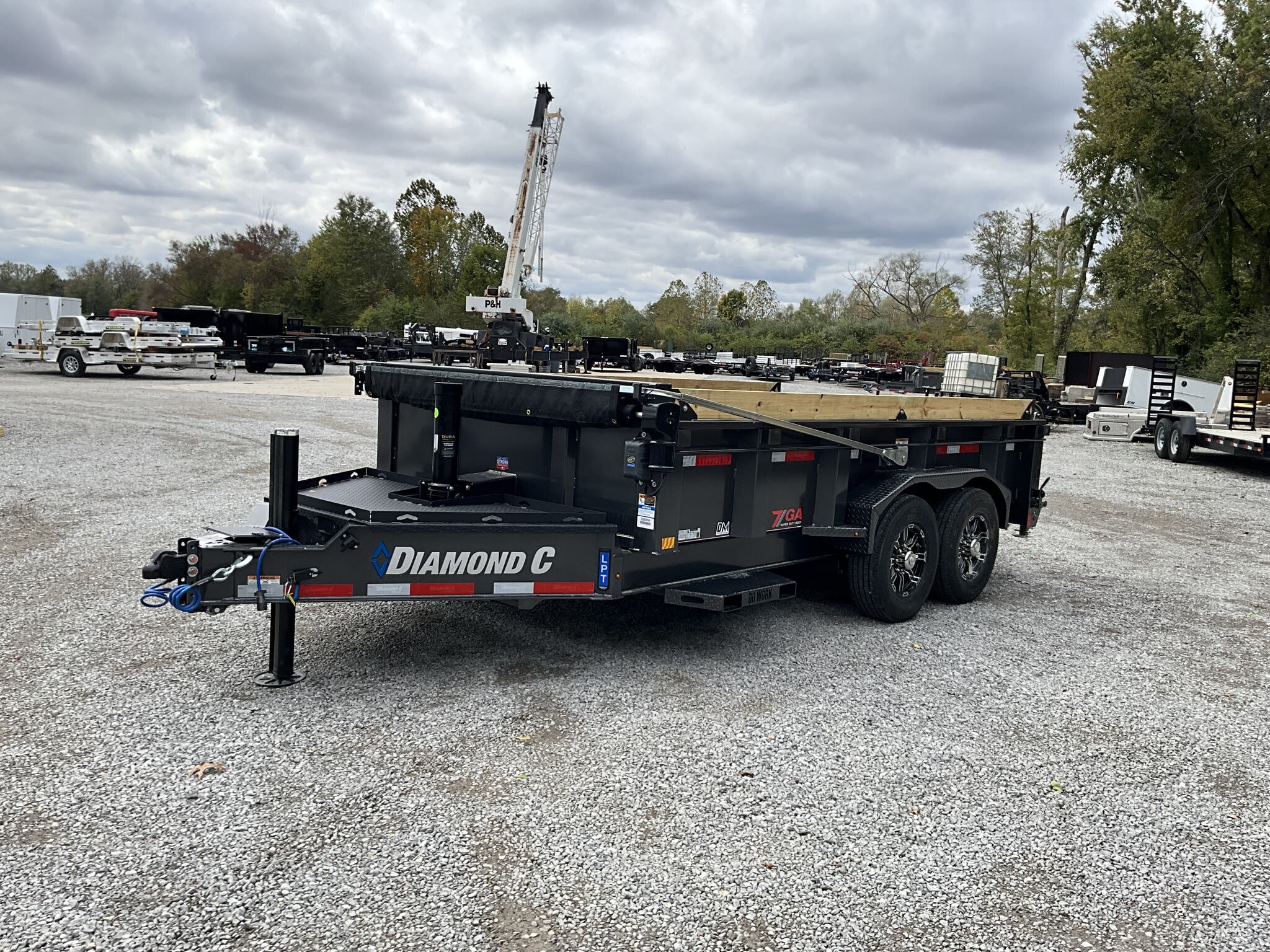

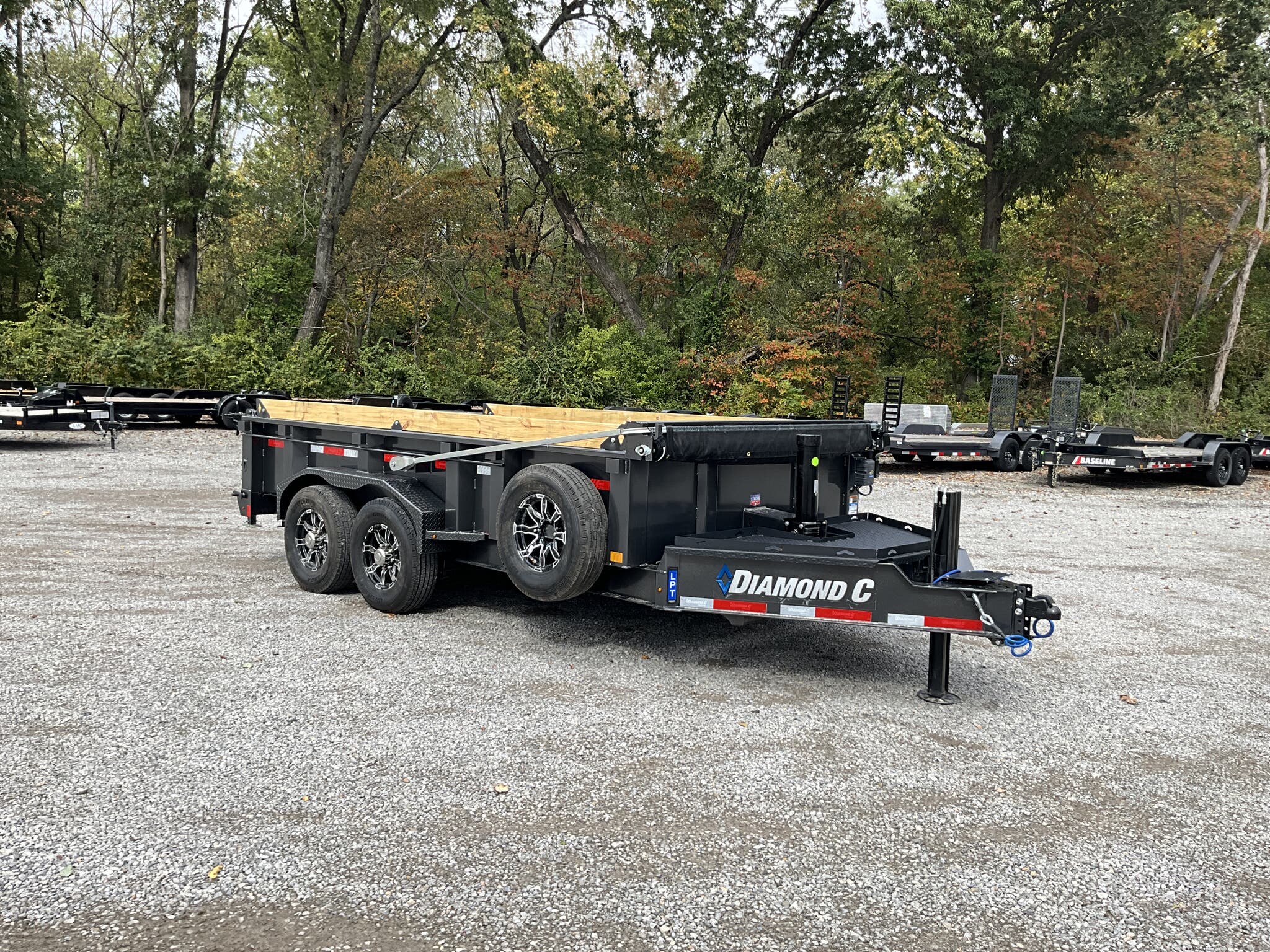

2027 DIAMOND C LPT207 15.5K 82" × 14' LOW PROFILE TELESCOPIC DUMP TRAILER, CARBON METALLIC GRAY, PACESETTER EDITION, 7-GAUGE BODY, HYDRAULIC DISC BRAKES, 20K HYDRAULIC JACK, ELECTRIC TARP — FOR SALE IN MOUNT VERNON, IL 62864
Feature: Pacesetter Edition with super-duty 7-gauge (3/16") steel floor and 24" tall sides for heavy-duty hauling and dumping
Feature: Dual 7K drop axles with electric-over-hydraulic disc brakes for improved stopping performance

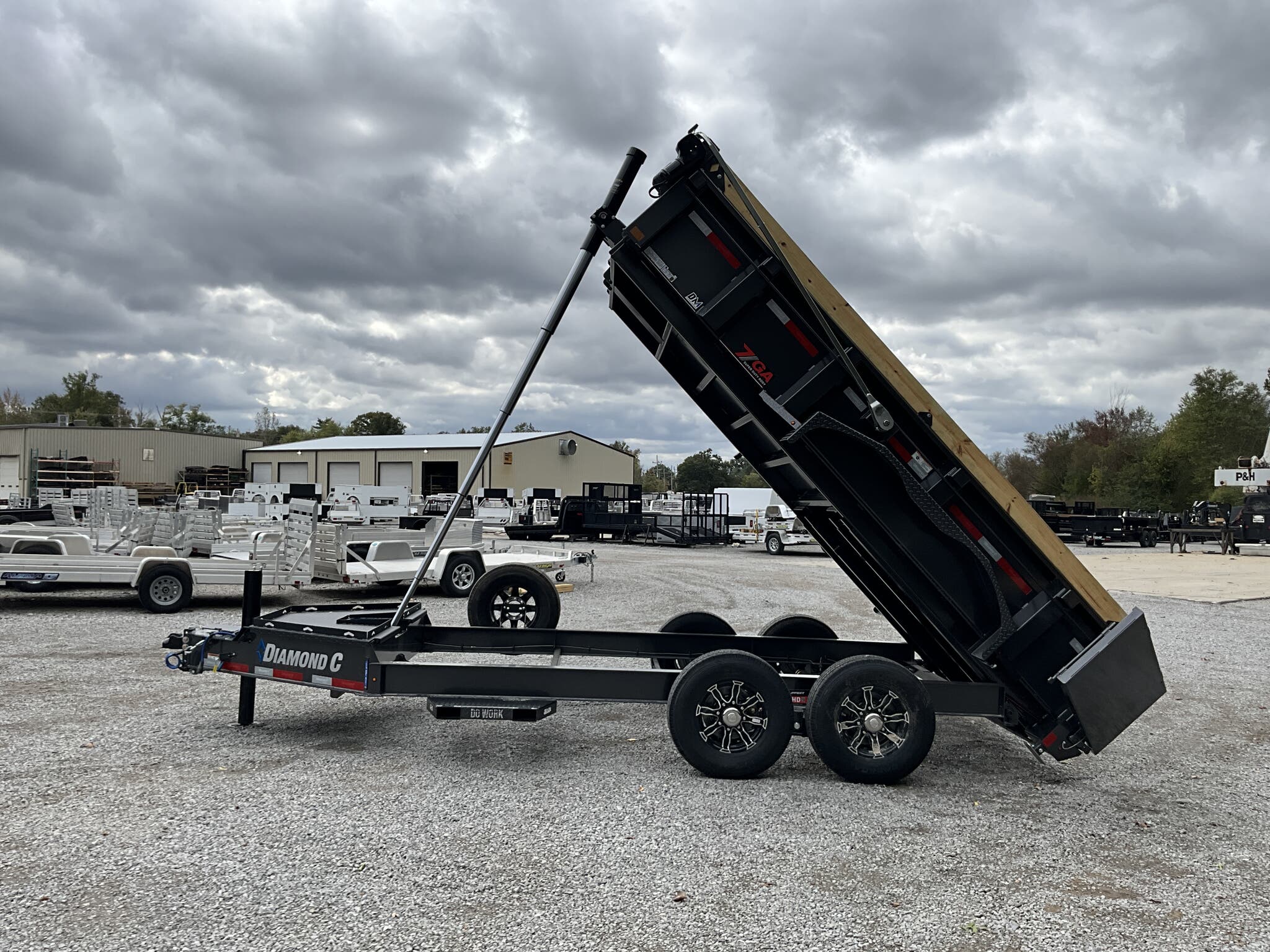

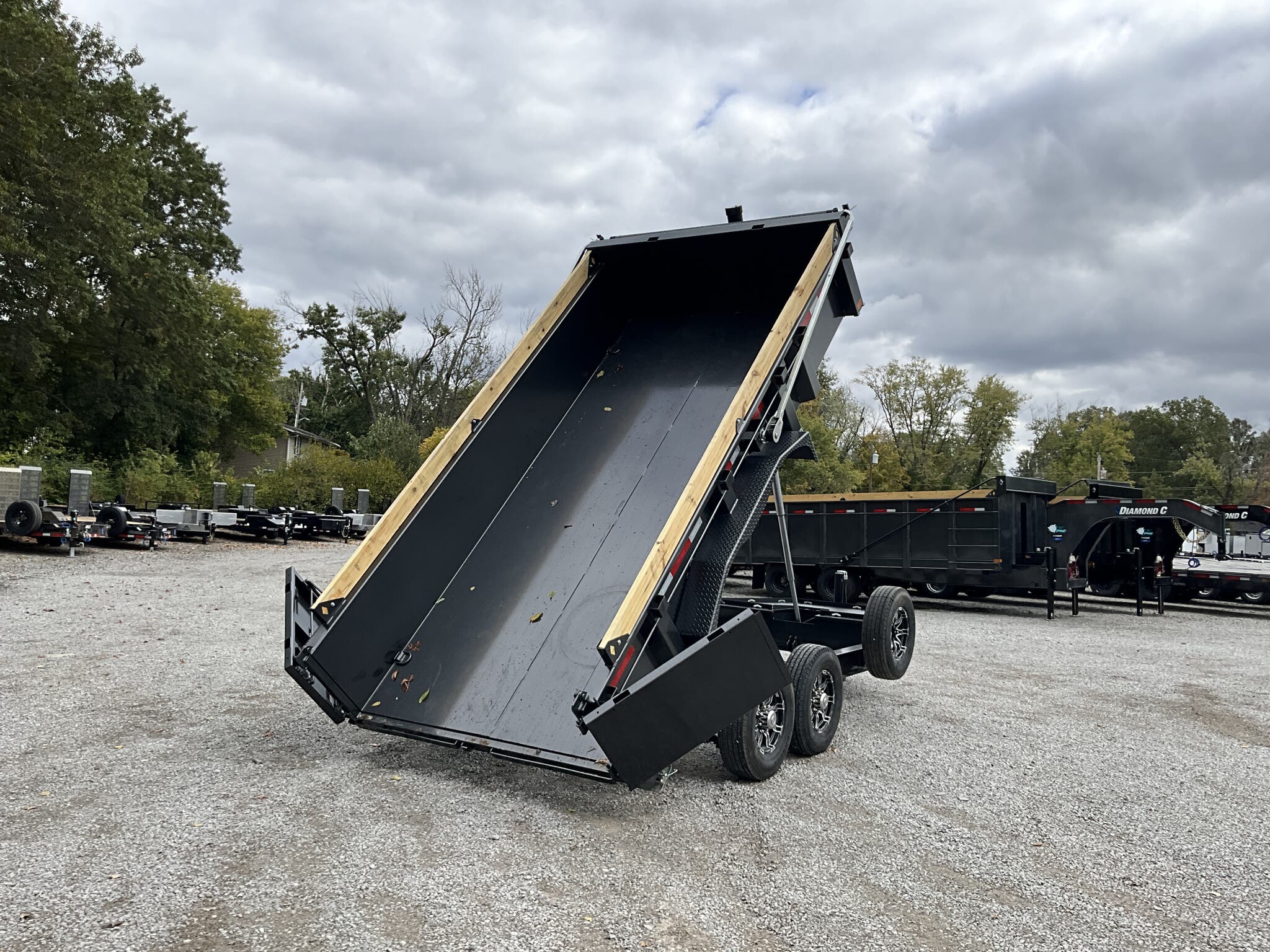

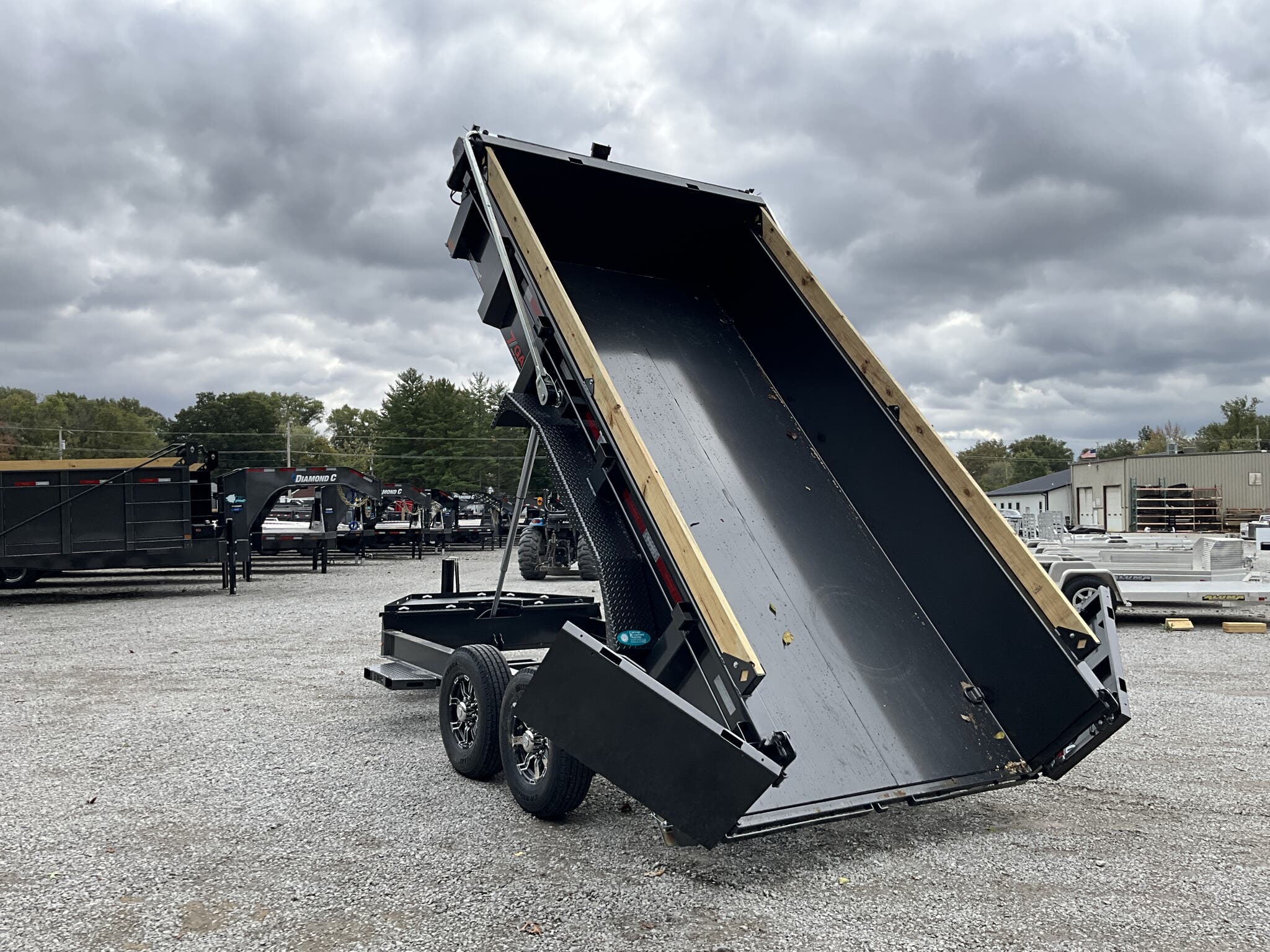

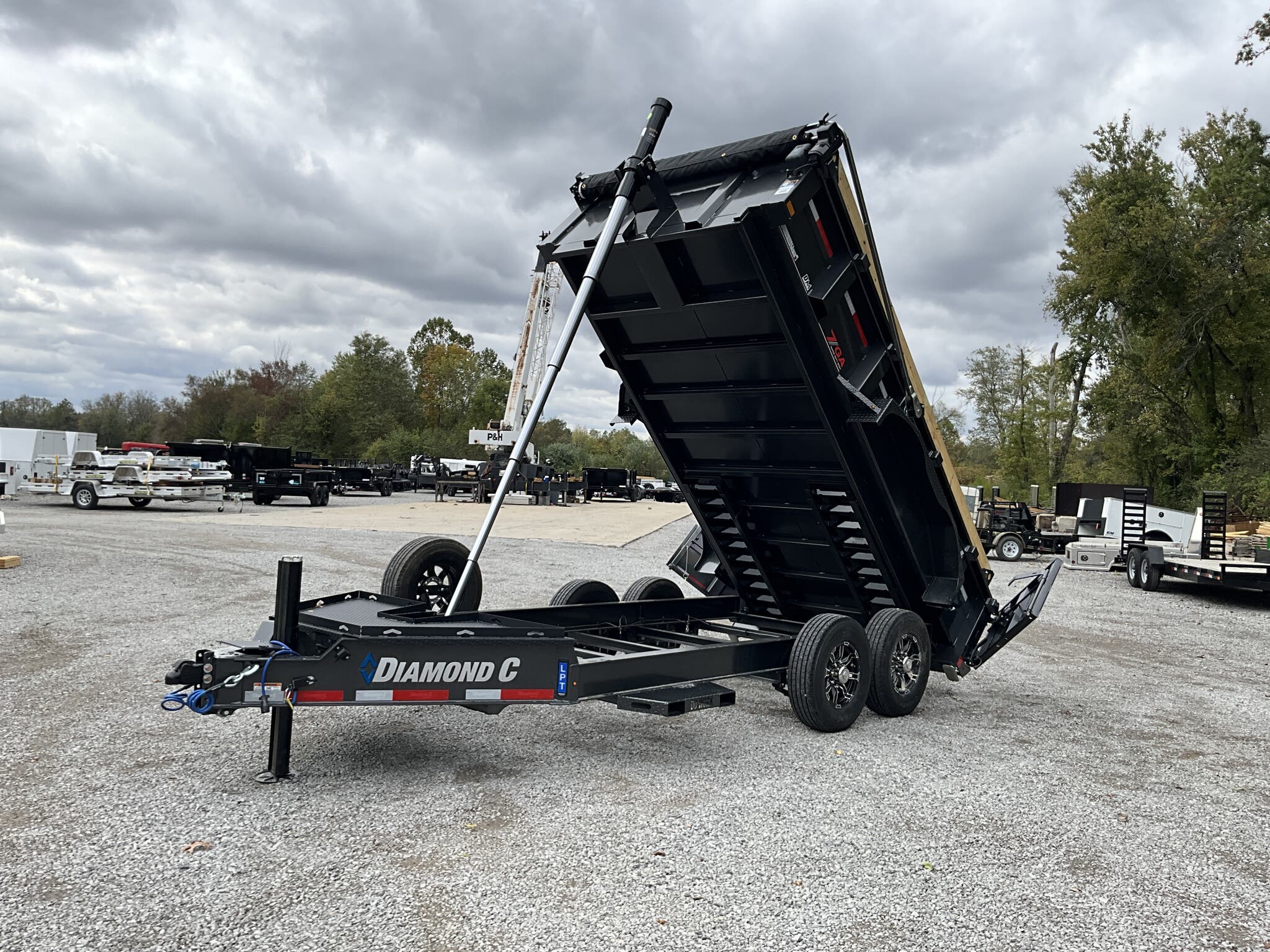

Feature: 5-stage telescopic hydraulic dump system with power-up / gravity-down operation and 4-button Bluetooth wireless controller
Feature: 20K hydraulic jack with lithium battery upgrade and SolarPulse 7-watt charging system
Feature: Electric long-arm tarp system, aluminum wheels, fork holder/step combo, and rear stabilizer drop legs
Specs — Model: LPT207 Low Profile Telescopic Dump Trailer – Pacesetter Edition

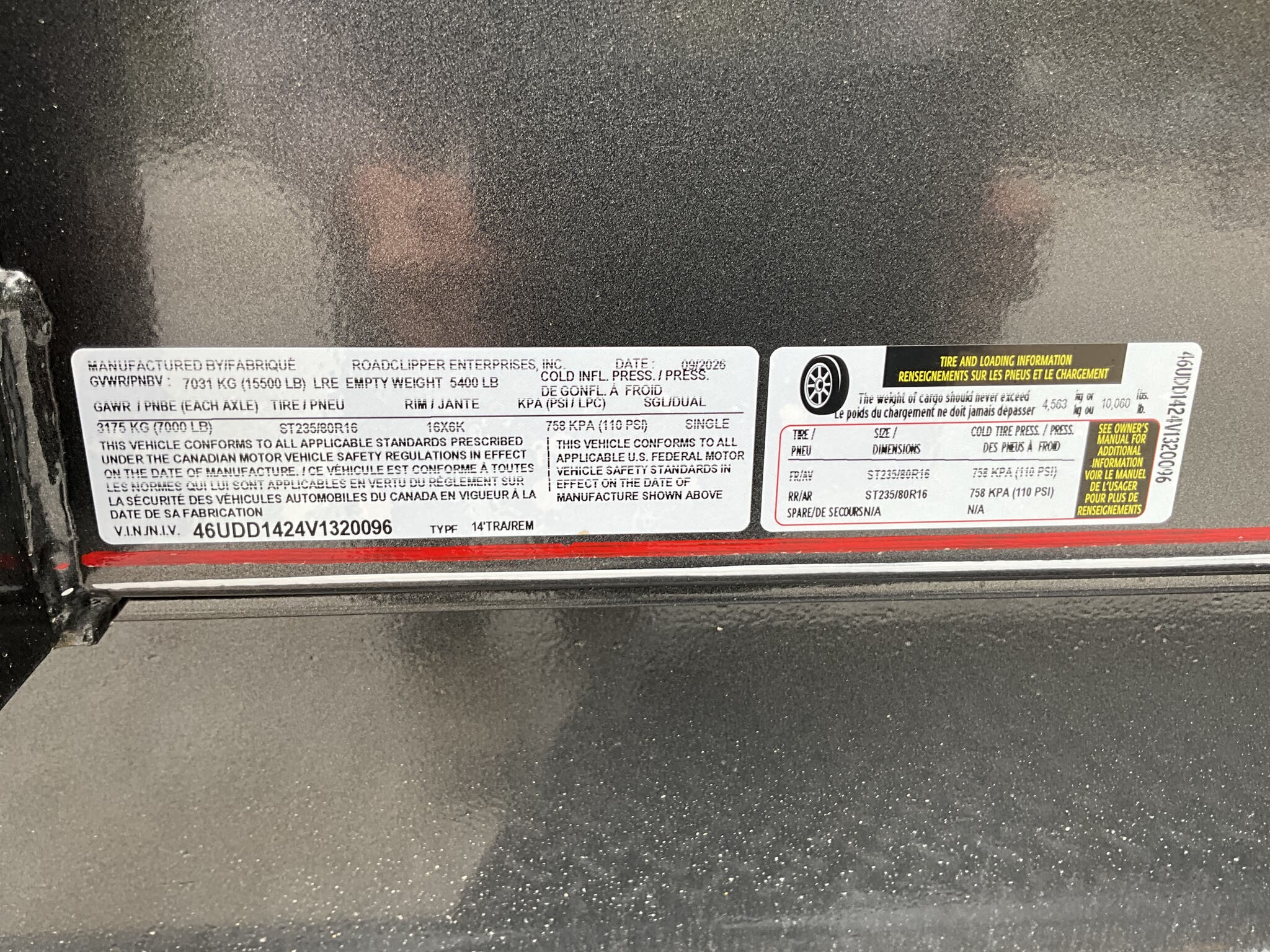

Specs — VIN: 46UDD1424V1320096
Specs — Size: 82" × 14'
Specs — GVWR: 15,500 lb

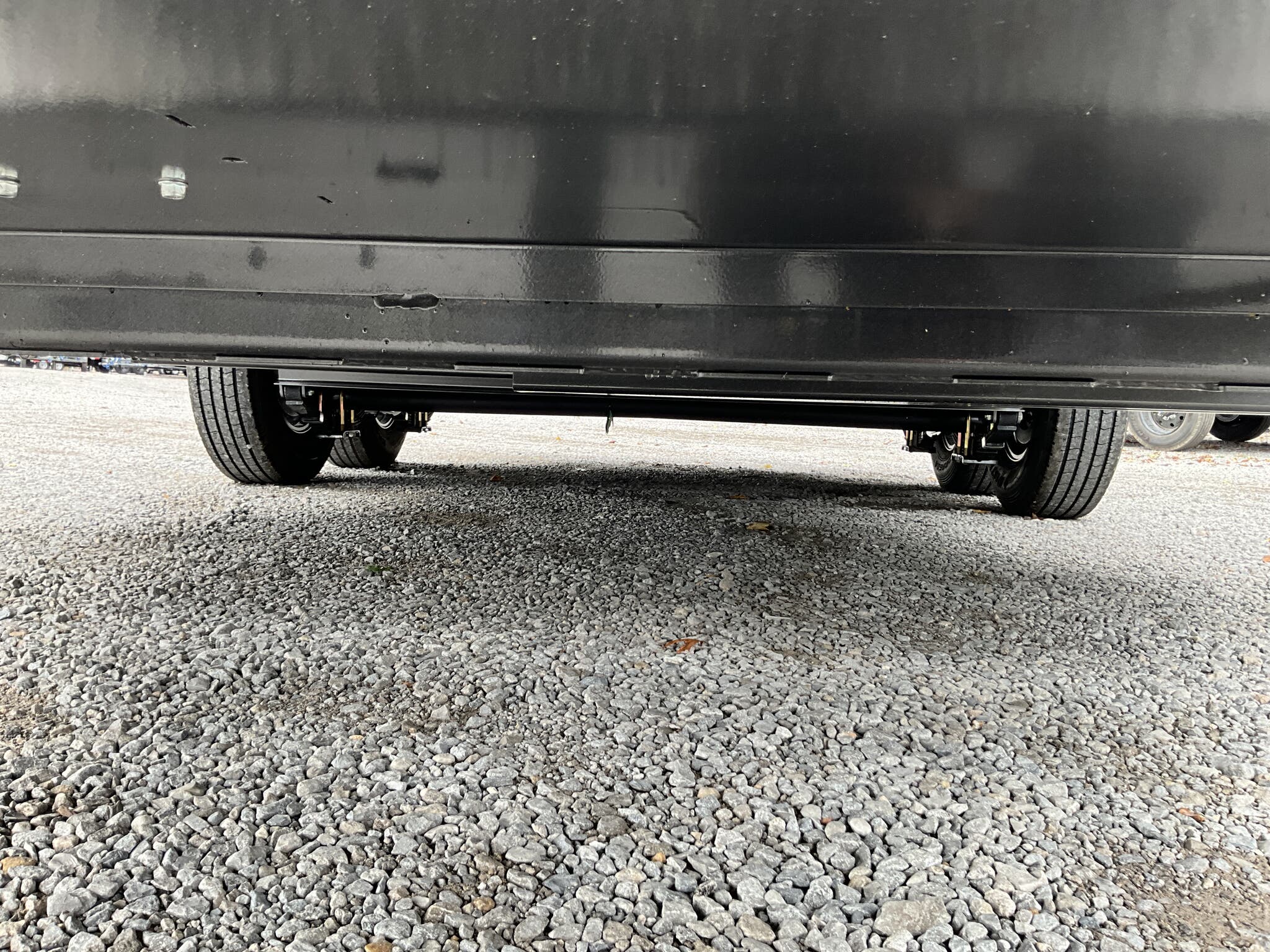

Specs — Axles/Brakes: (2) 7,000 lb drop axles with electric-over-hydraulic disc brakes
Specs — Suspension: 6-leaf slipper roller spring suspension
Specs — Main Frame: 8" × 15 lb I-beam frame
Specs — Crossmembers: 16" centers

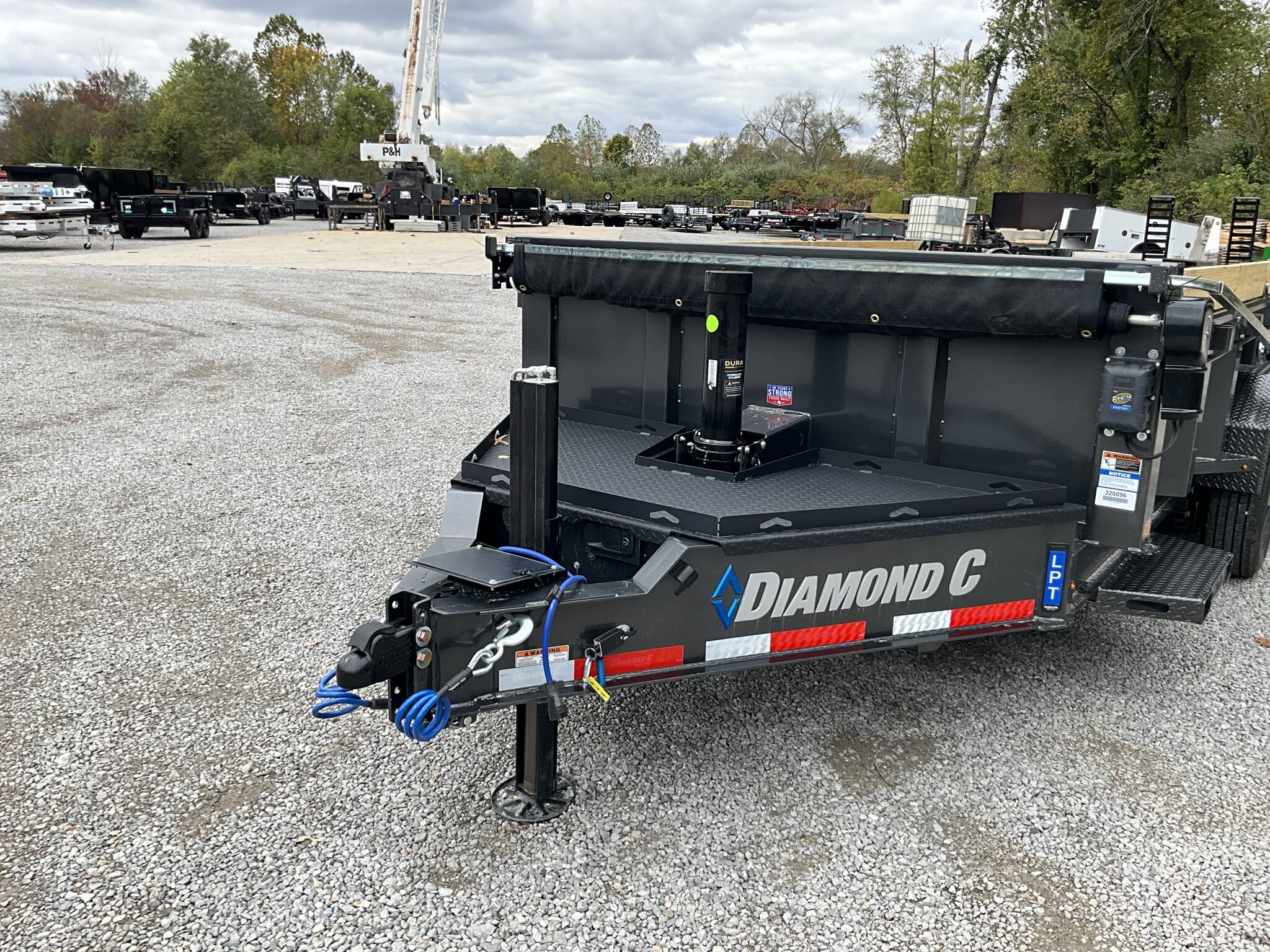

Specs — Tongue: Engineered tongue with HD V-tongue storage lid
Specs — Body: Super-duty 7-gauge (3/16") steel floor and sides
Specs — Sides: 24" tall 7-gauge steel sides
Specs — Side Extensions: Board brackets with boards and raised front

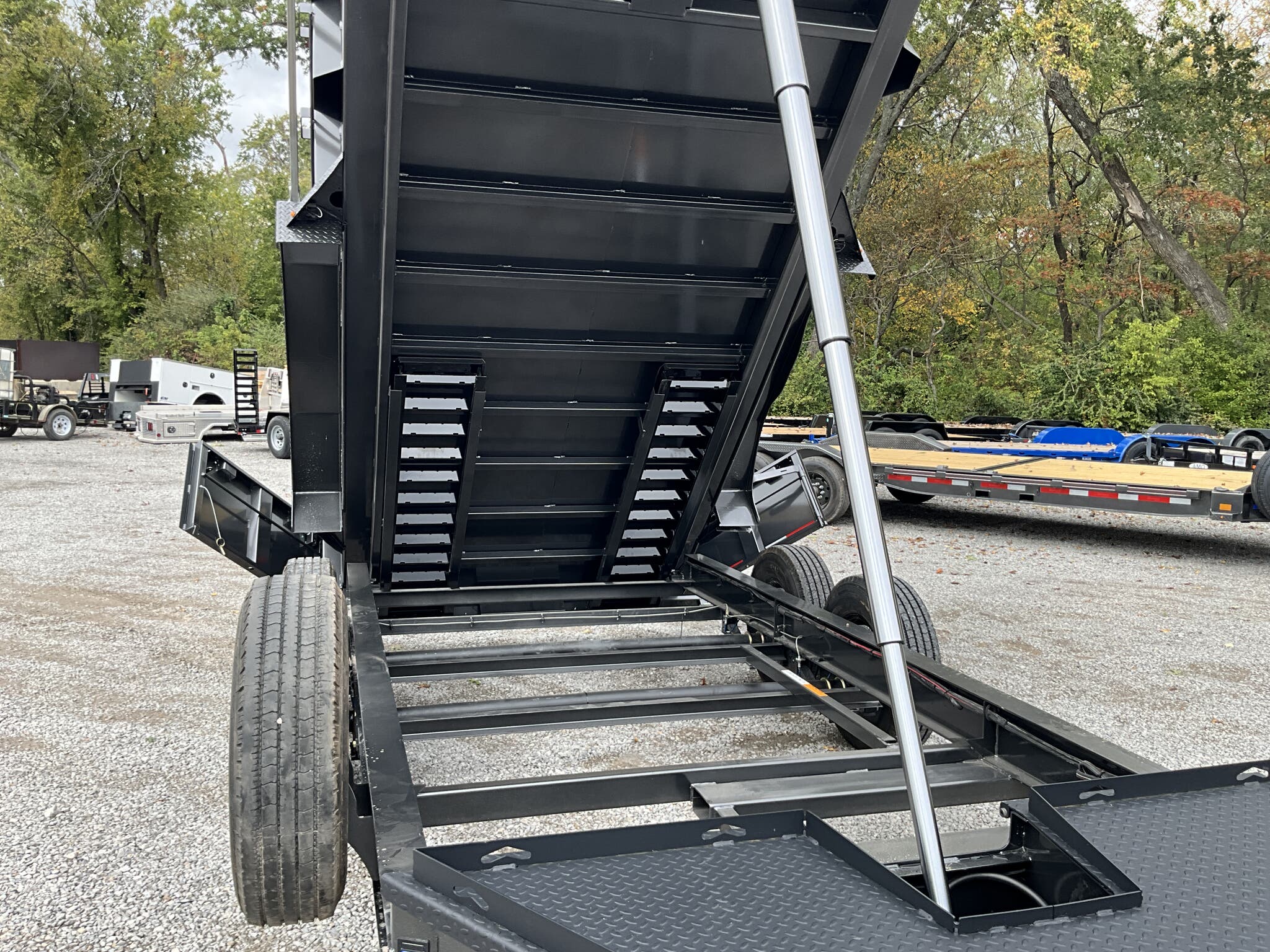

Specs — Hoist: 5-stage telescopic hydraulic cylinder
Specs — Hydraulics: Power up / gravity down

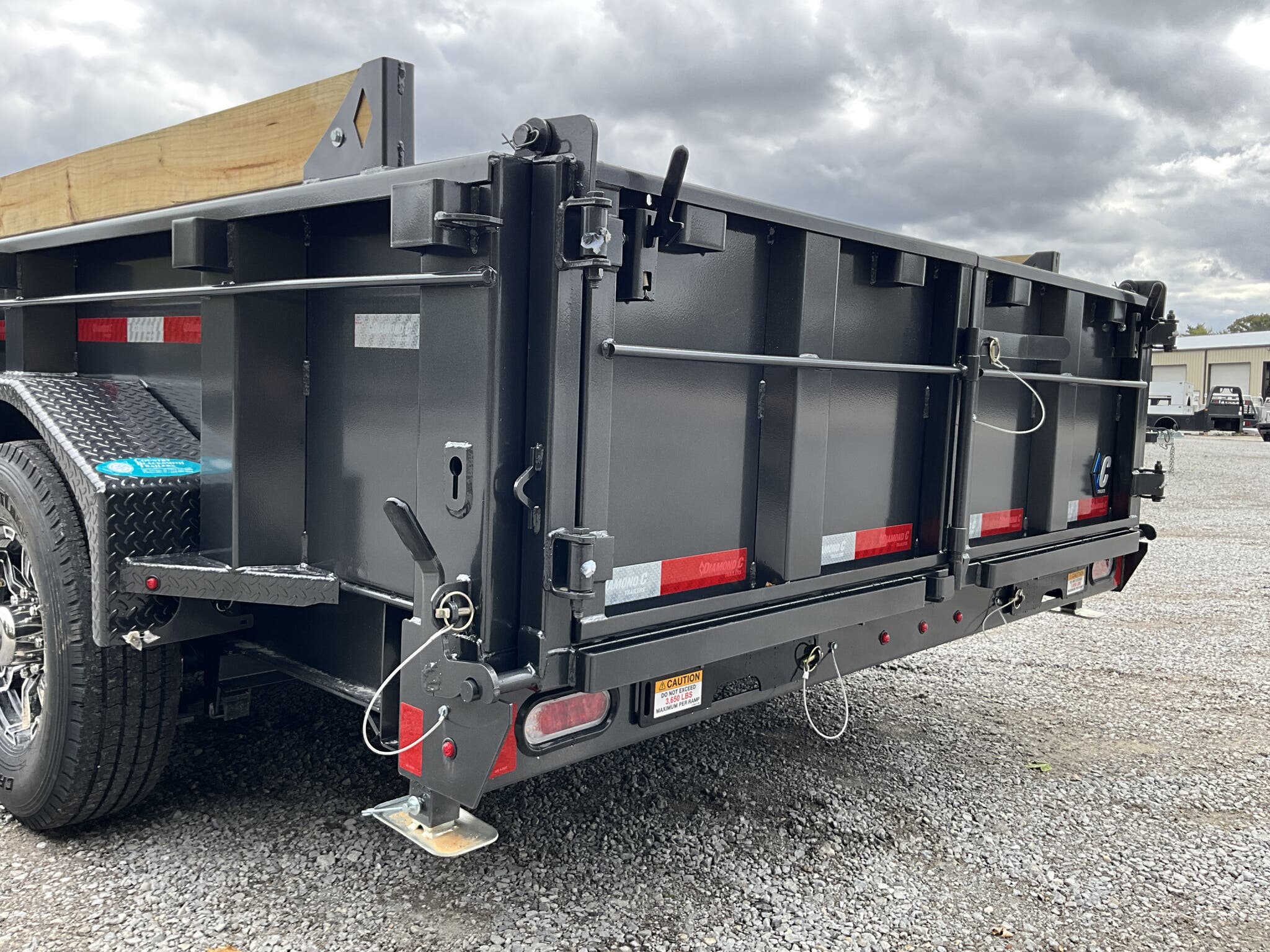

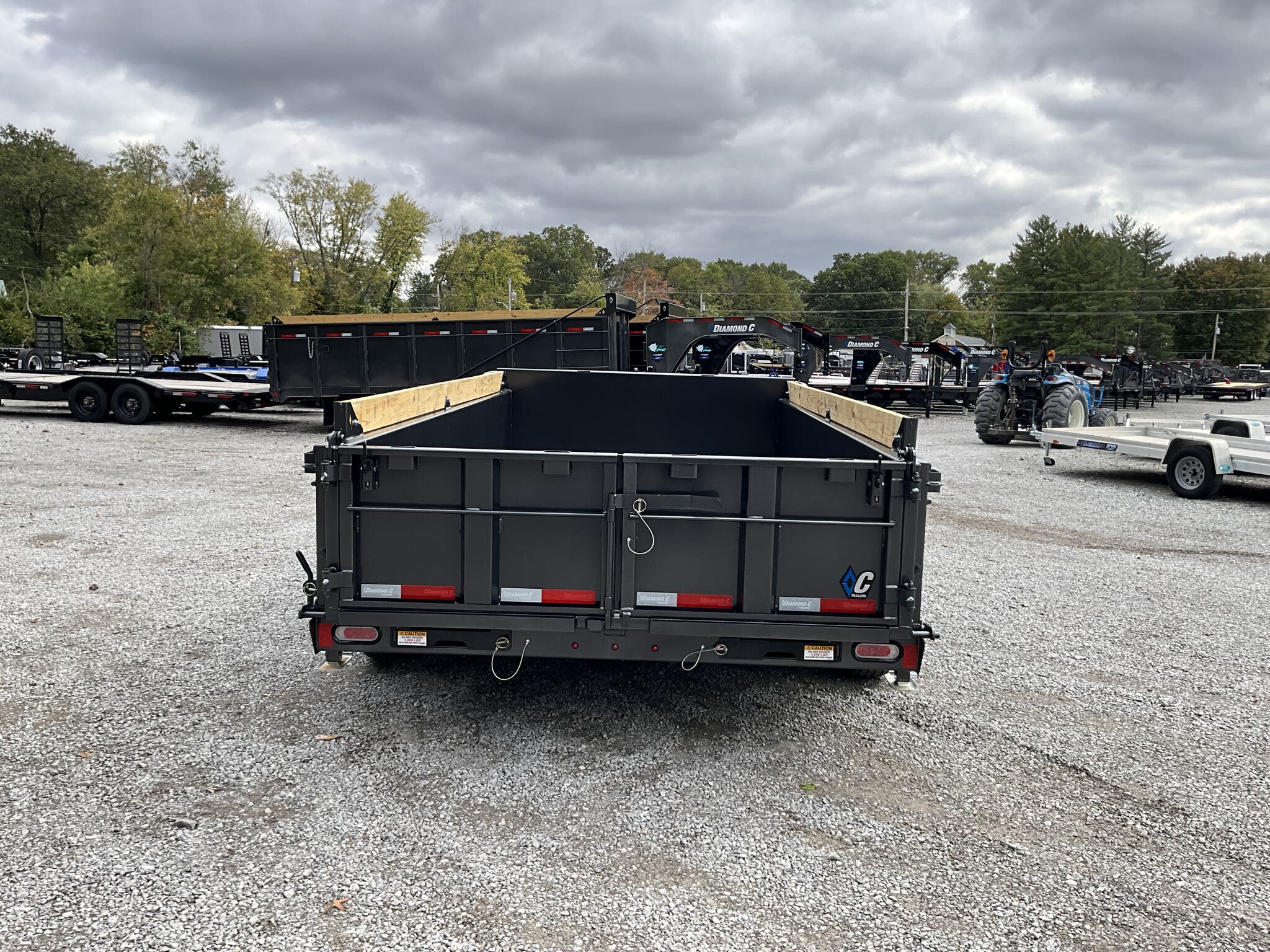

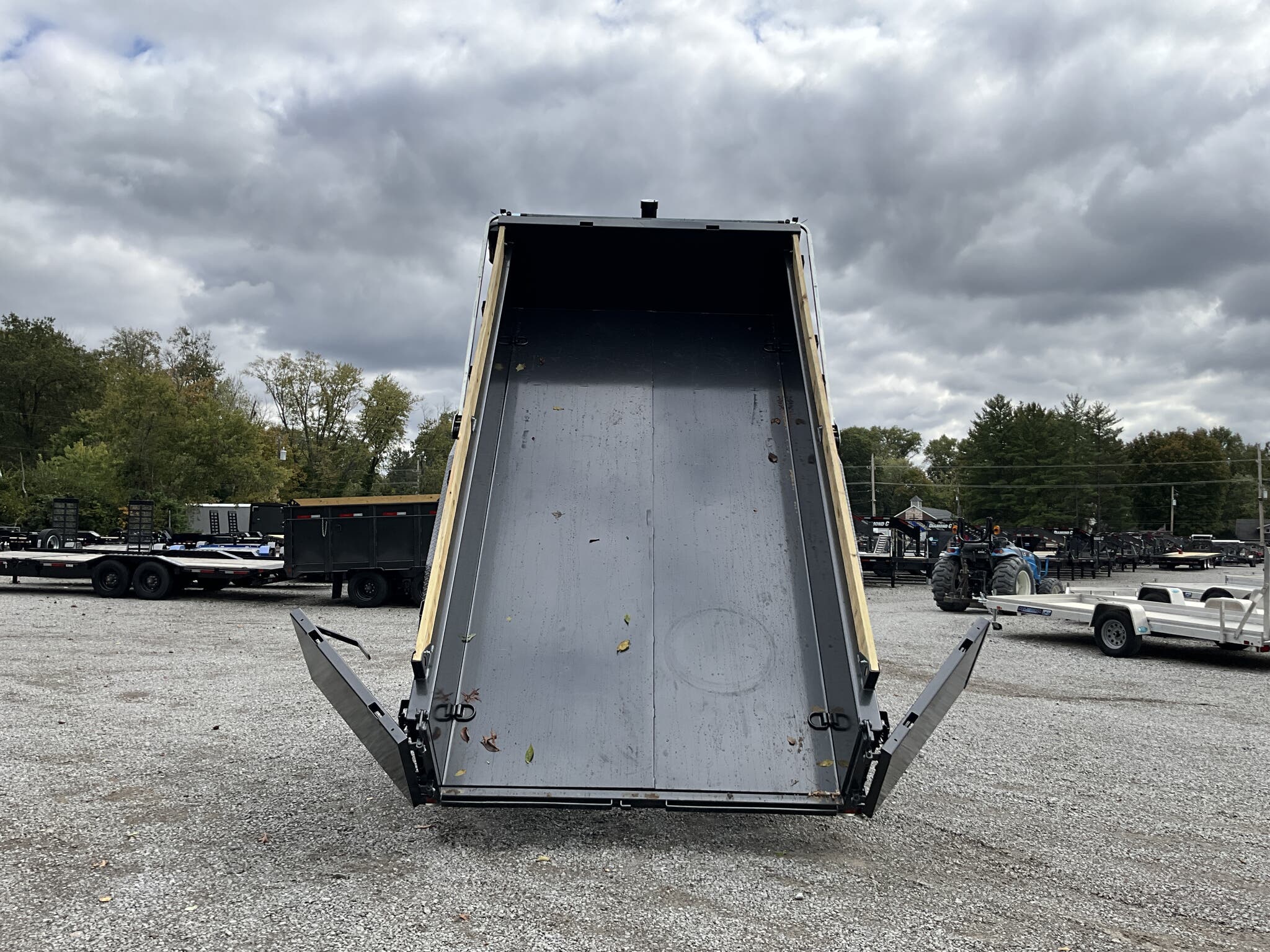

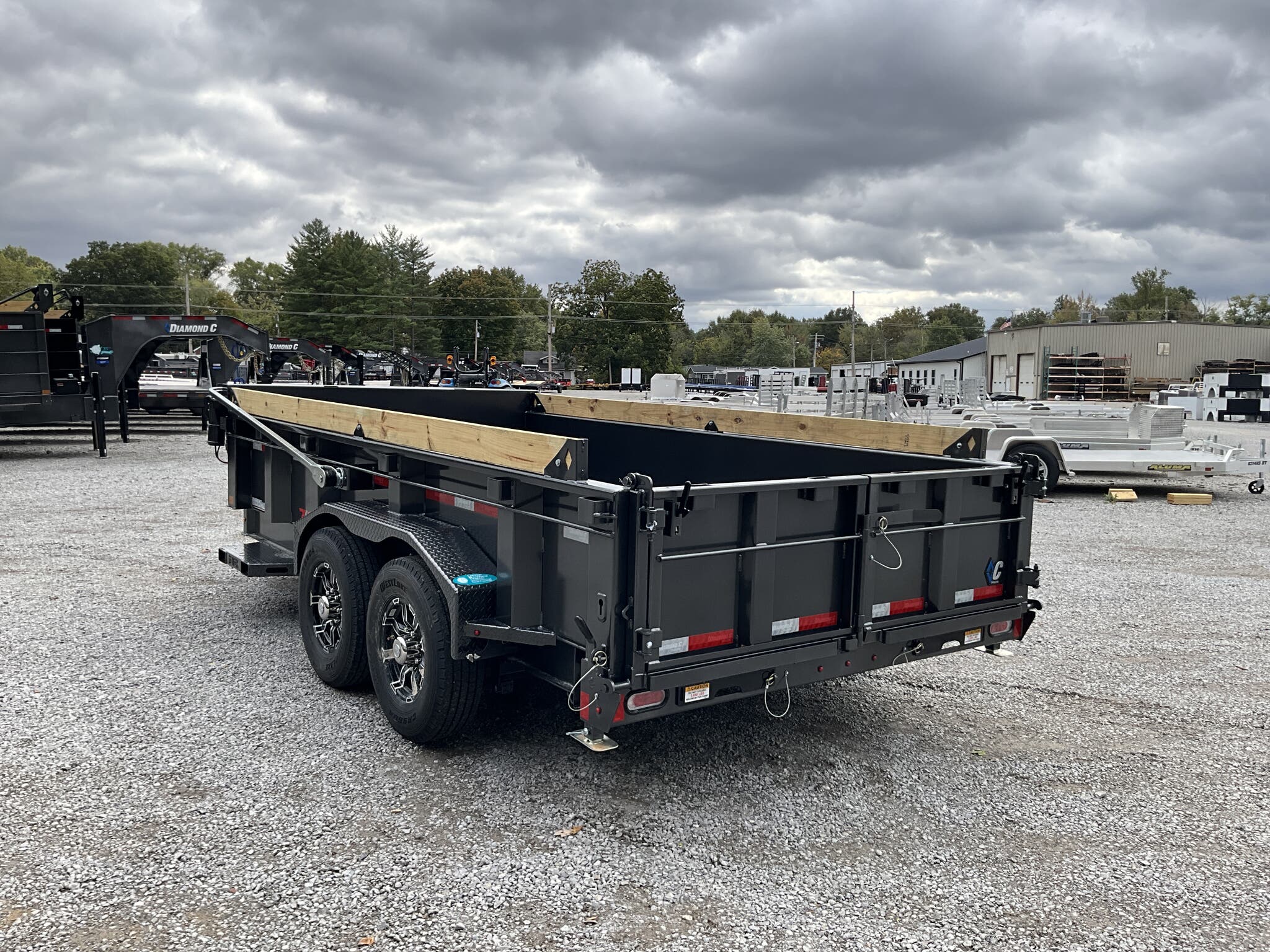

Specs — Gate: 3-way dump gate
Specs — Ramps: 78" rear slide-in ramps constructed from 3" I-beam
Specs — Stabilizers: Rear drop-leg stabilizer jacks (pair)
Specs — Coupler: Adjustable 2-5/16" 21K Demco EZ-Latch
Specs — Jack: 20,000 lb hydraulic jack

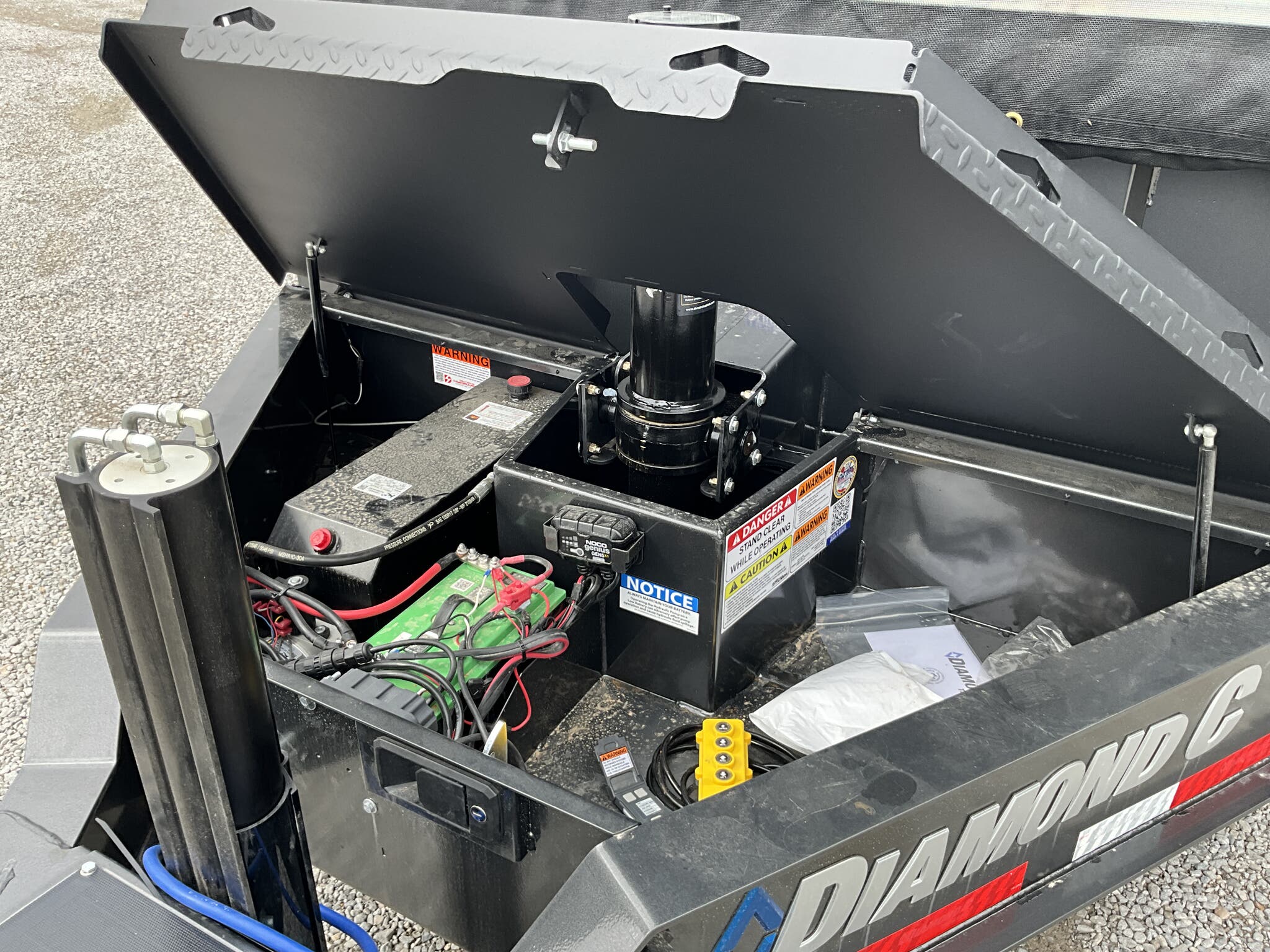

Specs — Storage: HD V-tongue toolbox with lid

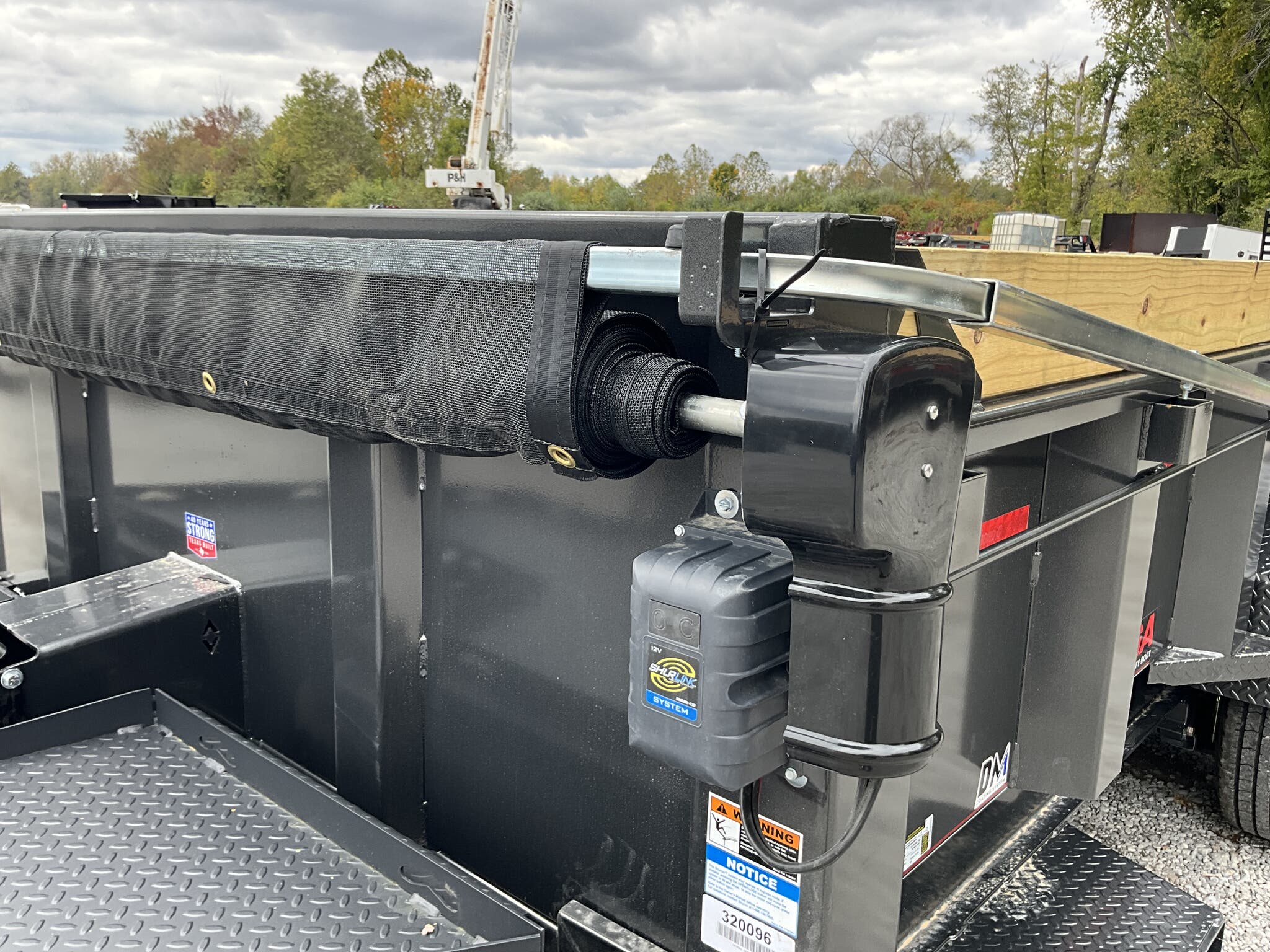

Specs — Tarp: Installed 20' heavy-duty black mesh electric long-arm tarp system

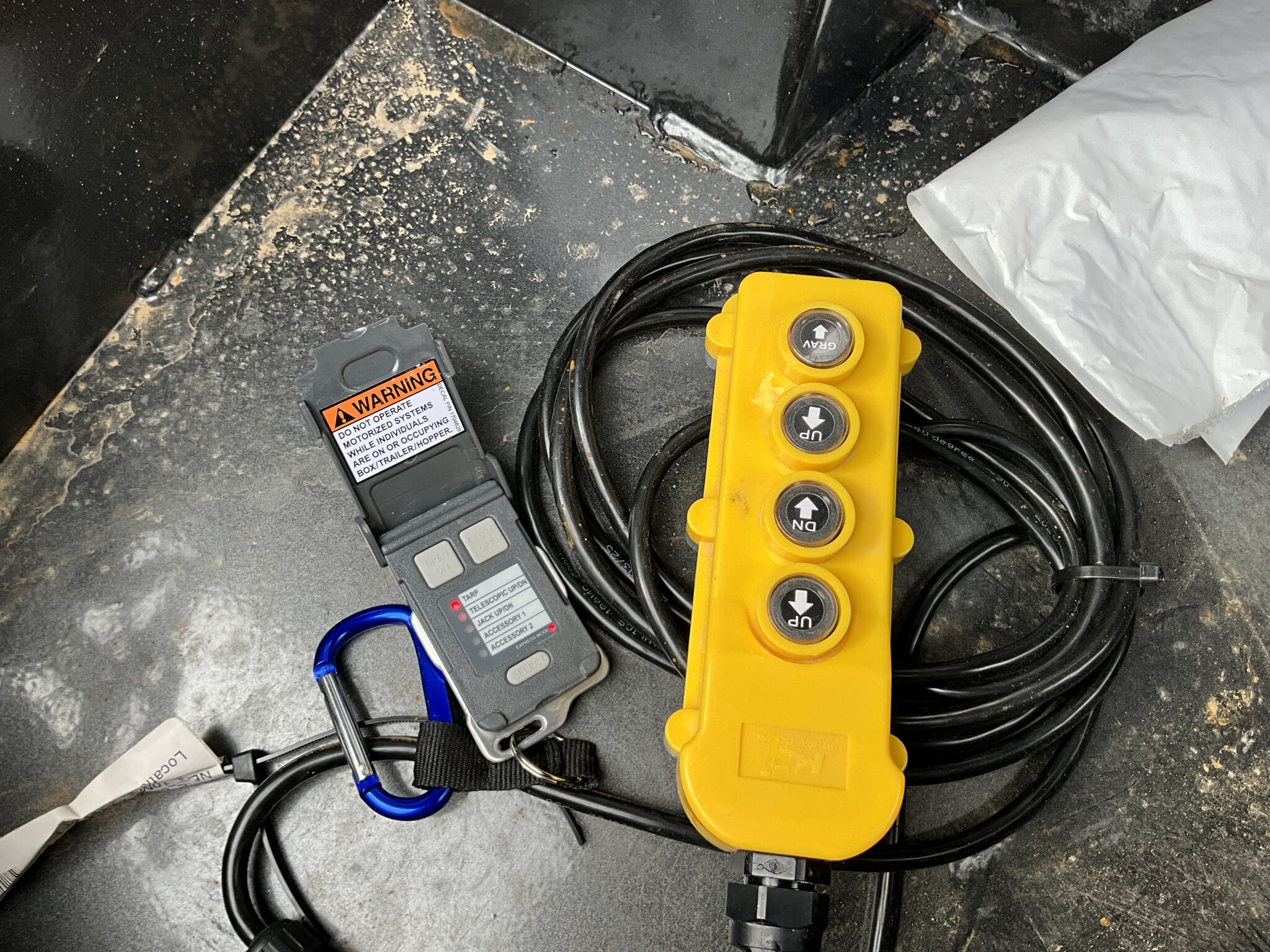

Specs — Controls: 4-button Bluetooth wireless controller for dump system and hydraulic jack
Specs — Fenders: Super heavy-duty 3/16" diamond plate fenders

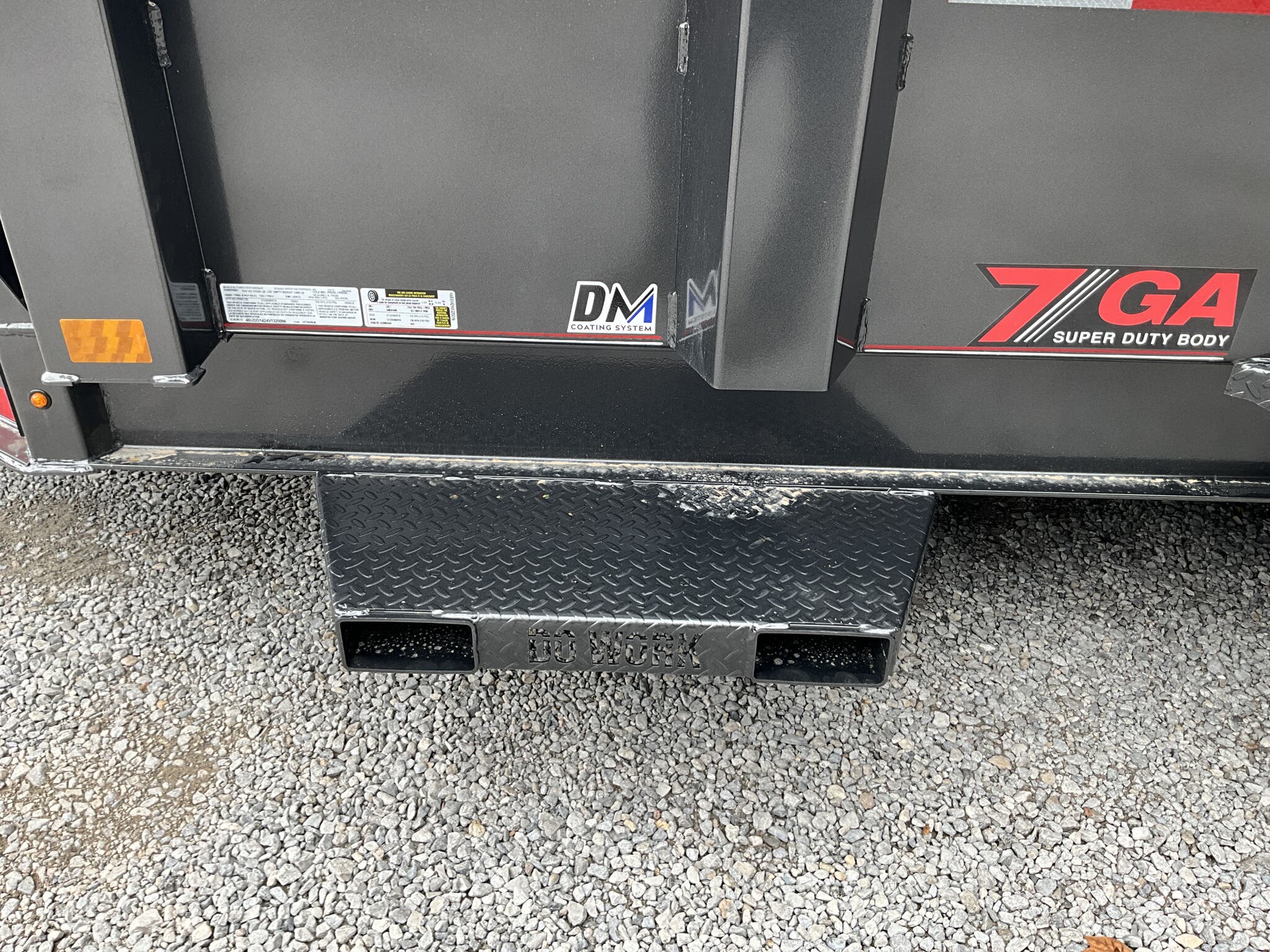

Specs — Step: Driver-side fork holder/step combination
Specs — Tie Downs: (4) 5/8" D-rings

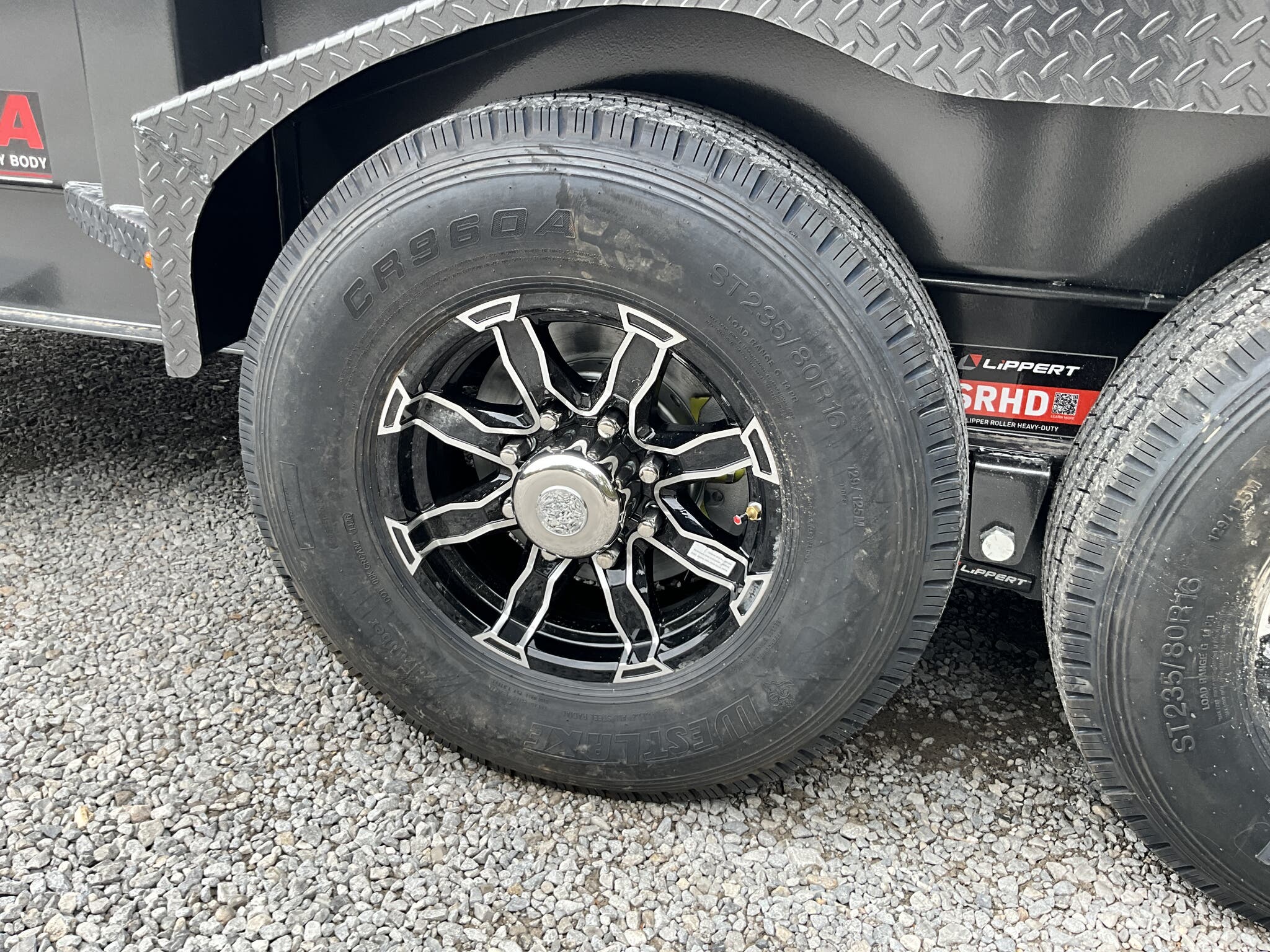

Specs — Tires/Wheels: ST235/80R16 14-ply radial tires on 8-hole aluminum wheels
Specs — Spare: Matching ST235/80R16 14-ply radial spare on 8-hole aluminum wheel
Specs — Spare Mount: Passenger-side mount
Specs — Electrical: Lithium battery upgrade with SolarPulse 7-watt charging system
Specs — Lighting: Full LED lighting package
Specs — Finish: Carbon Metallic Gray
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 404662
Weights & Capacities
GVWR: 15,500 lb
Empty Weight: 4,940 lb
Payload on Axles: 14,000 - 4,940 = 9,060 lb
Target Tongue Load: 1,550 lb
Total Effective Payload: 10,610 lb
Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
