2027 Diamond C LPT LPT207-14X82 - #DCT20071

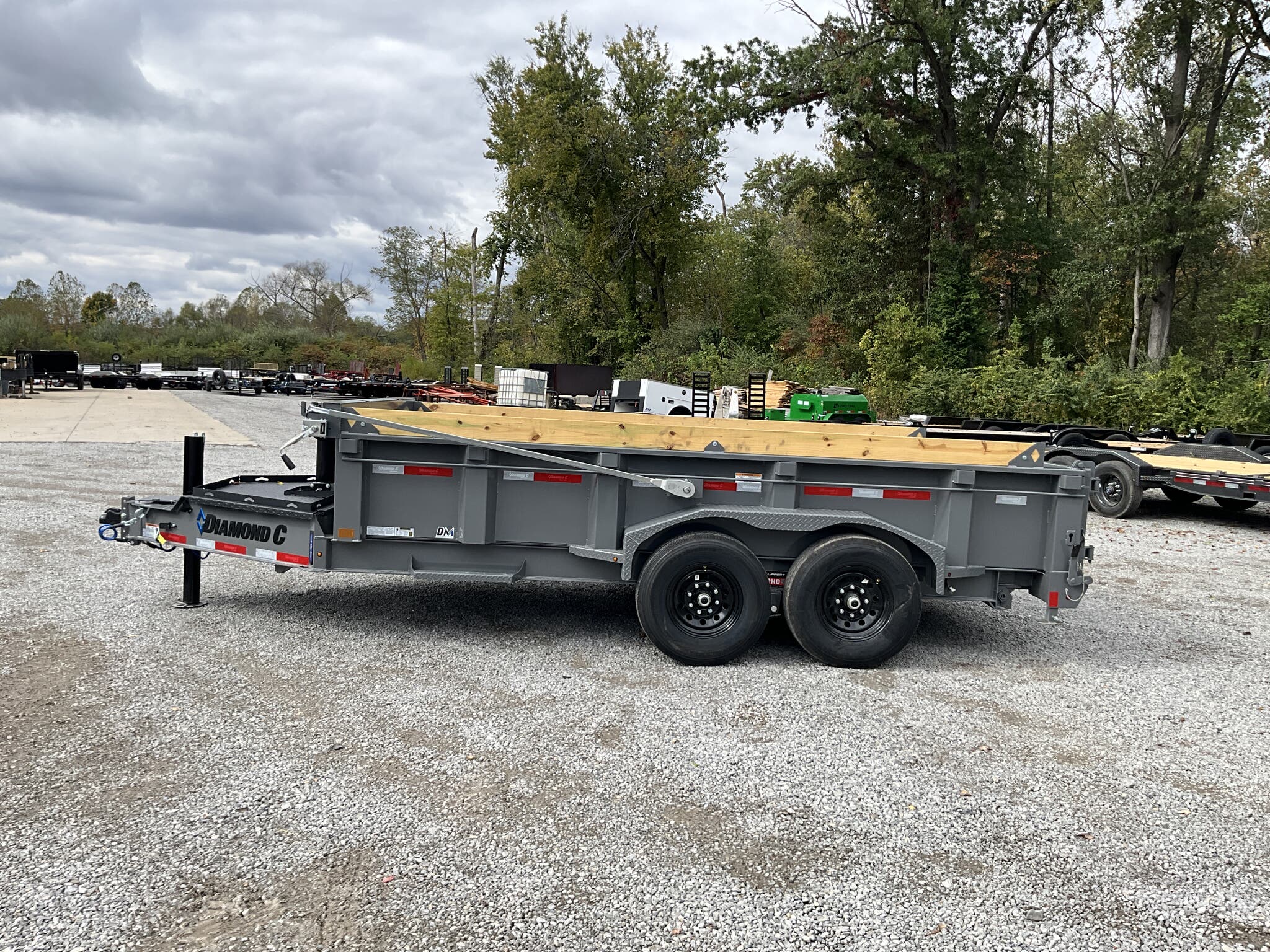

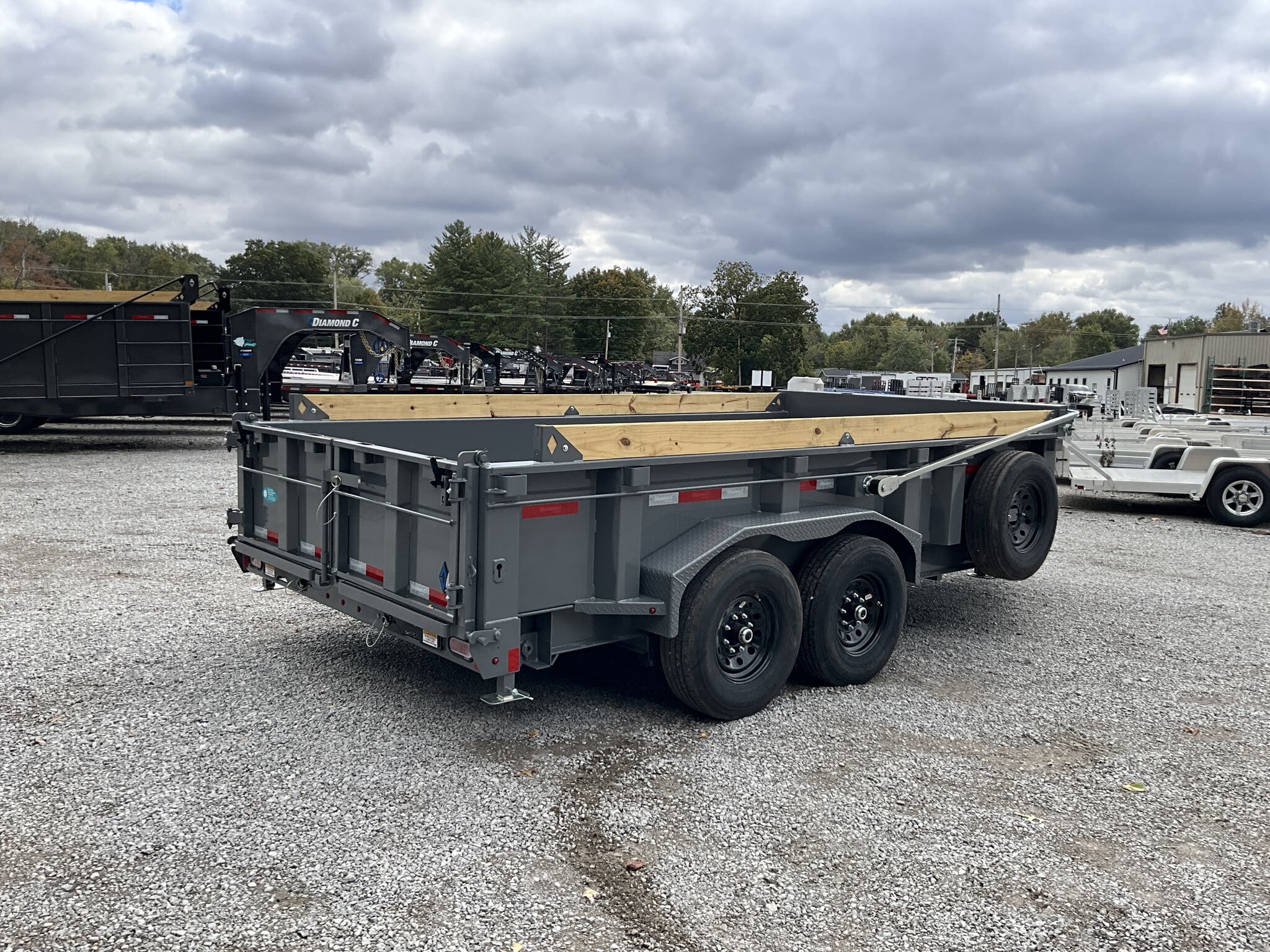

2027 DIAMOND C LPT207 15.5K 82" × 14' LOW PROFILE TELESCOPIC DUMP TRAILER, CEMENT GRAY, 24" SIDES, 20K HYDRAULIC JACK, 20' HD TARP SYSTEM — FOR SALE IN MOUNT VERNON, IL 62864

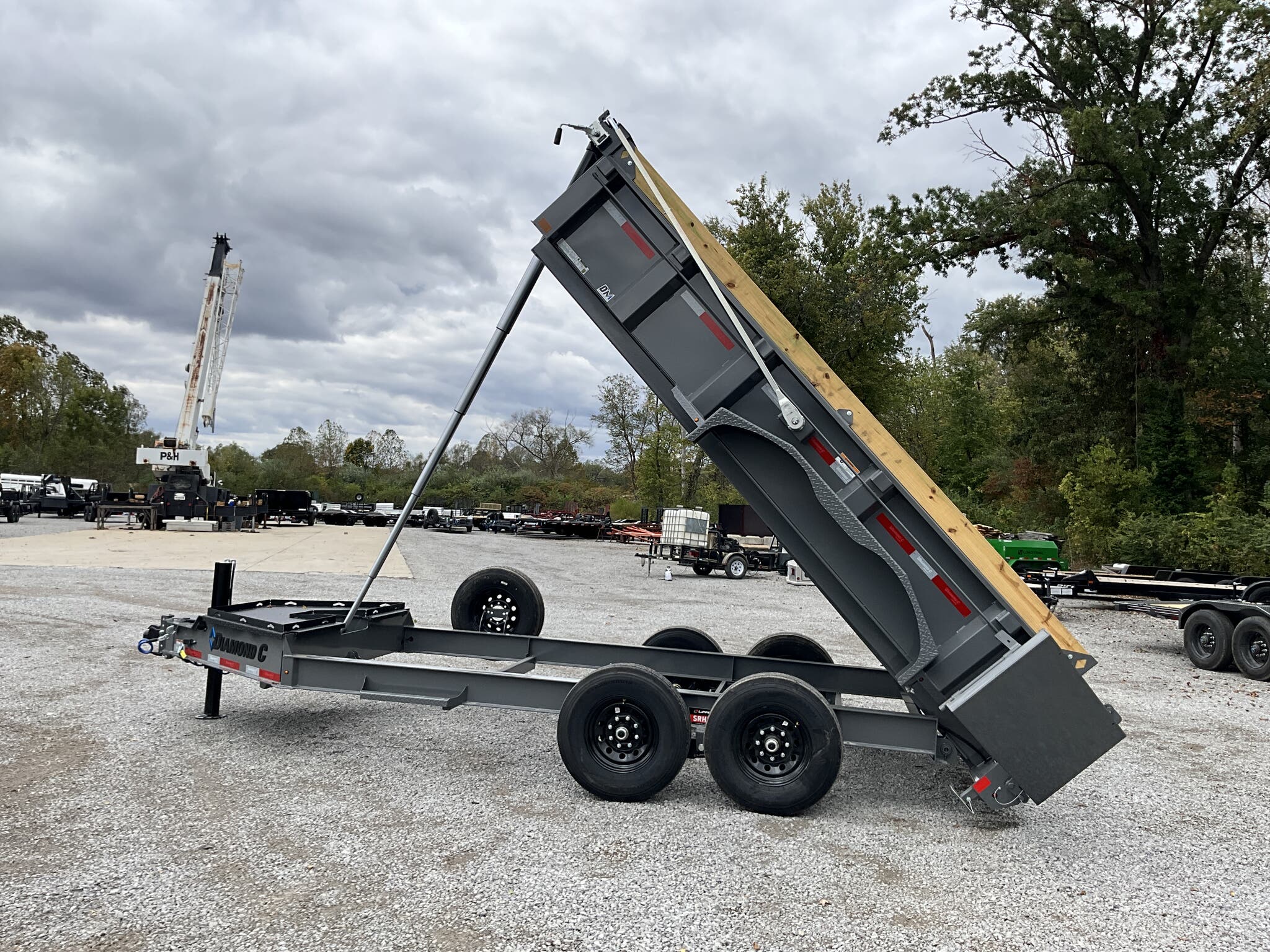

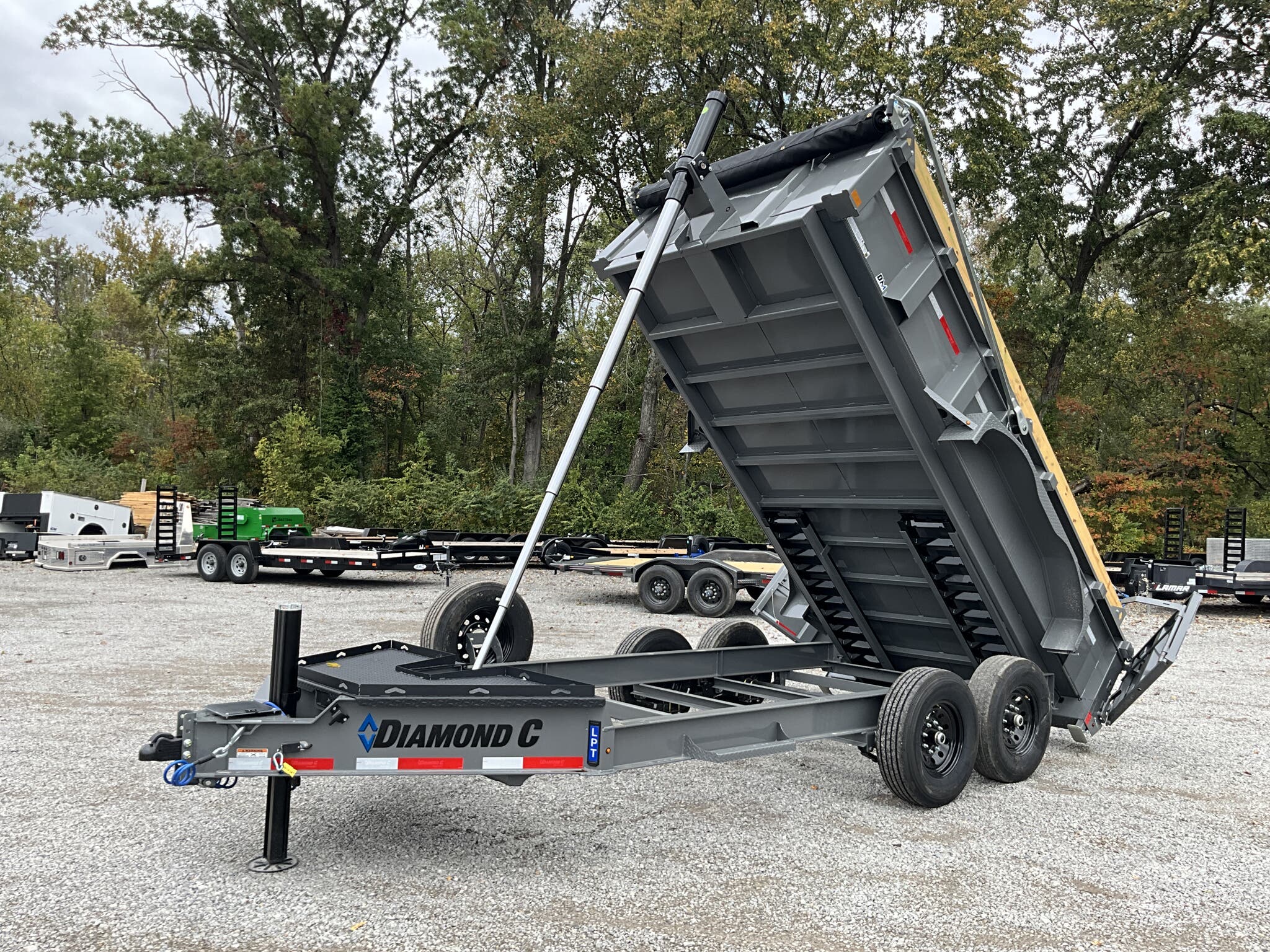

Feature: 5-stage telescopic hydraulic dump system with power-up / gravity-down operation for dependable heavy-duty dumping
Feature: 24" tall 10-gauge steel sides integral with floor, board brackets with boards, and raised front
Feature: 20K hydraulic jack with lithium battery upgrade and SolarPulse 7-watt charging system
Feature: 78" rear slide-in I-beam ramps with rear stabilizer drop legs for equipment loading
Feature: Heavy-duty 3/16" diamond plate fenders, 3-way dump gate, and installed 20' black mesh long-arm tarp system
Specs — Model: LPT207 Low Profile Telescopic Dump Trailer

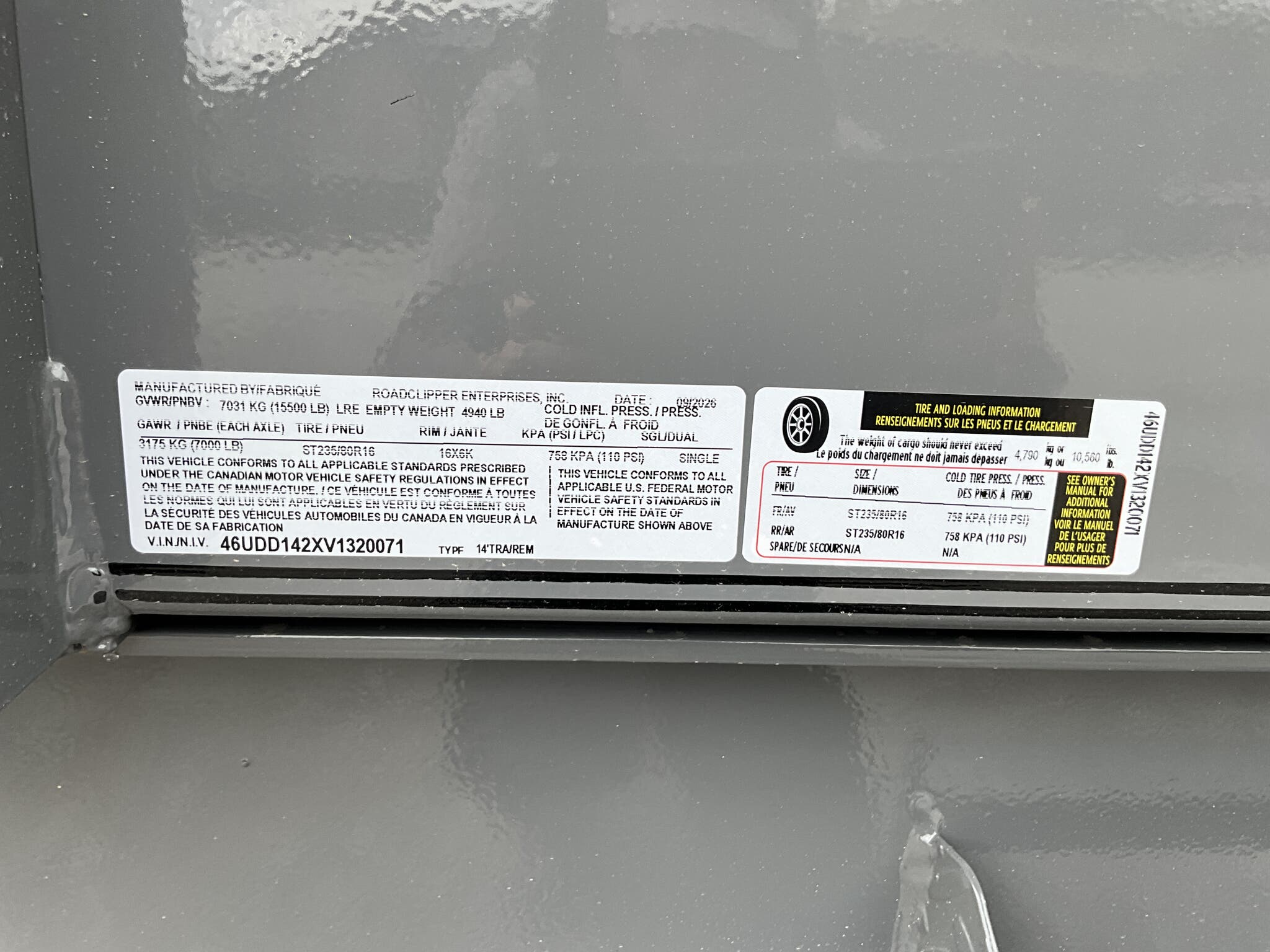

Specs — VIN: 46UDD142XV1320071
Specs — Size: 82" × 14'
Specs — GVWR: 15,500 lb

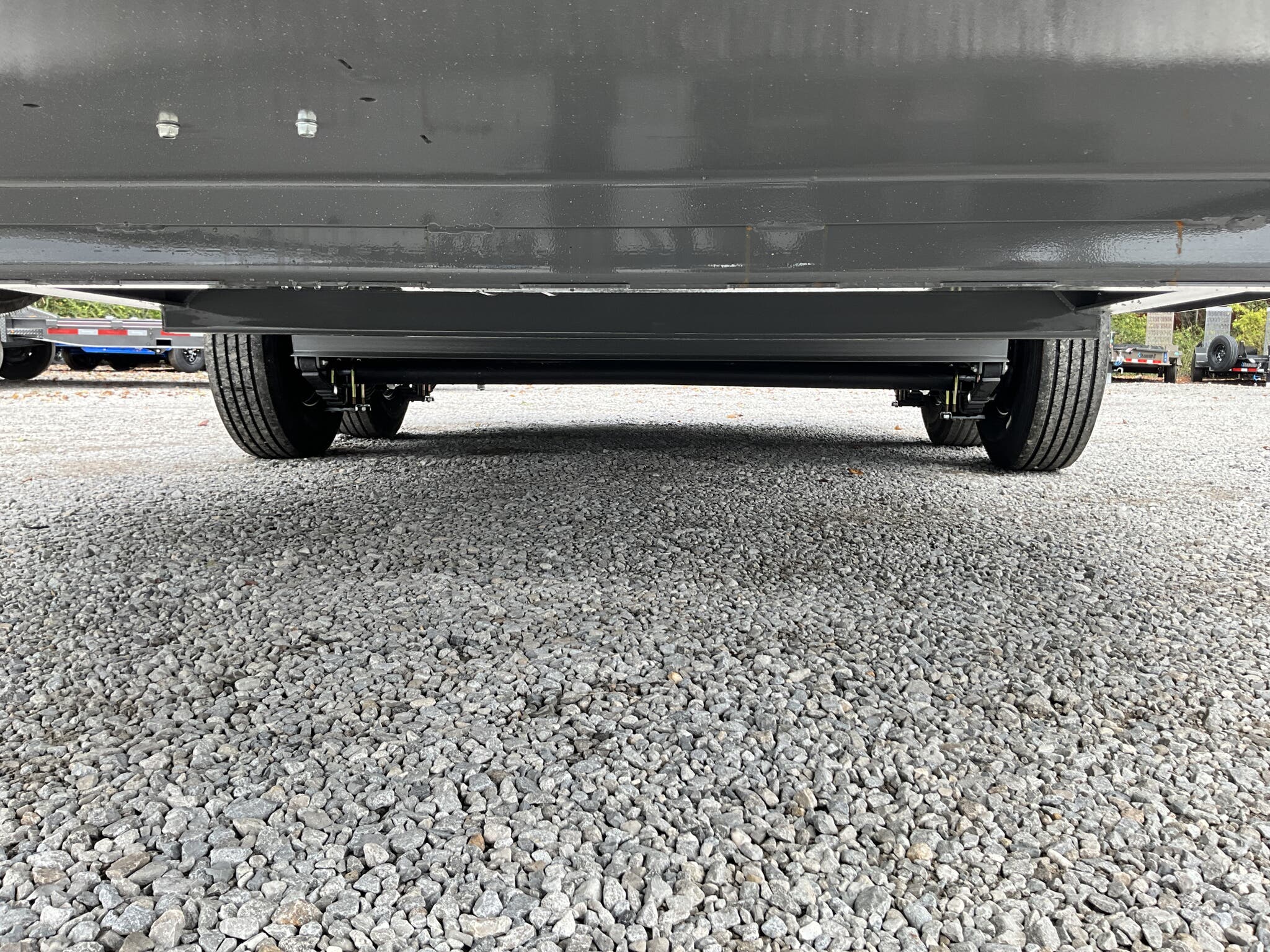

Specs — Axles/Brakes: (2) 7,000 lb drop axles with electric drum brakes
Specs — Suspension: 6-leaf slipper roller spring suspension
Specs — Main Frame: 8" × 15 lb I-beam frame
Specs — Crossmembers: 16" centers

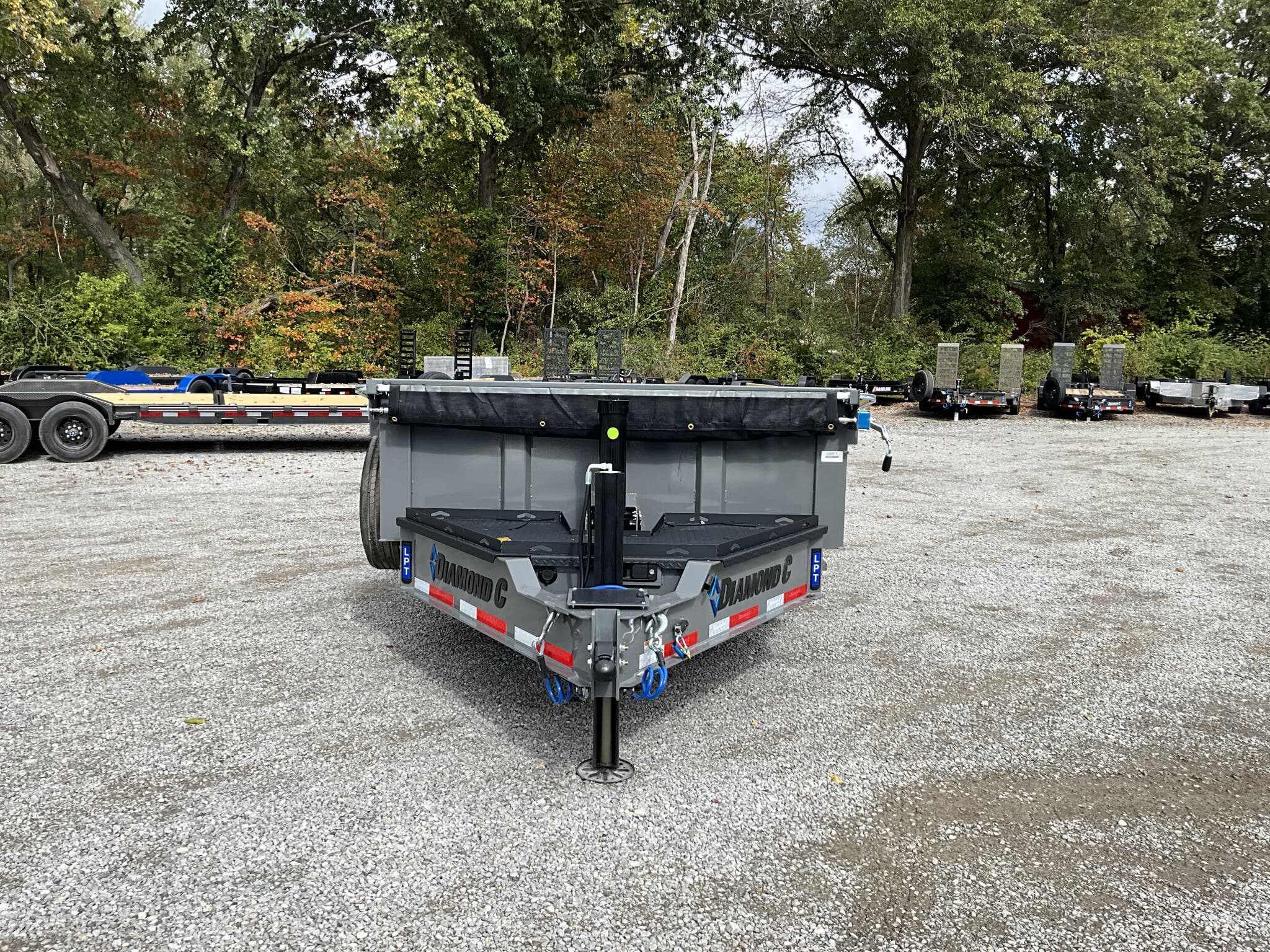

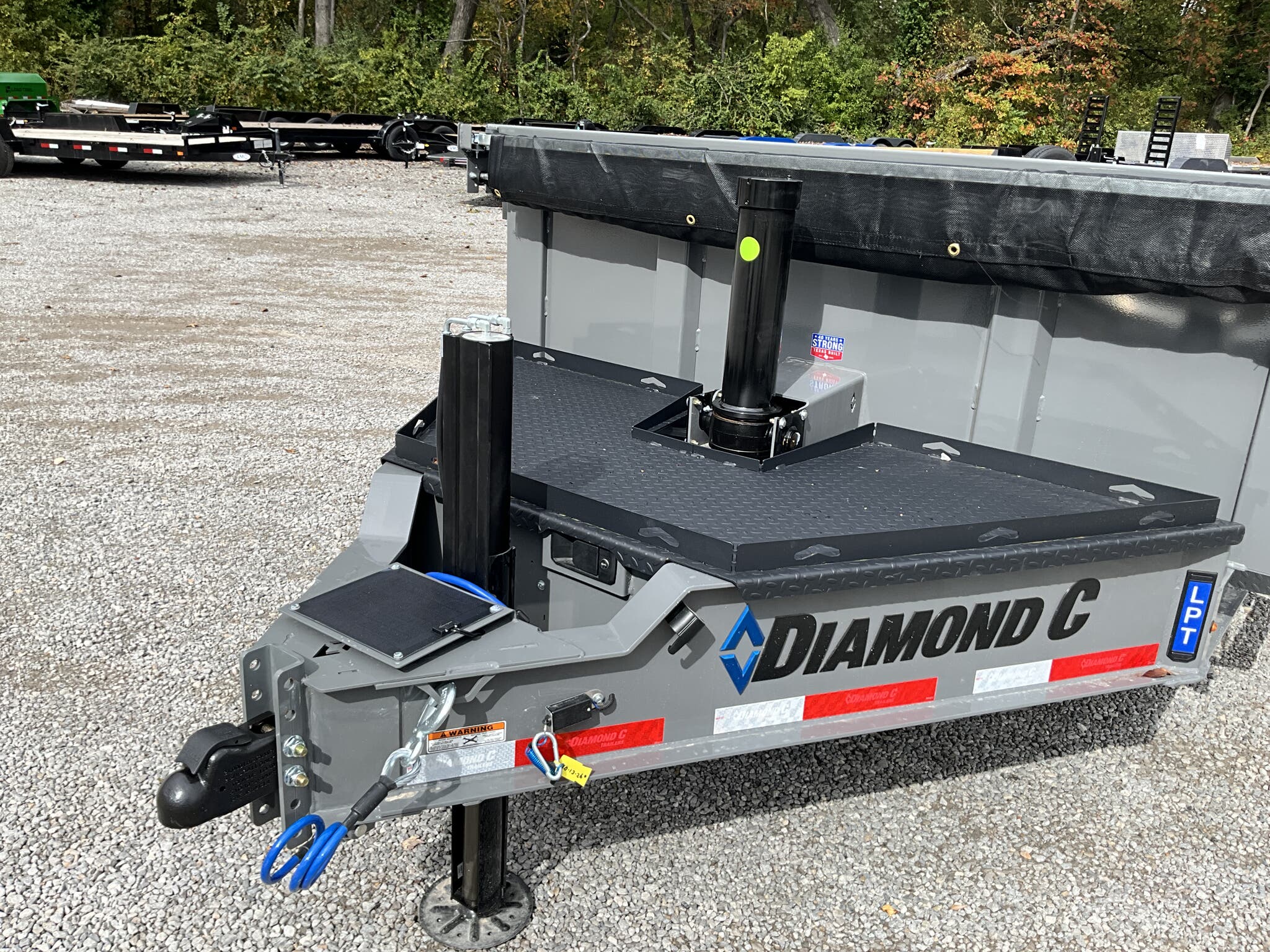

Specs — Tongue: Engineered tongue with HD V-tongue storage lid
Specs — Body: 10-gauge steel sides integral with floor
Specs — Sides: 24" tall 10-gauge steel sides
Specs — Side Extensions: Board brackets with boards and raised front

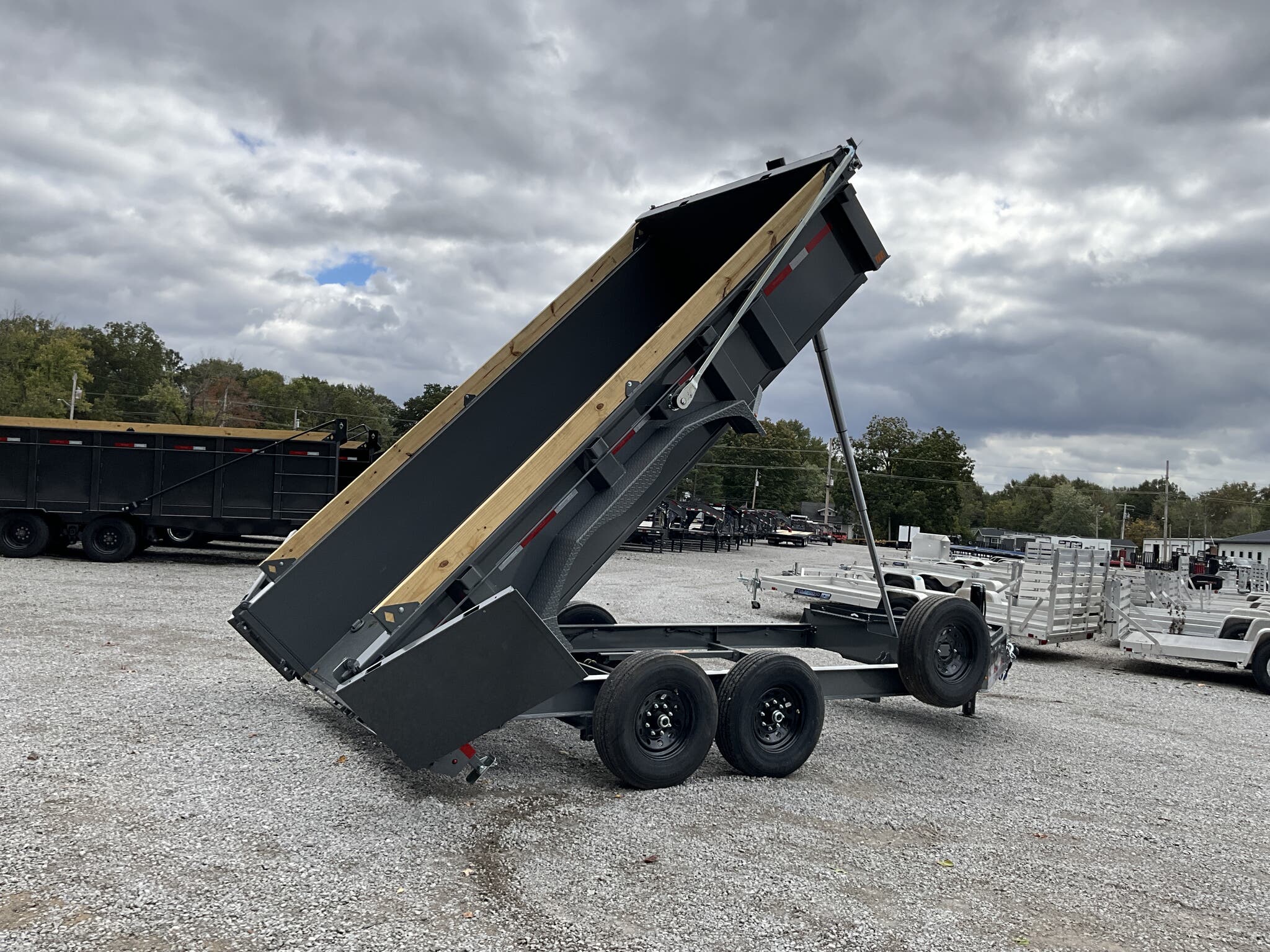

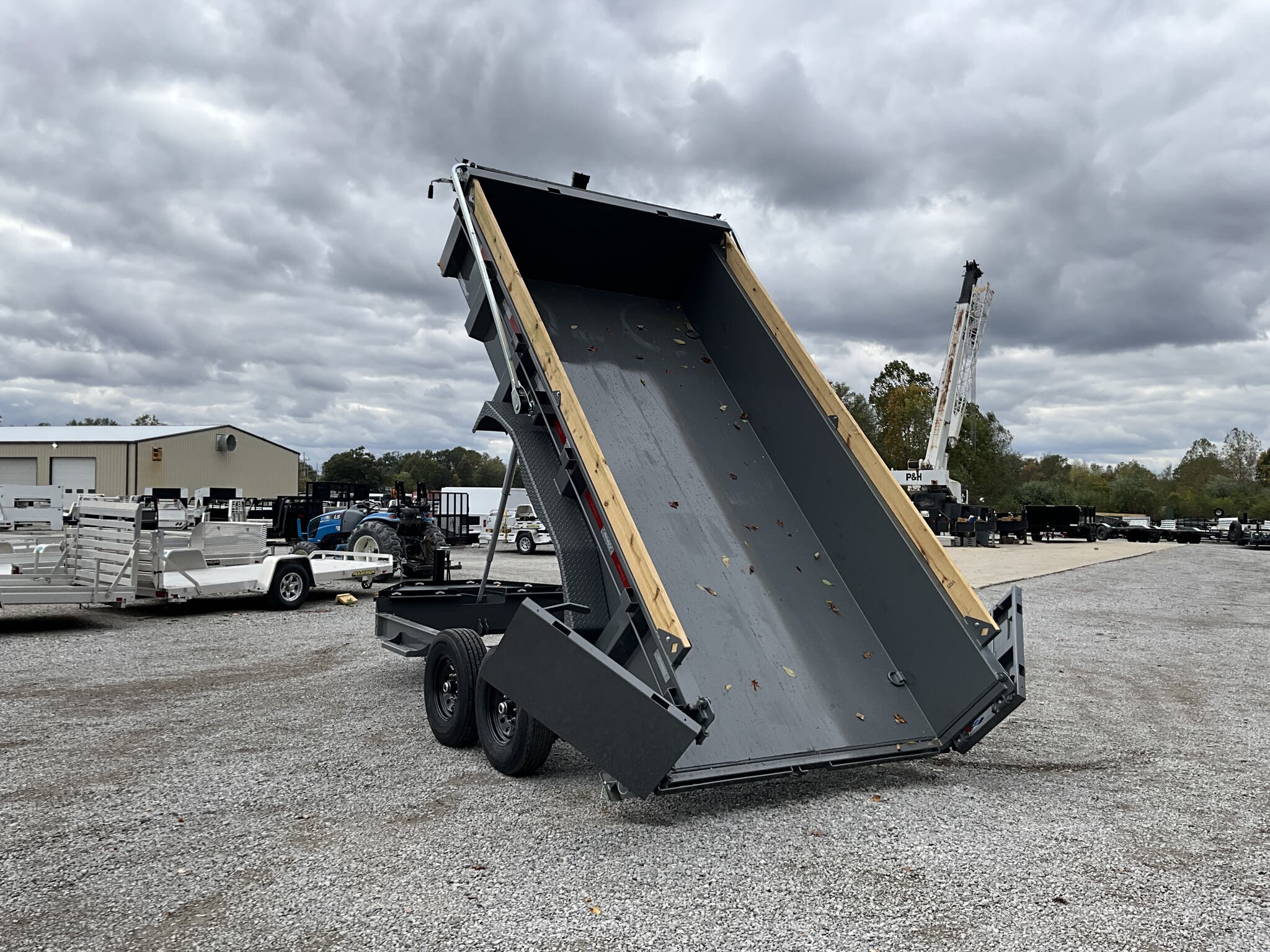

Specs — Hoist: 5-stage telescopic hydraulic cylinder
Specs — Hydraulics: Power up / gravity down

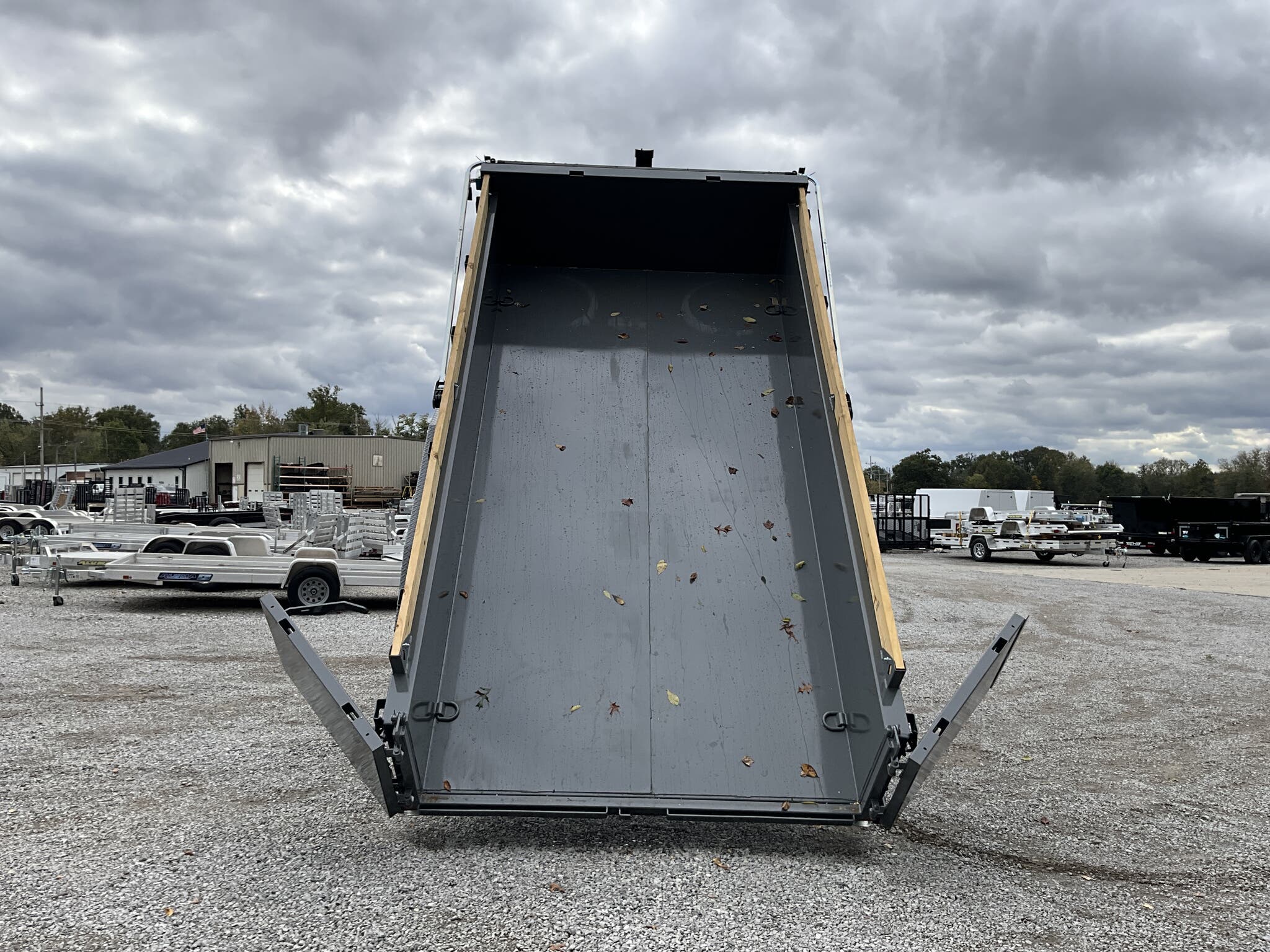

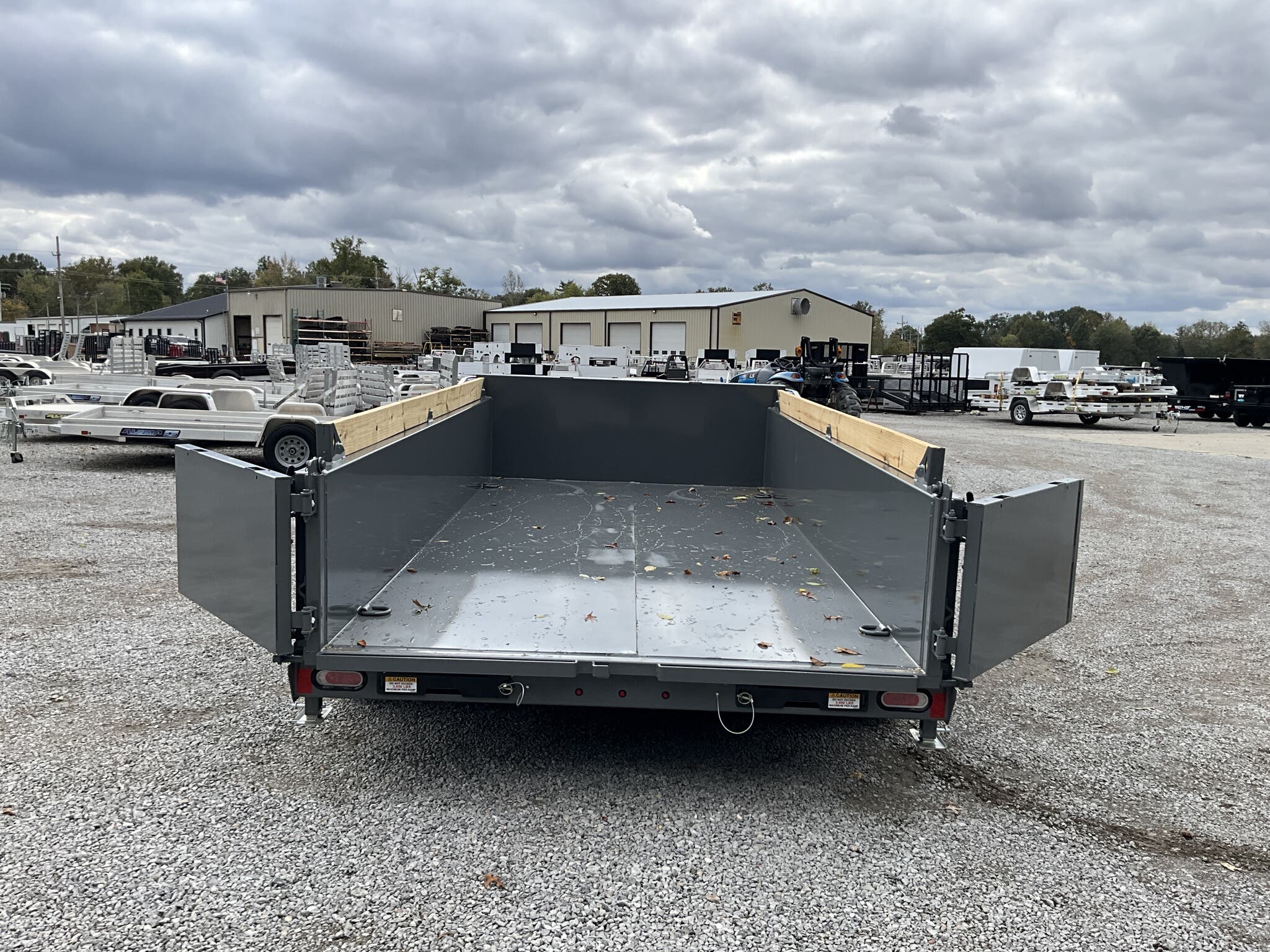

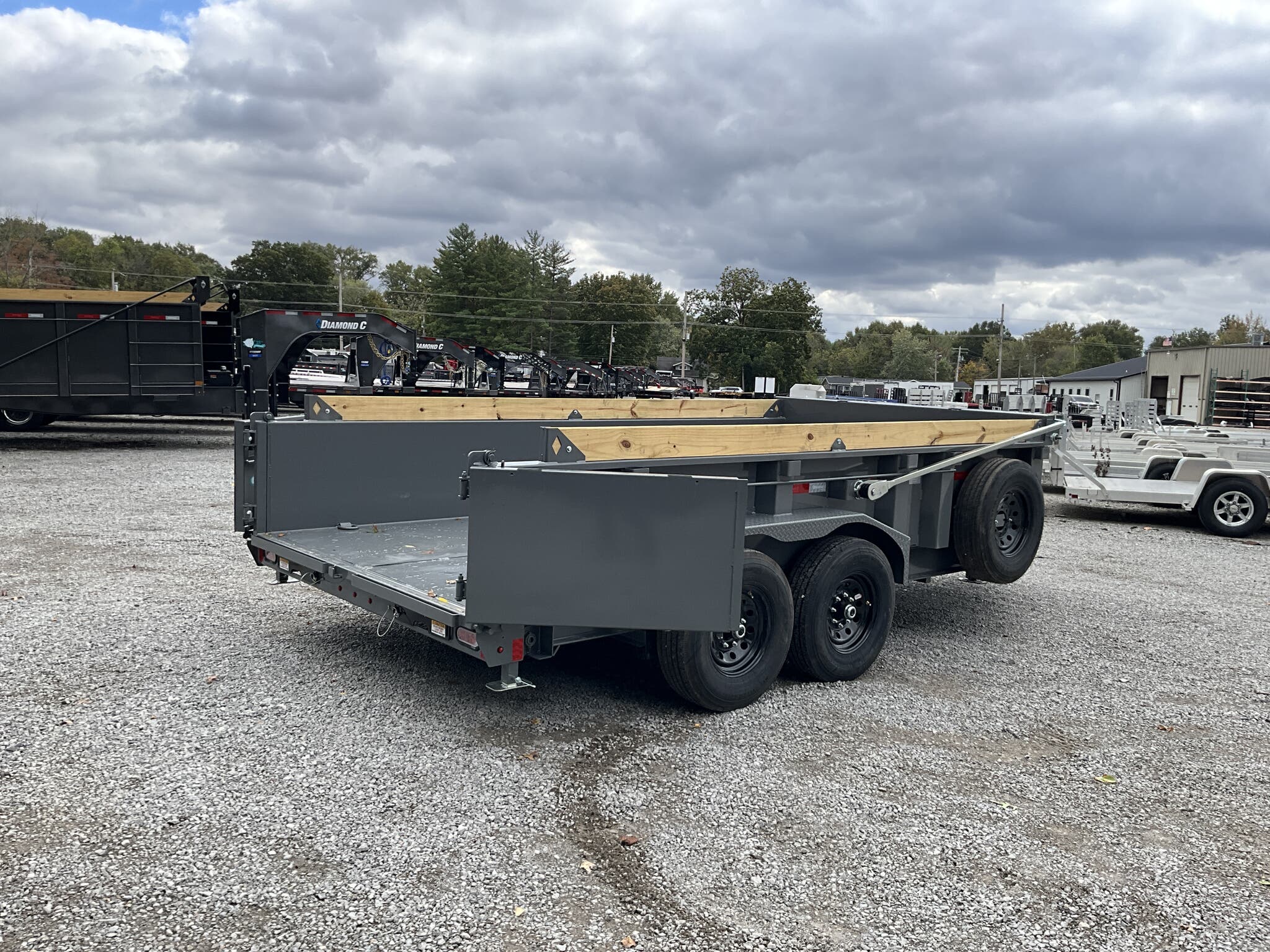

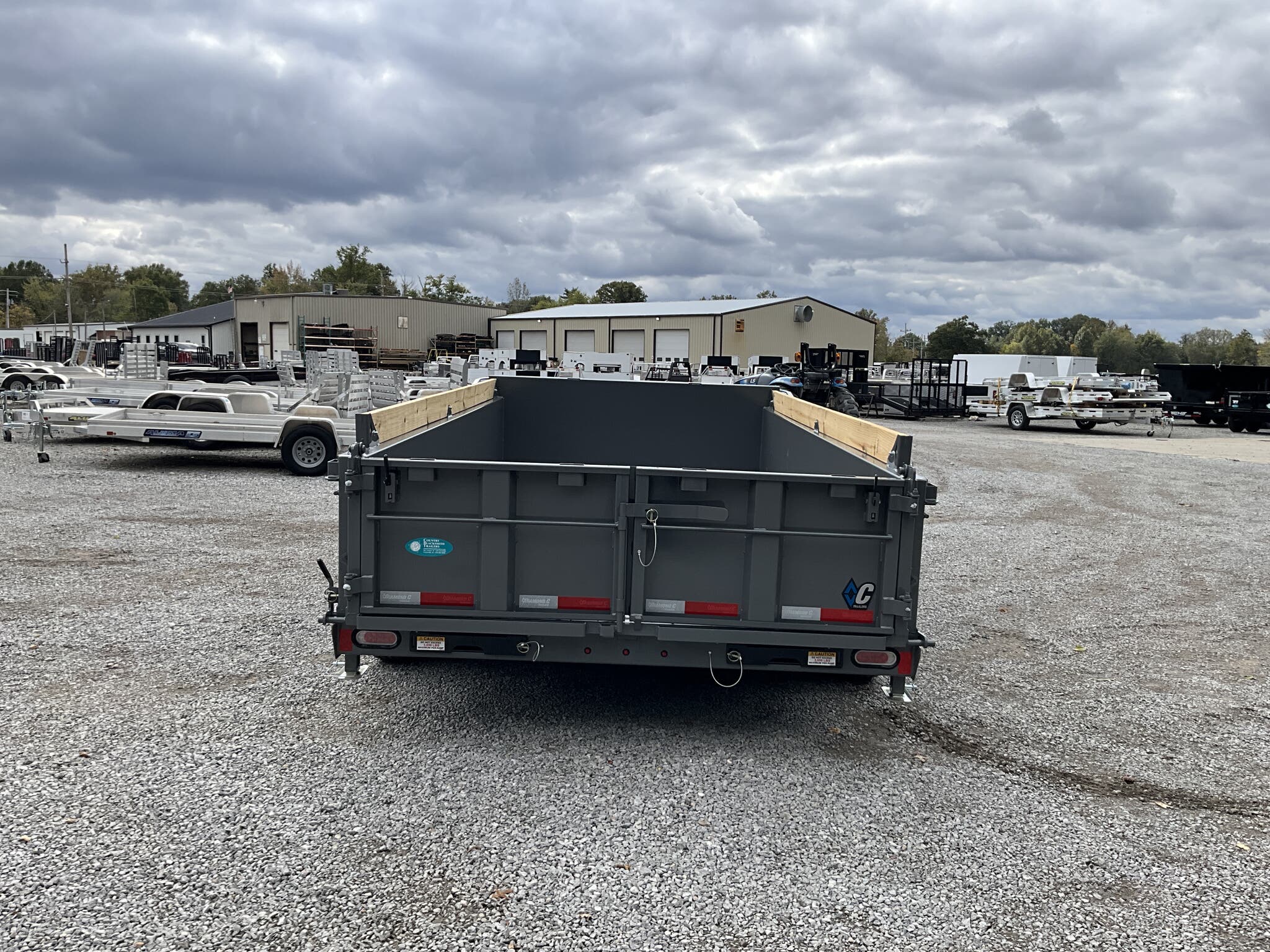

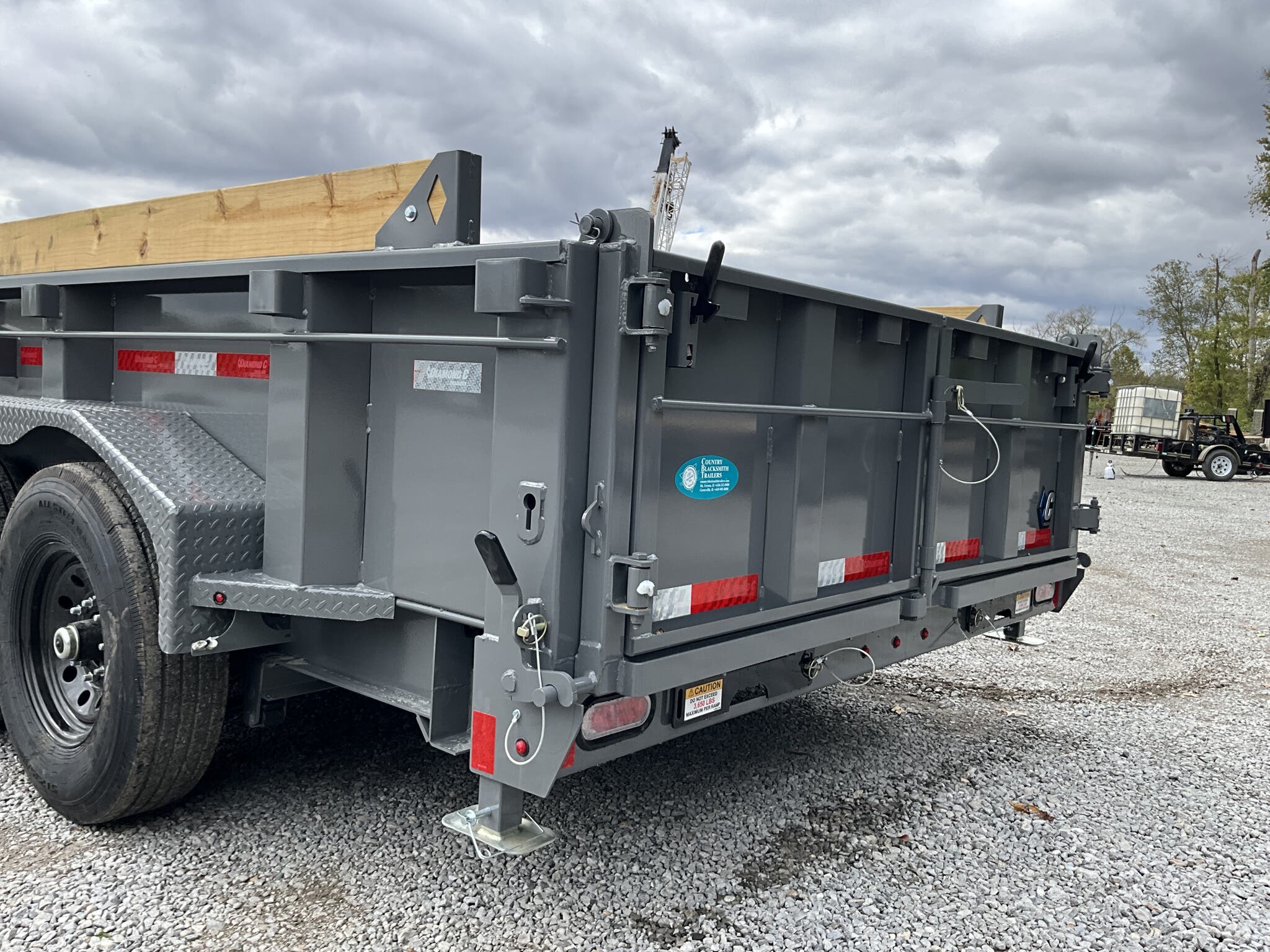

Specs — Gate: 3-way dump gate
Specs — Ramps: 78" rear slide-in ramps constructed from 3" I-beam
Specs — Stabilizers: Rear drop-leg stabilizer jacks (pair)
Specs — Coupler: Adjustable 2-5/16" 21K Demco EZ-Latch
Specs — Jack: 20,000 lb hydraulic jack
Specs — Storage: HD V-tongue toolbox with lid

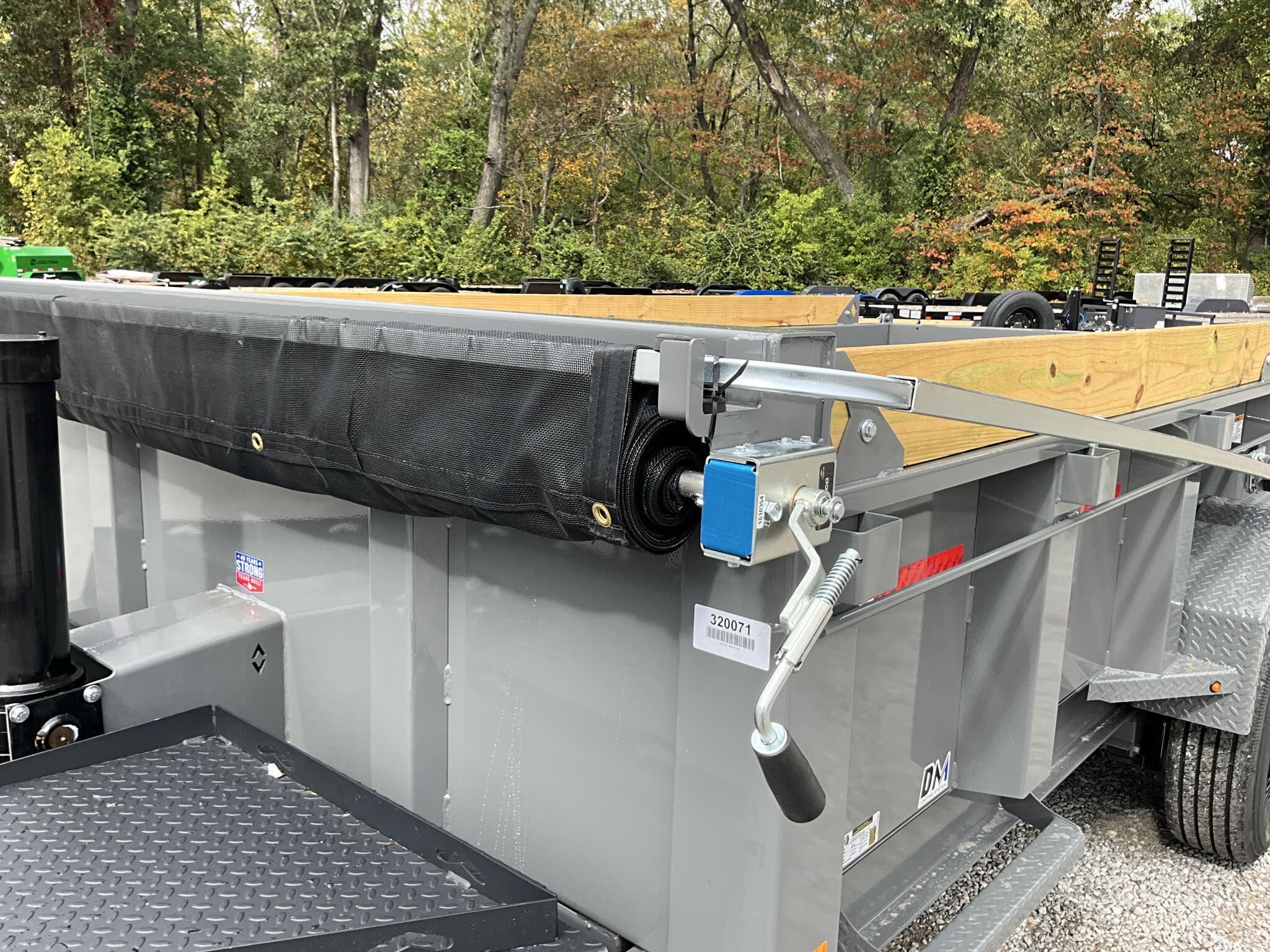

Specs — Tarp: Installed 20' heavy-duty black mesh long-arm tarp system
Specs — Fenders: Super heavy-duty 3/16" diamond plate fenders

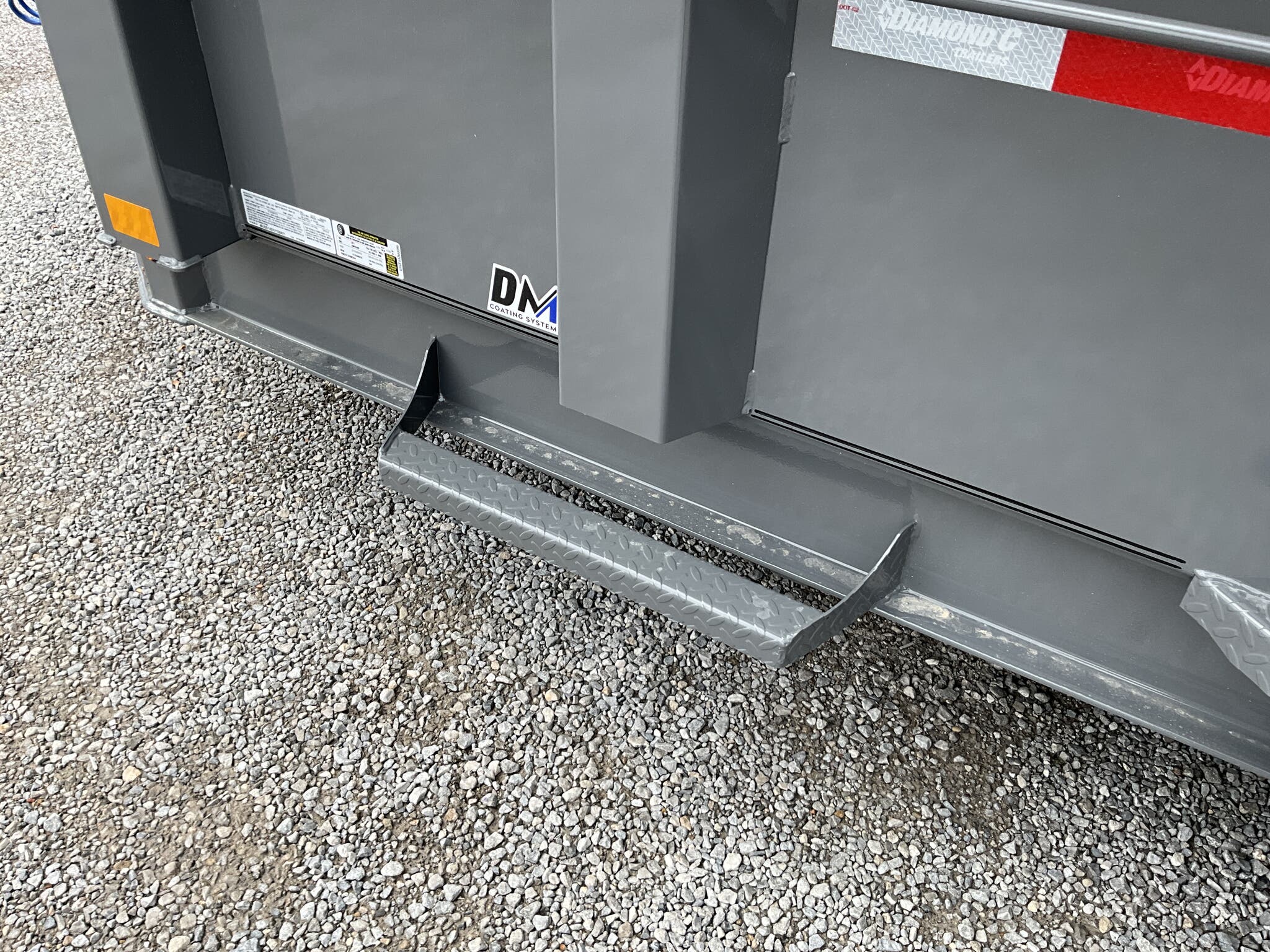

Specs — Step: 24" driver-side step
Specs — Tie Downs: (4) 5/8" D-rings

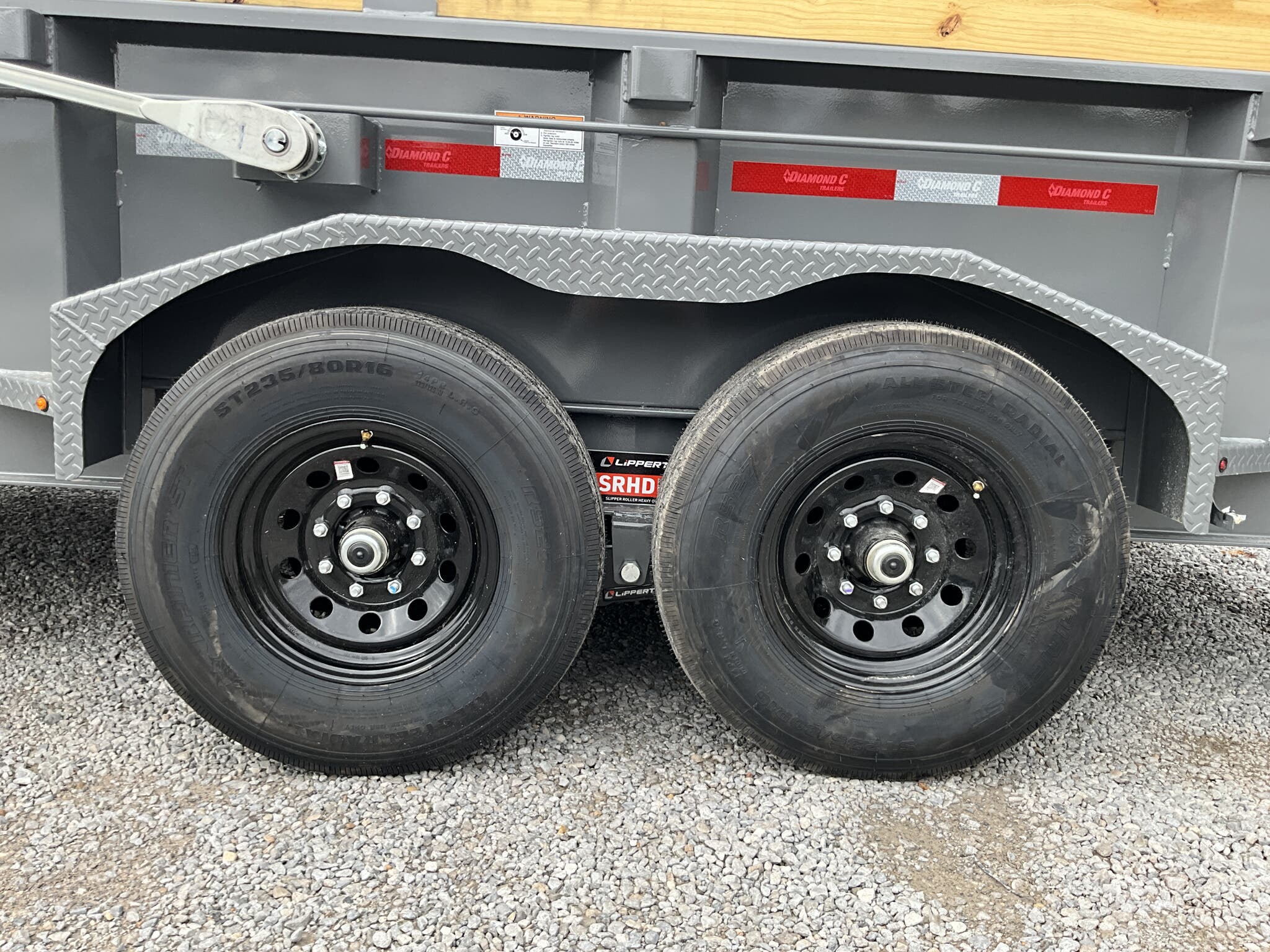

Specs — Tires/Wheels: ST235/80R16 14-ply radial tires on 8-hole black wheels
Specs — Spare: Matching ST235/80R16 14-ply radial spare on 8-hole black wheel
Specs — Spare Mount: Passenger-side mount

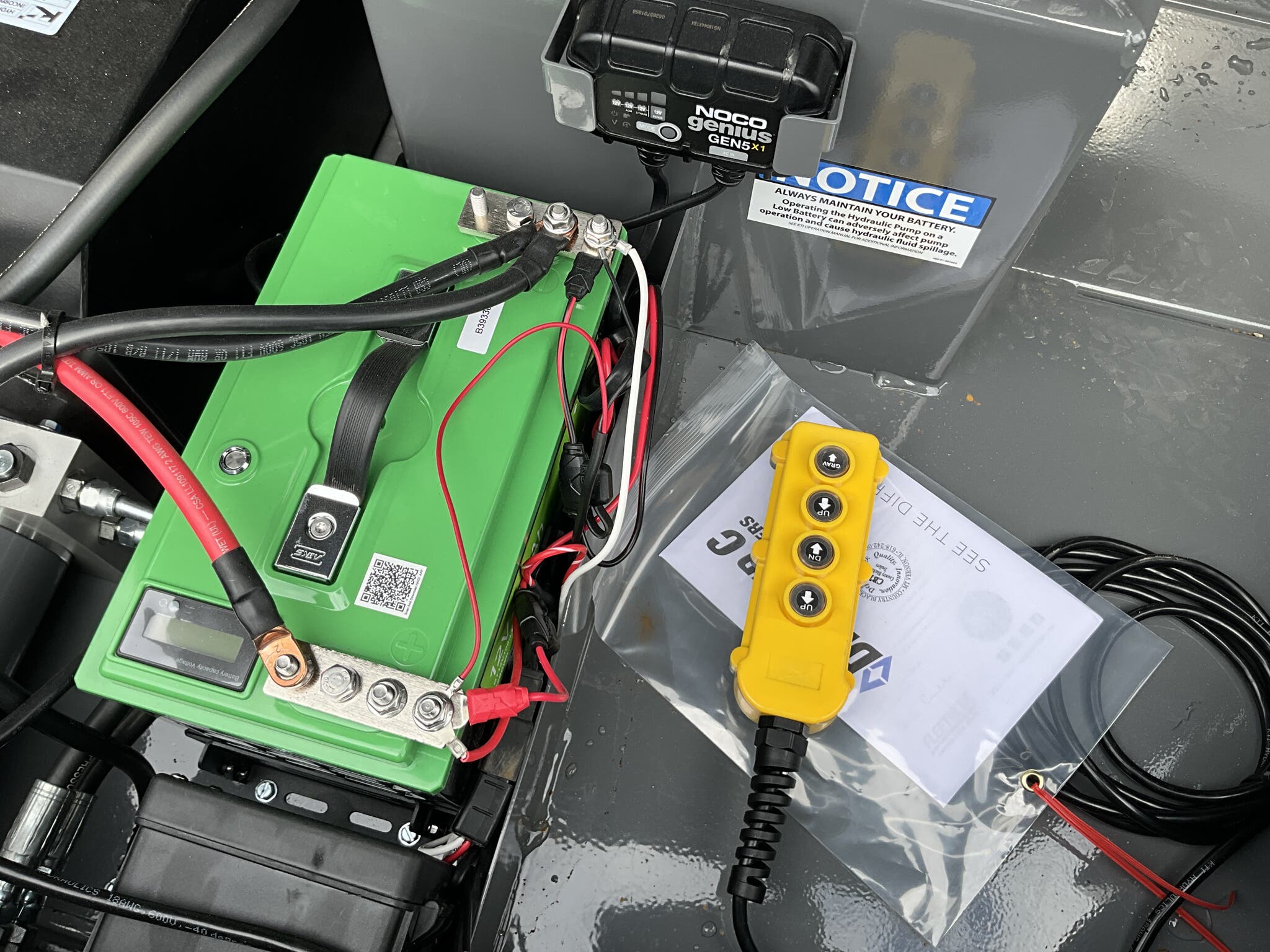

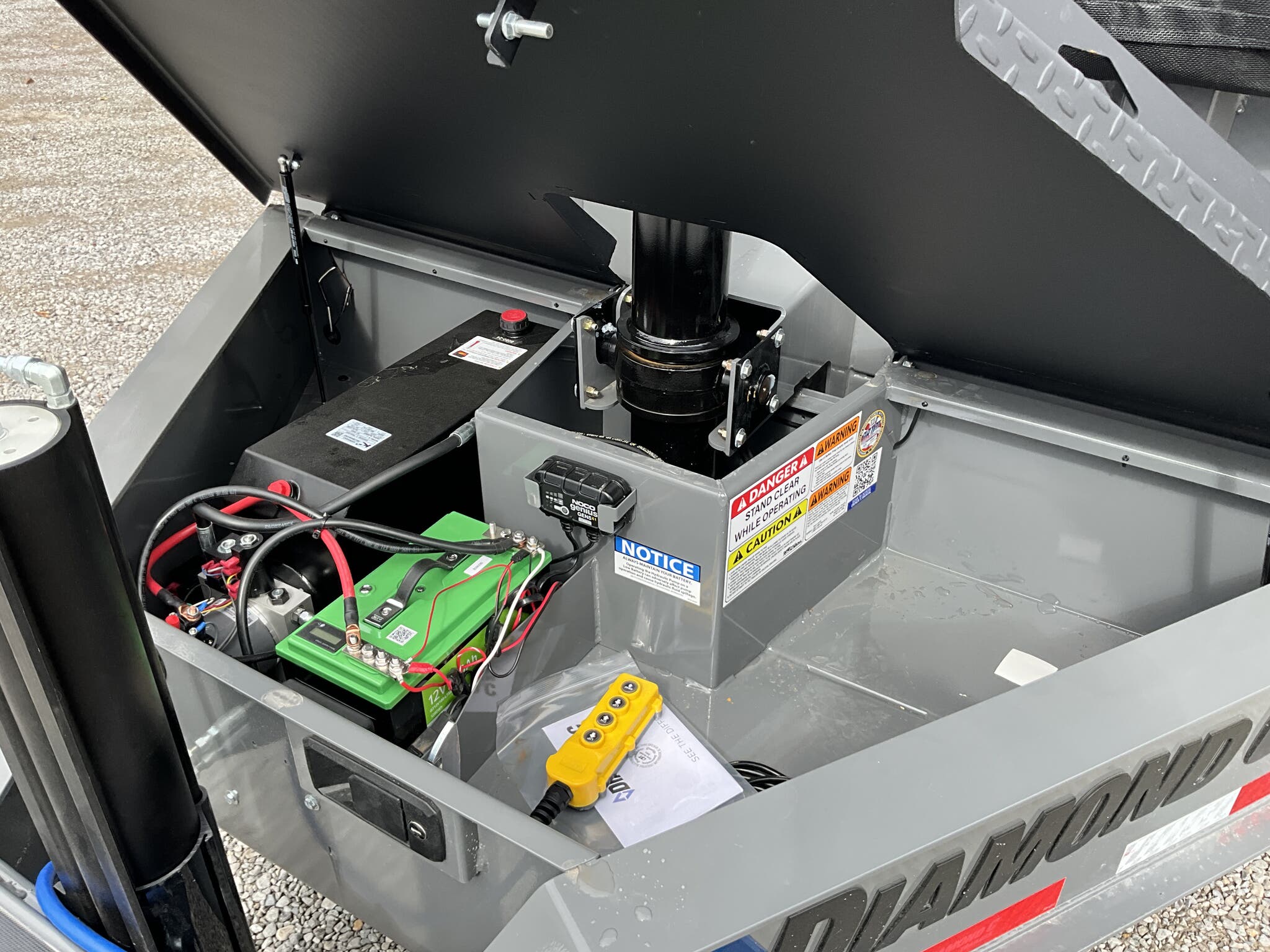

Specs — Electrical: Lithium battery upgrade with SolarPulse 7-watt charging system
Specs — Lighting: Full LED lighting package
Specs — Finish: Cement Gray
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 404654-1
Weights & Capacities
GVWR: 15,500 lb
Empty Weight: 4,940 lb
Payload on Axles: 14,000 - 4,940 = 9,060 lb
Target Tongue Load: 1,550 lb
Total Effective Payload: 10,610 lb
