2027 Diamond C SDX SDX216HDT- L38X102 - #DCT19163

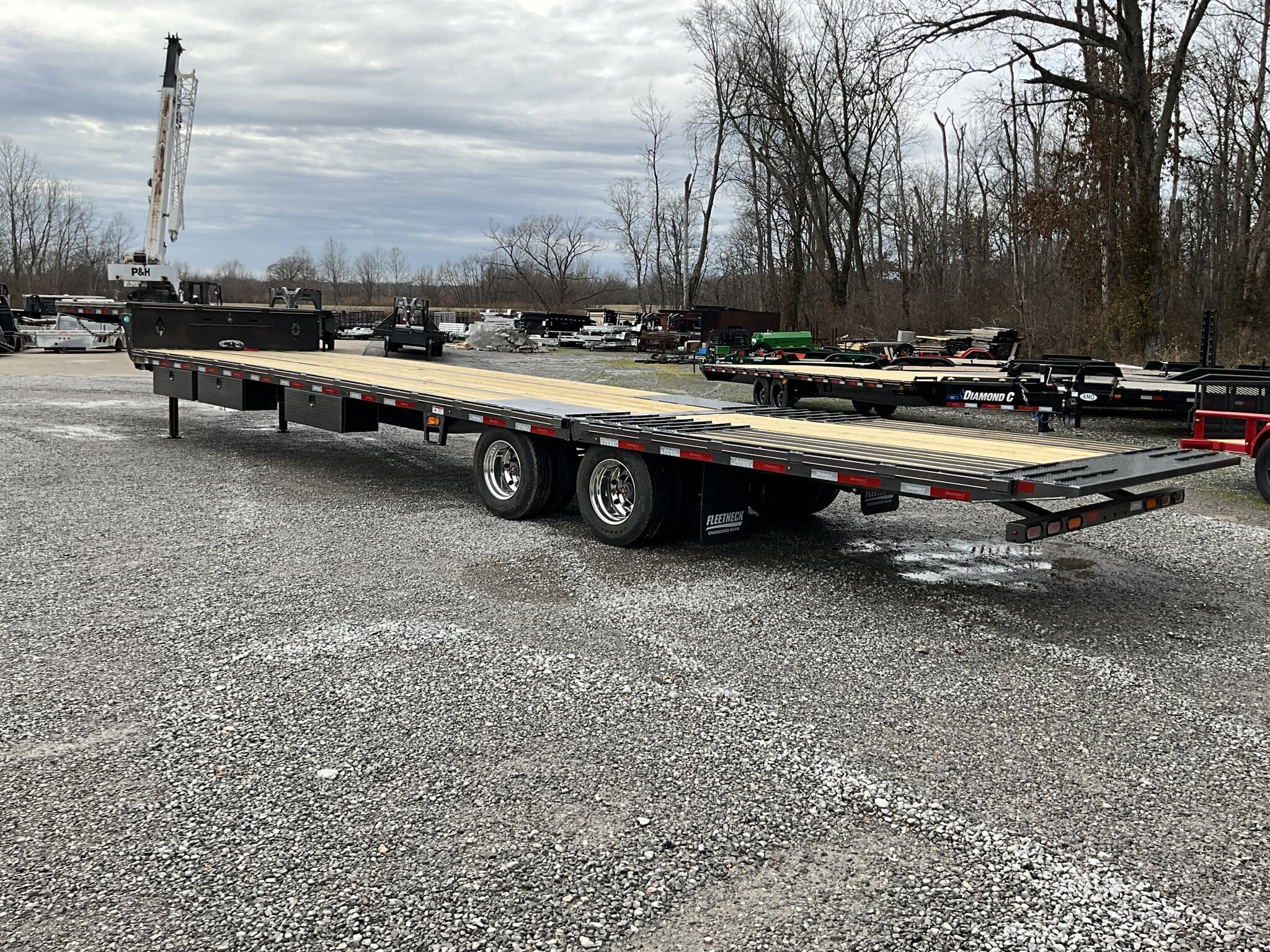

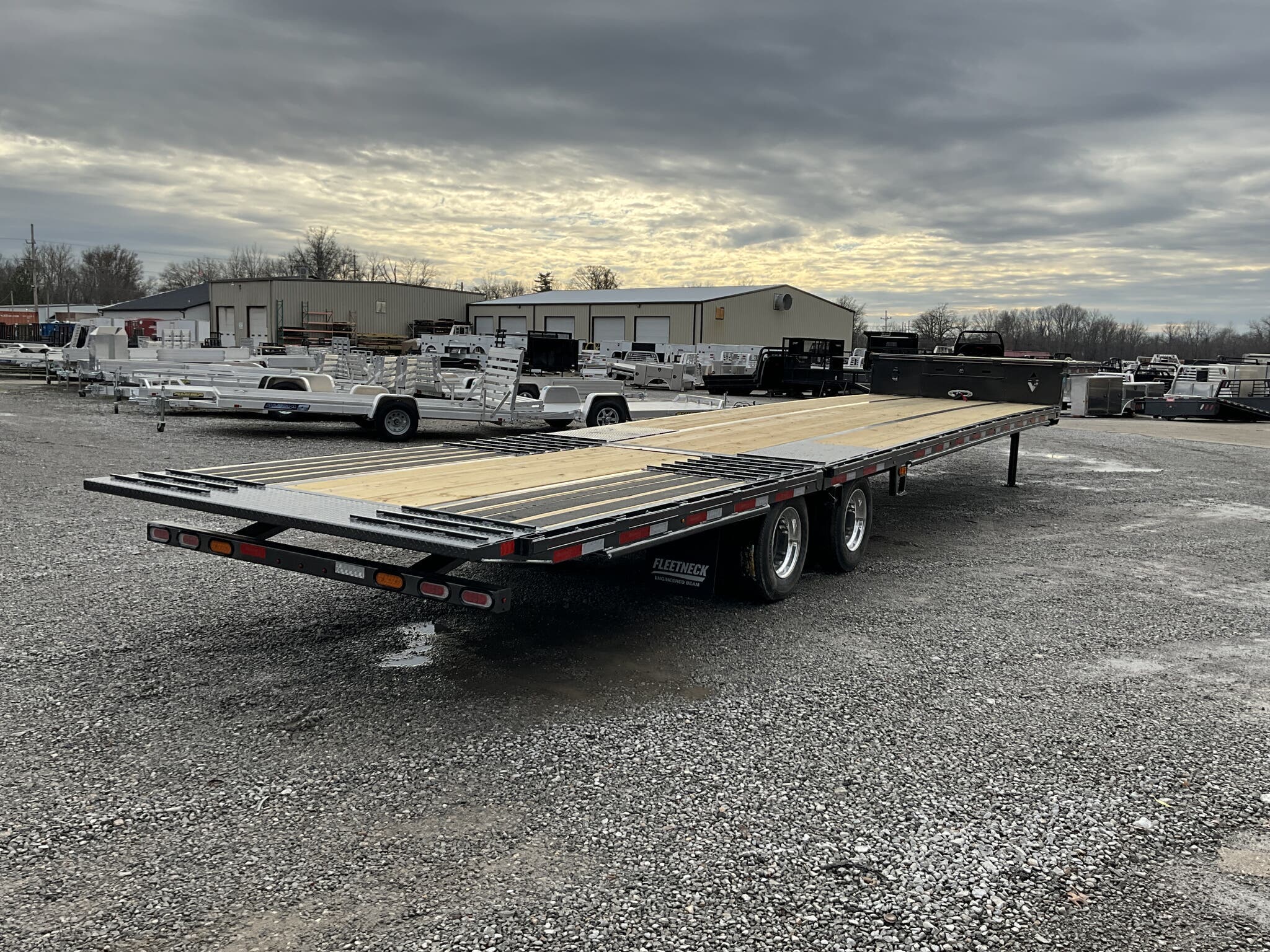

2027 DIAMOND C SDX216 40K 102" × 48' STEP DECK EXTREME GOOSENECK EQUIPMENT TRAILER, CARBON METALLIC GRAY, 10' UPPER DECK / 38' LOWER DECK, 12' HYDRAULIC DOVETAIL, DUAL 20K HYDRAULIC JACKS, 12K WINCH — FOR SALE IN MOUNT VERNON, IL 62864
Feature: Step Deck Extreme 2.0 with 10' engineered upper deck and 38' lower deck, including a 12' fully automatic hydraulic dovetail with full steel runners and cleats
Feature: Dual 16K axles with electric-over-hydraulic disc brakes and heavy-duty adjustable suspension for demanding equipment hauling
Feature: Engineered beam frame with 3" I-beam crossmembers on 12" centers and standard sway control pipe
Feature: Dual 20K hydraulic jacks, 12K winch package with lithium battery, and SolarPulse 7-watt charging system
Feature: Passenger-side slide track with (10) 4" sliding ratchets, dual underslung toolboxes, aluminum outer wheels, and LED caution flashers
Specs — Model: SDX216 2.0 Step Deck Extreme Gooseneck Equipment Trailer
Specs — VIN: 46UDF382XV1319163
Specs — Size: 102" × 48' overall (10' upper deck + 38' lower deck)
Specs — GVWR: 40,000 lb estimated; confirm factory GVWR rating
Specs — Axles/Brakes: (2) 16,000 lb axles with electric-over-hydraulic disc brakes
Specs — Suspension: Heavy-duty adjustable suspension
Specs — Frame: Engineered Beam 2.0 frame
Specs — Crossmembers: 3" I-beam on 12" centers
Specs — Sway Control: Standard sway control pipe
Specs — Upper Deck: 10' engineered step deck with 3" I-beam slide-in ramps
Specs — Lower Deck: 38' lower deck including 12' hydraulic dovetail
Specs — Floor: 2" treated wood floor

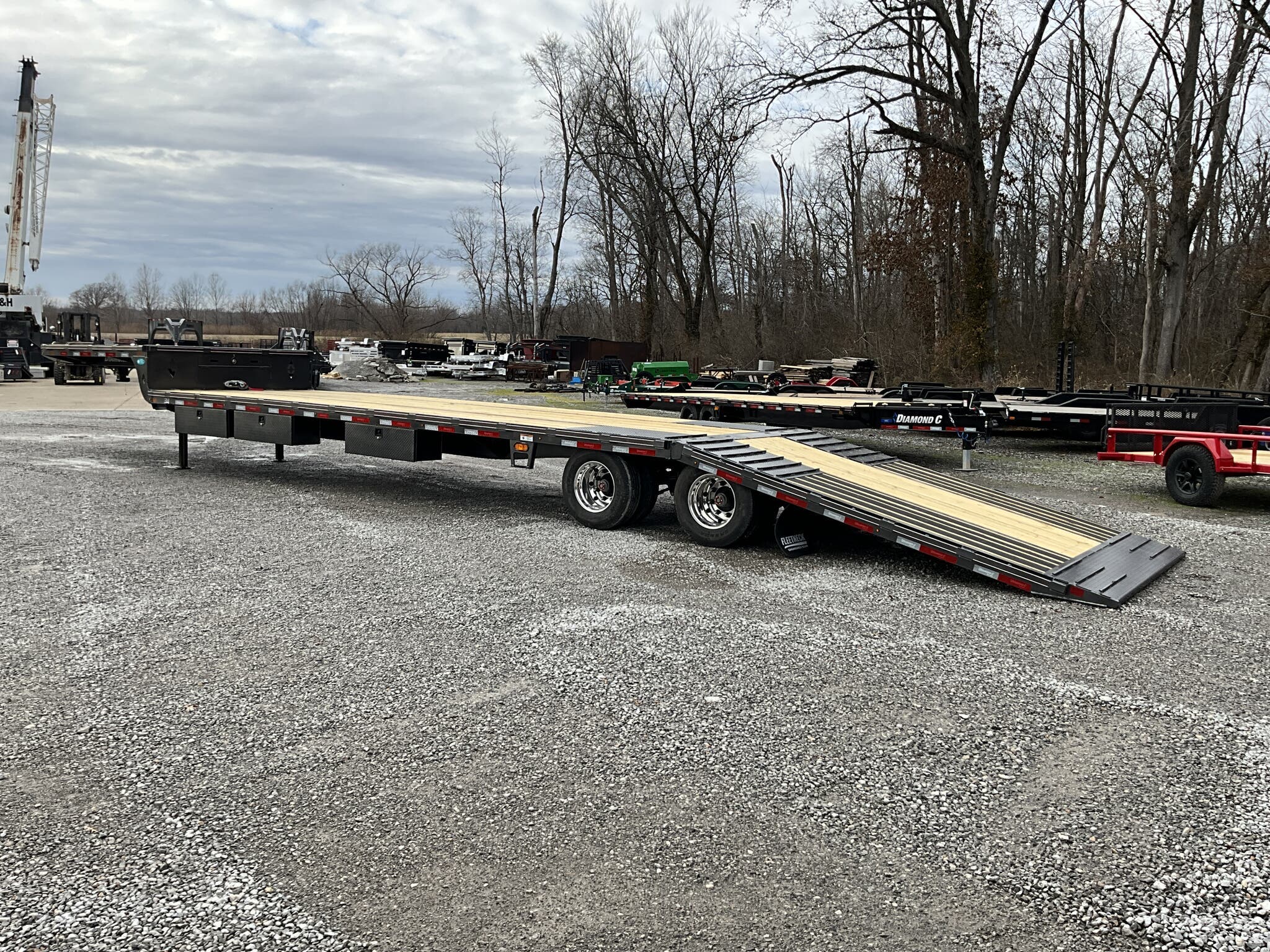

Specs — Dovetail: 12' fully automatic hydraulic dovetail with 5-amp charger
Specs — Dovetail Surface: Full steel runners with cleats
Specs — Coupler: 40K square gooseneck coupler for 3" ball

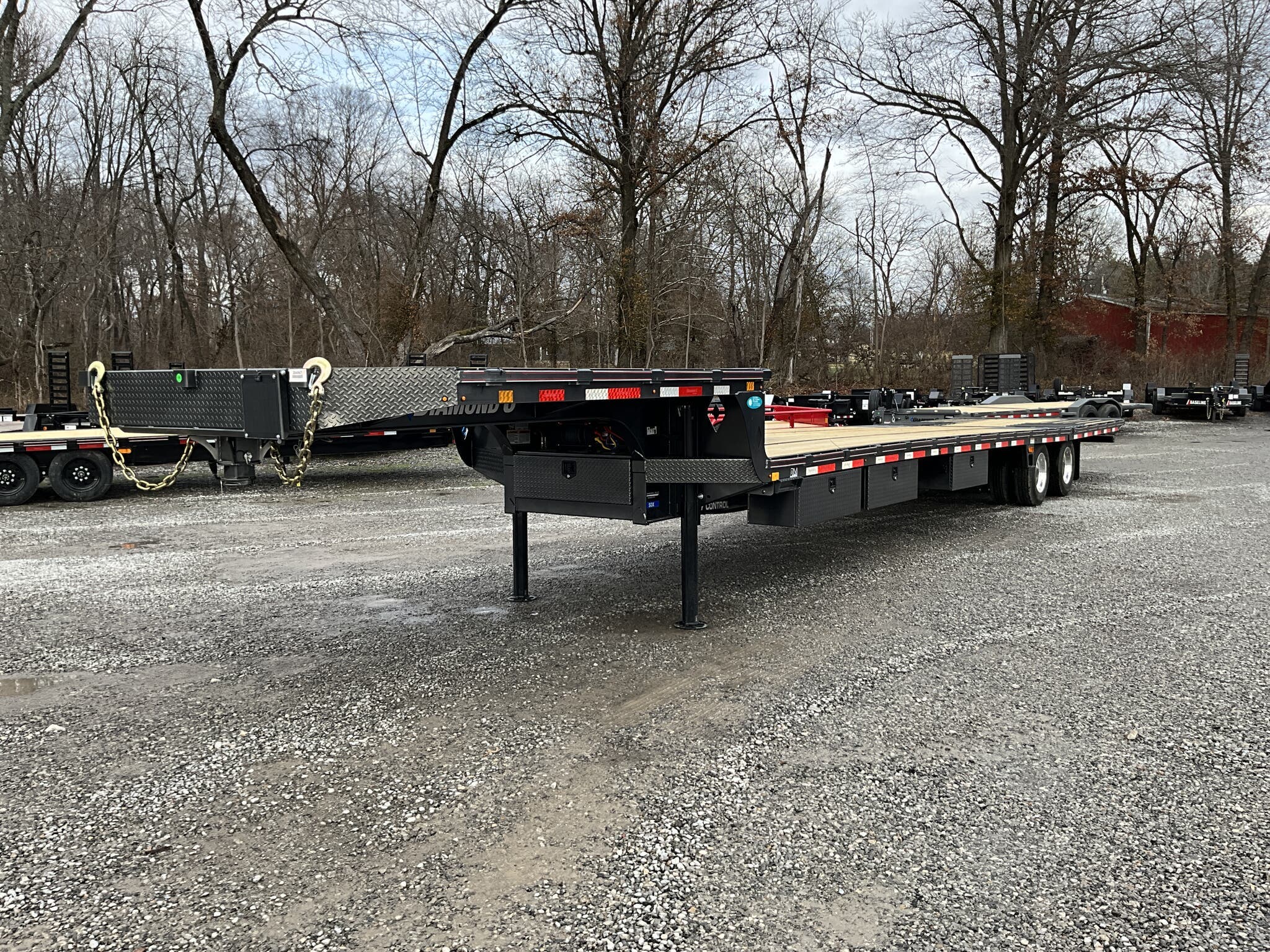

Specs — Jack: Dual 20K hydraulic jacks
Specs — Winch: 12K winch package with lithium battery upgrade, mounting plate, and storage
Specs — Storage: (2) 14" × 14" × 42" underslung toolboxes
Specs — Slide Track: Passenger-side slide track with (1) welded ratchet
Specs — Ratchets: (10) additional 4" sliding ratchets
Specs — Tires/Wheels: ST235/75R17.5 dual 18-ply radial tires on 8/275mm wheels with aluminum outer wheels
Specs — Spare: Matching ST235/75R17.5 dual 18-ply radial spare on black wheel
Specs — Spare Mount: Retractable under-frame cable winch mount
Specs — Electrical: Lithium battery upgrade with SolarPulse 7-watt charging system
Specs — Lighting: Full LED lighting package
Specs — Lighting: (2) 6" oval LED caution flashers with switch
Specs — Lighting: Extra clearance lights (6 pair)
Specs — Finish: Carbon Metallic Gray
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 376043
Weights & Capacities
GVWR: 40,000 lb (estimated; verify rating)
Empty Weight: 11,320 lb
Total Axle Capacity: 32,000 lb
Payload on Axles: 32,000 - 11,320 = 20,680 lb
Target Tongue Load: 8,000 lb (20% of assumed GVWR)
Total Effective Payload: 28,680 lb (estimated; subject to confirmed GVWR)
Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
