2027 Diamond C GDD GDD206-20X102SD - #DCT18720

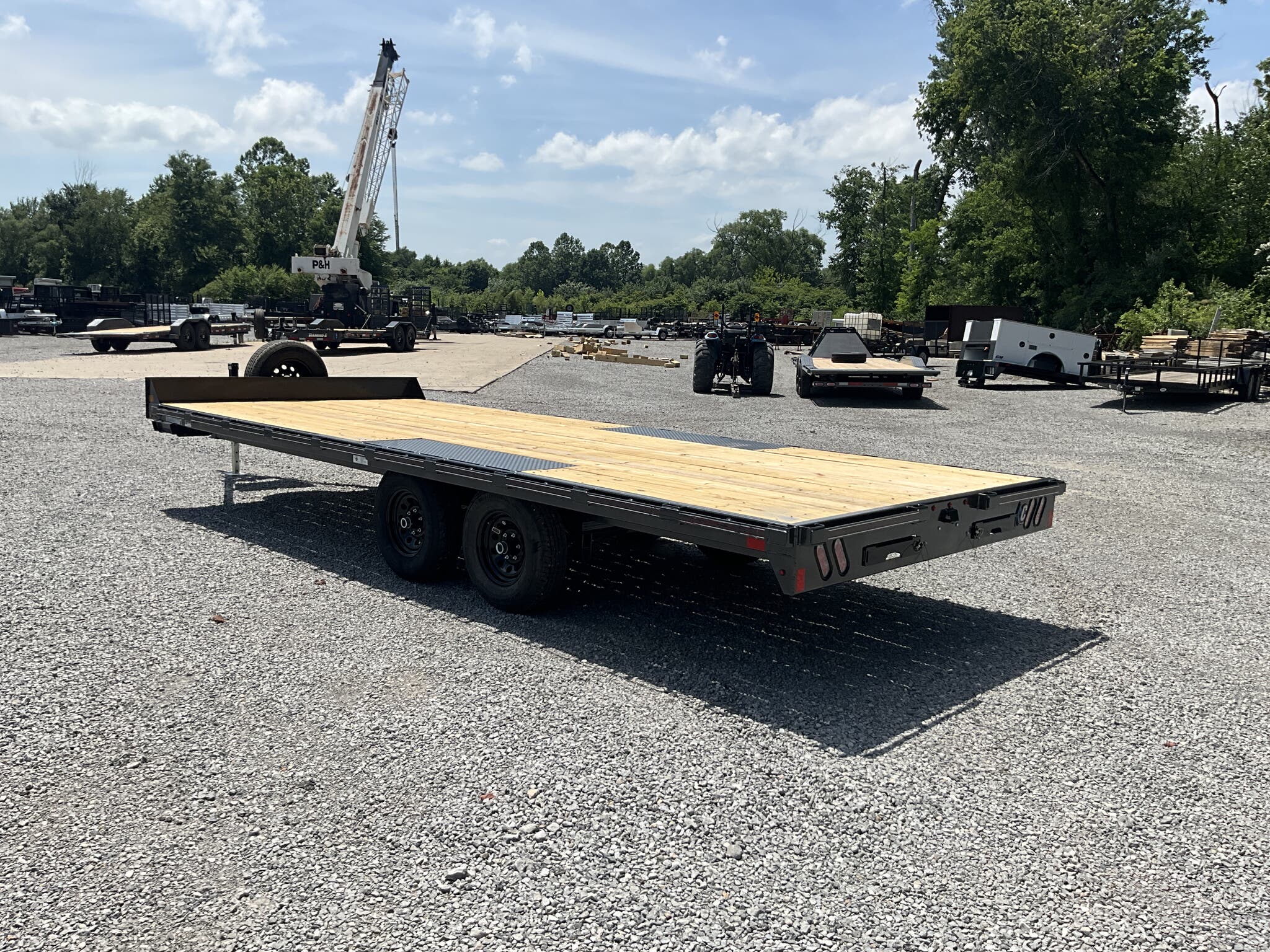

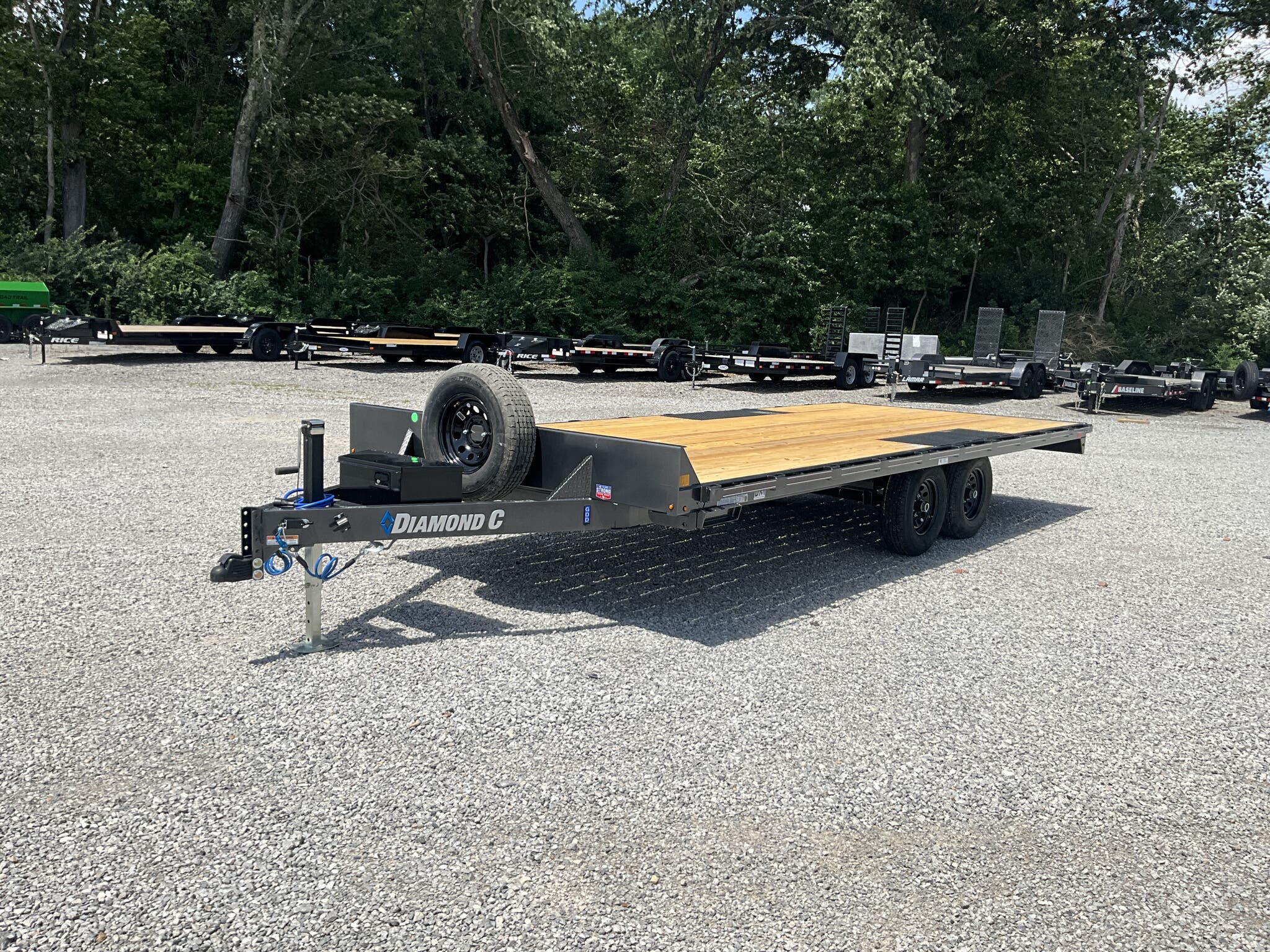

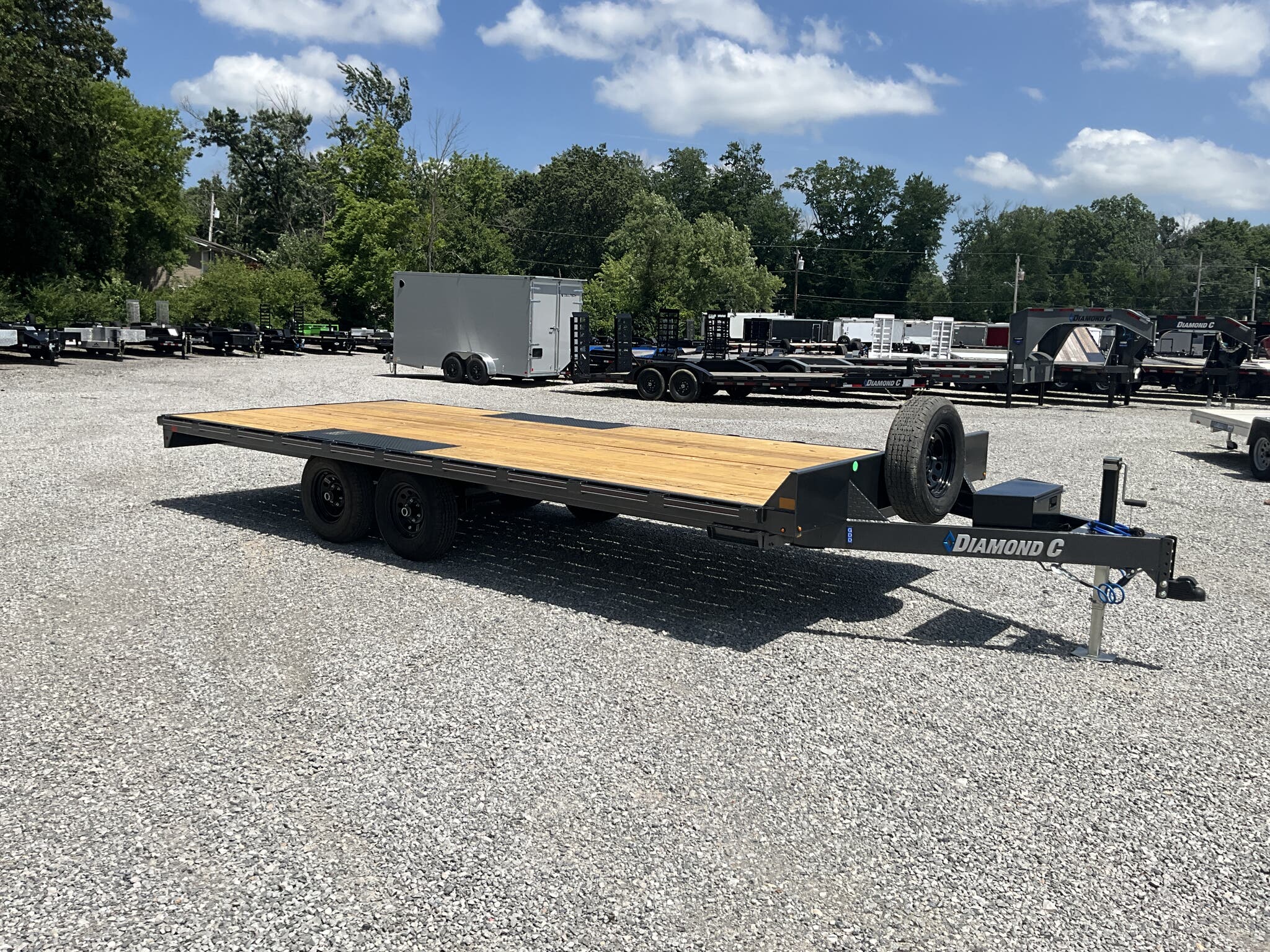

2027 DIAMOND C GDD206 12K 102" × 20' GENERAL DUTY DECK-OVER TRAILER, CARBON METALLIC GRAY, STRAIGHT DECK WITH 97" SLIDE-IN RAMPS — FOR SALE IN MOUNT VERNON, IL 62864

Feature: General Duty deck-over design provides a full 102" wide deck without wheel wells obstructing the loading surface
Feature: Straight deck with 97" rear slide-in 3" I-beam ramps for equipment and machinery loading
Feature: 2" treated wood floor for durable, versatile cargo hauling
Feature: 6" channel main frame with 3" I-beam crossmembers on 16" centers
Feature: 2" × 1/4" rub rail with stake pockets and pipe spools for versatile cargo securement
Feature: Pair of retractable steps for convenient deck access

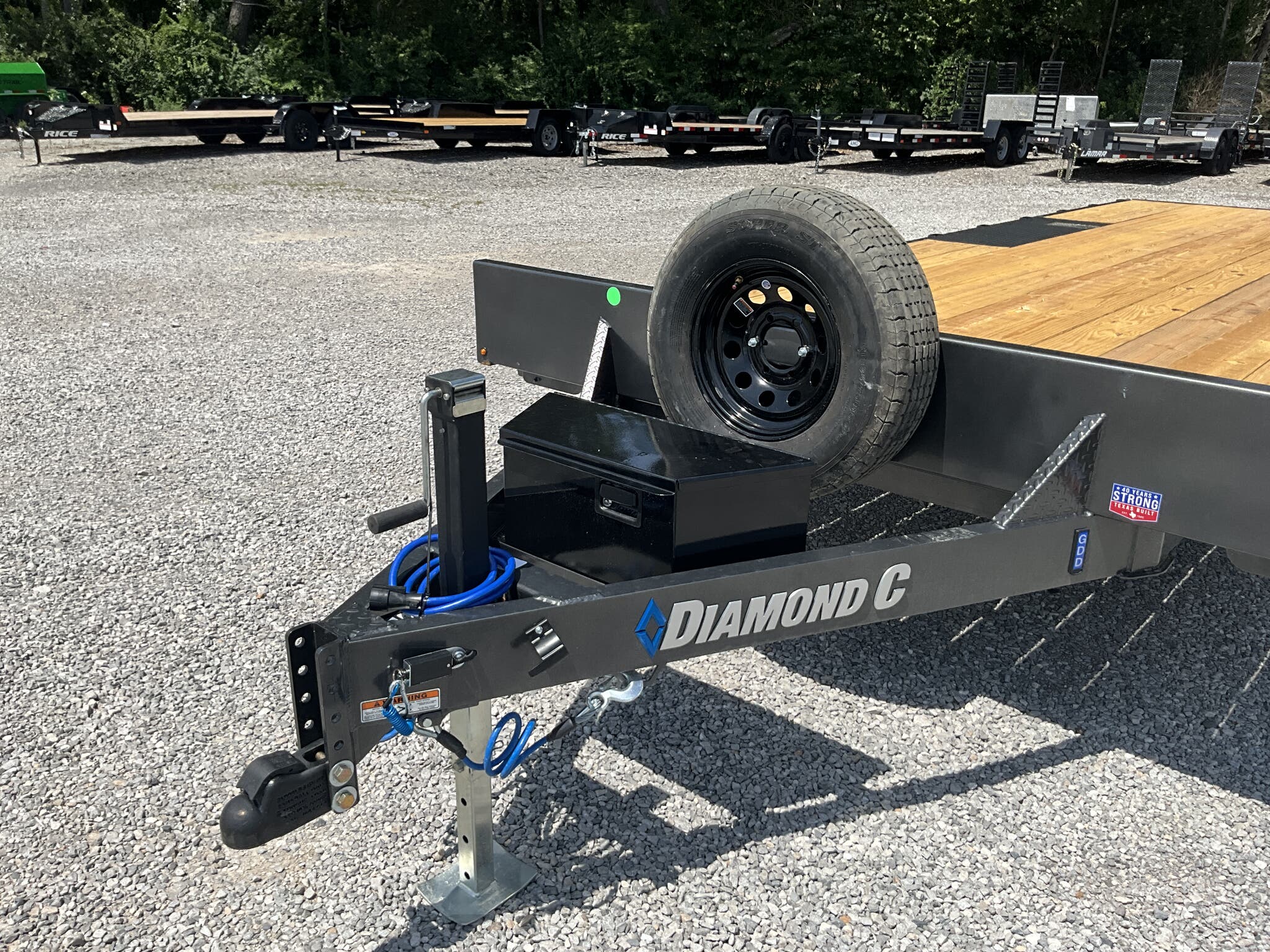

Feature: 10" lockable steel tongue box for secure strap and tool storage
Feature: Adjustable 21K Demco EZ-Latch coupler for secure and convenient hookup
Feature: Front-center spare tire mount integrated into the tongue frame

Specs — Model: GDD206 General Duty Deck-Over Trailer
Specs — Size: 102" × 20'
Specs — GVWR: 12,000 lb
Specs — Axles/Brakes: (2) 6,000 lb axles with electric brakes
Specs — Suspension: 5-leaf slipper spring suspension

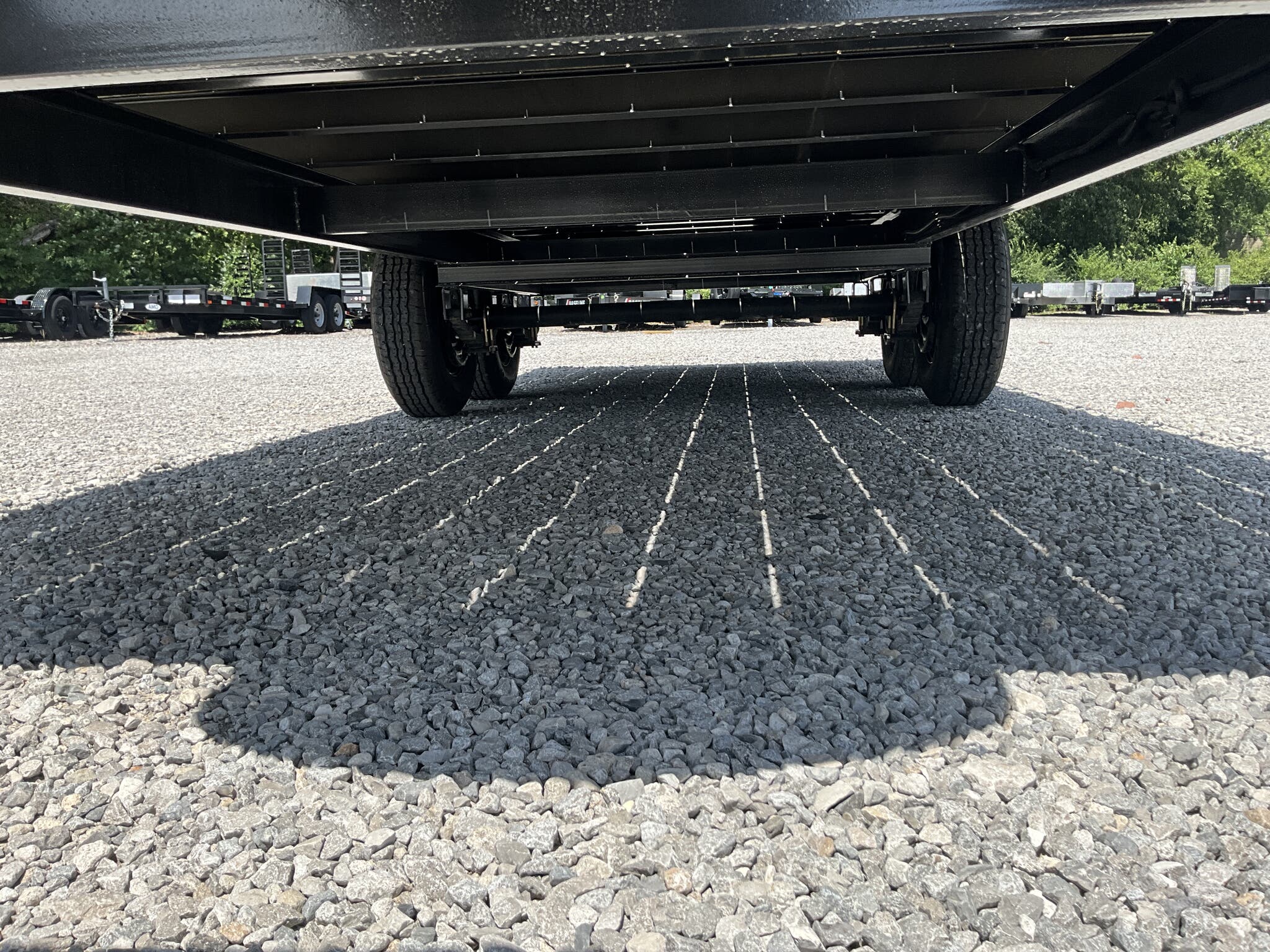

Specs — Frame: 6" channel main frame with 3" I-beam crossmembers on 16" centers
Specs — Deck: Straight deck
Specs — Floor: 2" treated wood

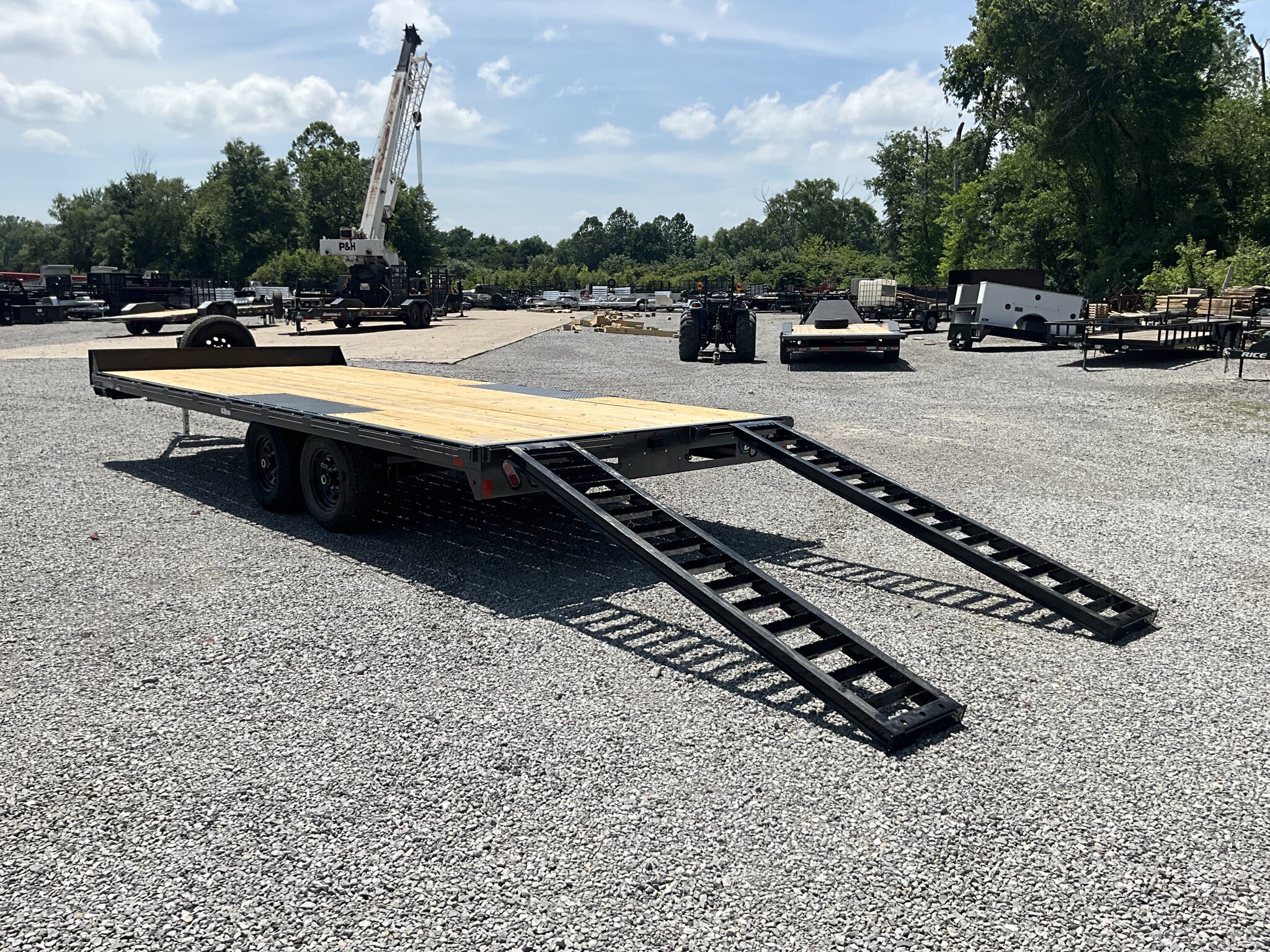

Specs — Ramps: 97" rear slide-in ramps constructed from 3" I-beam
Specs — Coupler: 21K Demco EZ-Latch adjustable 2-5/16" coupler
Specs — Jack: 7K drop-leg jack
Specs — Storage: 10" lockable steel tongue box
Specs — Steps: Pair of retractable deck steps
Specs — Rub Rail: 2" × 1/4" rub rail with stake pockets and pipe spools

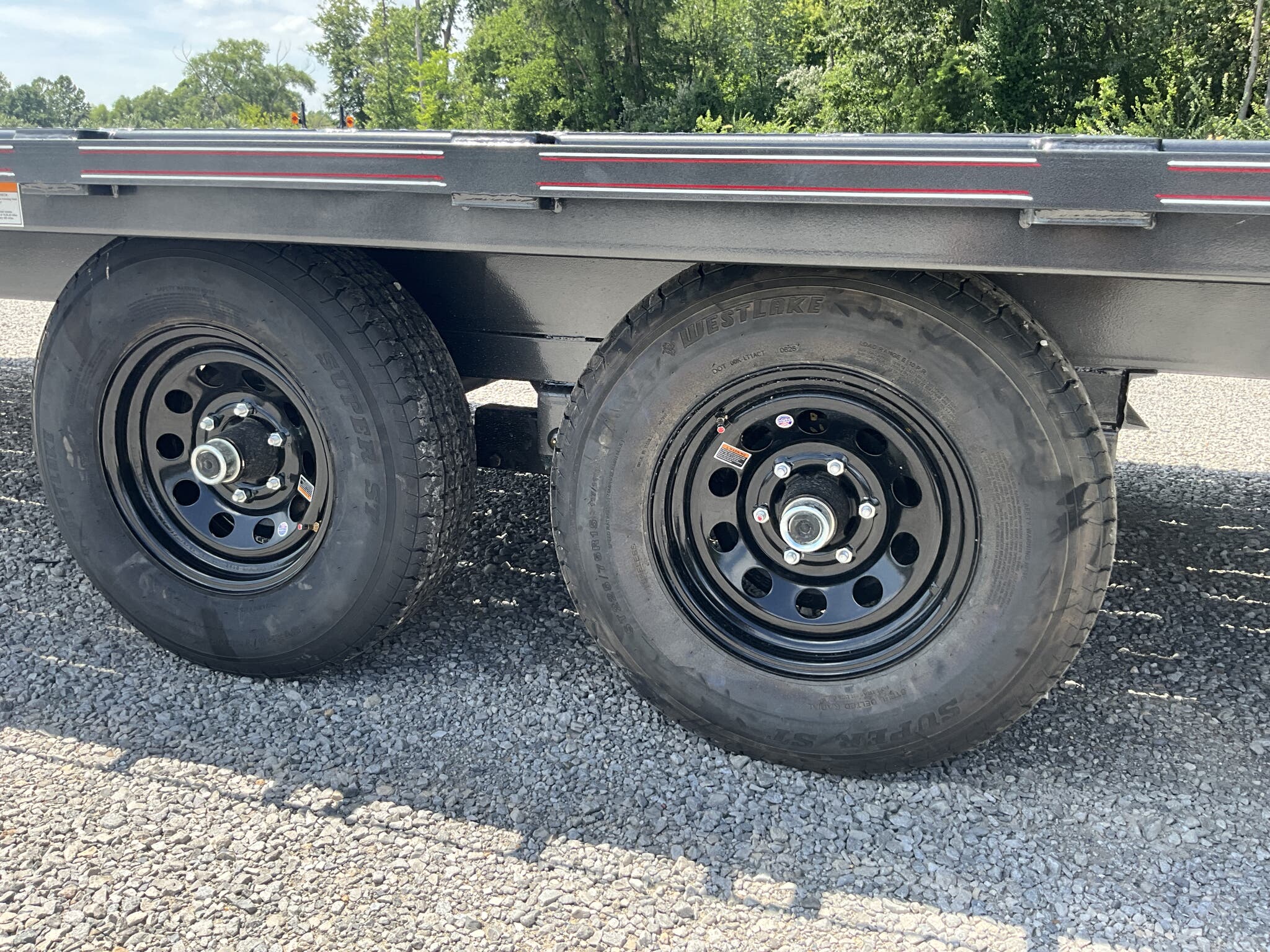

Specs — Tires/Wheels: ST225/75R15 radial tires on 6-lug black wheels
Specs — Spare: Matching ST225/75R15 radial spare on black wheel
Specs — Spare Mount: Front-center tongue mount integrated into channel frame

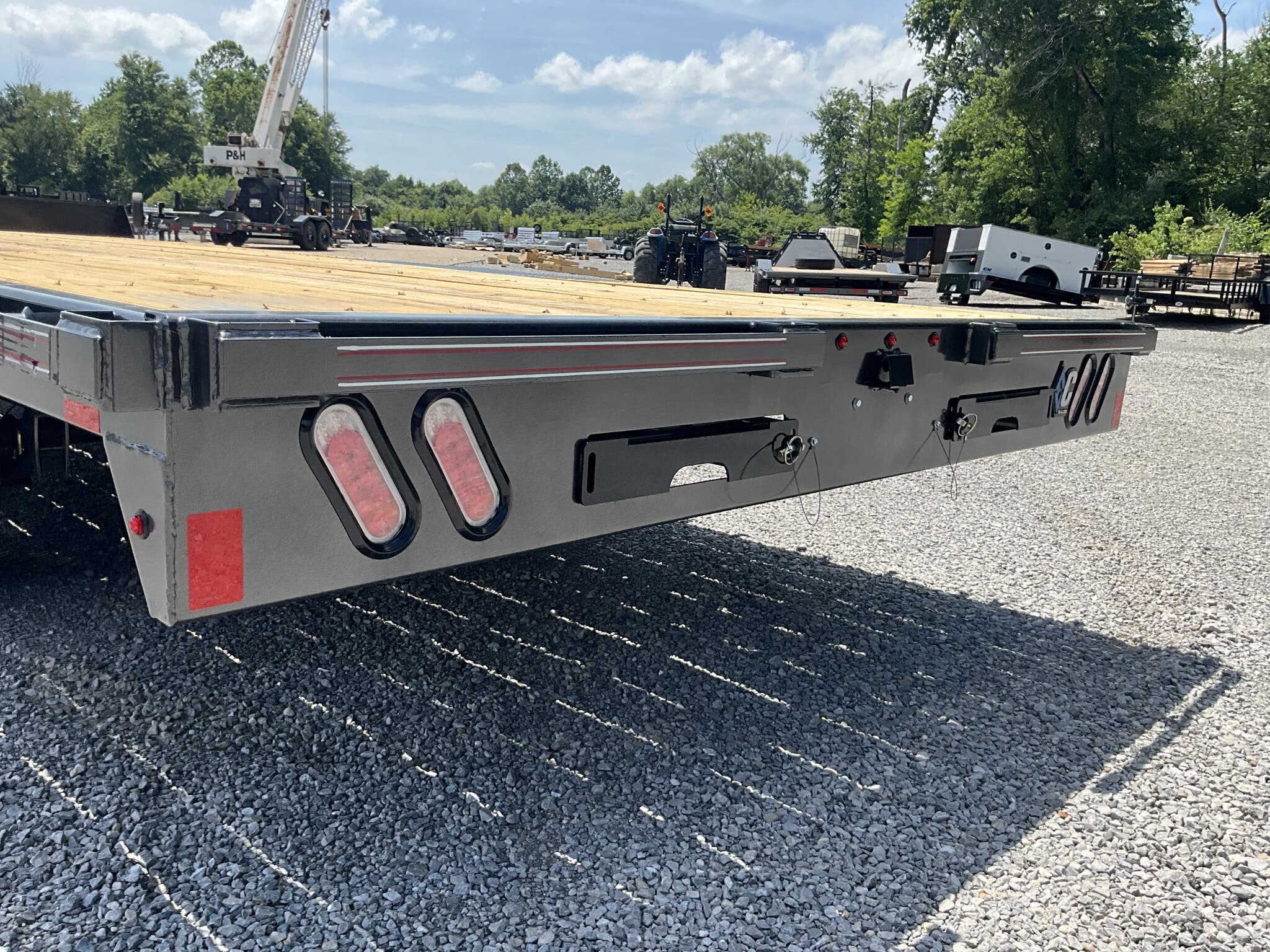

Specs — Lighting: All LED
Specs — Finish: Carbon Metallic Gray
Specs — VIN: 46UDE2023V1318719
Specs — Web ID: 375191-1

Weights & Capacities
GVWR: 12,000 lb
Empty Weight: 3,130 lb
Payload on Axles: 12,000 - 3,130 = 8,870 lb
Target Tongue Load (10% of GVWR): 1,200 lb
Total Effective Payload: 10,070 lb
