2027 Diamond C FMAX FMAX212HDT-L35X102 - #DCT060326-8

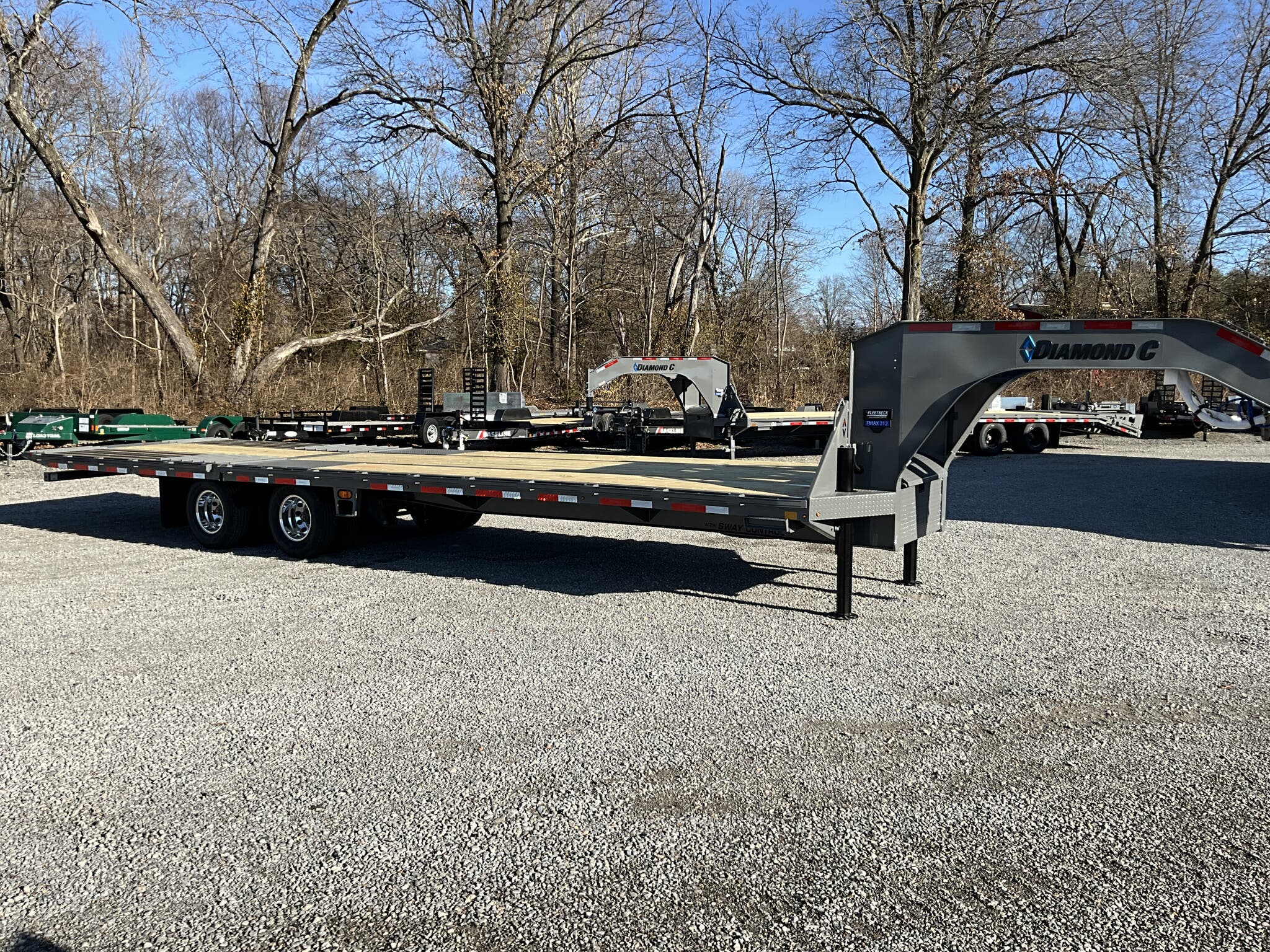

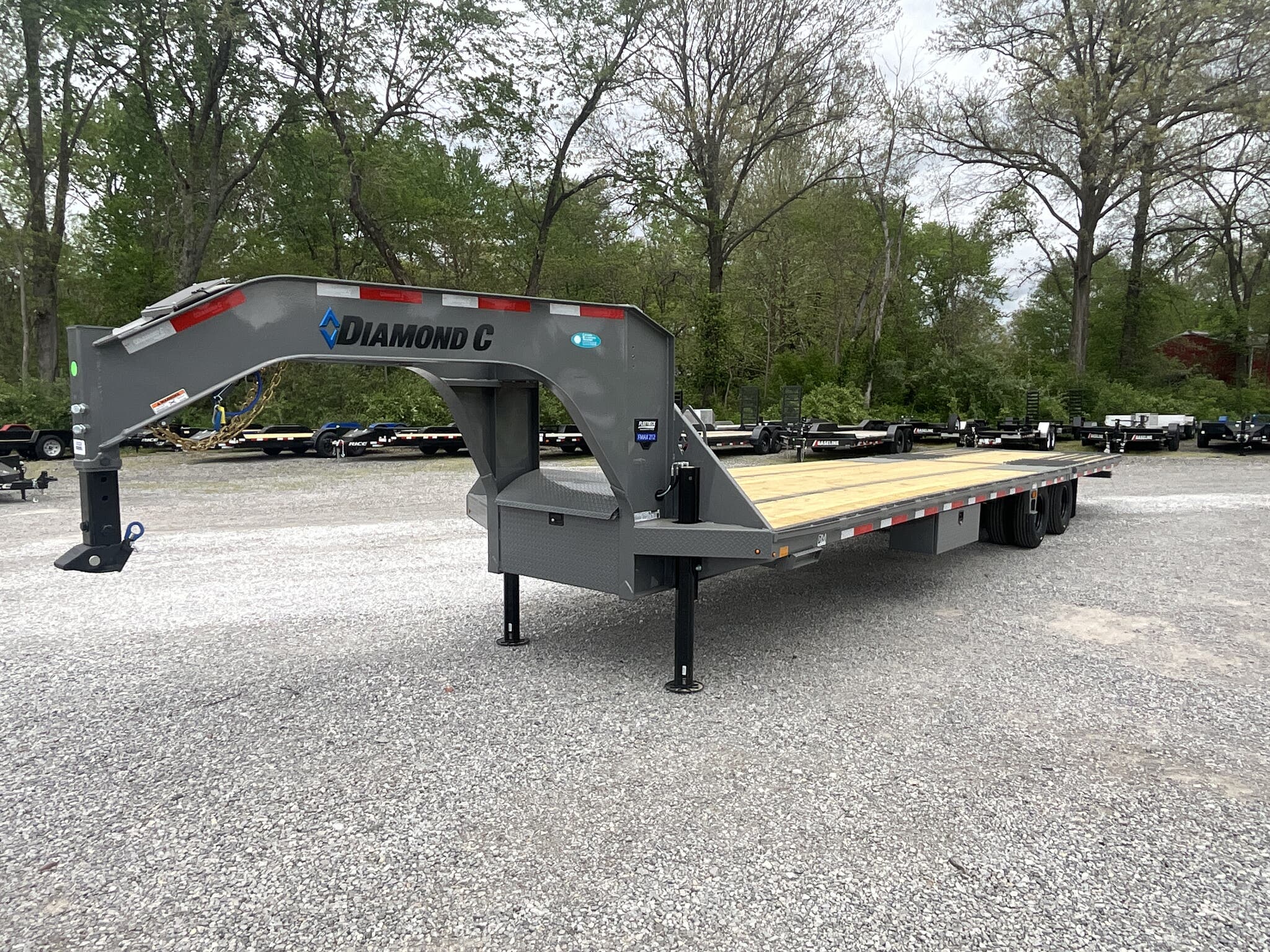

2027 DIAMOND C FMAX212 25.9K 102" × 35' ENGINEERED BEAM GOOSENECK EQUIPMENT TRAILER, CARBON METALLIC GRAY, 12' HYDRAULIC DOVETAIL — FOR SALE IN MOUNT VERNON, IL 62864
Feature: Pacesetter Edition with fully automatic 12' hydraulic dovetail for effortless equipment loading
Feature: Electric-over-hydraulic disc brakes and heavy-duty adjustable suspension for superior towing performance
Feature: Dual 20K hydraulic jacks with lithium battery upgrade and SolarPulse charging system
Feature: Full-length passenger-side slide track with adjustable cargo securement options
Feature: Premium lighting package with clearance lights and LED loading lights

Specs — Model: FMAX212 2.0 Pacesetter Edition
Specs — Size: 102" × 35'
Specs — GVWR: 25,900 lb
Specs — Axles/Brakes: (2) 12,000 lb heavy-duty oil bath axles with electric-over-hydraulic disc brakes
Specs — Suspension: Heavy-duty adjustable suspension
Specs — Frame: 16" Engineered Beam 2.0 frame
Specs — Crossmembers: 3" I-beam on 12" centers with formed gussets
Specs — Deck: 2" treated wood floor
Specs — Dovetail: 12' fully automatic hydraulic dovetail
Specs — Coupler: Curt Cushion gooseneck coupler
Specs — Jack: Dual 20K hydraulic jacks
Specs — Storage: Diamond plate neck toolbox with gas shock-assisted lid
Specs — Storage: 14" × 14" × 42" underslung toolbox
Specs — Winch Tray: Integrated gooseneck winch tray
Specs — Rail: 6" channel lace rail with stake pockets and pipe spools
Specs — Slide Track: Full-length passenger-side slide track
Specs — Tires/Wheels: ST215/75R17.5 dual 18-ply radial tires with aluminum outer wheels
Specs — Spare: Matching ST215/75R17.5 dual 18-ply spare tire
Specs — Spare Mount: Under-frame spare mount
Specs — Steps: Front retractable and mid-turn steps
Specs — Sway Control: Standard sway control system
Specs — Electrical: Lithium battery upgrade with SolarPulse 7W charging system
Specs — Wiring: Sealed wiring harness
Specs — Lighting: Full LED lighting package
Specs — Lighting: (4) pair 3/4" clearance lights and bolt-on LED loading lights
Specs — Finish: Carbon Metallic Gray DM Difference Maker coating system
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty

Weights & Capacities
GVWR: 25,900 lb
Empty Weight: 8,900 lb (estimated)
Payload on Axles: 24,000 - 8,900 = 15,100 lb
Target Tongue Load (20% of GVWR): 5,180 lb
Total Effective Payload: 20,280 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
