2027 Diamond C DOD DODGN-210-16X96 - #DCT18165

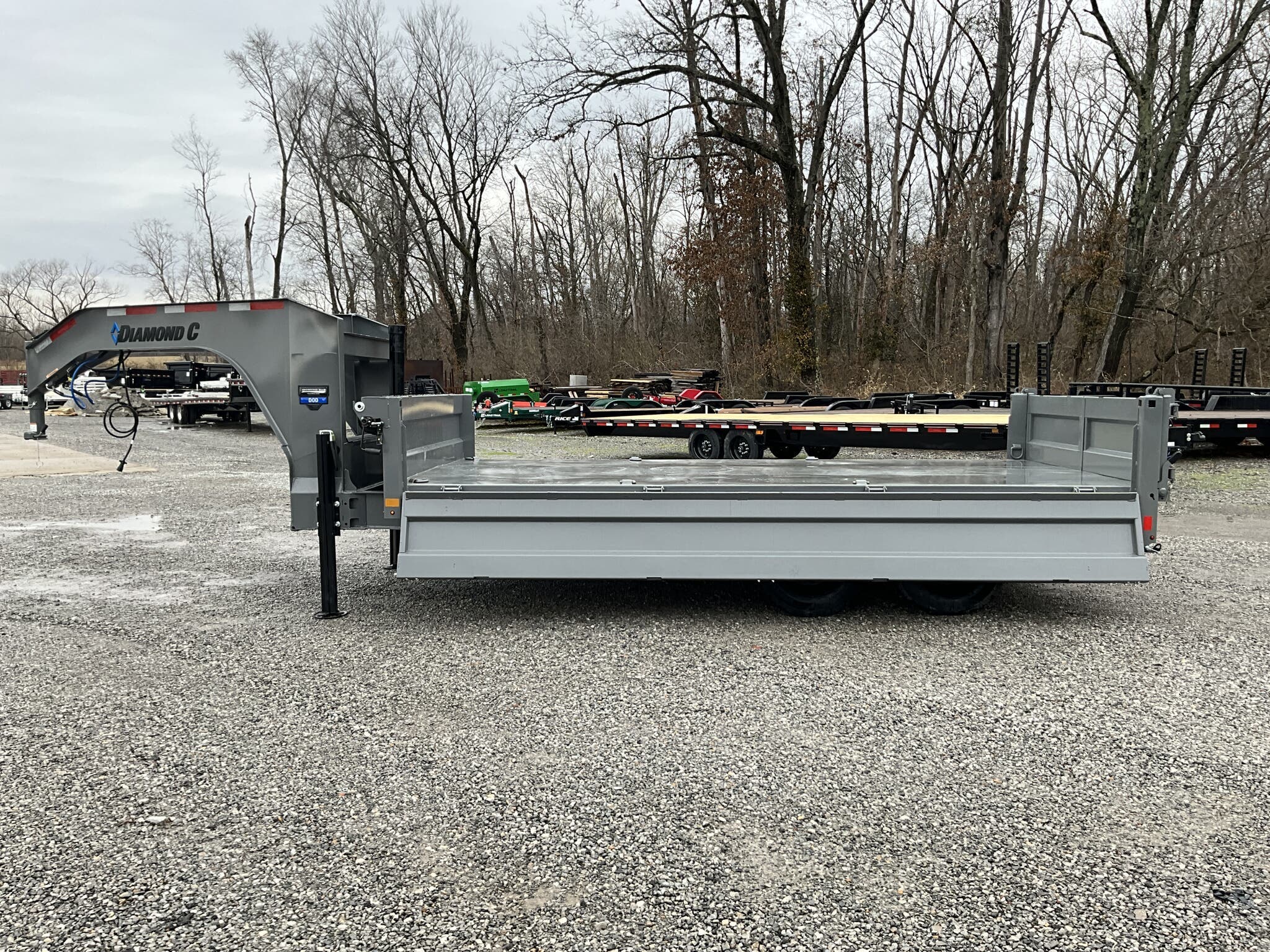

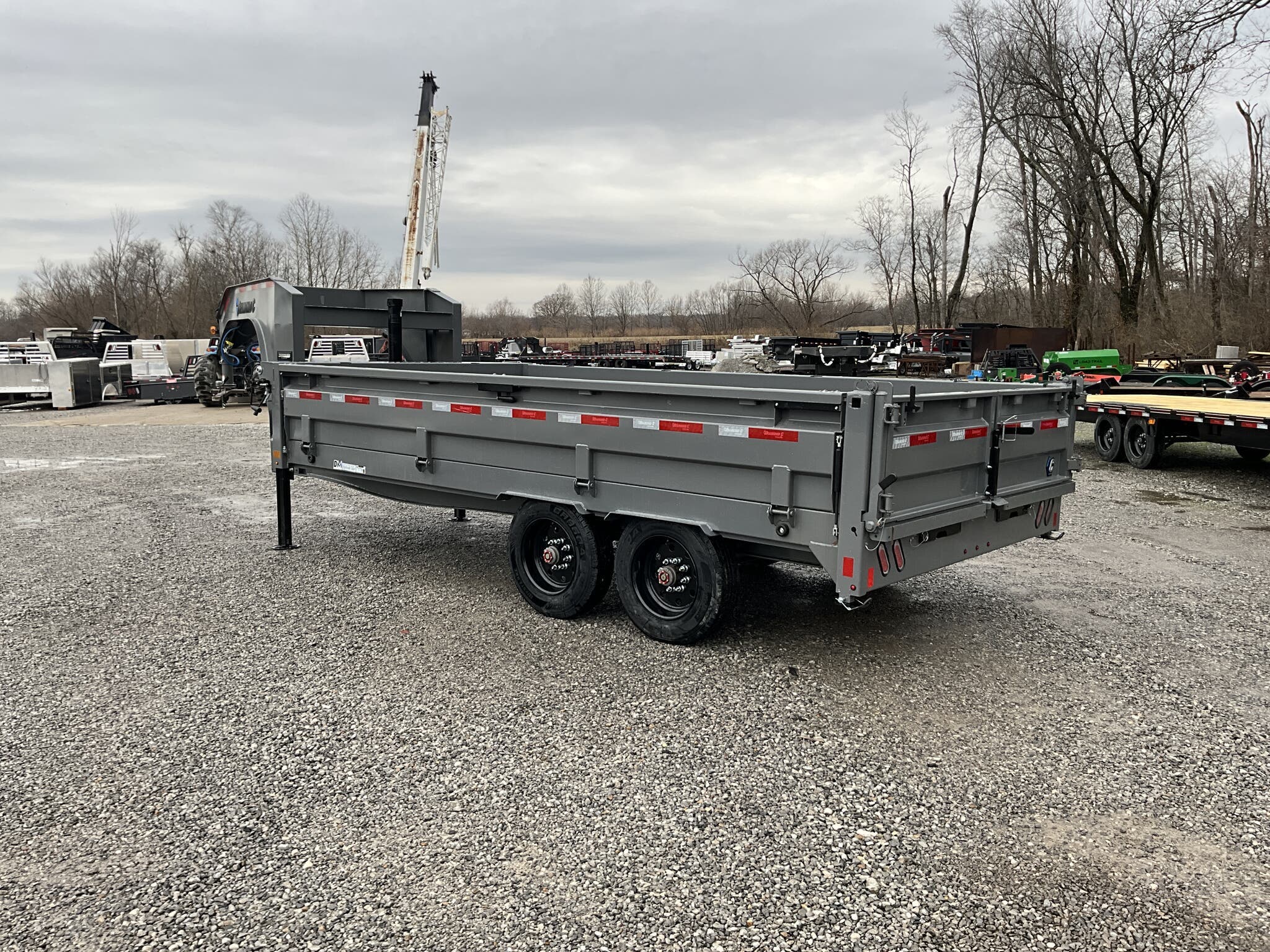

2027 DIAMOND C DOD210-GN 23K 96" × 16' DECK-OVER GOOSENECK DUMP TRAILER, CEMENT GRAY, 7-GAUGE STEEL FLOOR, DUAL 20K HYDRAULIC JACKS, 20' HD TARP — FOR SALE IN MOUNT VERNON, IL 62864

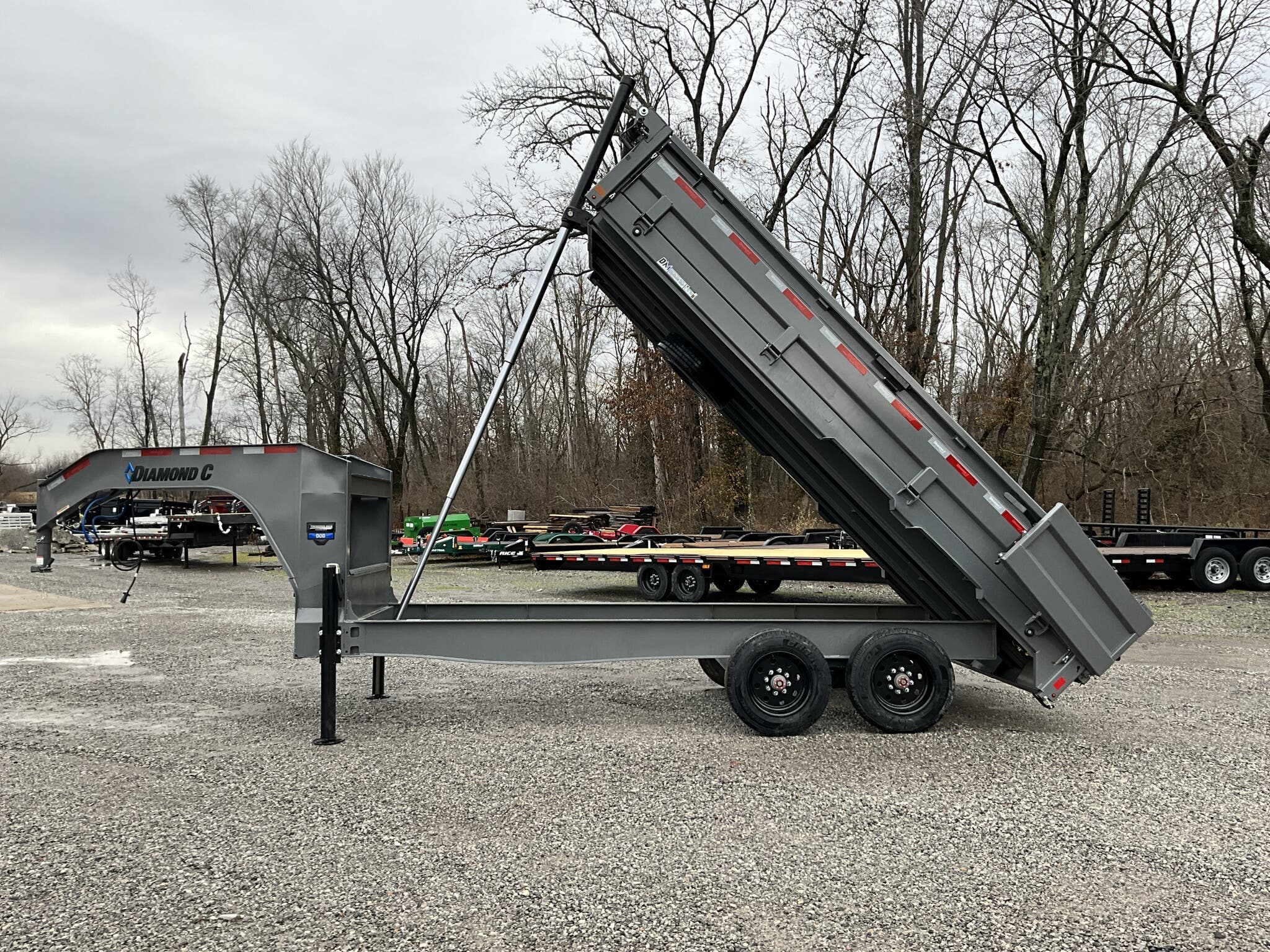

Feature: 5-stage power-up / gravity-down hydraulic dump system with Bluetooth wireless controller and engineered beam frame
Feature: Heavy-duty 7-gauge steel floor with 22" tall 10-gauge fold-down sides for demanding dump applications
Feature: Dual 10K torsion axles with electric drum brakes and ABS for dependable braking performance
Feature: Dual 20K hydraulic jacks controlled through the 4-button Bluetooth wireless controller
Feature: 97" rear slide-in I-beam ramps, rear stabilizer legs, 3-way dump gate, and installed 20' heavy-duty black mesh tarp

Specs — Model: DOD210-GN Deck-Over Gooseneck Dump Trailer
Specs — VIN: 46UDD1622V1318165
Specs — Size: 96" × 16'
Specs — GVWR: 23,000 lb
Specs — Axles/Brakes: (2) 10,000 lb straight torsion axles with electric drum brakes and ABS
Specs — Suspension: 10K torsion axles
Specs — Frame: Engineered beam frame

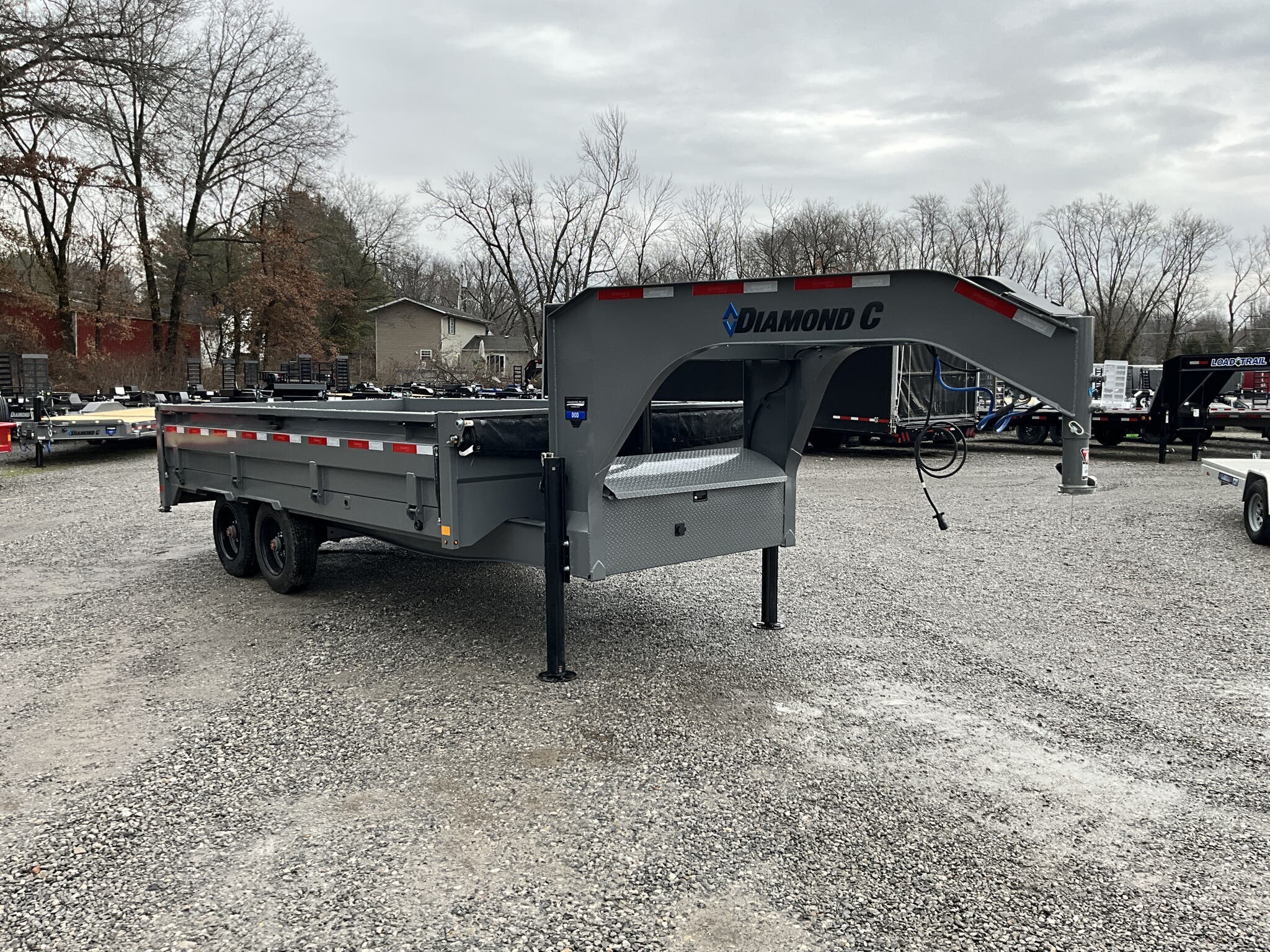

Specs — Neck: 12" engineered gooseneck with chain tray
Specs — Coupler: 30K Curt square gooseneck coupler for 2-5/16" ball
Specs — Hoist: 5-stage hydraulic dump system
Specs — Hydraulics: Power up / gravity down
Specs — Controls: 4-button Bluetooth wireless controller for dump system and hydraulic jacks
Specs — Jack: Dual 20K hydraulic jacks
Specs — Floor: Heavy-duty 7-gauge steel floor
Specs — Sides: 22" tall 10-gauge fold-down steel sides
Specs — Gate: 3-way dump gate
Specs — Ramps: 97" rear slide-in ramps constructed from 3" I-beam
Specs — Stabilizers: Rear drop-leg stabilizer jacks (pair)

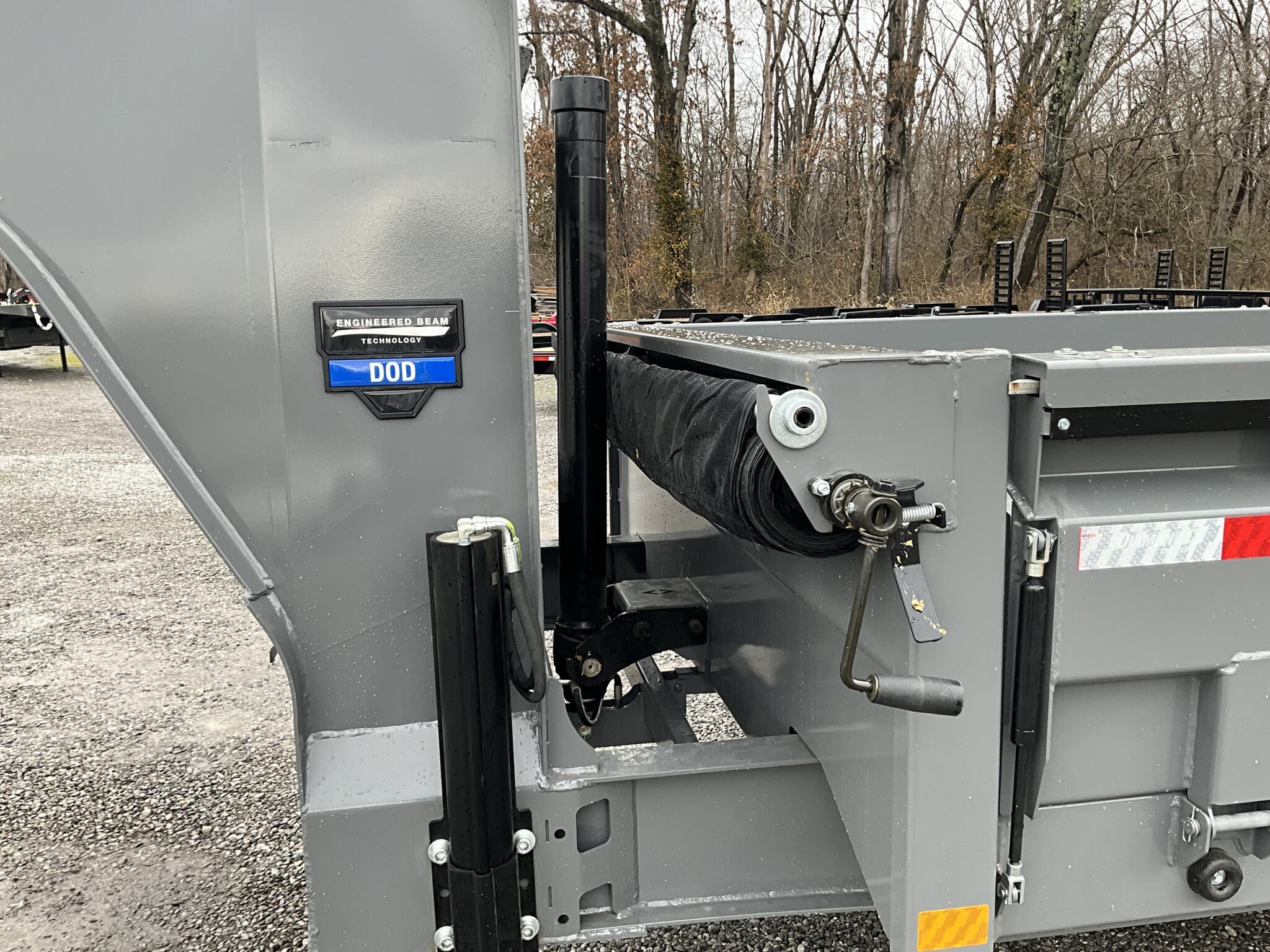

Specs — Tarp: Installed 20' heavy-duty black mesh tarp
Specs — Tie Downs: (4) 5/8" D-rings

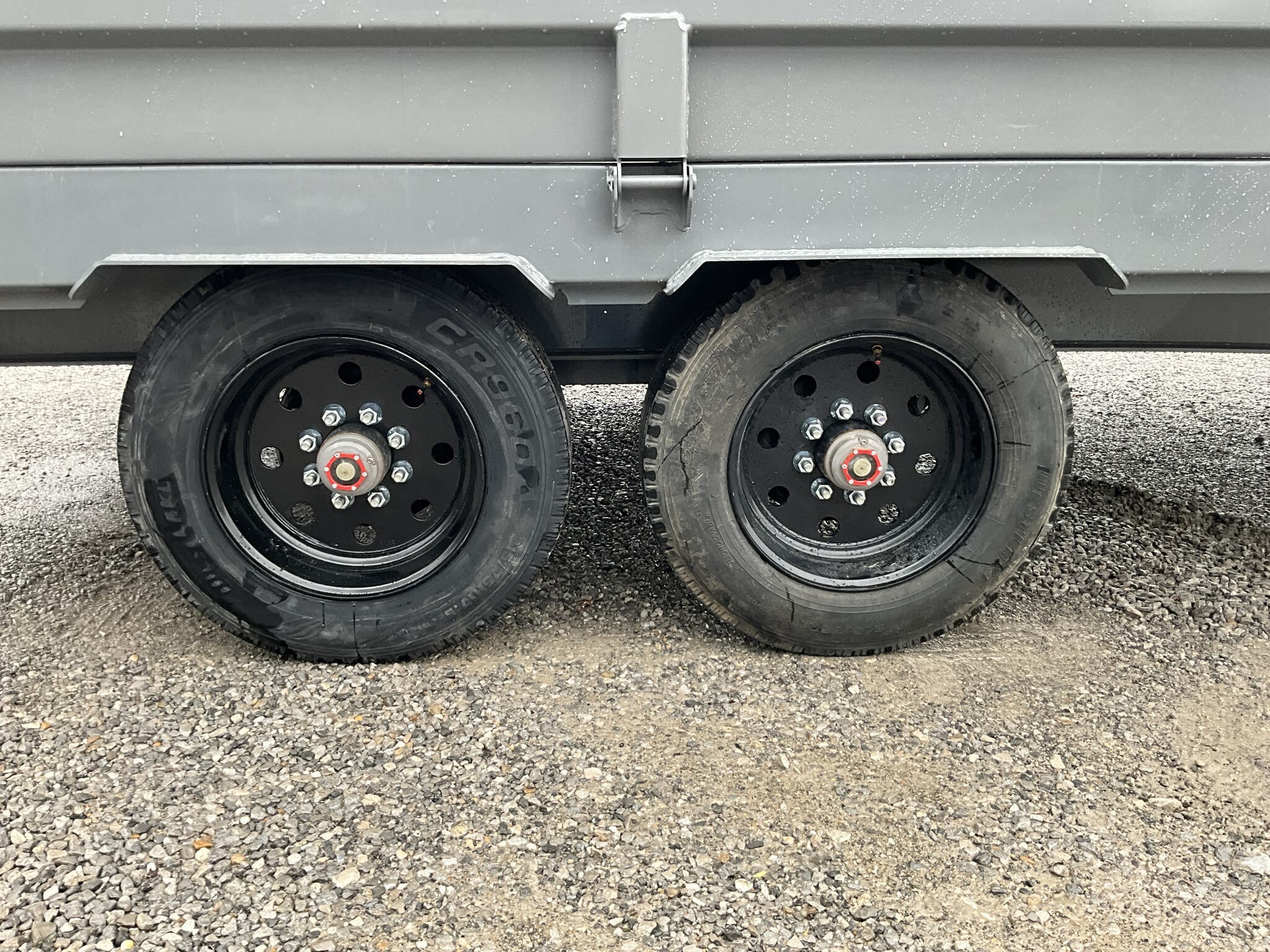

Specs — Tires/Wheels: ST235/75R17.5 super-single 18-ply radial tires on black steel wheels
Specs — Spare: Matching ST235/75R17.5 super-single 18-ply radial spare on black steel wheel
Specs — Spare Mount: Retractable under-frame cable winch mount
Specs — Electrical: Lithium battery upgrade with SolarPulse 7-watt charging system
Specs — Lighting: Full LED lighting package
Specs — Finish: Cement Gray
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 370110-2

Weights & Capacities
GVWR: 23,000 lb
Estimated Empty Weight: 6,650 lb
Payload on Axles: 20,000 - 6,650 = 13,350 lb
Target Tongue Load: 4,600 lb
Total Effective Payload: 17,950 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
