2027 Diamond C DOD DODGN-210-16X96 - #DCT17861

2027 DIAMOND C DOD210-GN 20K 96" × 16' DECK-OVER GOOSENECK DUMP TRAILER, CARBON METALLIC GRAY, 7-GAUGE FLOOR, ABS BRAKES — FOR SALE IN MOUNT VERNON, IL 62864

Feature: Engineered Beam frame with 12" engineered gooseneck for heavy-duty dump and equipment hauling
Feature: Tandem 10K torsion axles with electric drum brakes and ABS anti-lock braking system

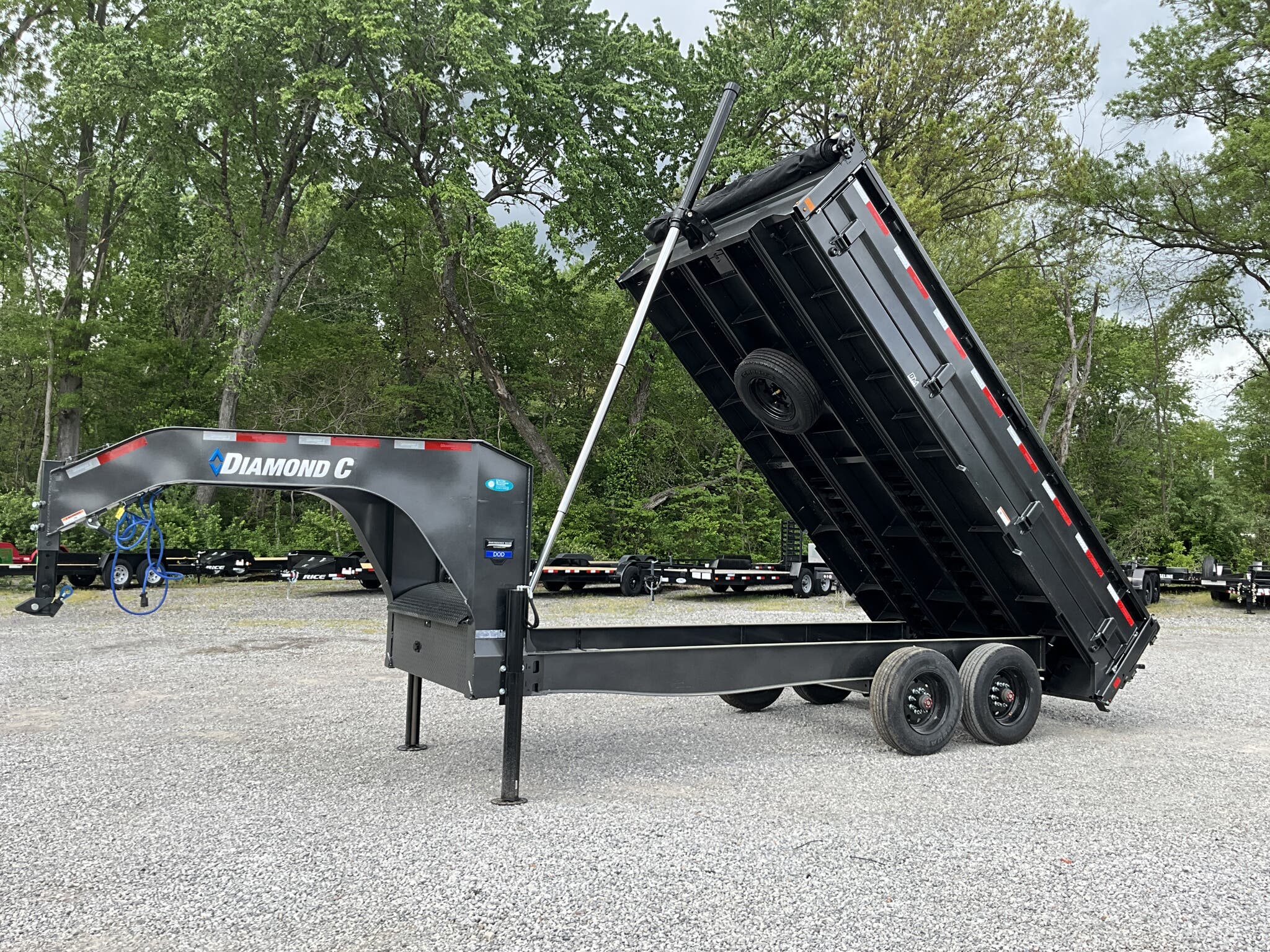

Feature: 5-stage power-up/gravity-down hydraulic dump system with Bluetooth wireless controller
Feature: Dual 20K hydraulic jacks controlled through the 4-button wireless controller
Feature: Upgraded 7-gauge steel floor for increased durability under demanding loads
Feature: 22" tall 10-gauge fold-down sides for versatile side loading and unloading
Feature: 3-way dump gate for conventional dumping, spreading, and material handling
Feature: 97" rear slide-in 3" I-beam ramps with rear drop-leg stabilizer jacks for equipment loading
Feature: Lithium battery upgrade with SolarPulse 7-watt charging system

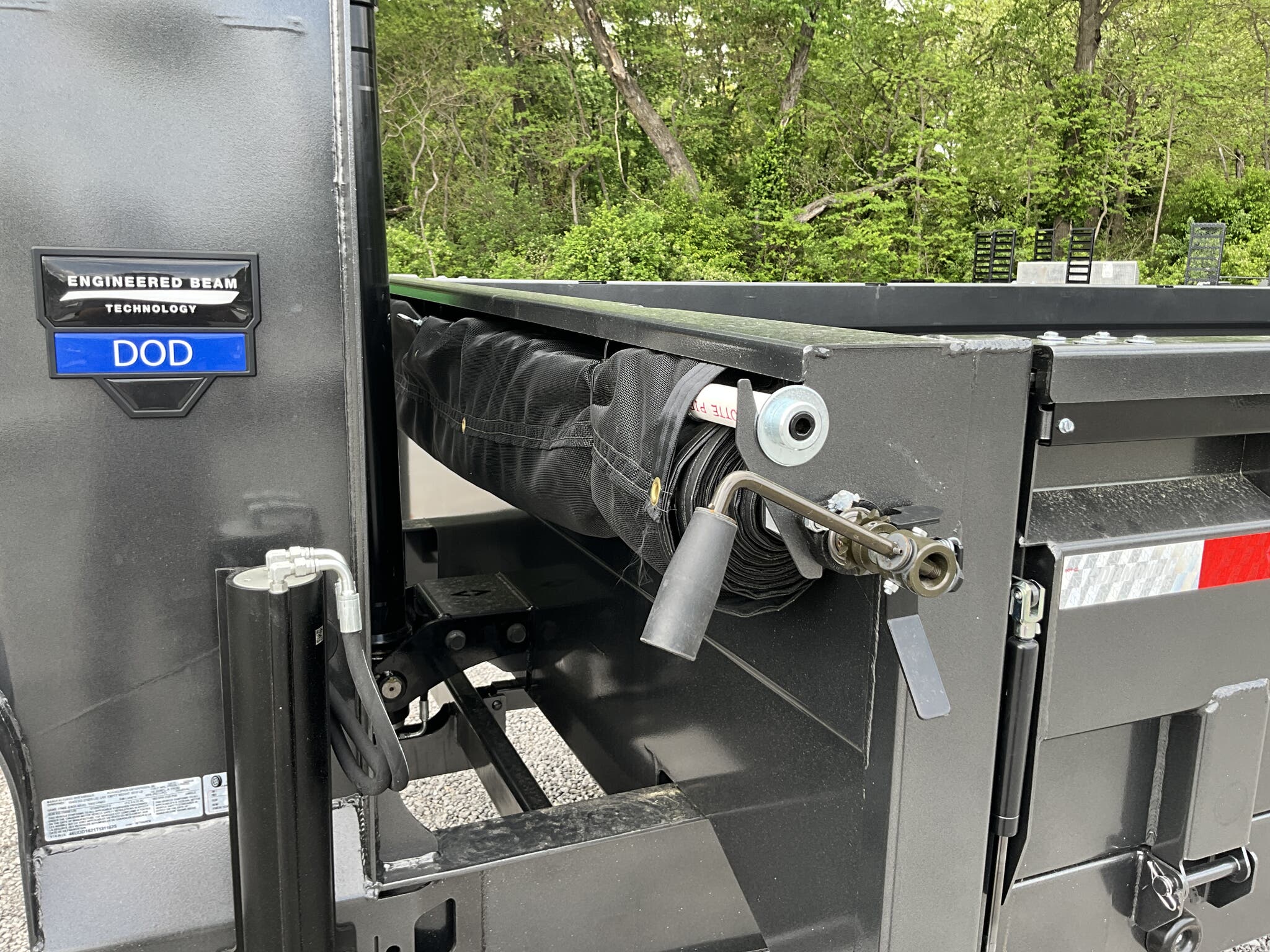

Feature: Installed 20' heavy-duty black mesh tarp system

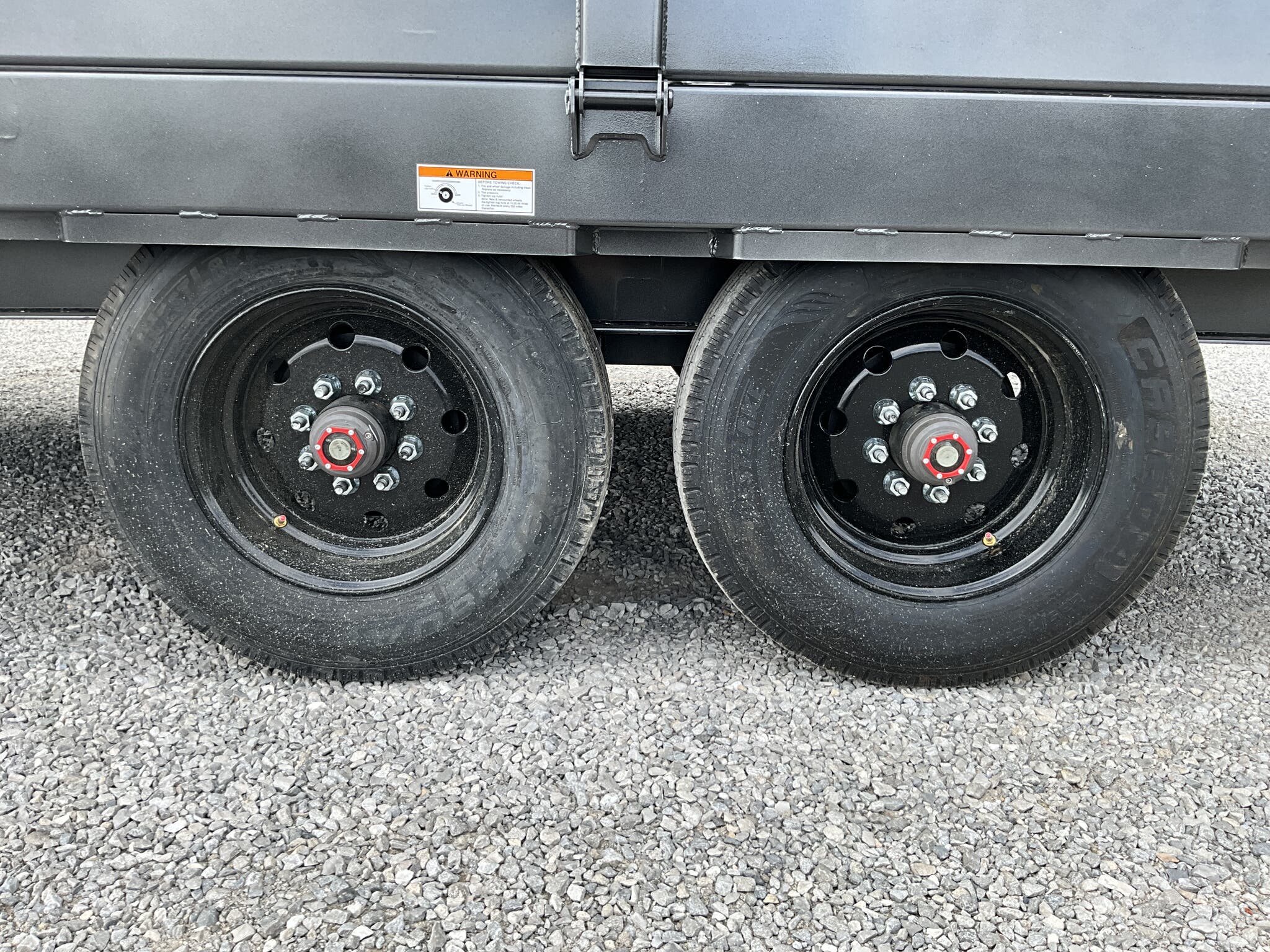

Feature: ST235/75R17.5 super single 18-ply tires with matching spare

Specs — Model: DOD210-GN Deck-Over Gooseneck Dump Trailer
Specs — Size: 96" × 16'
Specs — GVWR: 20,000 lb
Specs — Axles/Brakes: (2) 10,000 lb straight torsion axles with electric drum brakes and ABS
Specs — Suspension: 10K torsion straight axles
Specs — Frame: Engineered Beam
Specs — Neck: 12" engineered gooseneck with chain tray
Specs — Coupler: 30K Curt 2-5/16" gooseneck ball coupler
Specs — Jacks: Dual 20K hydraulic jacks
Specs — Hydraulic System: 5-stage power-up, gravity-down hydraulic system
Specs — Hydraulic Control: 4-button Bluetooth wireless controller for dump system and hydraulic jacks
Specs — Floor: Upgraded 7-gauge steel floor
Specs — Sides: 22" tall, 10-gauge fold-down sides
Specs — Gate: 3-way dump gate
Specs — Ramps: 97" rear slide-in ramps constructed from 3" I-beam
Specs — Stabilizers: Pair of rear drop-leg stabilizer jacks
Specs — Battery: Lithium battery upgrade
Specs — Charging System: SolarPulse 7-watt solar charging system
Specs — Tie Downs: (4) standard 5/8" D-rings
Specs — Tarp: Installed 20' heavy-duty black mesh tarp
Specs — Tires/Wheels: ST235/75R17.5 super single 18-ply tires on black steel wheels
Specs — Spare: Matching ST235/75R17.5 super single 18-ply spare
Specs — Spare Mount: Retractable under-frame cable winch
Specs — Lighting: All LED
Specs — Finish: Carbon Metallic Gray
Specs — VIN: 46UDD1626V1317861
Specs — Web ID: 370110-1

Weights & Capacities
GVWR: 20,000 lb
Empty Weight: 5,250 lb
Payload on Axles: 20,000 - 5,250 = 14,750 lb
Target Tongue Load (20% of GVWR): 4,000 lb
Total Effective Payload: 18,750 lb
