2027 Diamond C DOD DOD207-14X96 - #DCT060426-3

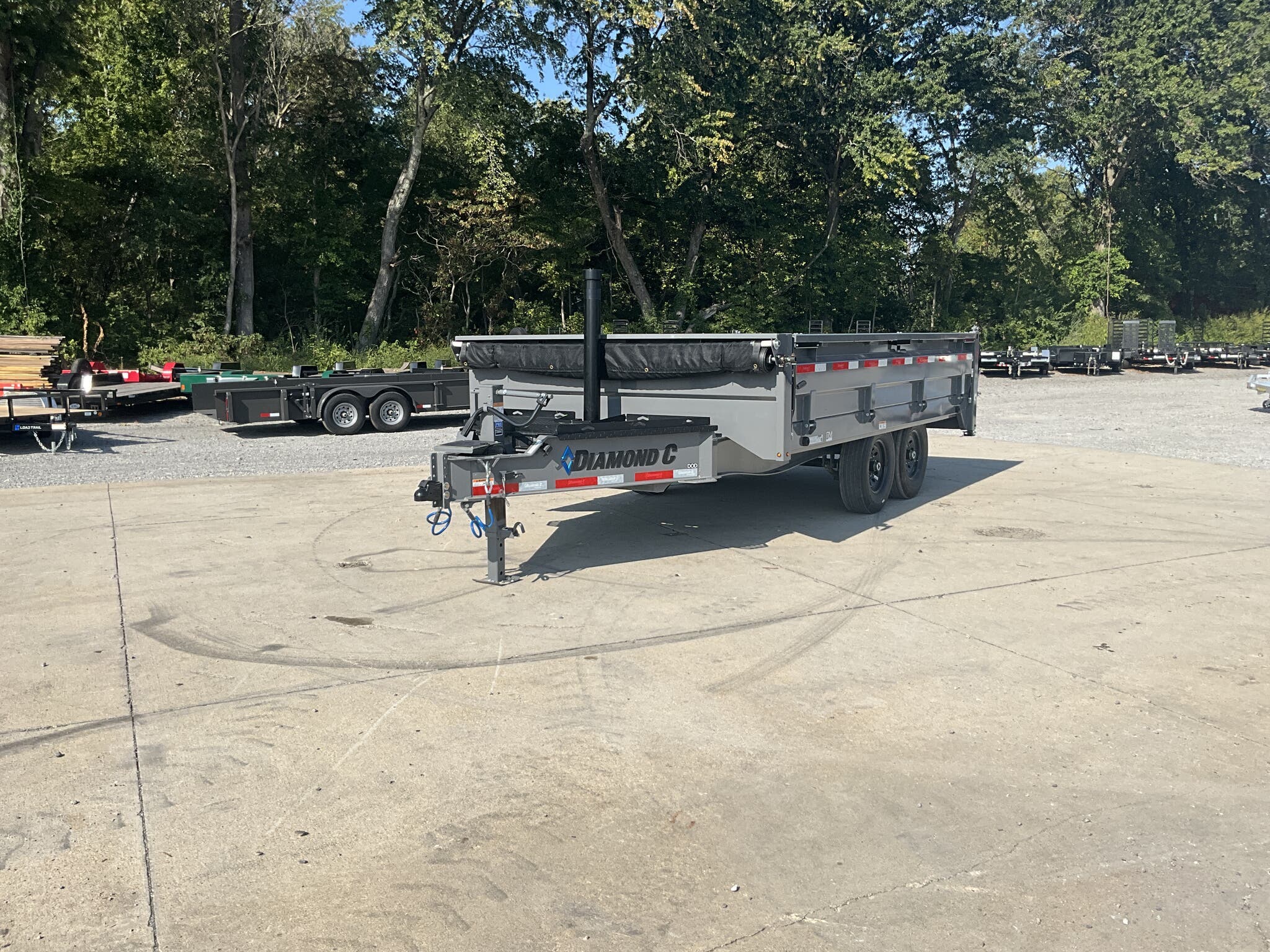

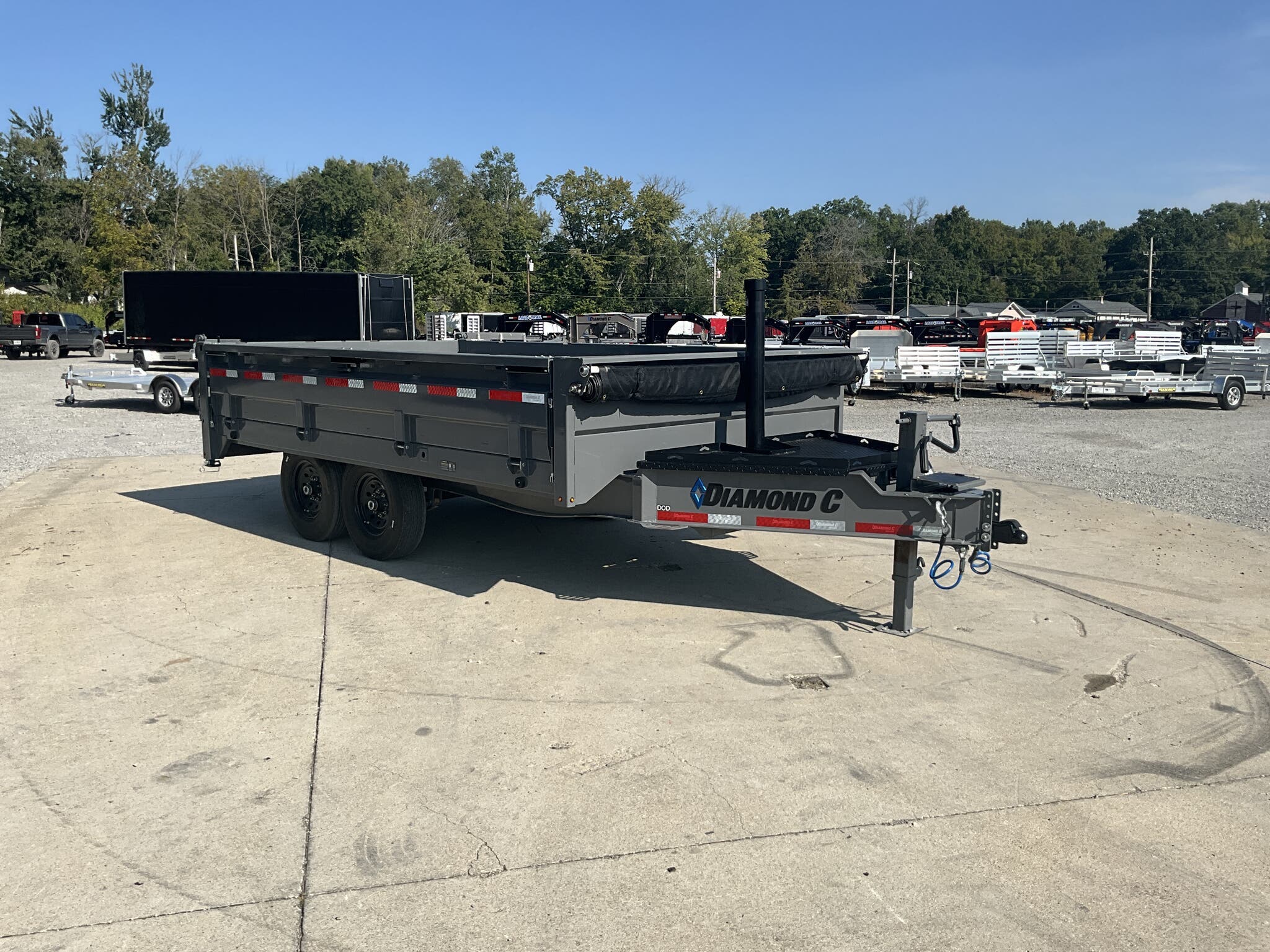

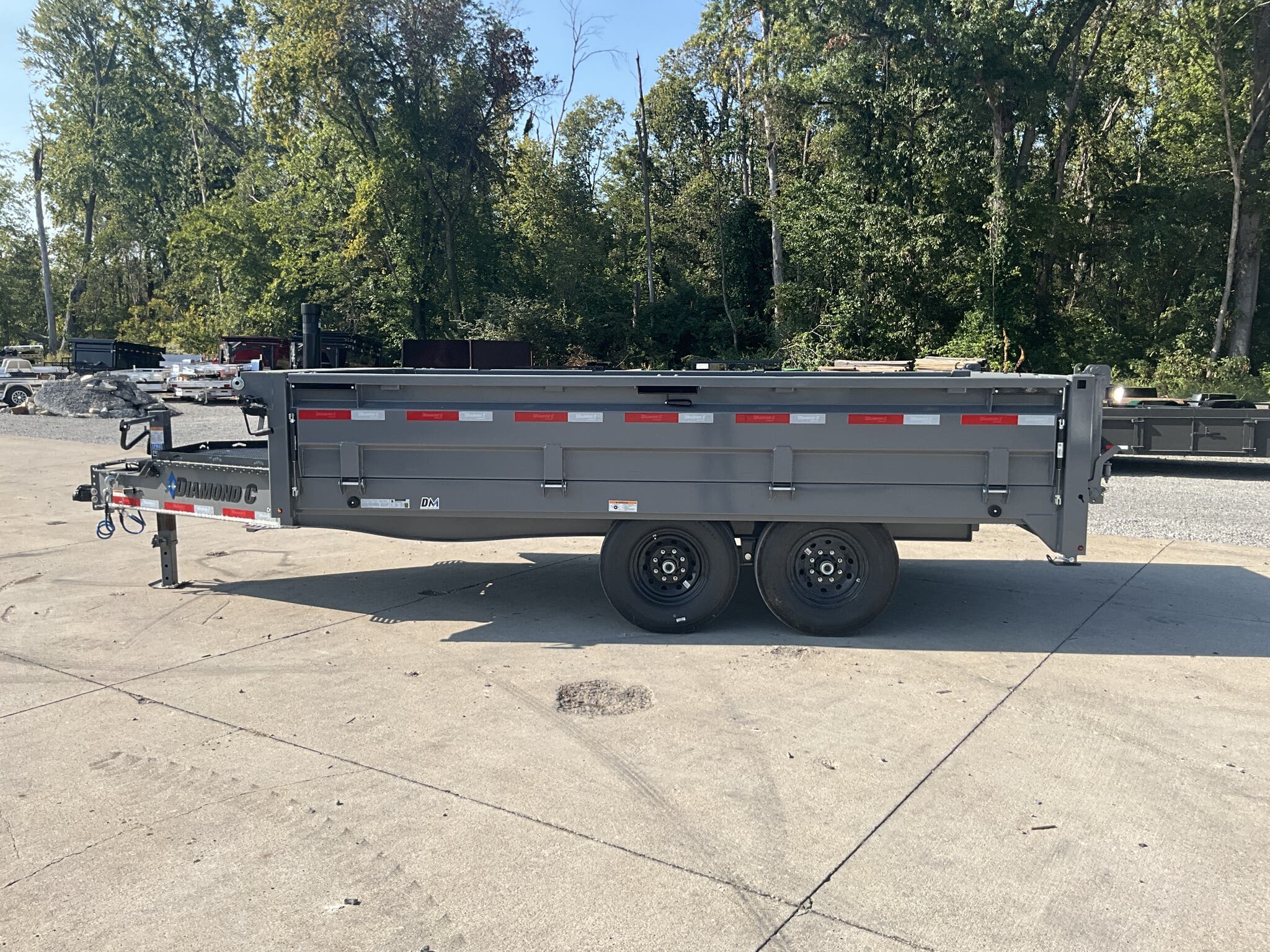

2027 DIAMOND C DOD207 15.5K 96" × 14' DECK-OVER DUMP TRAILER, CEMENT GRAY, 22" EZ FOLD-DOWN SIDES — FOR SALE IN MOUNT VERNON, IL 62864
Feature: 5-stage telescopic hydraulic cylinder with high-flow KTI pump for powerful dumping performance
Feature: TUFF wireless Bluetooth remote plus corded remote for convenient operation

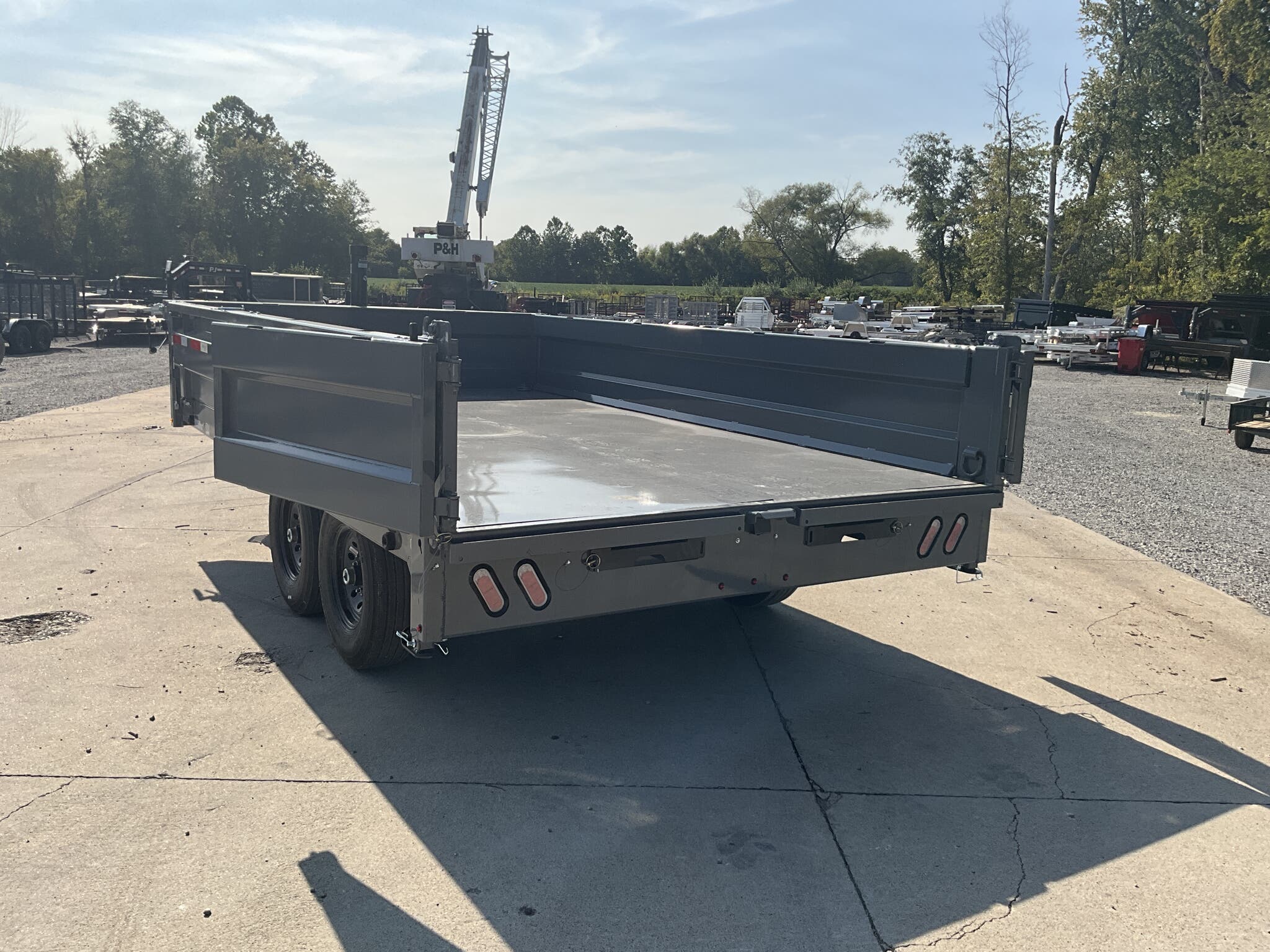

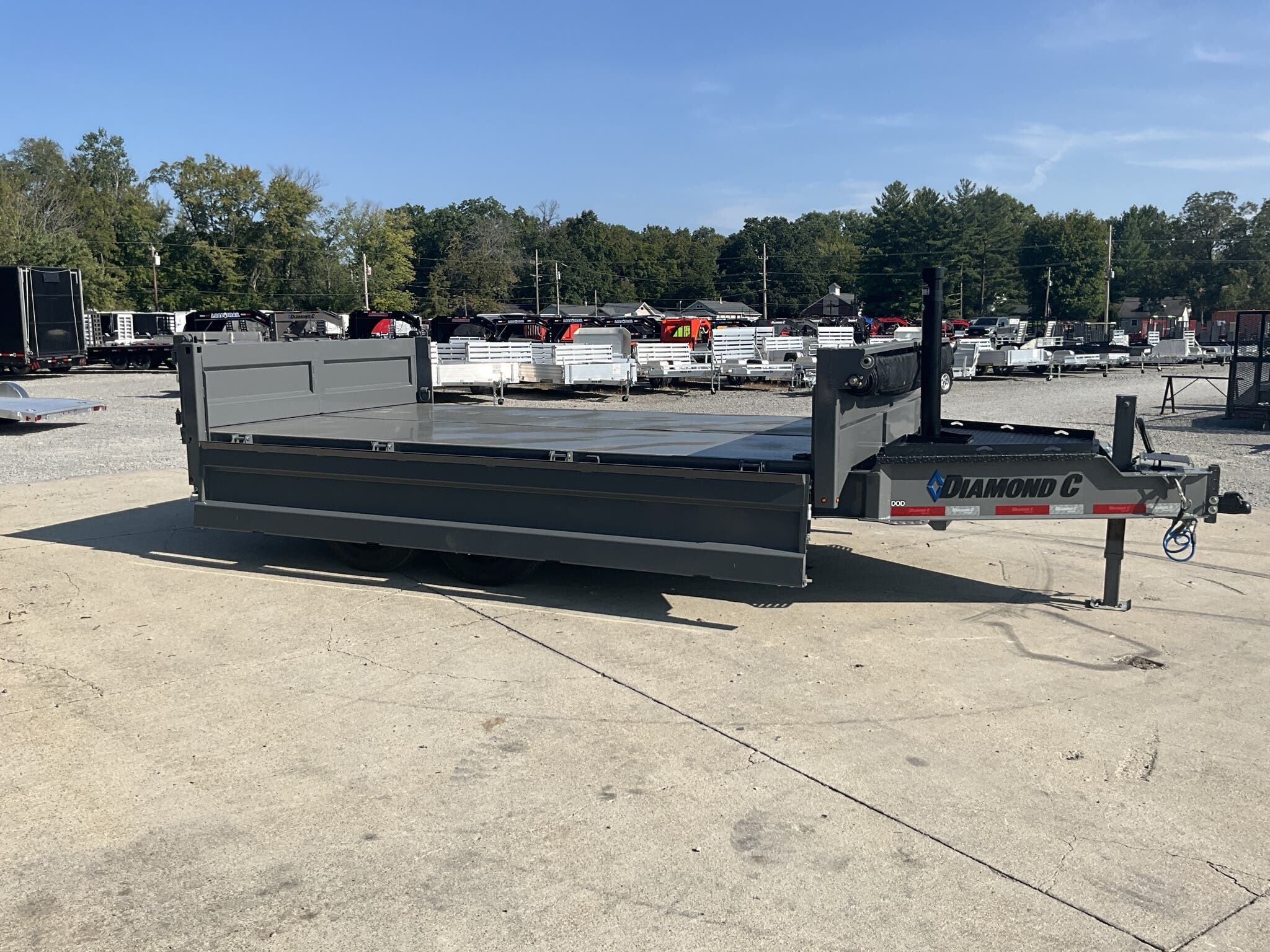

Feature: 22" tall 10-gauge EZ fold-down sides with 3-way gate and hold-back system
Feature: Lithium battery upgrade with SolarPulse charging system
Feature: 96" slide-in ramps with rear stabilizer drop legs for equipment loading

Specs — Model: DOD207 Deck-Over Dump Trailer
Specs — Size: 96" × 14'
Specs — GVWR: 15,500 lb
Specs — Axles/Brakes: (2) 7,000 lb electric drum brake axles
Specs — Suspension: Slipper roller spring suspension
Specs — Frame: Engineered beam main frame with custom engineered channel dump body
Specs — Floor: 10-gauge formed steel floor
Specs — Sides: 10-gauge × 22" EZ fold-down sides

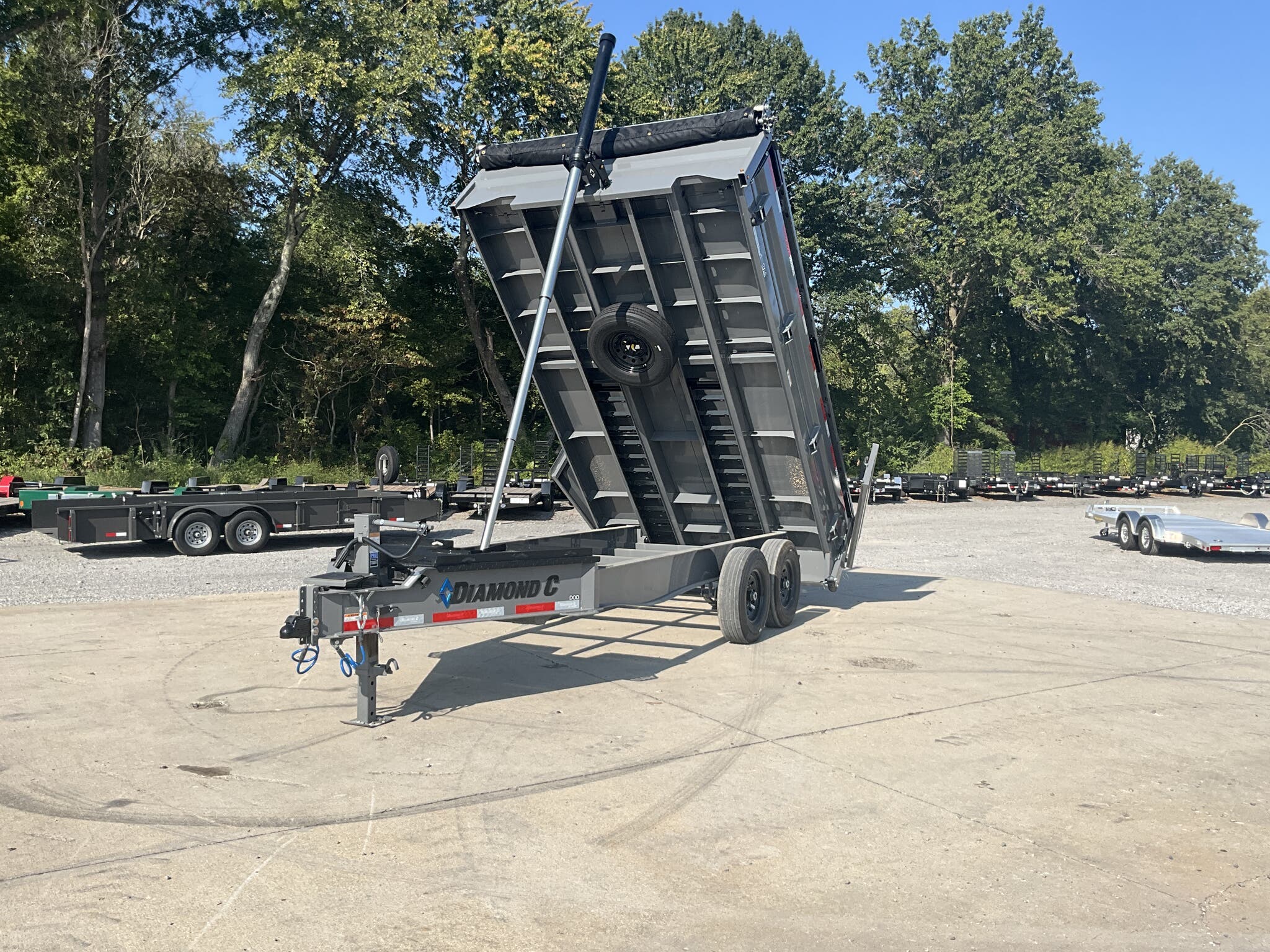

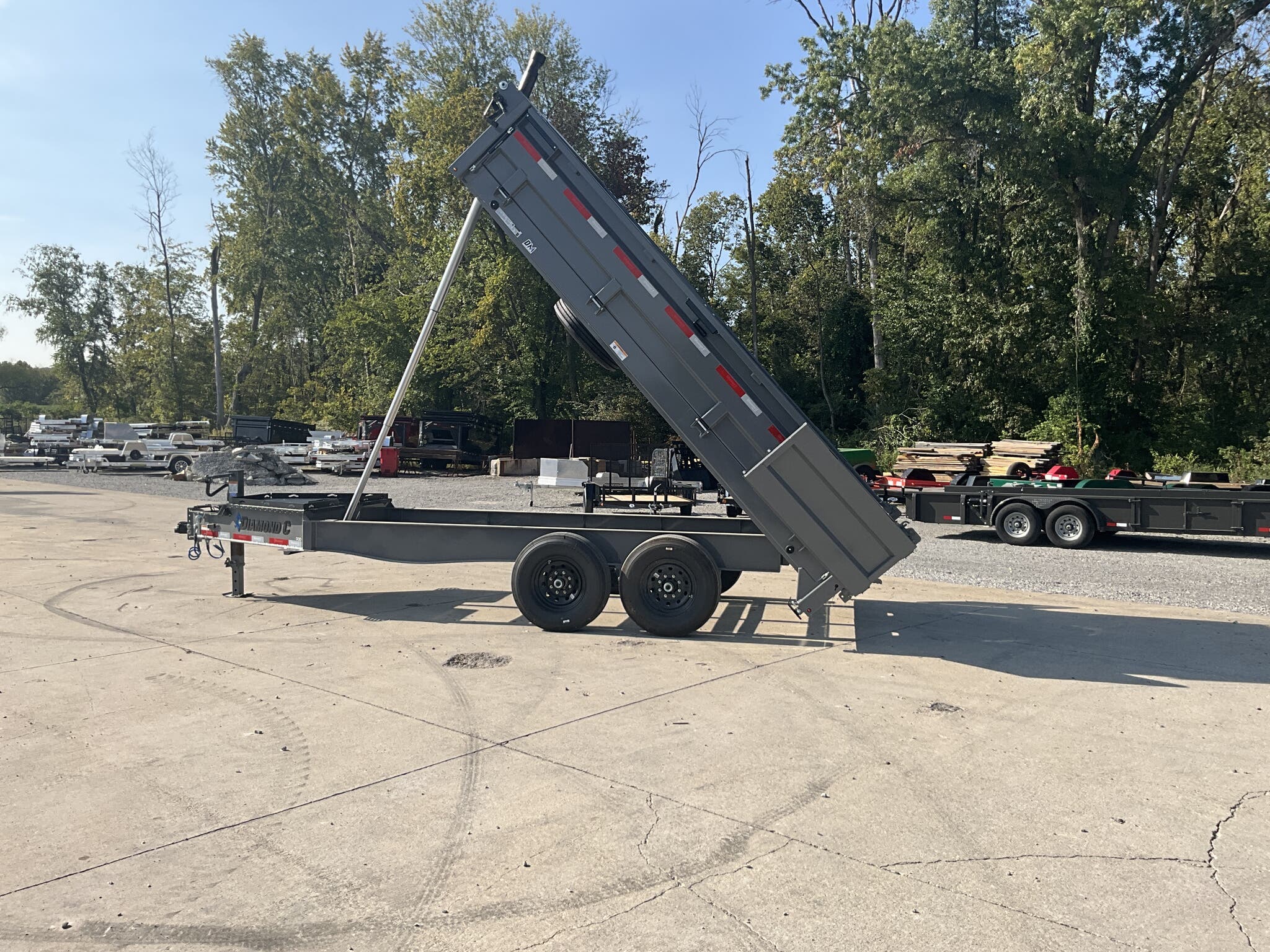

Specs — Hoist: 5-stage telescopic hydraulic cylinder
Specs — Gate: 3-way dump gate with hold-back system
Specs — Ramps: 96" slide-in ramps
Specs — Stabilizers: Rear drop-leg stabilizer jacks

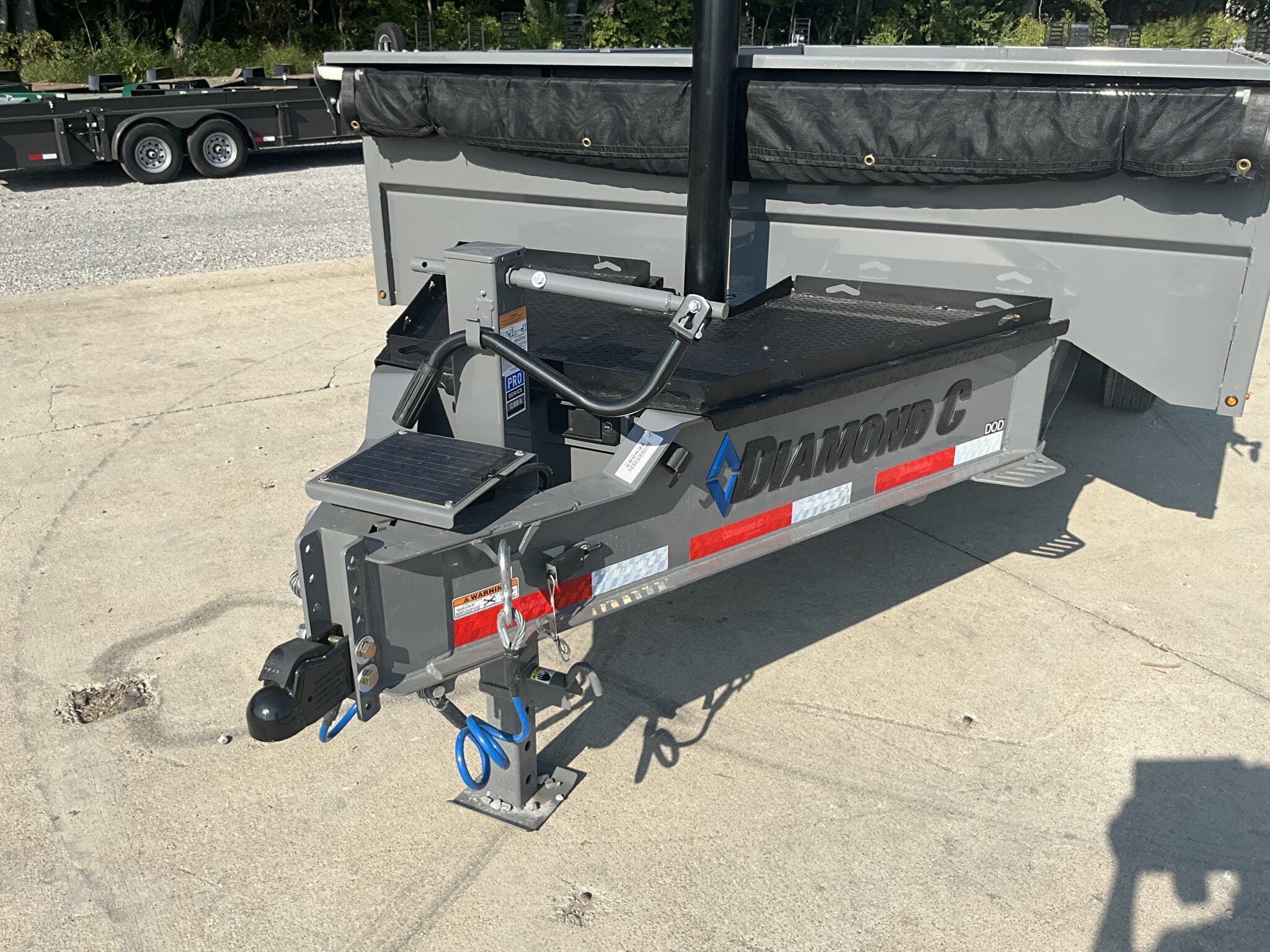

Specs — Coupler: Adjustable 2-5/16" 21K Demco EZ-Latch
Specs — Jack: 15K 2-speed drop-leg jack
Specs — Storage: HD V-tongue toolbox
Specs — Hydraulics: Power up / gravity down with high-flow KTI pump
Specs — Controls: Corded remote and TUFF Bluetooth wireless remote
Specs — Tie Downs: (4) 5/8" D-rings

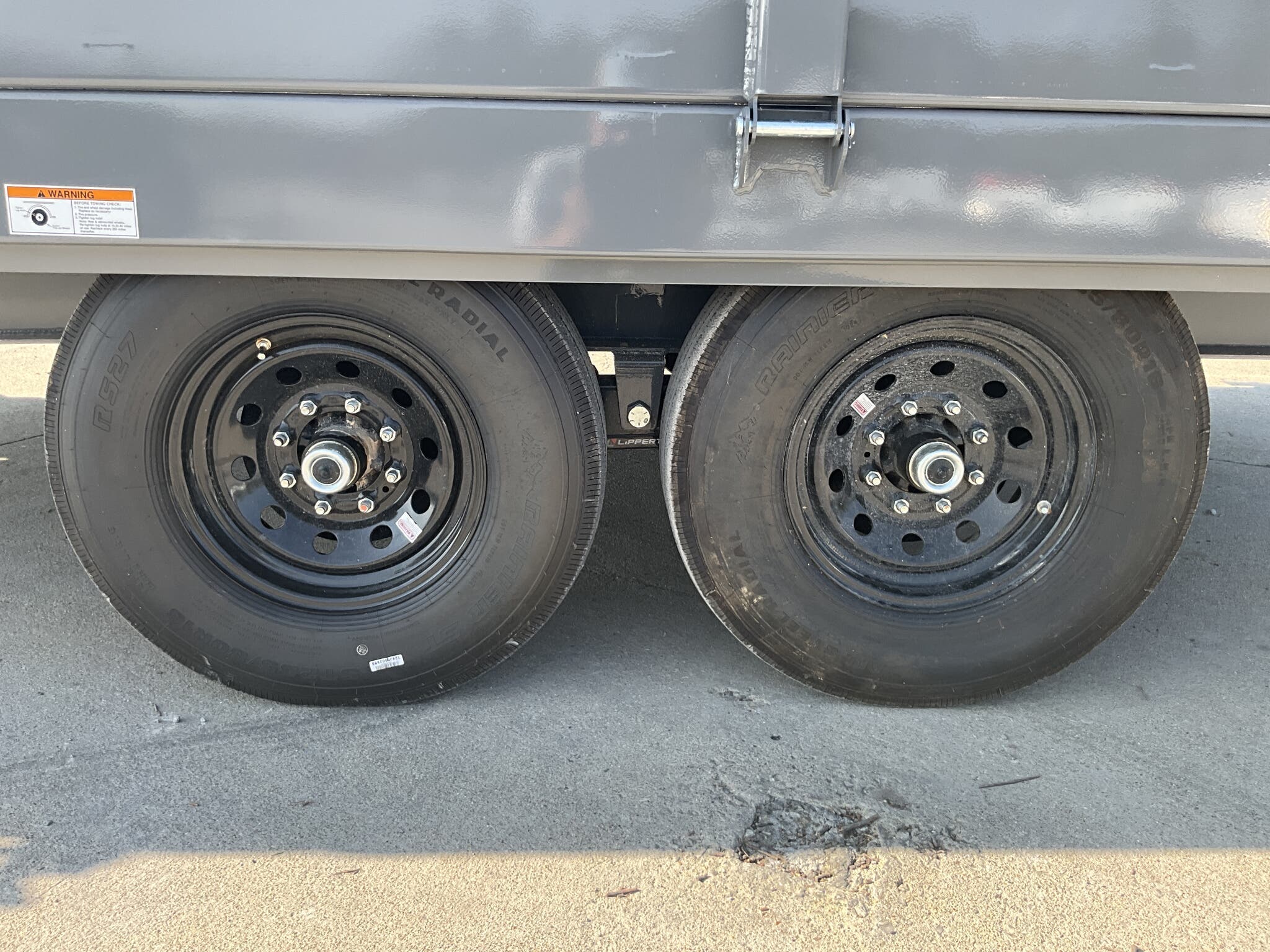

Specs — Tires/Wheels: ST235/80R16 14-ply radial, black wheels
Specs — Spare: Matching ST235/80R16 14-ply radial
Specs — Spare Mount: Under-frame spare mount

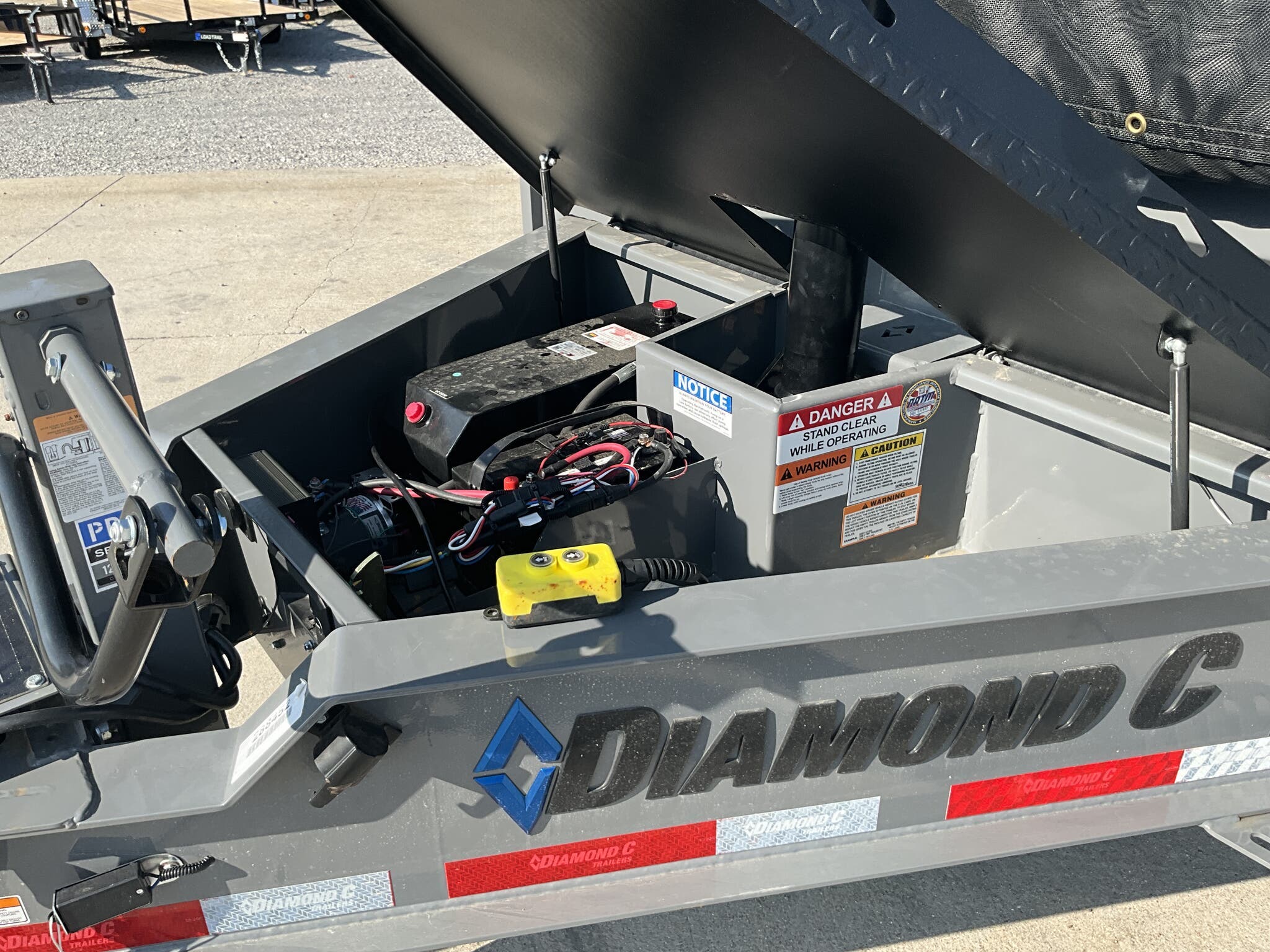

Specs — Electrical: Lithium battery upgrade with SolarPulse 7W charging system
Specs — Wiring: Sealed wiring harness
Specs — Lighting: Full LED lighting package
Specs — Finish: Cement Gray DM Difference Maker coating system
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty

Weights & Capacities
GVWR: 15,500 lb
Empty Weight: 5,290 lb
Payload on Axles: 14,000 - 5,290 = 8,710 lb
Target Tongue Load (10% of GVWR): 1,550 lb
Total Effective Payload: 10,260 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
