2027 Diamond C DEC DEC210-26X102DFR - #DCT16838

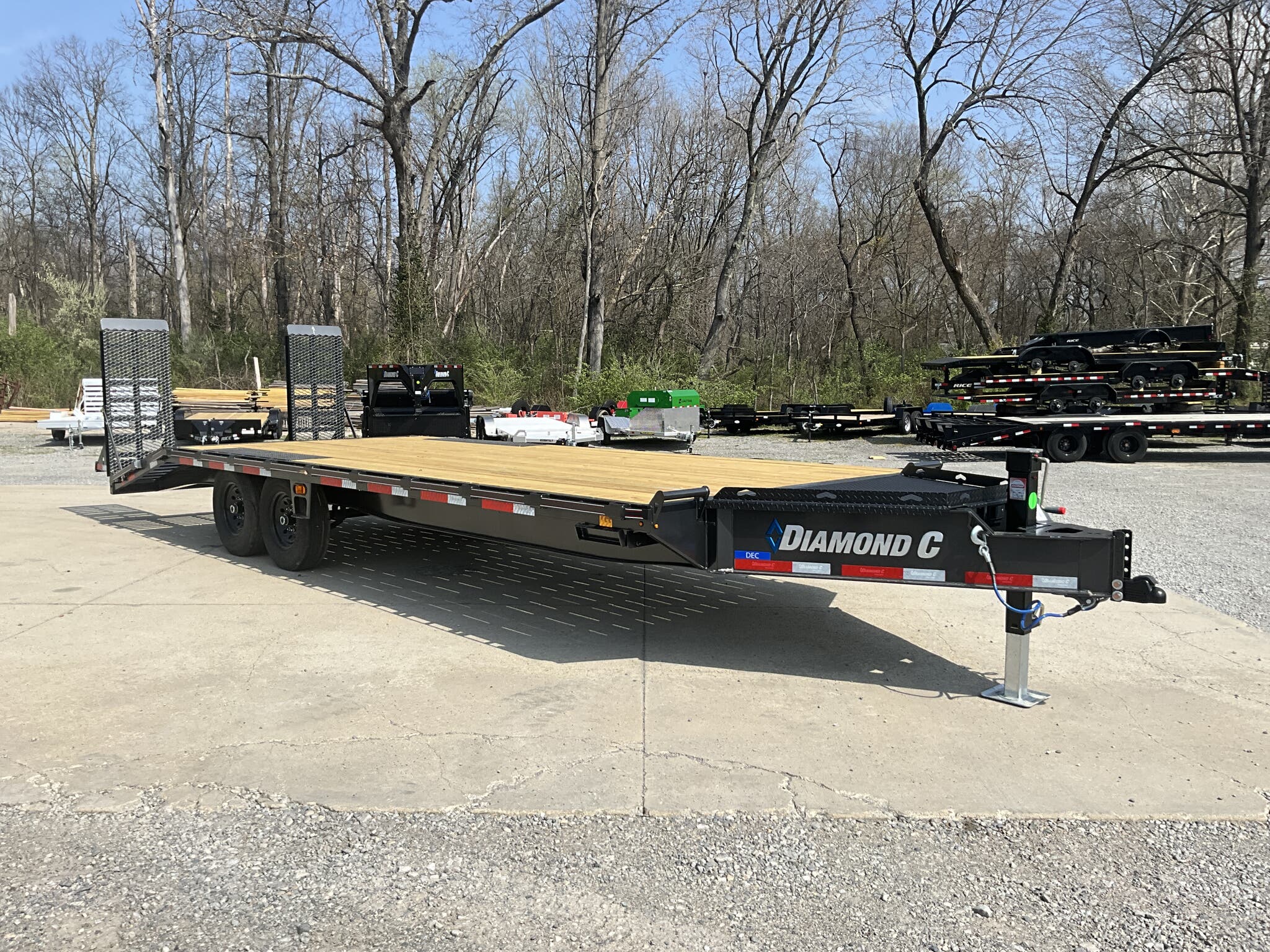

2027 DIAMOND C DEC210 23K 102" × 26' ENGINEERED BEAM DECK-OVER EQUIPMENT TRAILER, ONYX BLACK, 60" DOVETAIL WITH HD FLIP-KNEE RAMPS — FOR SALE IN MOUNT VERNON, IL 62864

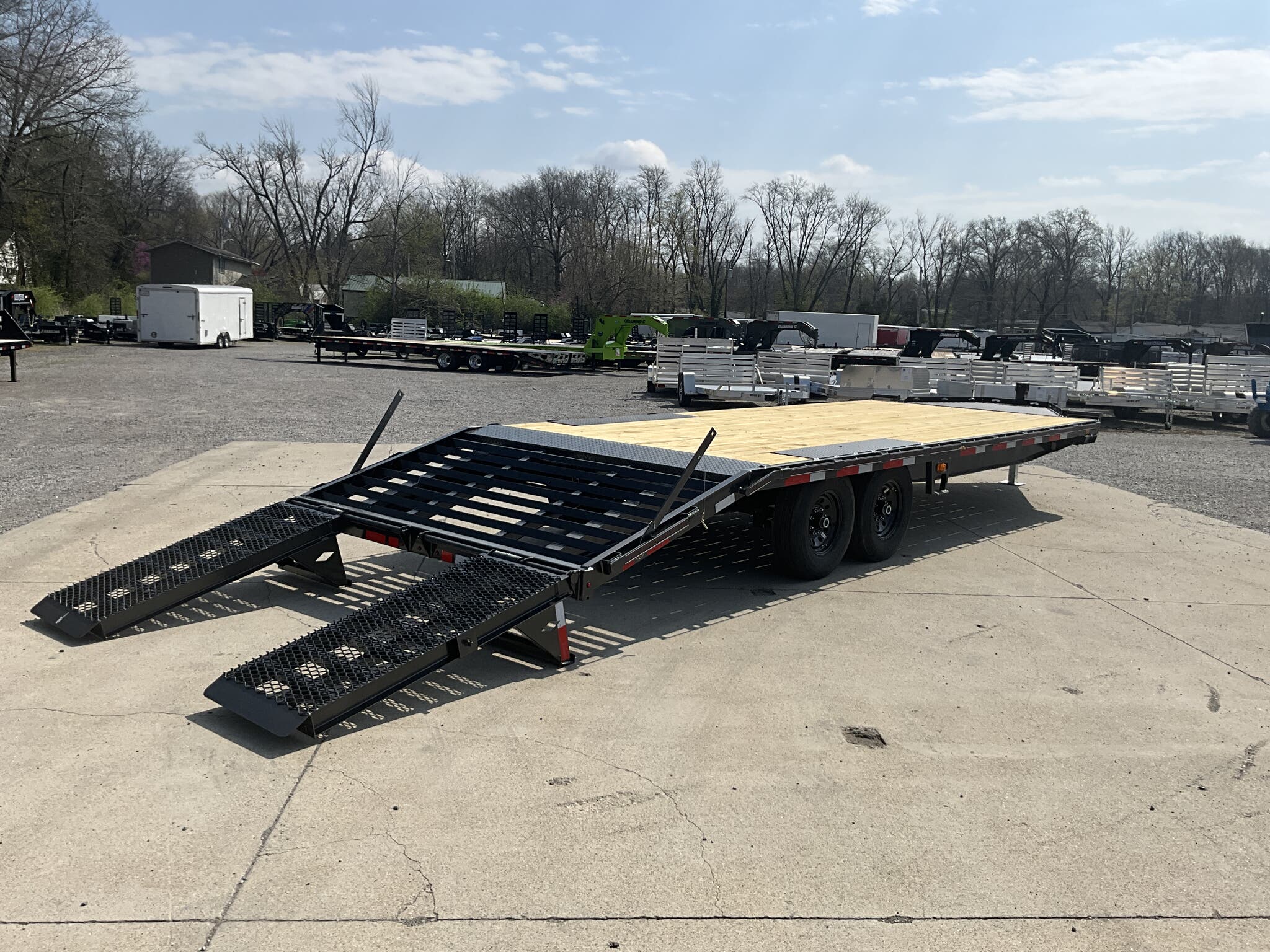

Feature: 60" dovetail with extra-wide 24" × 60" HD flip-knee ramps for heavy equipment loading
Feature: Engineered beam frame with 3" I-beam crossmembers on 12" centers for maximum strength
Feature: 20K hydraulic jack with lithium battery upgrade and SolarPulse 7-watt charging system
Feature: 35K adjustable pintle ring hitch with dual 10K torsion axles and ABS-equipped electric brakes
Feature: Expanded tie-down package with heavy-duty lace rail, stake pockets, pipe spools, and additional 5/8" D-rings

Specs — Model: DEC210 Engineered Beam Deck-Over Equipment Trailer
Specs — Size: 102" × 26'
Specs — GVWR: 23,000 lb
Specs — Axles/Brakes: (2) 10,000 lb straight torsion axles with electric drum brakes and ABS
Specs — Suspension: 10K torsion axle suspension
Specs — Frame: Engineered beam frame
Specs — Crossmembers: 3" I-beam on 12" centers
Specs — Floor: 2" treated wood floor
Specs — Dovetail: 60" dovetail
Specs — Ramps: Extra-wide 24" × 60" HD flip-knee ramps
Specs — Coupler: Adjustable flat-mount 35K pintle ring with 2-1/2" eye
Specs — Jack: 20K hydraulic jack
Specs — Storage: HD V-tongue toolbox with lid
Specs — Lace Rail: 5" channel lace rail with 3/8" rub rail, stake pockets, and pipe spools
Specs — Tie Downs: (6) additional 5/8" D-rings
Specs — Steps: Front retractable steps
Specs — Steps: Mid-turn light/step combination (pair)
Specs — Tires/Wheels: ST235/75R17.5 super-single 18-ply radial tires on black steel wheels
Specs — Spare: Matching ST235/75R17.5 super-single 18-ply radial spare
Specs — Spare Mount: Retractable under-frame cable winch mount
Specs — Electrical: Lithium battery upgrade with SolarPulse 7-watt charging system
Specs — Lighting: Full LED lighting package
Specs — Finish: Onyx Black powdercoat
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 369986

Weights & Capacities
GVWR: 23,000 lb
Empty Weight: 5,920 lb
Payload on Axles: 20,000 - 5,920 = 14,080 lb
Target Tongue Load: 2,300 lb
Total Effective Payload: 16,380 lb
