2026 Frontier BL162-6-PEN-SYSTEM-DDFW - #FR32470

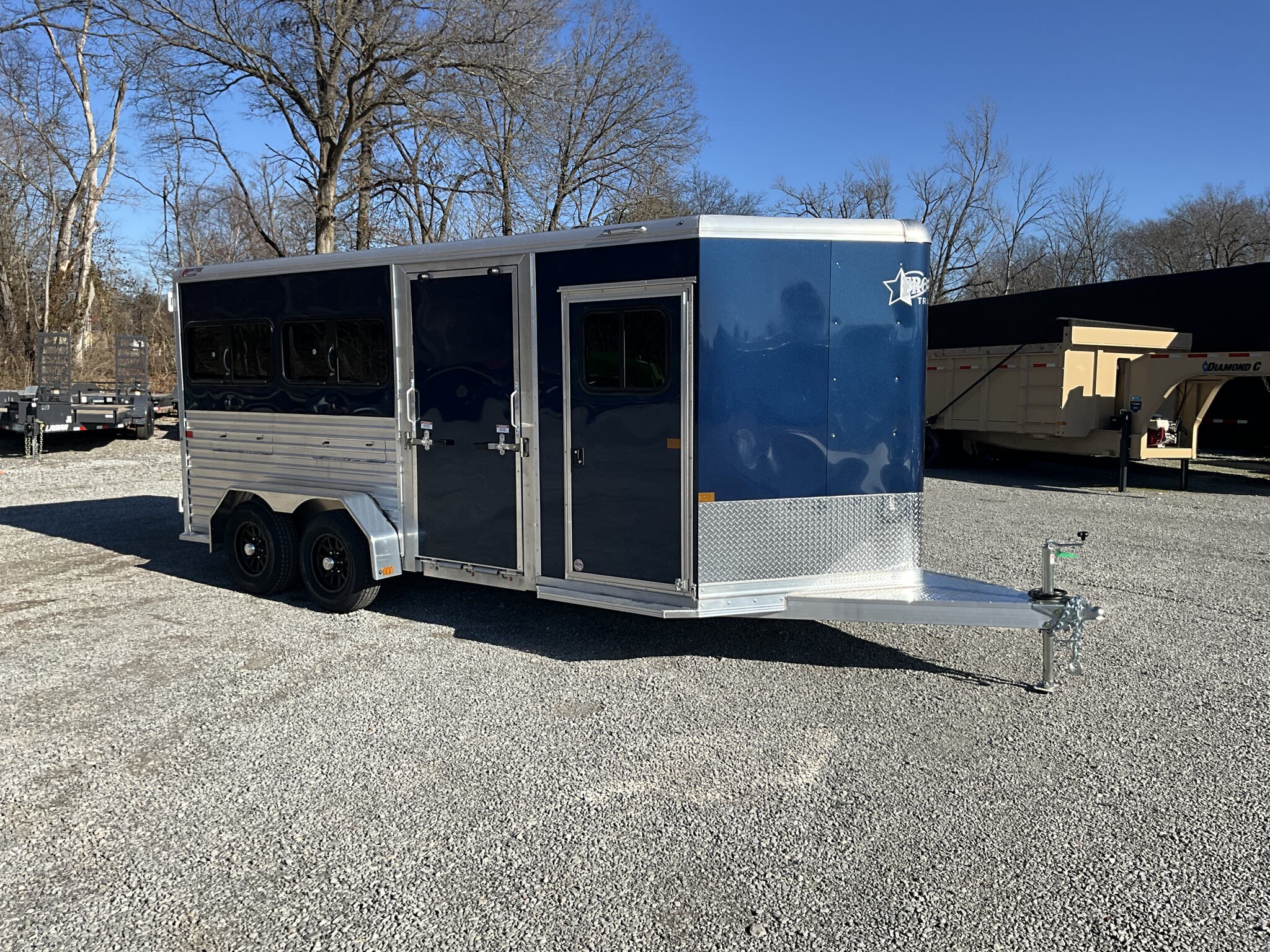

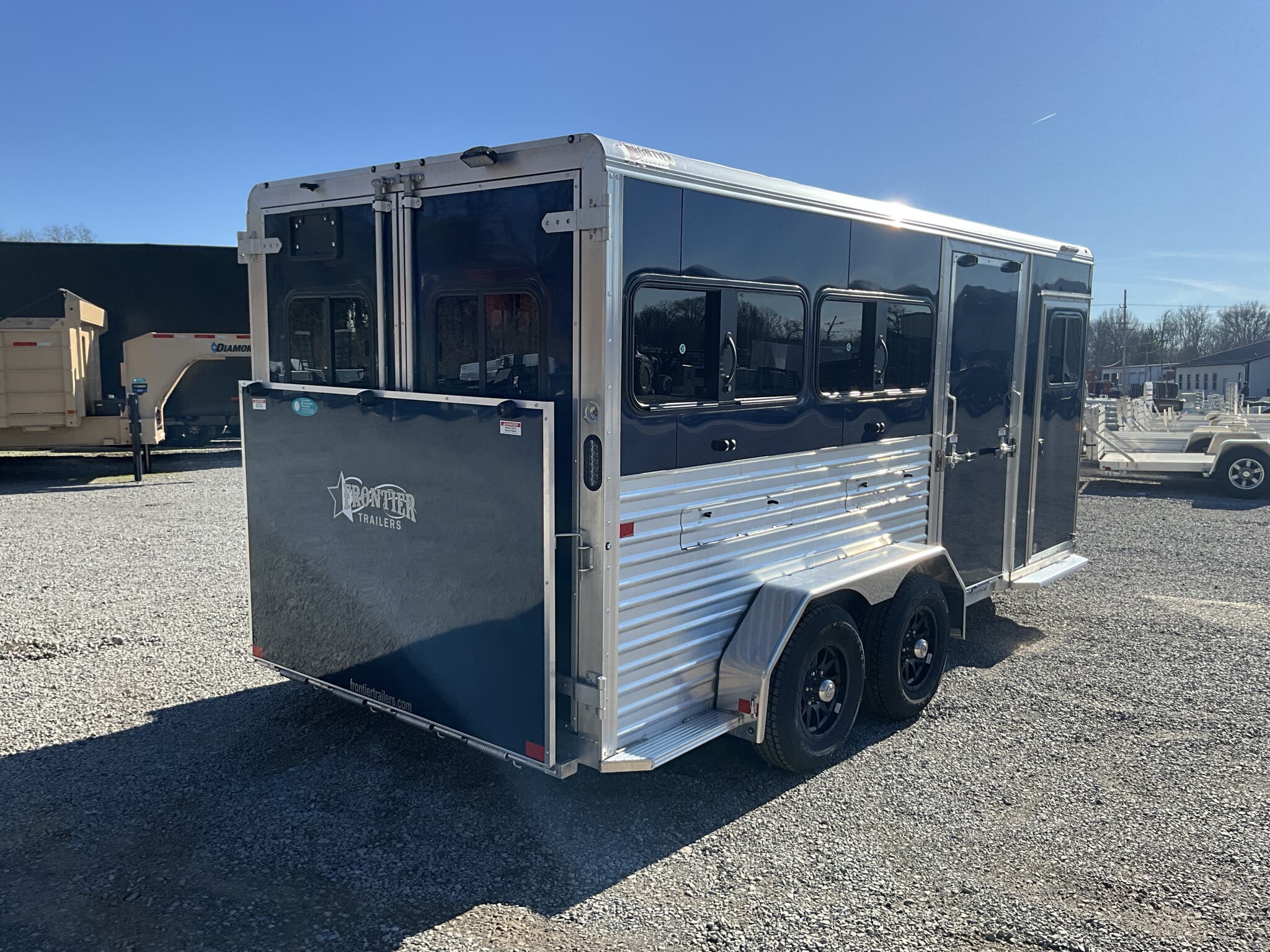

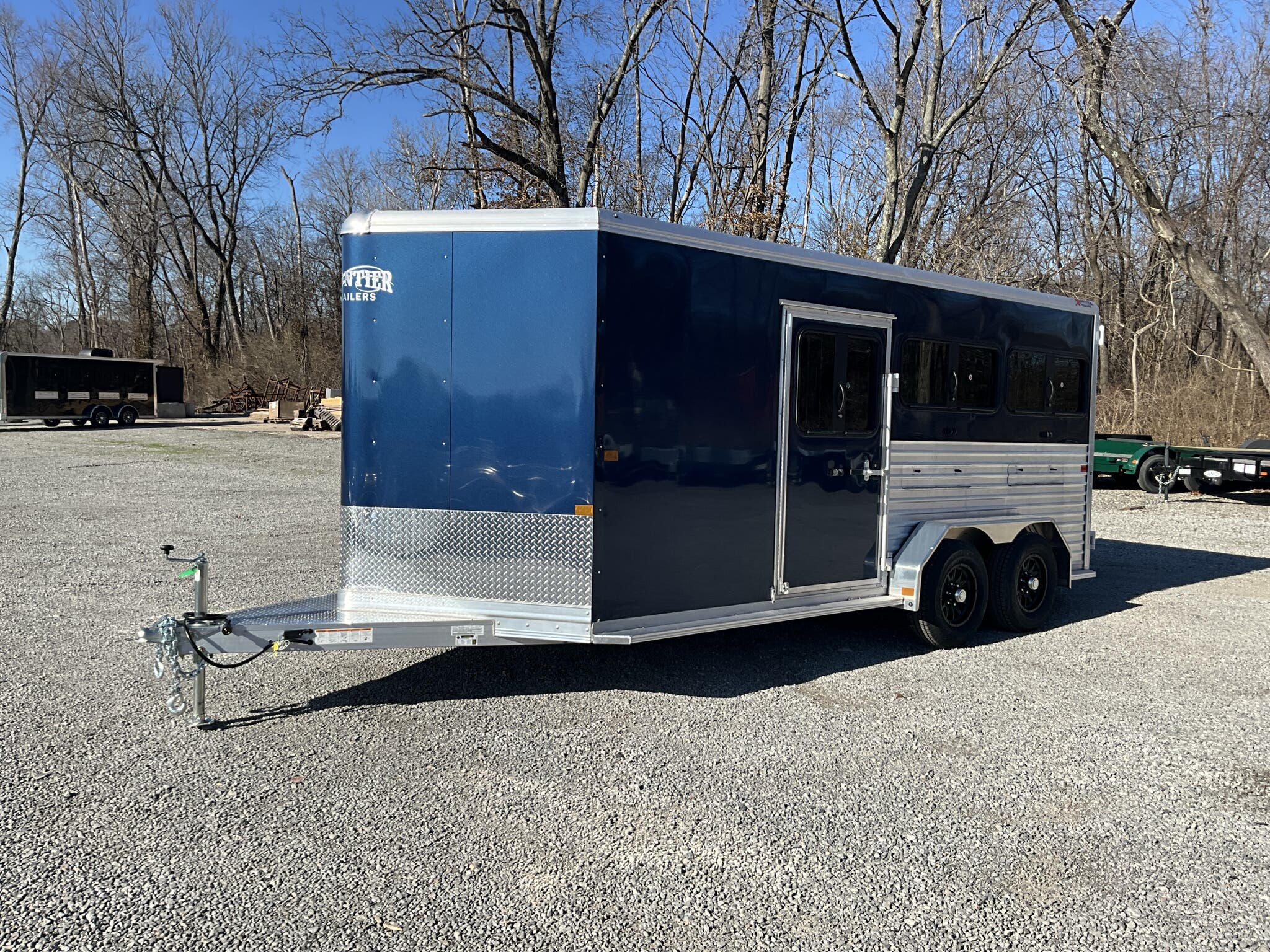

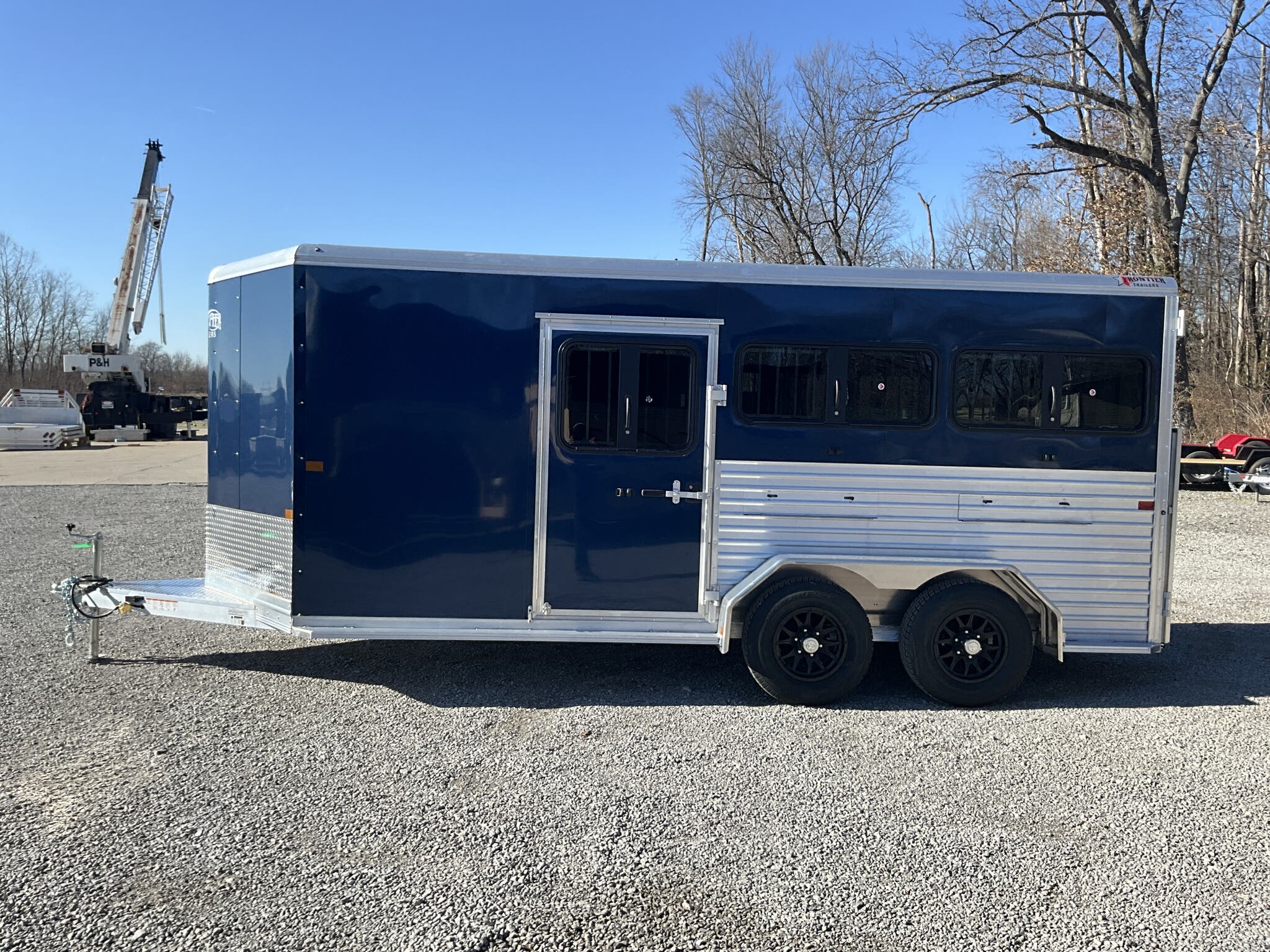

2026 FRONTIER LOW PRO 6-PEN SYSTEM TRAILER (DDFW) — 7×16 Bumper Pull, 78" Interior Height, Indigo Blue w/ Silver Graphics, Drop-Down Feed Windows, Side Ramp + Rear Ramp — For Sale in Illinois
Feature: Low Pro 6-pen system adjustable to 50/50 or 60/40 layouts
Feature: Drop-down feed window per pen

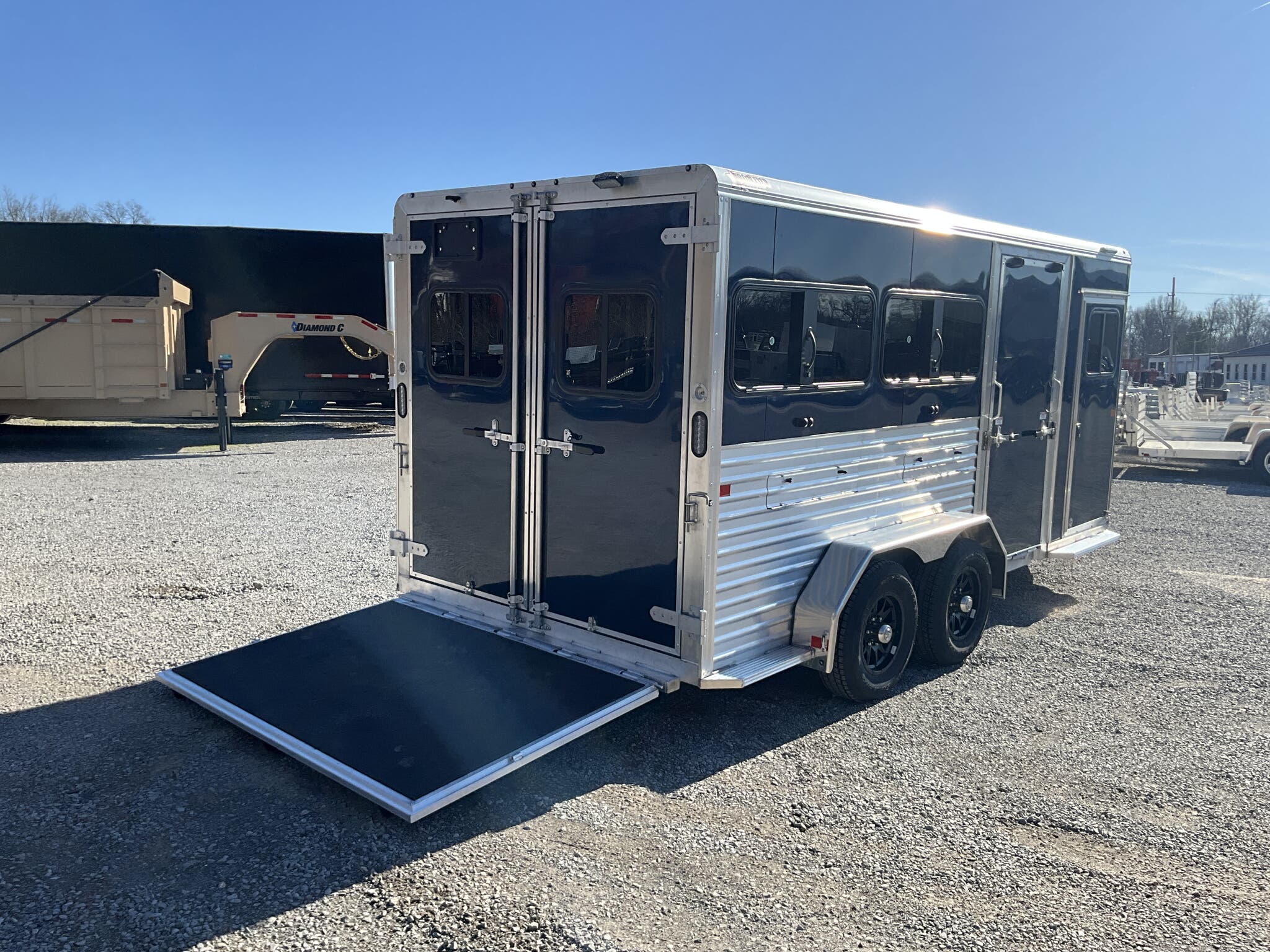

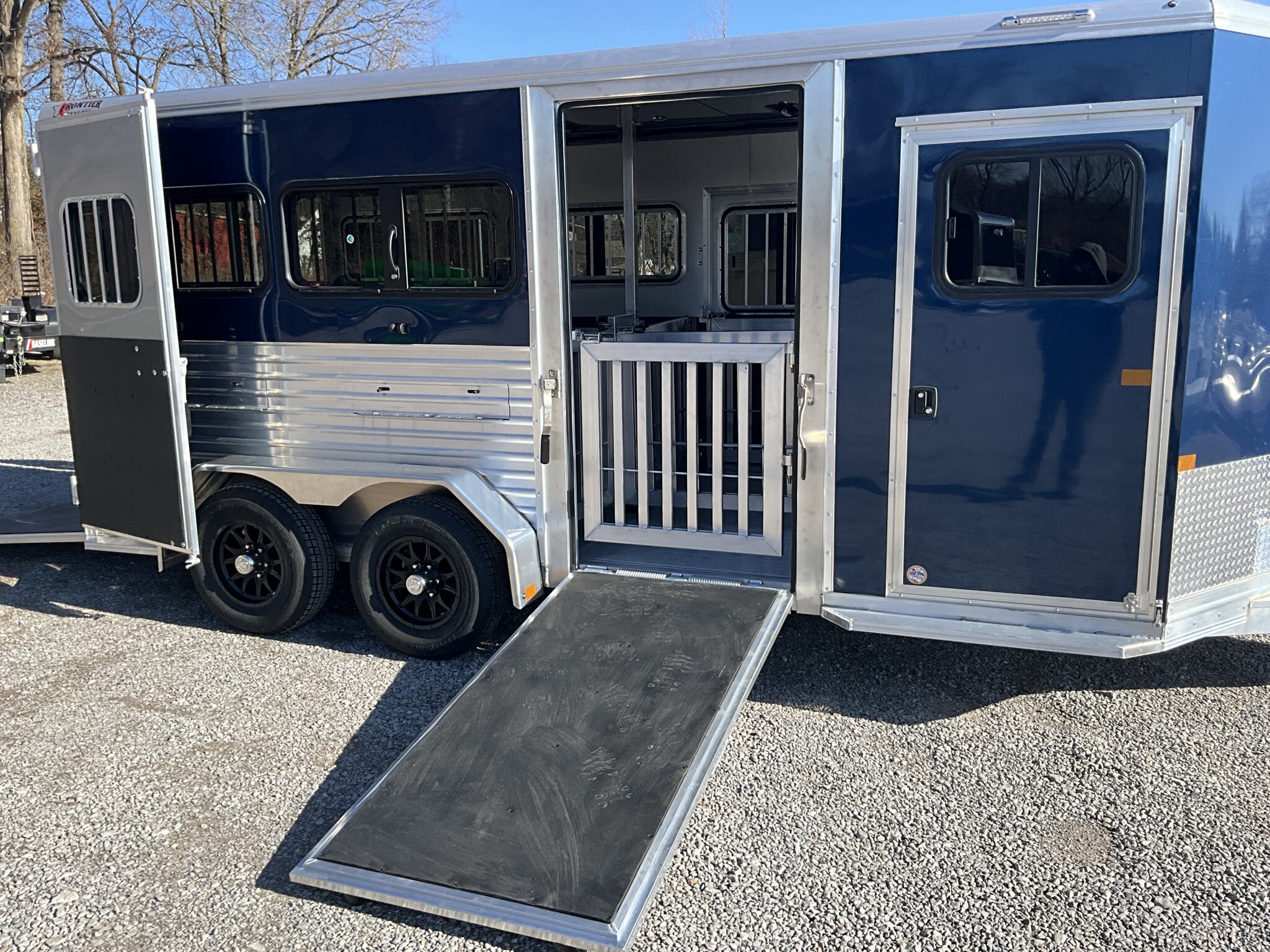

Feature: 36" curbside stock ramp plus rear ramp over double doors
Feature: Recessed LED puck lighting (8 total) with wall switch
Feature: 110V power package with shore line and outlets

Specs — Interior Size: 16' floor length × 7' wide × 78" tall
Specs — Construction: All box-tube aluminum chassis

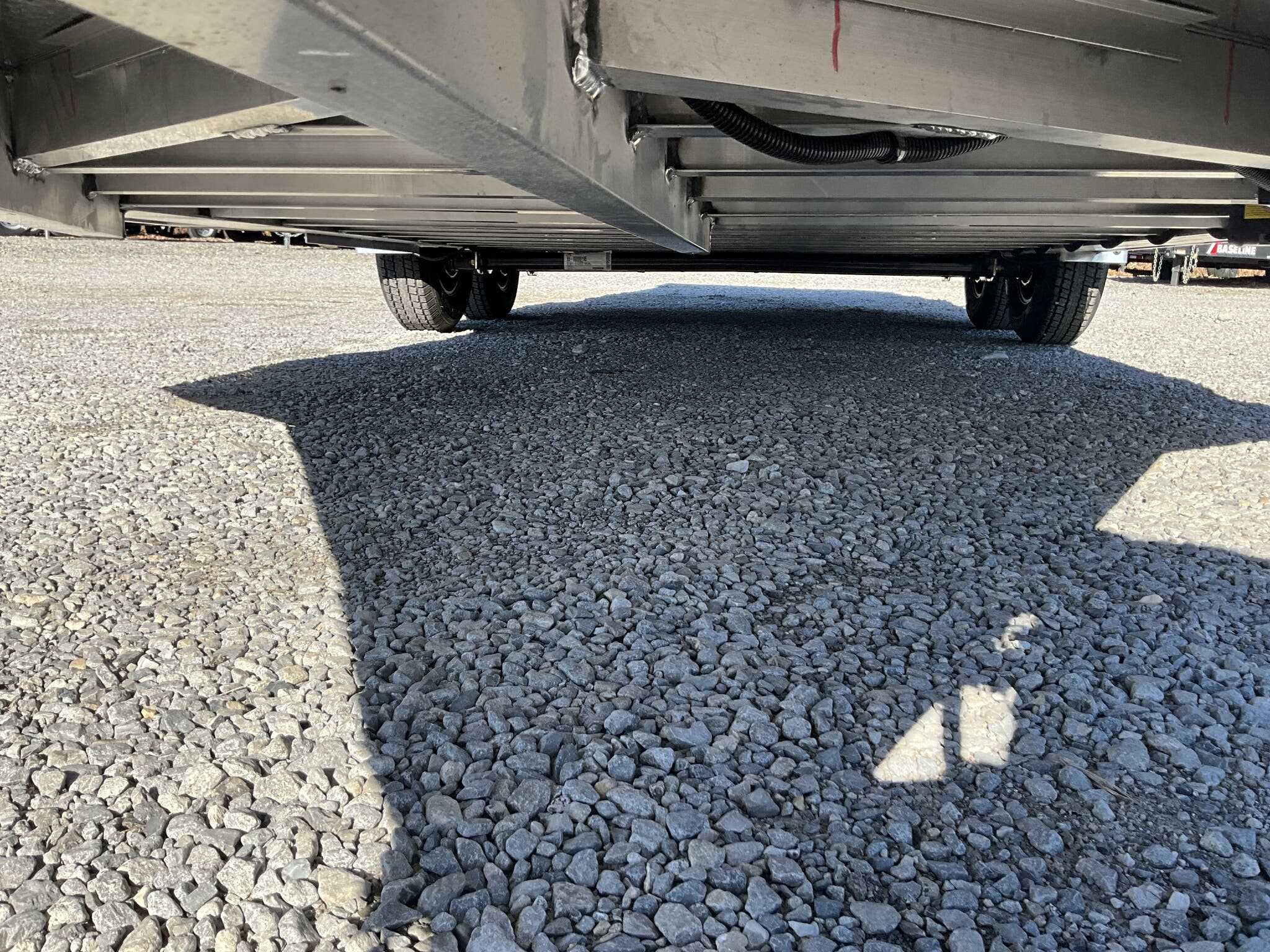

Specs — Floor: Extruded aluminum decking; 12" O.C. I-beam crossmembers
Specs — Roof: One-piece .040 aluminum roof with heavy-duty radius extrusion

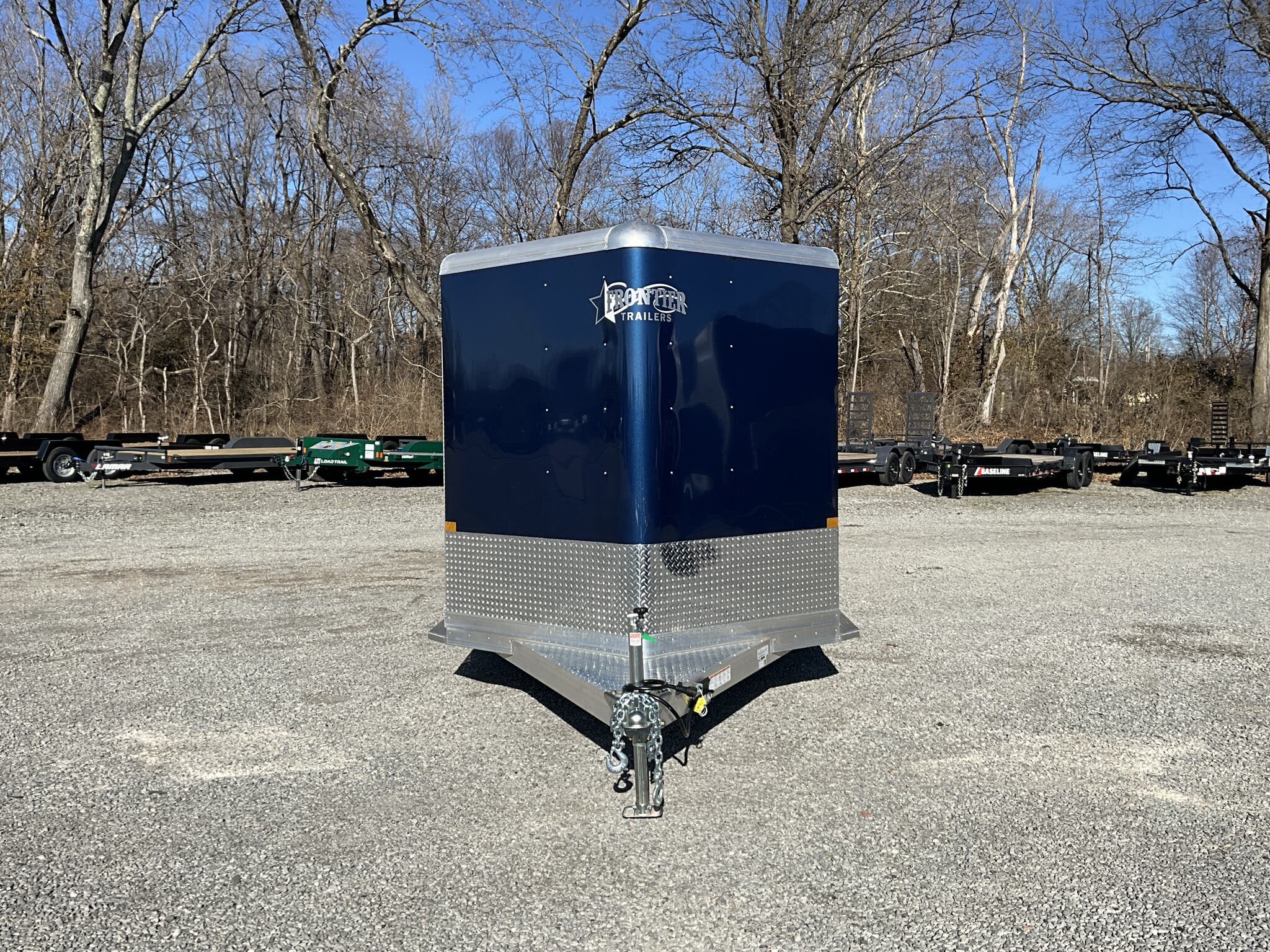

Specs — Exterior: Indigo Blue .040 aluminum upper skin & V-nose; lower extruded aluminum sides; 24" stone guard

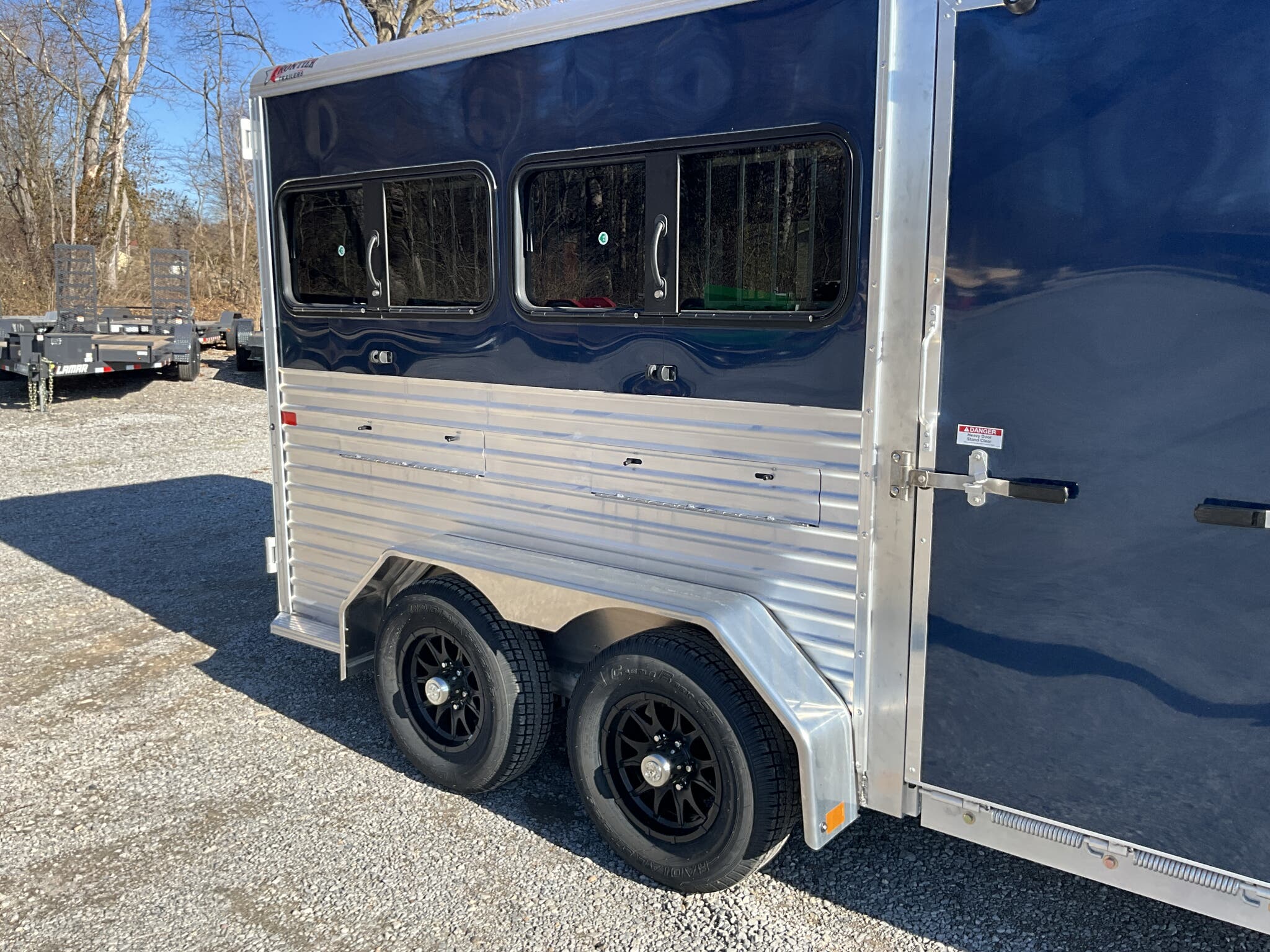

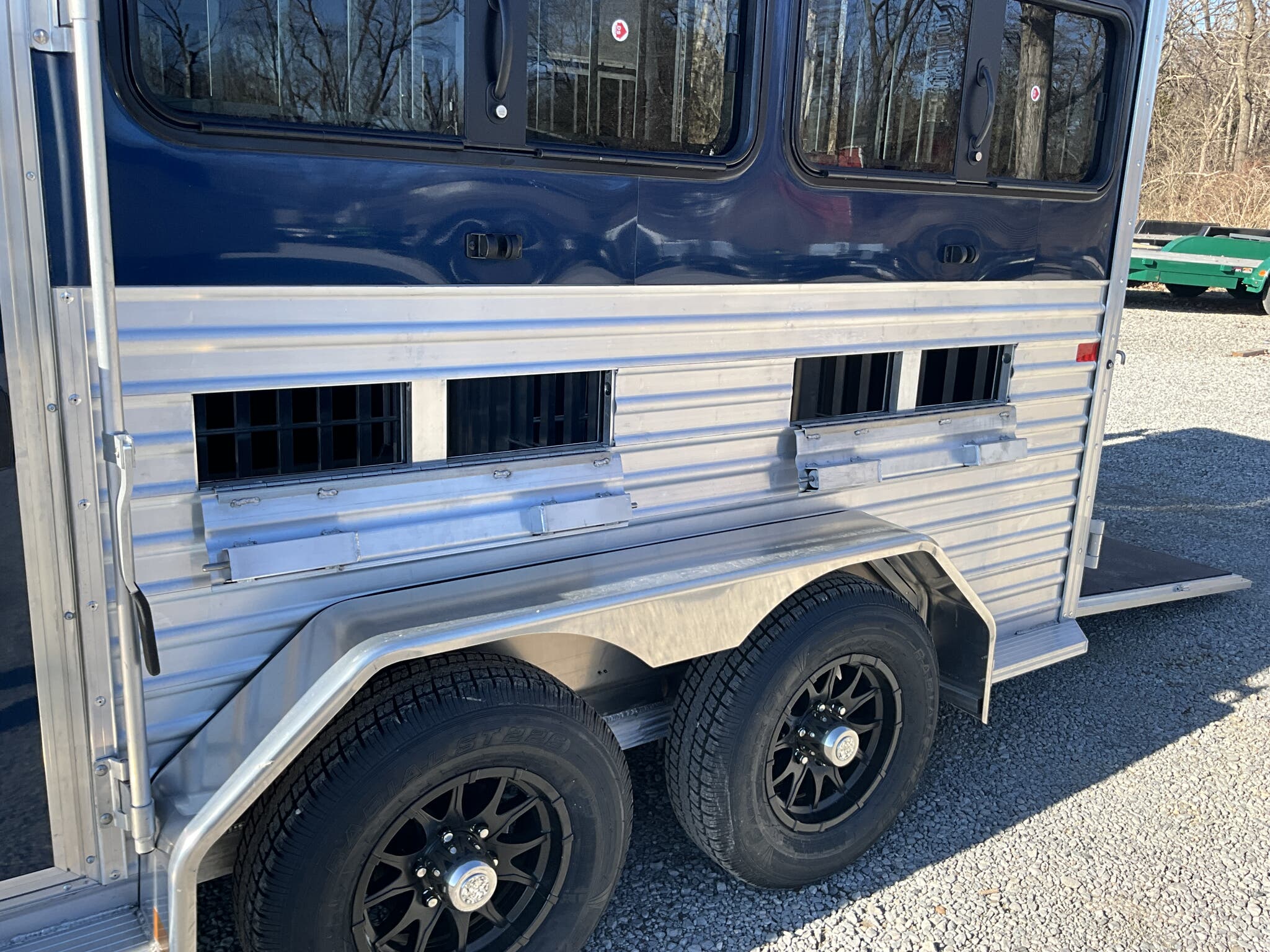

Specs — Axles/Brakes: (2) 3,500 lb Dexter torsion axles; electric brakes on all wheels with breakaway kit

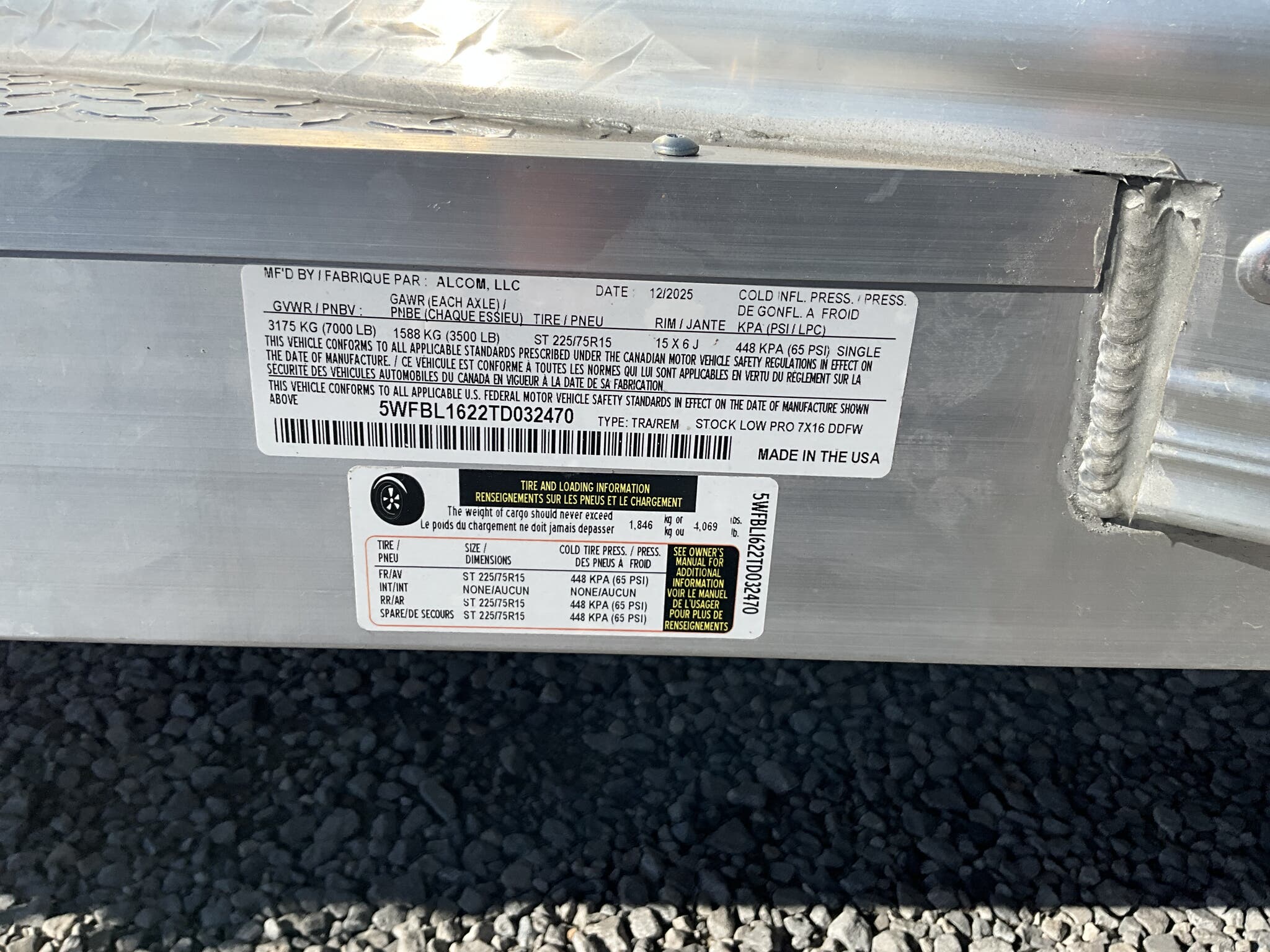

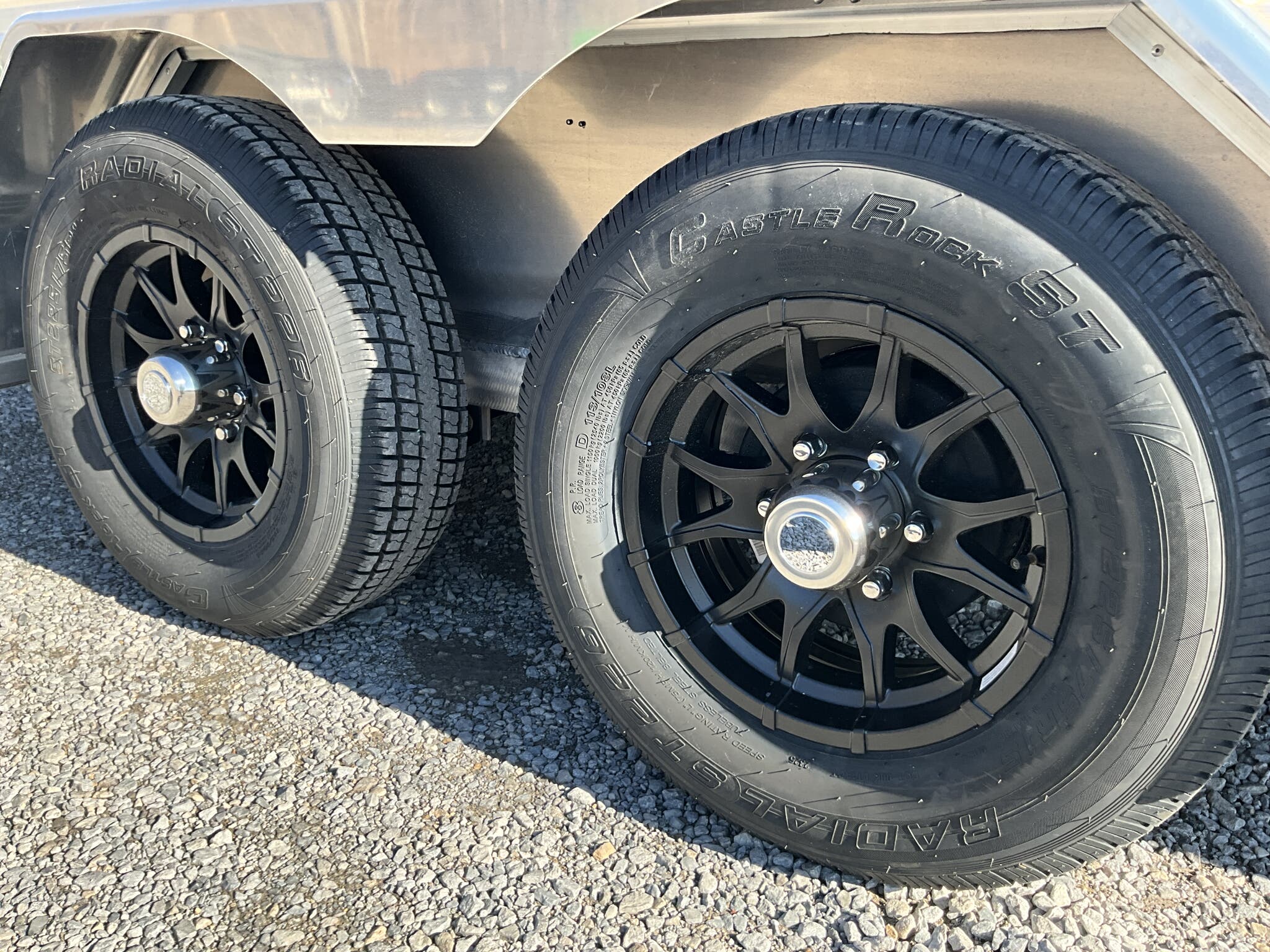

Specs — Tires/Wheels: ST225/75R15 tires on black aluminum wheels; matching spare included

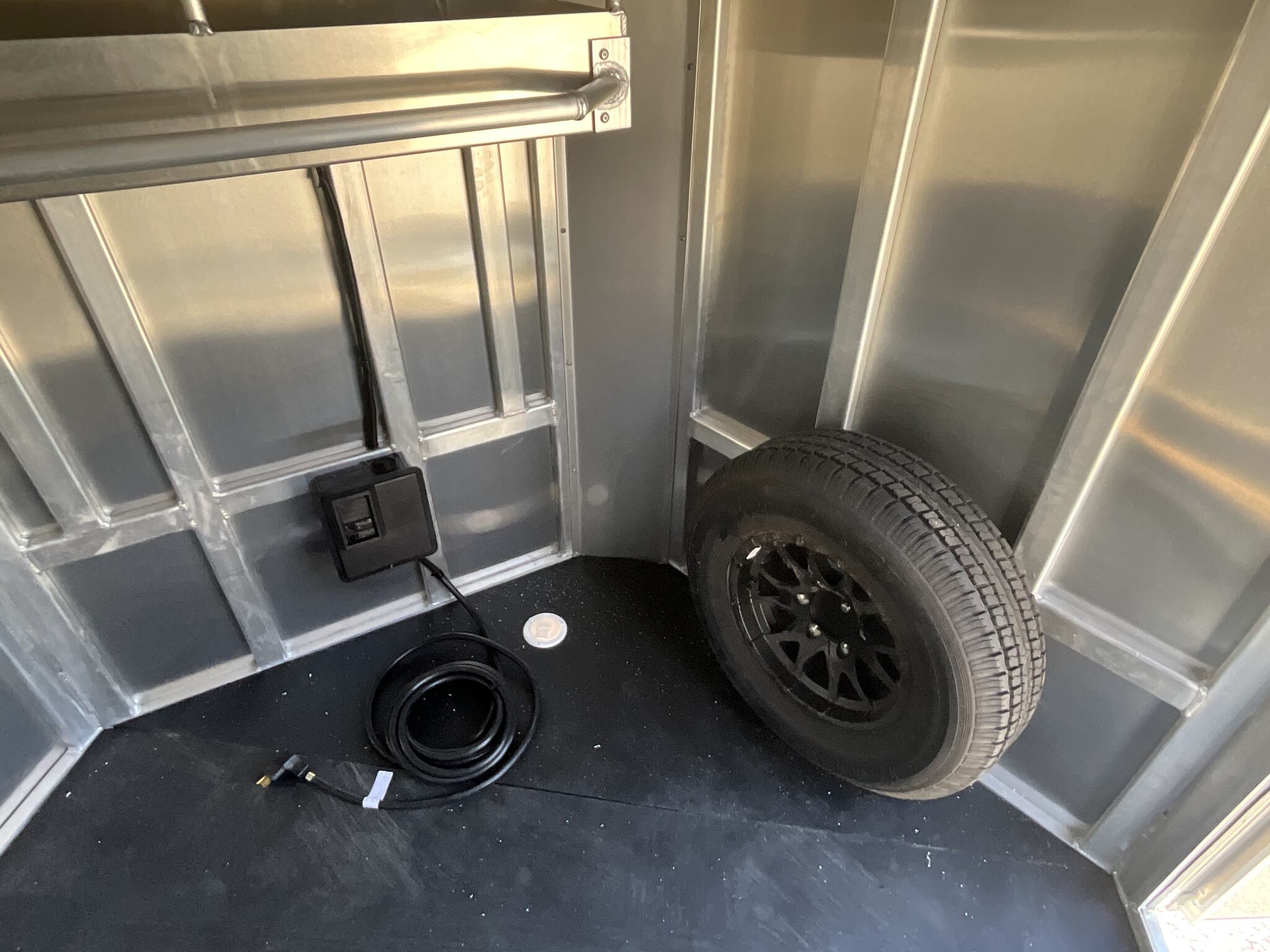

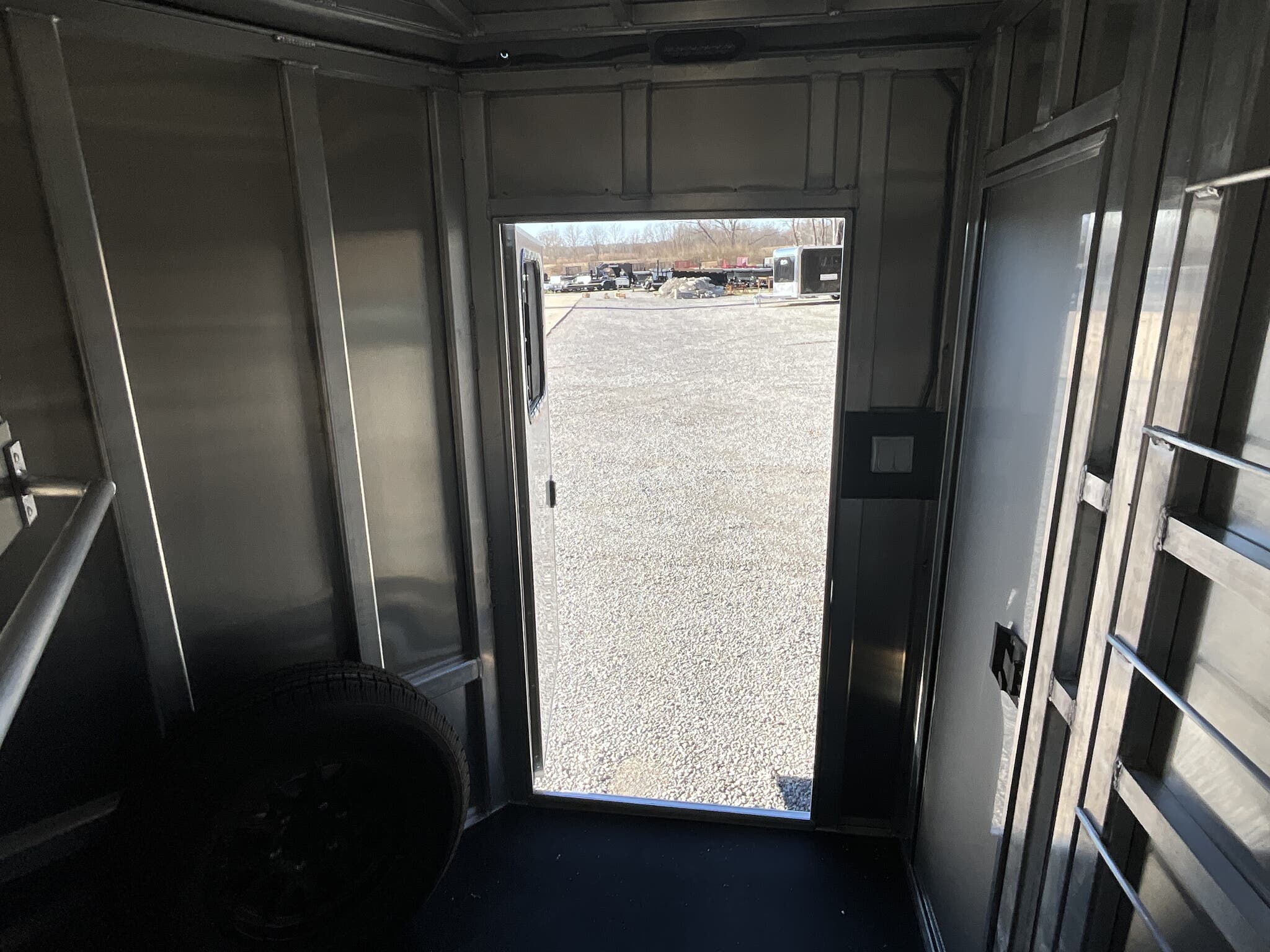

Specs — Spare Mount: Interior floor-level spare mount in tack area

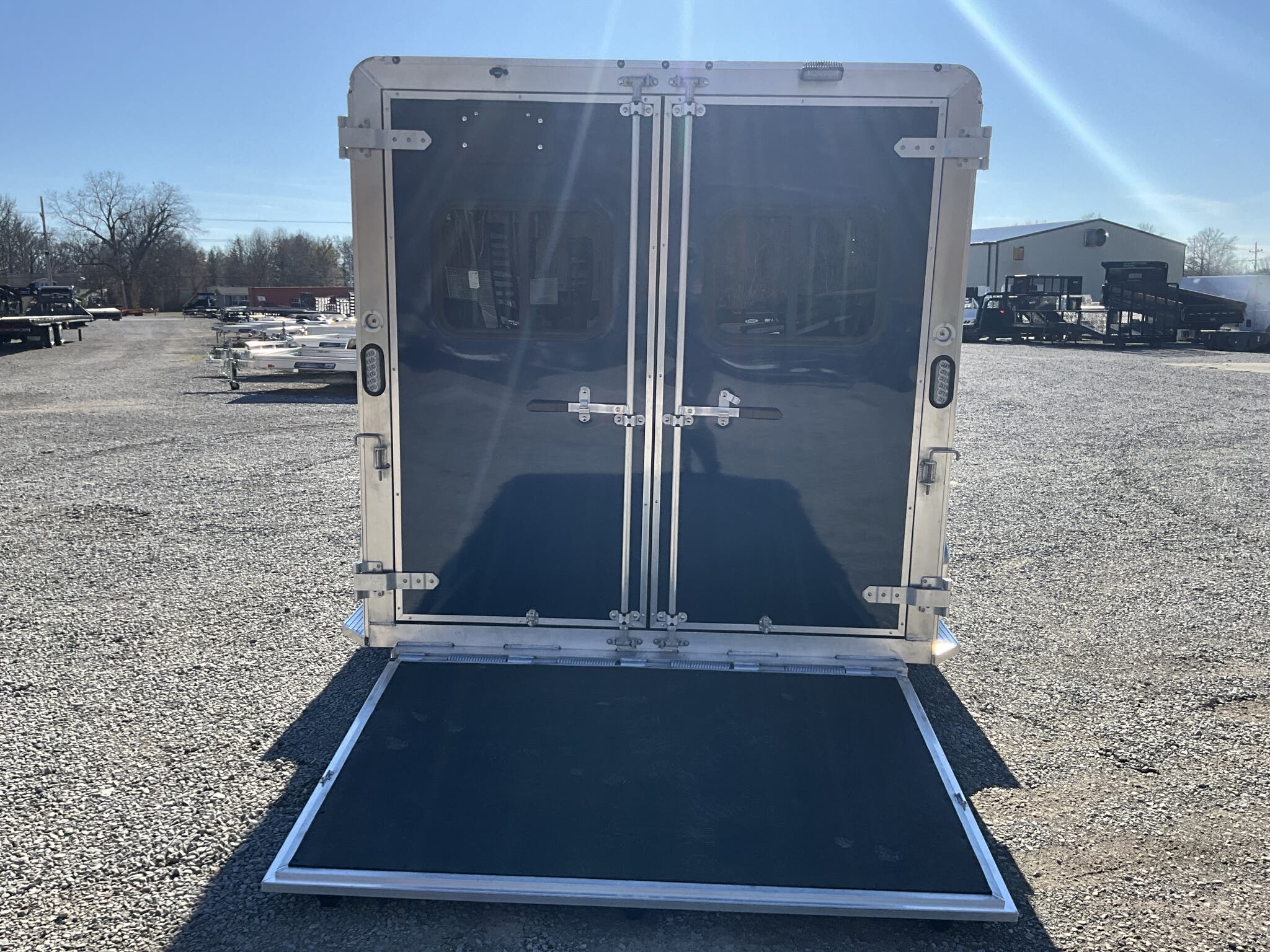

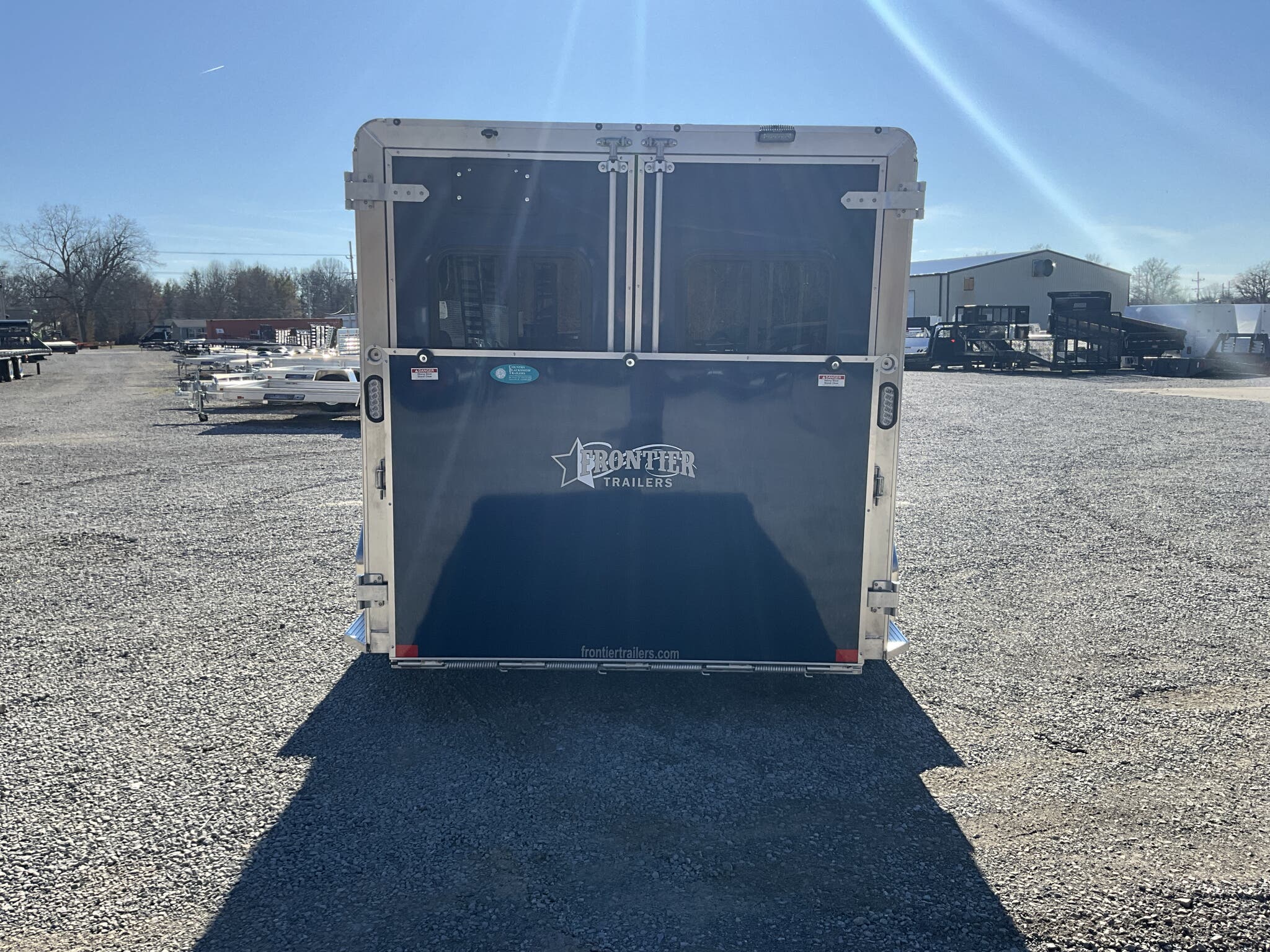

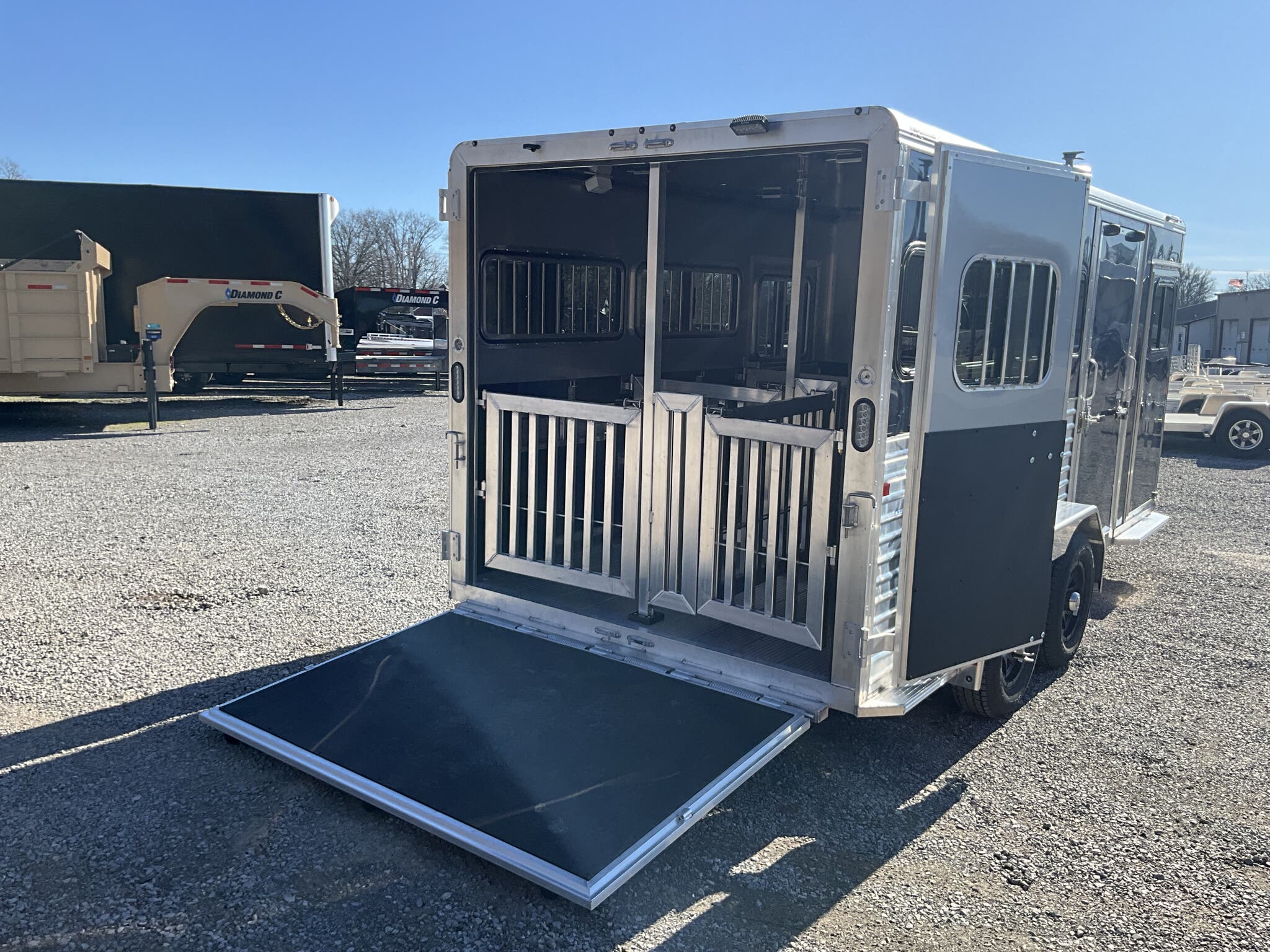

Specs — Doors: 50/50 double rear doors with sliding windows and bars

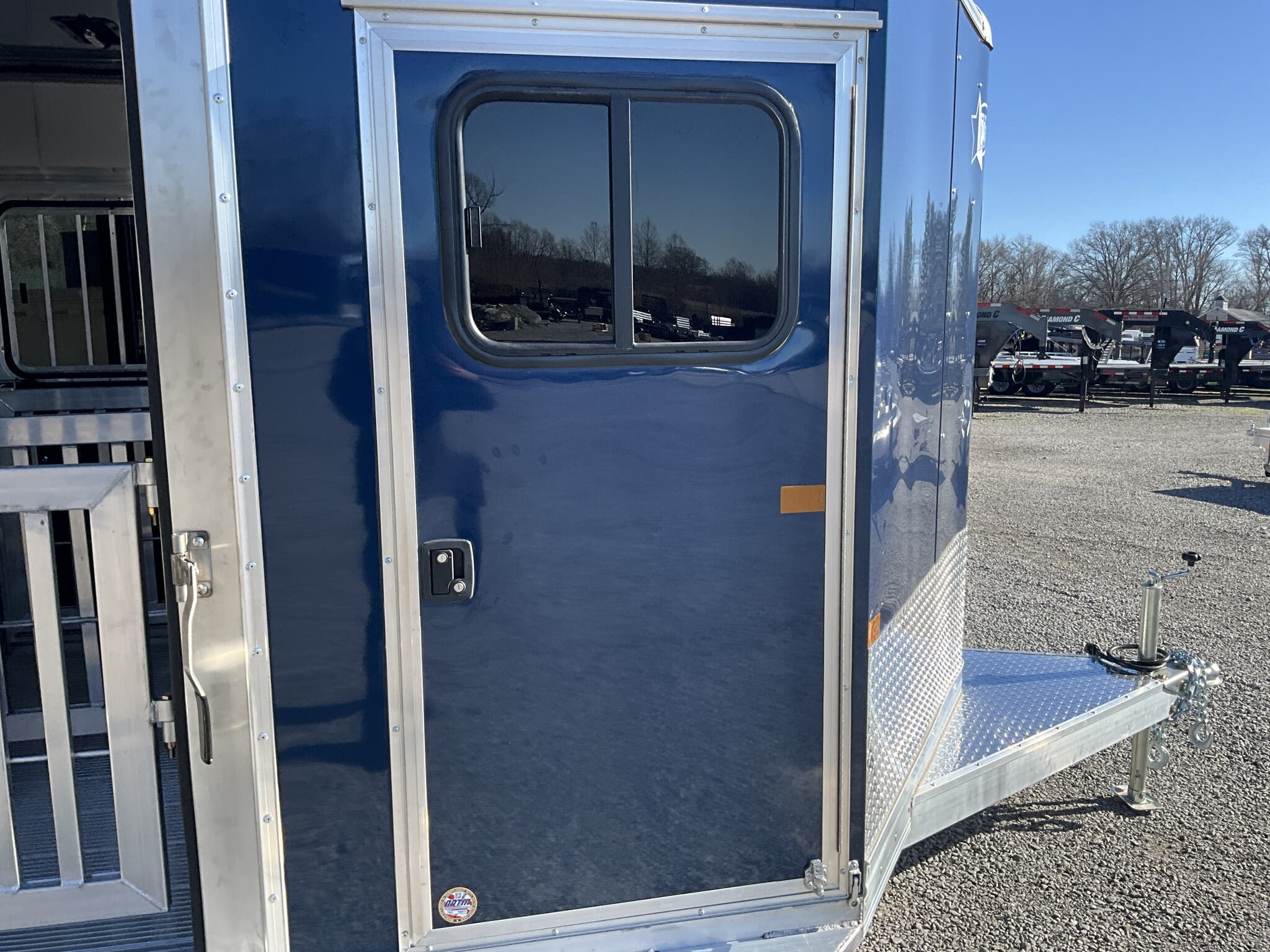

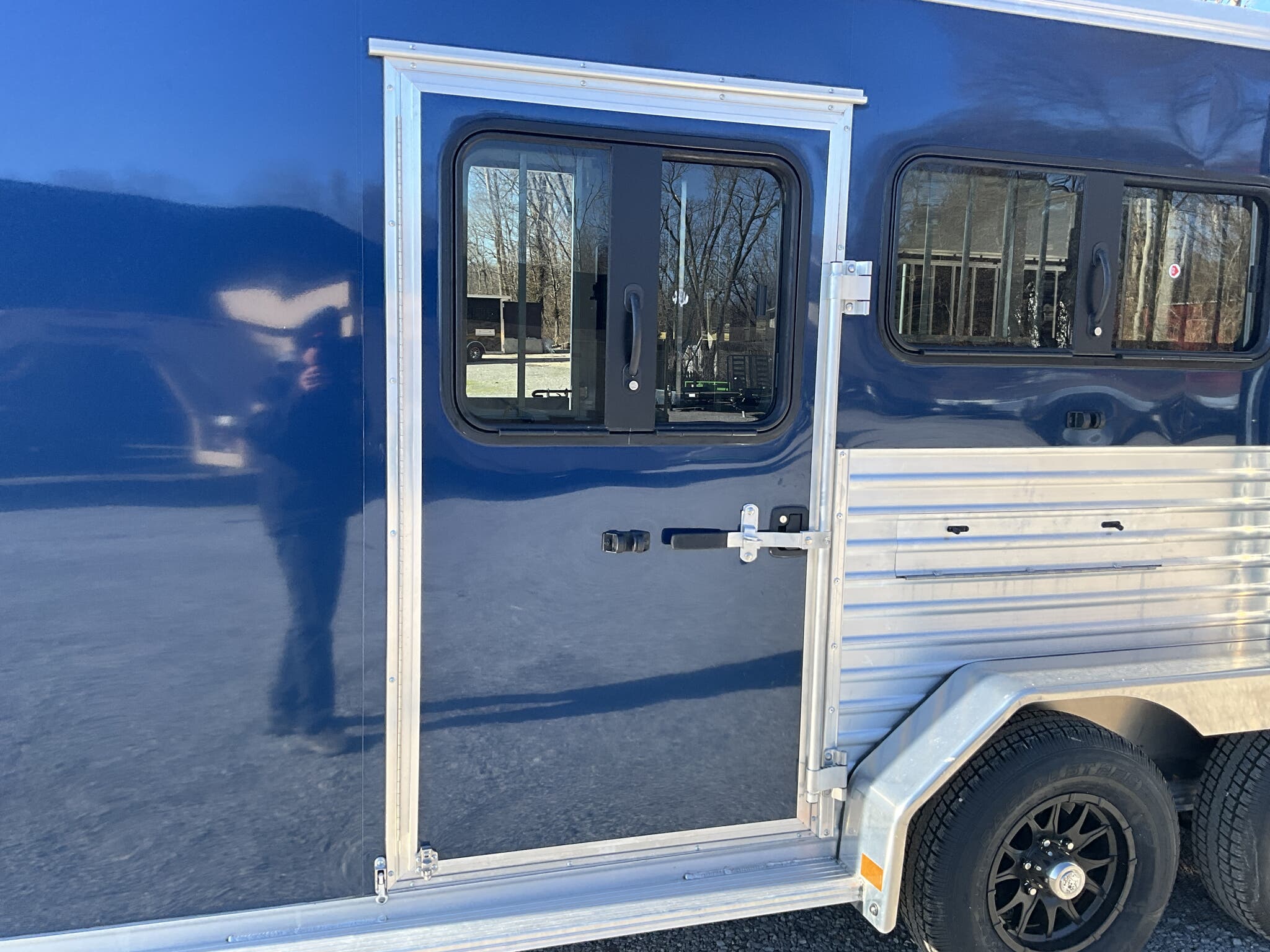

Specs — Side Access: Curbside tack door; driver-side escape door

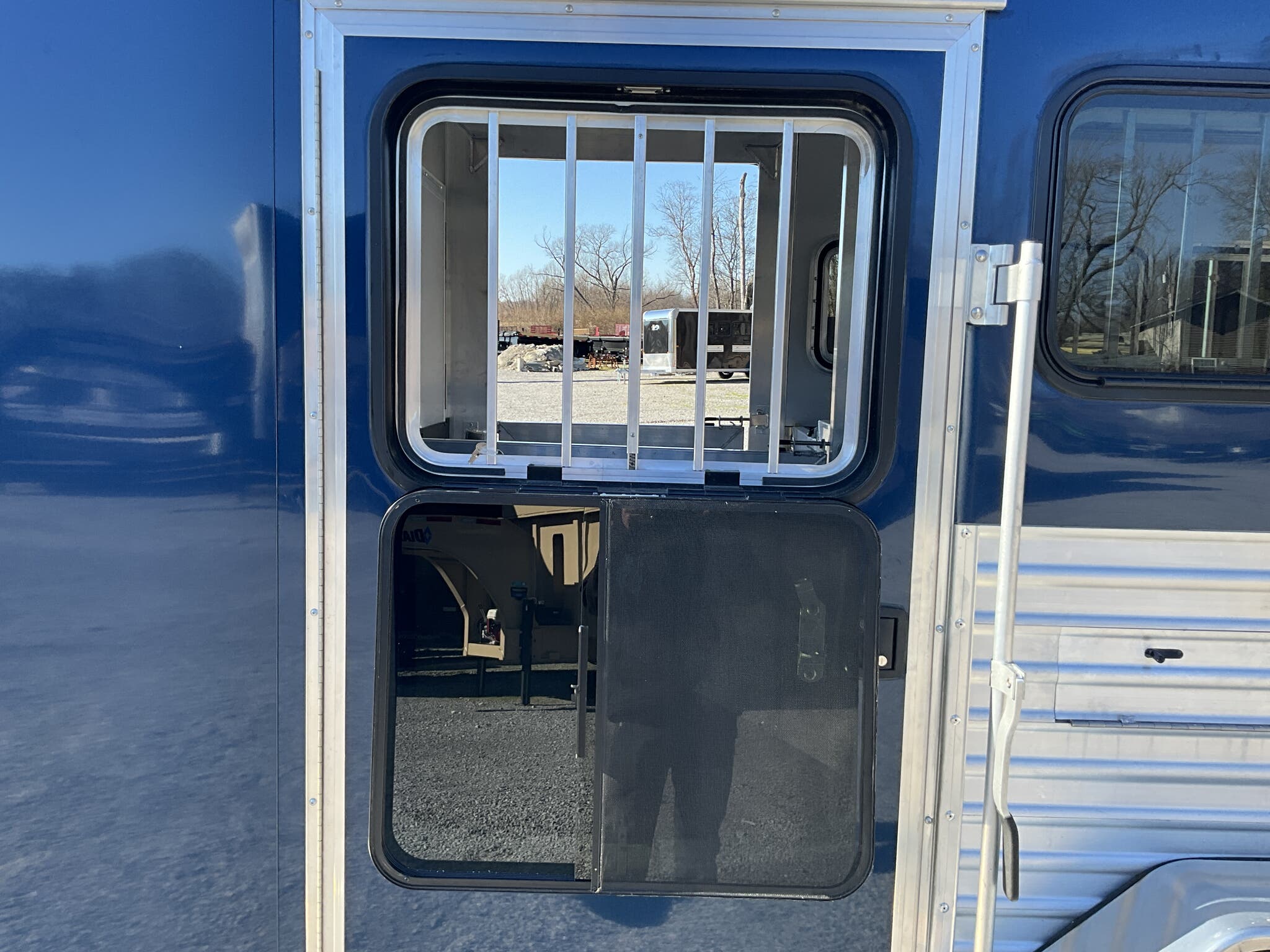

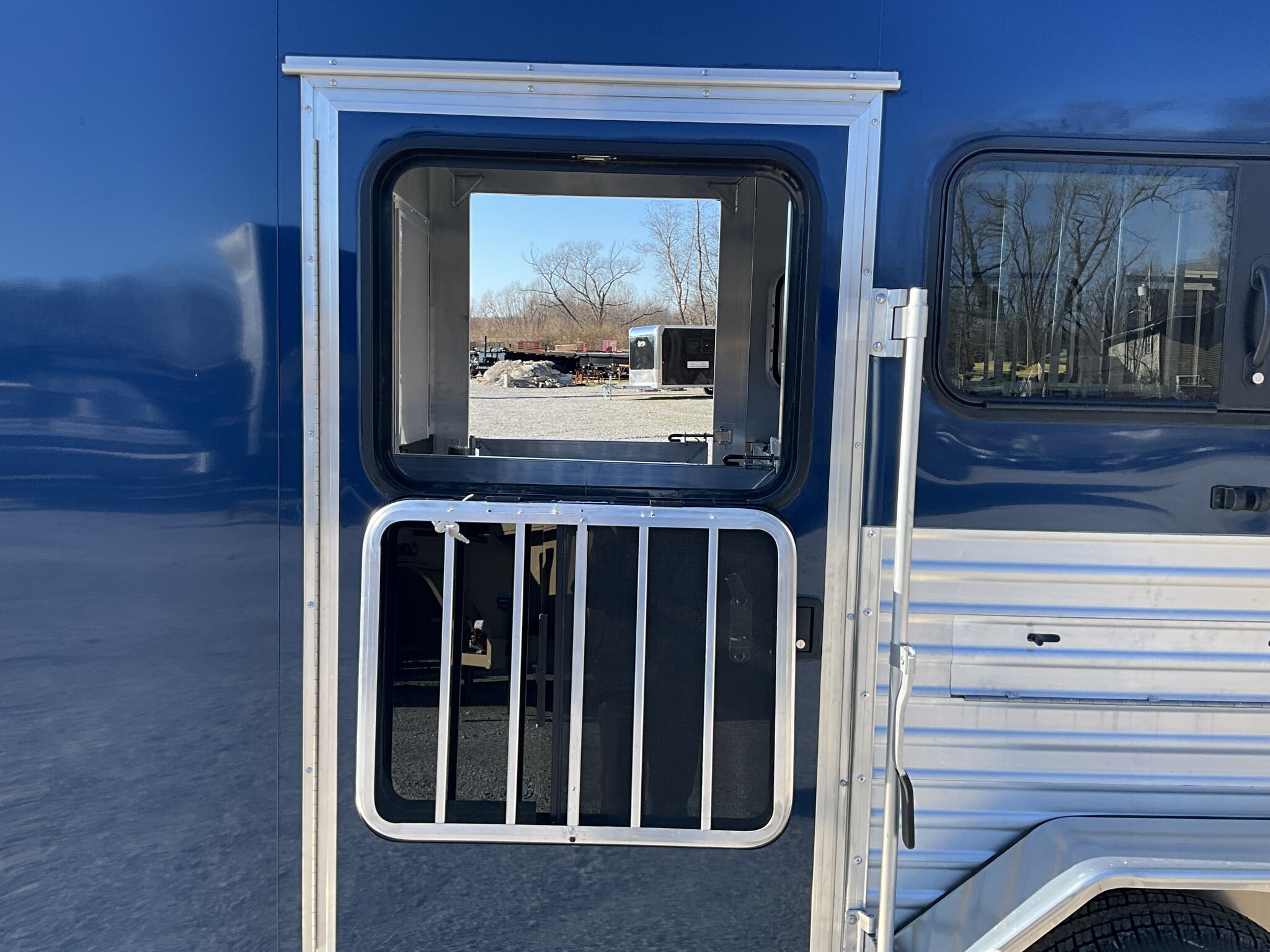

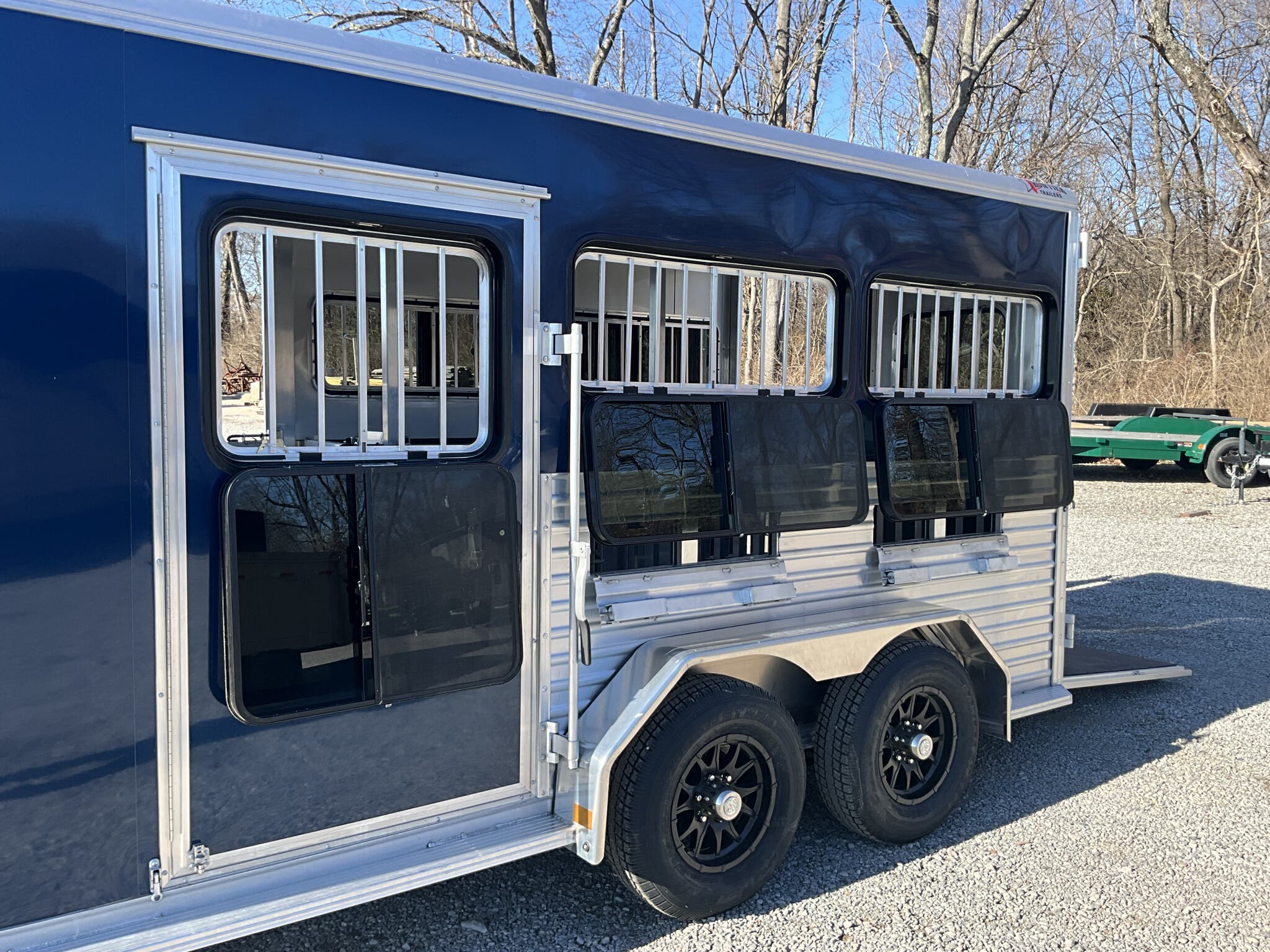

Specs — Feed Windows: 45" × 18" drop-down feed window per pen; 30" × 24" feed window at escape door
Specs — Ventilation: Double-action pop-up roof vent per pen; (1) air gap with flip-down cover

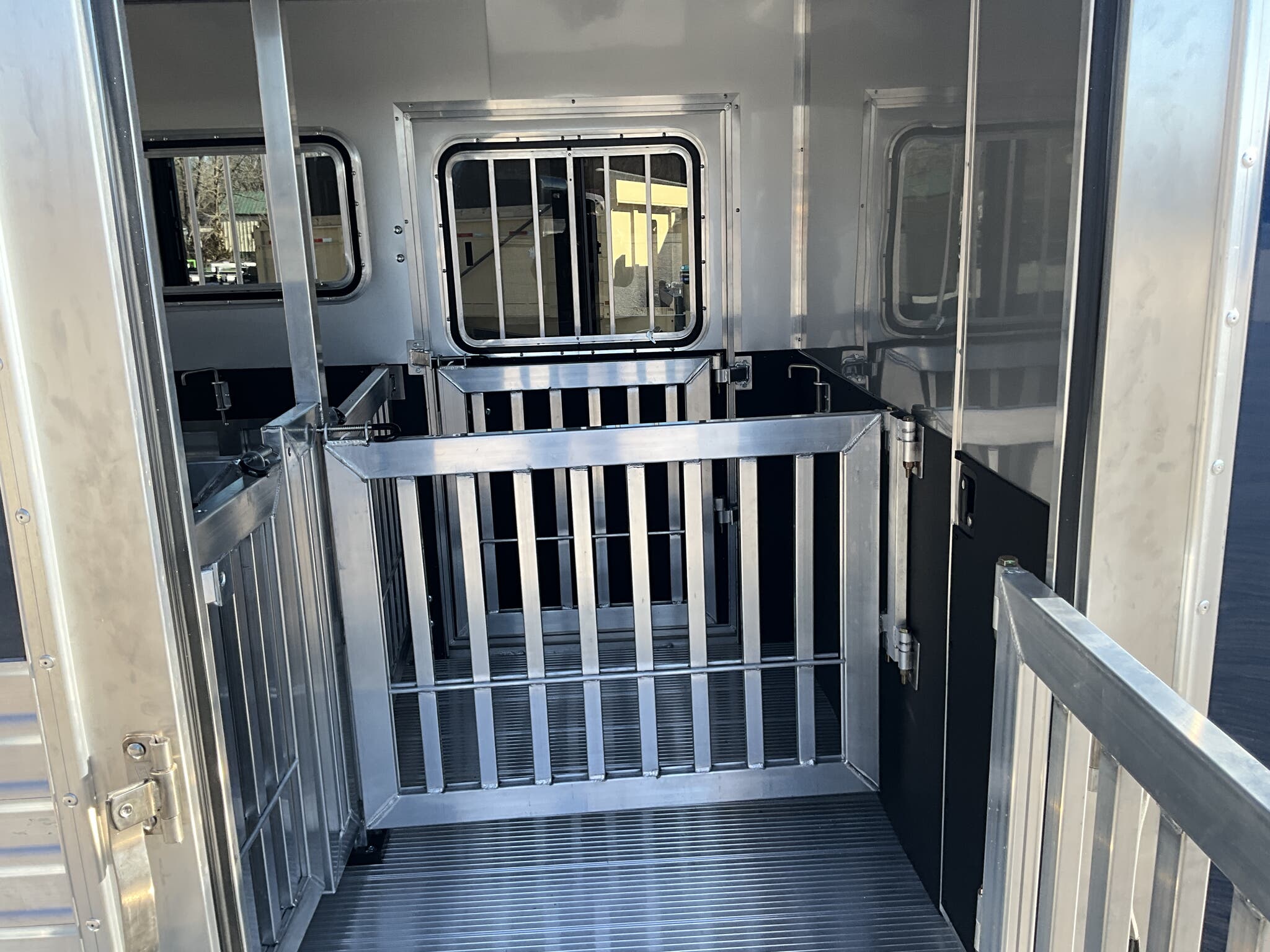

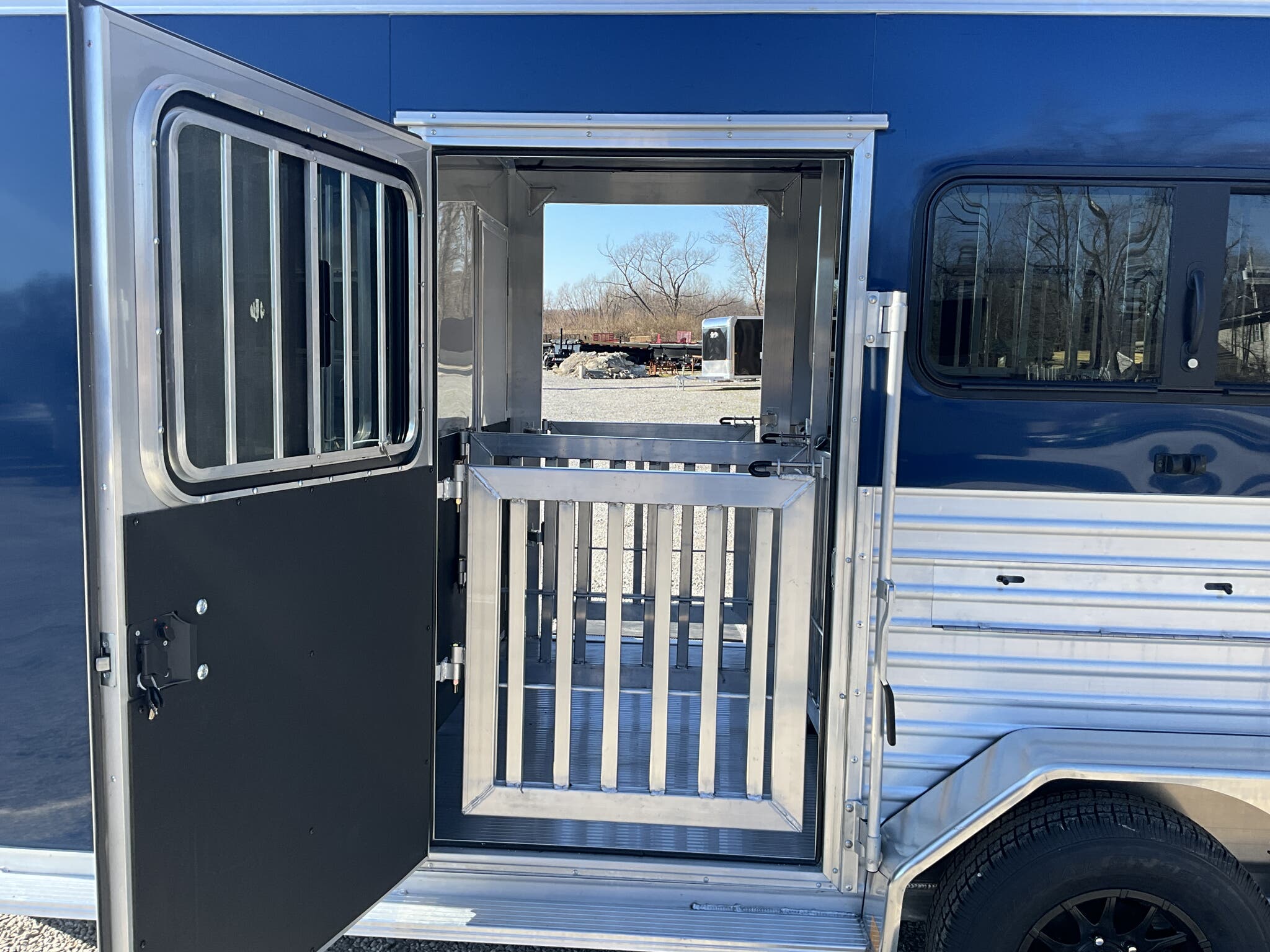

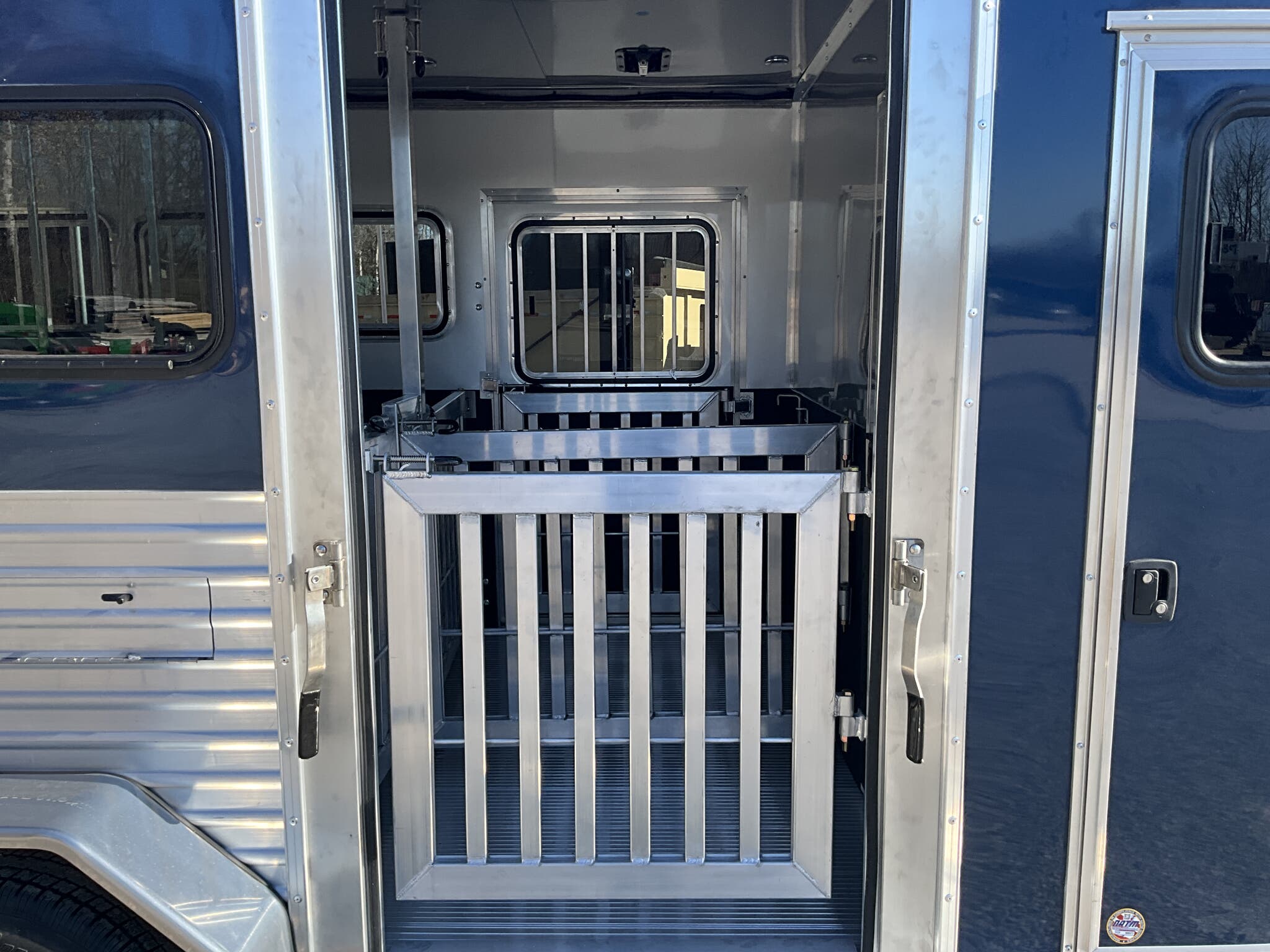

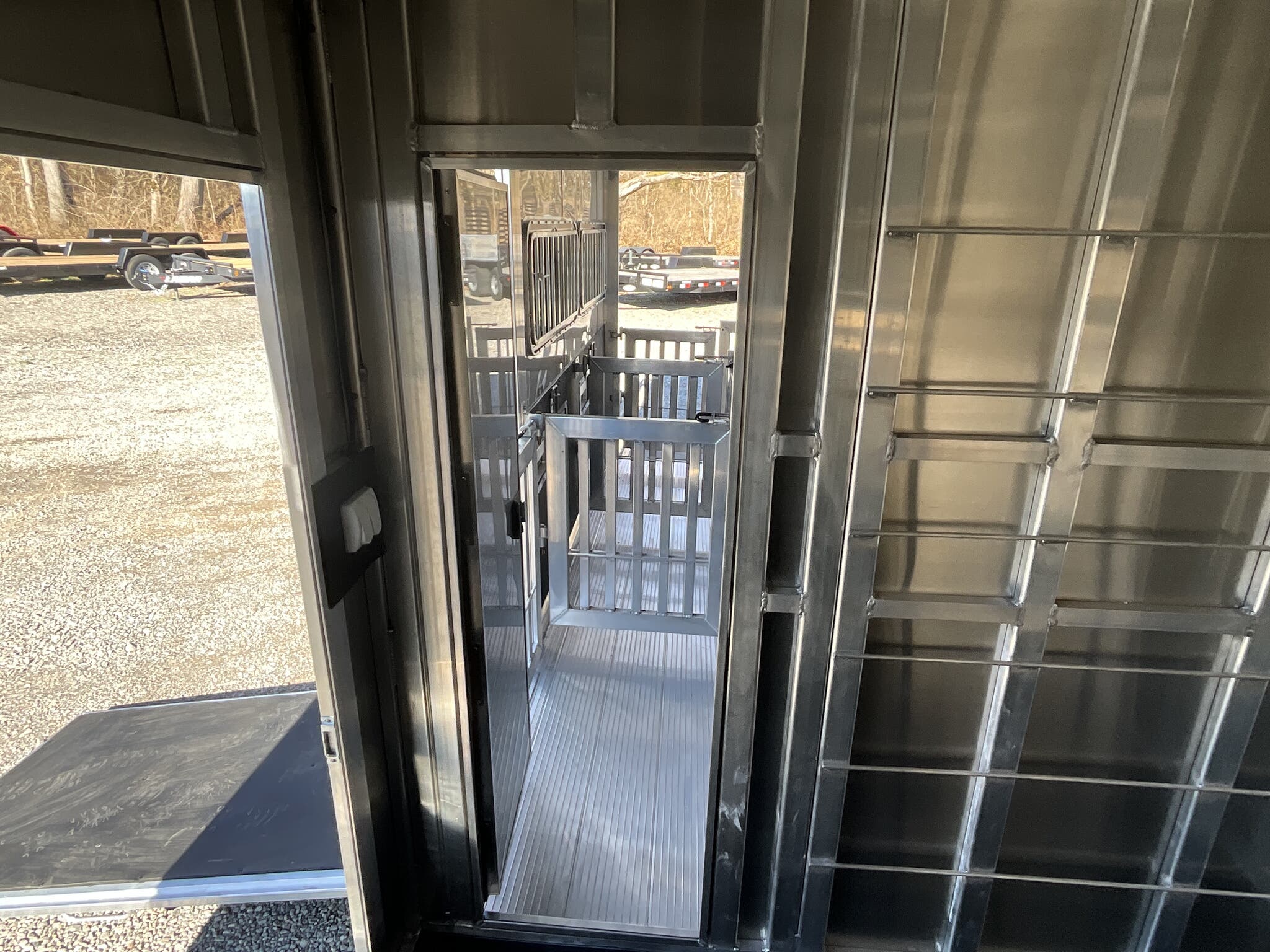

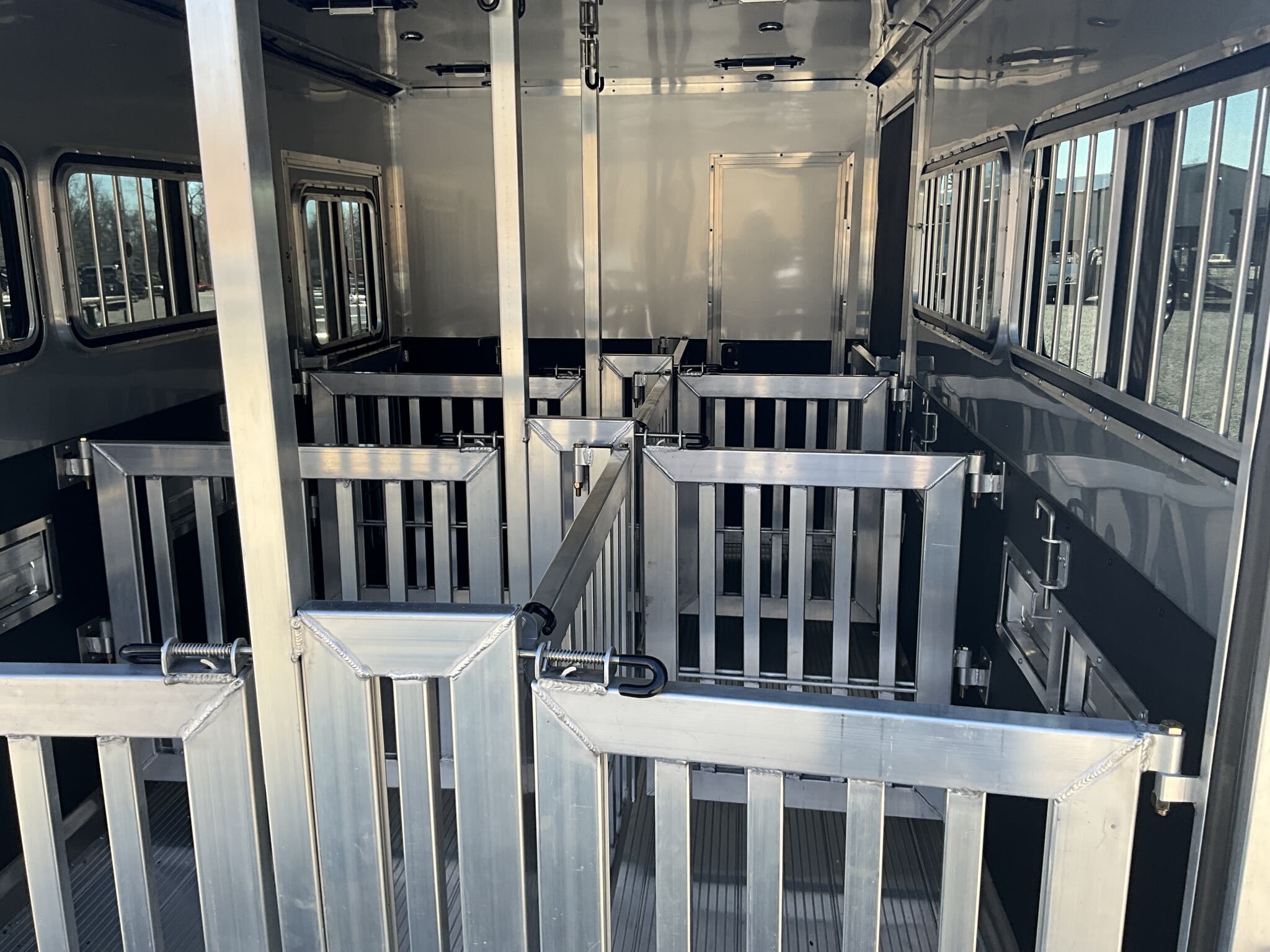

Specs — Pen System: (6) adjustable pens with spring-loaded latch system; escape door pen gate with U-bolt spring-latch tie-backs

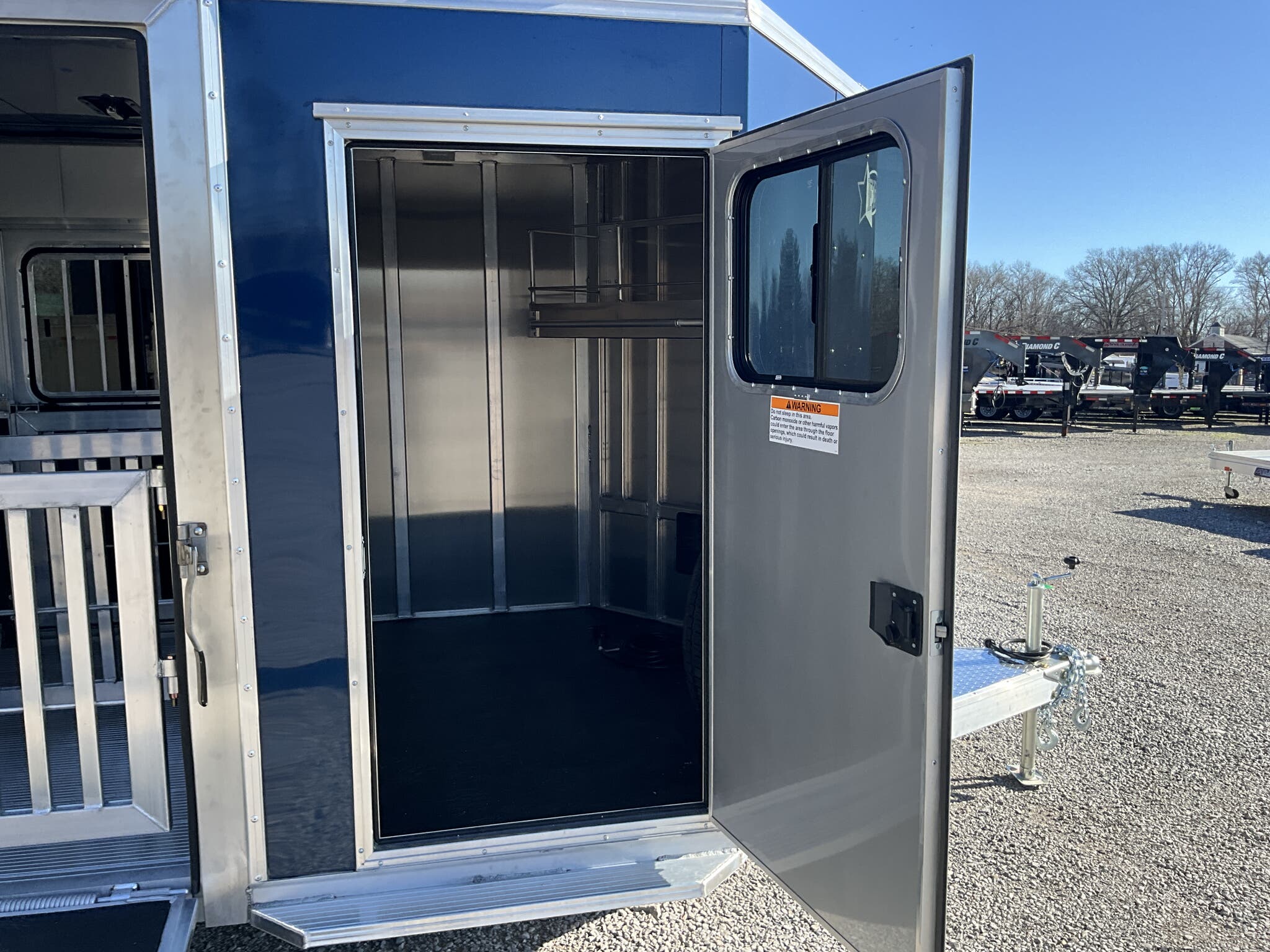

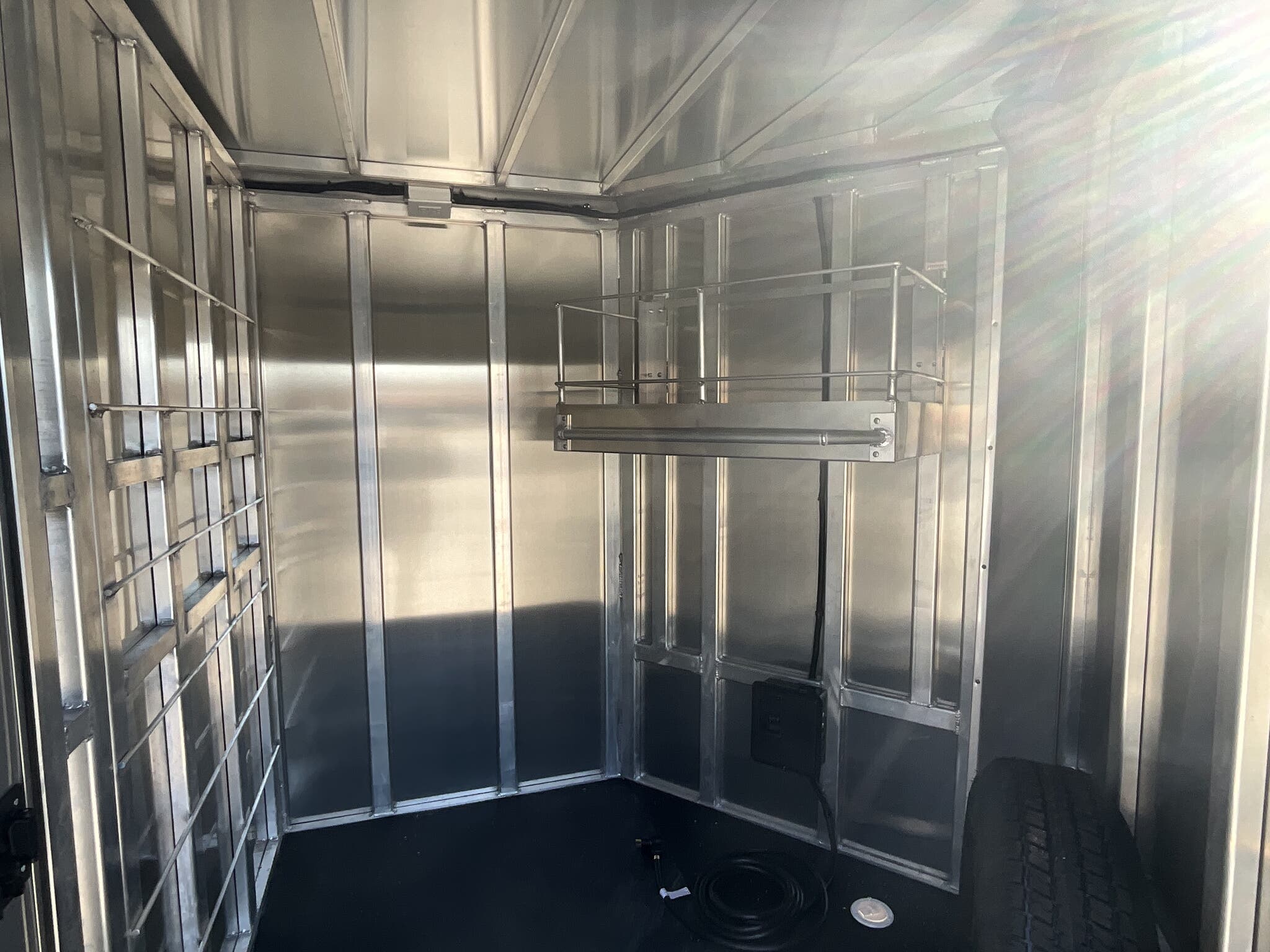

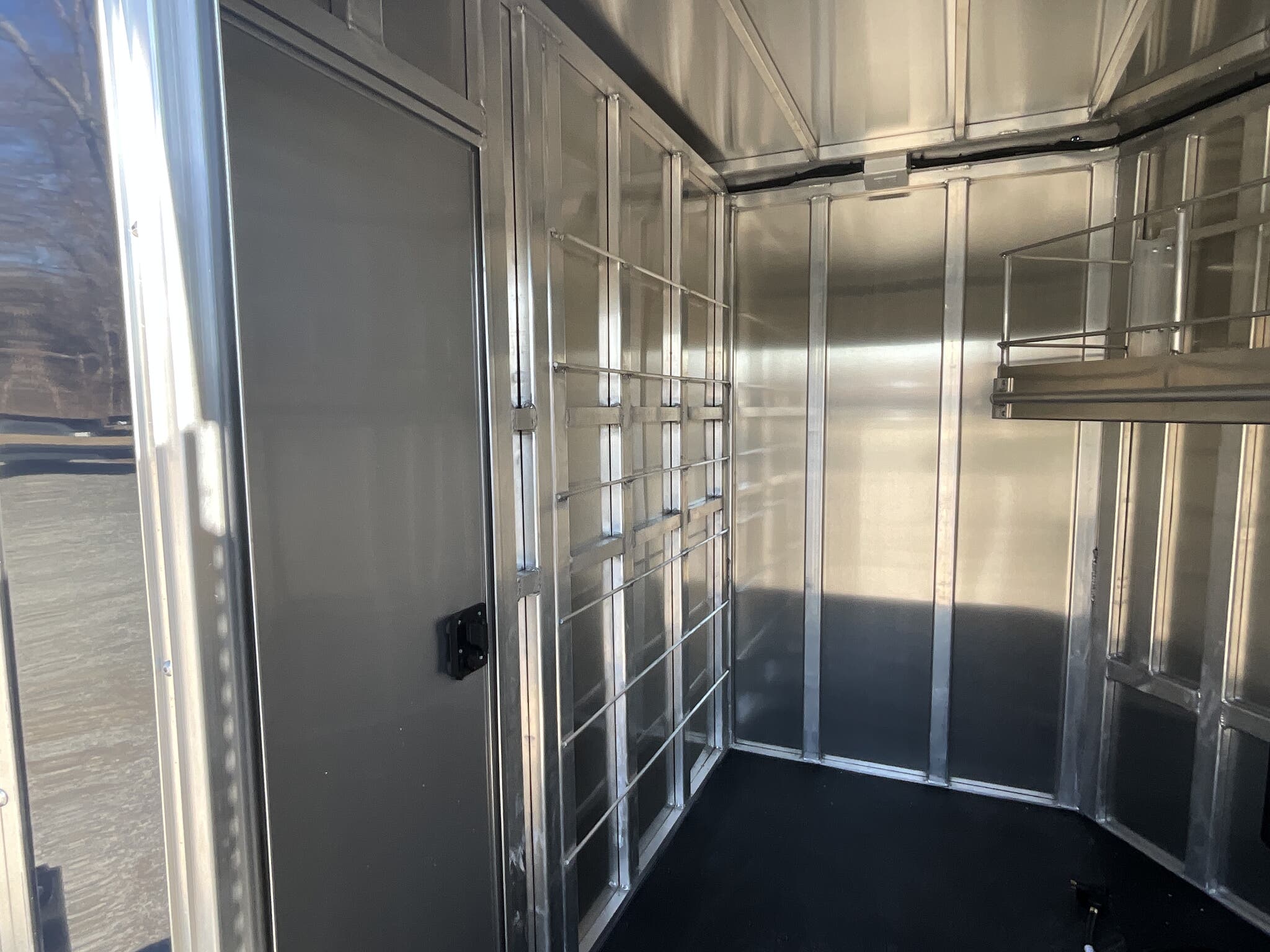

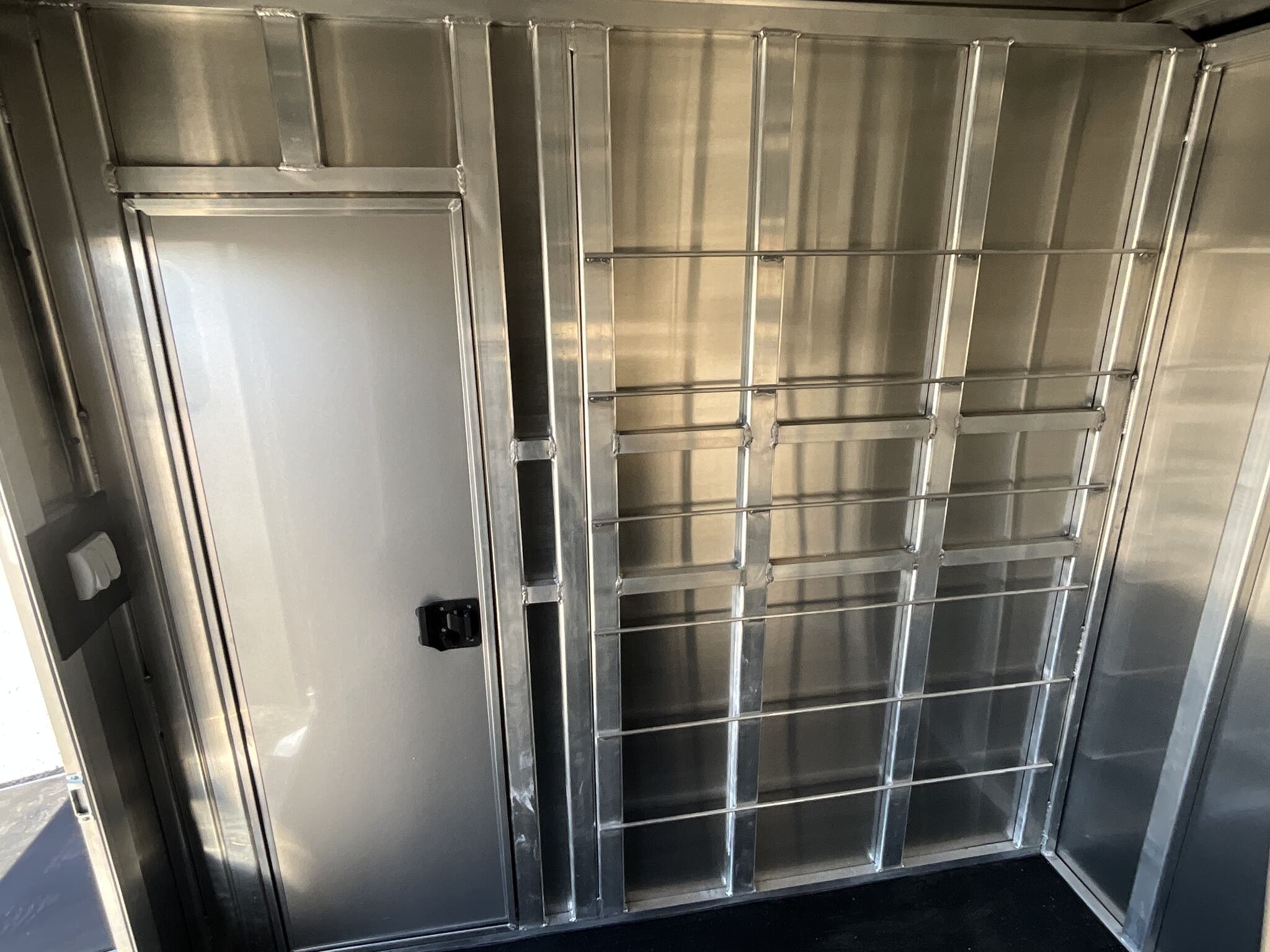

Specs — Tack Area: 44" tack; curbside tack door with sliding window & screen; rubber mats; LED dome light; 20" × 64" interior tack access door

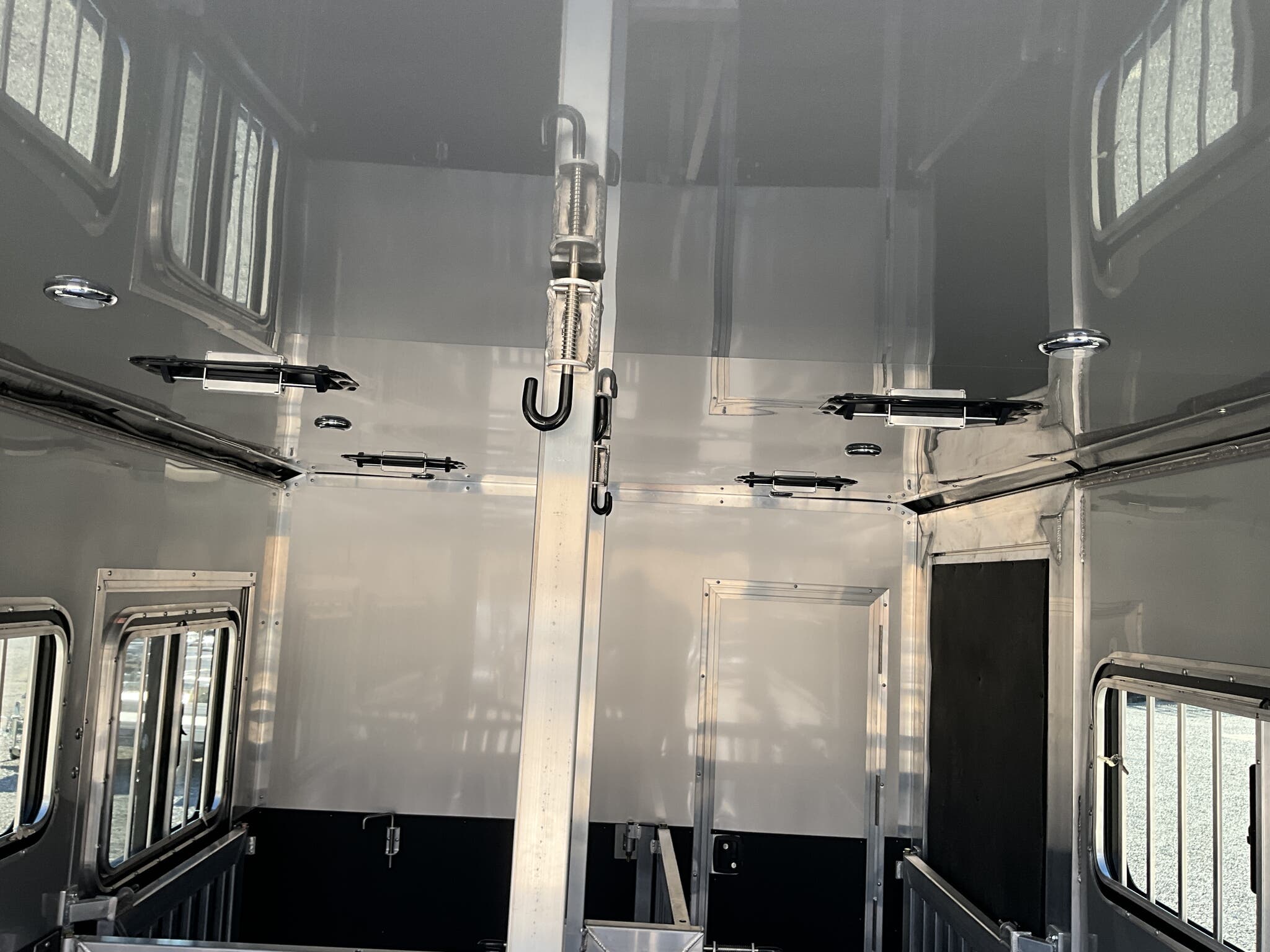

Specs — Interior Upgrades: .030 insulated silver ceiling liner; 36" HD wall liner; .030 insulated aluminum interior walls above liner
Specs — Electrical: 110V package (30A breaker, 25' shore line, standard + GFI outlets); brace & stub wiring for future A/C
Specs — Lighting: All LED exterior lighting; full-length interior LED strip lights both sides of pen area; rear LED load light; LED scare/porch light over tack door
Specs — Storage Accessories: 36" × 18" hat shelf with clothing rod; bucket hangers in stock area (per pen) and tack room

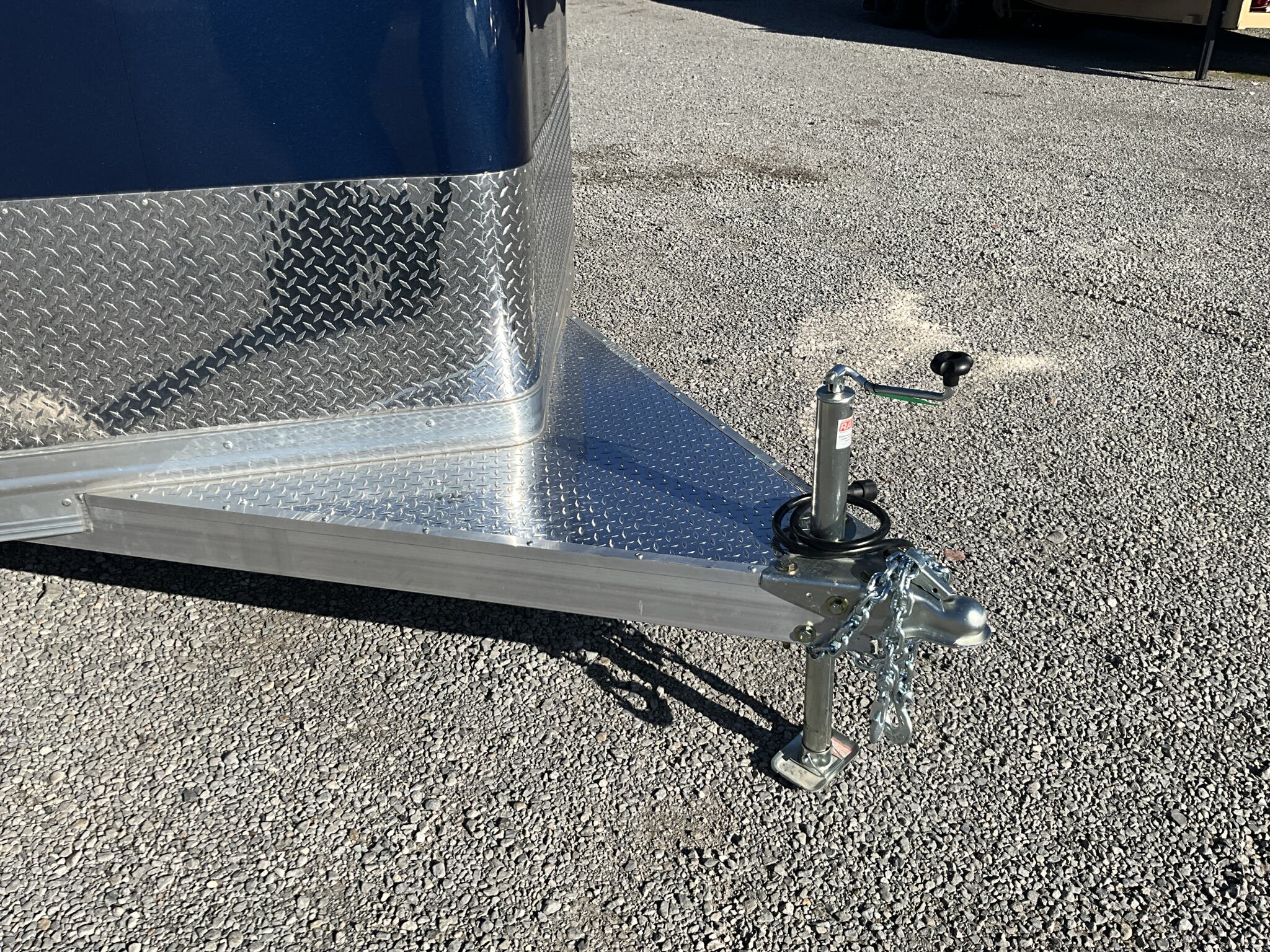

Specs — Tongue/Jack: 6" extended tongue with center beam upgrade; top-winding jack with wheel

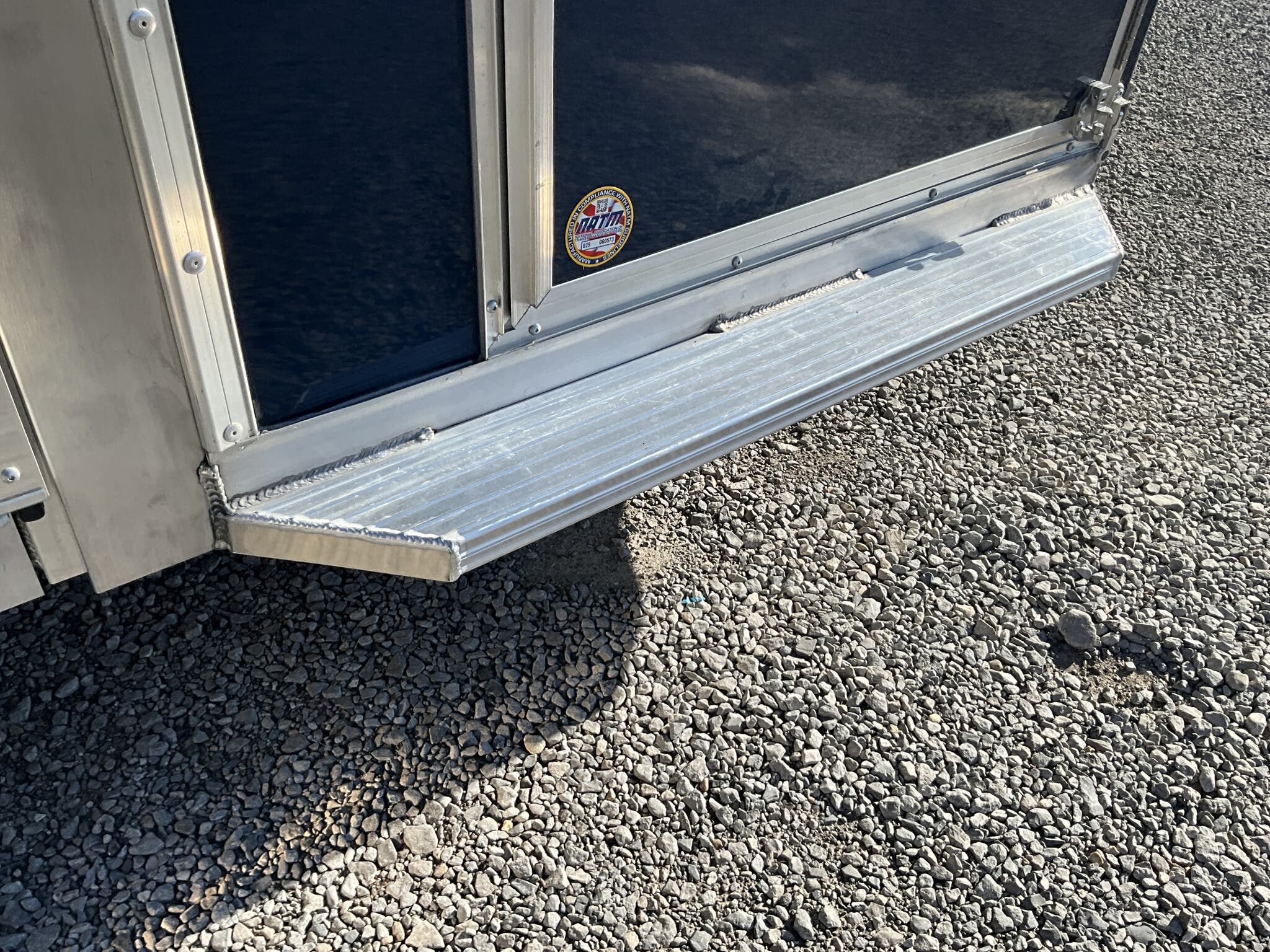

Specs — Exterior Features: Full-length running boards; heavy-duty rear step-up rubber bumper
Specs — Graphics: Silver graphics
Specs — Warranty: 8-year limited manufacturer warranty

Weights & Capacities — Total Axle Capacity: 7,000 lb
Weights & Capacities — Empty Weight: 2,931 lb
Weights & Capacities — Payload on Axles: 7,000 - 2,931 = 4,069 lb
Weights & Capacities — Tongue Load (Bumper Pull @ 10%): 700 lb
Weights & Capacities — Total Payload Including Tongue: 4,769 lb
