2026 Diamond C WDT WDT-L20X96

2026 Diamond C WDT WDT-L20X96 - #DCT031826-2

(Click to see larger image and other views)

Product Details

ORDERED IN CEMENT GRAY!
2026 DIAMOND C WDT212 GOOSENECK DUMP TRAILER — 20' × 96", CEMENT GRAY, 44" SIDES, HONDA GAS POWER UNIT — FOR SALE IN MOUNT VERNON, IL 62864

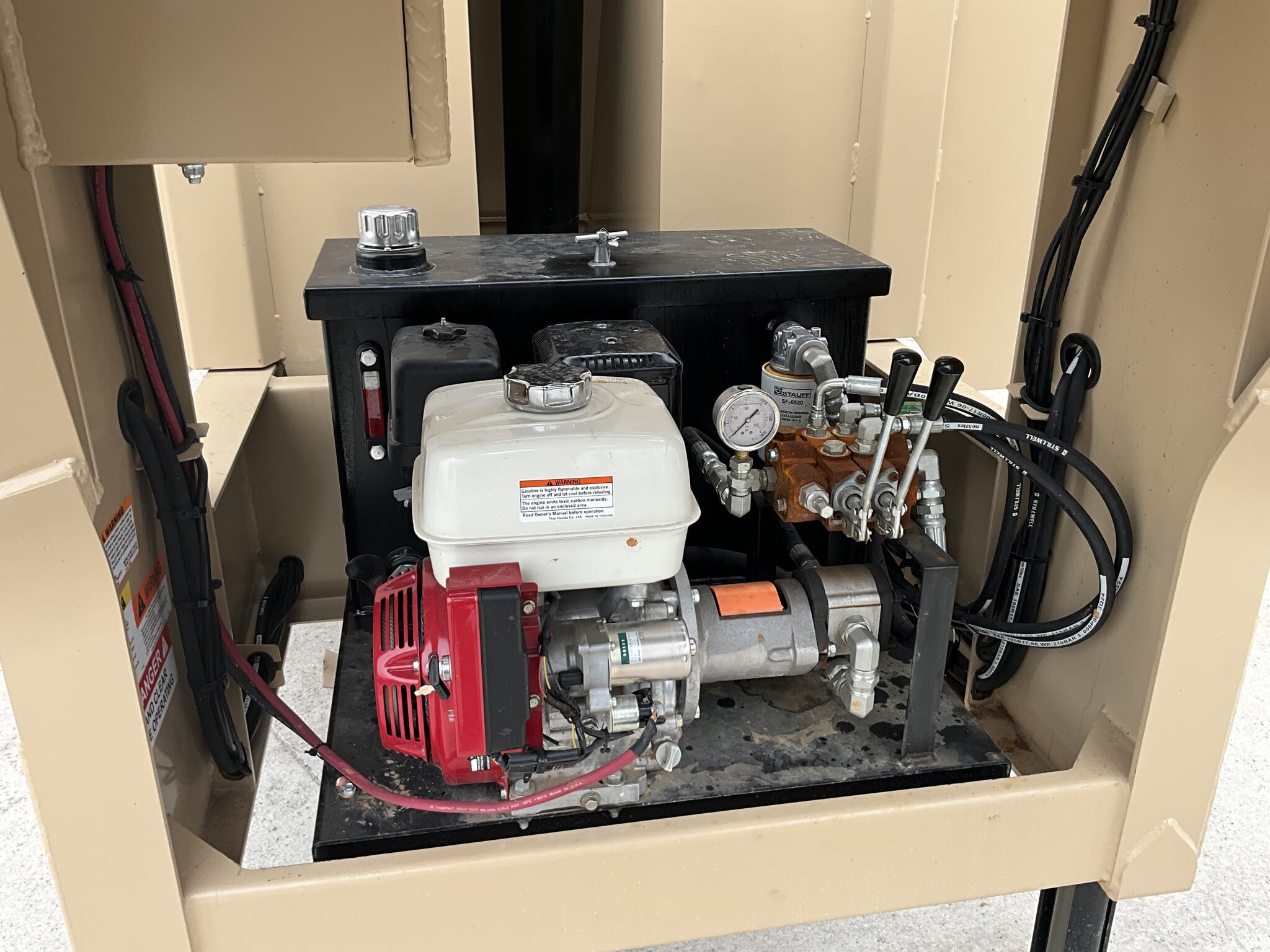

Feature: 8" bore telescopic lift cylinder with 13HP Honda gas hydraulic power unit (electric start)
Feature: Electric-over-hydraulic disc brakes
Feature: Hutch heavy-duty adjustable suspension
Feature: Dual 20K hydraulic jacks
Feature: 44" tall heavy-duty dump sides with board brackets and raised front

Specs — Model: WDT212
Specs — Size: 20' × 96" gooseneck dump trailer
Specs — Frame: 16" engineered beam 2.0 main frame
Specs — Dump Body: 6" channel body frame with 3/16" smooth steel floor
Specs — Crossmembers: 3" I-beam on 12" centers
Specs — Axles/Brakes: (2) 12,000 lb oil bath axles; electric-over-hydraulic disc brakes
Specs — Suspension: Hutch heavy-duty adjustable suspension

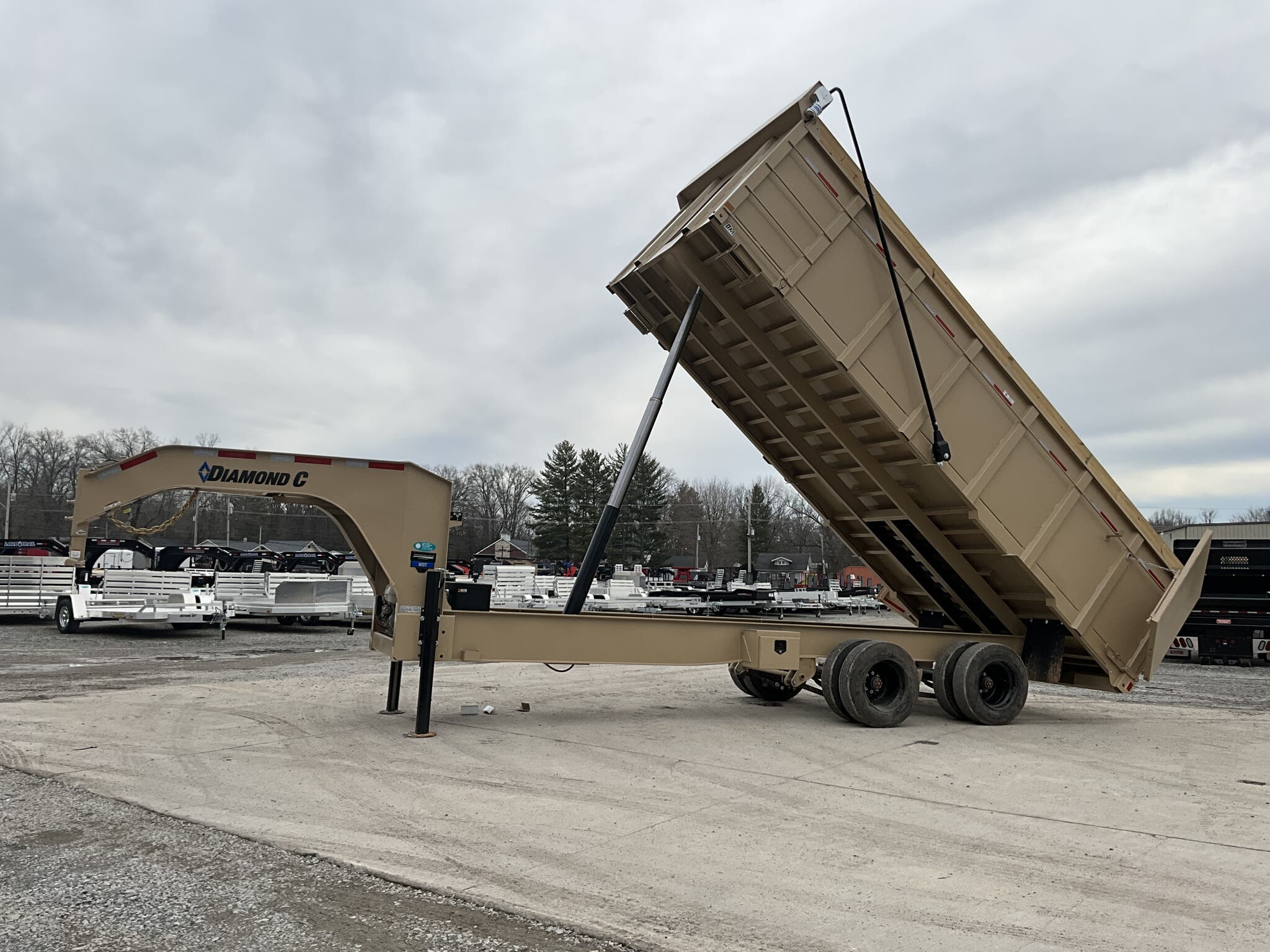

Specs — Hoist: 8" telescopic cylinder with Honda gas power unit (power up/down)
Specs — Coupler: Curt cushion gooseneck coupler
Specs — Jack: Dual 20K hydraulic jacks
Specs — Ramps: 90" heavy-duty side slide-in ramps
Specs — Gate: 3-way dump gate
Specs — Sides: 44" tall, 10 ga steel with board brackets and raised front

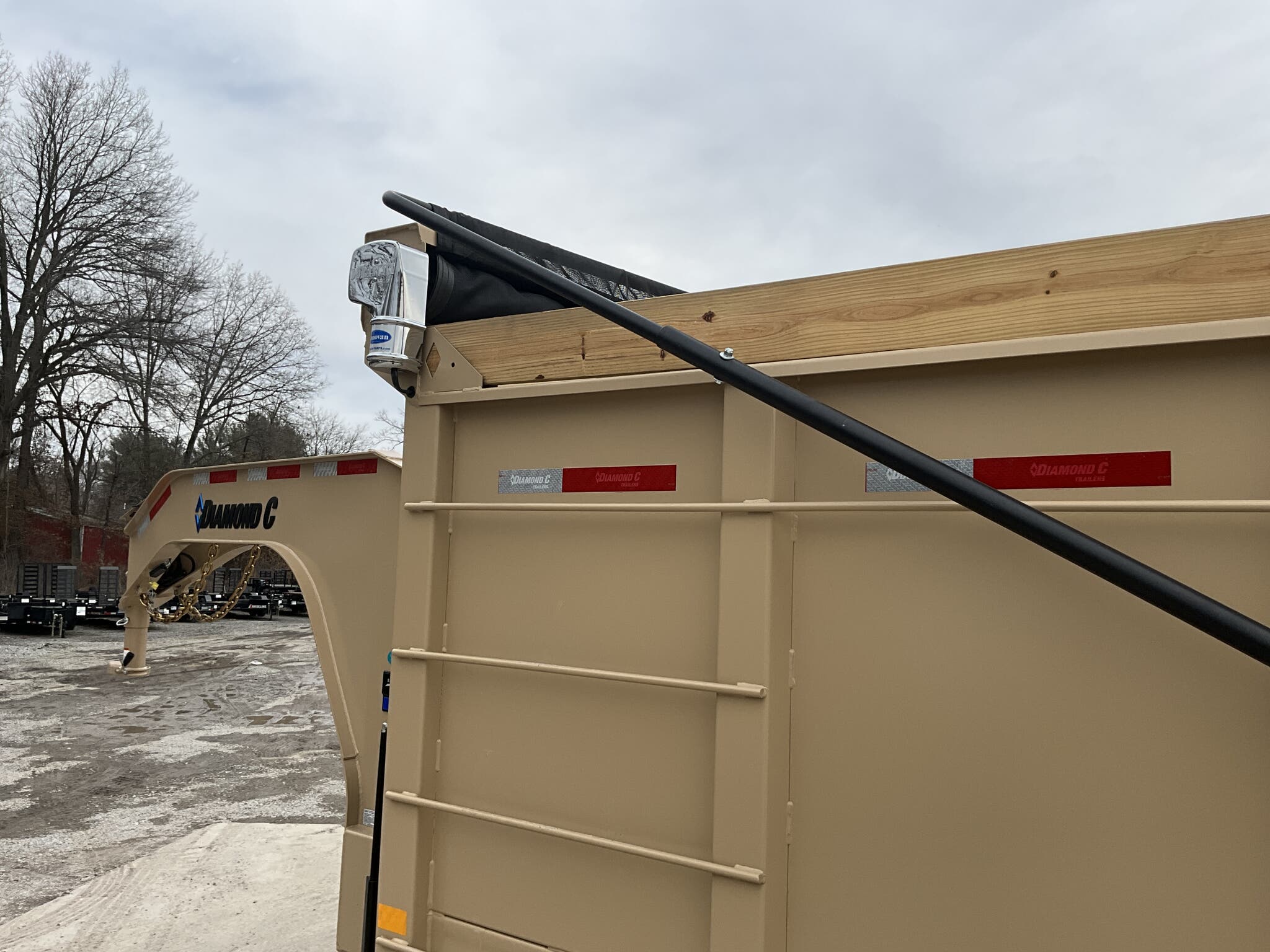

Specs — Tarp: Long-arm tarp system
Specs — Tie Downs: (4) 5/8" D-rings

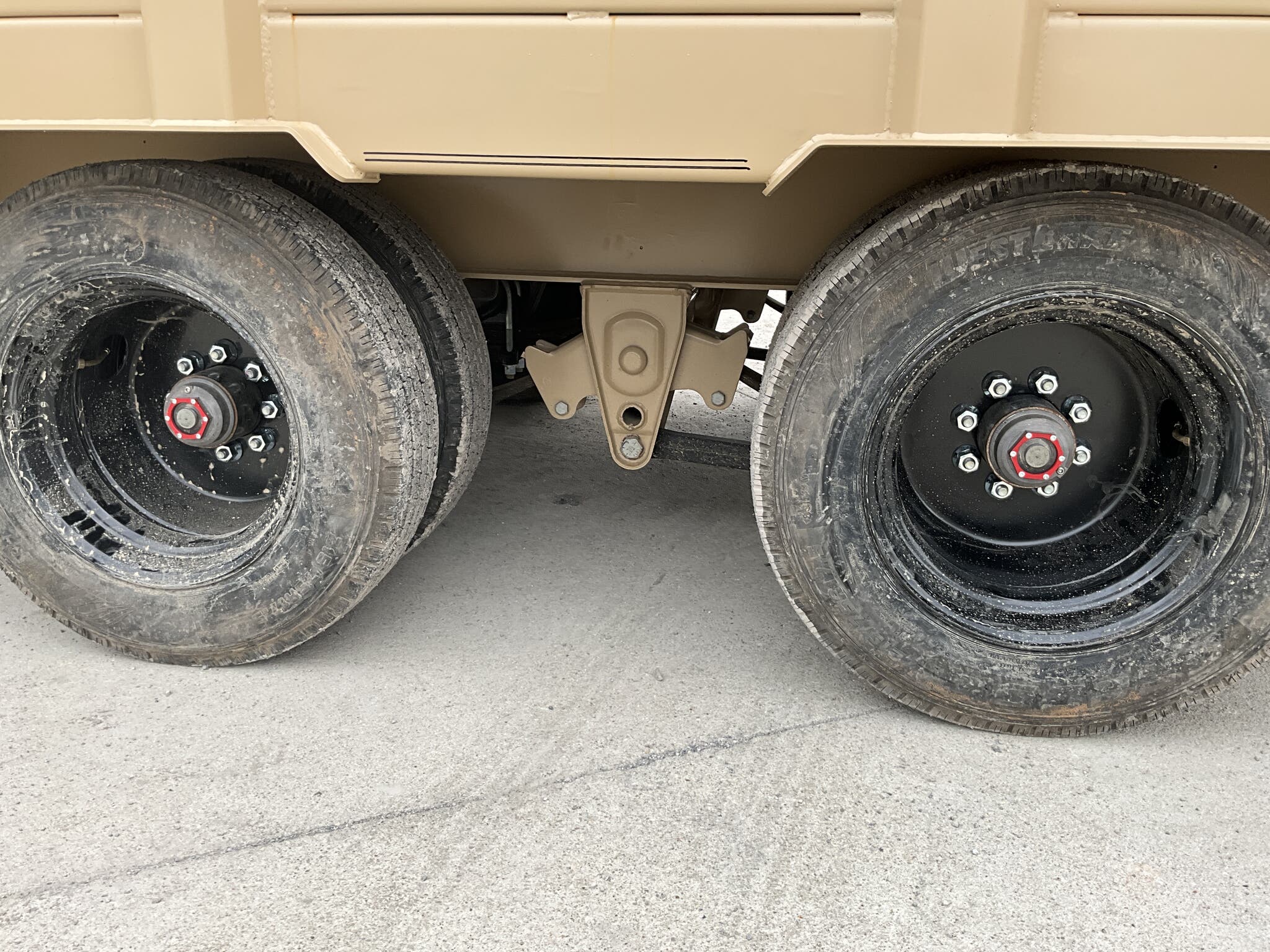

Specs — Tires/Wheels: ST215/75R17.5 18-ply radial duals; black wheels; matching spare
Specs — Spare Mount: Fold-down spare mount in gooseneck
Specs — Electrical: Lithium battery upgrade with SolarPulse charging system
Specs — Wiring: Sealed wiring harness
Specs — Lighting: All LED lighting
Specs — Finish: DM Difference Maker coating; Cement Gray
Specs — Warranty: 6-year Diamond C manufacturer warranty (2026+)

Weights & Capacities
Total Axle Capacity: 24,000 lb
Empty Weight: 10,180 lb
Payload on Axles: 24,000 - 10,180 = 13,820 lb
Tongue Load (Gooseneck @ 20%): 4,800 lb
Total Effective Payload: 18,620 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile

Stock Number: DCT031826-2

Condition: New

Width: 8' 0"

Length: 20' 0"

Trailer Type: DUMP TRAILERS

Model: WDT WDT-L20X96

Rear Configuration: 3 WAY GATE

Exterior Color: CEMENT GRAY

Location: Mount Vernon

Hitch Type: GOOSENECK

GVWR: 24000

Est. Empty Weight: 10180

Construction Type: STEEL

Year: 2026

Stock #: DCT031826-2

Brand: DIAMOND C

Expected Delivery Date: 5/15/2026

Is Rental: false

Our Price: $54,948.00
