2026 Diamond C PMAX212-30X102HDT - #DCT102825-1

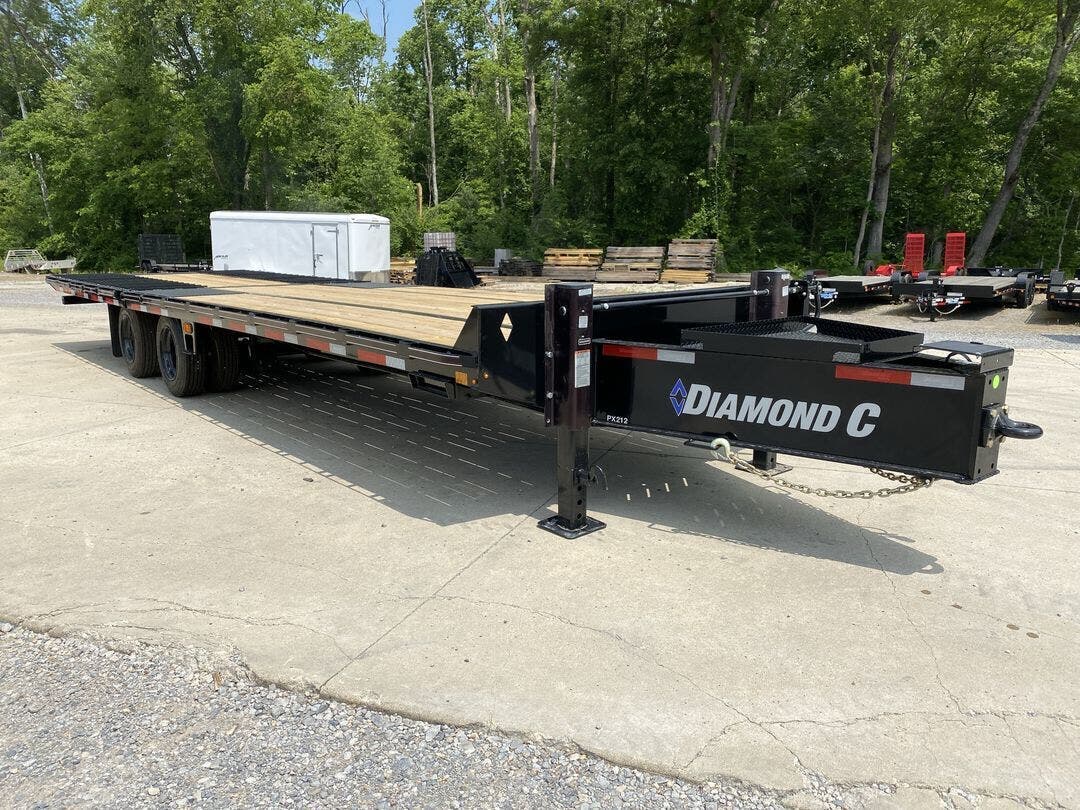

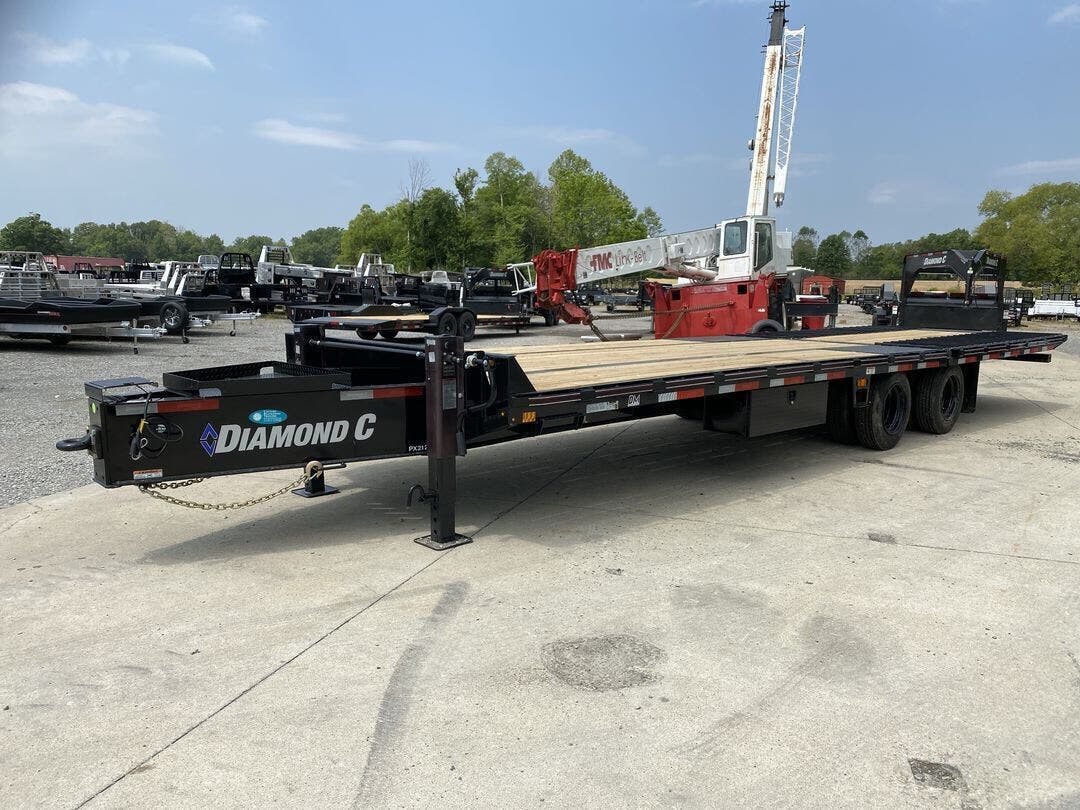

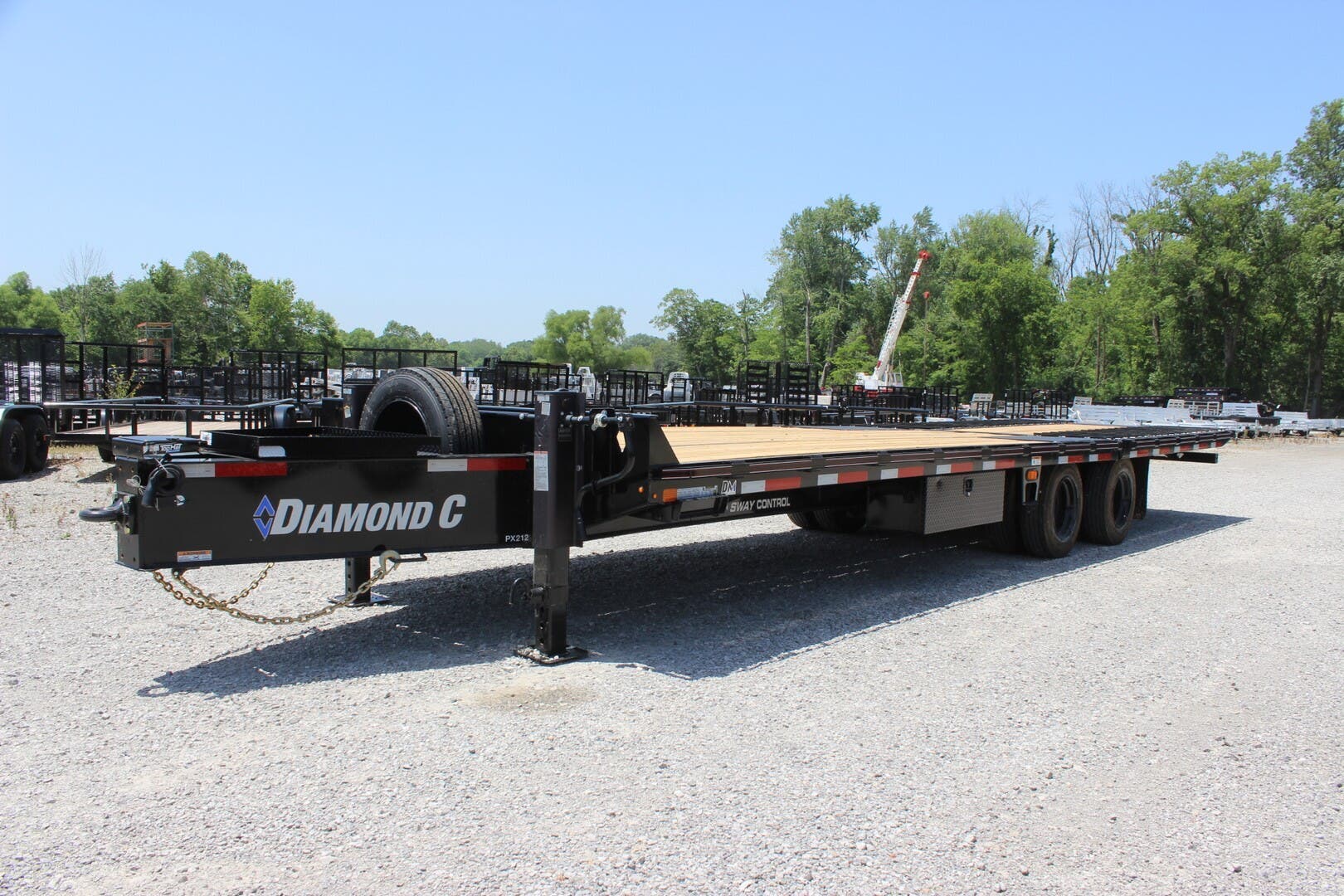

2026 DIAMOND C PX212 — 30' x 102" Hydraulic Dovetail (12' HD Dovetail), Onyx Black, 16" Engineered Tongue w/ 60K Pintle Eye, Dual 12K Oil Bath Axles, Hutch HD Adjustable Suspension — For Sale in Illinois
Standout Options: 12' hydraulic dovetail with full steel runners and cleats
Standout Options: Dual 20,000 lb hydraulic jacks (integrated with hydraulic dovetail)
Standout Options: Extra LED package (rear flashing caution LEDs + additional 3/4" clearance lights)
Standout Options: Zig-zag floor screw upgrade; crossmembers 3" I-Beam on 12" centers with formed gussets
Specs — Pull Type: Pintle tongue (60K eye), 16" engineered tongue
Specs — Frame: 16" Engineered Beam 2.0
Specs — Crossmembers: 3" I-beam on 12" centers with formed gussets
Specs — Deck/Floor: 2" treated lumber; zig-zag floor screws

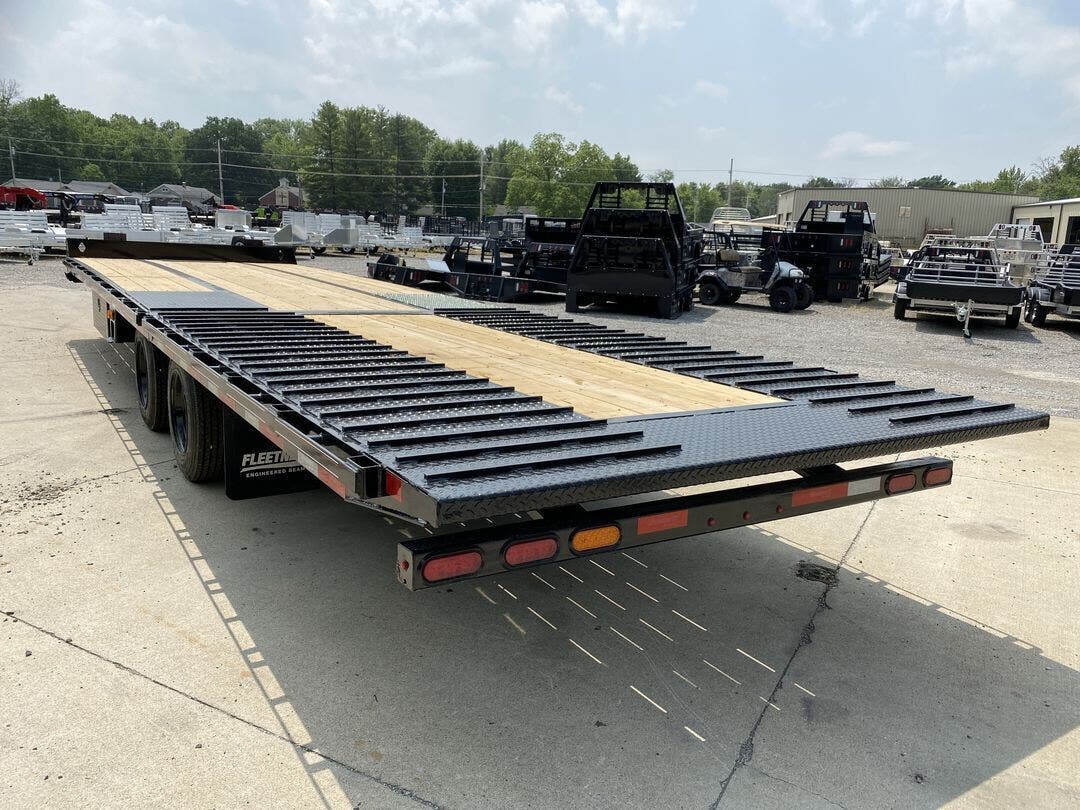

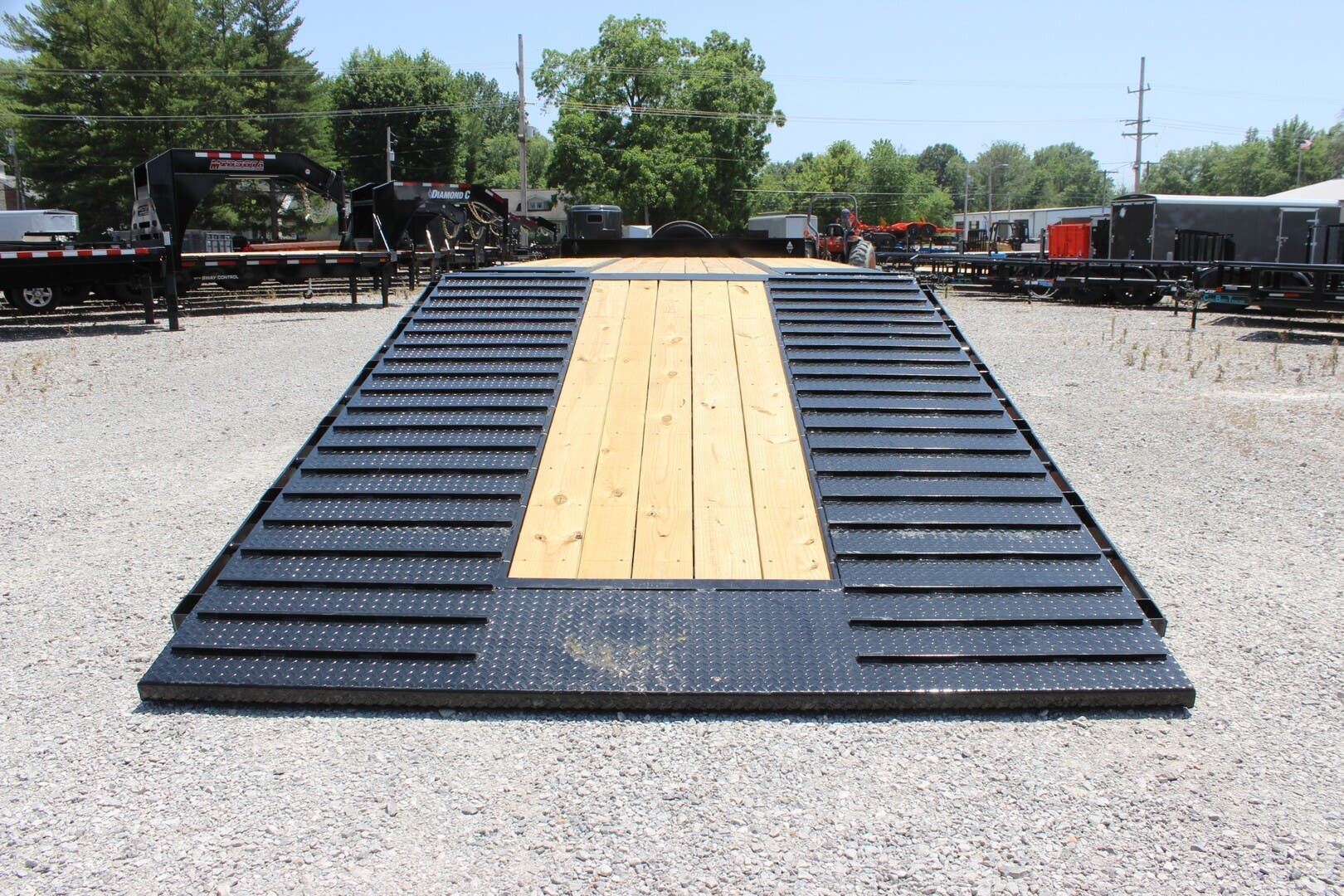

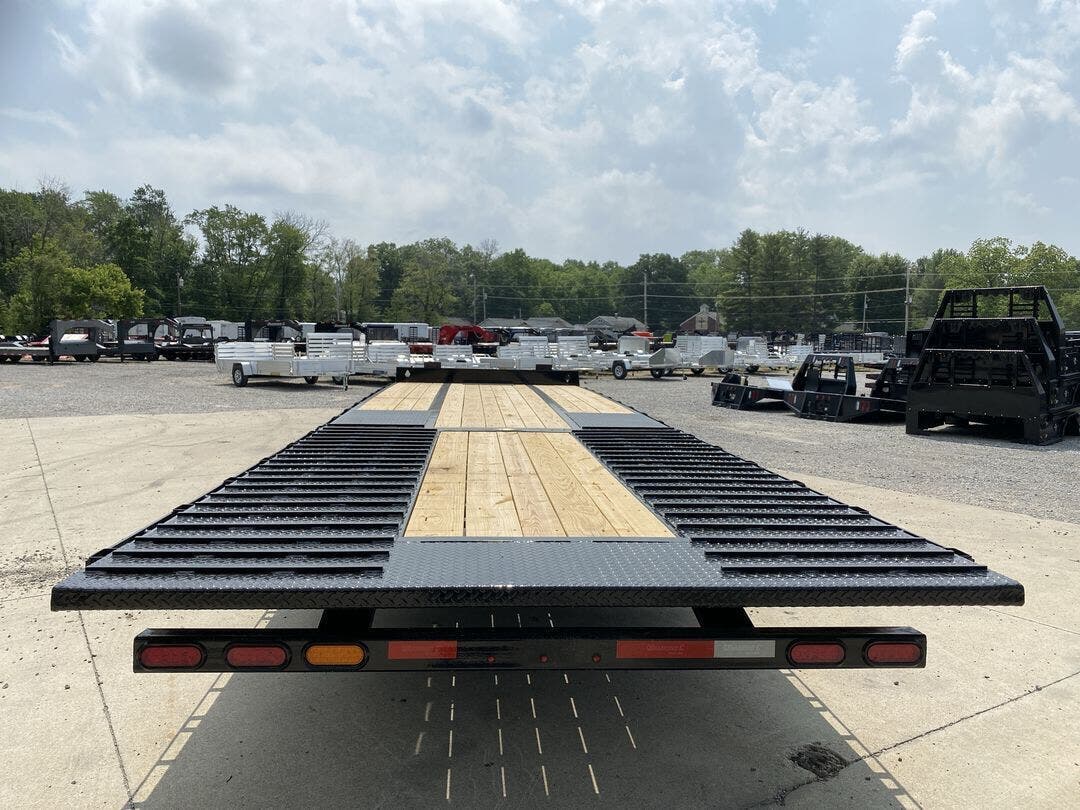

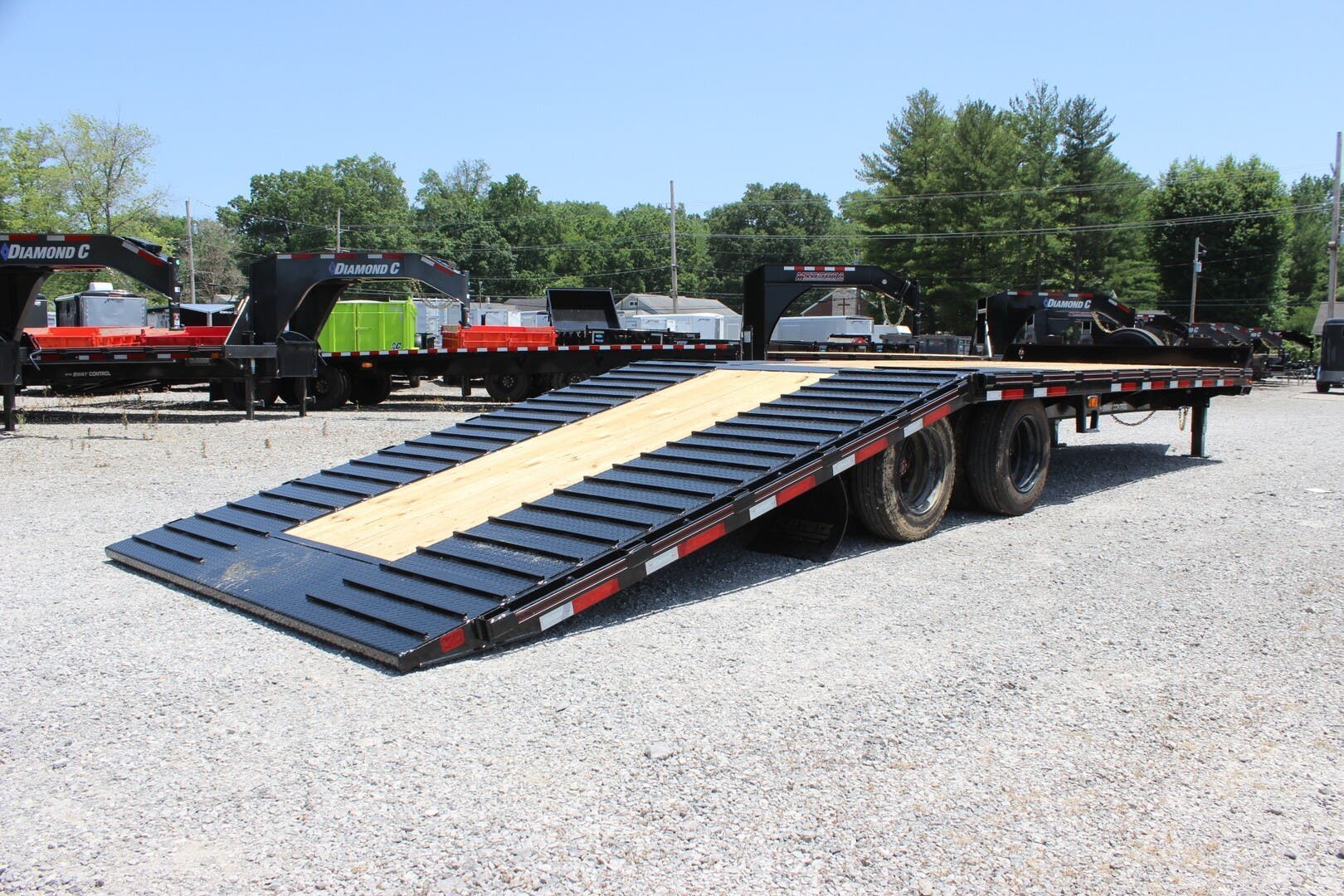

Specs — Dovetail: 12' hydraulic dovetail; full steel runner with cleats
Specs — Rail/Tie-Downs: 6" channel lace rail; 2" x 3/8" rub rail with stake pockets & pipe spools; (8) 5/8" D-rings

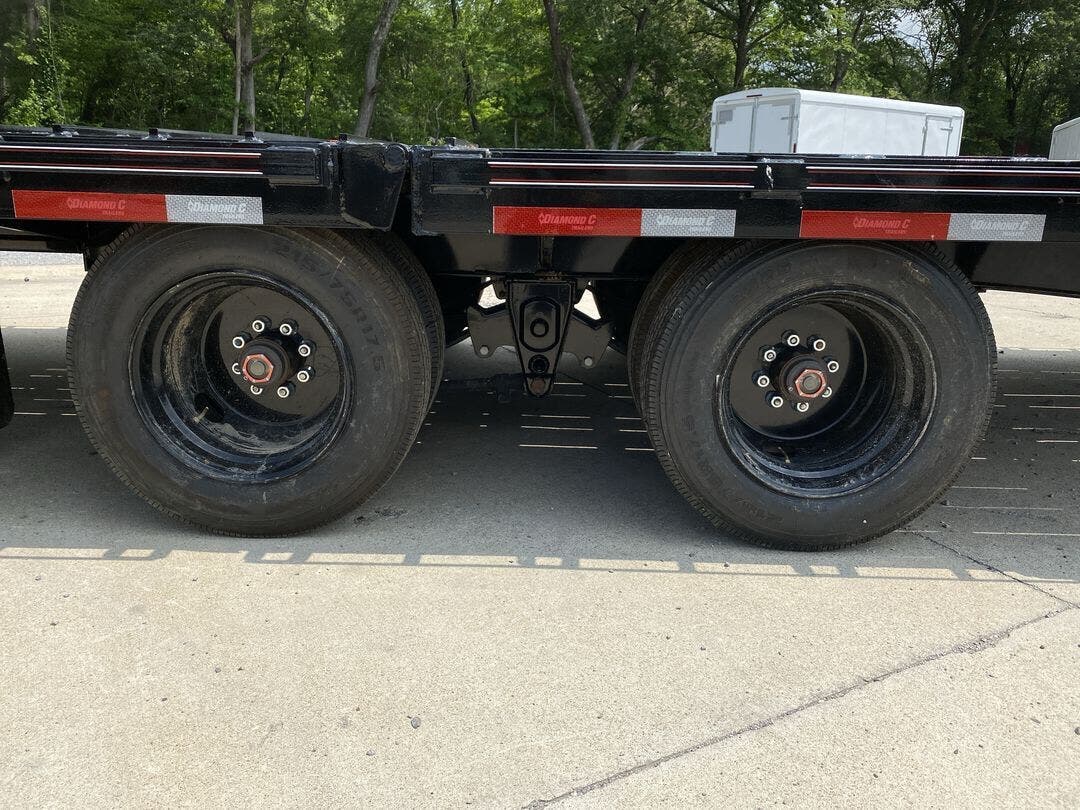

Specs — Axles/Brakes: (2) 12,000 lb heavy-duty oil bath axles; electric drum brakes
Specs — Suspension: Hutch heavy-duty adjustable suspension

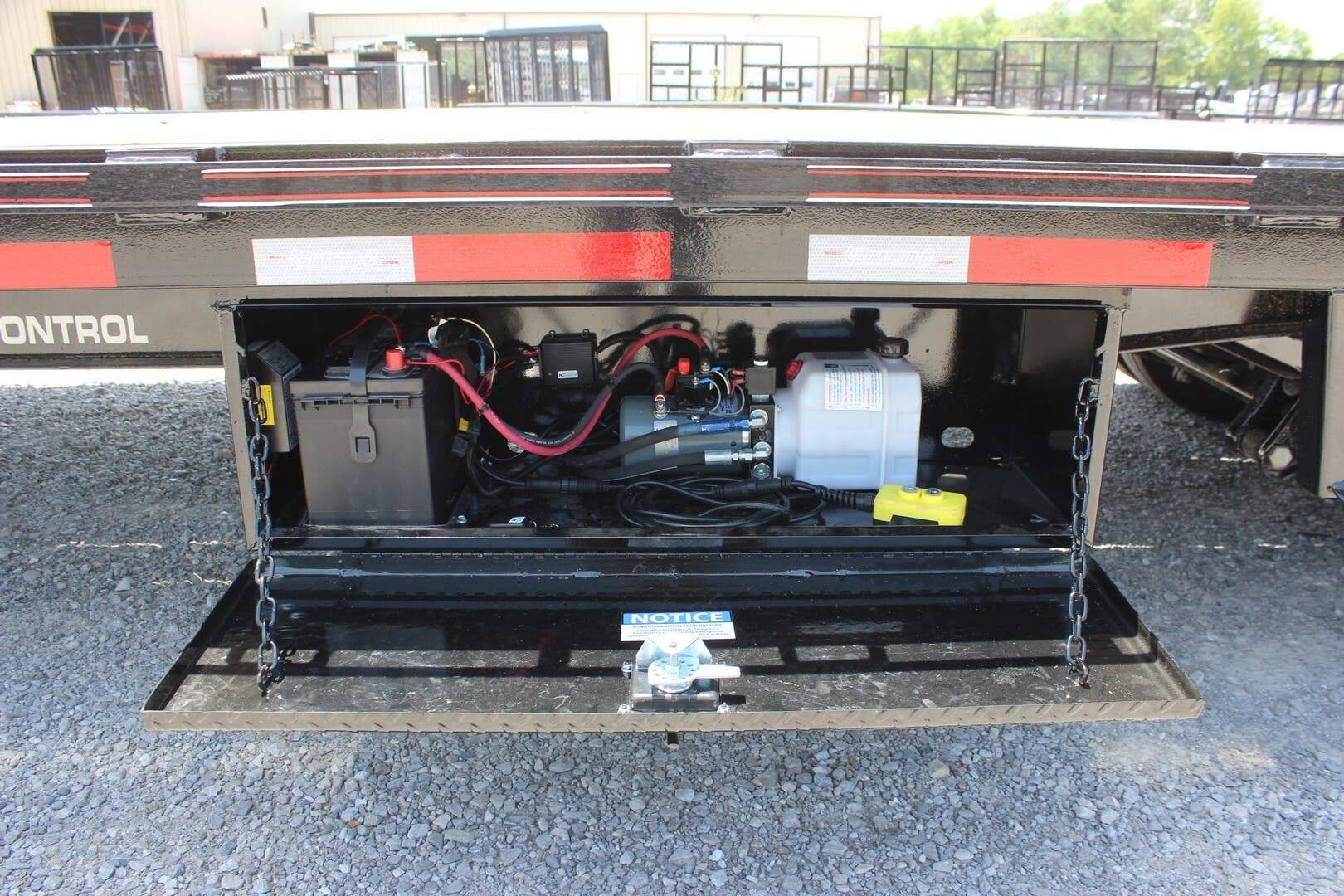

Specs — Jacks: (2) 20,000 lb hydraulic jacks

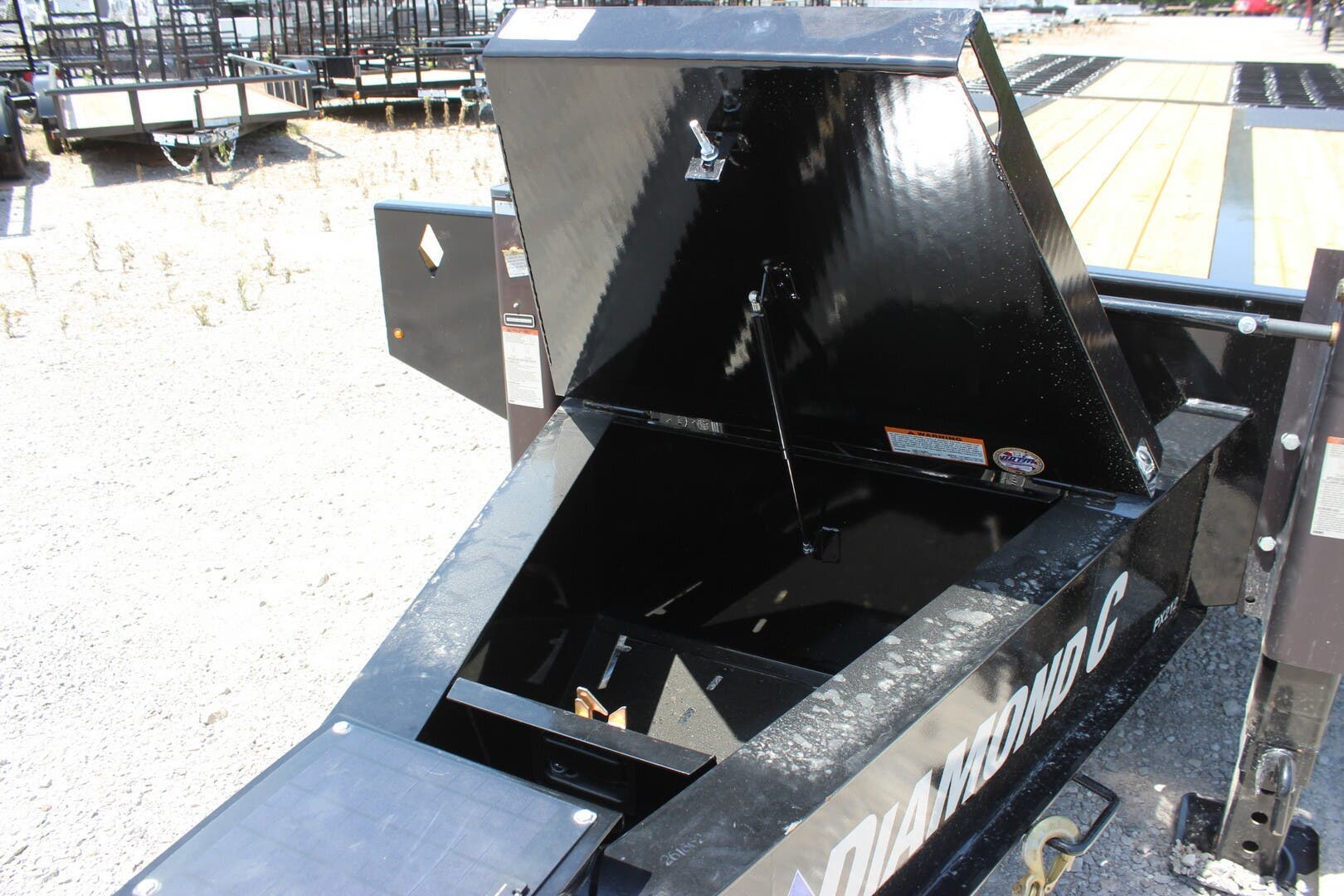

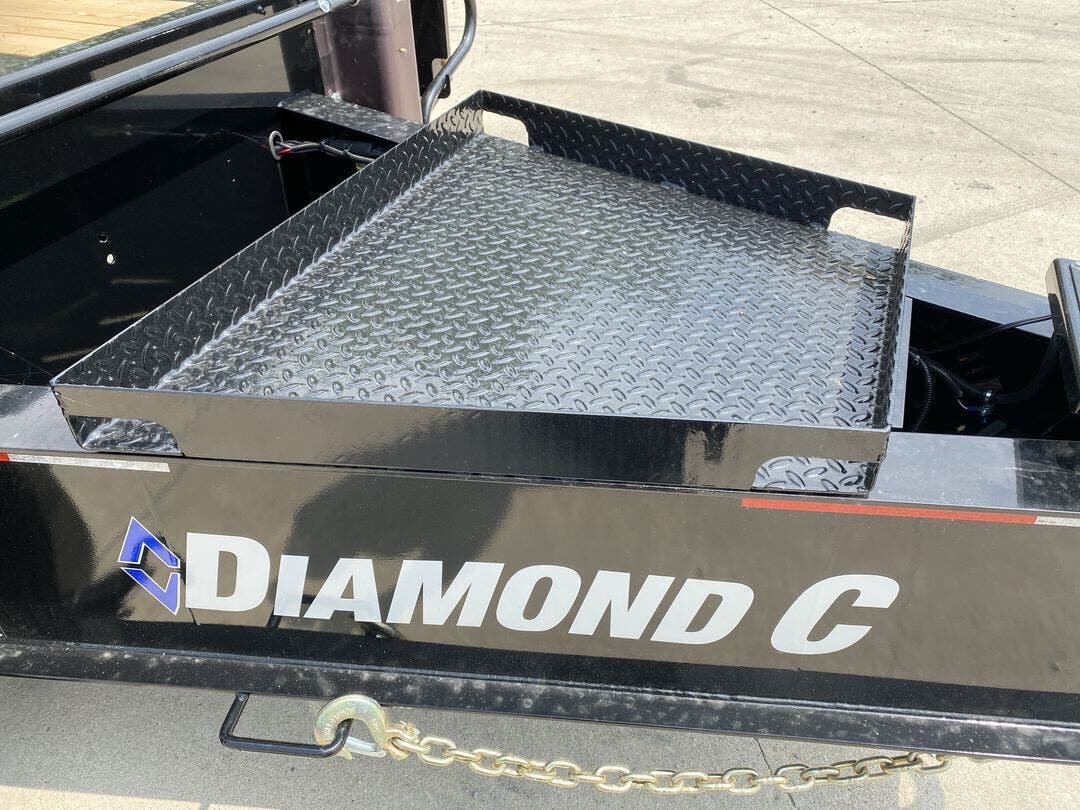

Specs — Storage: HD V-tongue lid with gas-shock assist (in tongue)

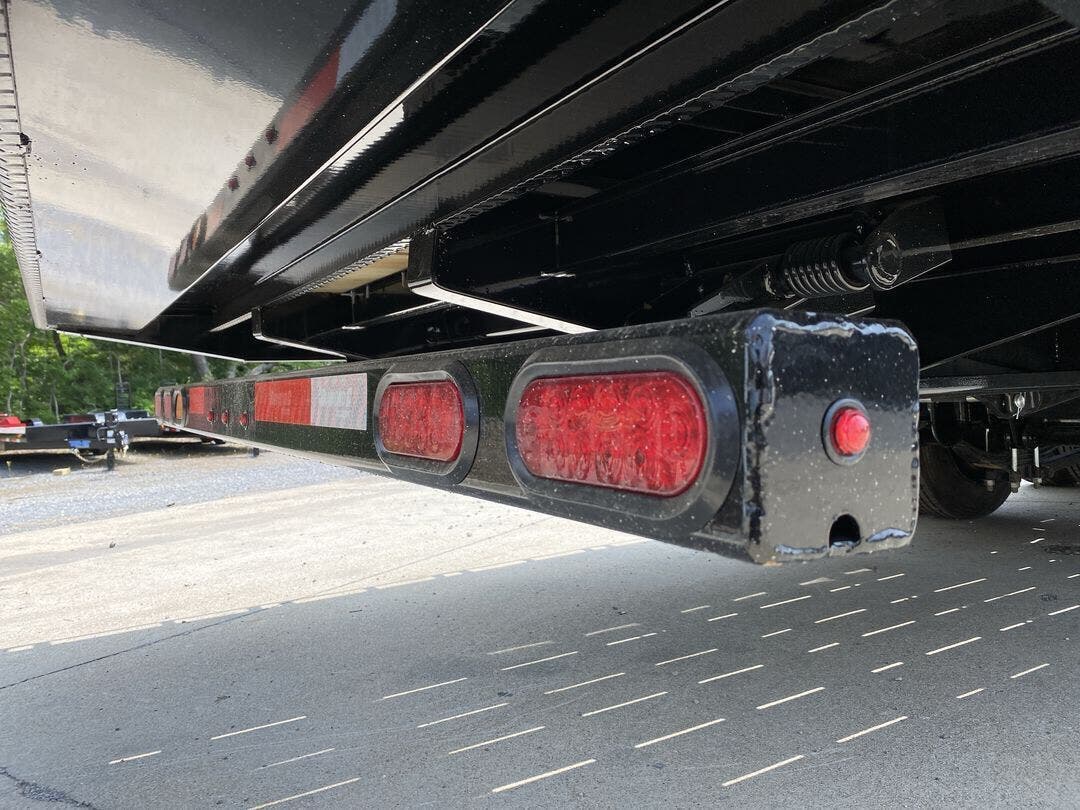

Specs — Lighting/Wiring: All LED; rear flashing caution LEDs (2); extra 3/4" clearance lights; sealed wiring harness

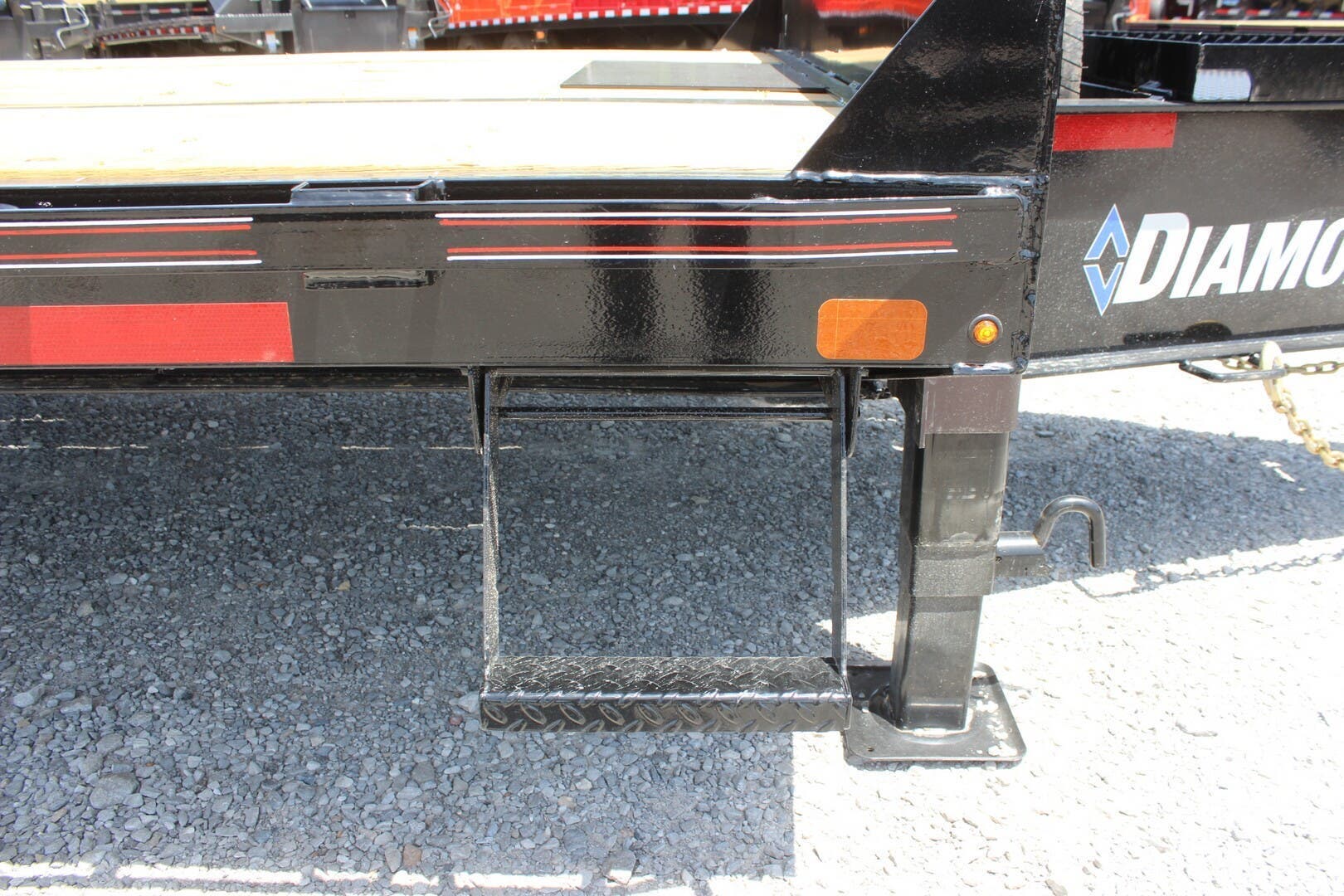

Specs — Steps: Front retractable & mid-turn steps
Specs — Tires/Wheels: 215/75R17.5 18-ply radials (dually); black wheels; under-frame spare mount + spare tire (black wheel)
Specs — Paint/Finish: DM Difference Maker coating; Onyx Black
Specs — Warranty: 6-year manufacturer warranty (2026+)
Weights & Capacities — Total Axle Capacity (used for payload math): 24,000 lb
Weights & Capacities — Empty/Trailer Weight: 8,370 lb
Weights & Capacities — Payload on Axles (Capacity - Empty): 24,000 - 8,370 = 15,630 lb
Weights & Capacities — Target Tongue Load (Pintle @ ~20% of Capacity): ˜ 4,800 lb
Weights & Capacities — Total Payload Including Tongue Support: 15,630 + 4,800 = 20,430 lb
Delivery from 62864 (Lower 48): Up to 100 miles: $150
Delivery from 62864 (Lower 48): 101–300 miles: $2.00/mile
Delivery from 62864 (Lower 48): 301–1200 miles: $3.00/mile
Delivery from 62864 (Lower 48): Over 1200 miles: $4.00/mile
