2026 Diamond C LPX LPX207-22X82 - #DCT042026-1

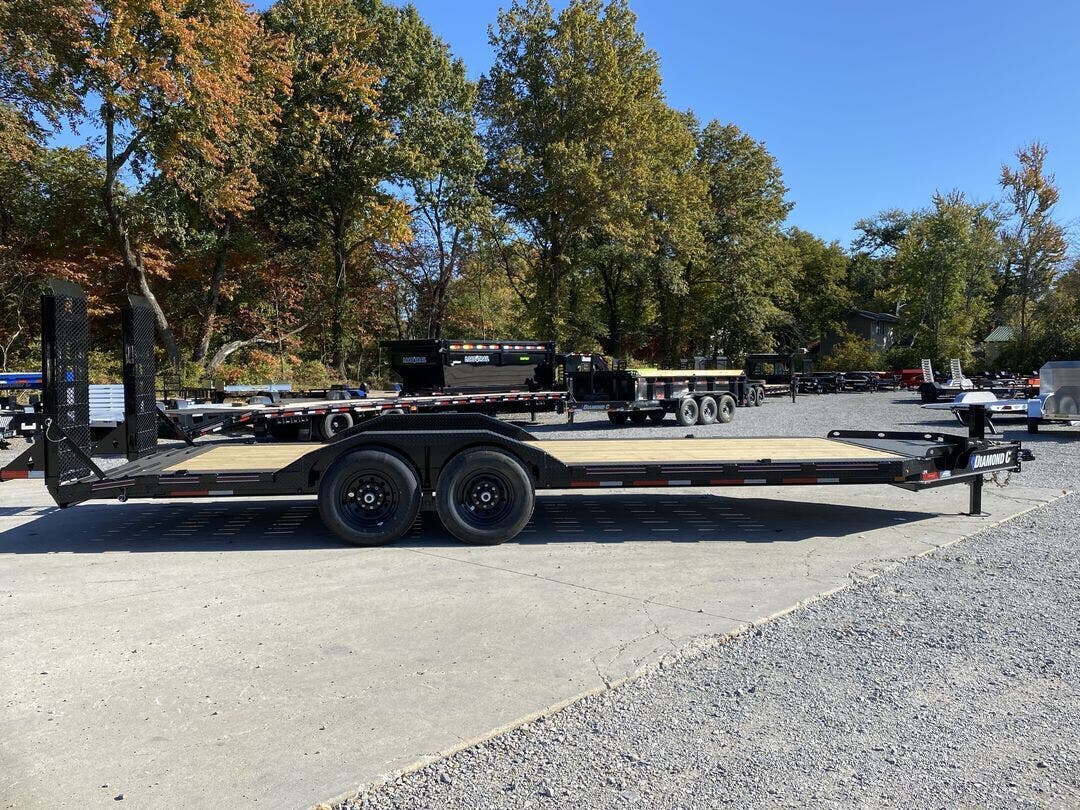

2026 DIAMOND C LPX207 15.5K 82" × 22' LOW PROFILE EQUIPMENT TRAILER, CARBON METALLIC GRAY, 24" DOVETAIL WITH HD FLIP-KNEE RAMPS — FOR SALE IN MOUNT VERNON, IL 62864
Feature: Pacesetter Edition with extra-wide 24" × 60" spring-assisted HD flip-knee ramps
Feature: 8" × 15 lb I-beam frame with 3" I-beam crossmembers on 12" centers
Feature: 24" diamond plate dovetail with cleats for improved traction
Feature: (8) total 5/8" D-rings with rub rail, stake pockets, and pipe spools
Feature: Super heavy-duty smooth fenders with integrated fork holders

Specs — Model: LPX207 Low Profile Equipment Trailer (Pacesetter Edition)
Specs — Size: 82" × 22'
Specs — GVWR: 15,500 lb
Specs — Axles/Brakes: (2) 7,000 lb electric drum brake axles
Specs — Suspension: Slipper roller spring suspension
Specs — Frame: 8" × 15 lb I-beam frame
Specs — Crossmembers: 3" I-beam on 12" centers
Specs — Deck: 2" treated wood floor
Specs — Dovetail: 24" diamond plate dovetail with cleats
Specs — Ramps: 24" × 60" extra-wide HD flip-knee ramps, spring-assisted
Specs — Coupler: Adjustable 2-5/16" 21K Demco EZ-Latch
Specs — Jack: 15K 2-speed drop-leg jack
Specs — Storage: HD V-tongue toolbox
Specs — Fenders: 3/16" smooth super heavy-duty
Specs — Fork Holder: Integrated fork holders
Specs — Tie Downs: (8) 5/8" D-rings
Specs — Rail: 2" × 3/8" rub rail with stake pockets and pipe spools
Specs — Tires/Wheels: ST235/80R16 14-ply radial, black wheels
Specs — Spare: Matching ST235/80R16 14-ply radial with tongue mount
Specs — Step: 24" side step
Specs — Spare Mount: Passenger side tongue mount
Specs — Wiring: Sealed wiring harness
Specs — Lighting: Full LED lighting package
Specs — Finish: Carbon Metallic Gray DM Difference Maker coating system
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty

Weights & Capacities
GVWR: 15,500 lb
Empty Weight: 3,760 lb
Payload on Axles: 14,000 - 3,760 = 10,240 lb
Target Tongue Load (10% of GVWR): 1,550 lb
Total Effective Payload: 11,790 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
