2026 Diamond C LPT LPT207-14X82-PACESETTER - #DCT102125-3

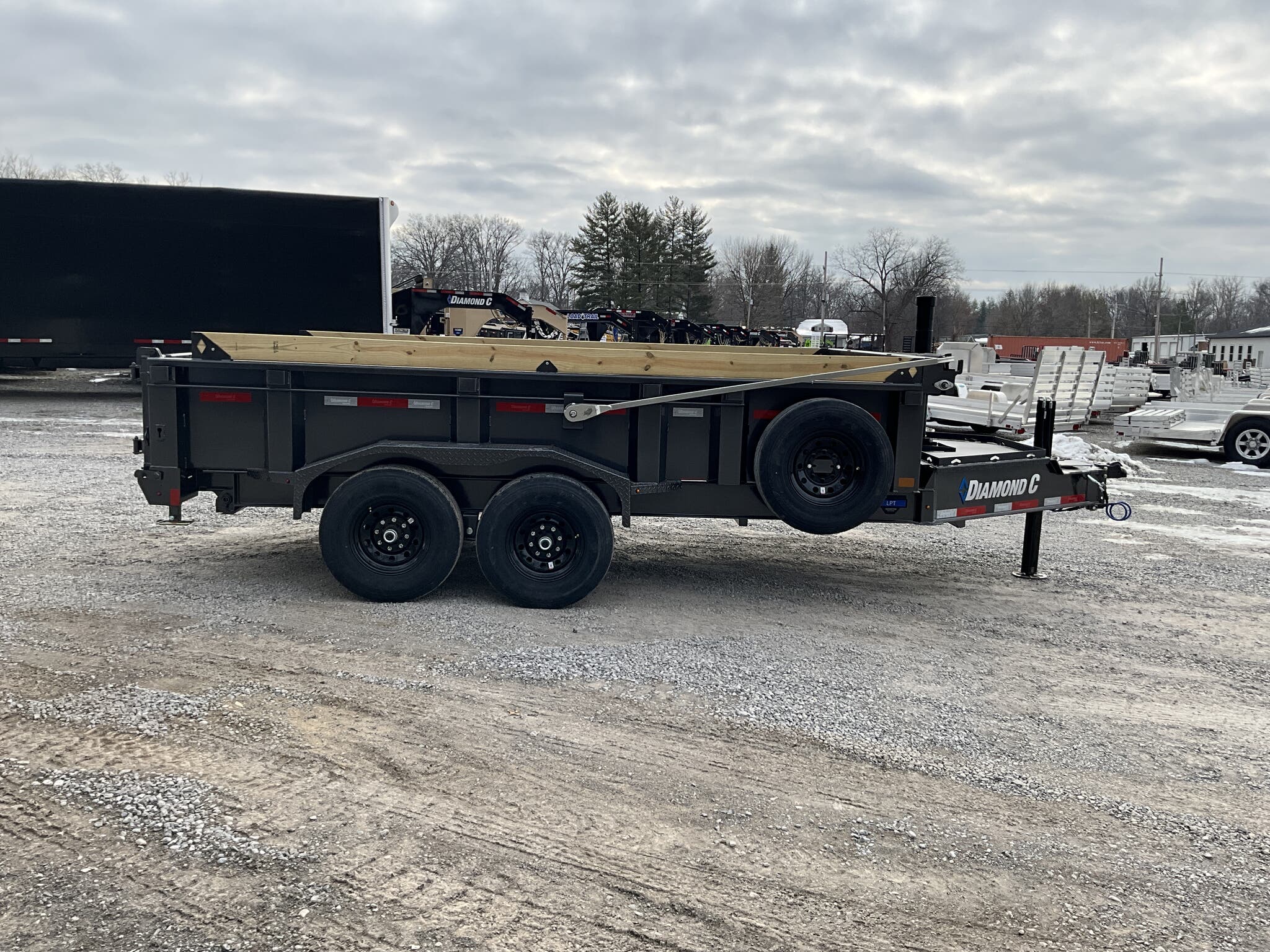

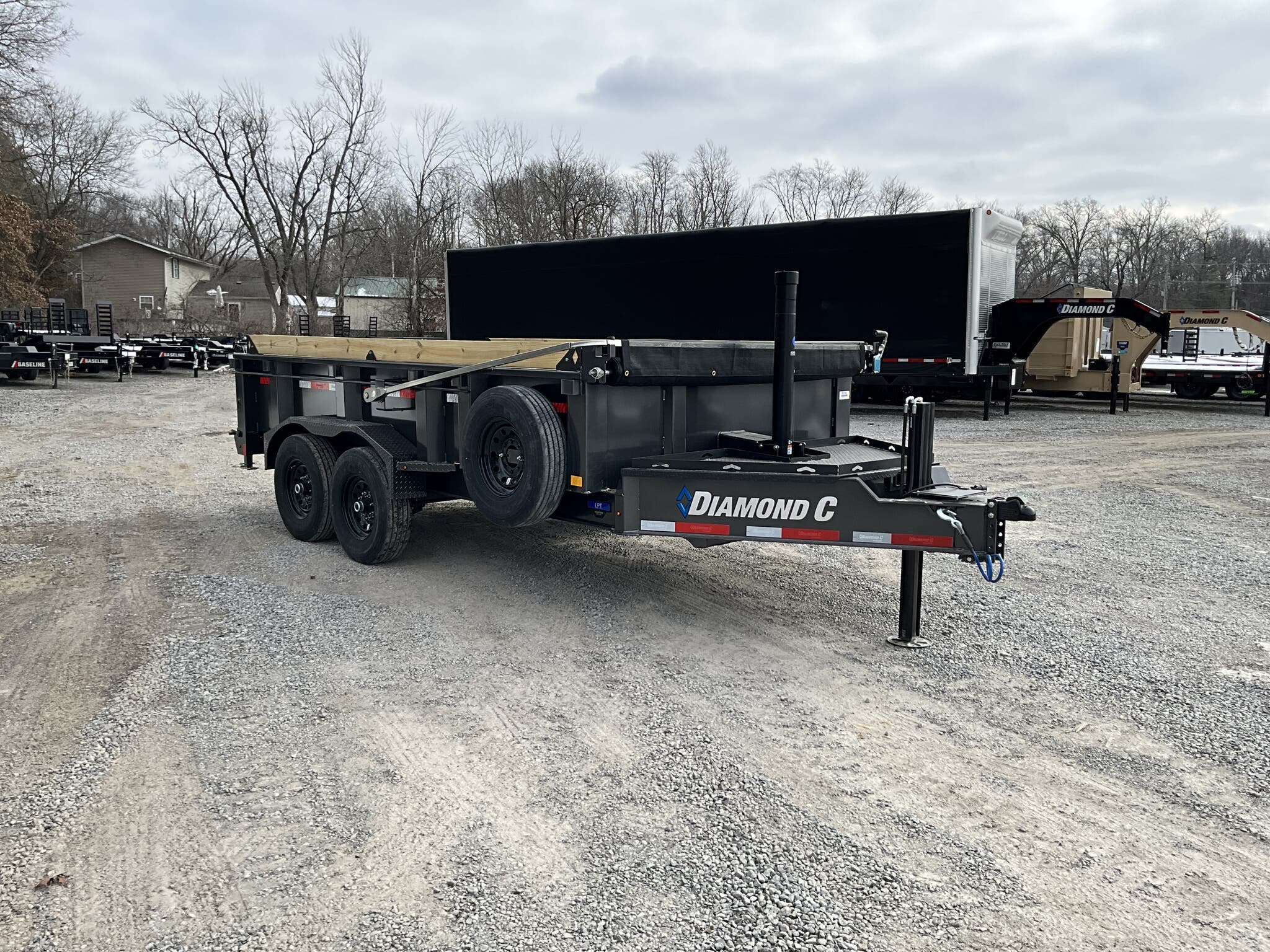

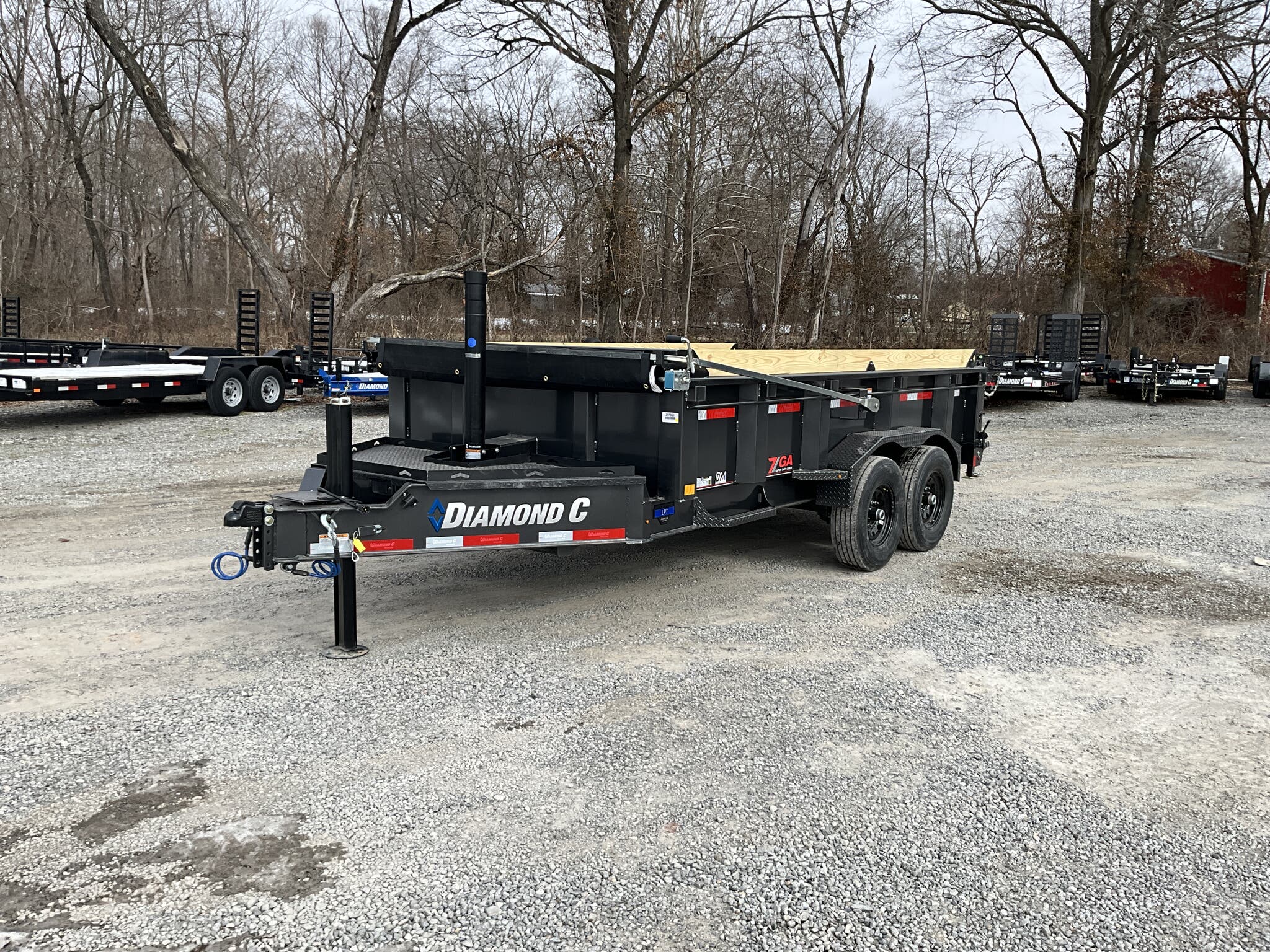

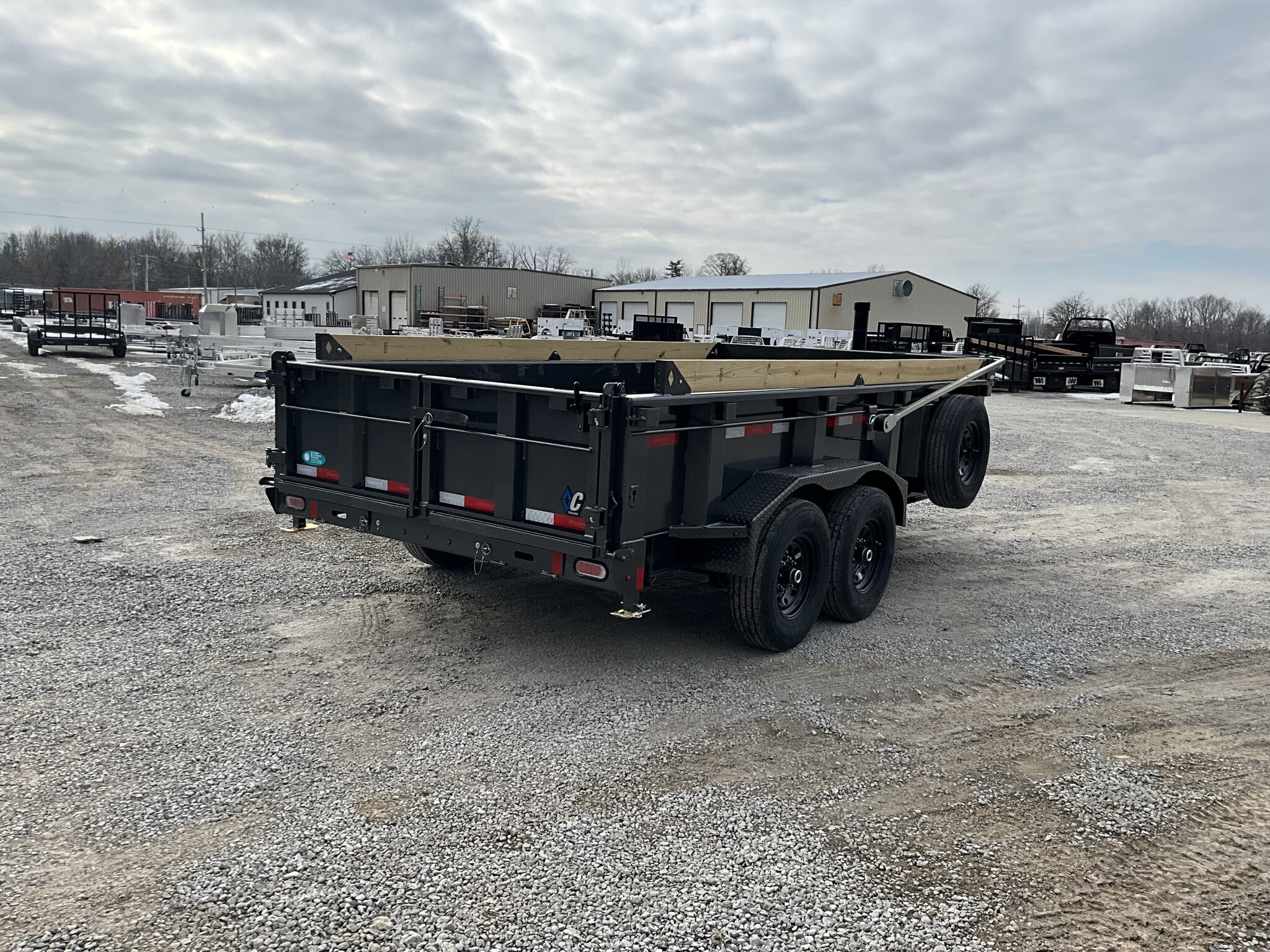

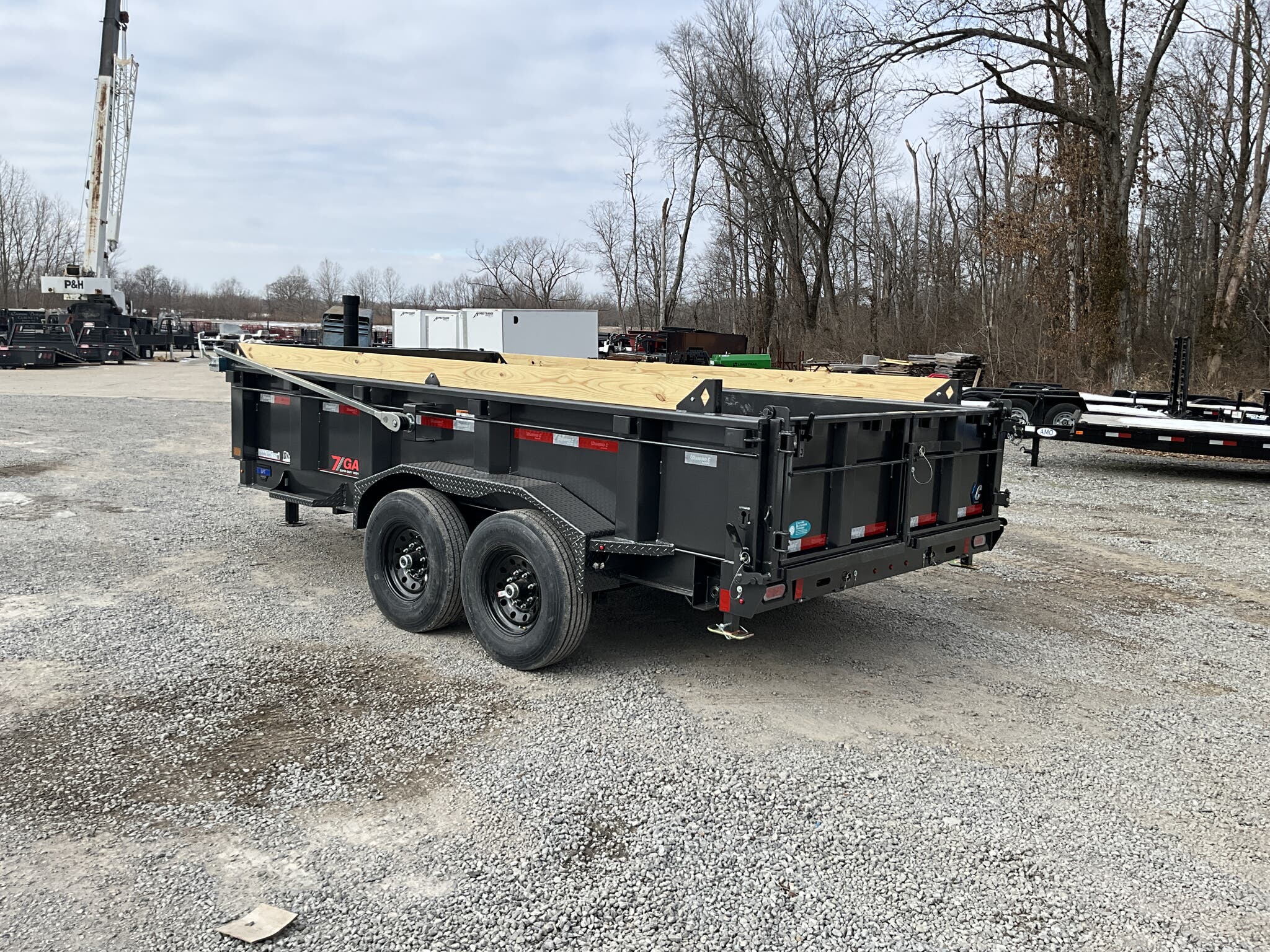

2026 DIAMOND C LPT — 14' x 82" Dump Trailer, Carbon Metallic Gray, Pacesetter Edition, Bumper Pull, Telescopic Hoist, 24" 7-ga Sides, 78" Slide-In Ramps — For Sale in Illinois
Standout Options: Pacesetter Edition (20K hydraulic jack, wireless remote, solar charger, board brackets w/ raised front, rear stabilizer drop legs, upgraded fenders)
Standout Options: Super-duty 7-ga (3/16") body, floor, and sides

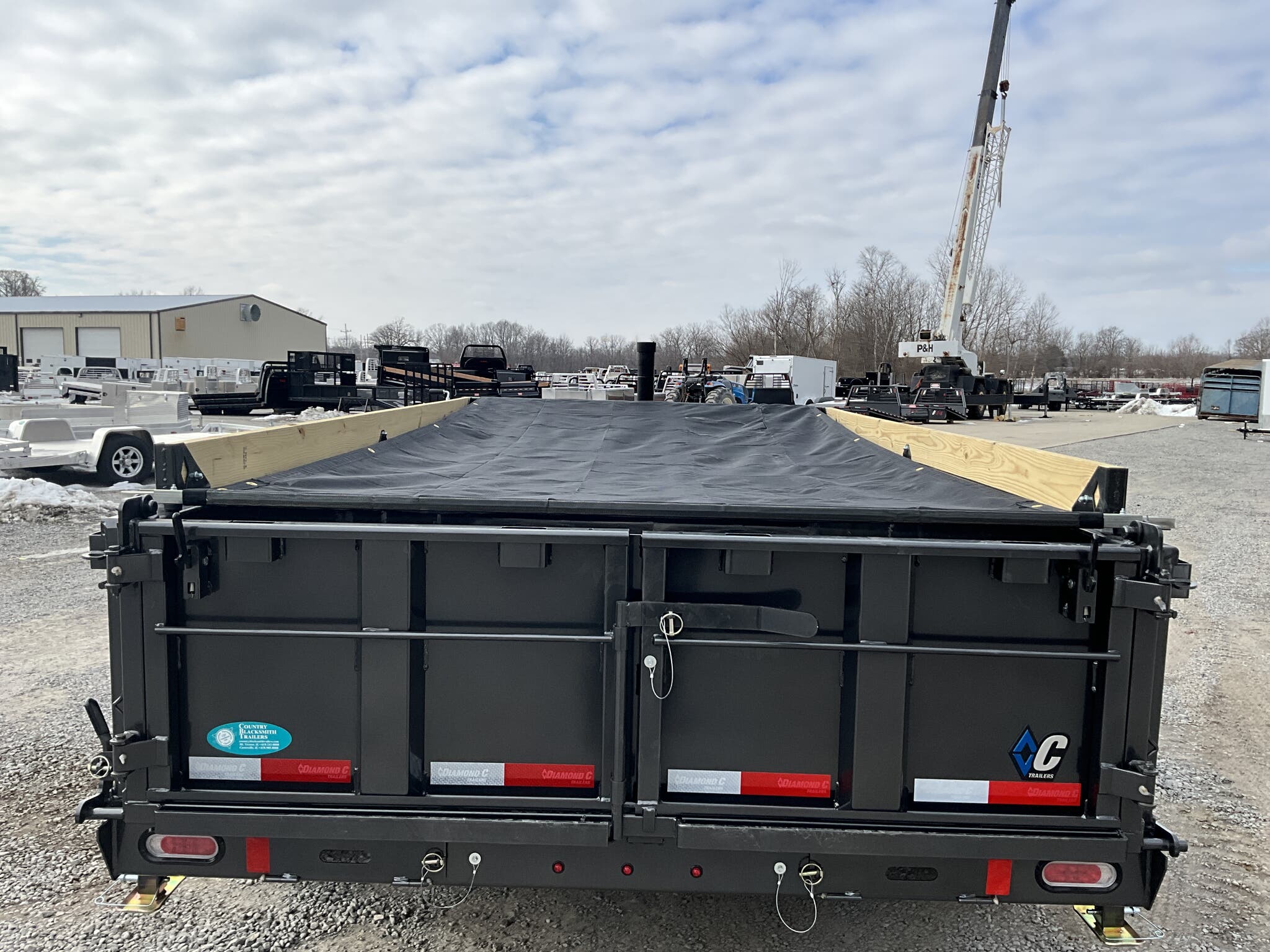

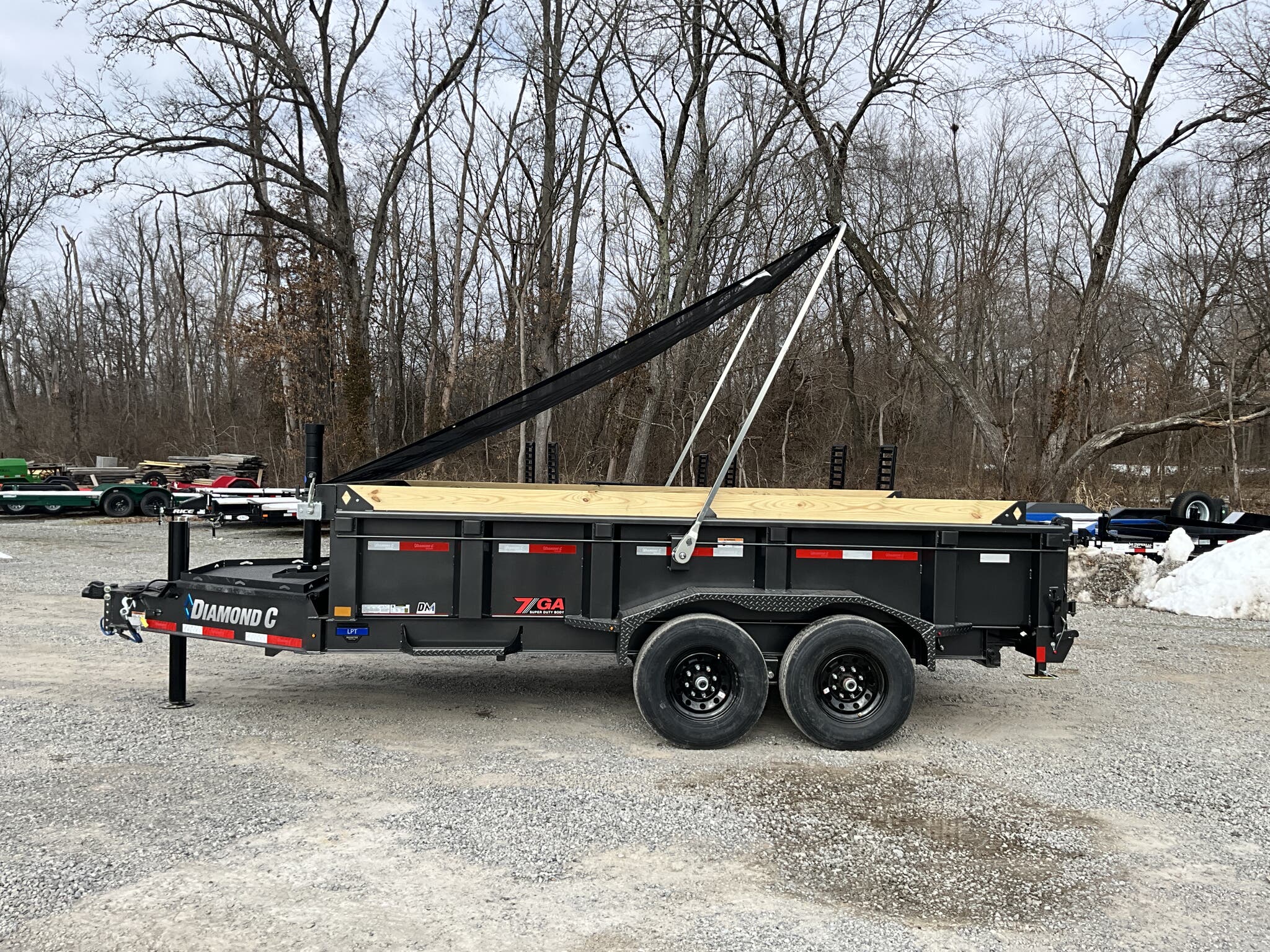

Standout Options: Long-arm easy-roll tarp system
Standout Options: 78" rear slide-in ramps (3" I-beam)
Standout Options: Solarpulse 7W charger + Group 27 battery w/ 110V 5A charger
Standout Options: Shurco wireless remote + 14' corded remote
Specs — Pull Type: Bumper pull
Specs — Main Frame: 8" x 15 lb I-beam
Specs — Body Frame: 5" x 2" x 3/16" rectangle tube

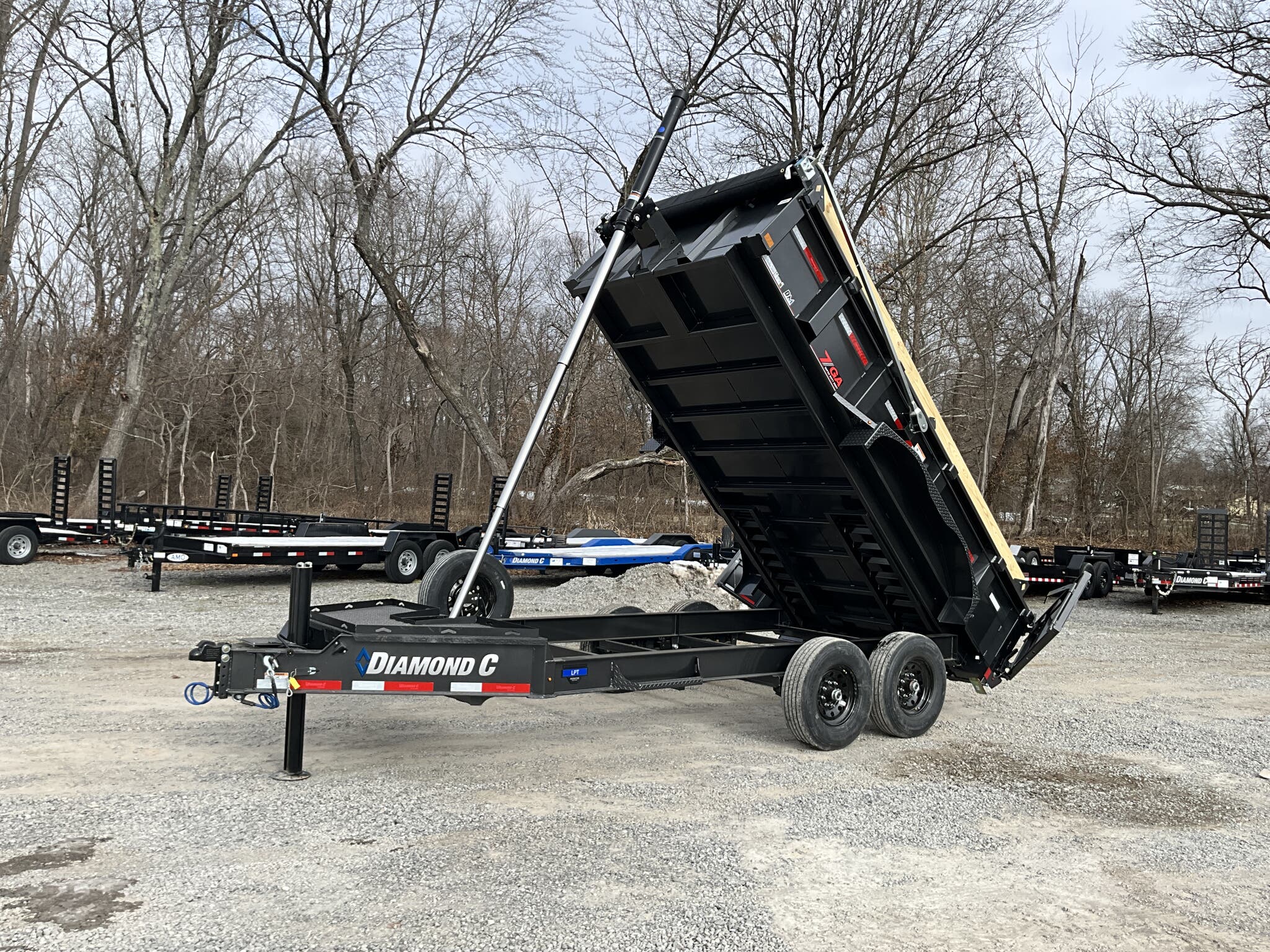

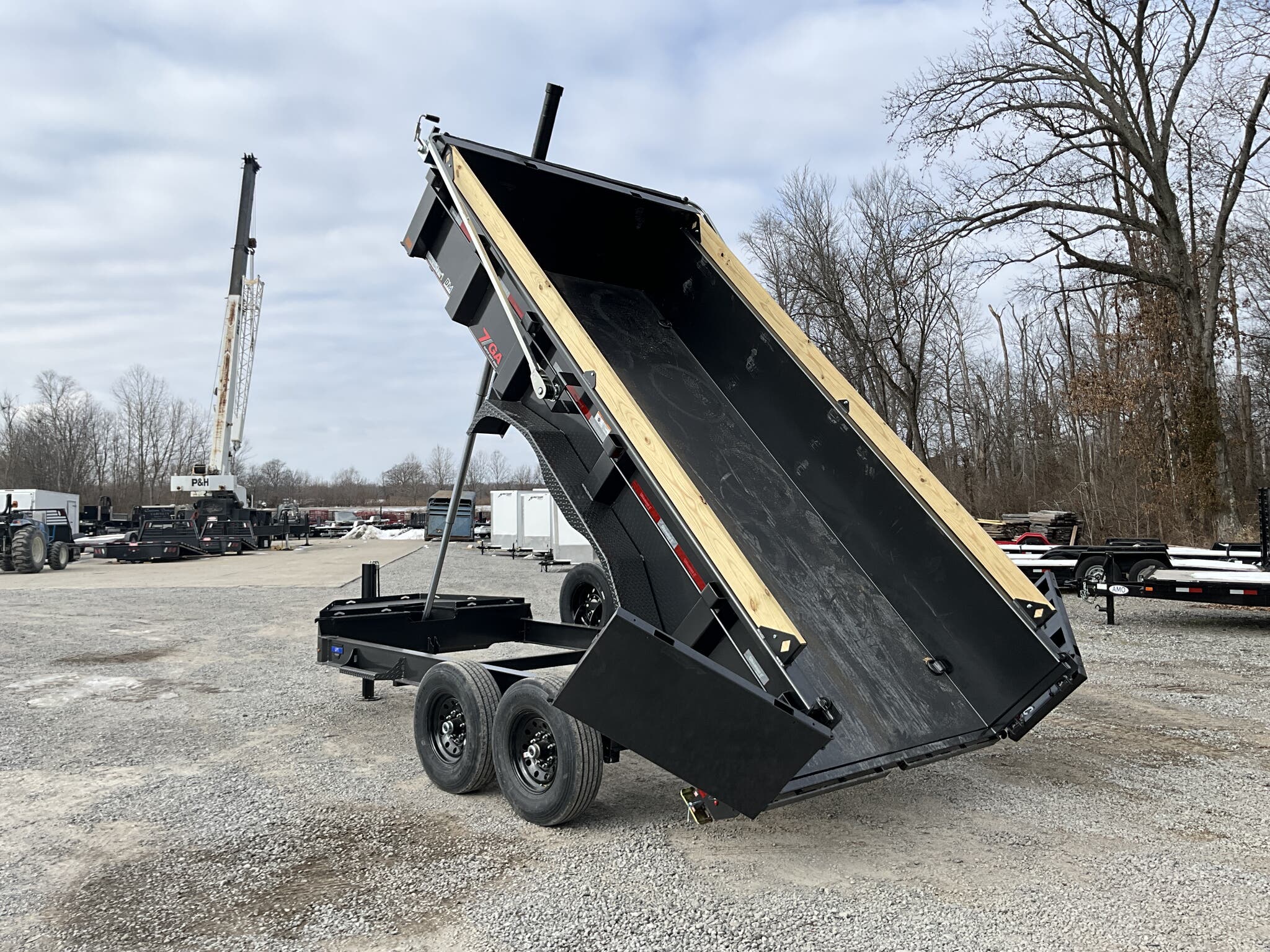

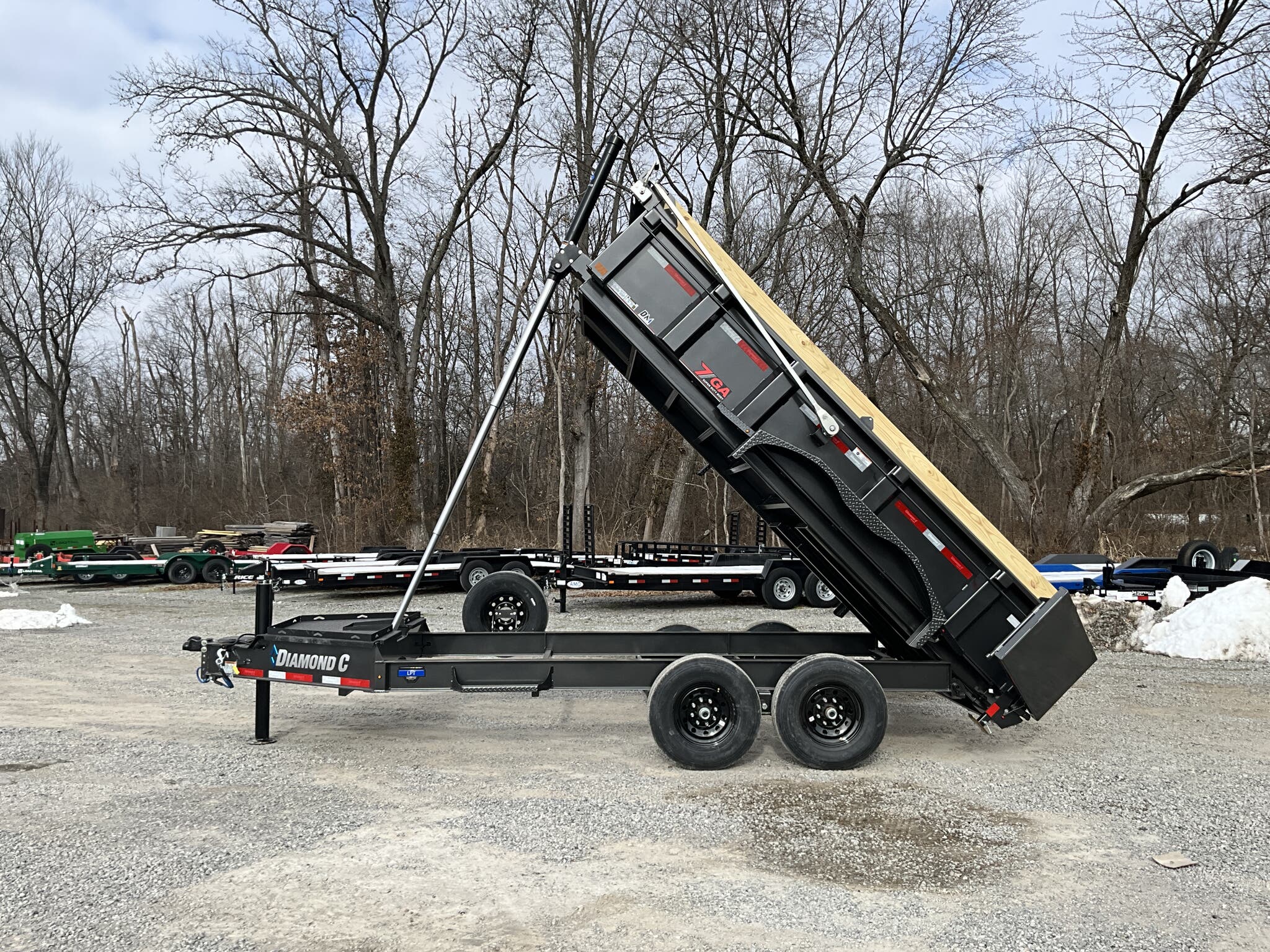

Specs — Hoist: 3-stage telescopic cylinder
Specs — Body/Sides: 24" tall sides (7-ga); side extensions board brackets with raised front
Specs — Deck/Floor: 2" treated lumber

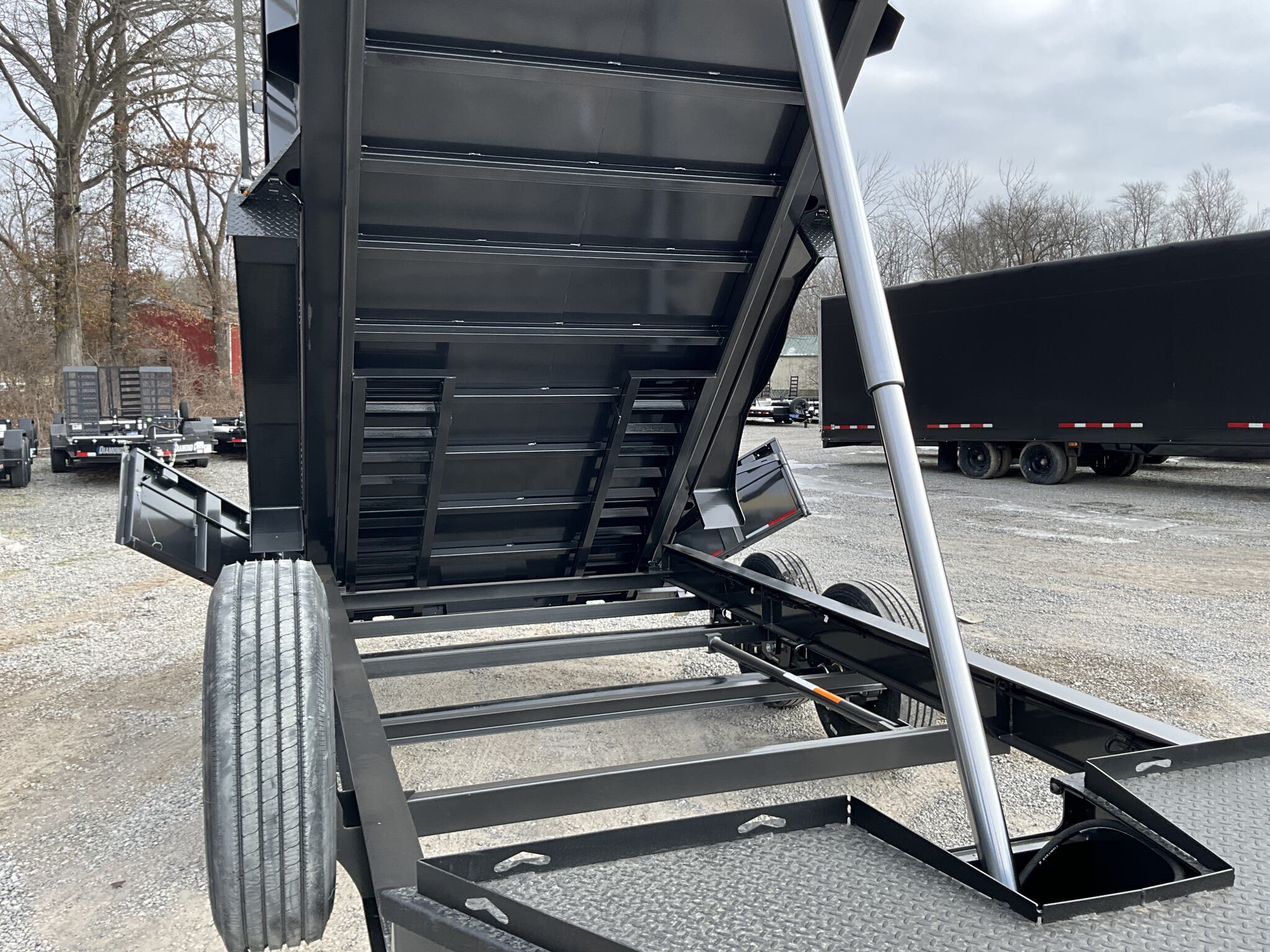

Specs — Crossmembers: 3" I-beam on 16" centers

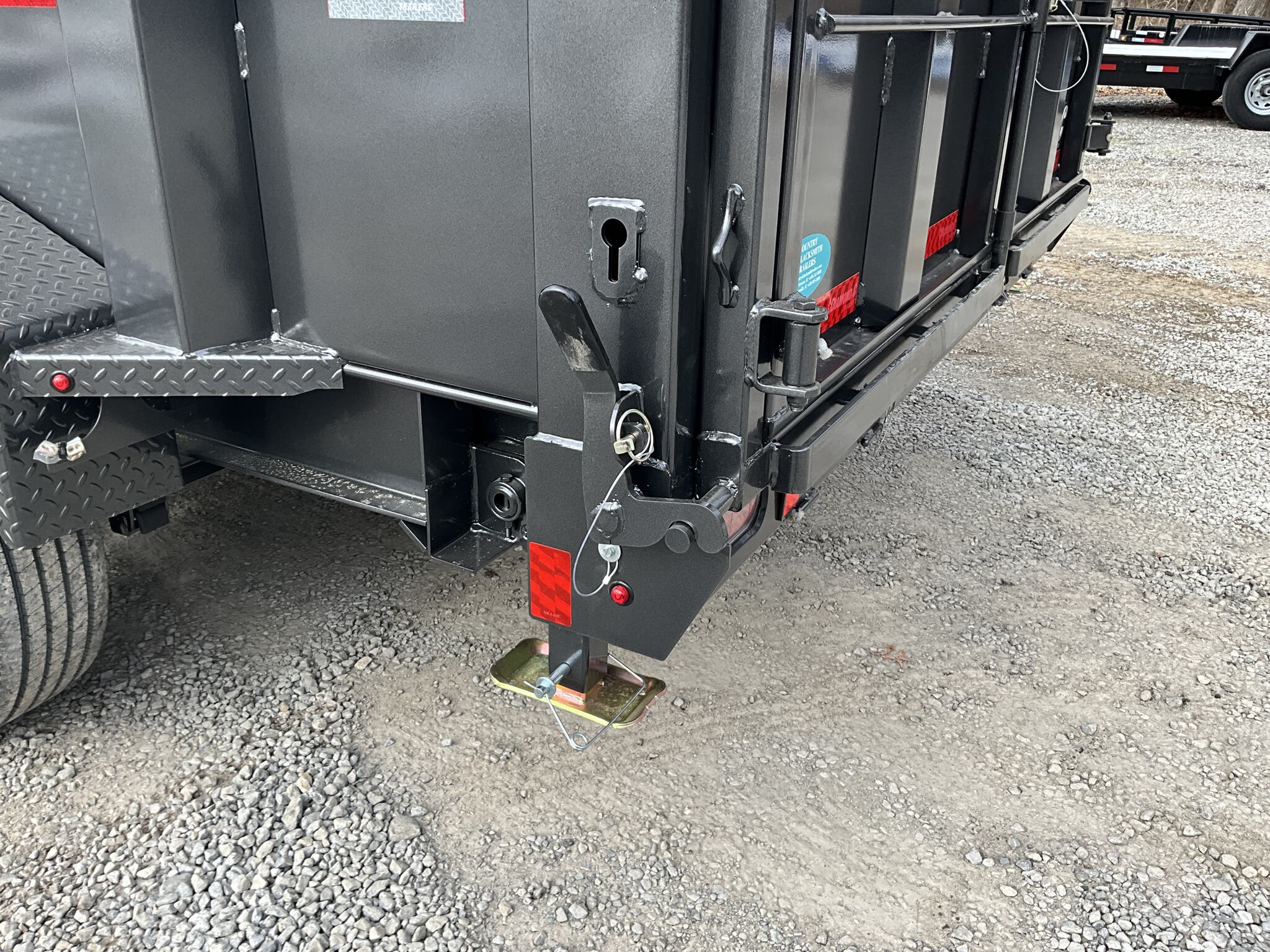

Specs — Ramps/Rear: 78" slide-in ramps (3" I-beam) with rear stabilizer drop legs

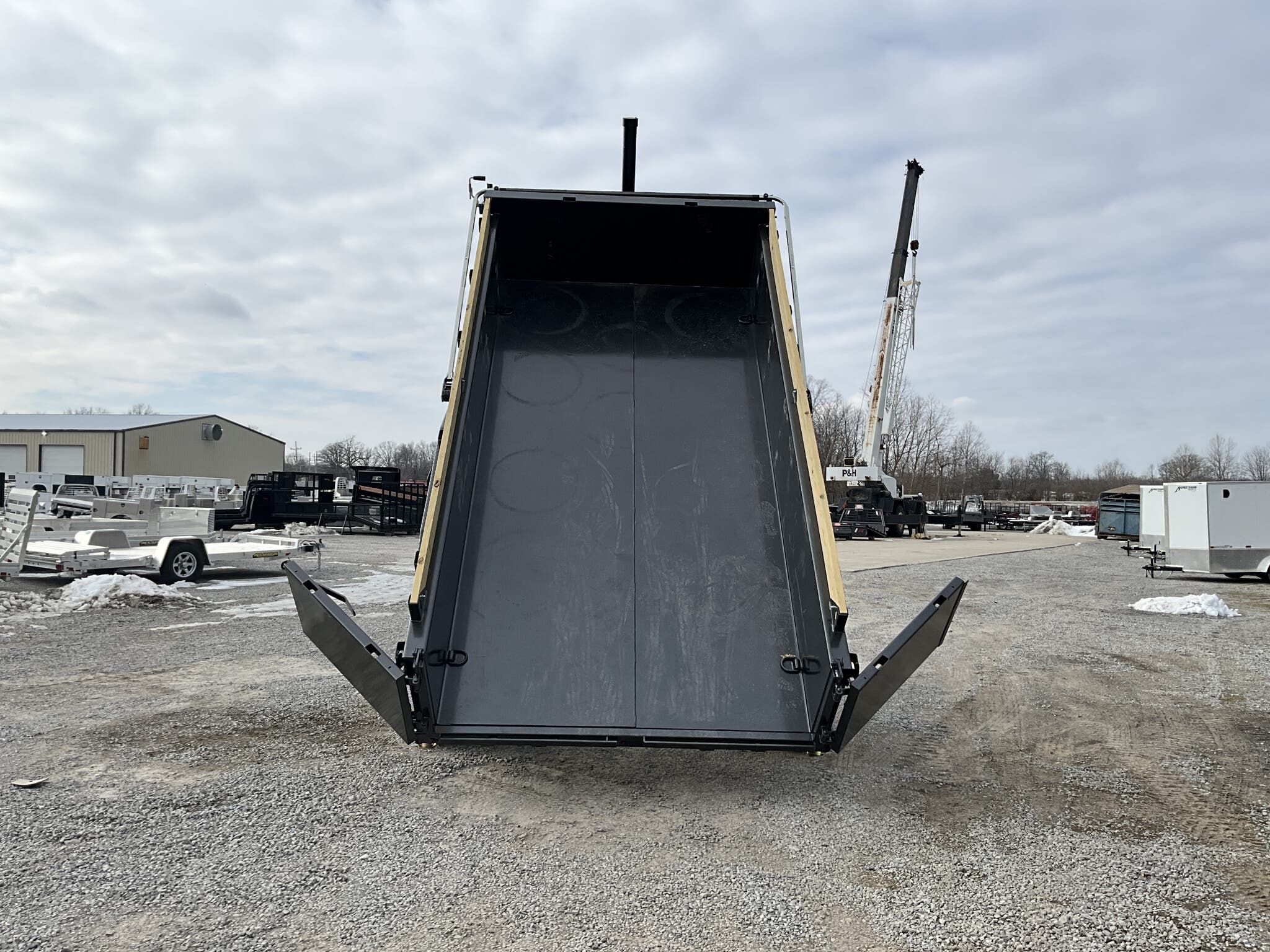

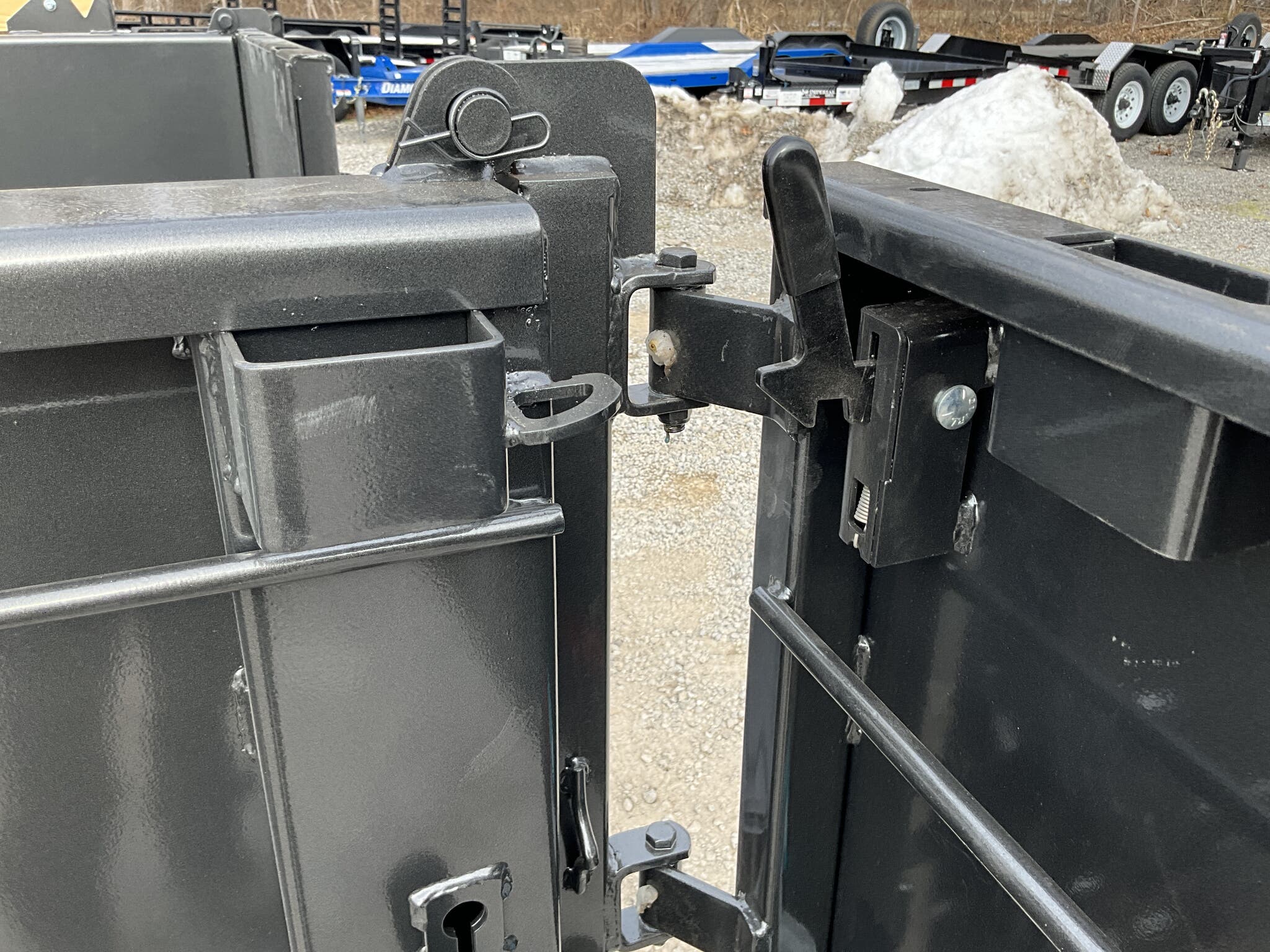

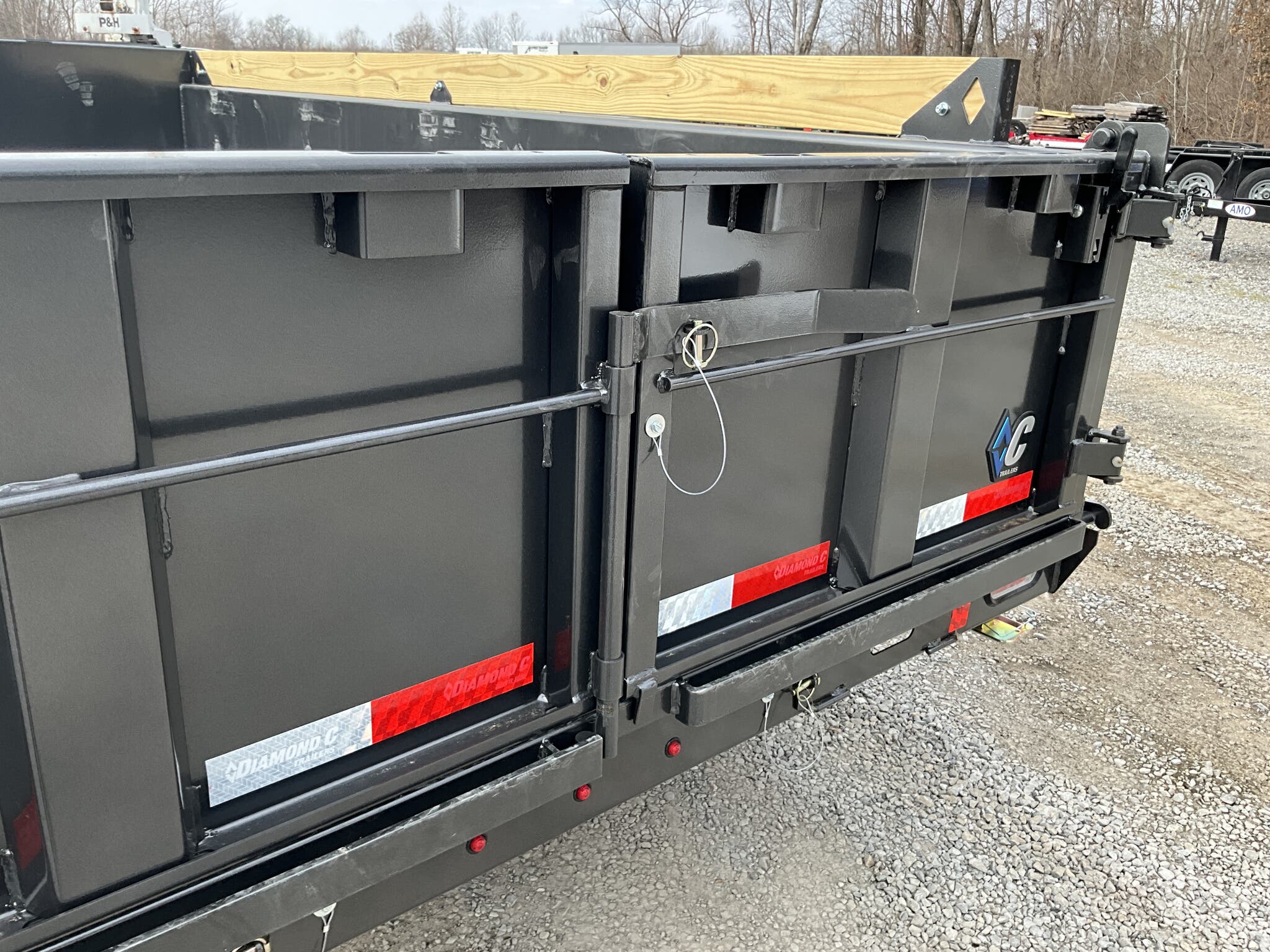

Specs — Gate: 3-way gate with hold-back system

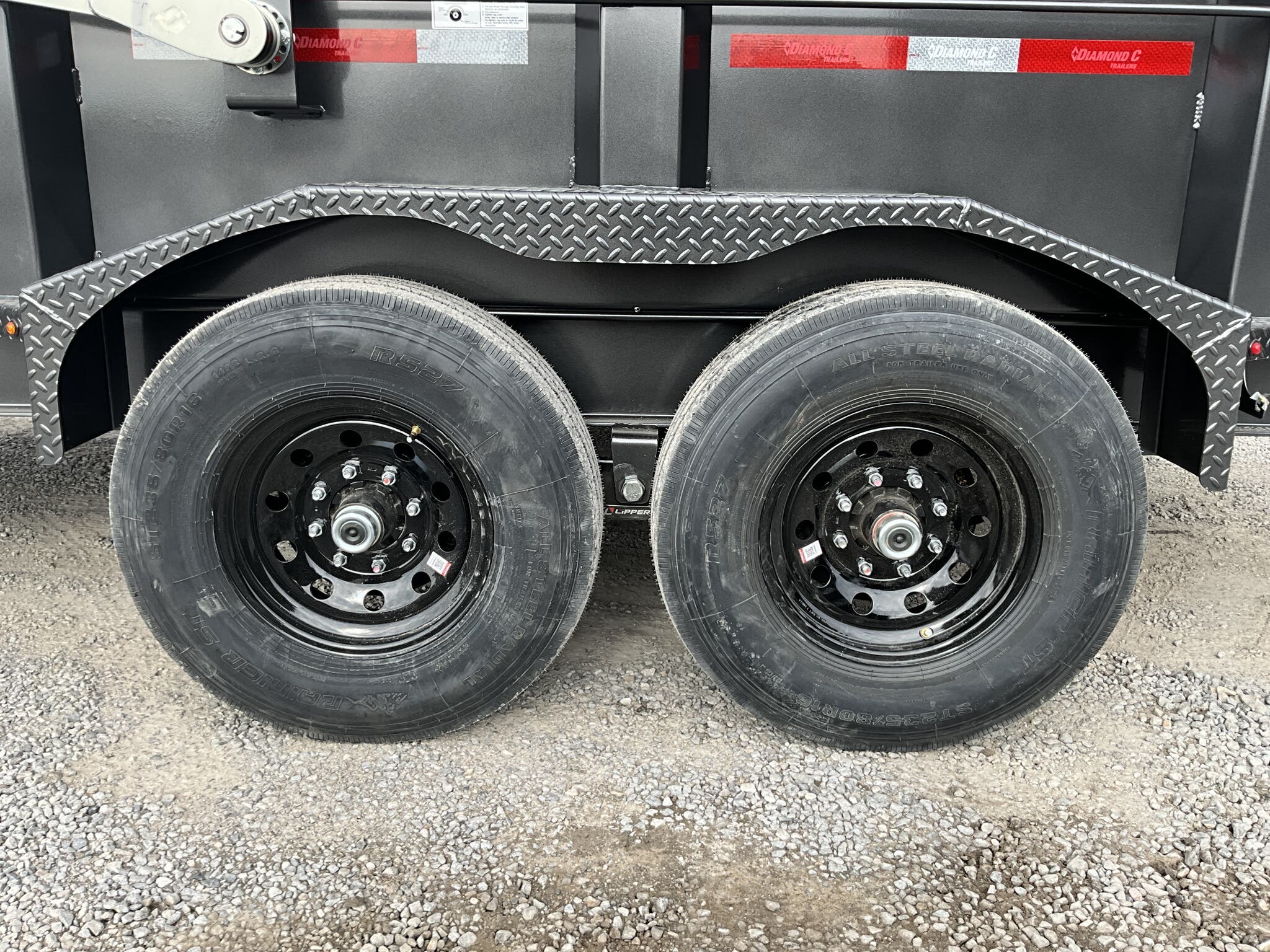

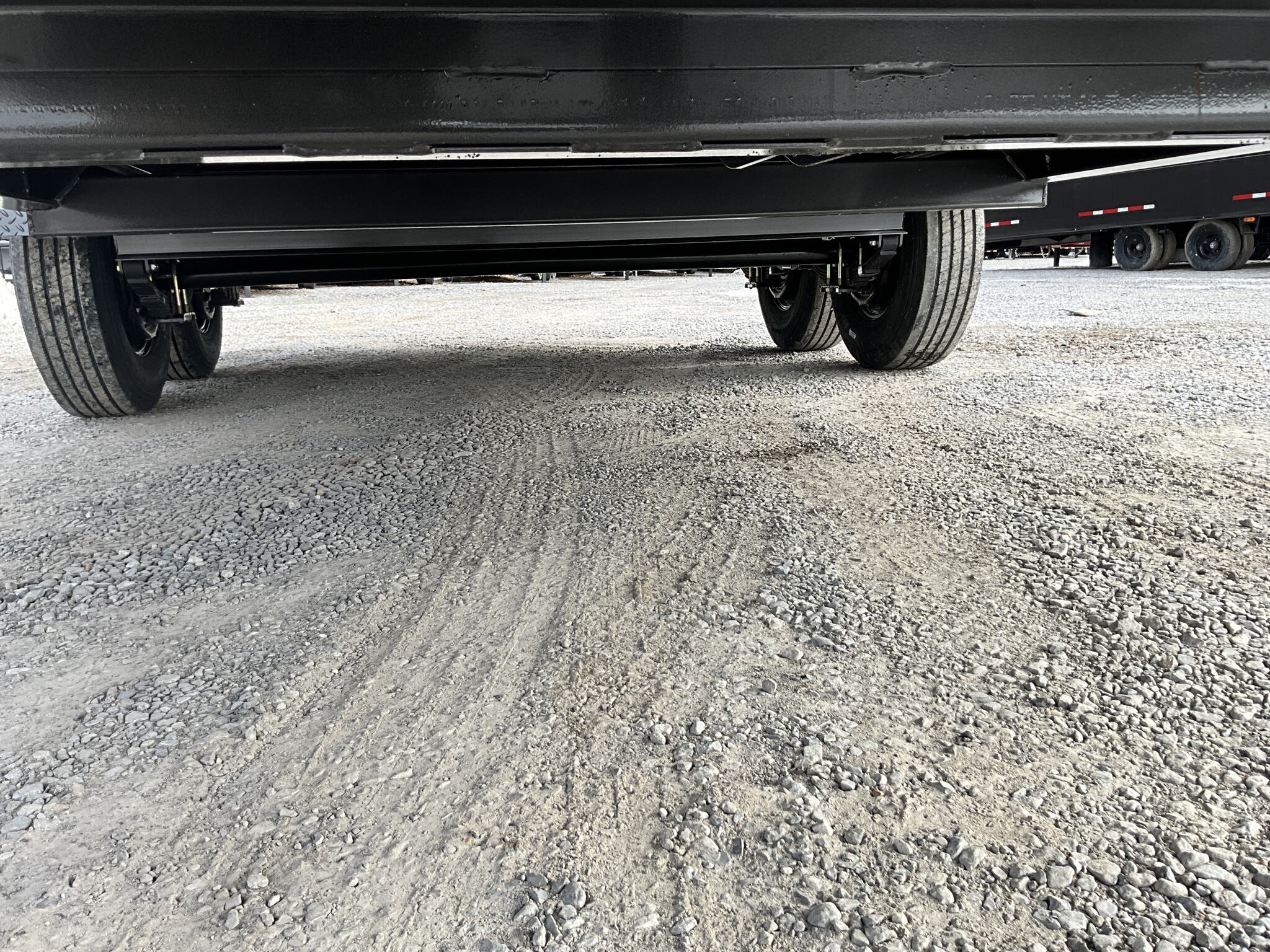

Specs — Axles/Brakes: (2) 7,000 lb Super Lube axles; electric drum brakes
Specs — Suspension: Slipper roller springs
Specs — Coupler: 2-5/16" Demco EZ-Latch, 21K, adjustable channel
Specs — Jack: 20,000 lb hydraulic jack (Pacesetter)
Specs — Hydraulics: Power up / gravity down, high-flow KTI pump

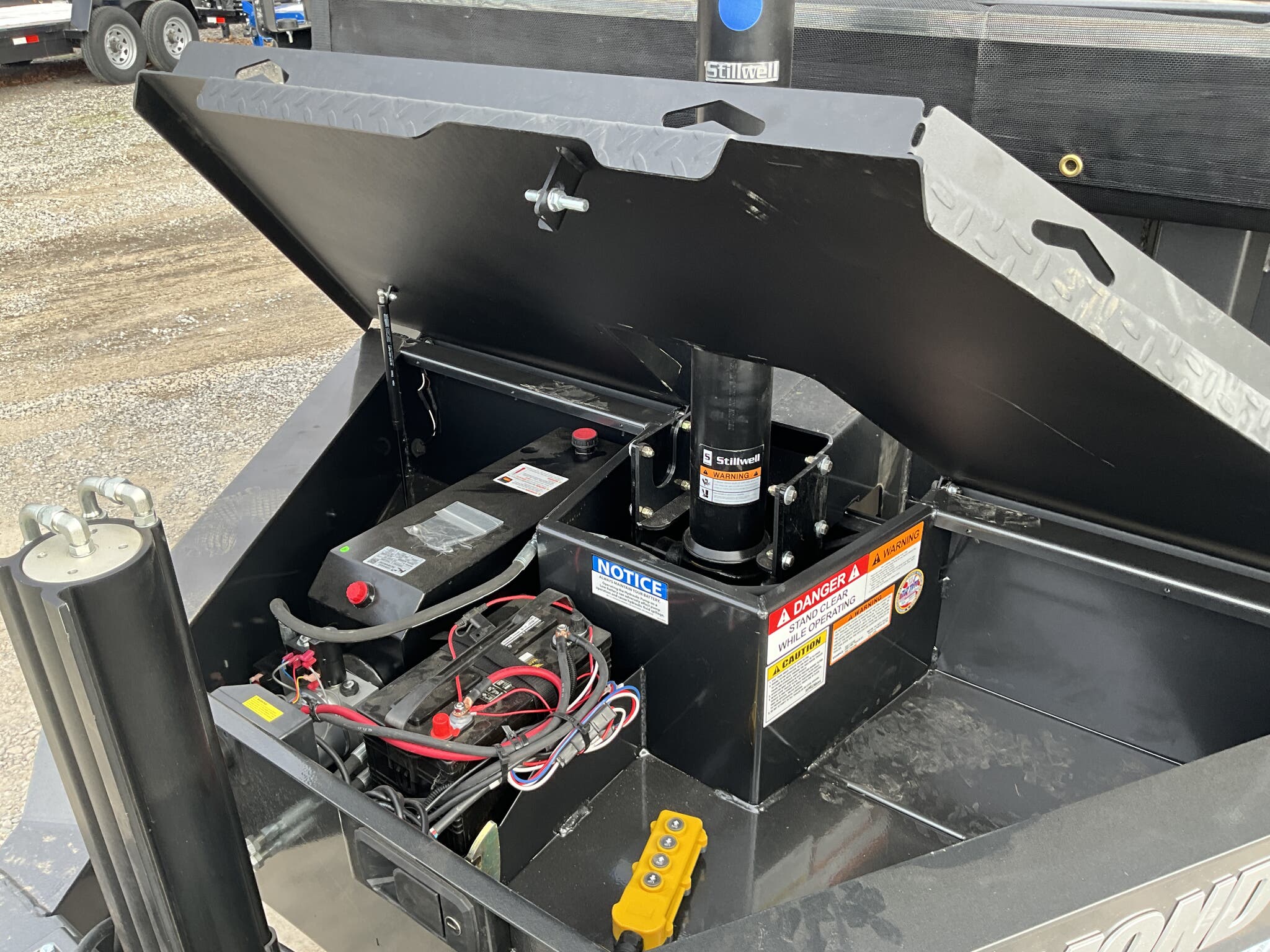

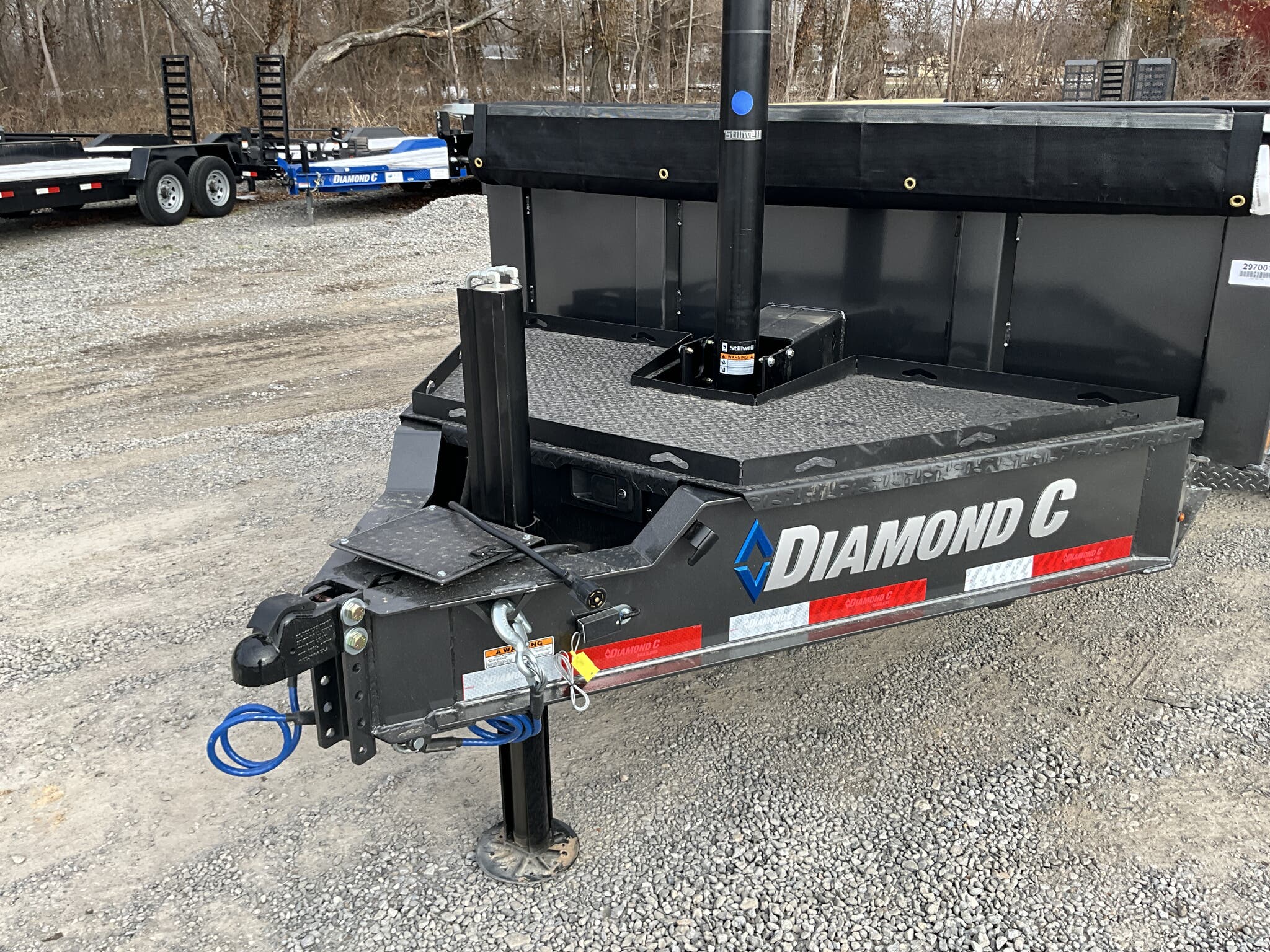

Specs — Storage: HD V-tongue lid
Specs — Rail/Tie-Downs: Stake pockets on each upright; (4) 5/8" D-rings

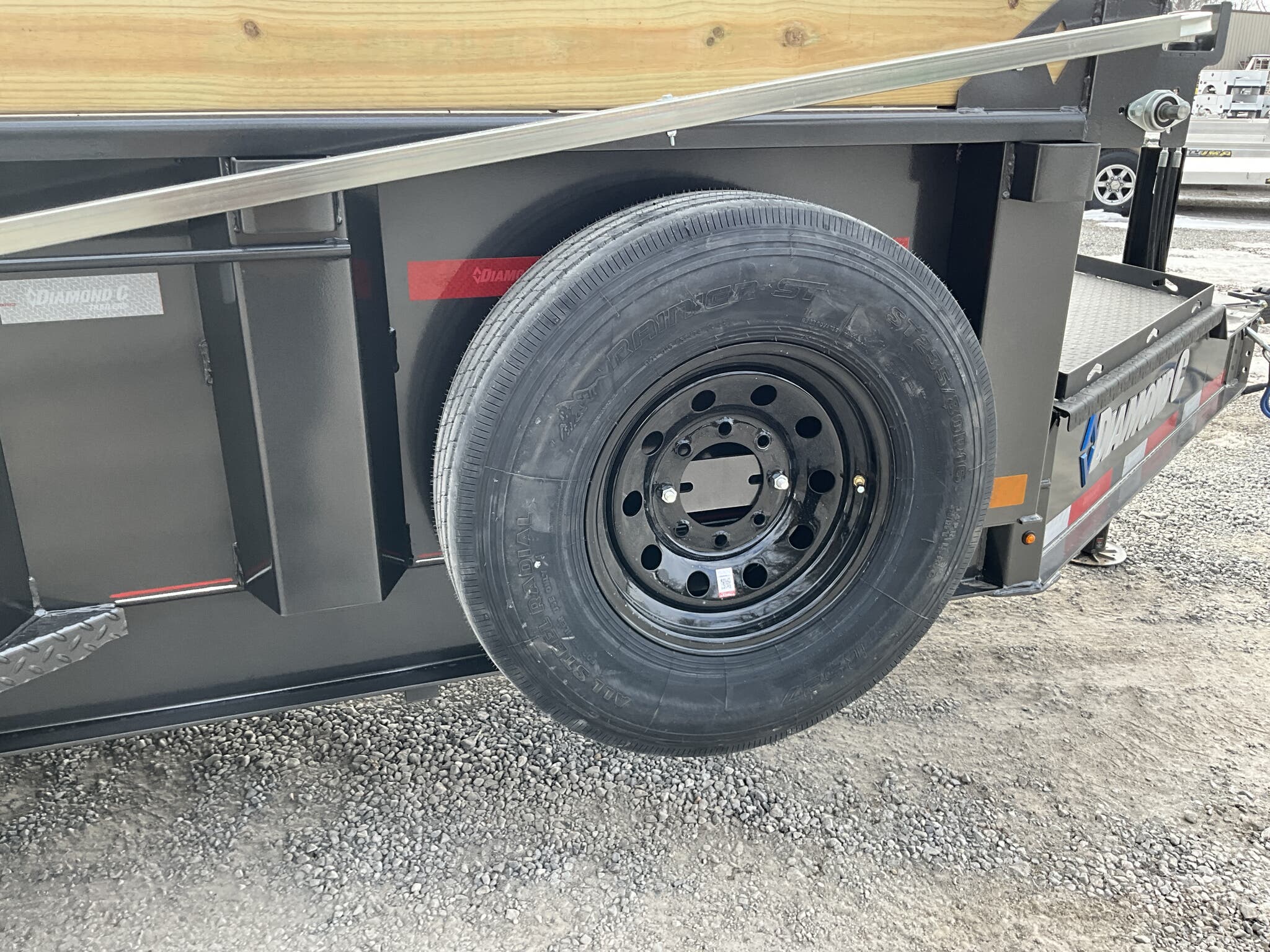

Specs — Tires/Wheels: 235/80R16 14-ply radials; black wheels; spare mount + matching spare
Specs — Lighting/Wiring: All LED lights; sealed wiring harness

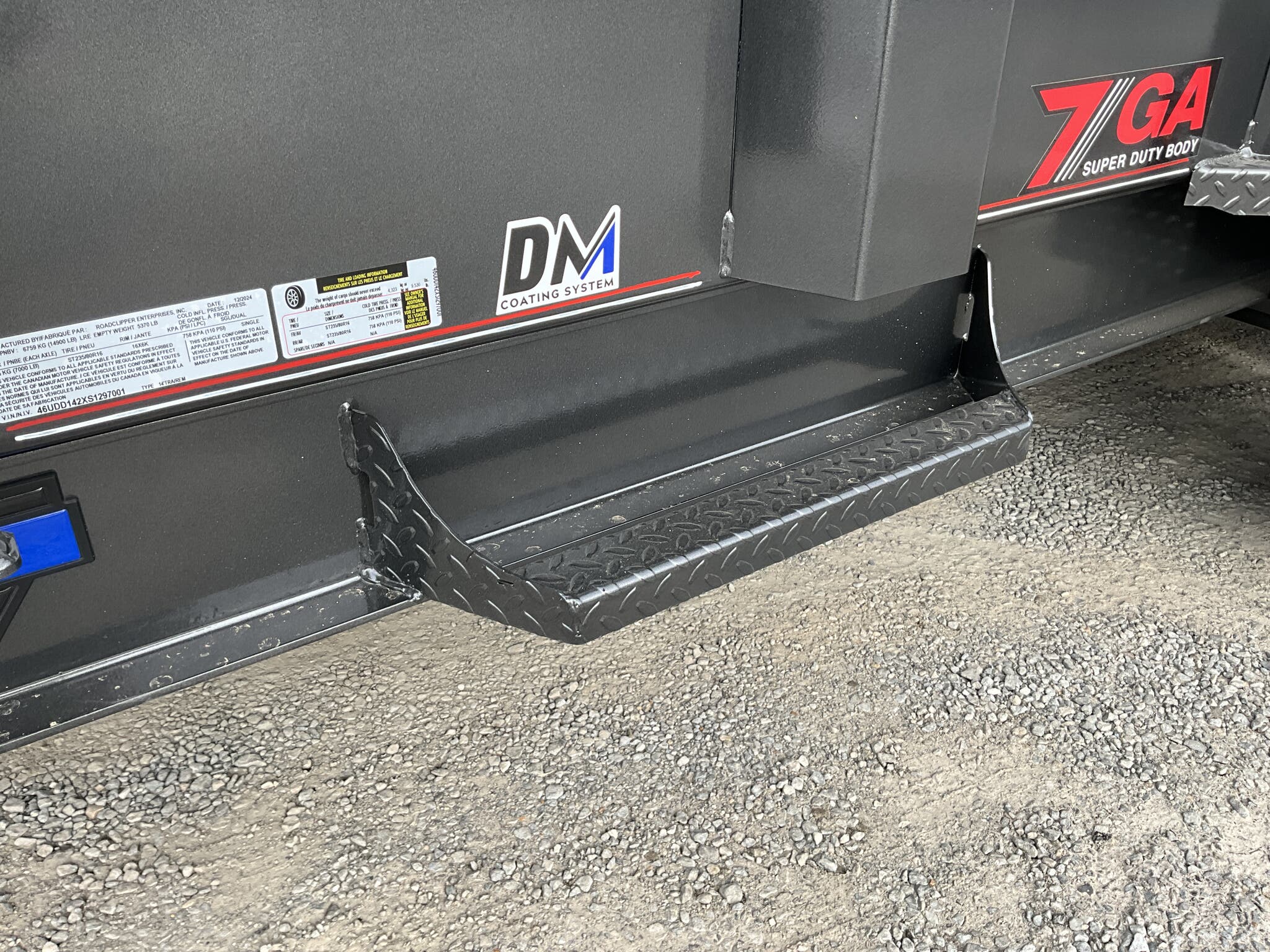

Specs — Paint/Finish: DM Difference Maker coating; Carbon Metallic Gray
Specs — Warranty: 6-year manufacturer warranty (2026+)
Weights & Capacities — Total Axle Capacity (used for payload math): 14,000 lb
Weights & Capacities — Empty/Trailer Weight: 5,370 lb
Weights & Capacities — Payload on Axles (Capacity - Empty): 14,000 - 5,370 = 8,630 lb
Weights & Capacities — Target Tongue Load (Bumper-pull @ ~10% of Capacity): ˜ 1,400 lb
Weights & Capacities — Total Payload Including Tongue Support: 8,630 + 1,400 = 10,030 lb
Delivery from 62864 (Lower 48): Up to 100 miles: $150
Delivery from 62864 (Lower 48): 101–300 miles: $2.00/mile
Delivery from 62864 (Lower 48): 301–1200 miles: $3.00/mile
Delivery from 62864 (Lower 48): Over 1200 miles: $4.00/mile
