2026 Diamond C HXD HXD210-24X102-GRAVITY-TILT

2026 Diamond C HXD HXD210-24X102-GRAVITY-TILT - #DCT12055

(Click to see larger image and other views)

Product Details

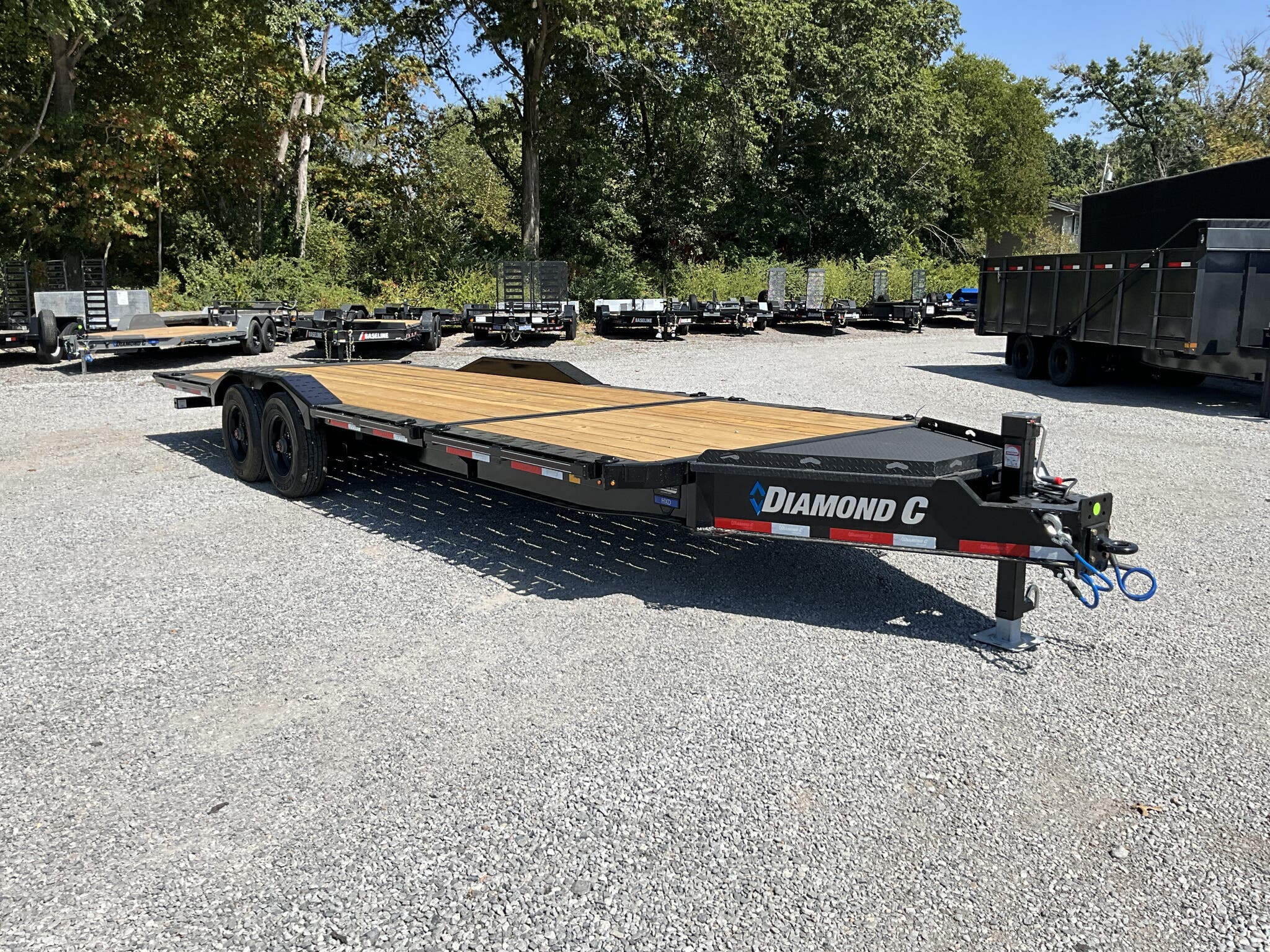

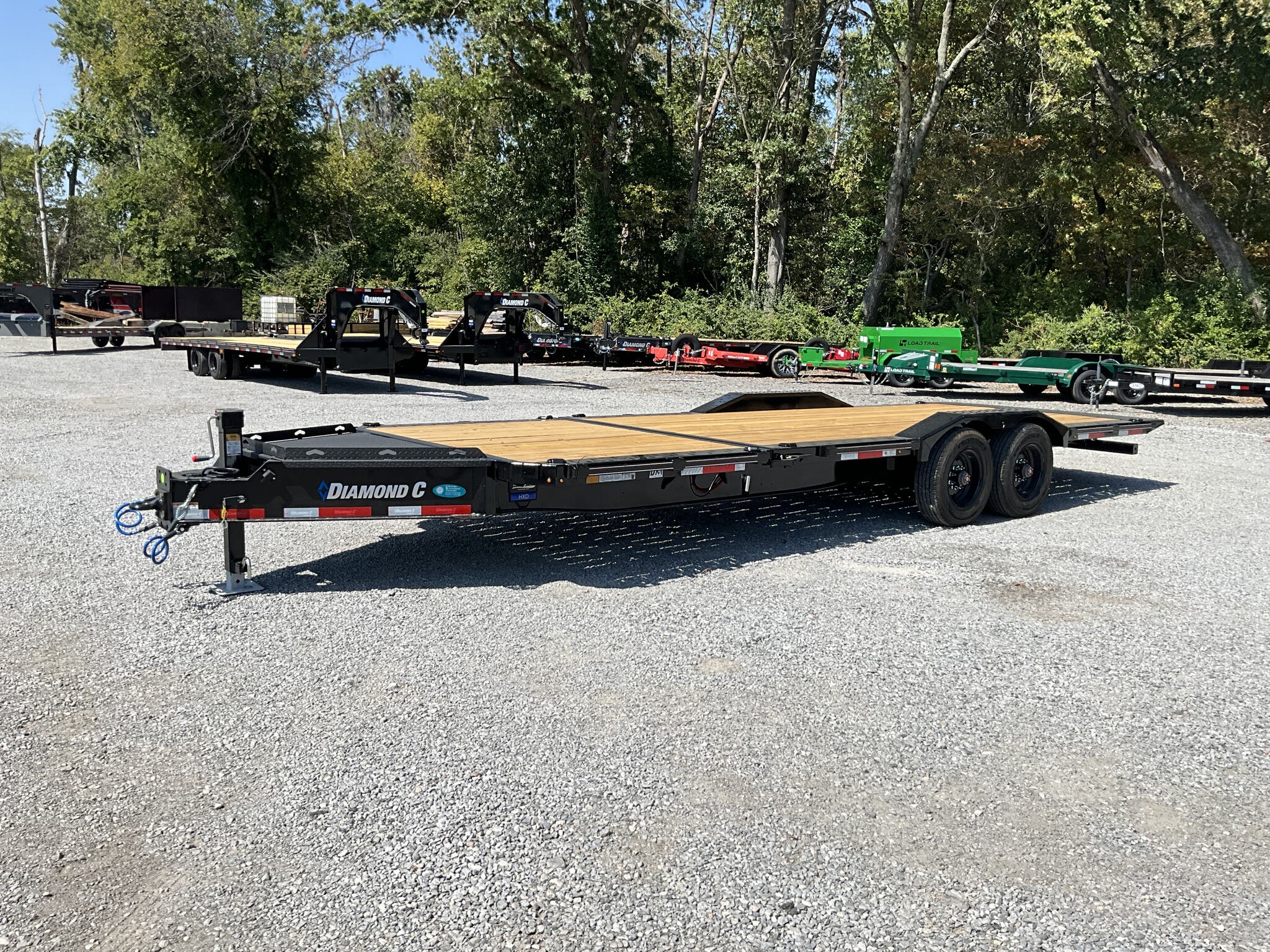

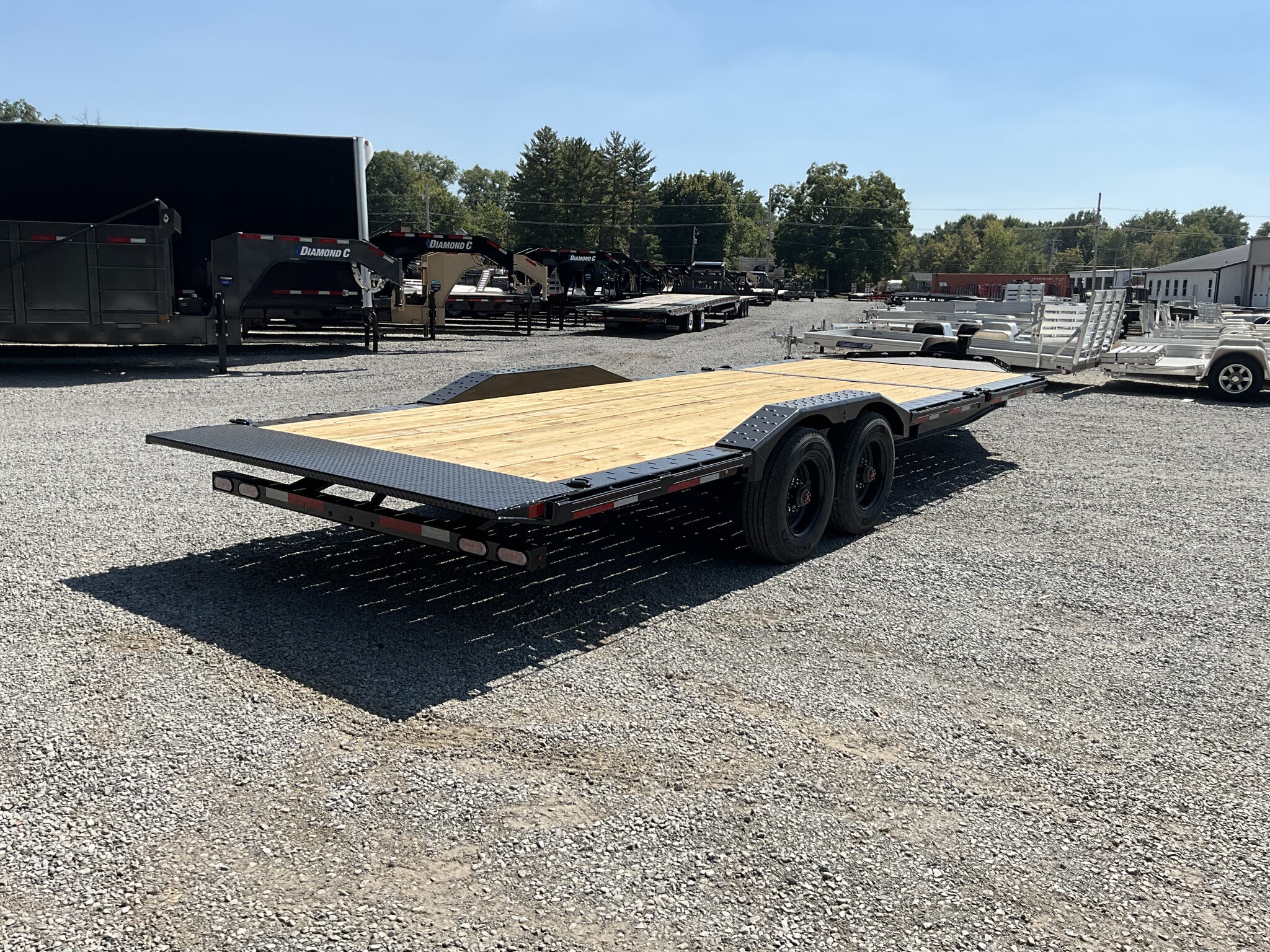

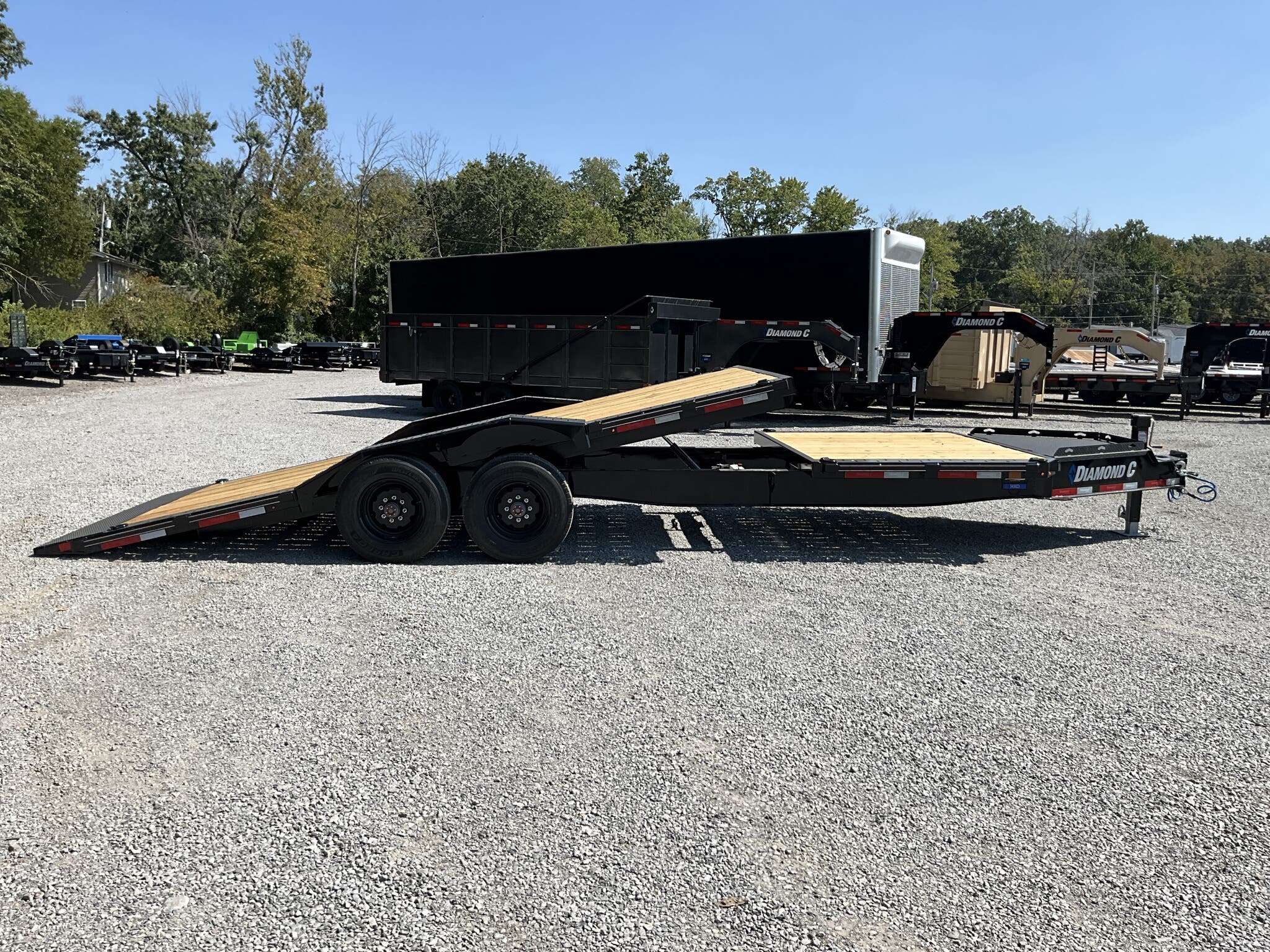

2026 DIAMOND C HXD210 20K 102" × 24' MAX WIDTH HYDRAULIC TILT EQUIPMENT TRAILER, ONYX BLACK, 6' STATIONARY / 18' TILT BED — FOR SALE IN MOUNT VERNON, IL 62864
Feature: Hydraulic dampened gravity tilt system for smooth, controlled operation
Feature: MAX Width package with 10-gauge HD drive-over fenders and frame extension
Feature: Engineered beam frame with 3" I-beam crossmembers on 16" centers

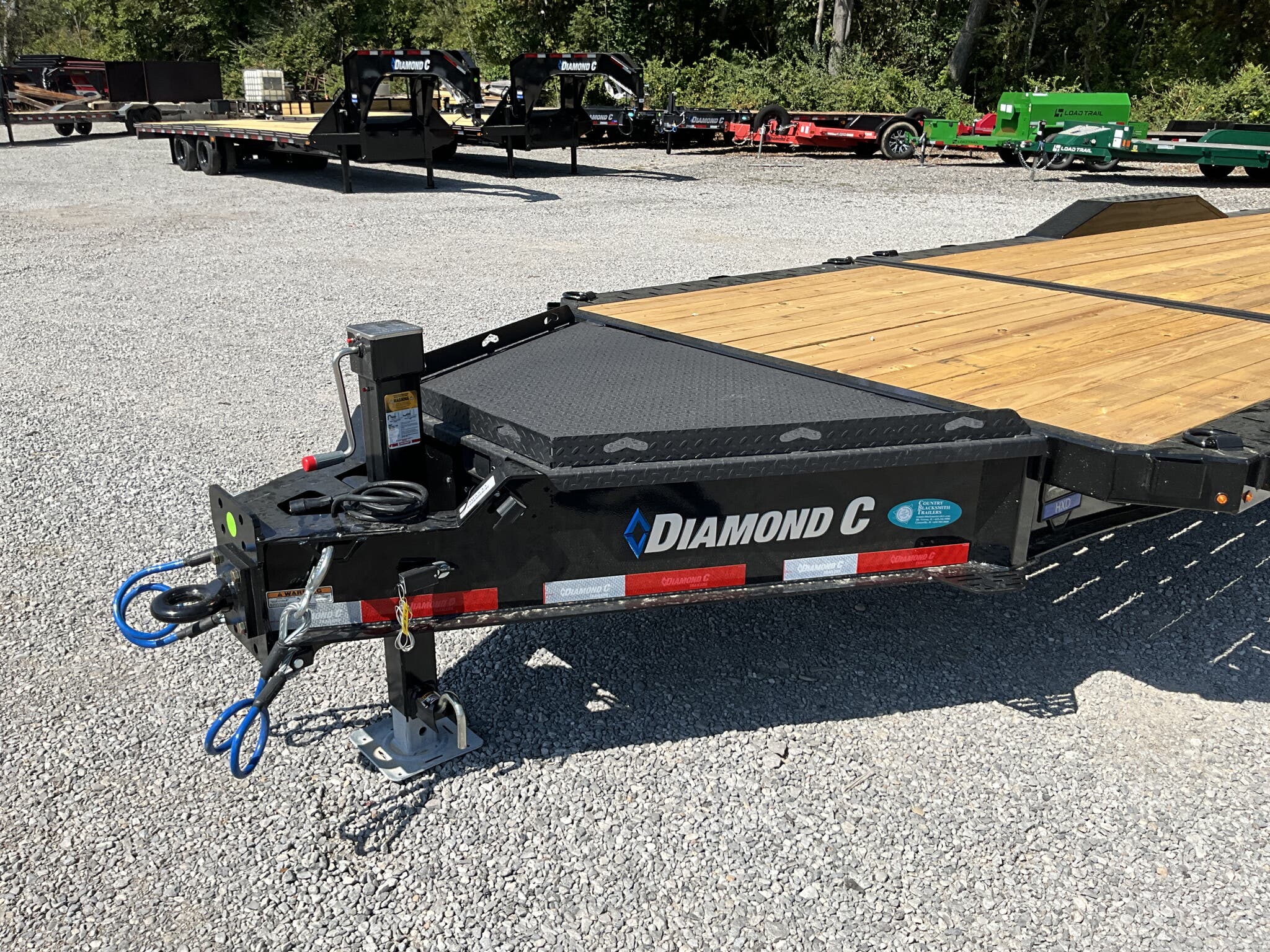

Feature: 25K Demco EZ-Latch flat mount coupler for secure heavy-duty towing
Feature: 5/8" D-ring tie-down system with rub rail, stake pockets, and pipe spools

Specs — Model: HXD210 Max Width Hydraulic Tilt Equipment Trailer
Specs — Size: 102" × 24' (6' stationary + 18' tilt)
Specs — GVWR: 20,000 lb
Specs — Axles/Brakes: (2) 10,000 lb drop axles with electric drum brakes and oil bath hubs
Specs — Suspension: 10K torsion axles
Specs — Frame: Engineered beam frame
Specs — Crossmembers: 3" I-beam on 16" centers
Specs — Deck: 2" treated wood floor

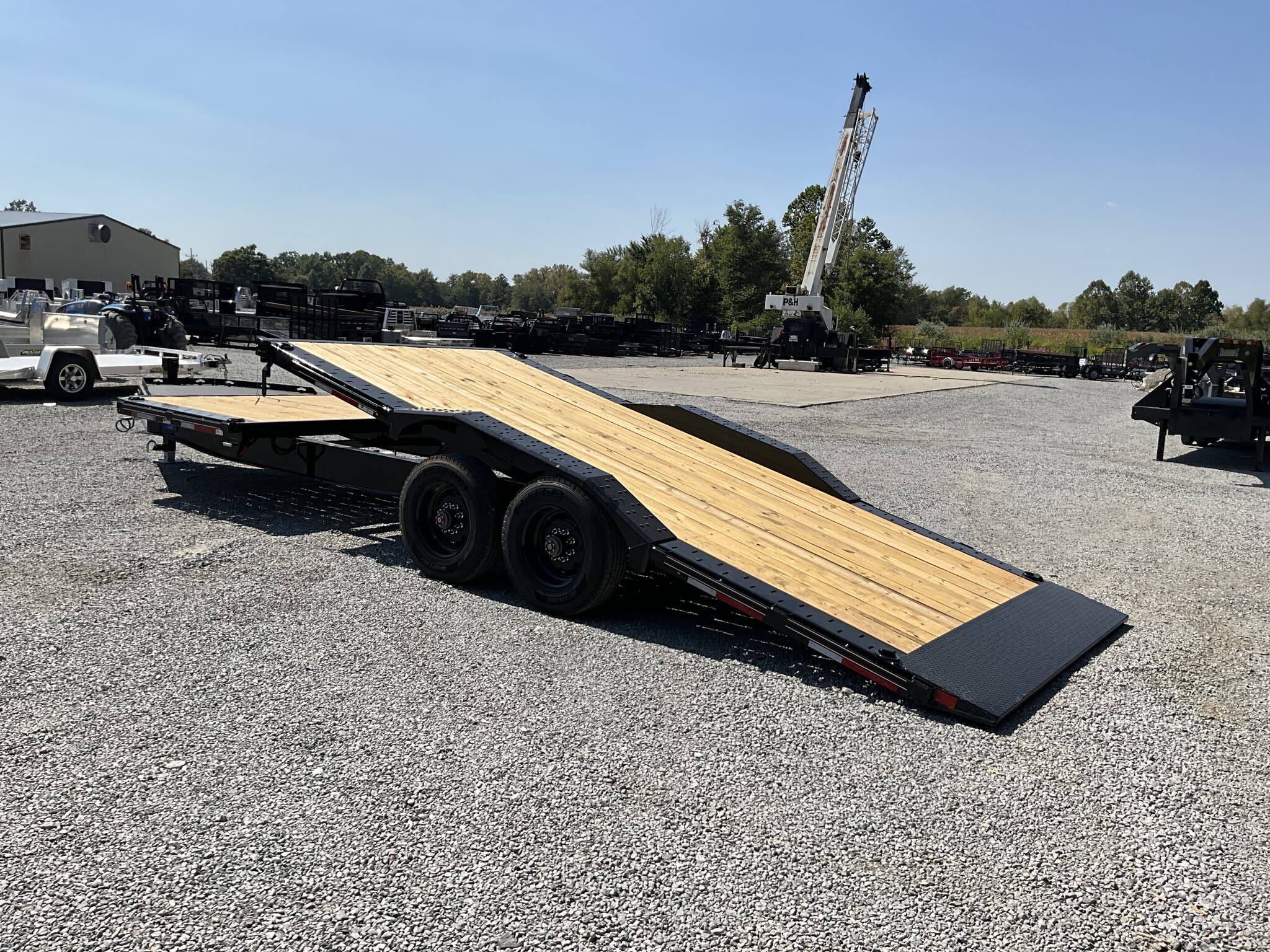

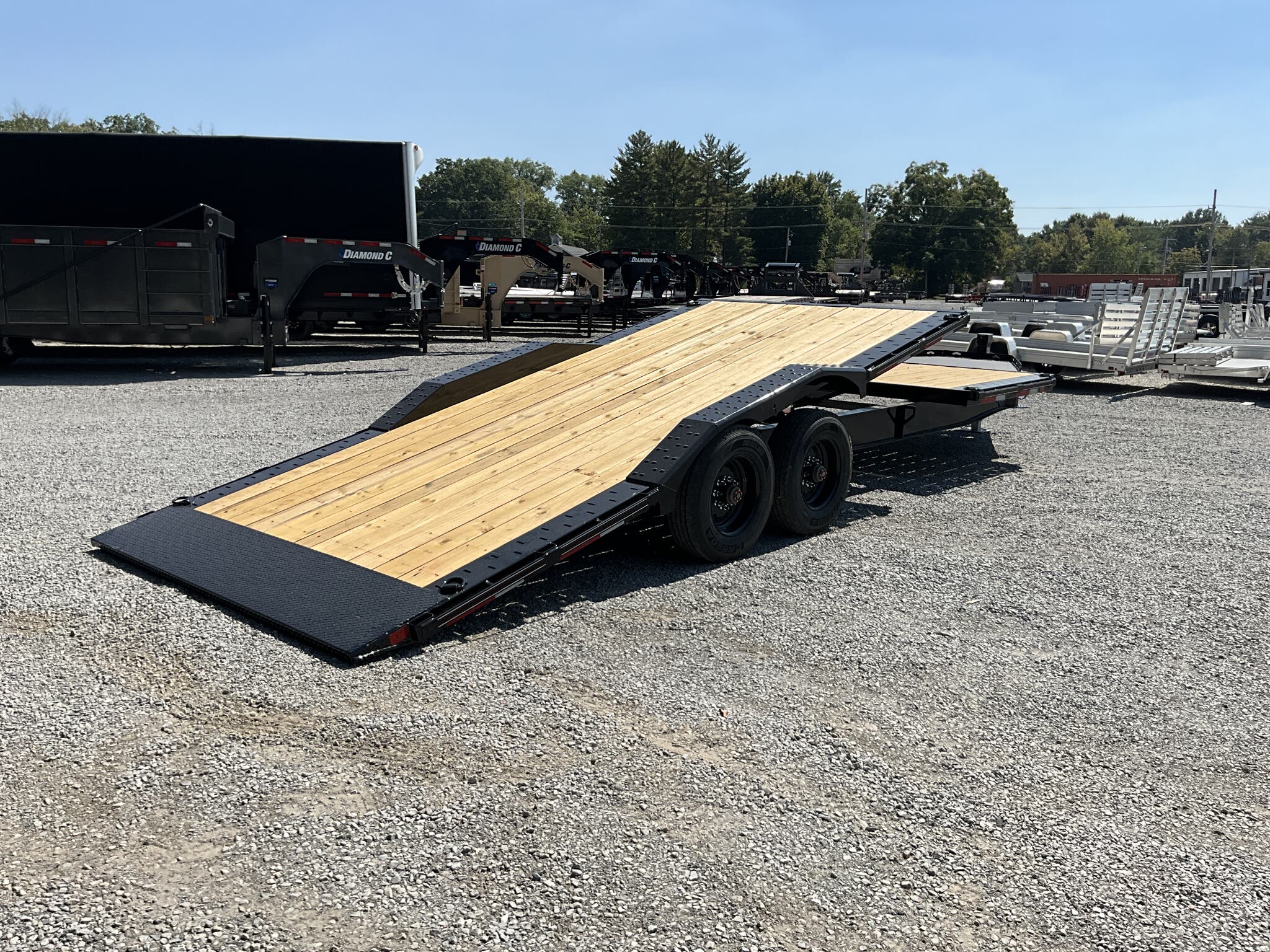

Specs — Tilt: Hydraulic dampened gravity tilt system
Specs — Coupler: 2-5/16" 25K Demco EZ-Latch flat mount
Specs — Jack: 15K 2-speed drop-leg jack

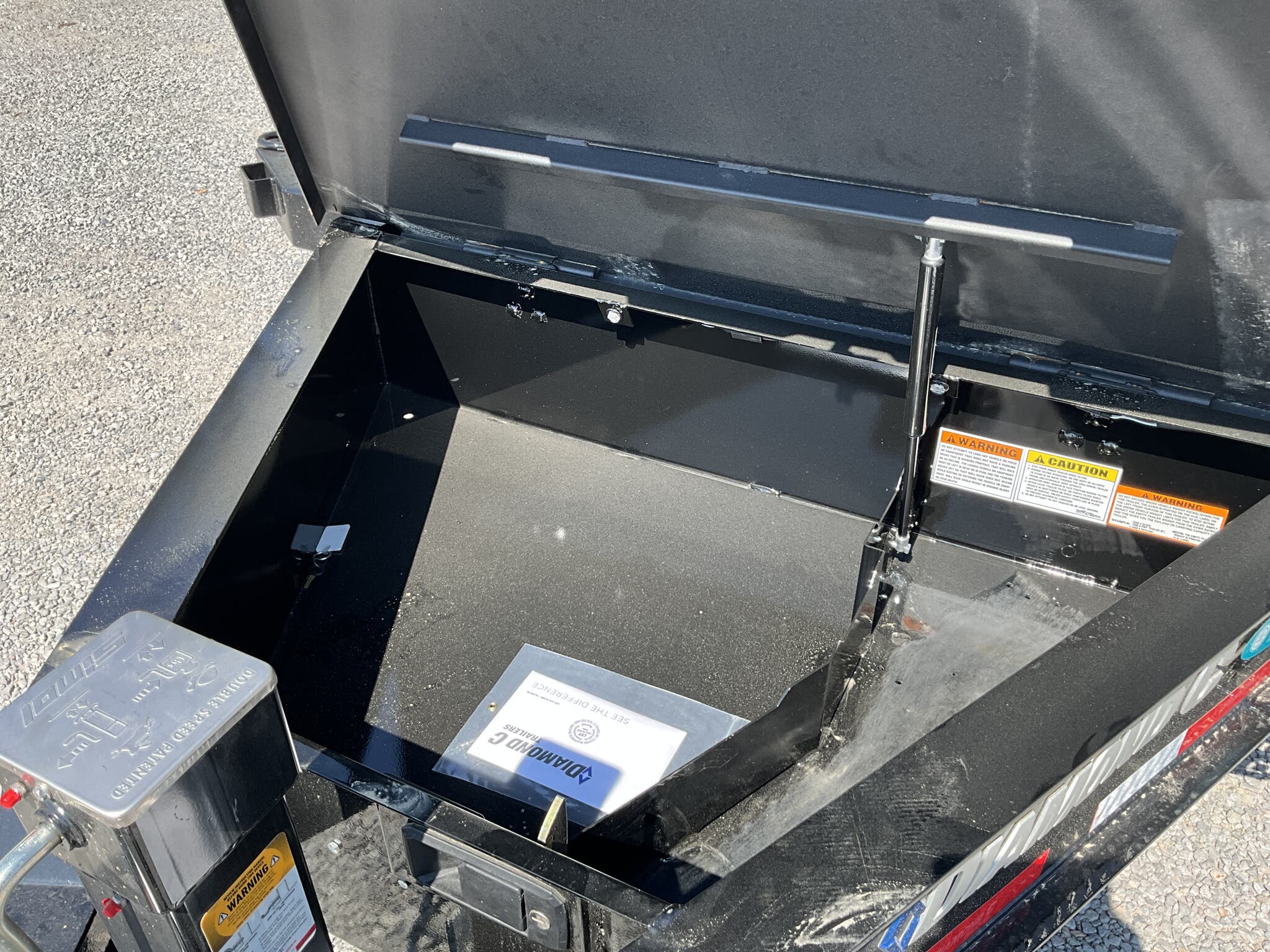

Specs — Storage: HD V-tongue toolbox
Specs — Fenders: 10-gauge HD drive-over fenders with frame extension

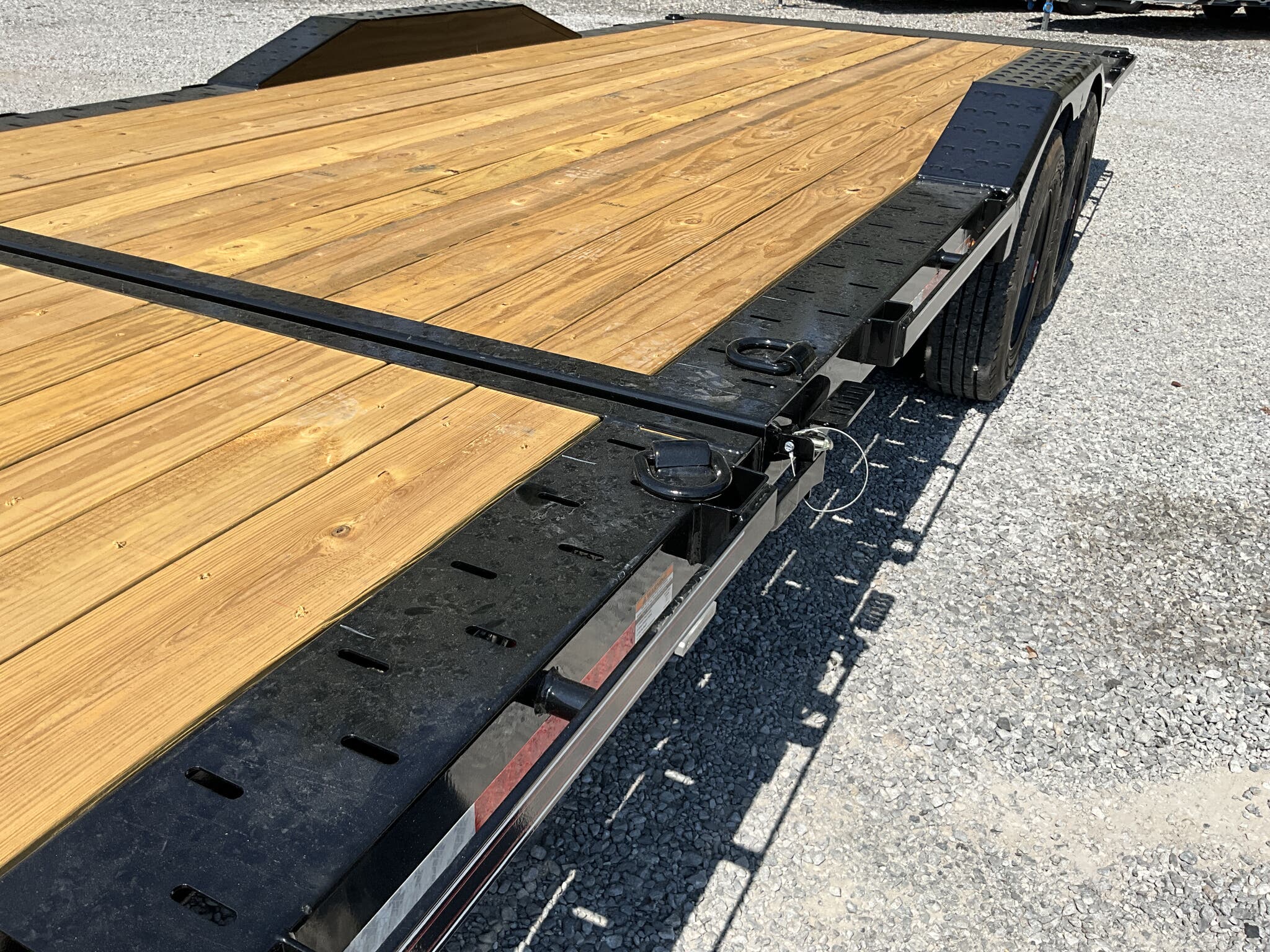

Specs — Tie Downs: (8) 5/8" D-rings
Specs — Rail: 2" × 3/8" rub rail with stake pockets and pipe spools

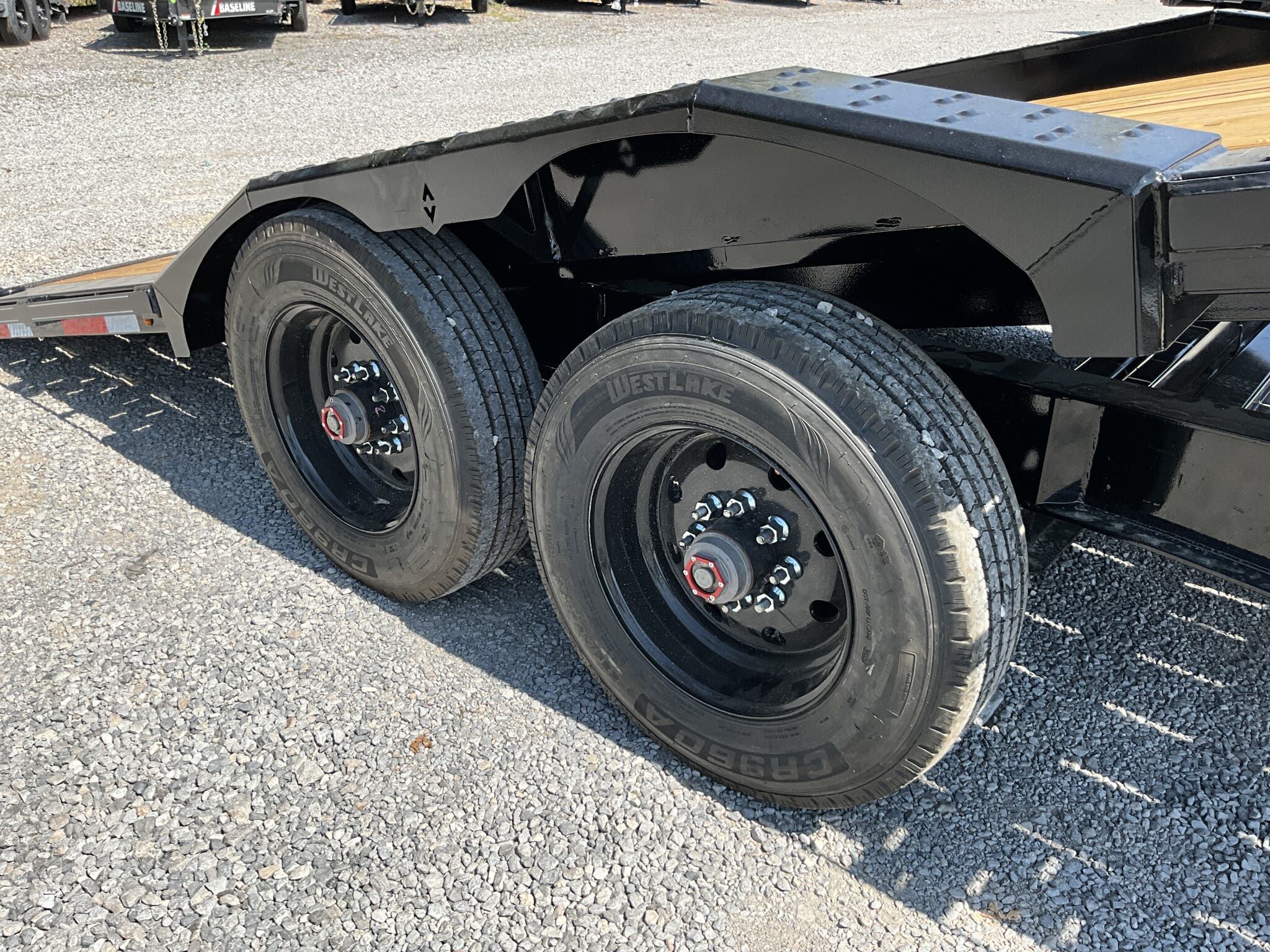

Specs — Tires/Wheels: ST235/75R17.5 super single 18-ply, black steel wheels
Specs — Spare: Matching ST235/75R17.5 super single 18-ply with tongue mount
Specs — Spare Mount: Passenger side tongue mount
Specs — Lighting: Full LED lighting package
Specs — Finish: Onyx Black powdercoat
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 354805-1

Weights & Capacities
GVWR: 20,000 lb
Empty Weight: 5,220 lb
Payload on Axles: 20,000 - 5,220 = 14,780 lb
Target Tongue Load (10% of GVWR): 2,000 lb
Total Effective Payload: 16,780 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile

Stock Number: DCT12055

Condition: New

Width: 8' 6"

Length: 24' 0"

Trailer Type: TILT DECKS

Model: HXD HXD210-24X102-GRAVITY-TILT

Rear Configuration: TILT TRAILER

Exterior Color: ONYX BLACK

Location: Mount Vernon

Hitch Type: BUMPER PULL

GVWR: 20000

Est. Empty Weight: 5130

# of Axles: 2

Construction Type: STEEL

Year: 2026

VIN: 46UDT2428T1312055

Stock #: DCT12055

Brand: DIAMOND C

Is Rental: false

Our Price: $20,685.00
