2026 Diamond C HDT HDTGN210-24X82 - #DCT12309

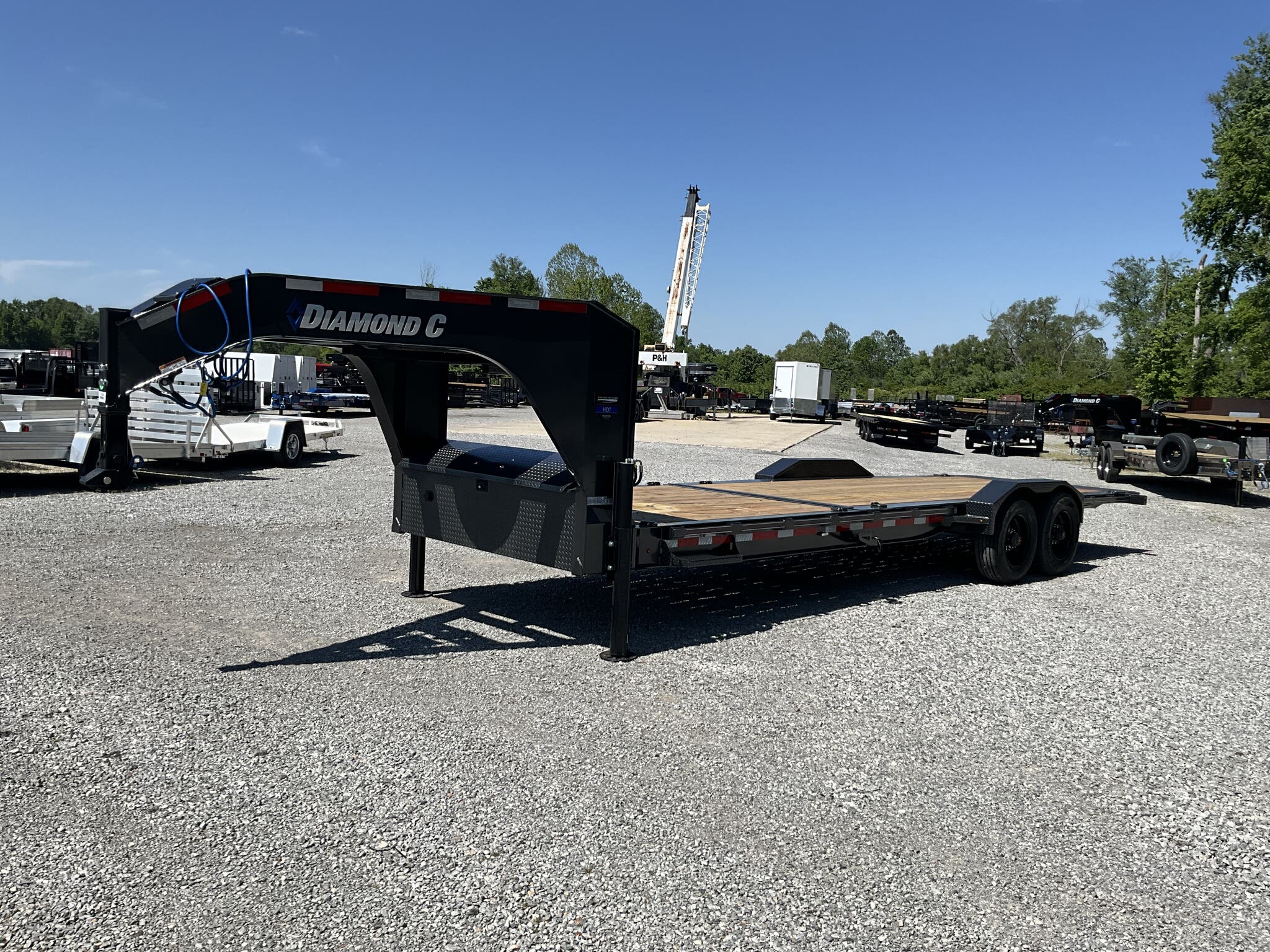

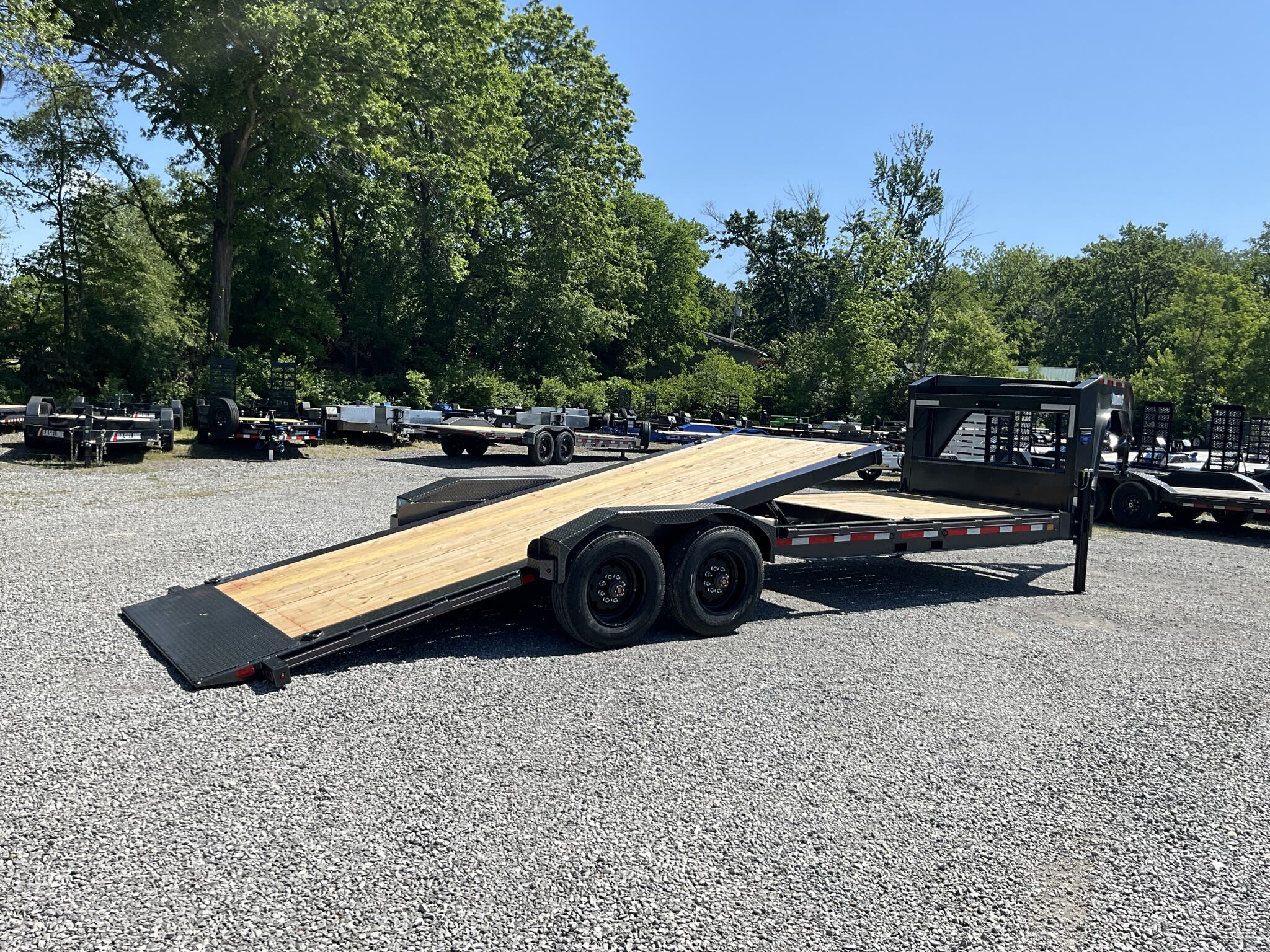

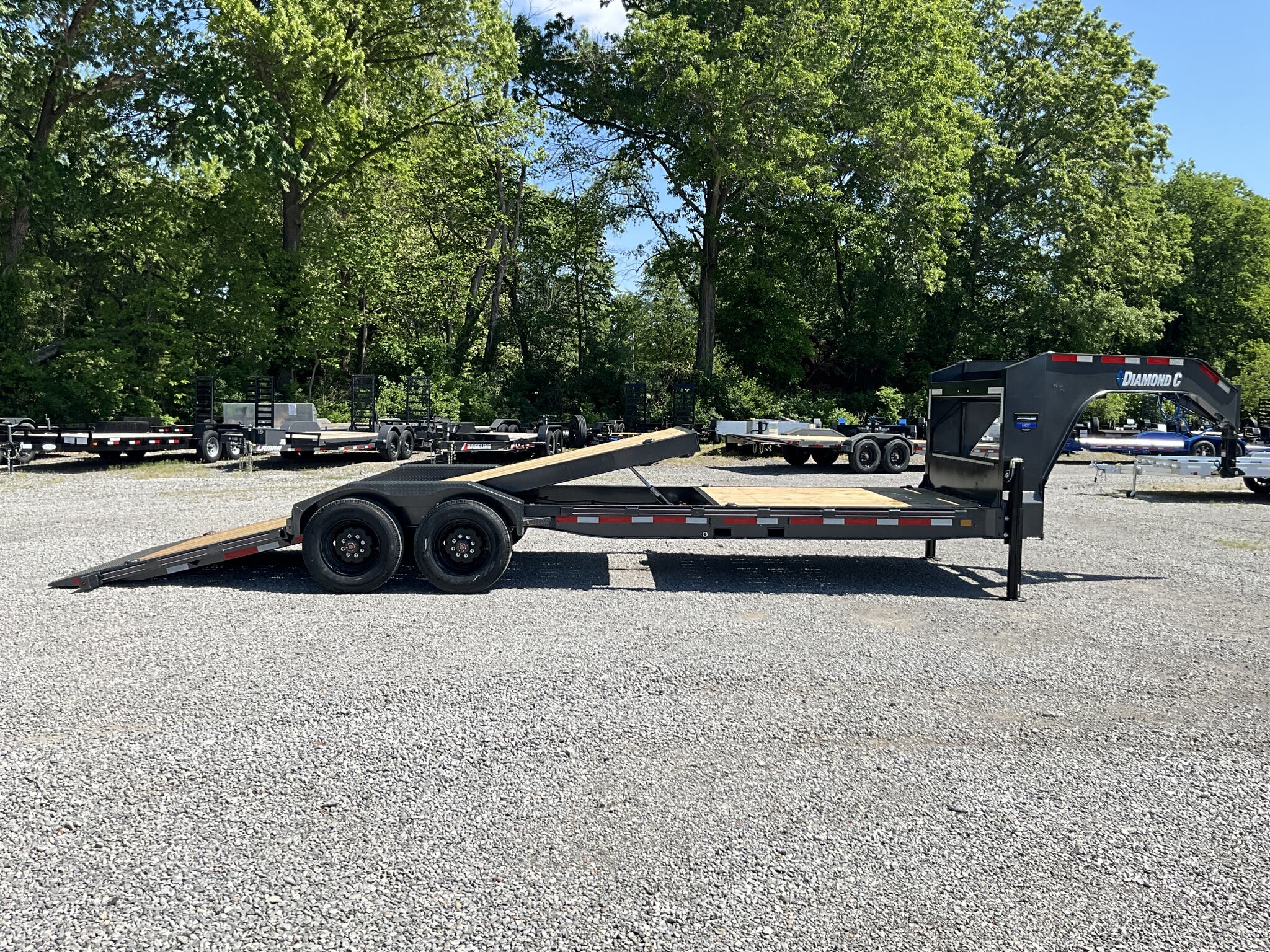

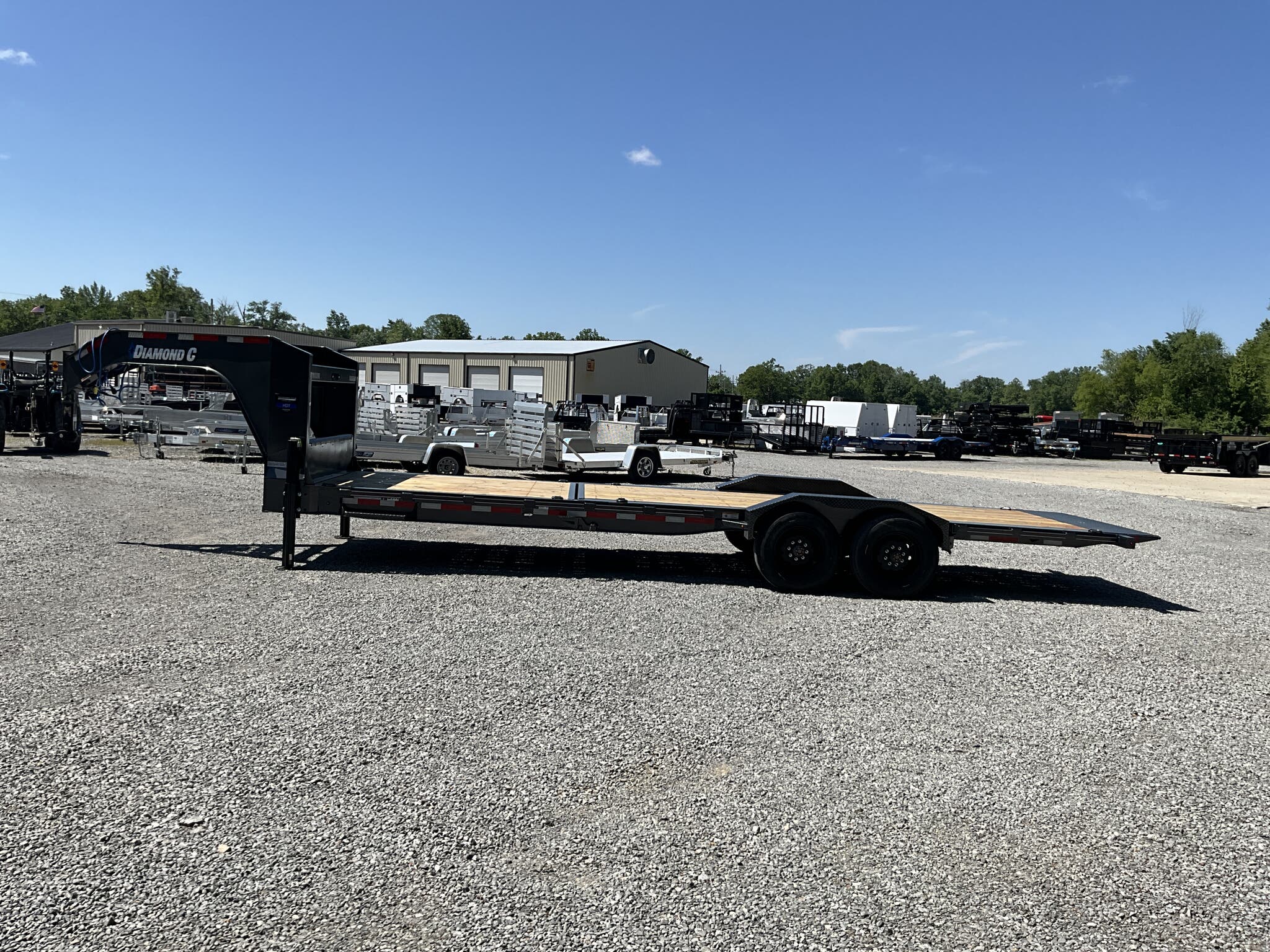

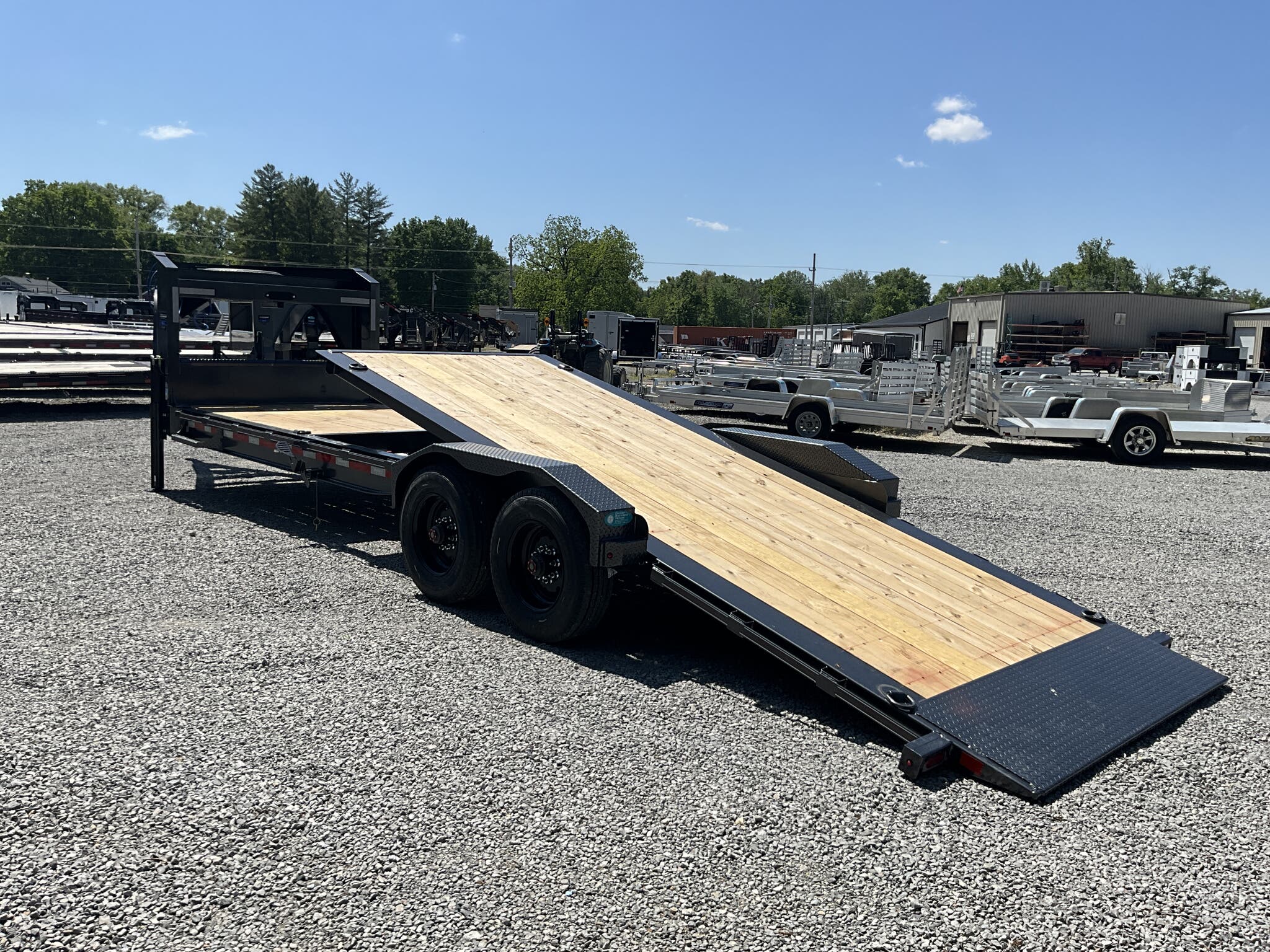

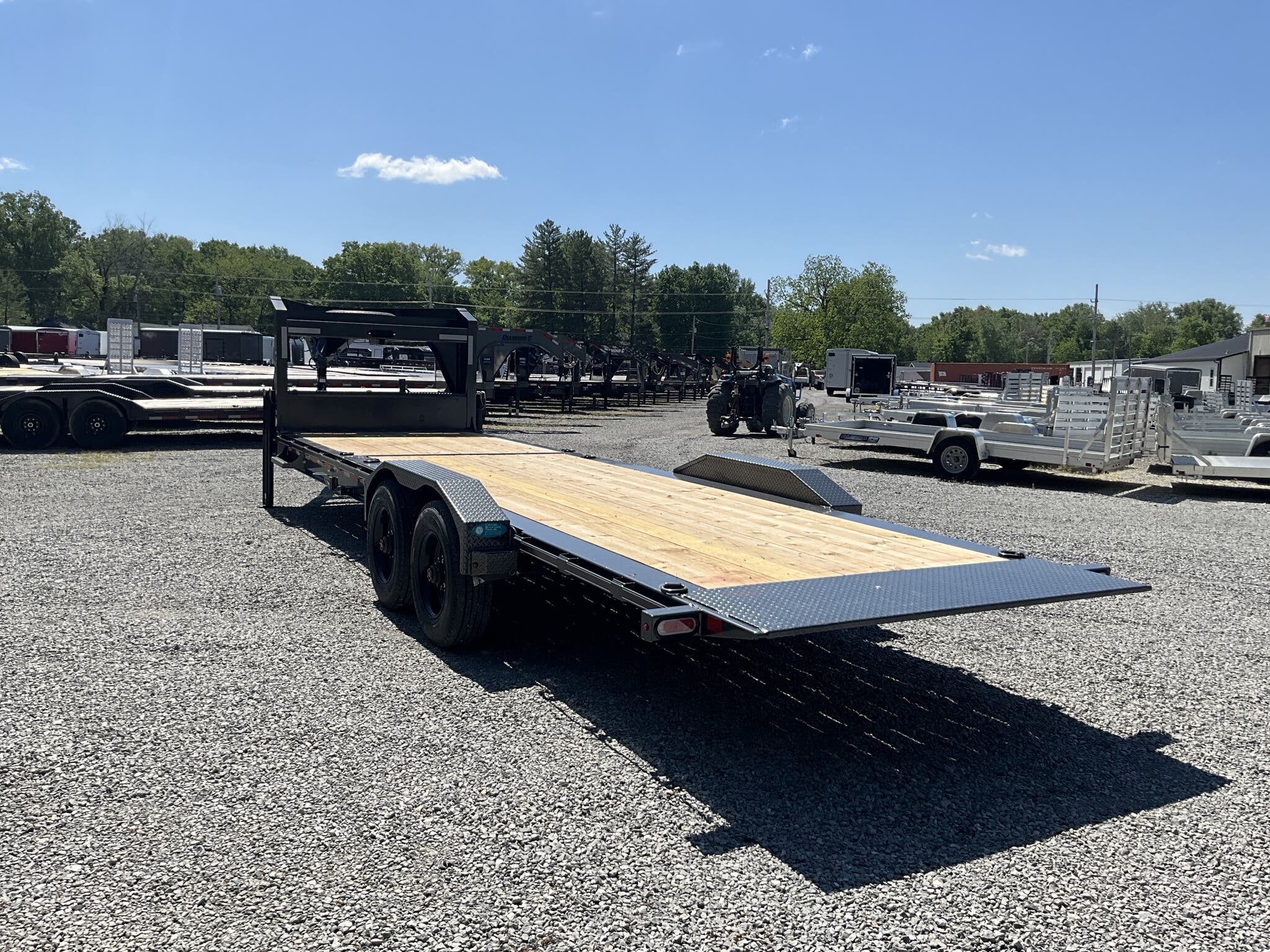

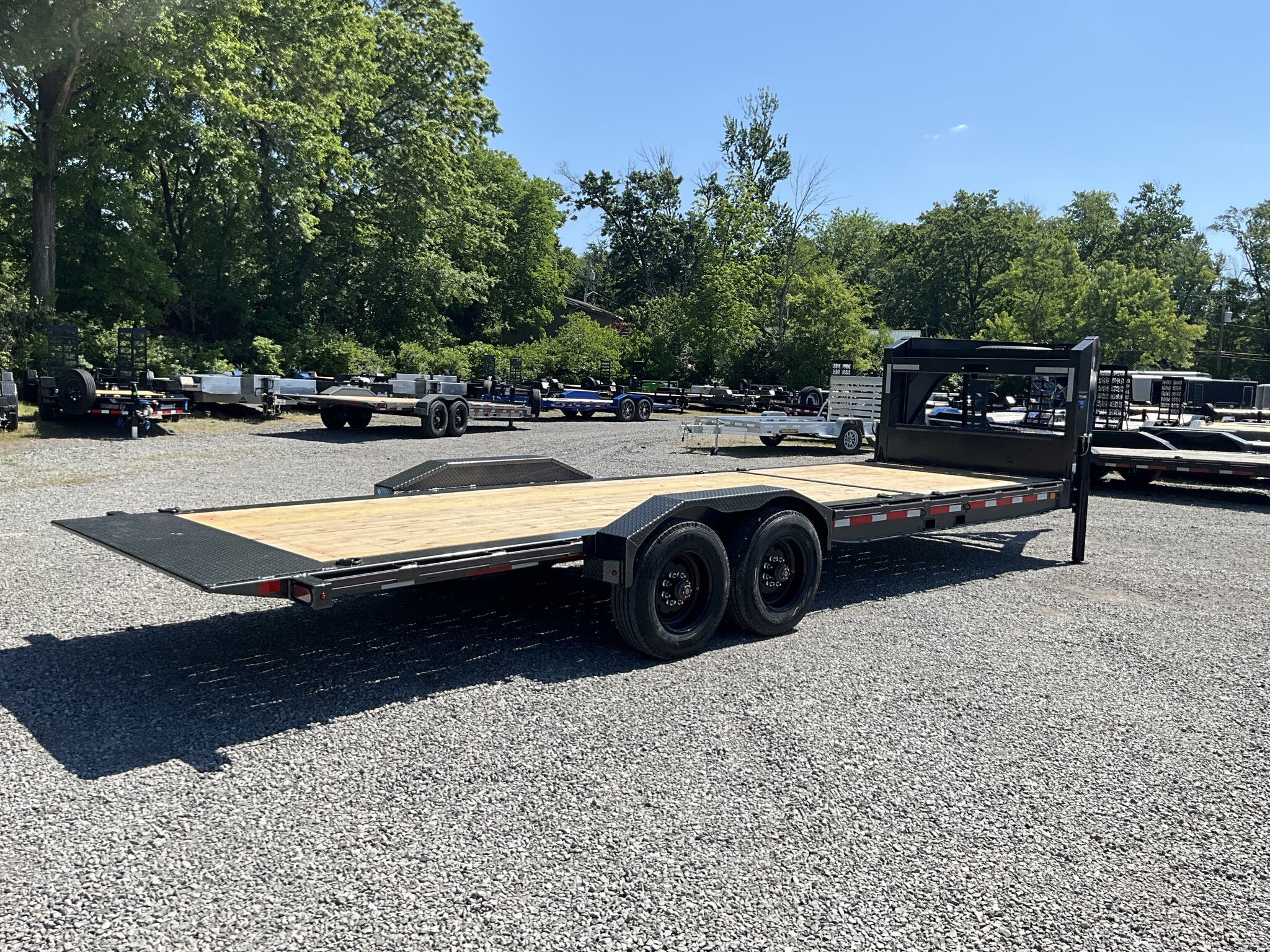

2026 DIAMOND C HDT210-GN 20K 82" × 26' HYDRAULICALLY DAMPENED TILT GOOSENECK EQUIPMENT TRAILER, CARBON METALLIC GRAY, 8' STATIONARY / 18' TILT BED — FOR SALE IN MOUNT VERNON, IL 62864
Feature: Gooseneck Pacesetter Edition with hydraulic dampened gravity tilt system

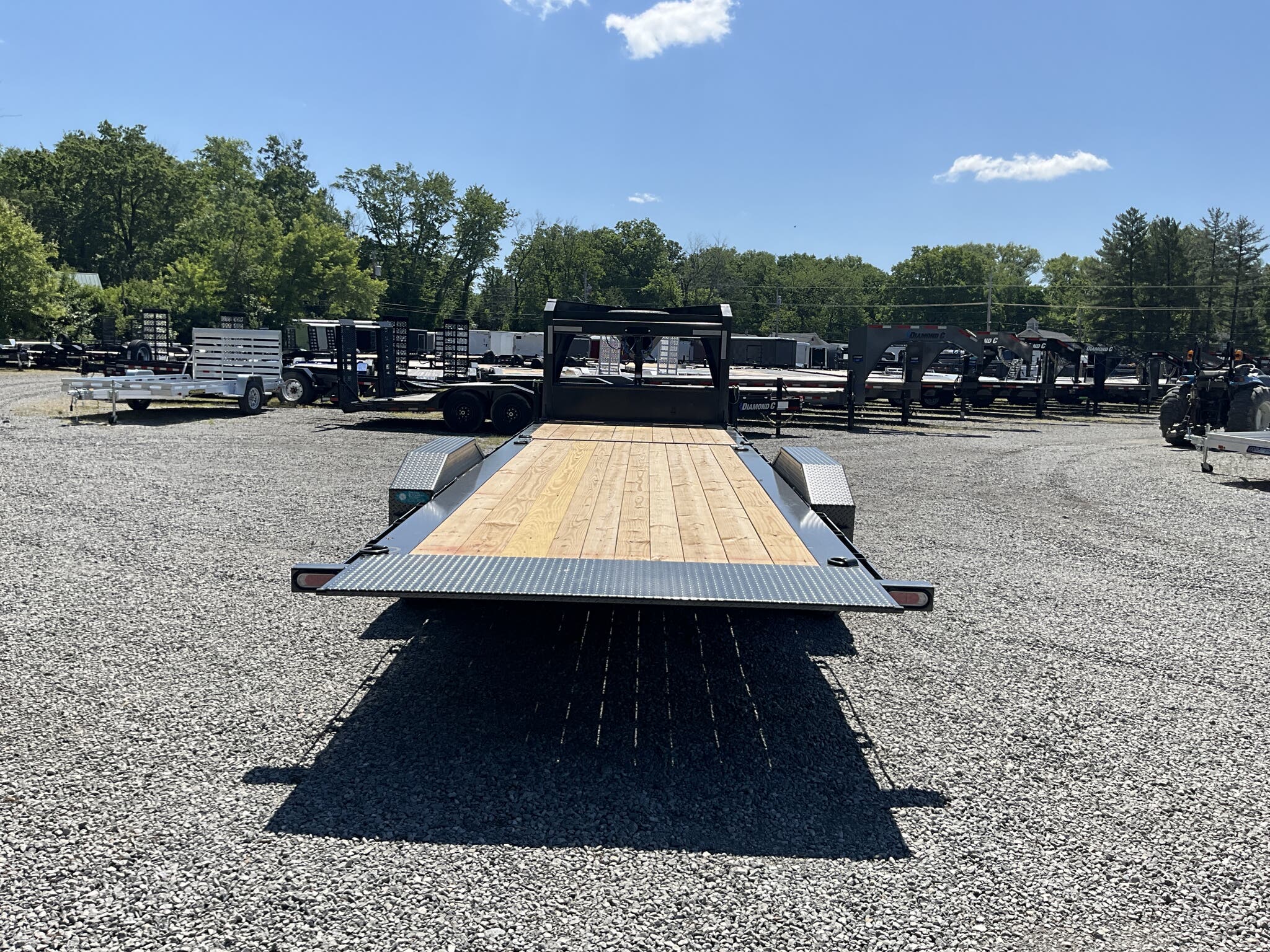

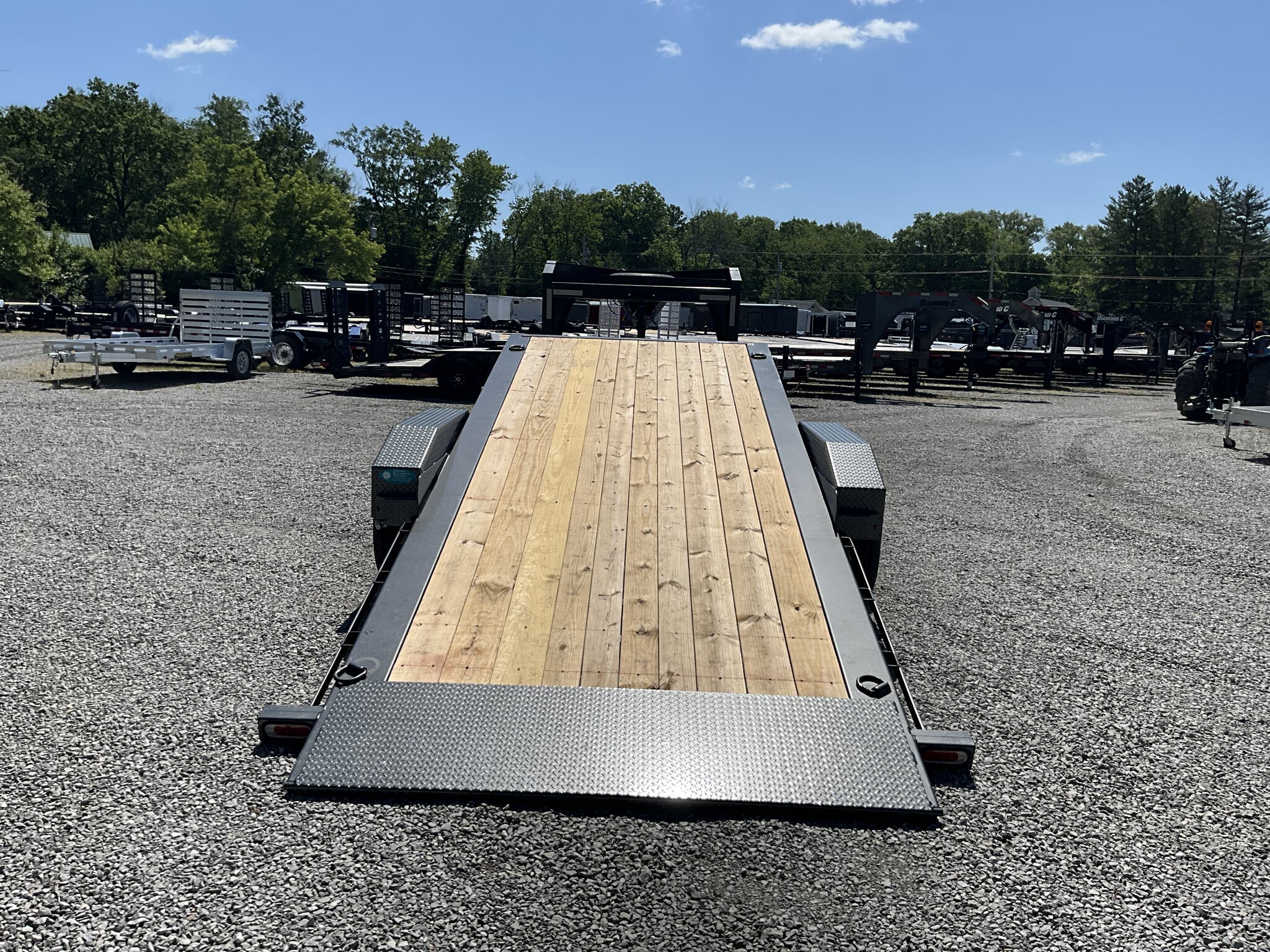

Feature: 8' stationary deck with 18' tilt bed for extended loading capacity
Feature: Engineered beam frame with 3" I-beam crossmembers on 12" centers
Feature: Dual 20K hydraulic jacks with SolarPulse charging system
Feature: (8) total 5/8" D-rings with rub rail and stake pockets for secure tie-down

Specs — Model: HDT210-GN Hydraulic Tilt Gooseneck Equipment Trailer (Pacesetter Edition)
Specs — Size: 82" × 26' (8' stationary + 18' tilt)
Specs — GVWR: 20,000 lb
Specs — Axles/Brakes: (2) 10,000 lb electric drum brake axles
Specs — Suspension: 10K torsion axles
Specs — Frame: Engineered beam frame

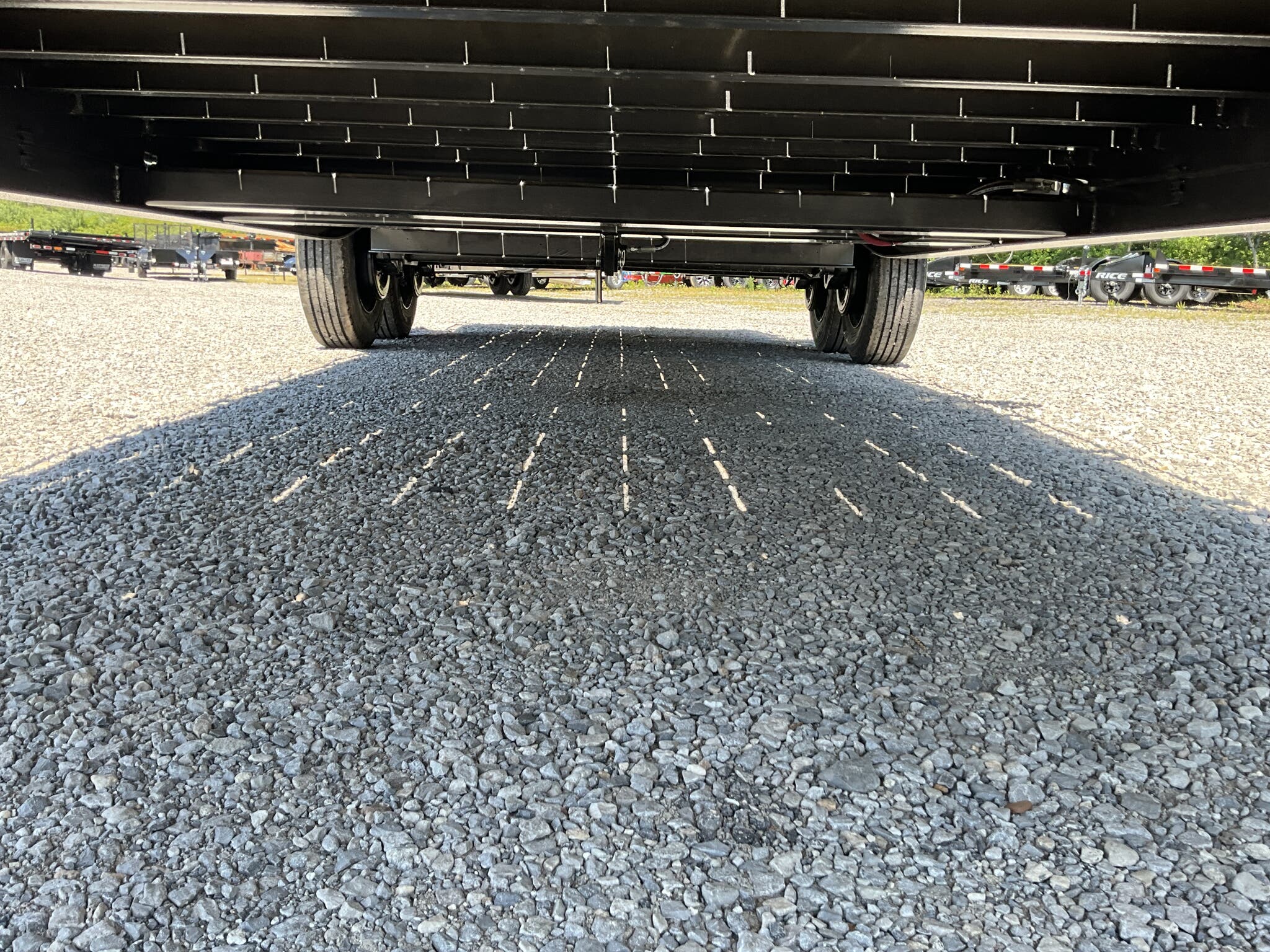

Specs — Crossmembers: 3" I-beam on 12" centers
Specs — Deck: 2" treated wood floor

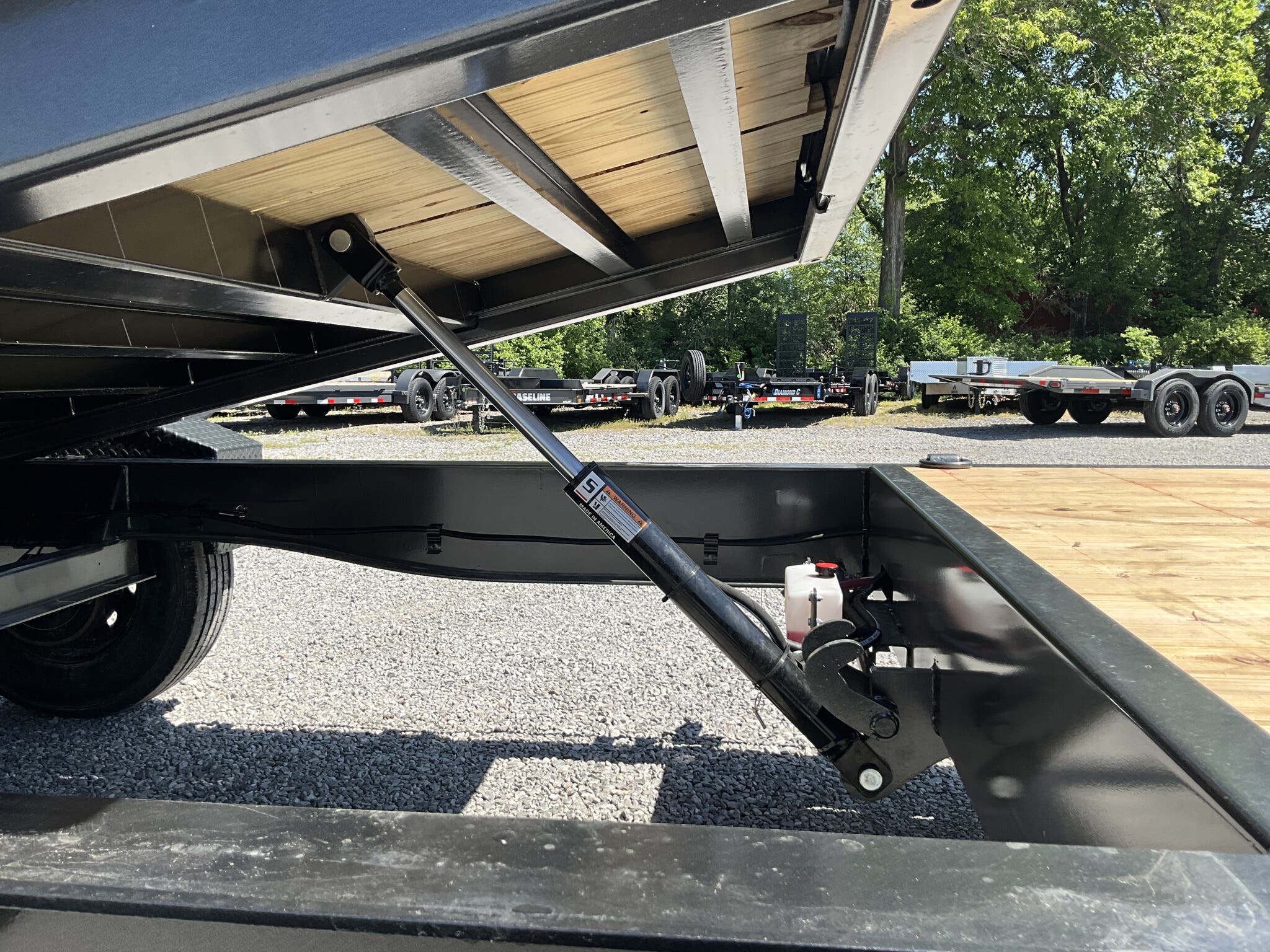

Specs — Tilt: Hydraulic dampened gravity tilt system
Specs — Coupler: 30K 2-5/16" Curt gooseneck coupler

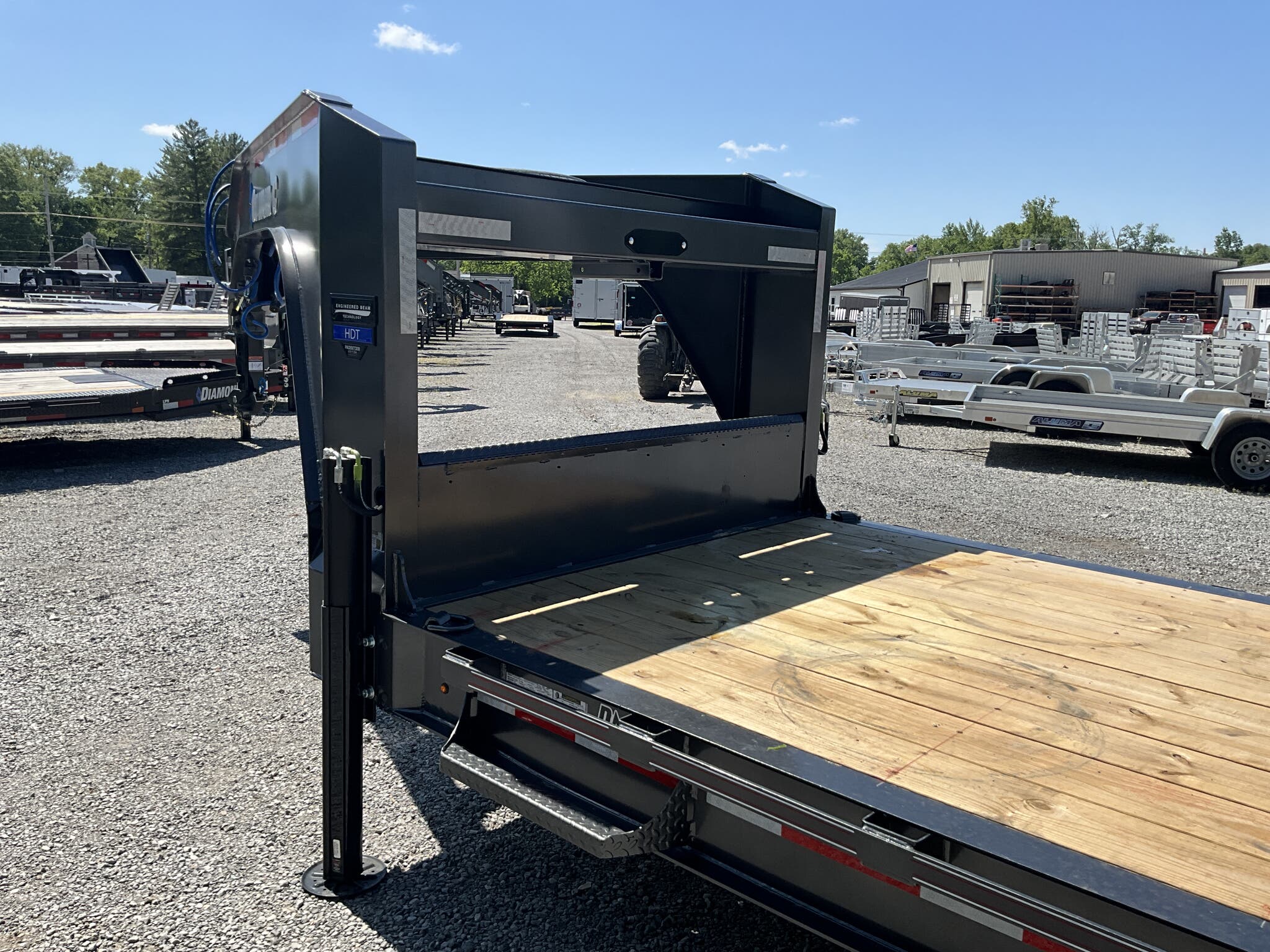

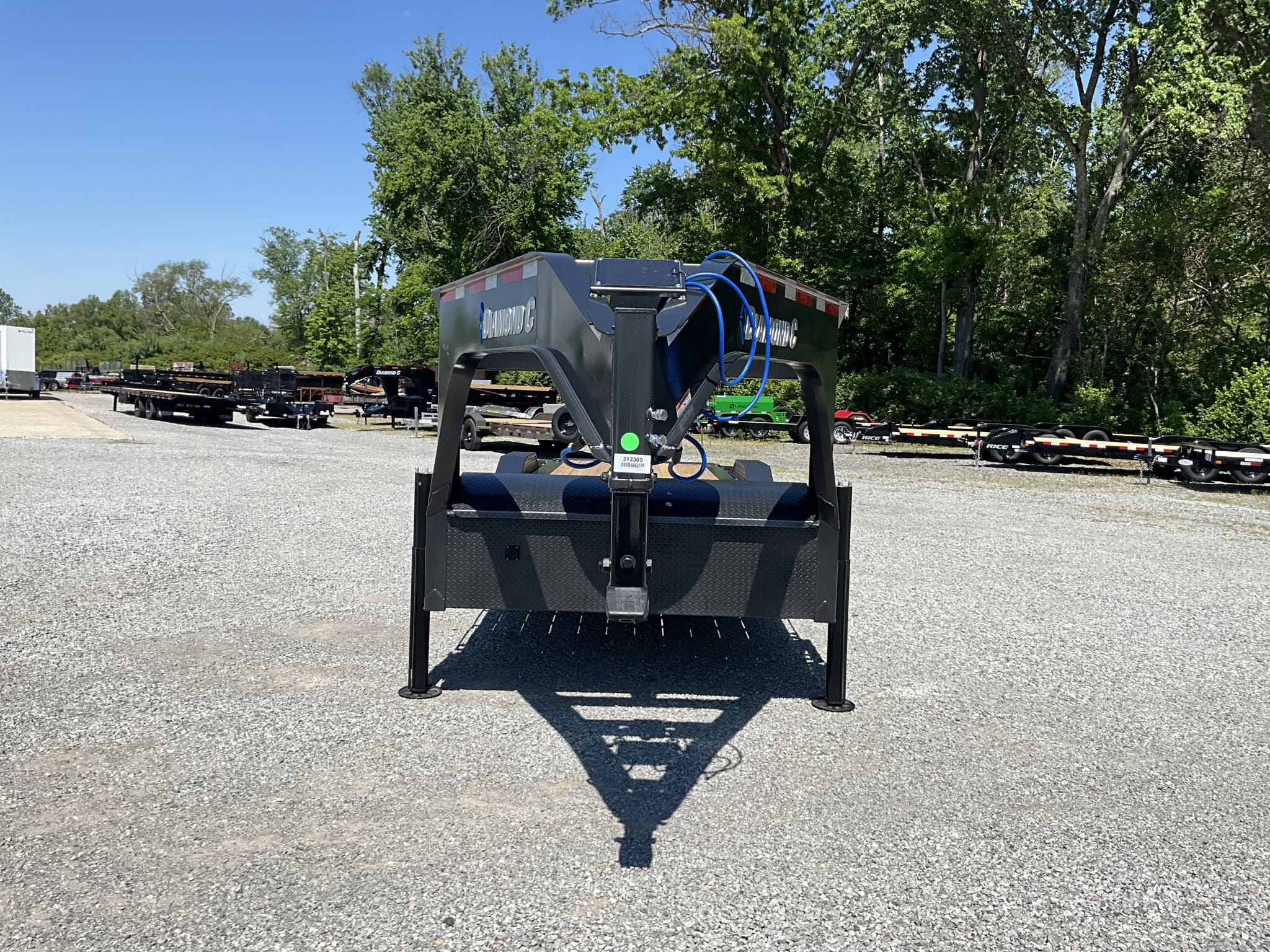

Specs — Neck: 12" engineered neck with integrated winch tray
Specs — Jack: Dual 20K hydraulic jacks

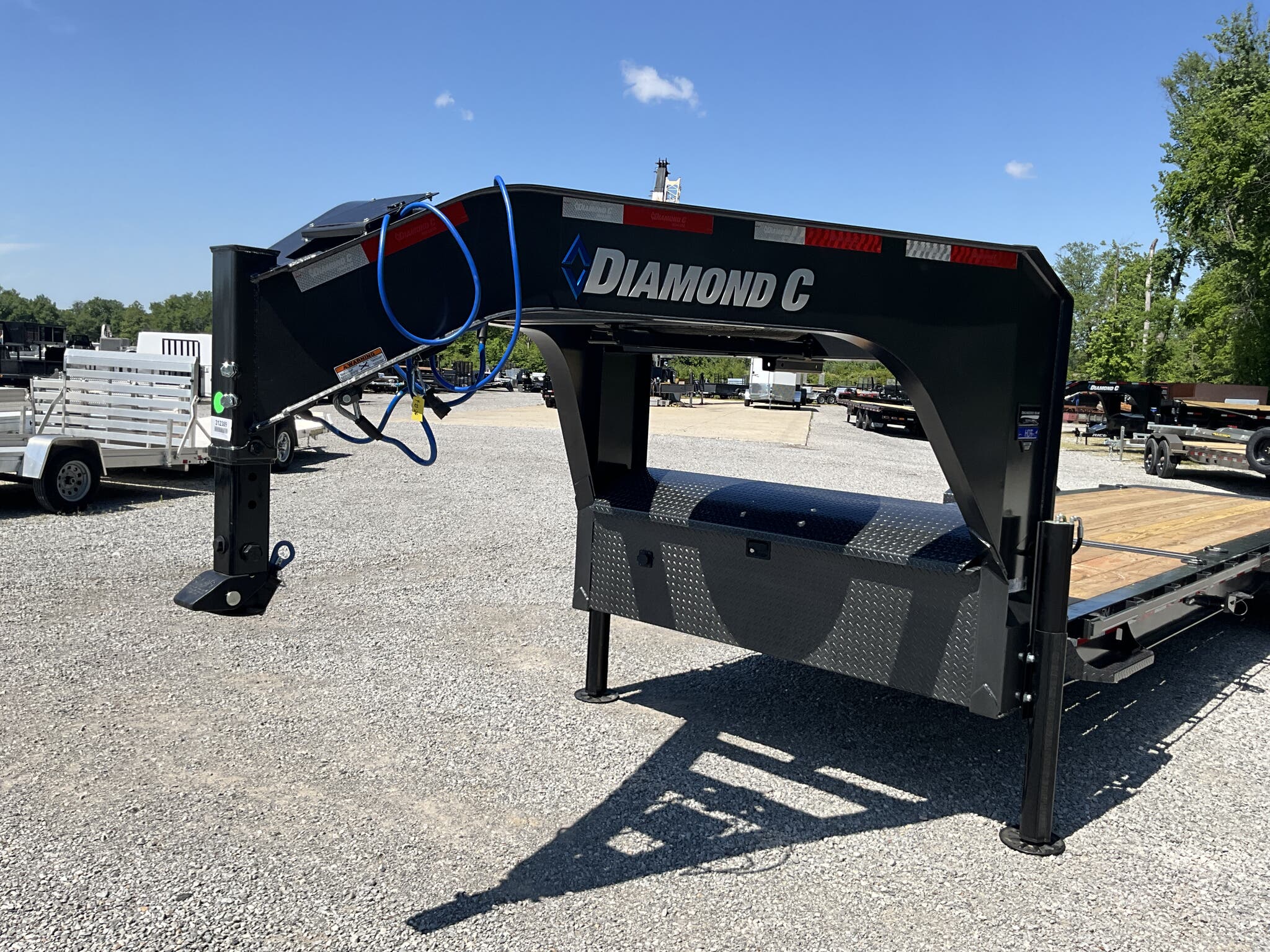

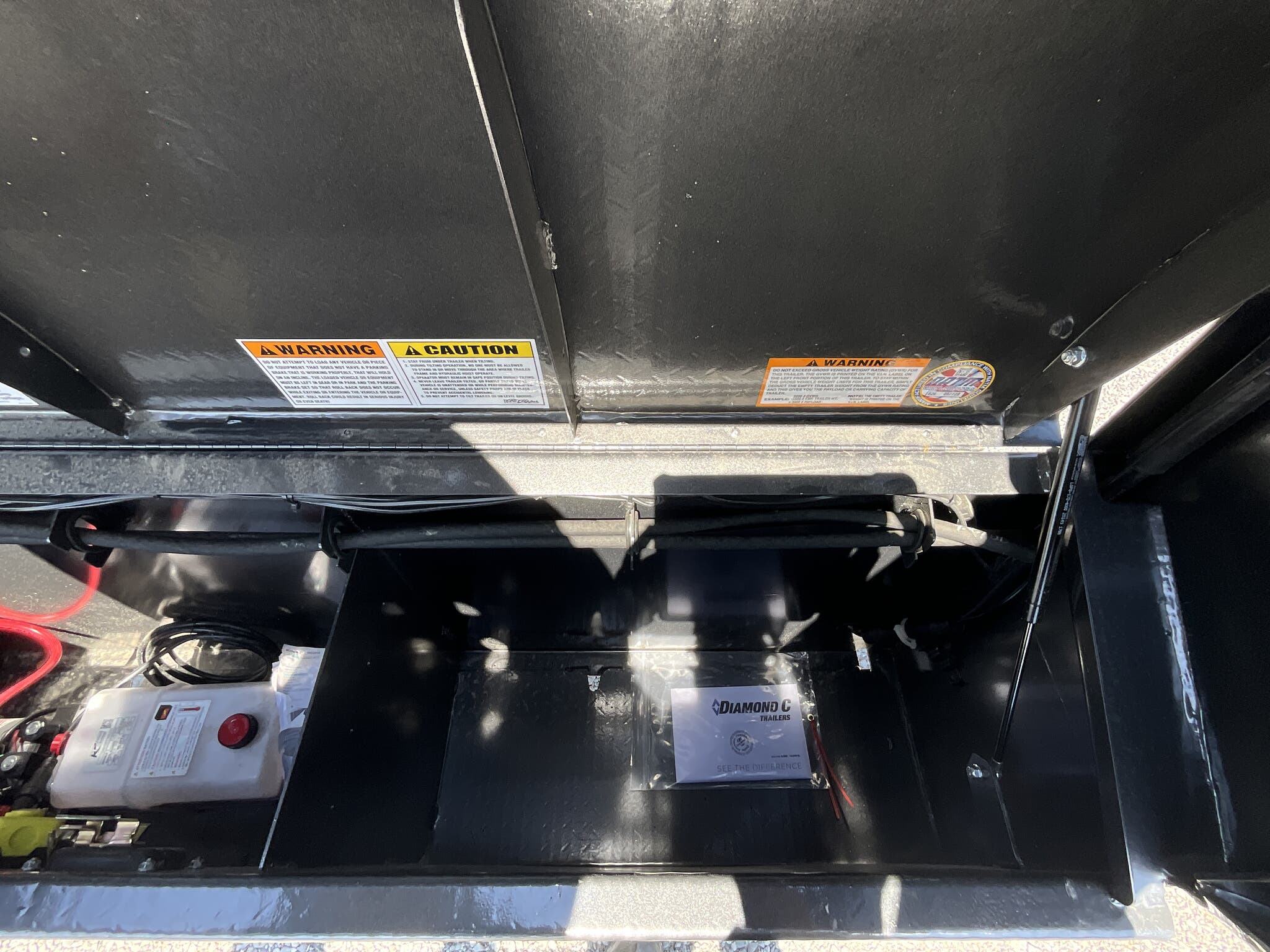

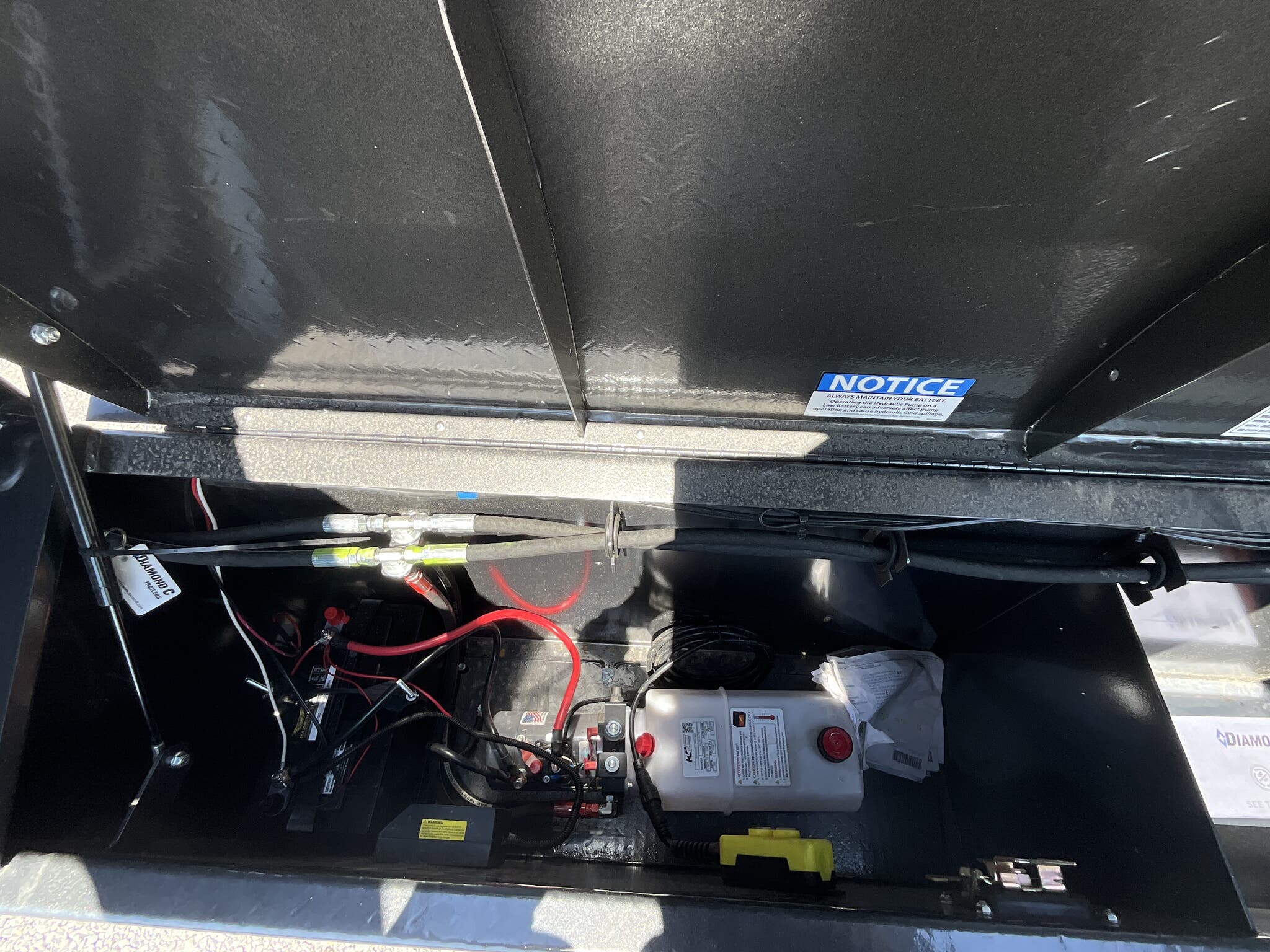

Specs — Storage: HD V-tongue toolbox
Specs — Fork Holder: Integrated fork holder
Specs — Winch Tray: Gooseneck-mounted winch tray
Specs — Fenders: 3/16" diamond plate super heavy-duty

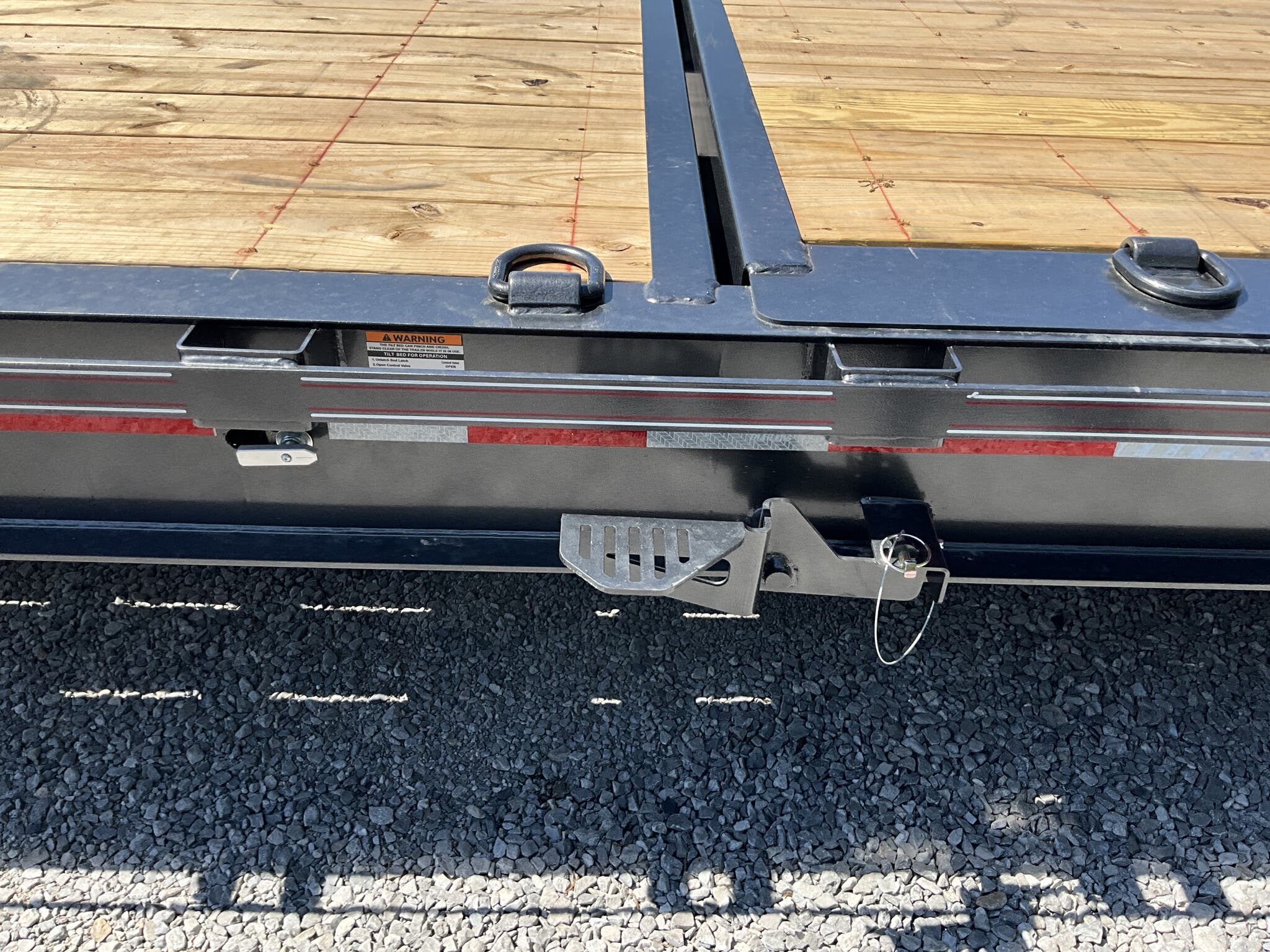

Specs — Tie Downs: (8) 5/8" D-rings
Specs — Rail: 2" × 3/8" rub rail with stake pockets

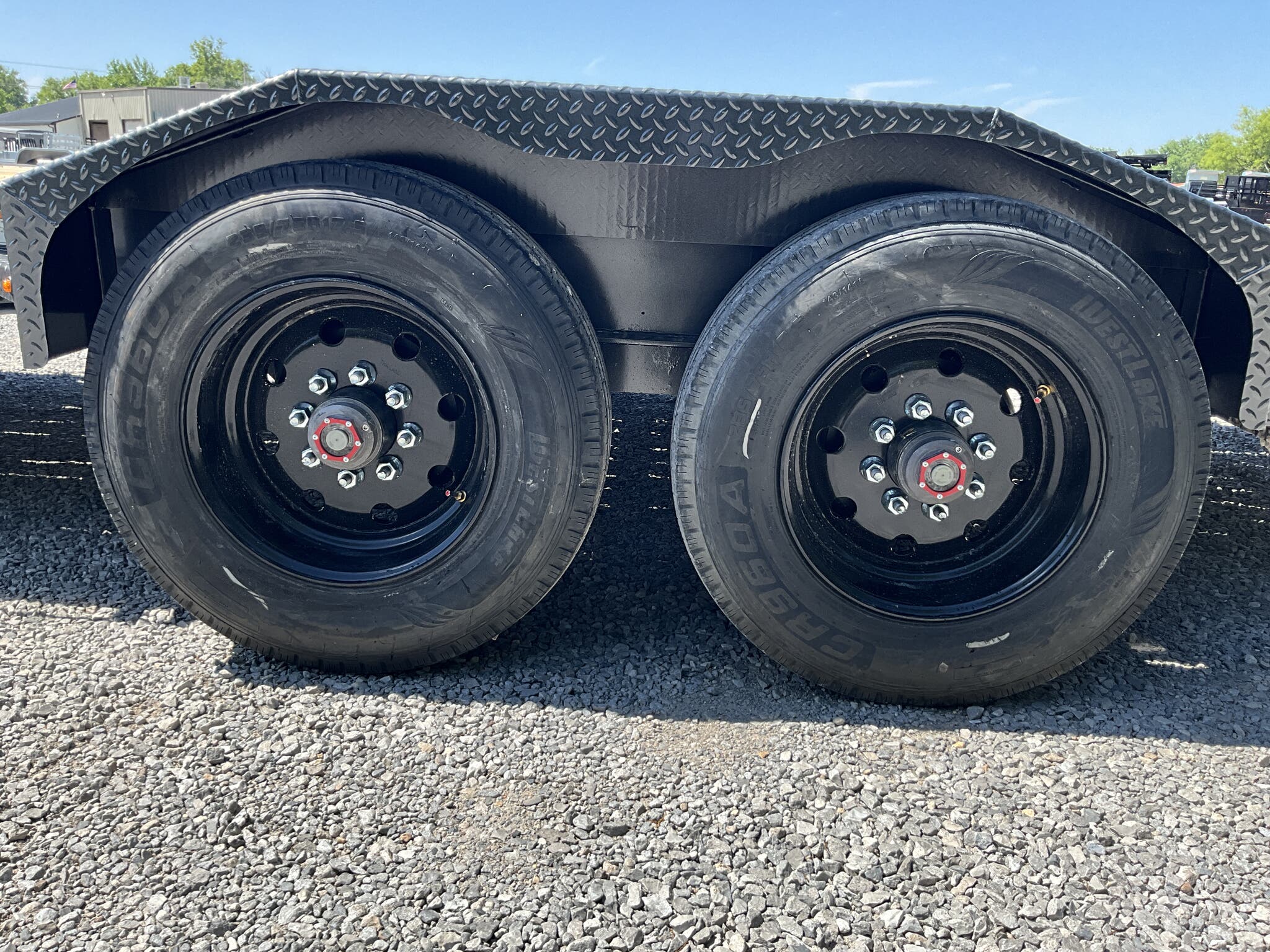

Specs — Tires/Wheels: ST235/75R17.5 super single 18-ply, black steel wheels
Specs — Spare: Matching ST235/75R17.5 super single 18-ply

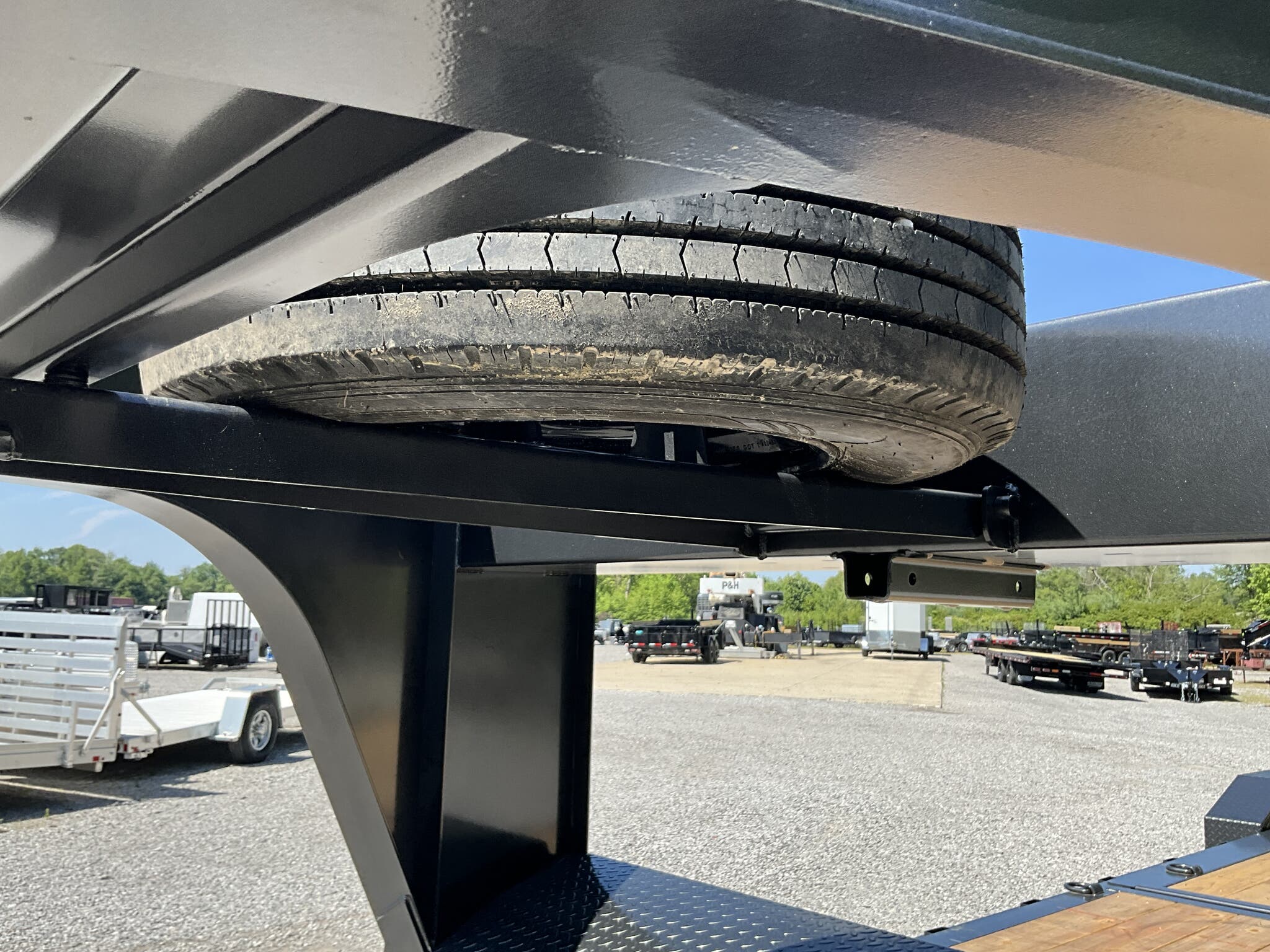

Specs — Spare Mount: Fold-down spare mount
Specs — Step: 24" side step
Specs — Electrical: SolarPulse 7W charging system
Specs — Lighting: Full LED lighting package
Specs — Finish: Carbon Metallic Gray powdercoat
Specs — Certification: NATM compliant
Specs — Warranty: 6-year Diamond C structural warranty
Specs — Web ID: 355725

Weights & Capacities
GVWR: 20,000 lb
Empty Weight: 5,590 lb
Payload on Axles: 20,000 - 5,590 = 14,410 lb
Target Tongue Load (20% of GVWR): 4,000 lb
Total Effective Payload: 18,410 lb
