2026 Diamond C HDT HDT210-24X82 - #DCT103025-1

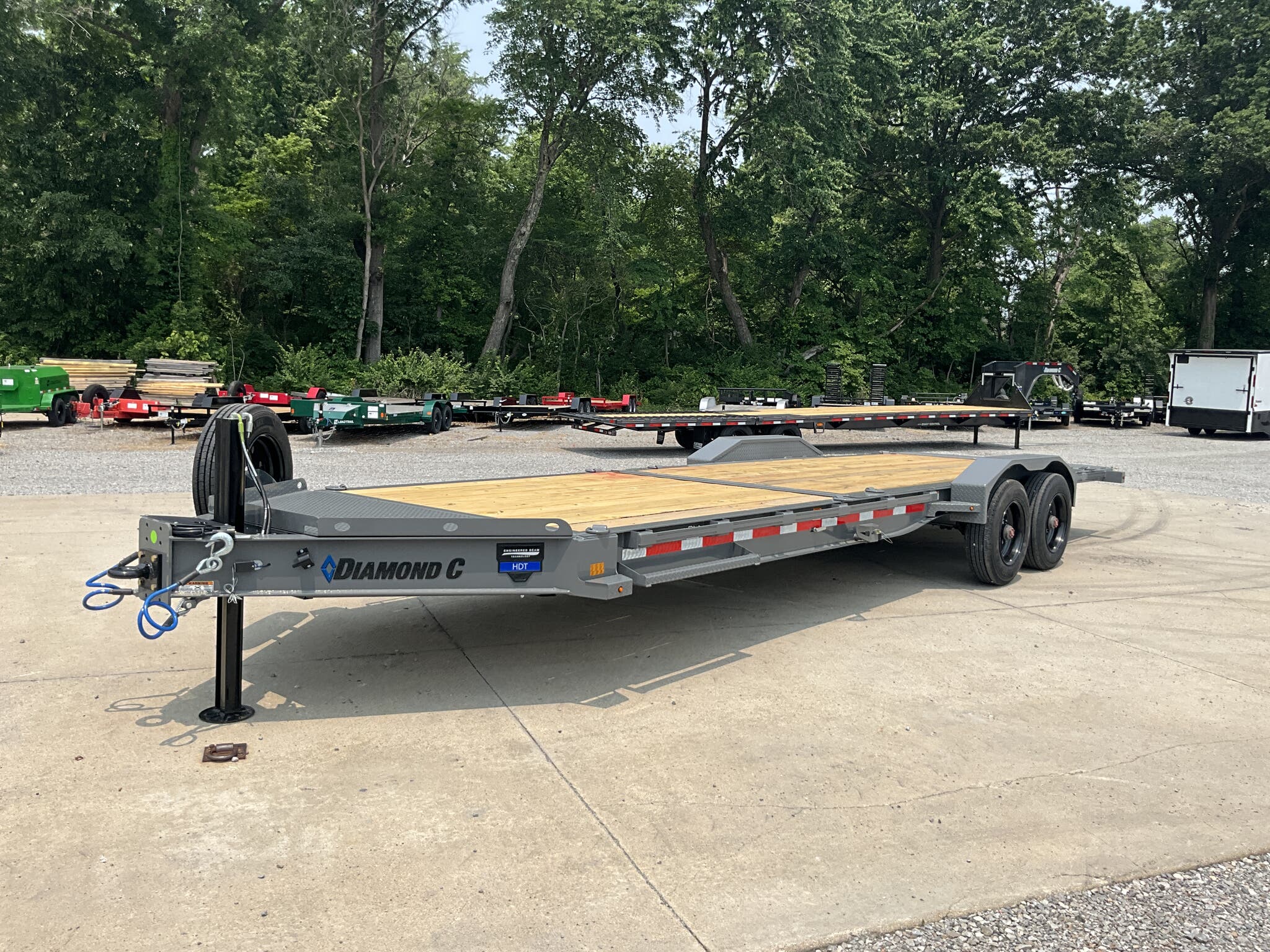

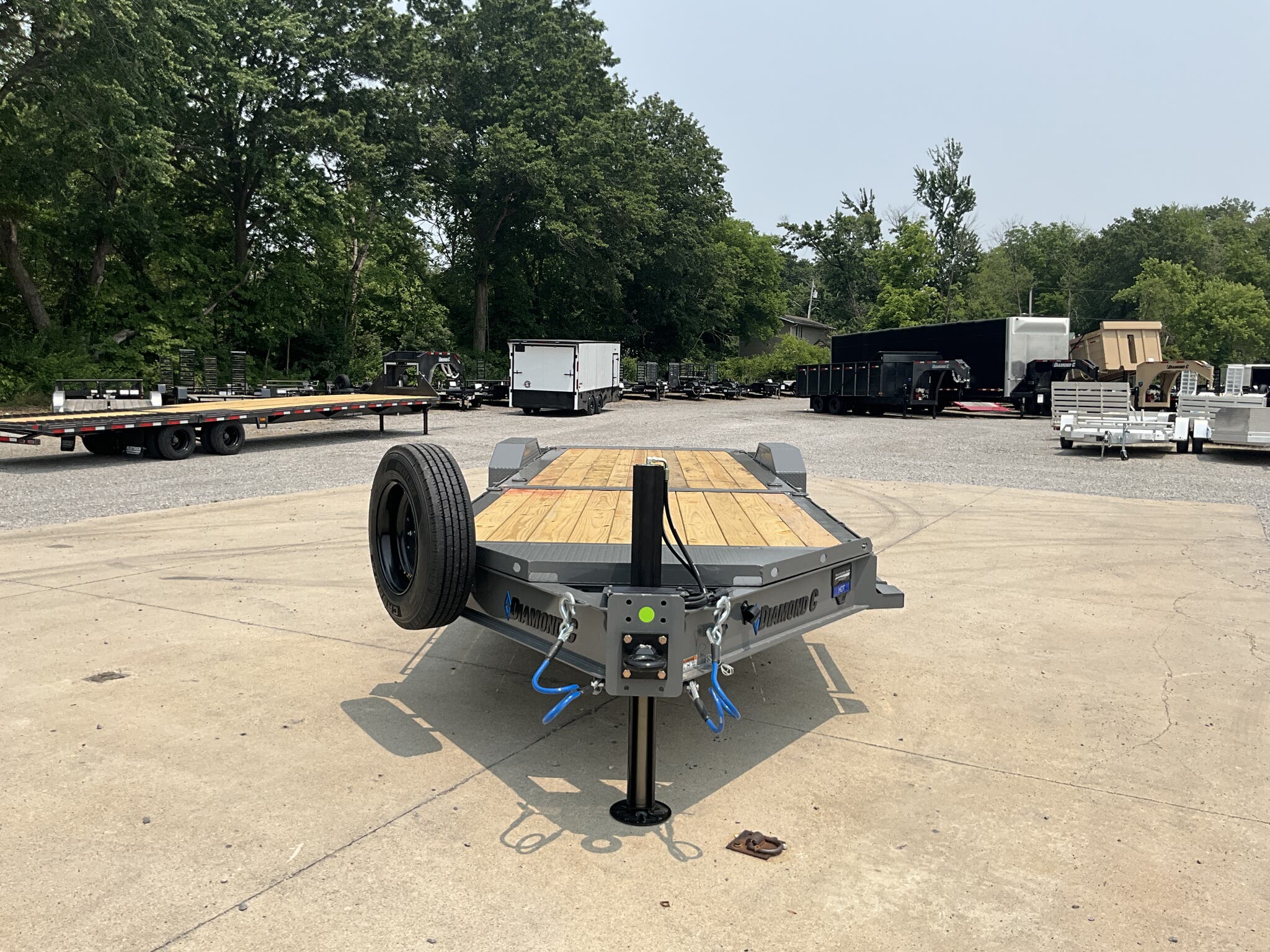

2026 DIAMOND C HDT210 — 24' x 82", Pacesetter Edition, Cement Gray, Bumper Pull with Flat-Mount Adjustable Pintle Ring, 8' Stationary + Hydraulic Tilt (valve-controlled), Dual 10K Oil Bath Torsion Axles — For Sale in Illinois
Standout Options: 20,000 lb hydraulic jack
Standout Options: Flat-mount adjustable pintle ring coupler
Standout Options: Pacesetter upgrades (3" I-Beam crossmembers on 12" centers, fork holders, 24" side step)
Standout Options: Upgraded 3/16" diamond plate heavy-duty fenders
Standout Options: Solar charging system, 7 watt
Standout Options: Extra (4) 5/8" D-rings (8 total)

Specs — Pull Type: Bumper pull (pintle)
Specs — Frame: Engineered beam frame; integral I-Beam tongue
Specs — Crossmembers: 3" I-Beam on 12" centers (Pacesetter)

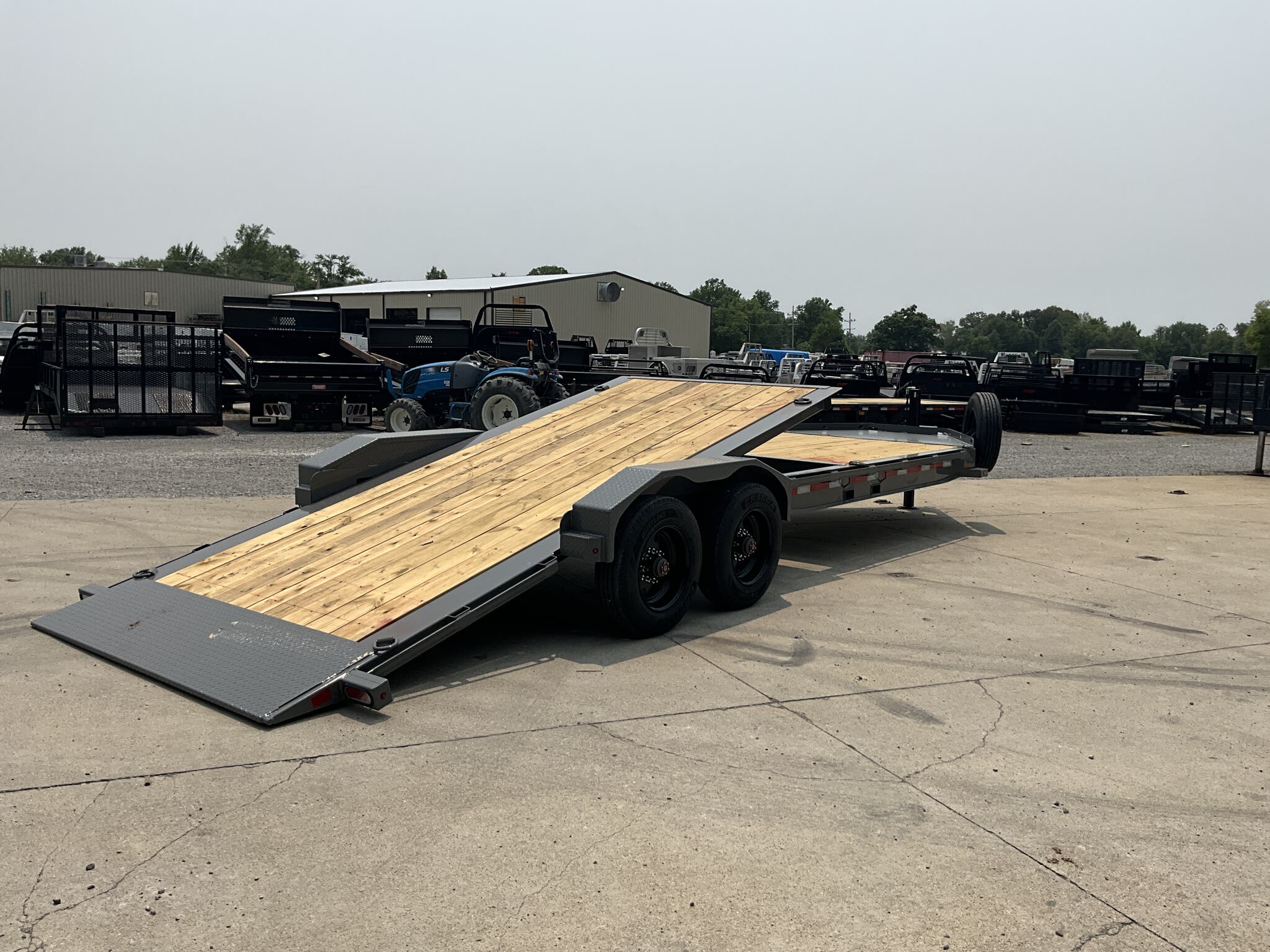

Specs — Deck: 8' stationary front + hydraulic tilt deck (dampening cylinder w/ valve control)
Specs — Floor: 2" treated lumber
Specs — Axles/Brakes: (2) 10,000 lb oil bath torsion; electric drum brakes
Specs — Suspension: Torsion axles
Specs — Fenders: 3/16" diamond plate, heavy duty
Specs — Tie-Downs: (4) standard 5/8" D-rings + (4) extra = (8) total
Specs — Rub Rail/Stake Pockets: 2" x 3/8" rub rail with stake pockets
Specs — Steps: Step latch + 24" side step
Specs — Lighting/Wiring: All LED lights; sealed wiring harness
Specs — Tires/Wheels: 215/75R17.5, 18-ply radials; black wheels; spare mount (passenger side) + matching spare (add-on)
Specs — Paint/Finish: DM Difference Maker coating; Cement Gray
Specs — Warranty: 6-year manufacturer warranty (2026+)

Weights & Capacities — Total Axle Capacity (used for payload math): 20,000 lb
Weights & Capacities — Empty/Trailer Weight: 4,990 lb
Weights & Capacities — Payload on Axles (Capacity - Empty): 20,000 - 4,990 = 15,010 lb
Weights & Capacities — Target Tongue Load (Pintle @ ~20% of Capacity): ˜ 4,000 lb
Weights & Capacities — Total Payload Including Tongue Support: 15,010 + 4,000 = 19,010 lb

Delivery from 62864 (Lower 48): Up to 100 miles: $150
Delivery from 62864 (Lower 48): 101–300 miles: $2.00/mile
Delivery from 62864 (Lower 48): 301–1200 miles: $3.00/mile
Delivery from 62864 (Lower 48): Over 1200 miles: $4.00/mile
