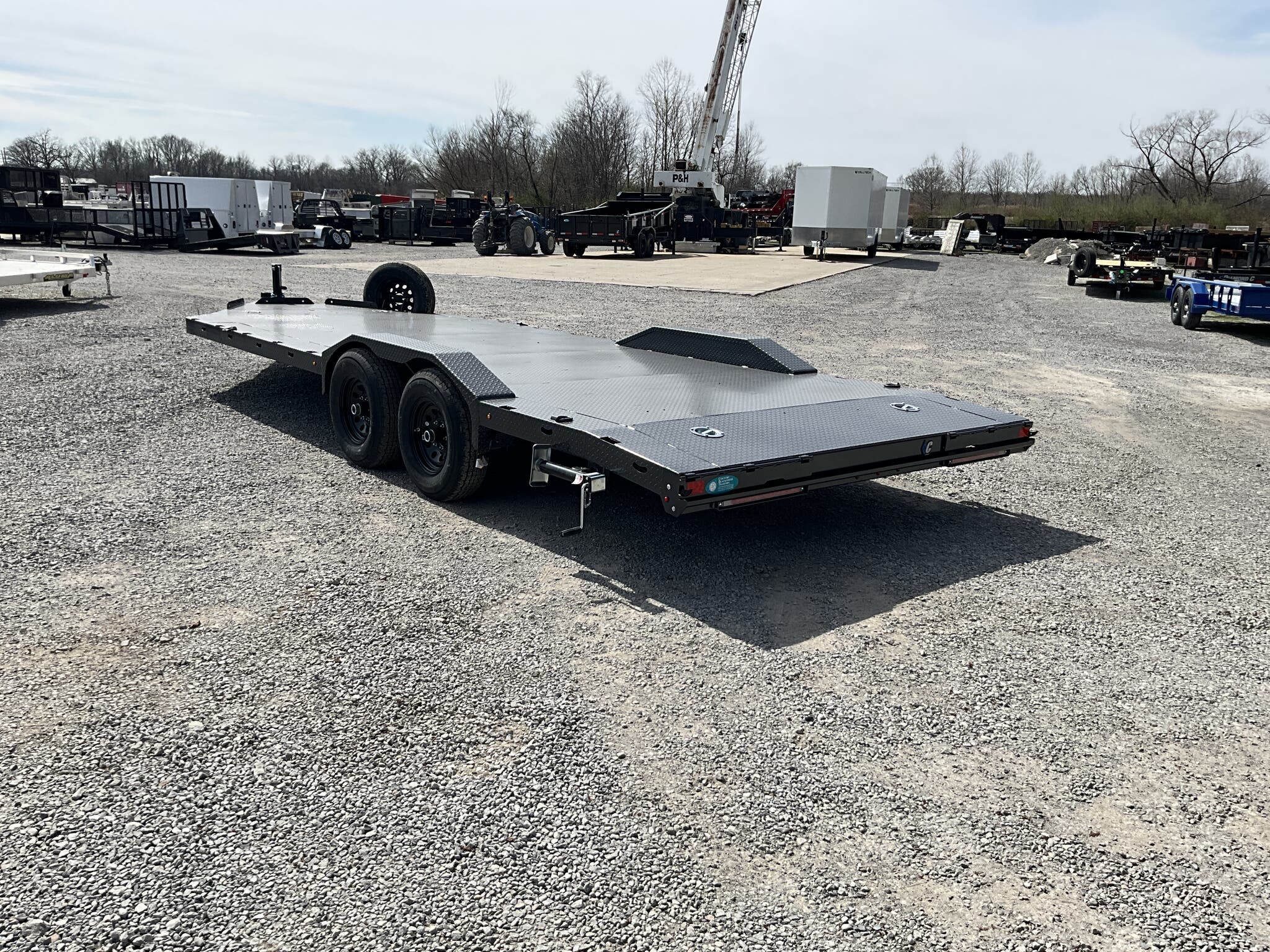

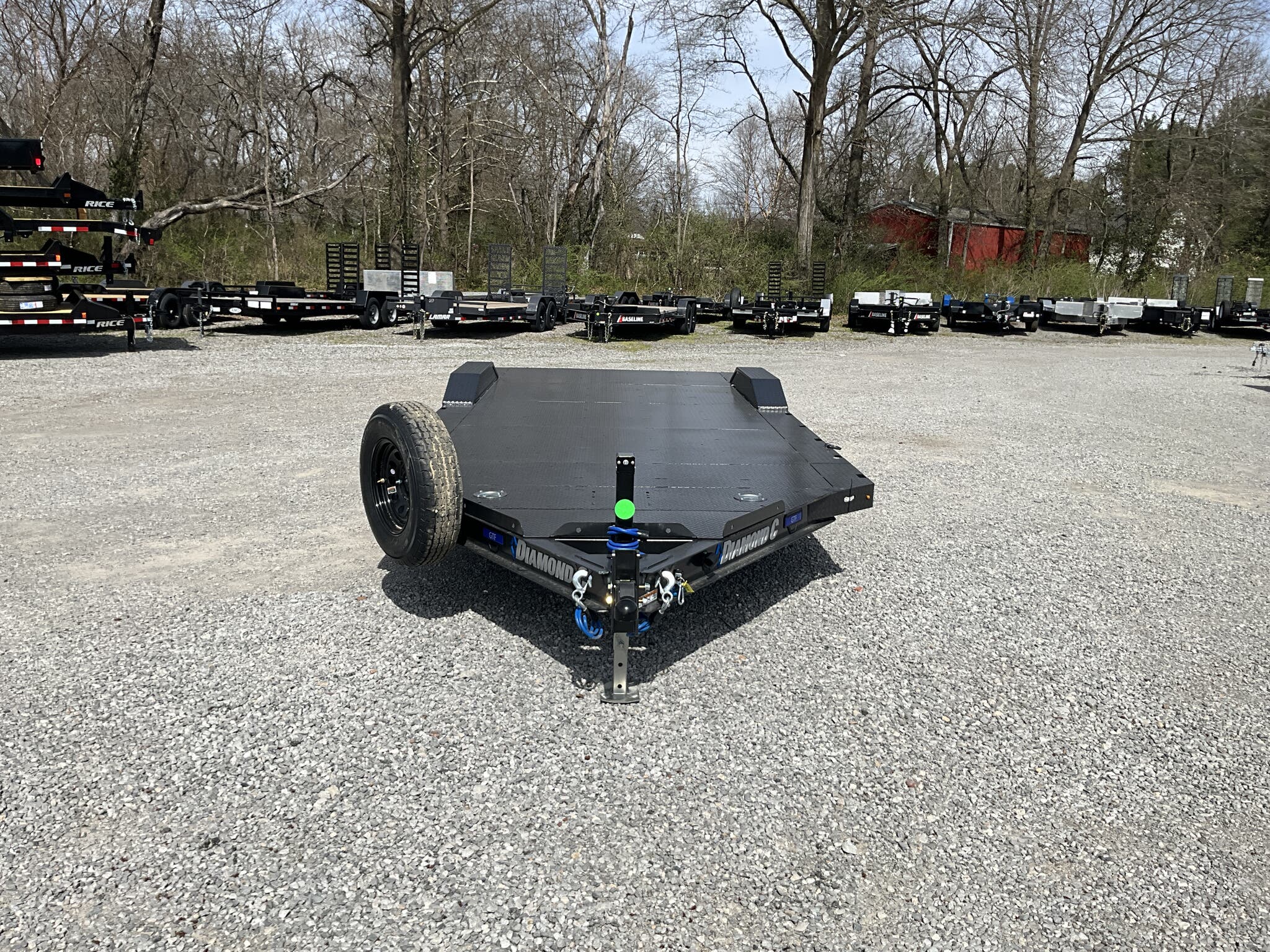

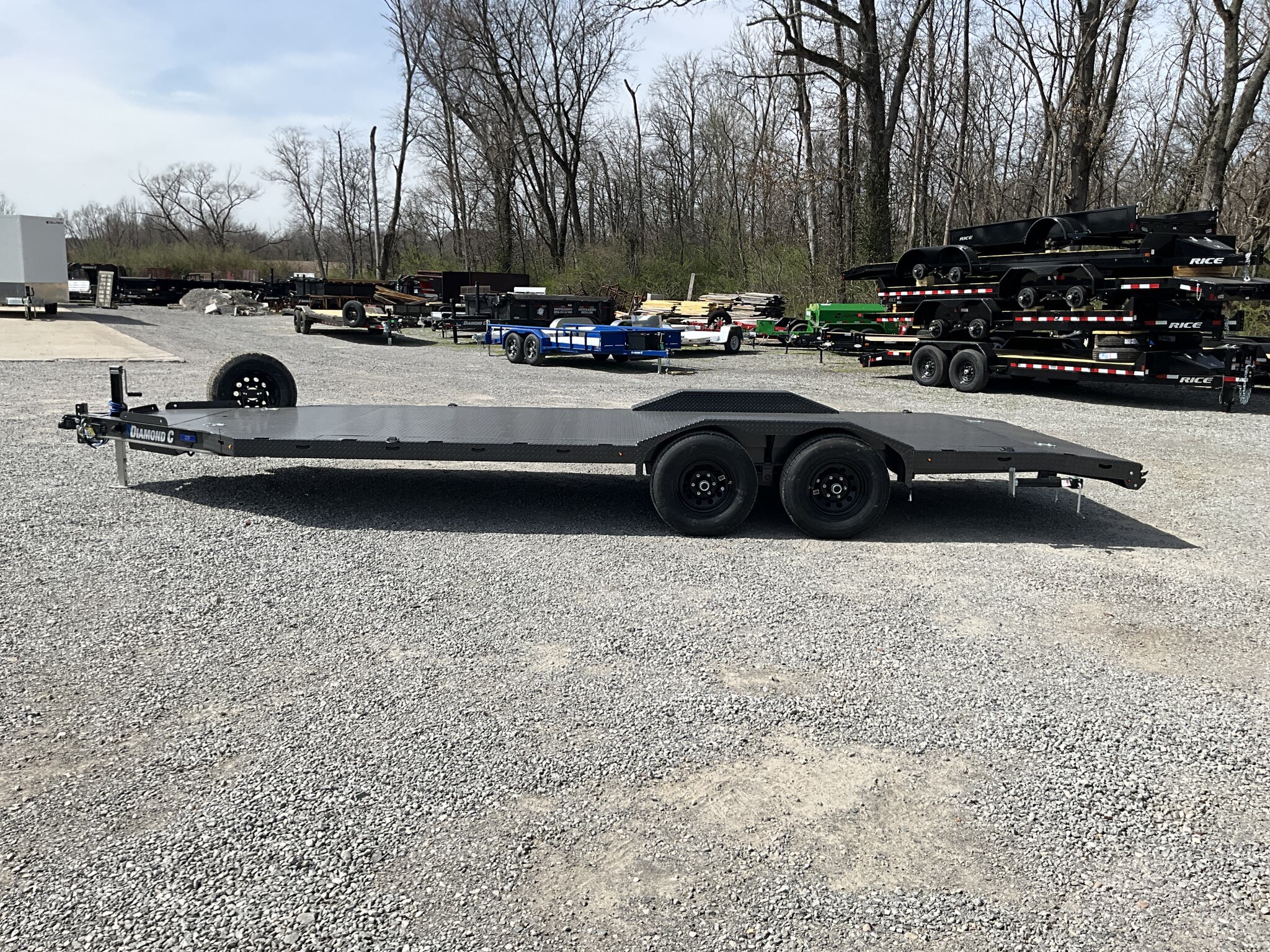

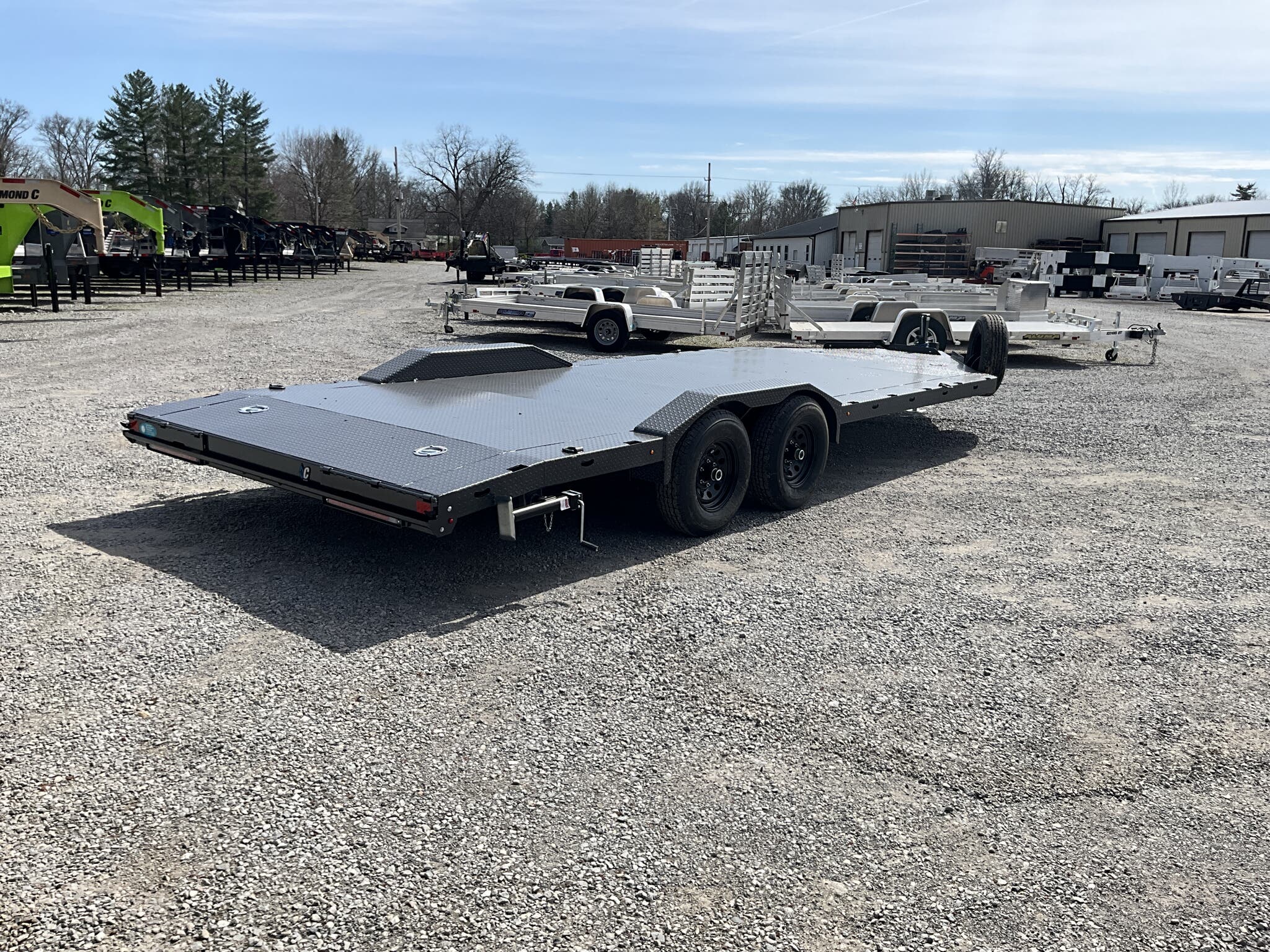

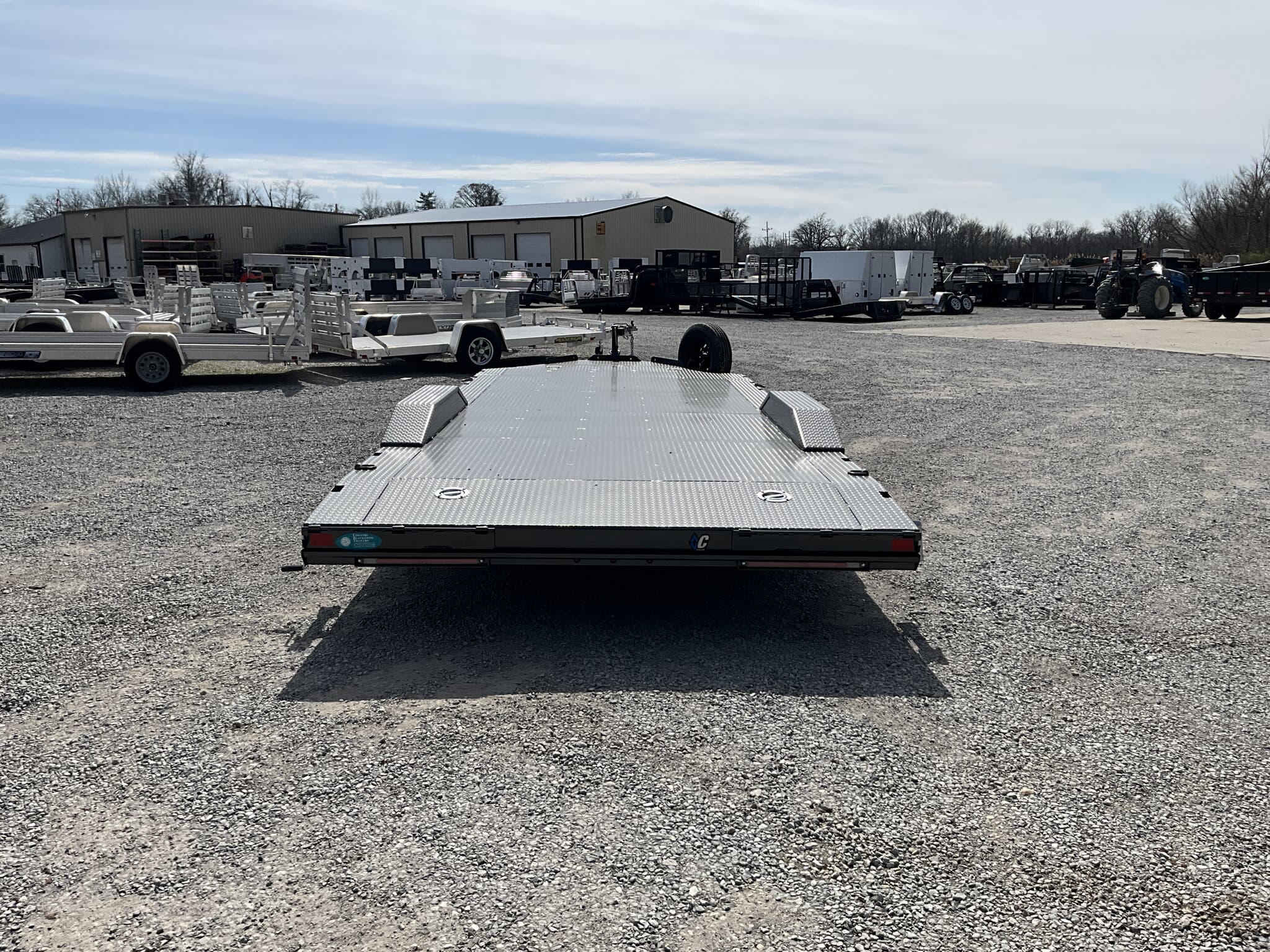

2026 Diamond C GTF GTF206-20X102DSR - #DCT11081

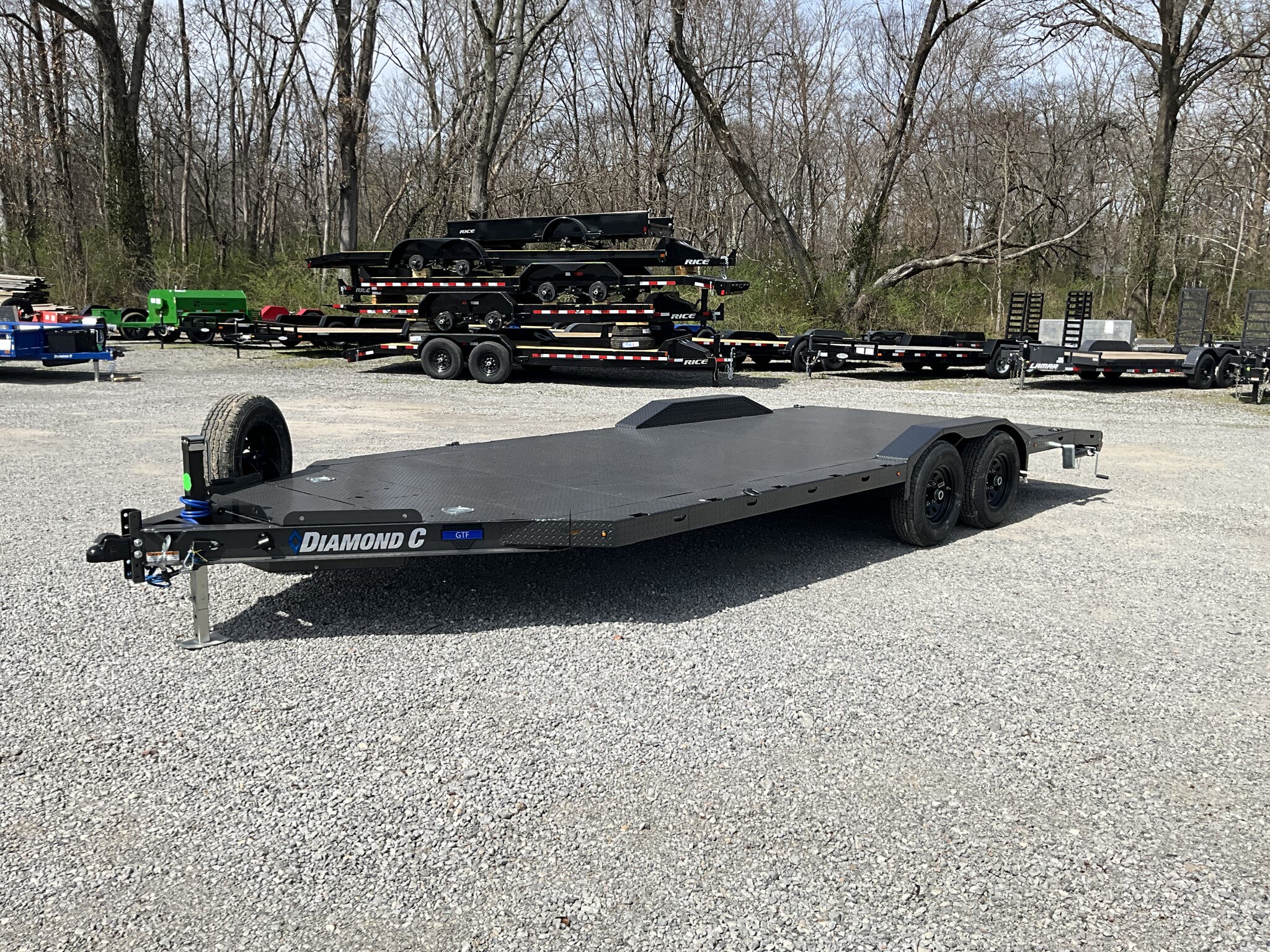

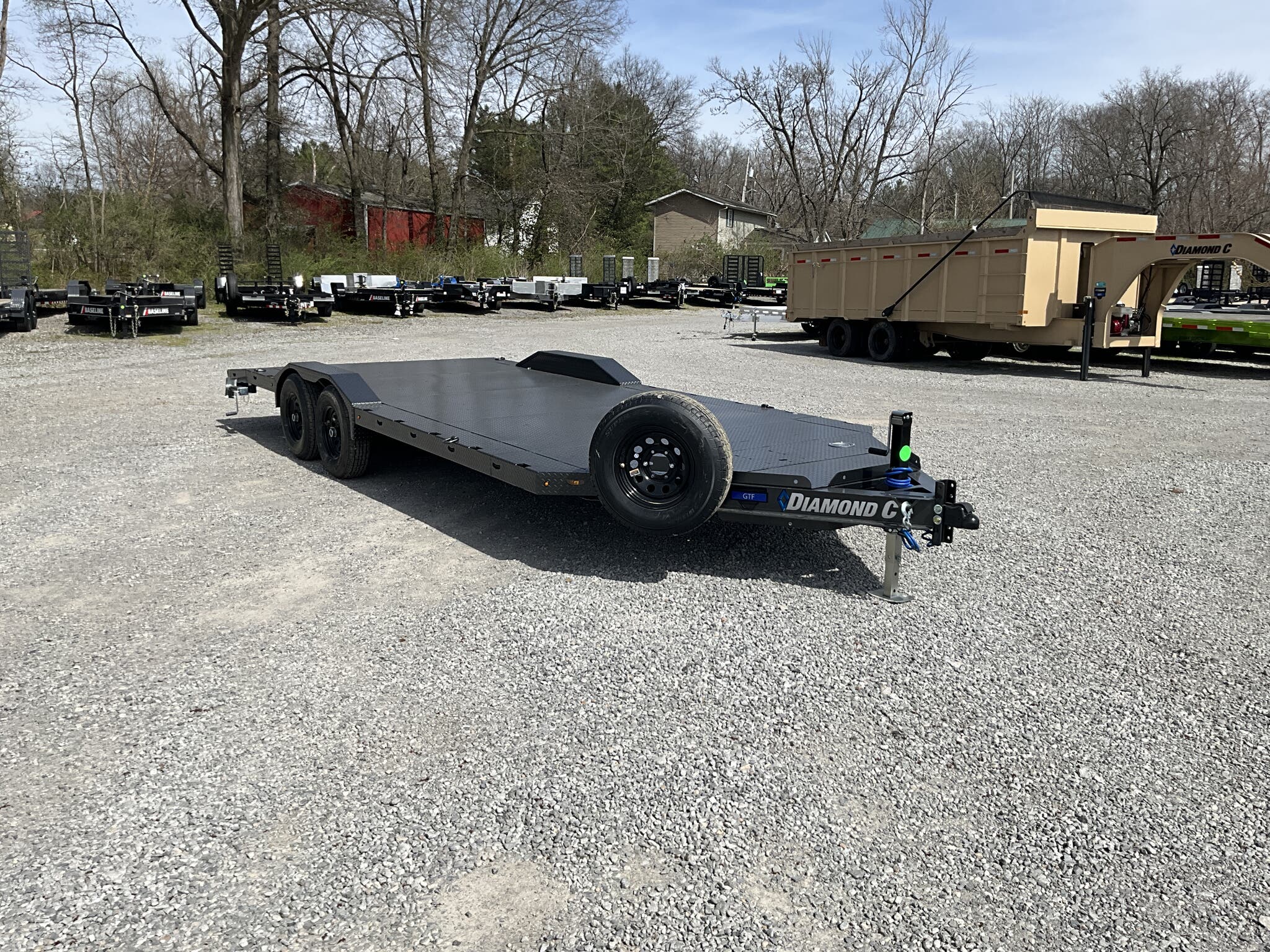

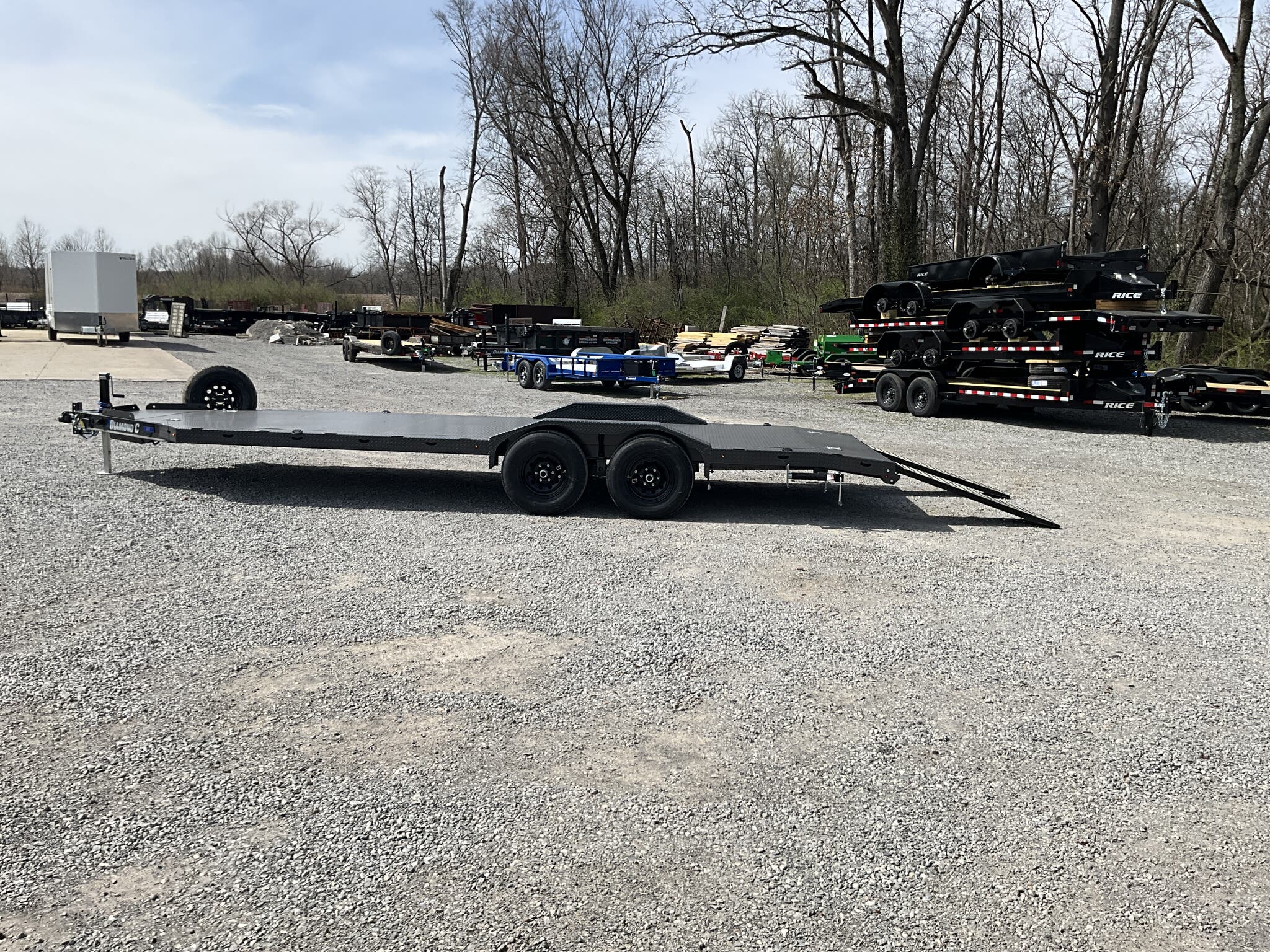

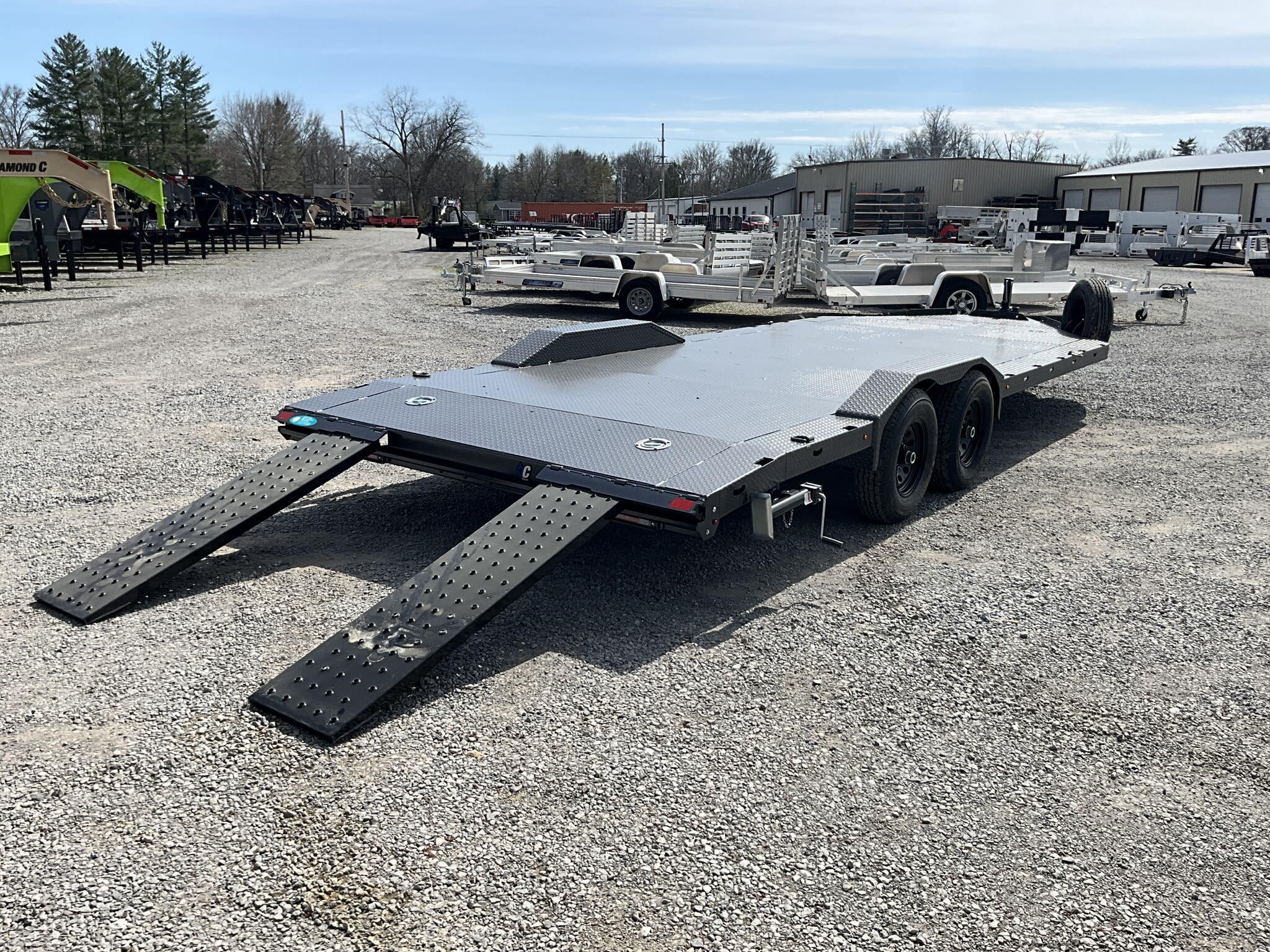

2026 DIAMOND C GTF206 SINGLE CAR HAULER, 12,000 GVWR, 20' × 83" (MAX WIDTH DRIVE-OVER FENDERS) — FOR SALE IN MOUNT VERNON, IL 62864

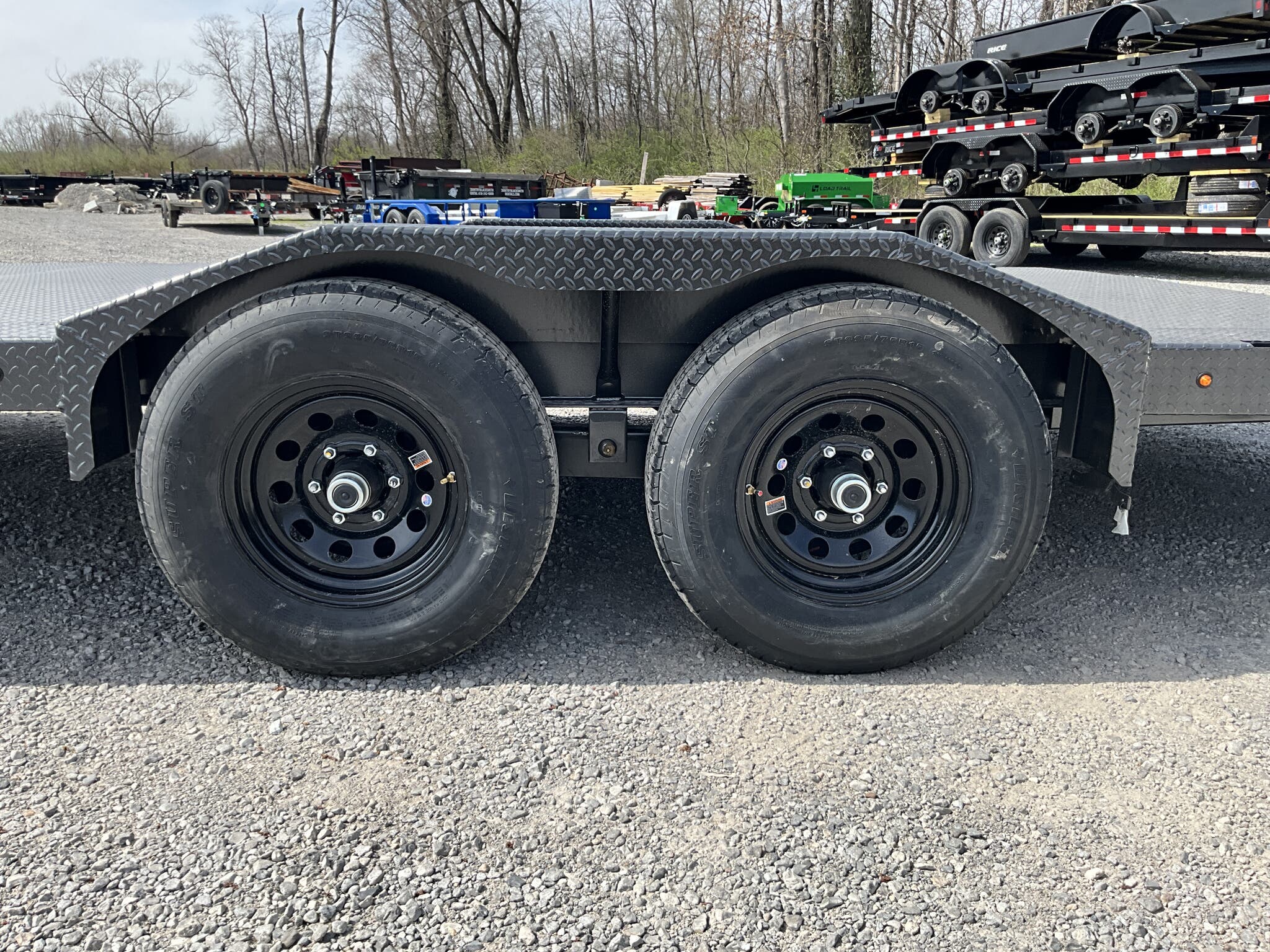

Feature: Max Wide package with 3/16" heavy-duty drive-over fenders for full-width loading
Feature: 1/8" diamond plate steel floor for durability and low-maintenance hauling

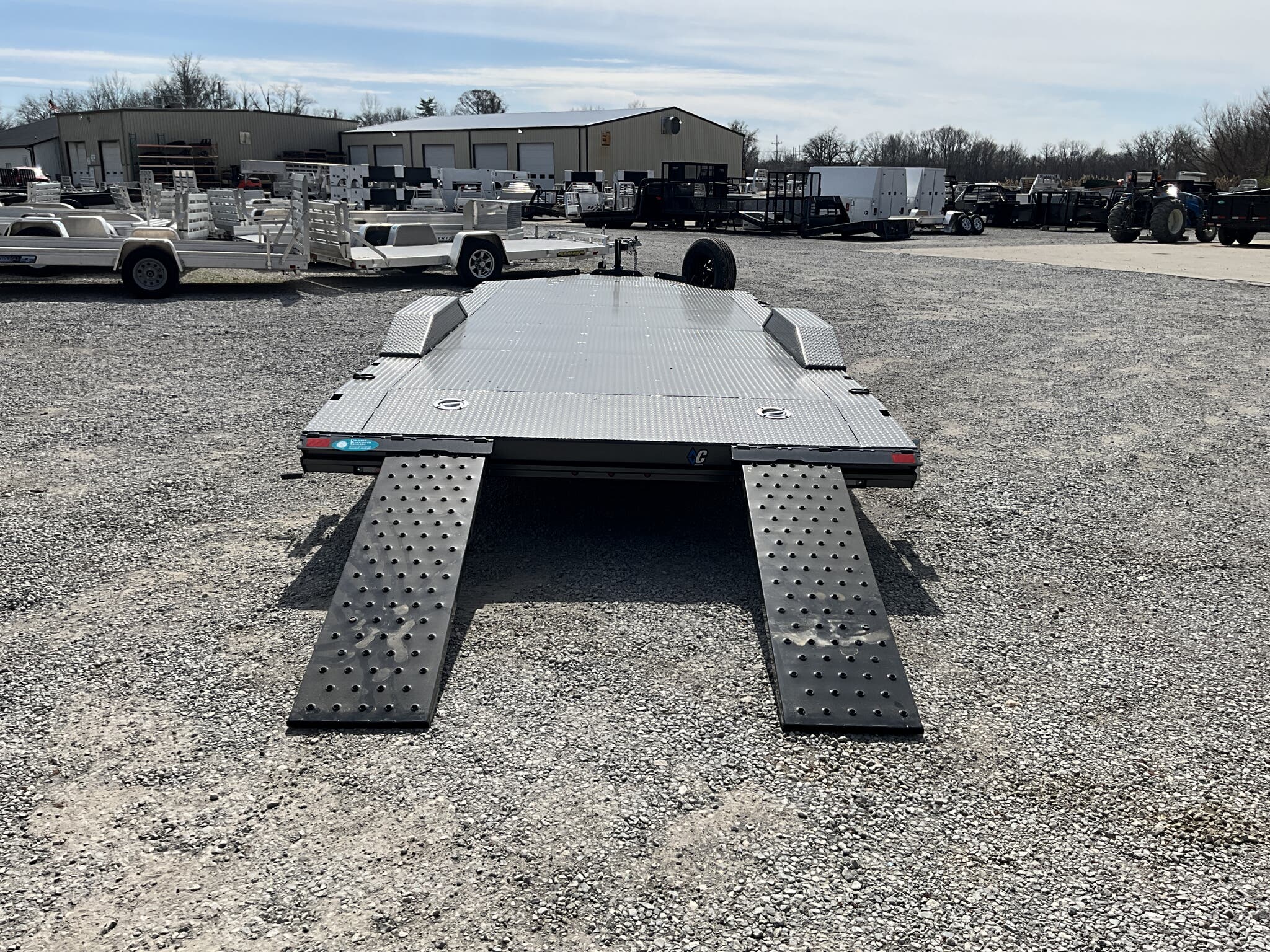

Feature: 24" diamond plate dovetail with 60" slide-in PerfoGrip ramps for easy vehicle loading

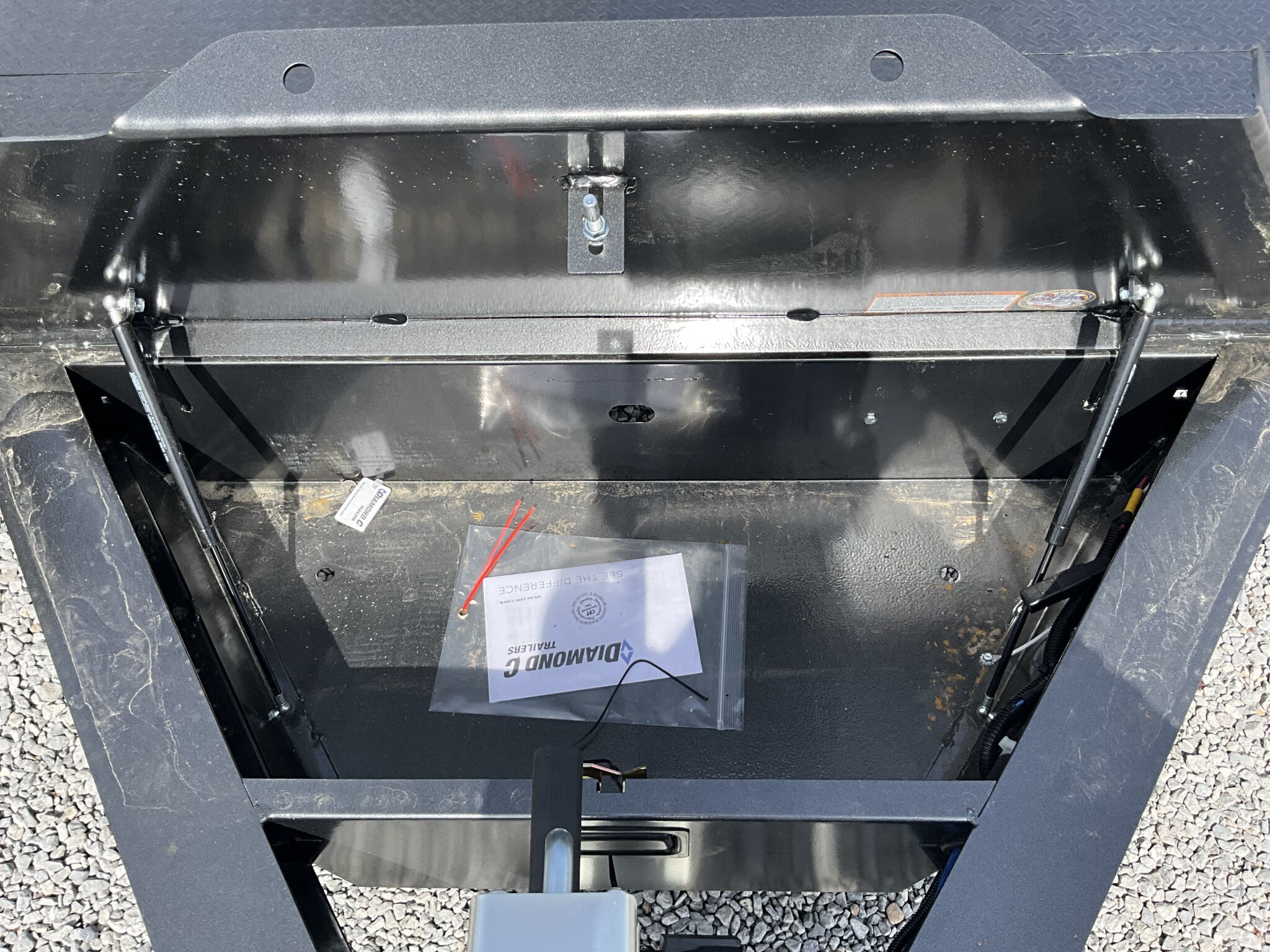

Feature: Lockable V-tongue storage box for tools and straps
Feature: Winch mounting plate installed for recovery or loading assistance
Feature: Formed rub rail with stake pockets for flexible tie-down options
Feature: (6) total D-rings for secure vehicle tie-down

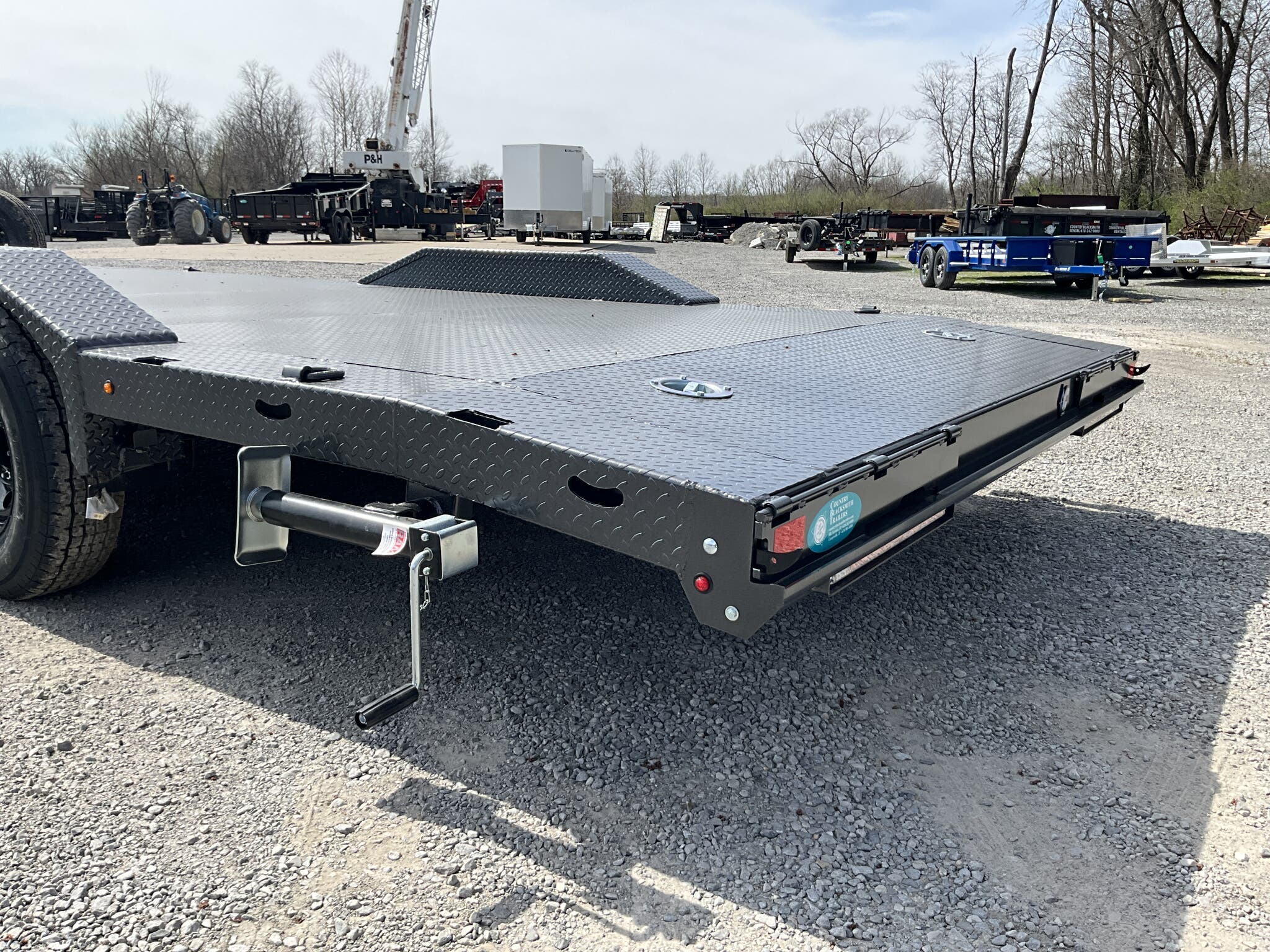

Feature: Pair of rear stabilizer jacks for loading stability

Specs — Model: GTF206 Single Car Hauler
Specs — Size: 20' × 83" (102" overall width with Max Wide package)
Specs — GVWR: 12,000 lb

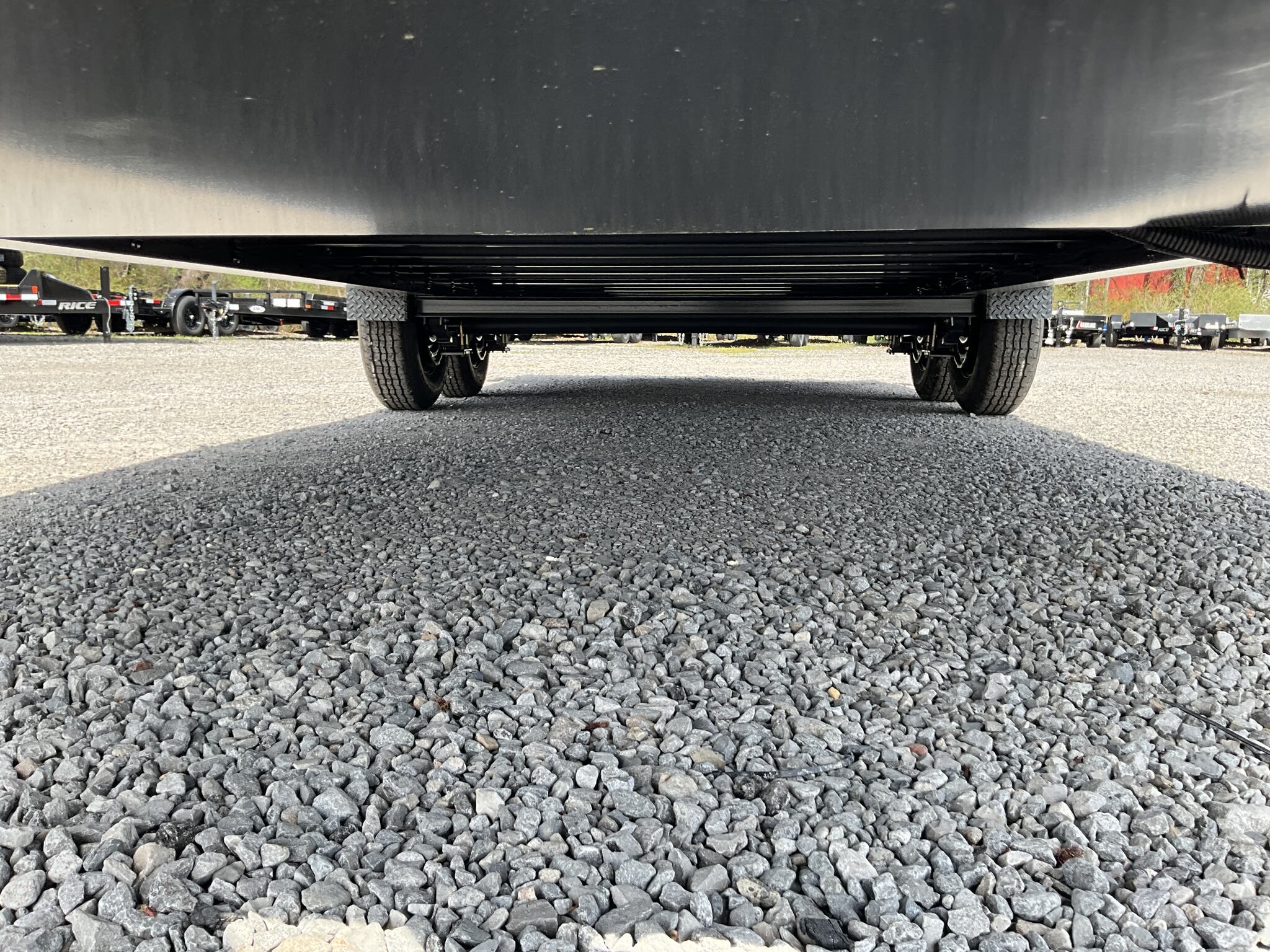

Specs — Axles/Brakes: (2) 6,000 lb straight axles with electric brakes
Specs — Suspension: 5-leaf slipper spring suspension
Specs — Frame: 6" × 8.5 lb I-beam frame
Specs — Crossmembers: 3" I-beam on 16" centers
Specs — Dovetail: 24" diamond plate dovetail

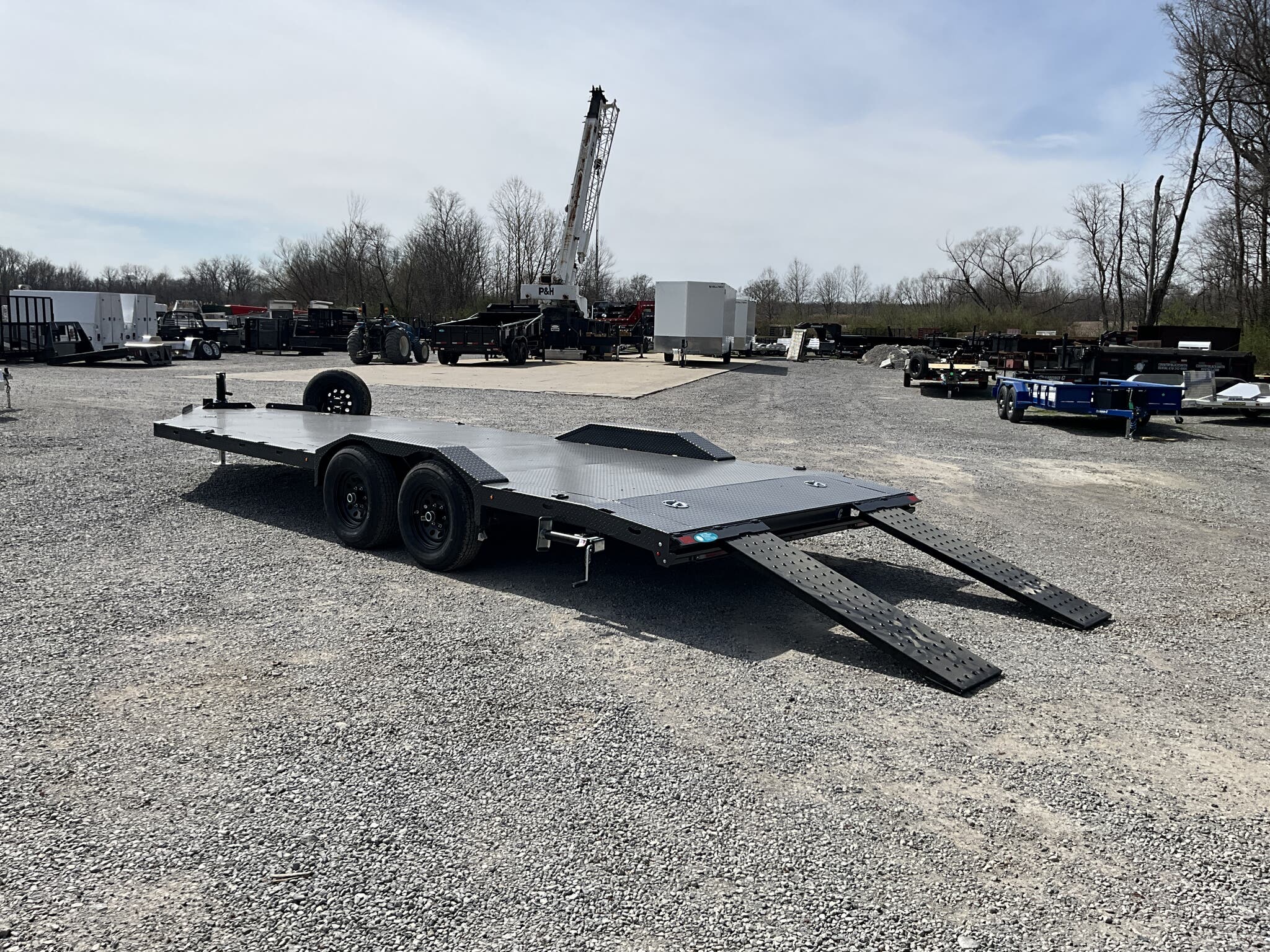

Specs — Ramps: 60" rear slide-in PerfoGrip ramps
Specs — Floor: 1/8" diamond plate steel deck

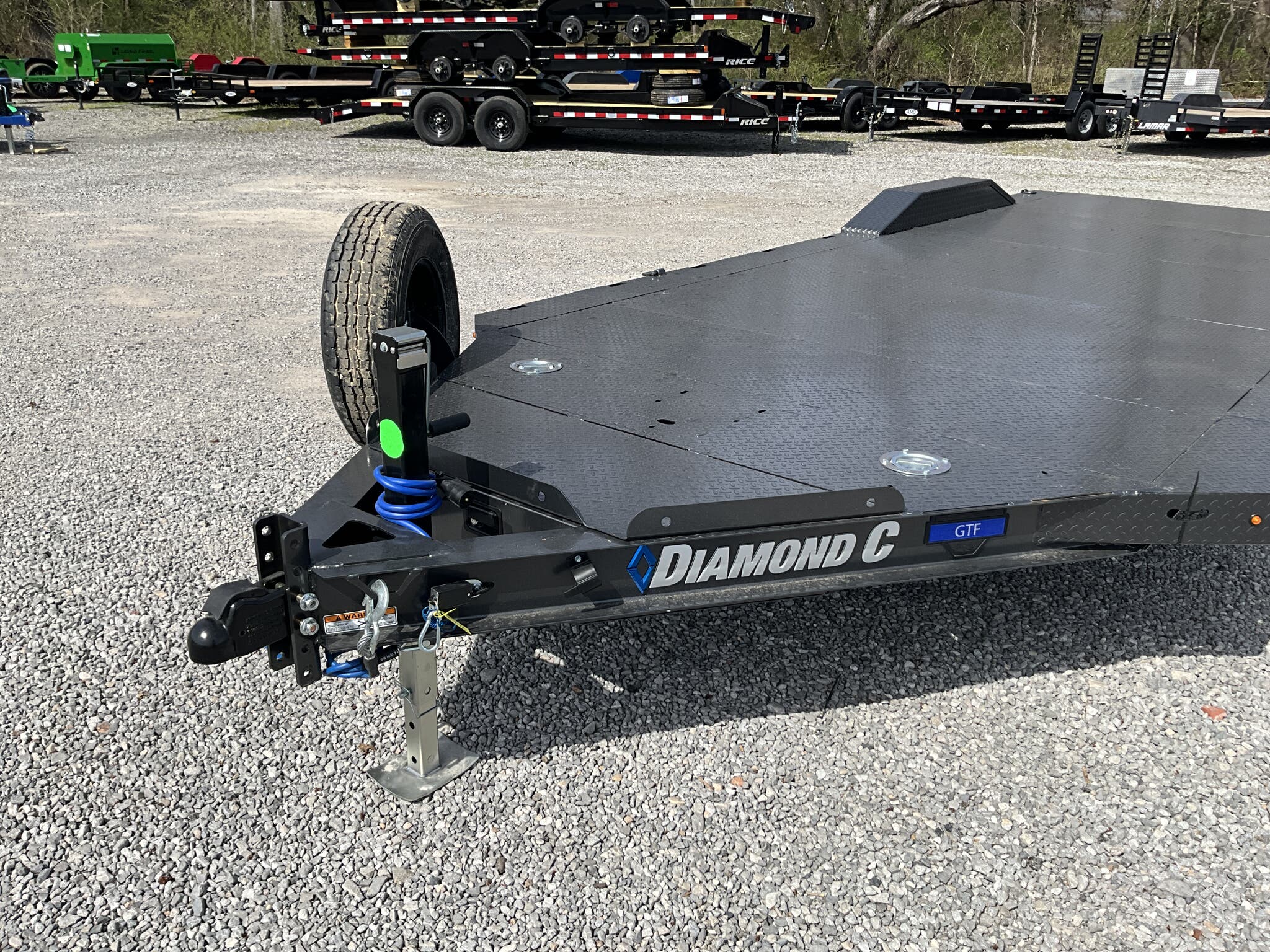

Specs — Coupler: 21K Demco EZ-Latch adjustable 2-5/16" coupler
Specs — Jack: 7K drop-leg jack
Specs — Stabilizers: Rear swivel stabilizer jacks (pair)
Specs — Storage: Lockable V-tongue toolbox
Specs — Winch Plate: Installed on tongue
Specs — Tie Downs: (6) total D-rings (4 standard + 4 extra 1/2" D-rings configuration)
Specs — Rub Rail: Formed rub rail with stake pockets
Specs — Tires/Wheels: ST225/75R15 radial tires on 6-lug aluminum wheels
Specs — Spare: Matching aluminum wheel and tire included
Specs — Spare Mount: Passenger side of tongue
Specs — Lighting: Full LED lighting package
Specs — Finish: Carbon Metallic Gray paint
Specs — Decals: GTF series branding

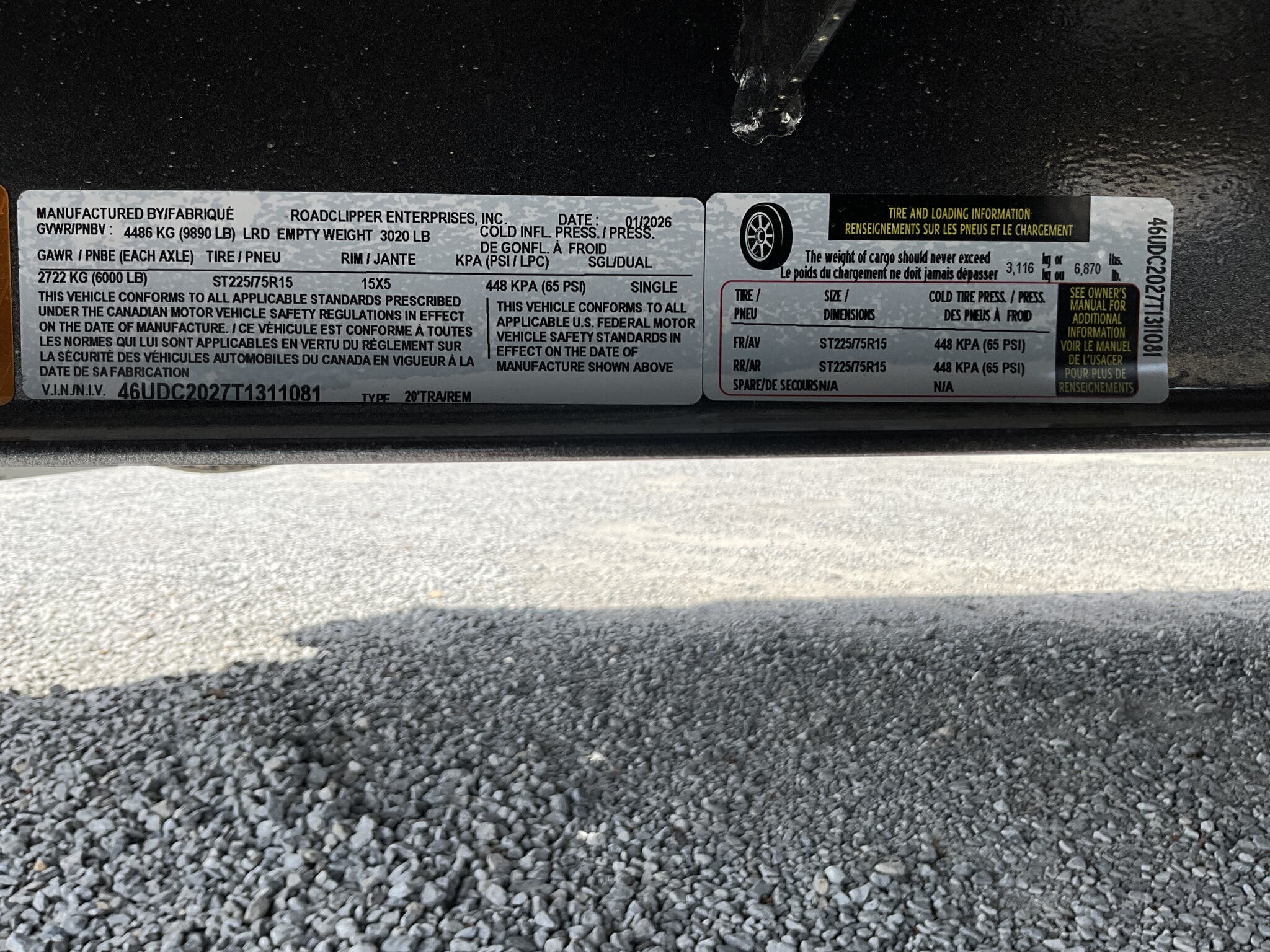

Weights & Capacities
GVWR: 12,000 lb
Empty Weight: 3,020 lb
Payload on Axles: 12,000 - 3,020 = 8,980 lb
Target Tongue Load (10% of GVWR): 1,200 lb
Total Effective Payload: 10,180 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile
