2026 Diamond C FMAX FMAX212MR-L35X102

2026 Diamond C FMAX FMAX212MR-L35X102 - #DCT031826-1

(Click to see larger image and other views)

Product Details

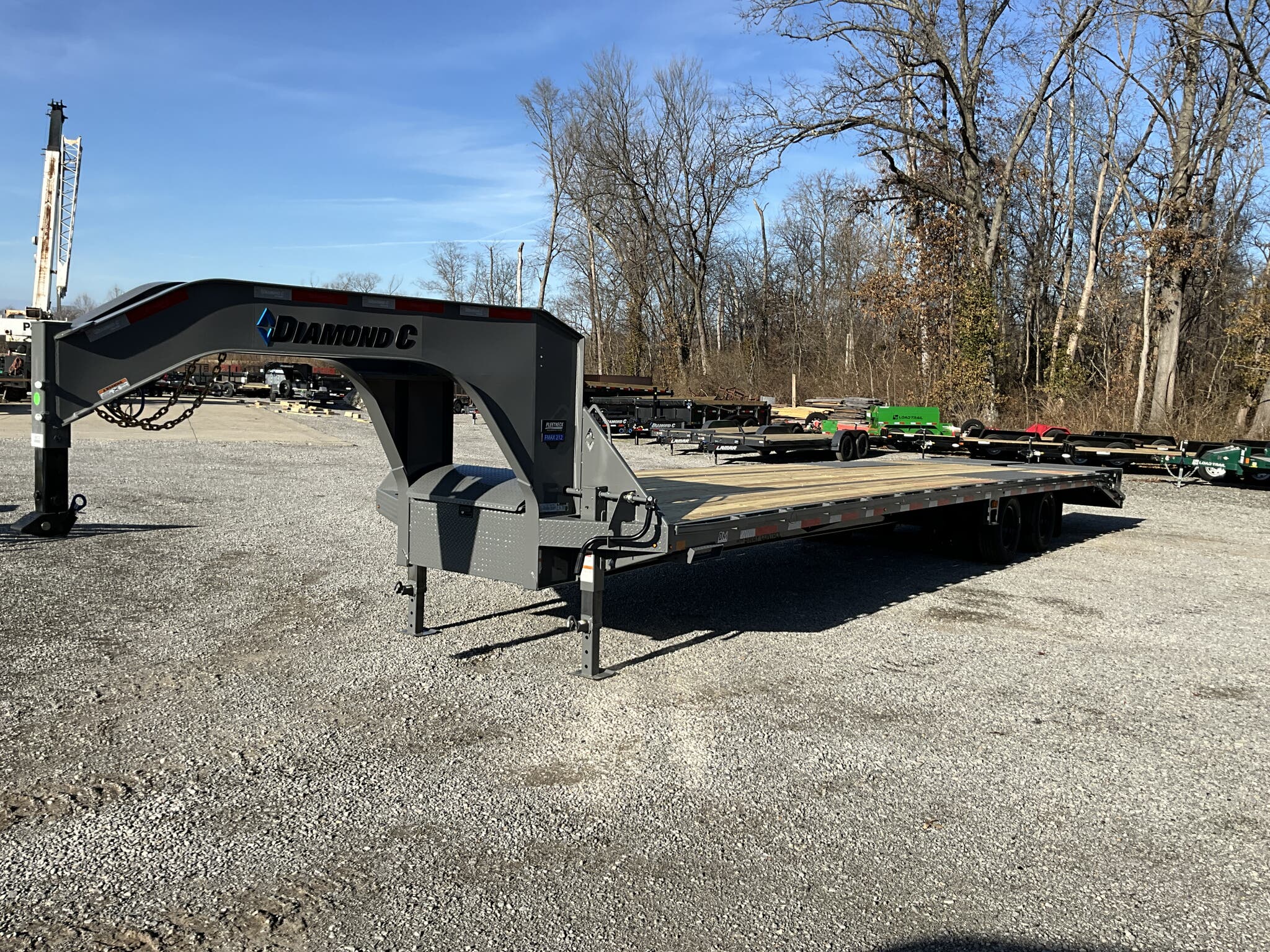

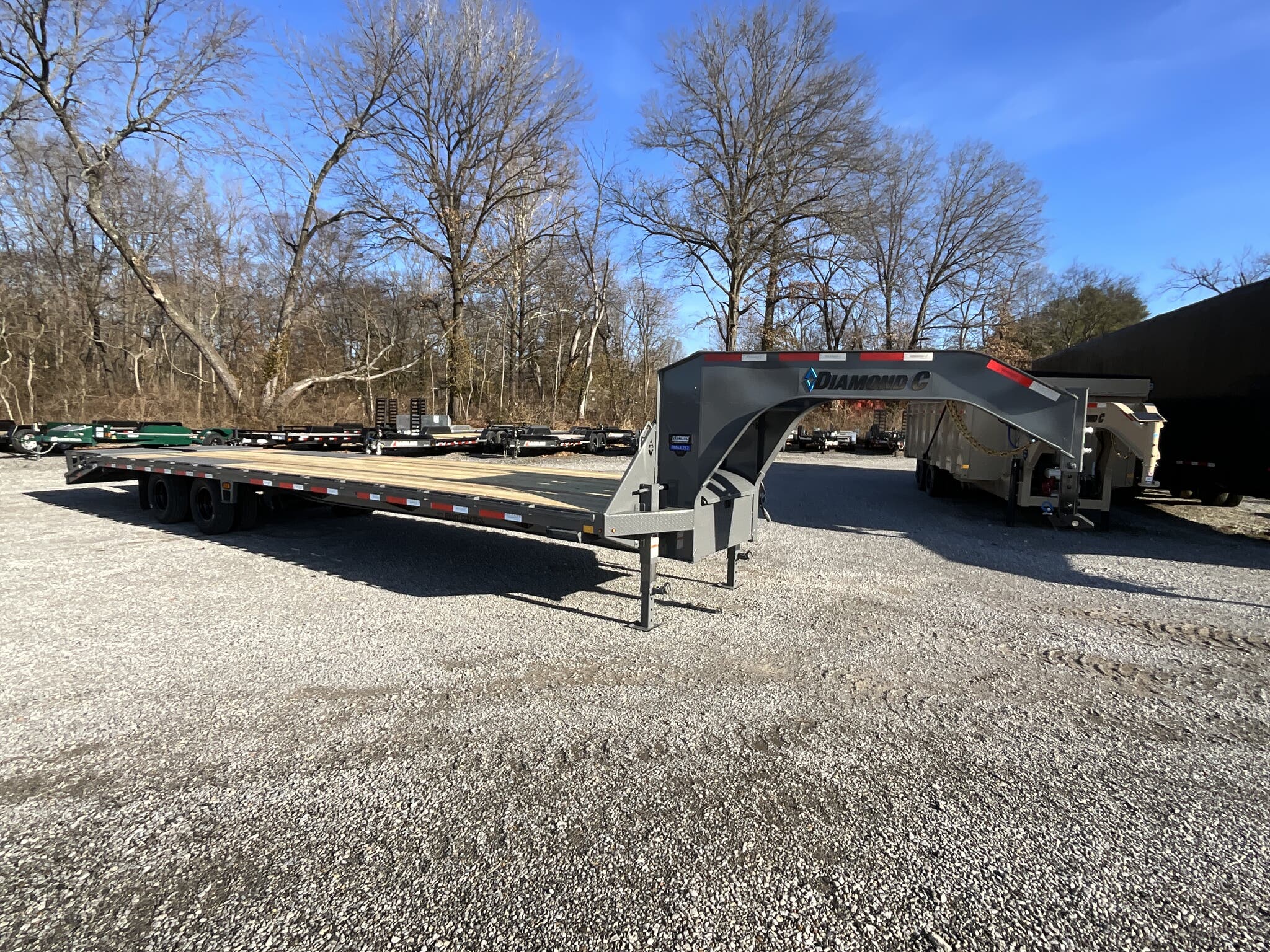

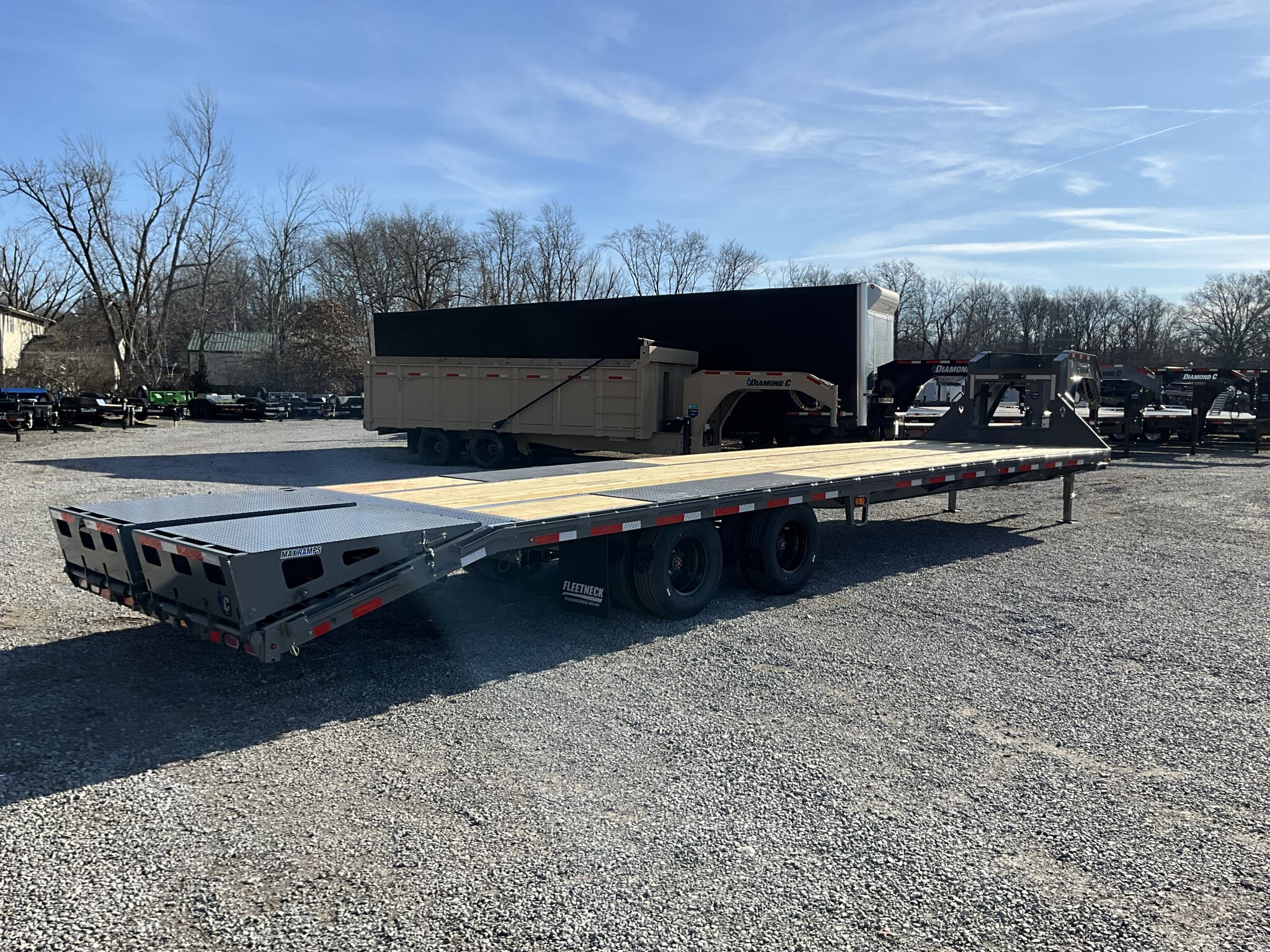

2026 DIAMOND C FMAX212 2.0 — 35' × 102" GOOSENECK DECK-OVER TRAILER, CEMENT GRAY, MAX RAMPS WITH 60" DOVETAIL — FOR SALE IN MOUNT VERNON, IL 62864

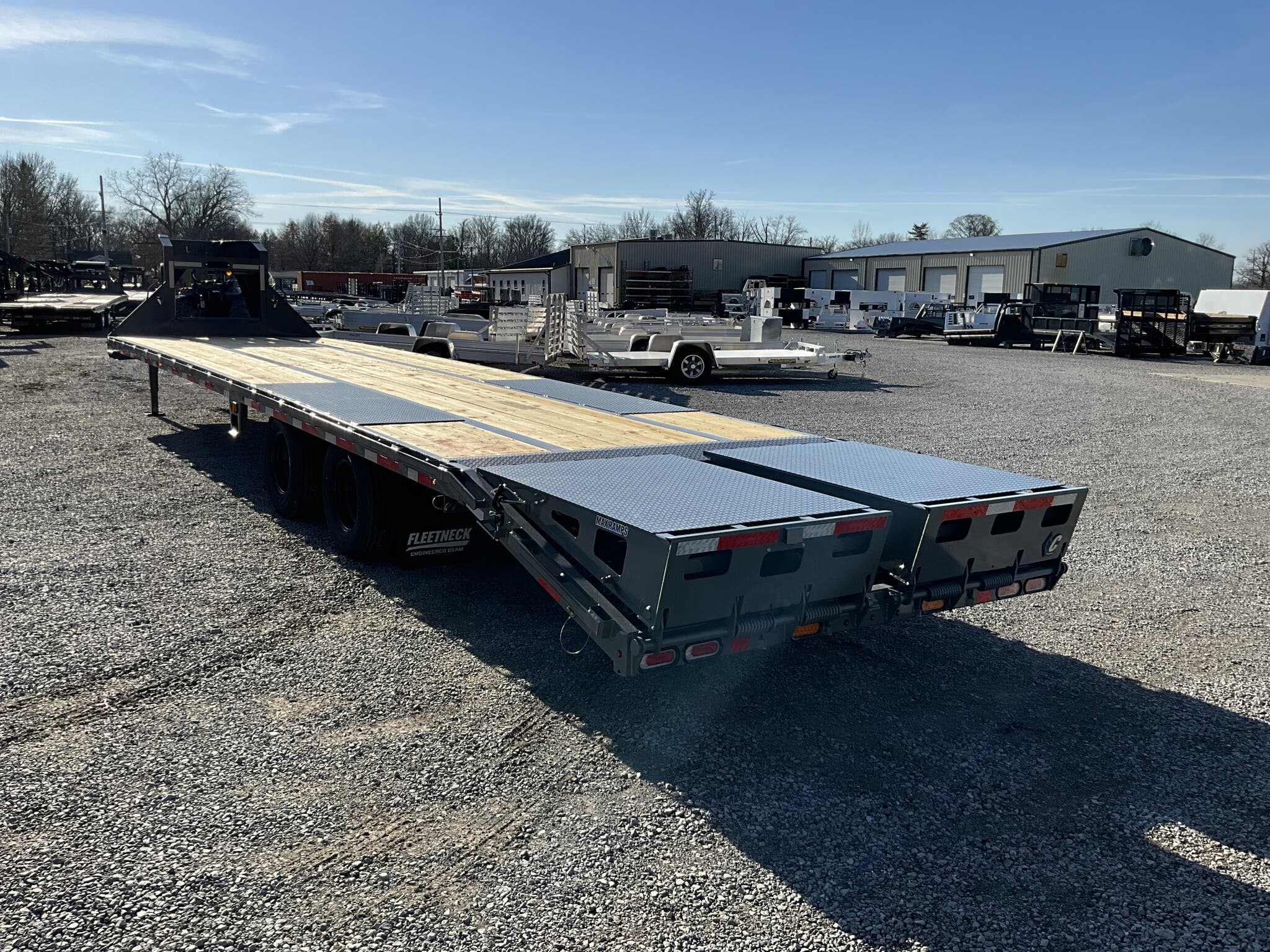

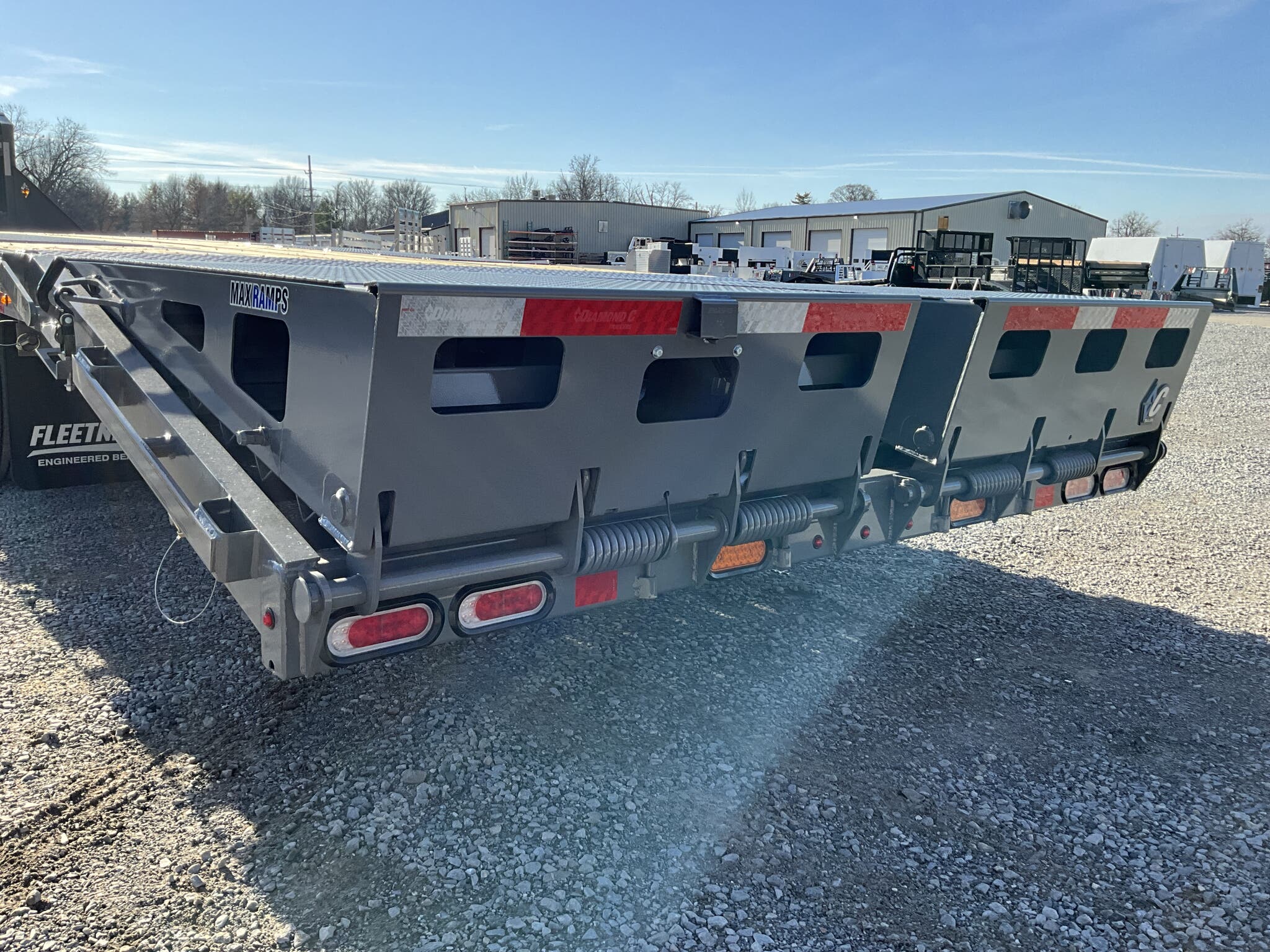

Feature: 60" dovetail with MAX ramps and angle cleats for traction
Feature: Hutch heavy-duty adjustable suspension
Feature: Rear LED caution flashers with additional clearance lighting
Feature: Aluminum outer wheels with dual tire setup

Specs — Model: FMAX212 2.0
Specs — Size: 35' × 102" deck-over gooseneck
Specs — Frame: 16" engineered beam 2.0 with 3" I-beam crossmembers on 12" centers

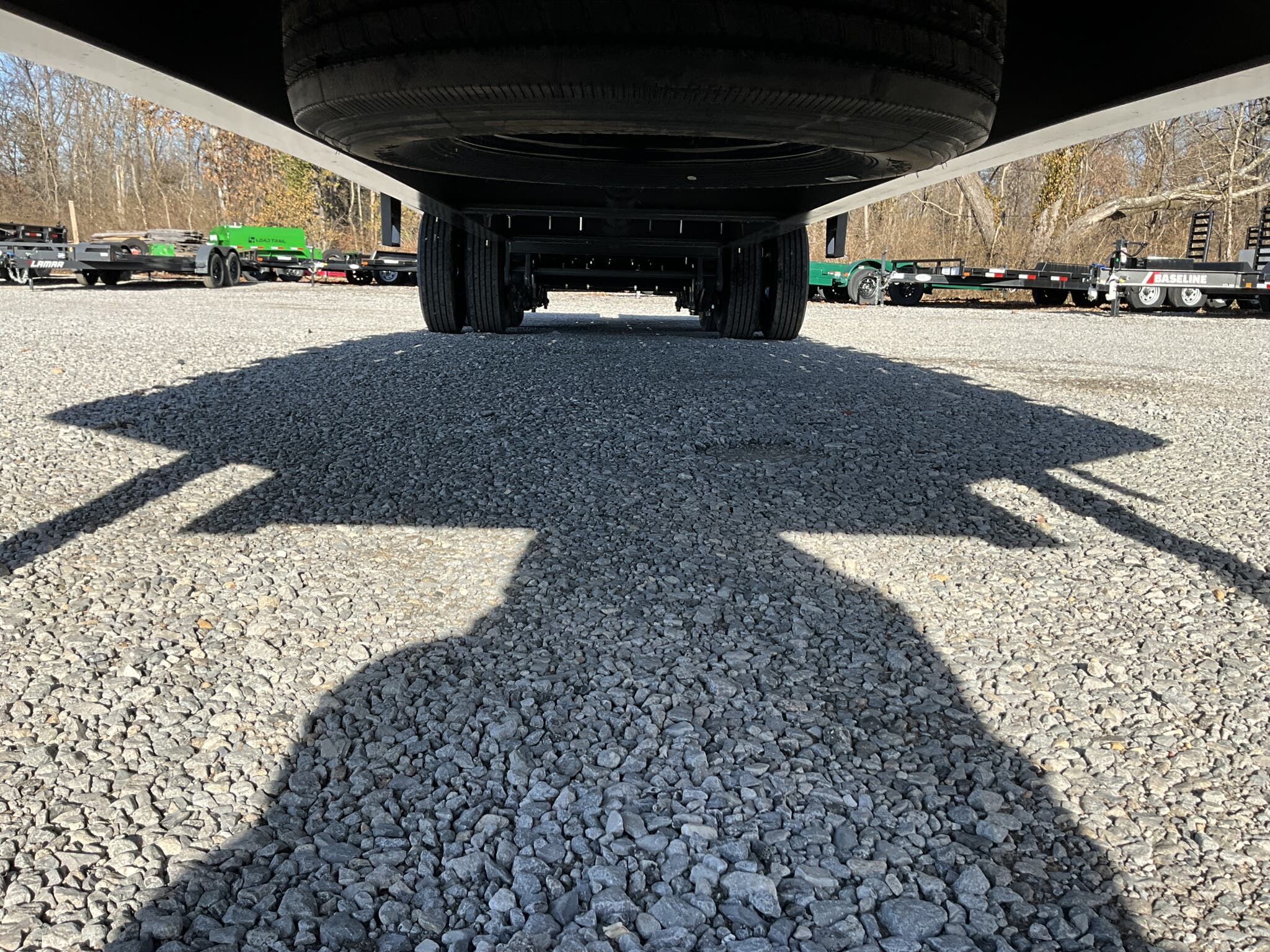

Specs — Axles/Brakes: (2) 12,000 lb heavy-duty oil bath axles; electric drum brakes with ABS
Specs — Suspension: Hutch heavy-duty adjustable suspension

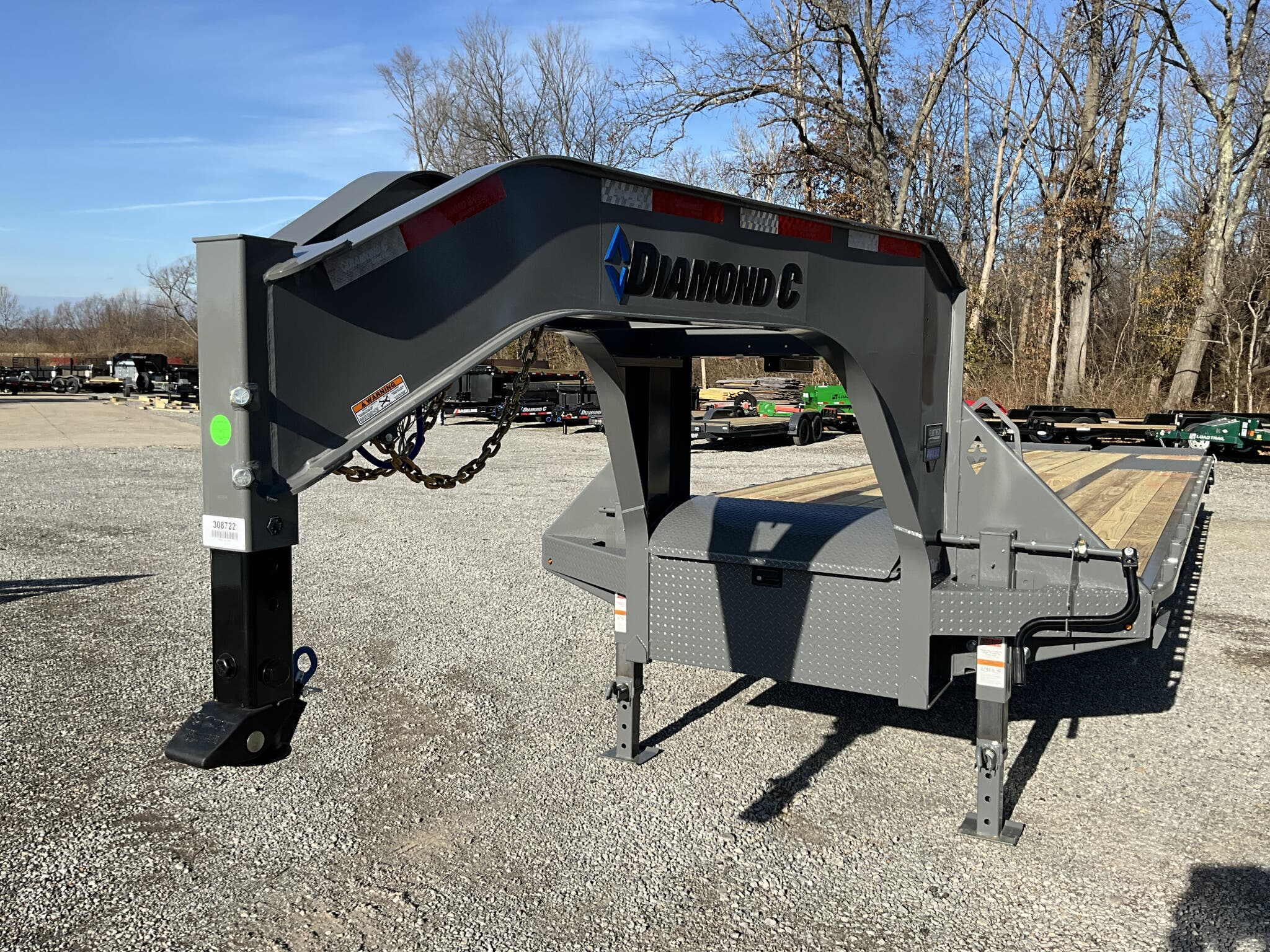

Specs — Coupler: Curt cushion gooseneck coupler
Specs — Jack: Dual 20K Simol 2-speed drop-leg jacks
Specs — Floor: 2" treated lumber deck

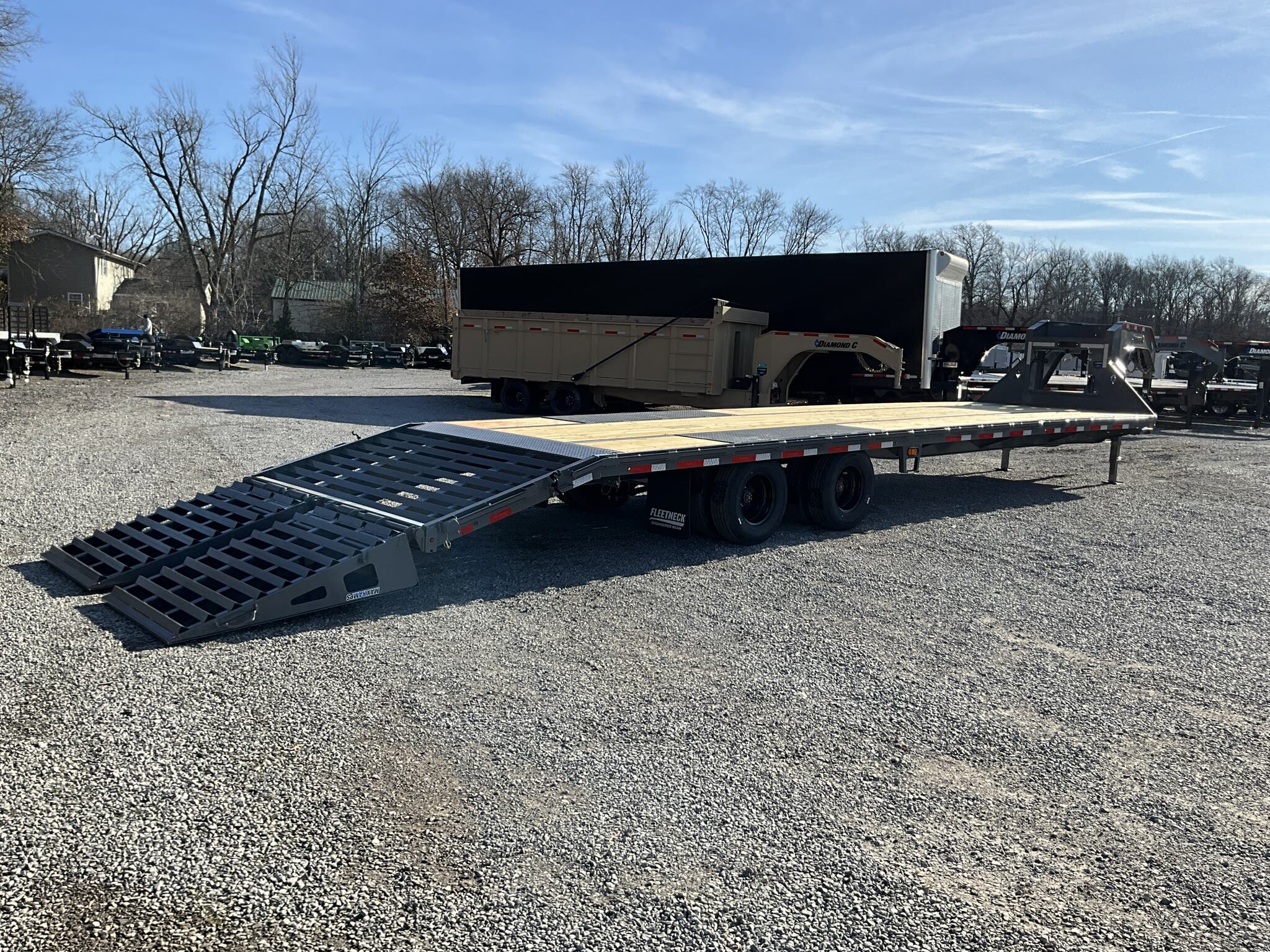

Specs — Dovetail/Ramps: 60" dovetail with MAX ramps and steel cleats

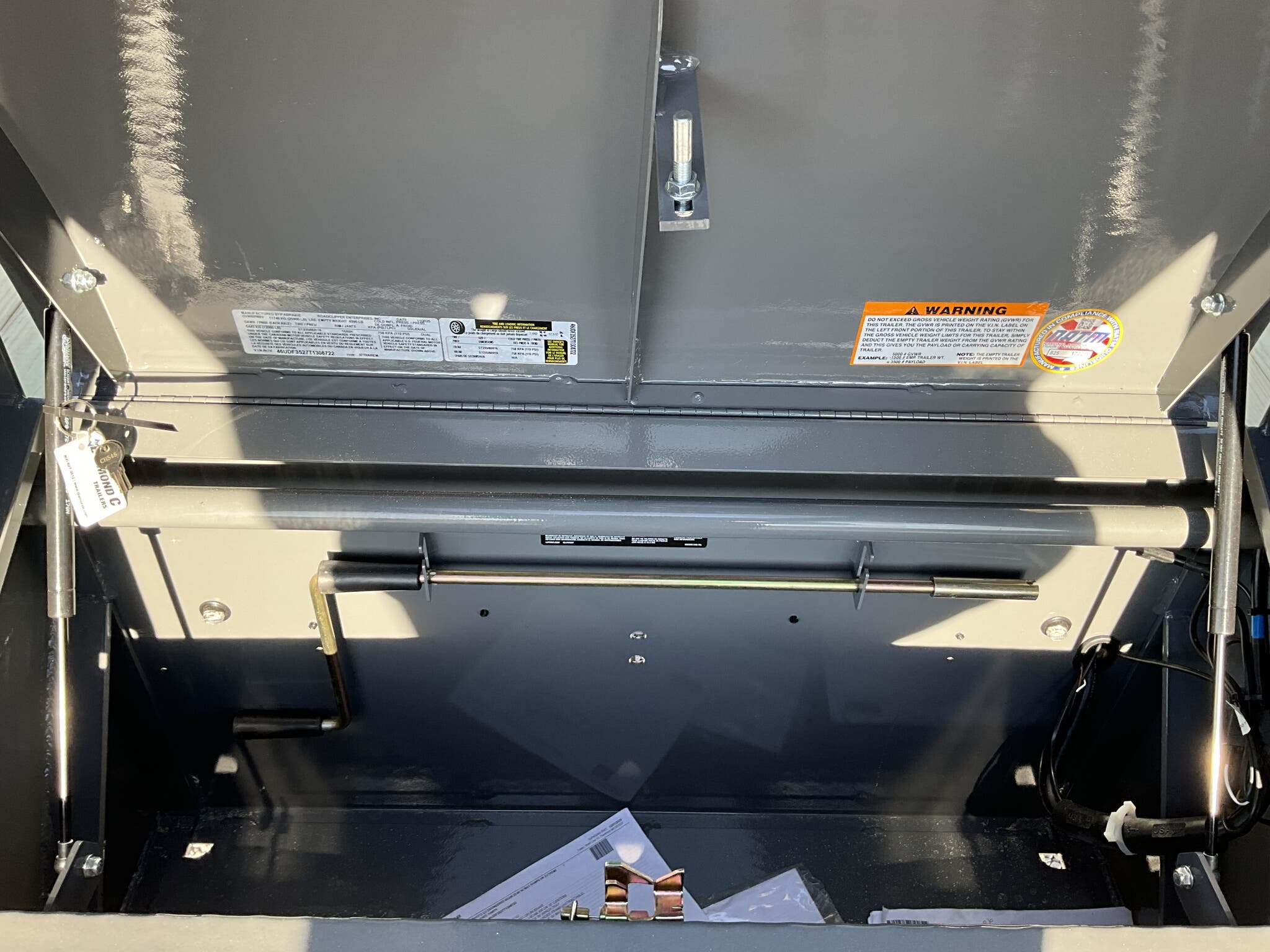

Specs — Storage: Diamond plate neck box with gas shock lid
Specs — Winch Prep: Winch tray installed
Specs — Rail/Tie Downs: 6" channel lace rail with 3/8" rub rail, stake pockets, and pipe spools
Specs — Tires/Wheels: ST235/80R16 14-ply radial duals with aluminum outer wheels; matching spare
Specs — Electrical: Sealed wiring harness
Specs — Lighting: Full LED lighting package with rear caution flashers and extra clearance lights
Specs — Safety: Sway control system
Specs — Finish: DM Difference Maker coating; Cement Gray
Specs — Warranty: 6-year Diamond C manufacturer warranty (2026+)

Weights & Capacities
Total Axle Capacity: 24,000 lb
Empty Weight: 8,440 lb
Payload on Axles: 24,000 - 8,440 = 15,560 lb
Tongue Load (Gooseneck @ 20%): 4,800 lb
Total Effective Payload: 20,360 lb

Delivery from 62864 (Lower 48)
Up to 100 miles $150
101–300 miles $2.00/mile
301–1200 miles $3.00/mile
Over 1200 miles $4.00/mile

Stock Number: DCT031826-1

Condition: New

Width: 8' 6"

Length: 35' 0"

Trailer Type: EQUIPMENT TRAILERS

Model: FMAX FMAX212MR-L35X102

Rear Configuration: MAX RAMPS

Exterior Color: CEMENT GRAY

Location: Mount Vernon

Hitch Type: GOOSENECK

GVWR: 24000

Est. Empty Weight: 8440

# of Axles: 2

Construction Type: STEEL

Year: 2026

Stock #: DCT031826-1

Brand: DIAMOND C

Expected Delivery Date: 5/15/2026

Is Rental: false

Our Price: $29,410.00
