2026 Baseline HDU-16FT-16K-3FTSIDES - #DCT102125-5

2026 DIAMOND C HDU “Baseline” — 16' x 82" Dump Trailer, Carbon Metallic Gray, Bumper Pull, Telescopic Hoist, 36" Sides + 6" Raised Front, 78" Slide-In Ramps — For Sale in Illinois
Standout Options: 36" tall sides (10 ga) + 6" raised front with board bracket
Standout Options: Rear stabilizer drop legs with 78" slide-in ramps
Standout Options: 7W solar charging system + 110V 5A charger
Standout Options: Heavy-duty black mesh tarp (20')
Specs — Main Frame: 8" x 15 lb I-beam
Specs — Body: 10 ga integral floor & sides
Specs — Sides: 36" tall sides (10 ga) + 6" raised front with board bracket

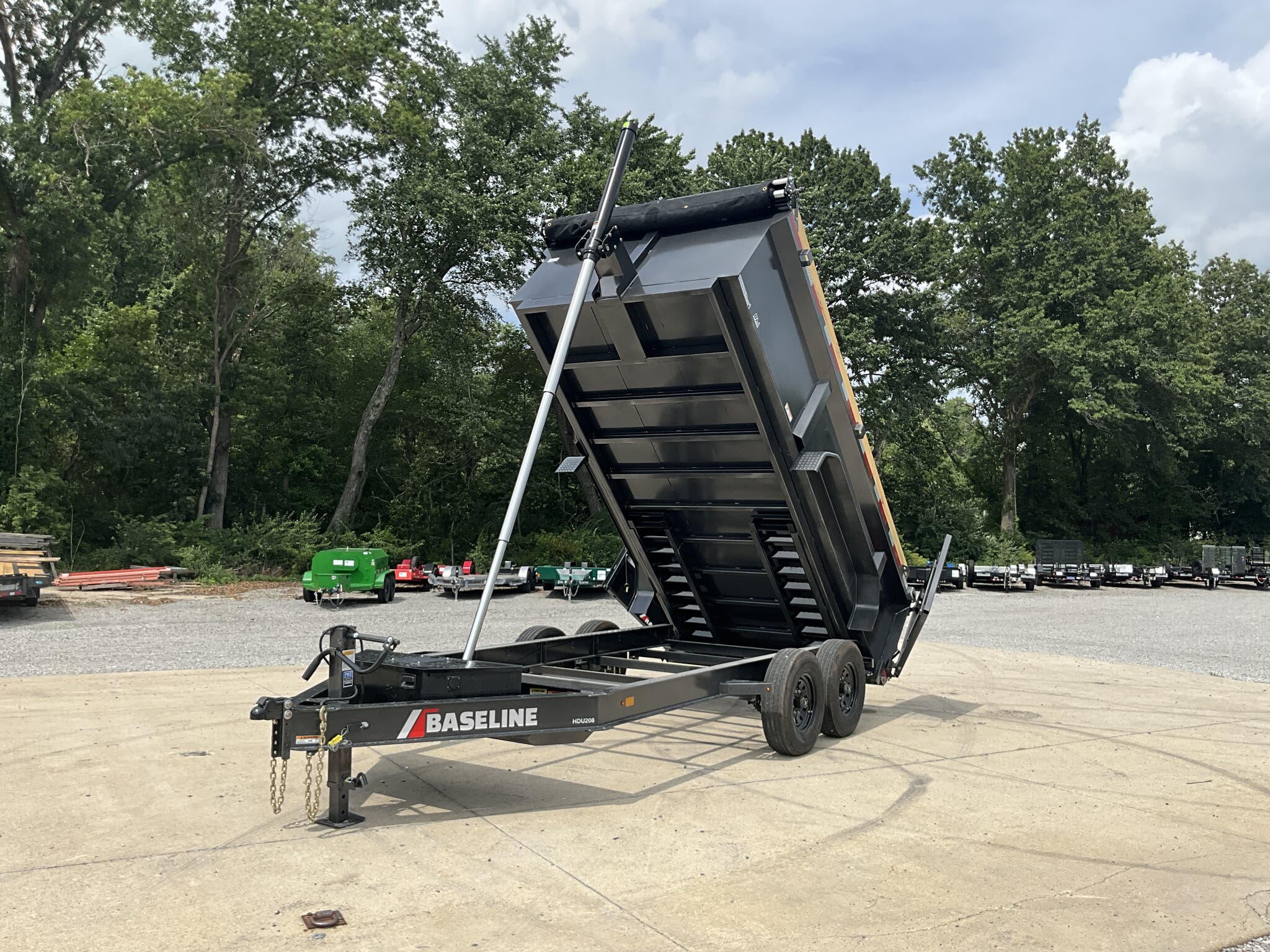

Specs — Hoist: 3-stage telescopic cylinder
Specs — Ramps/Rear: 78" rear slide-in ramps (3" I-beam); rear stabilizer drop legs (add-on)

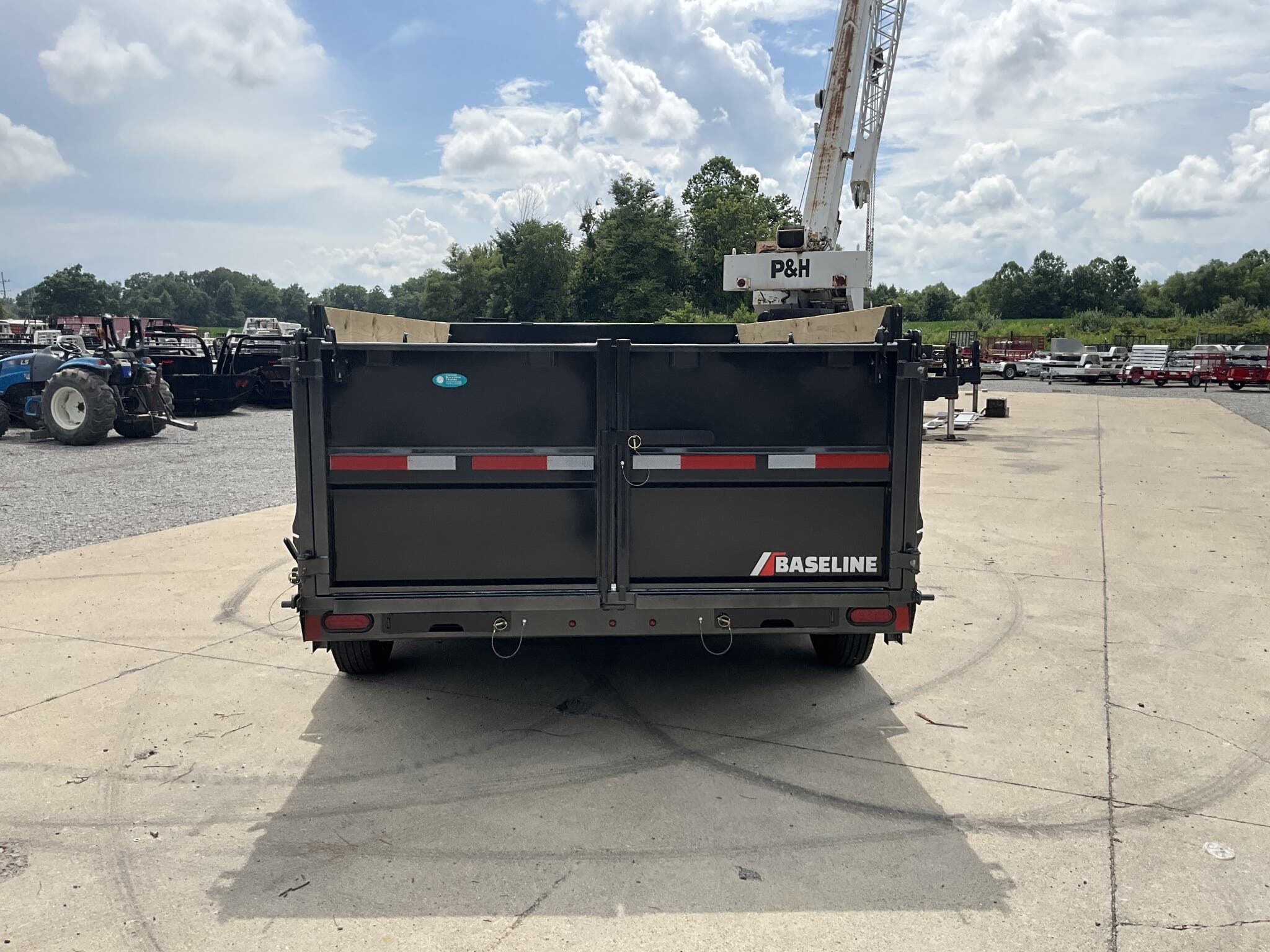

Specs — Gate: Multifunctional gate
Specs — Axles/Brakes: (2) 8,000 lb Super-Lube; electric brakes
Specs — Suspension: 6-leaf springs
Specs — Coupler: 2-5/16" Demco EZ-Latch, 21K, adjustable channel
Specs — Jack: 12,000 lb drop-leg jack

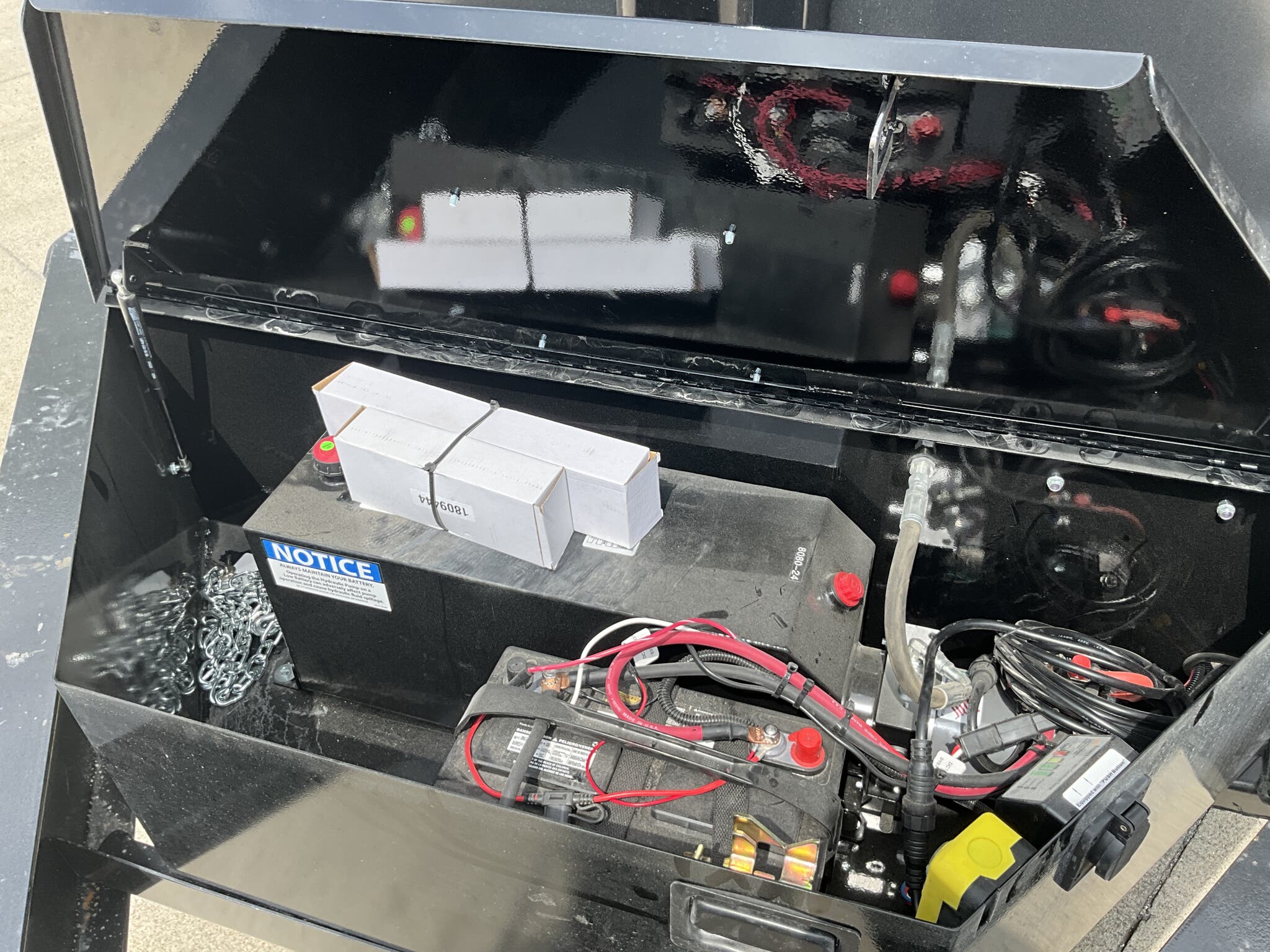

Specs — Storage: Lockable tongue box
Specs — Electrical: Sealed wiring harness; all LED lights
Specs — Tie-Downs: (4) 5/8" D-rings
Specs — Tires/Wheels: 235/80R16, 14-ply radials; black wheels; spare mount
Specs — Paint/Finish: DM Difference Maker coating; Carbon Metallic Gray
Specs — Warranty: 6-year manufacturer warranty (2026+)
Weights & Capacities — Total Axle Capacity (used for payload math): 16,000 lb
Weights & Capacities — Empty/Trailer Weight: 5,300 lb
Weights & Capacities — Payload on Axles (Capacity - Empty): 16,000 - 5,300 = 10,700 lb
Weights & Capacities — Target Tongue Load (Bumper-pull @ ~10% of Capacity): ˜ 1,600 lb
Weights & Capacities — Total Payload Including Tongue Support: 10,700 + 1,600 = 12,300 lb
Delivery from 62864 (Lower 48): Up to 100 miles: $150
Delivery from 62864 (Lower 48): 101–300 miles: $2.00/mile
Delivery from 62864 (Lower 48): 301–1200 miles: $3.00/mile
Delivery from 62864 (Lower 48): Over 1200 miles: $4.00/mile
