2023 Diamond C LPT LPT207-16X82

2023 Diamond C LPT LPT207-16X82 - #DCT67294

(Click to see larger image and other views)

Product Details

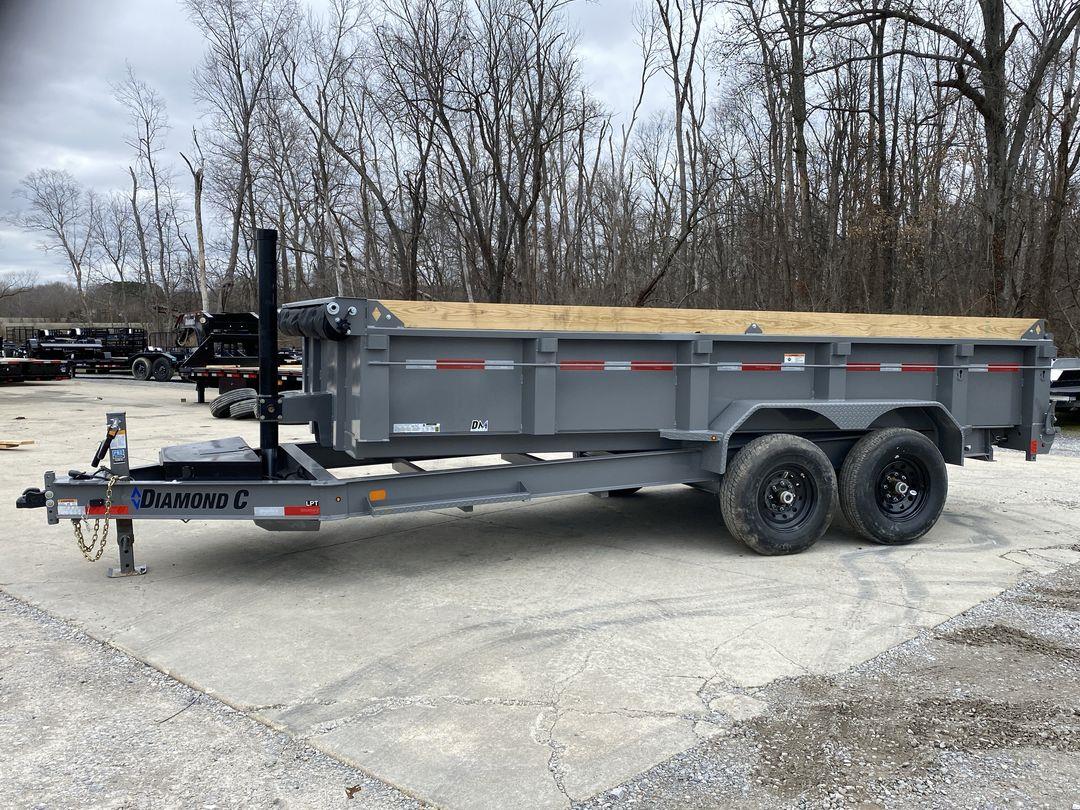

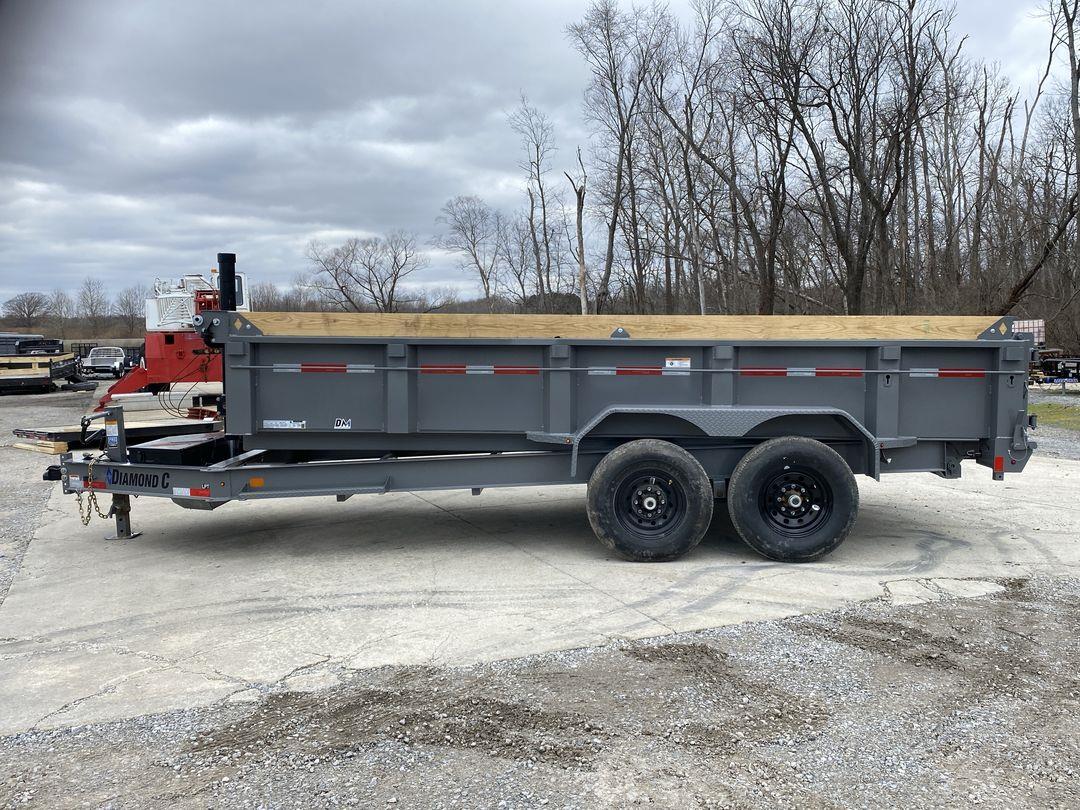

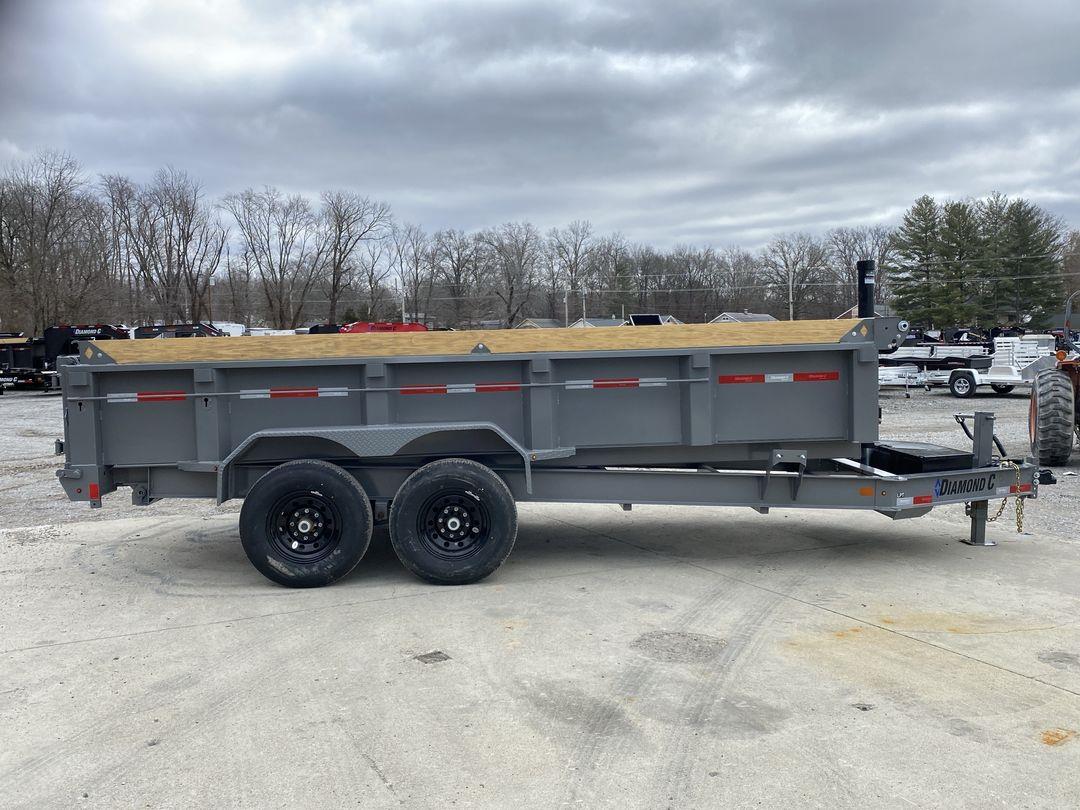

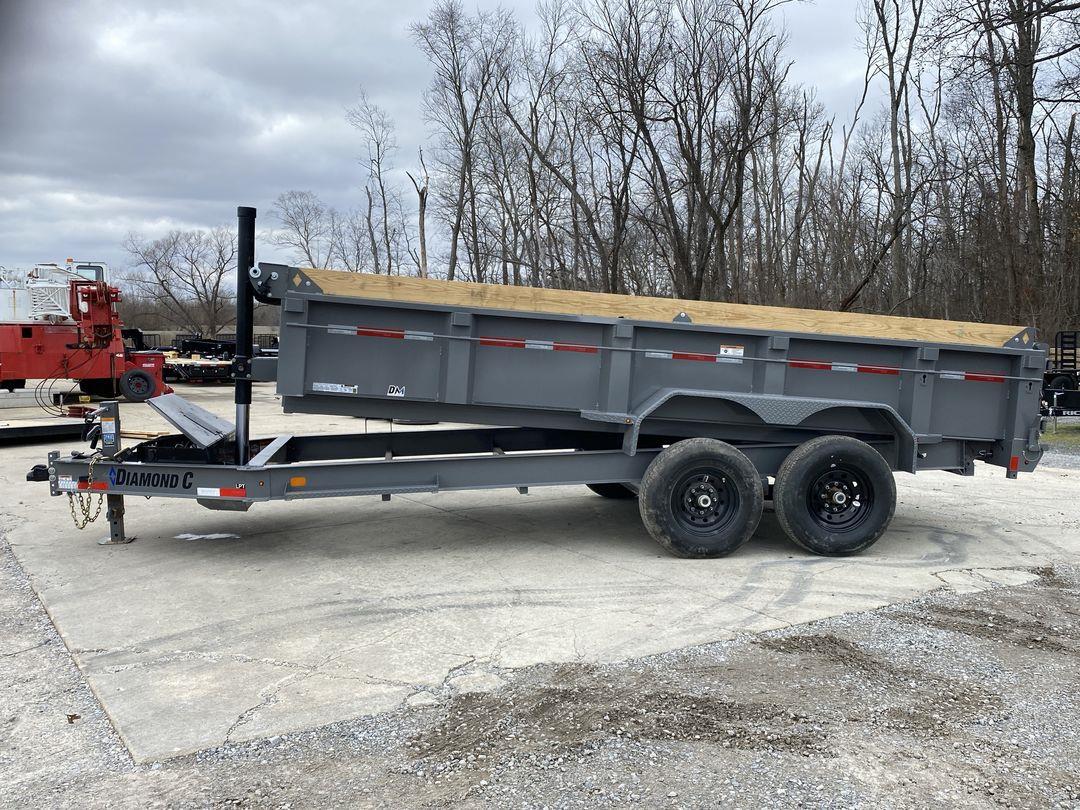

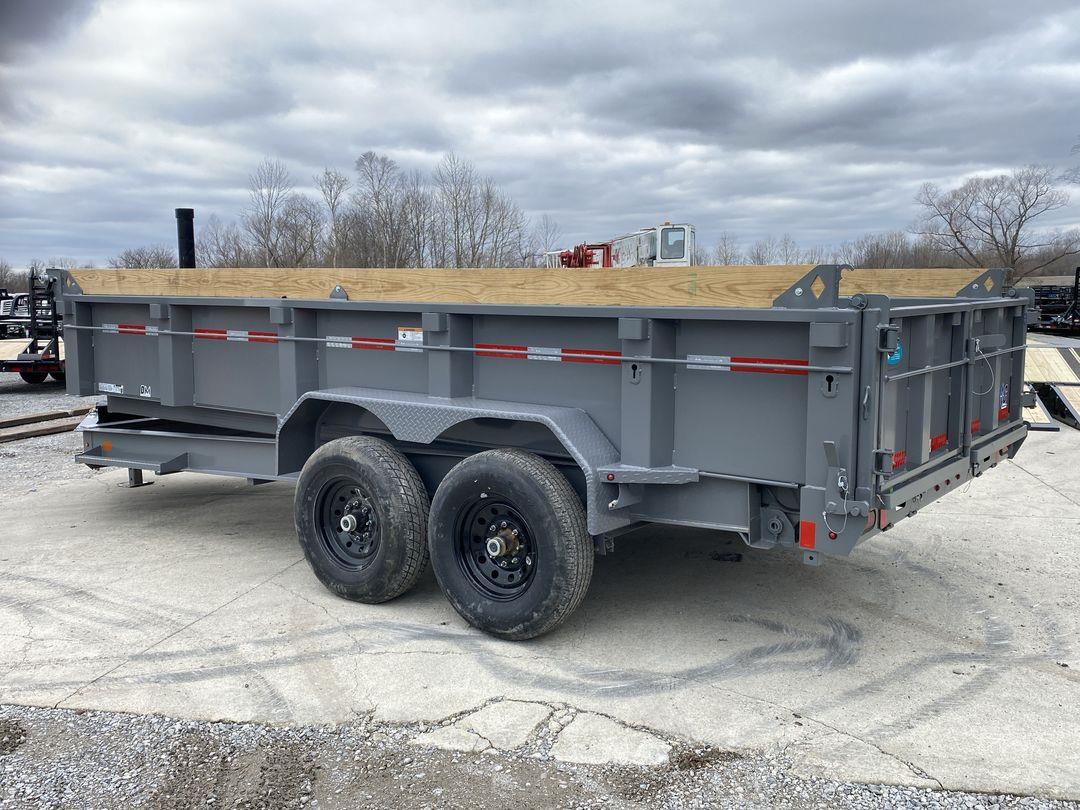

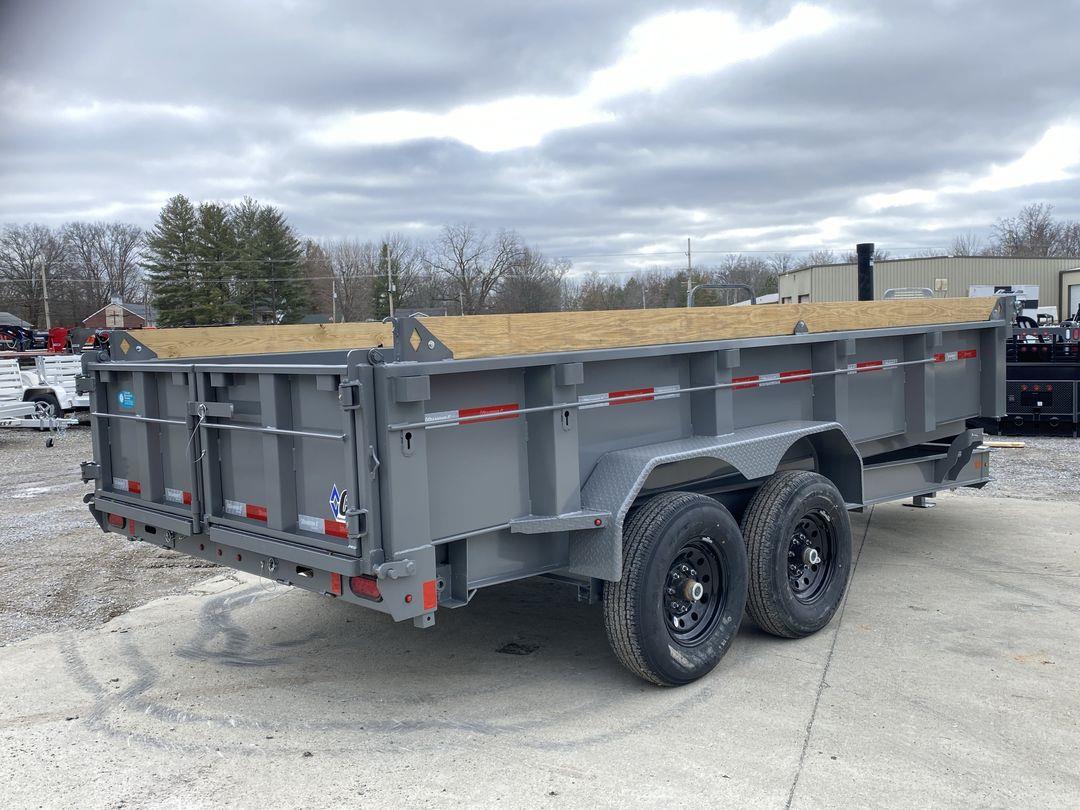

2023 Diamond C LPT 16'×82? Heavy Duty Low Profile Dump Trailer – Cement Gray – For Sale in Illinois

OVERVIEW:
2023 DIAMOND C LPT 16×82 HEAVY DUTY LOW PROFILE DUMP TRAILER
TELESCOPIC HOIST SYSTEM – POWER UP / GRAVITY DOWN
14.9K GVWR PACKAGE WITH ENGINEERED I-BEAM FRAME
BUILT FOR CONTRACTORS, LANDSCAPERS, AND HEAVY DUTY COMMERCIAL USE

SPECIFICATIONS:
Frame Size: 8"×15# I-beam main frame with 16" center crossmembers
Axles: (2) 7,000 lb straight axles with electric drum brakes
Suspension: 6-leaf slipper spring suspension
GVWR: 14,900 lbs

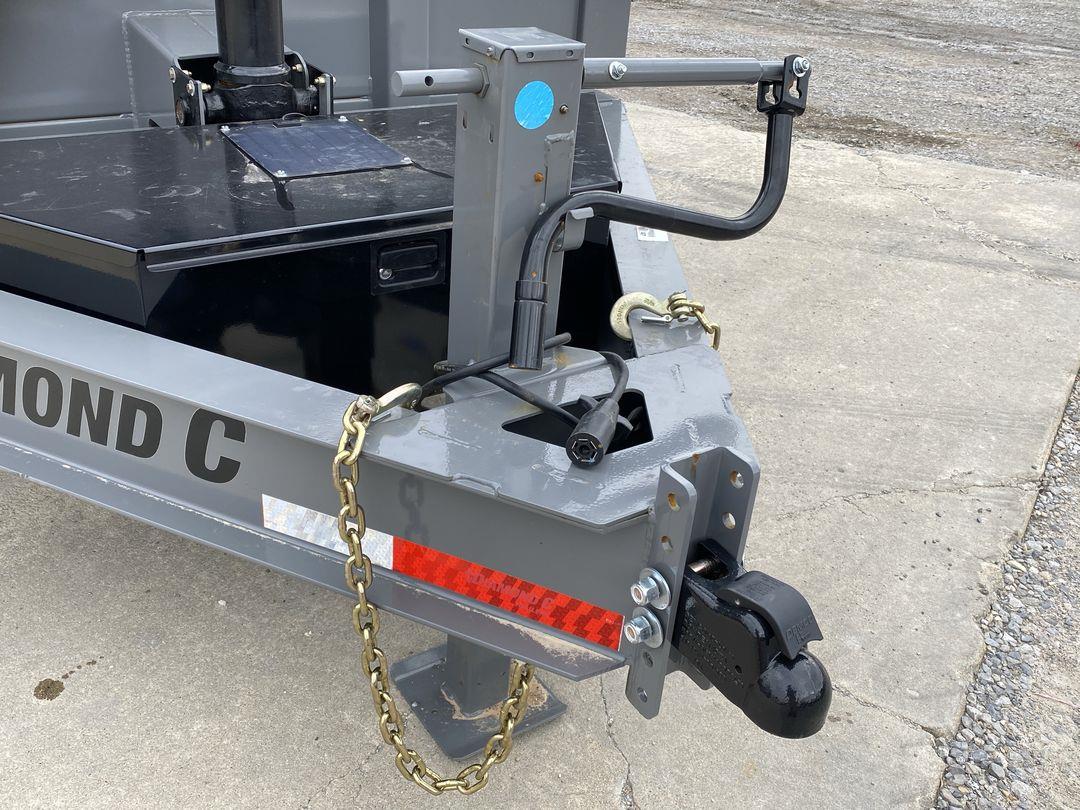

Coupler: 2-5/16? 21K Demco EZ-Latch adjustable channel
Tongue: Integral with frame (I-beam design)

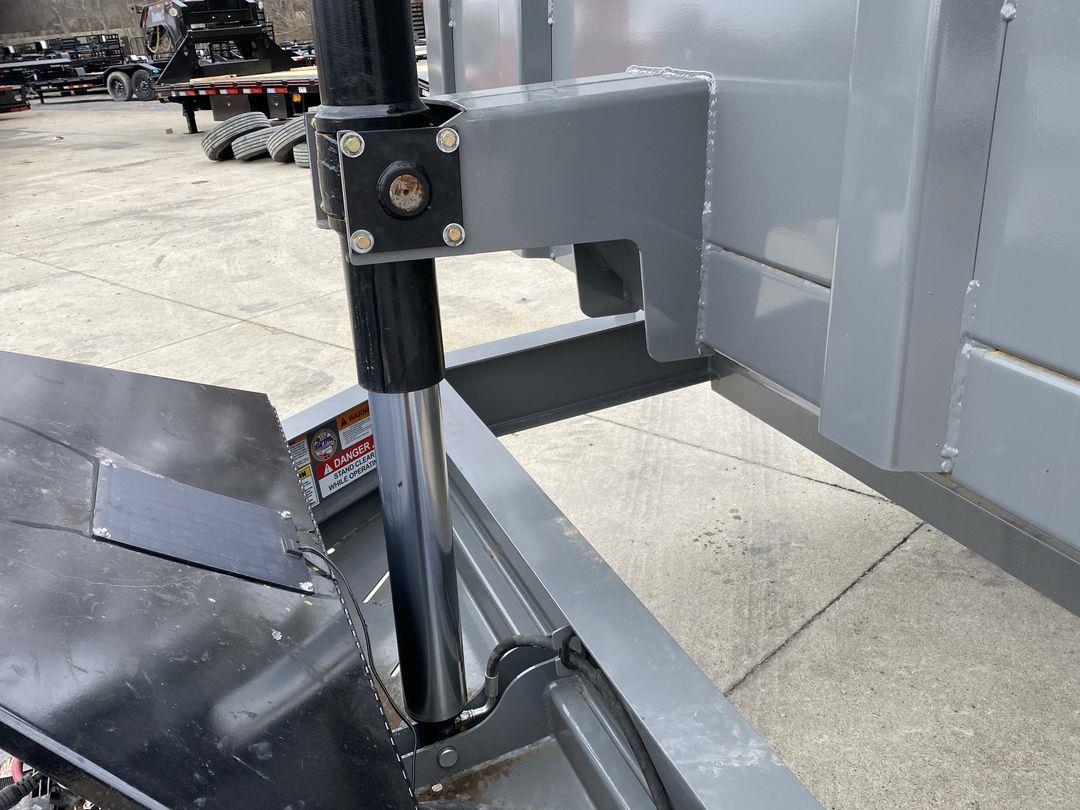

Hydraulics: Power up / gravity down telescopic hoist system
Jack: 12K drop-leg jack
Fenders: 14 ga teardrop diamond plate weld-on fenders

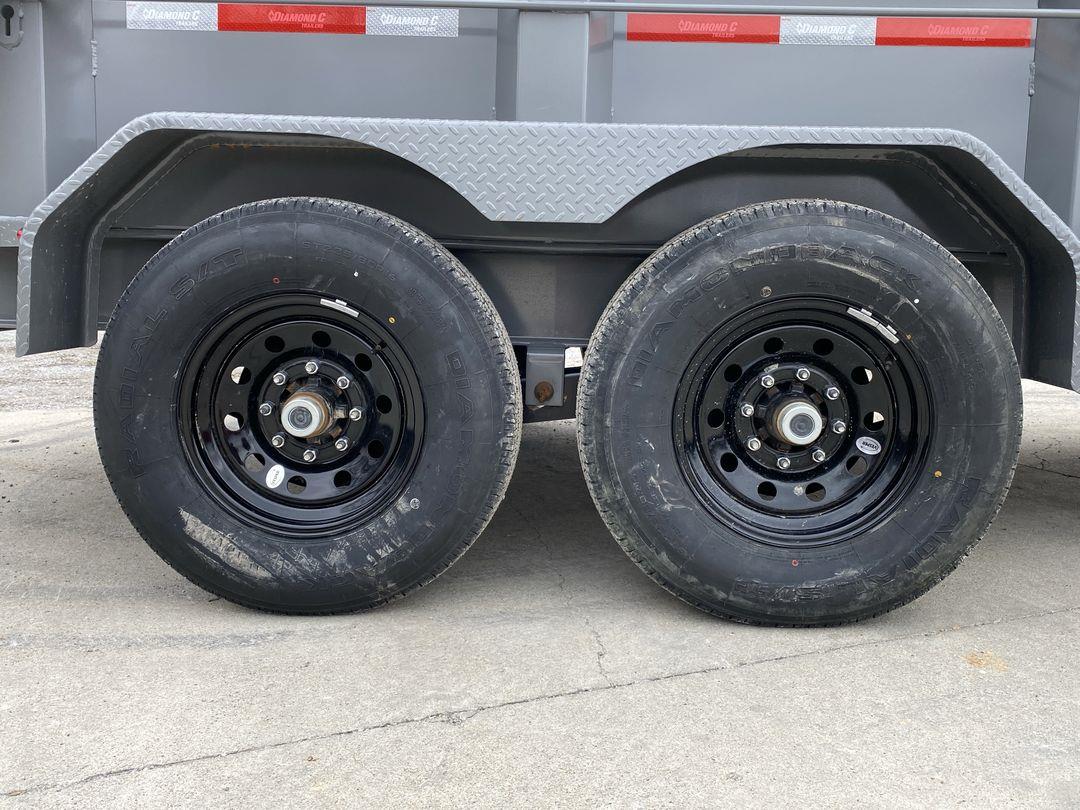

Tires/Wheels: ST235/80R16 10-ply radials on 8-hole black wheels
Floor & Sides: 10 ga integral 24? tall steel sides with raised front

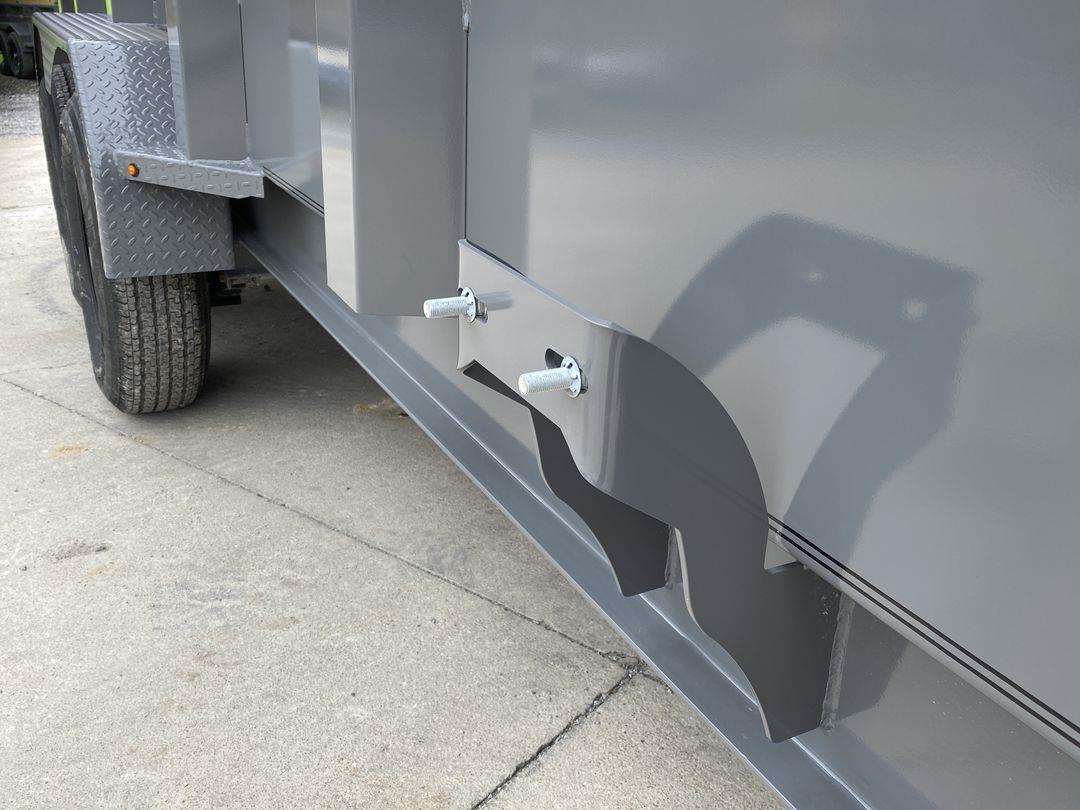

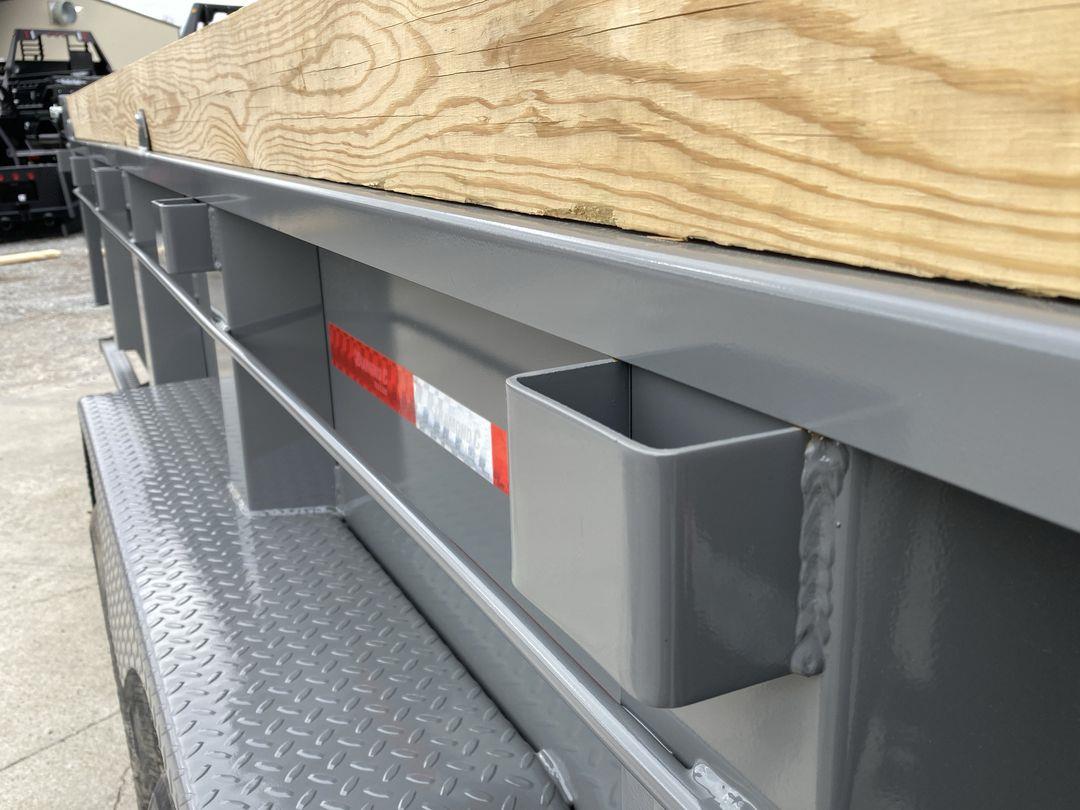

Board Brackets: Included with boards and raised front
Ramps: 72? rear slide-in ramps (3? channel design)

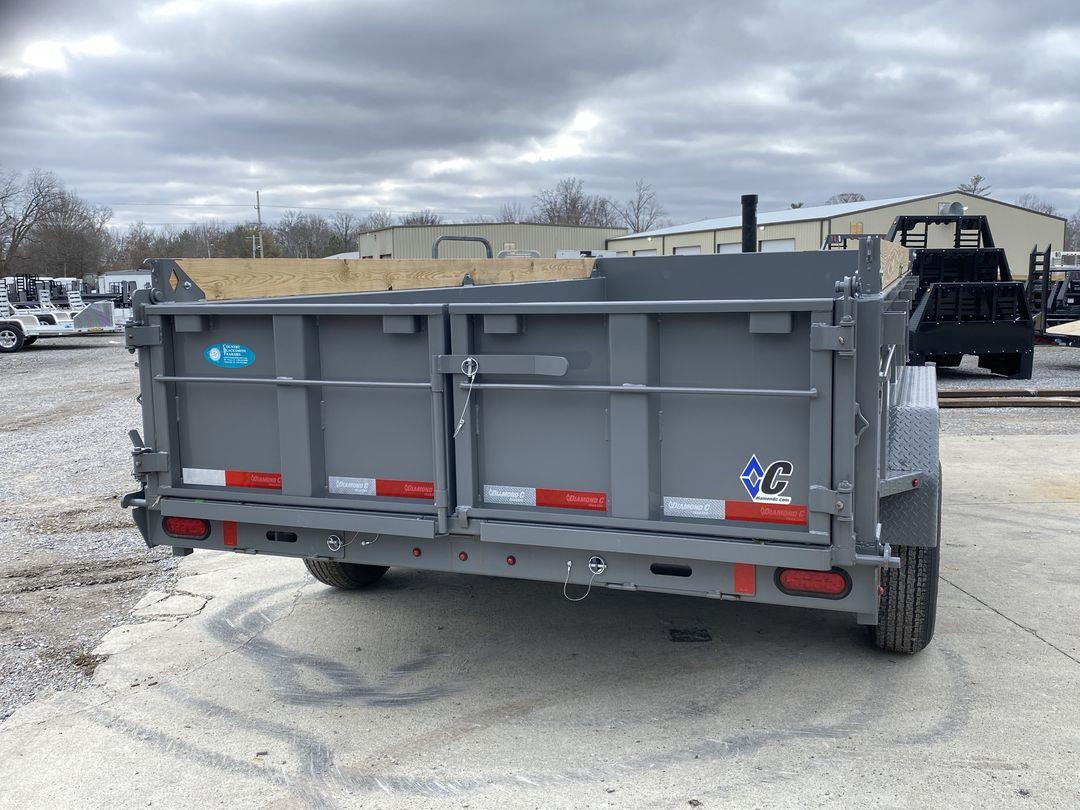

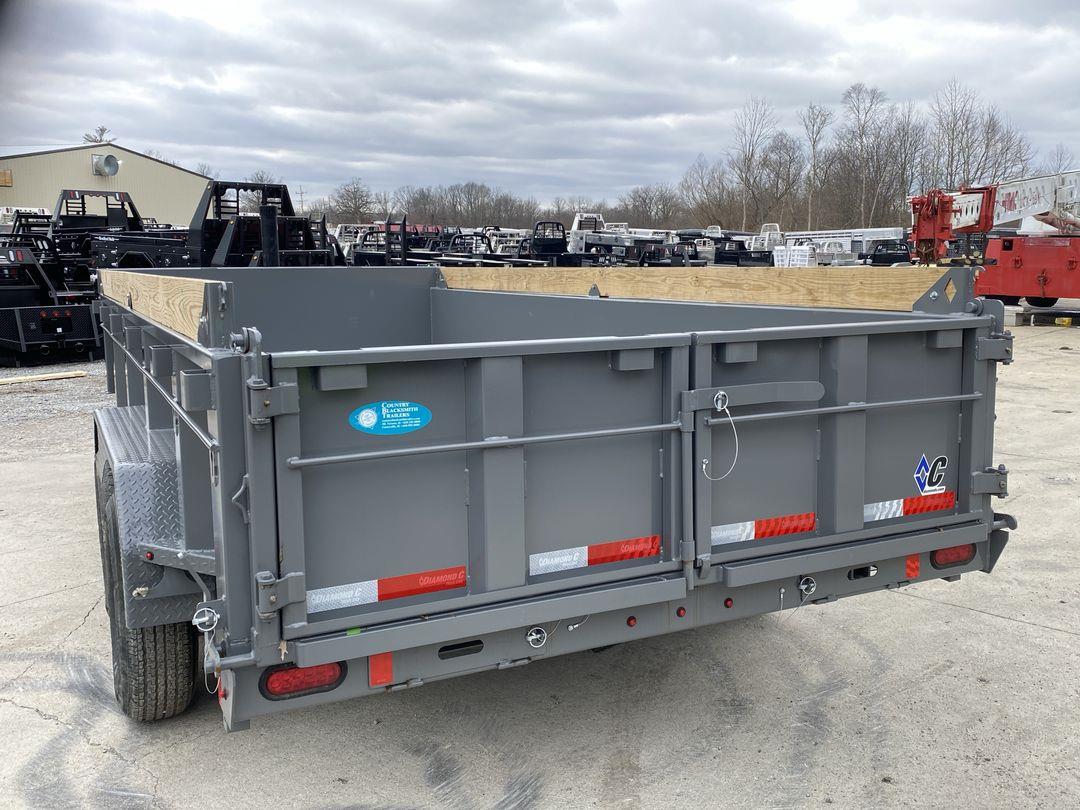

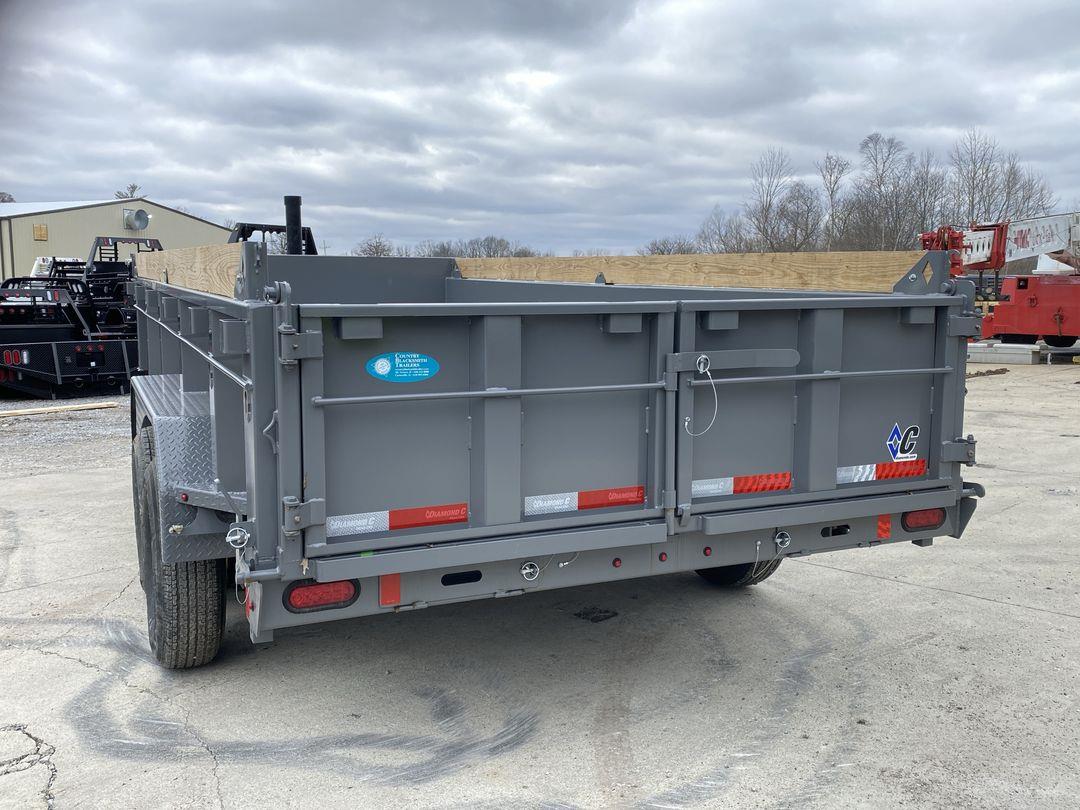

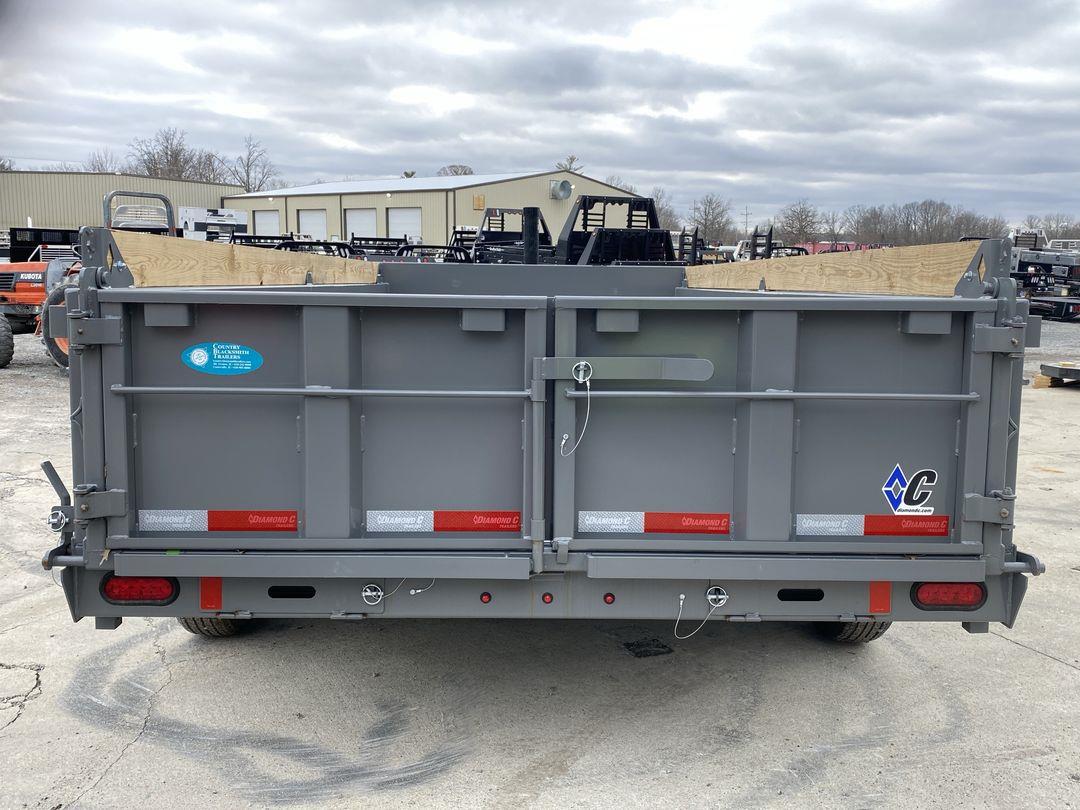

Gate: 3-way dump gate (standard)
Step: 36? side step
Tie-Downs: (4) 5/8? D-rings (standard)

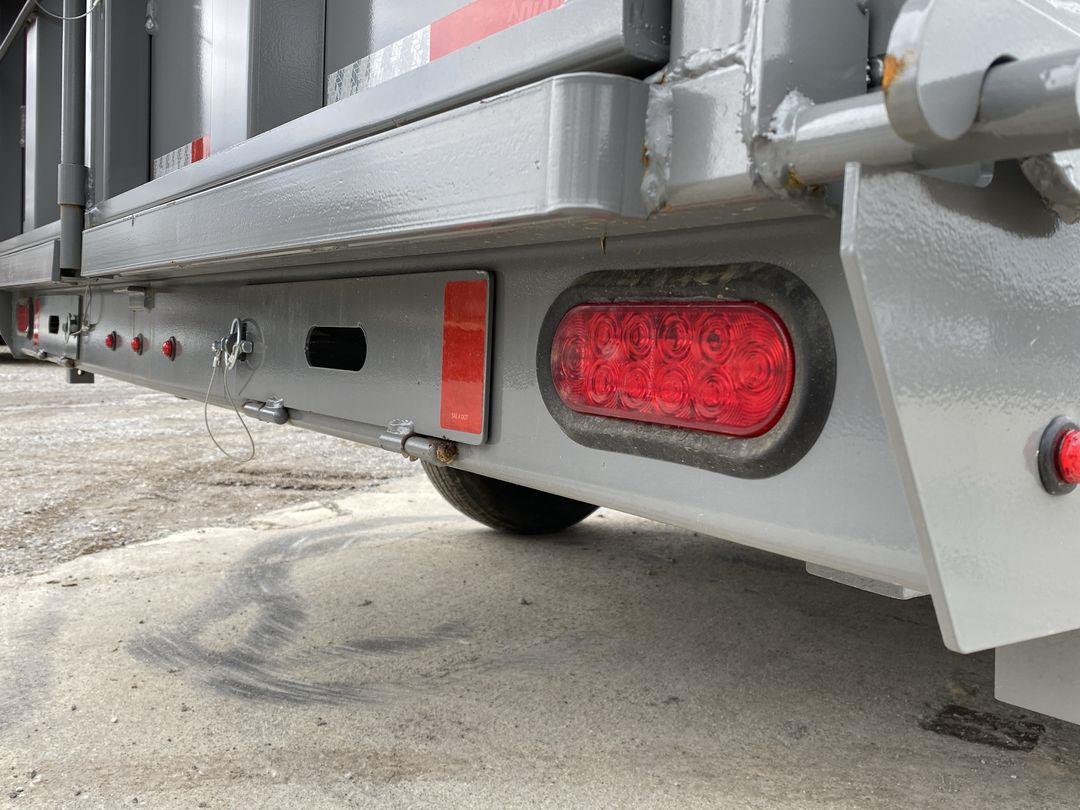

Lighting: All LED lighting

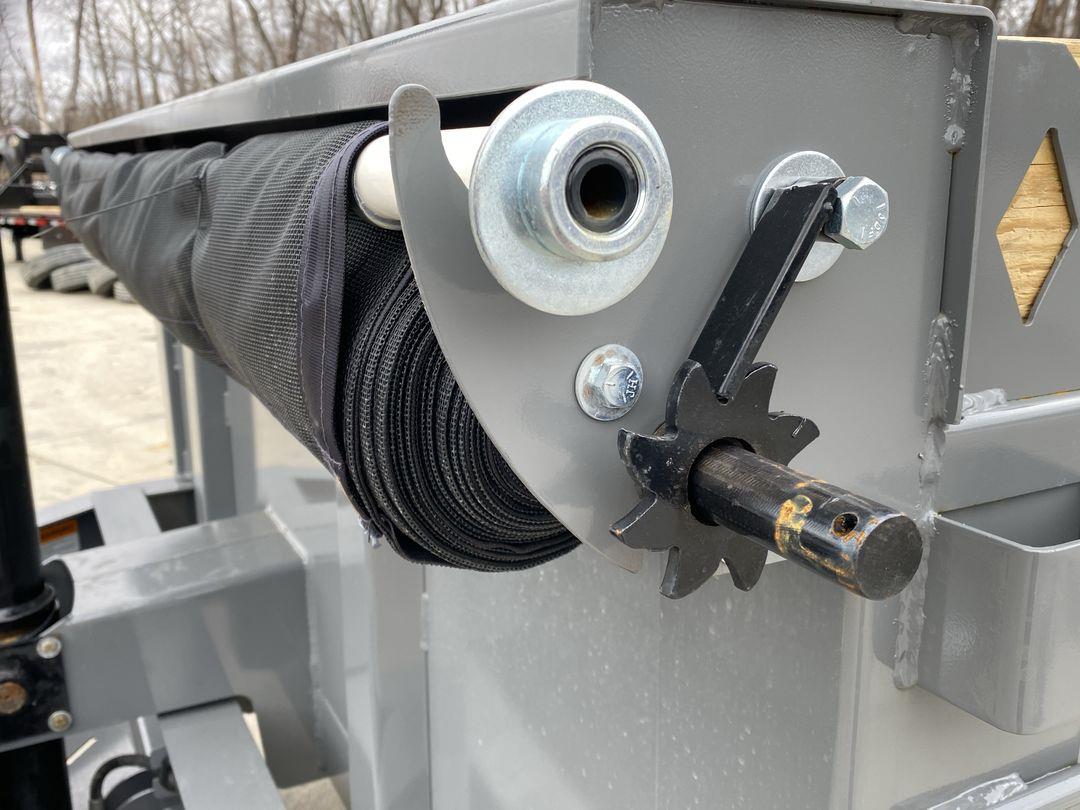

Tarp: 20' heavy duty black mesh tarp (installed)

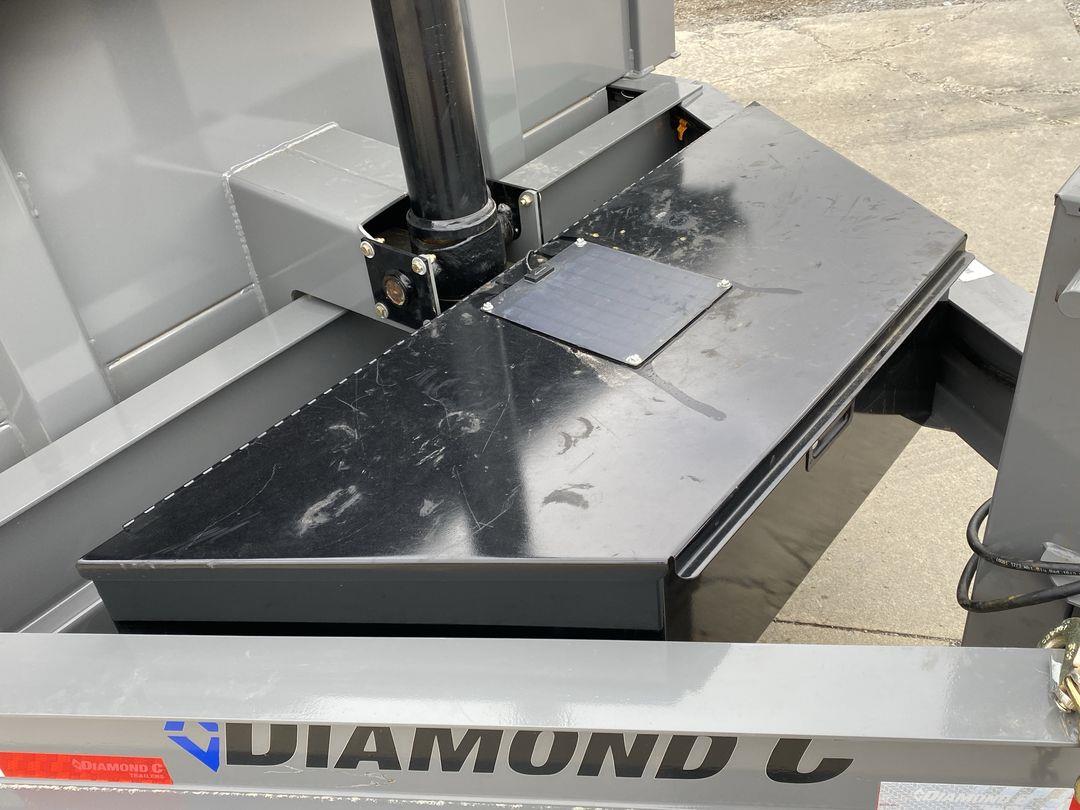

Battery/Charger: Group 27 battery with SolarPulse 7-watt charger
Paint: Cement Gray Difference Maker powdercoat
Spare Mount: Passenger (curb) side

WEIGHTS:
Empty Weight: ~4,450 lbs
GVWR: 14,900 lbs
Payload Capacity: ~10,450 lbs
Tongue Weight Capacity (10% of GVWR – Bumper Pull): 1,490 lbs
Total Effective Payload: ~11,940 lbs

DELIVERY RATES FROM ZIP CODE 62864:
Up to 100 miles – $150
101 to 300 miles – $2.00 per mile
301 to 1,200 miles – $3.00 per mile
Over 1,200 miles – $4.00 per mile (Lower 48 states only)

Stock Number: DCT67294

Condition: New

Width: 7' 0"

Length: 16' 0"

Trailer Type: DUMP TRAILERS

Model: LPT LPT207-16X82

Rear Configuration: 3 WAY GATE

Exterior Color: CEMENT GRAY

Location: Mount Vernon

Hitch Type: BUMPER PULL

GVWR: 14000

Est. Empty Weight: 5040

# of Axles: 2

Construction Type: STEEL

Year: 2023

VIN: 46UFU1624P1267294

Stock #: DCT67294

Brand: DIAMOND C

Is Rental: false

Our Price: $16,546.00

Cash Price: $13,500.00

You Save: $3,046.00 (18%)

OUR PRICES INCLUDE ALL AVAILABLE REBATES! Quotes are good for 30 days! Used trailers are sold as is where is. Credit/Debit Card payments are charged an automatic 3.75% service fee by our CC merchant. Prices are for cash, check, wire transfer, or online sale only. Financed units are sold for Selling Price and are not eligible for any discounts. Prices do not include tax, title, license and registration. We sometimes make mistakes and reserve the right to correct any advertised or sold unit pricing errors at any time. All online orders are subject to management review and product availability. All arrival dates and prices for on order units are estimated and may change. Down Payments are non-refundable.
